Product no. M-3032

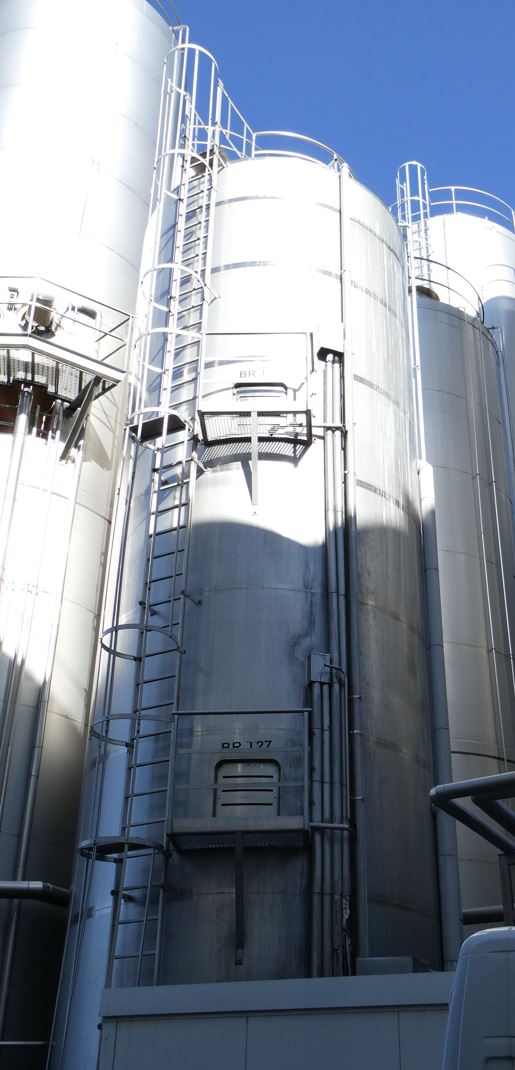

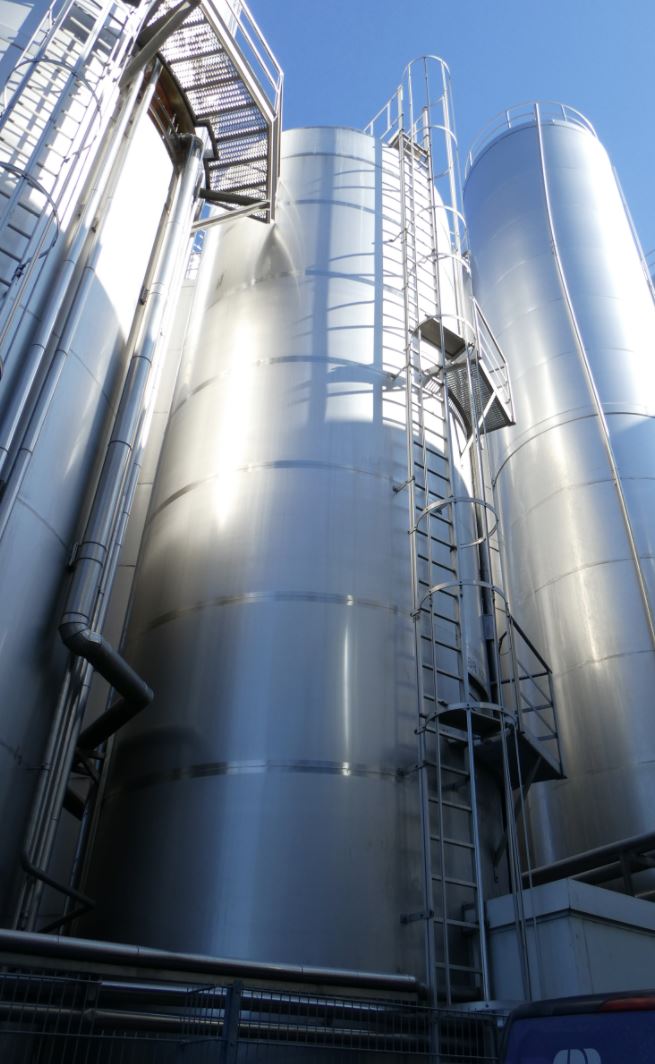

Rahmtank 3 x 35.000 liters made of V2A isolated, temperature-controllable, used, standing

EUR 47.300,00

add. 19 % VAT excl. shipping costs

Volume approx. 105,000.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Rahmtank 3 x 35.000 liters made of V2A isolated, temperature-controllable, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 105,000.00 litres. The diameter inside includes 3,700 mm.  Rahmtank 3 x 35.000 liters made of V2A isolated, temperature-controllable, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Tempering, Mixing,

General

  • Volume approx.

  • 105.000,00 litres

  • Chamber volume 1

  • 35000 litres

  • Chamber volume 2

  • 35000 litres

  • Chamber volume 3

  • 35000 litres

  • divided into chambers

  • 3 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1999

  • Manufacturer

  • Thrun

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 3.700 mm

  • External diameter

  • 3.820 mm

  • Cyl. height

  • 11.770 mm

  • Frame height

  • 1.230 mm

  • Total height

  • 14.490 mm

  • Wall thickness of product chamber head

  • 4,00 mm

  • Wall thickness of product chamber shell

  • 4,00 mm

  • Wall thickness of product chamber floor

  • 4,00 mm

Design

  • Weight approx.

  • 14.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and head

  • Insulation cladding

  • Fully welded stainless steel

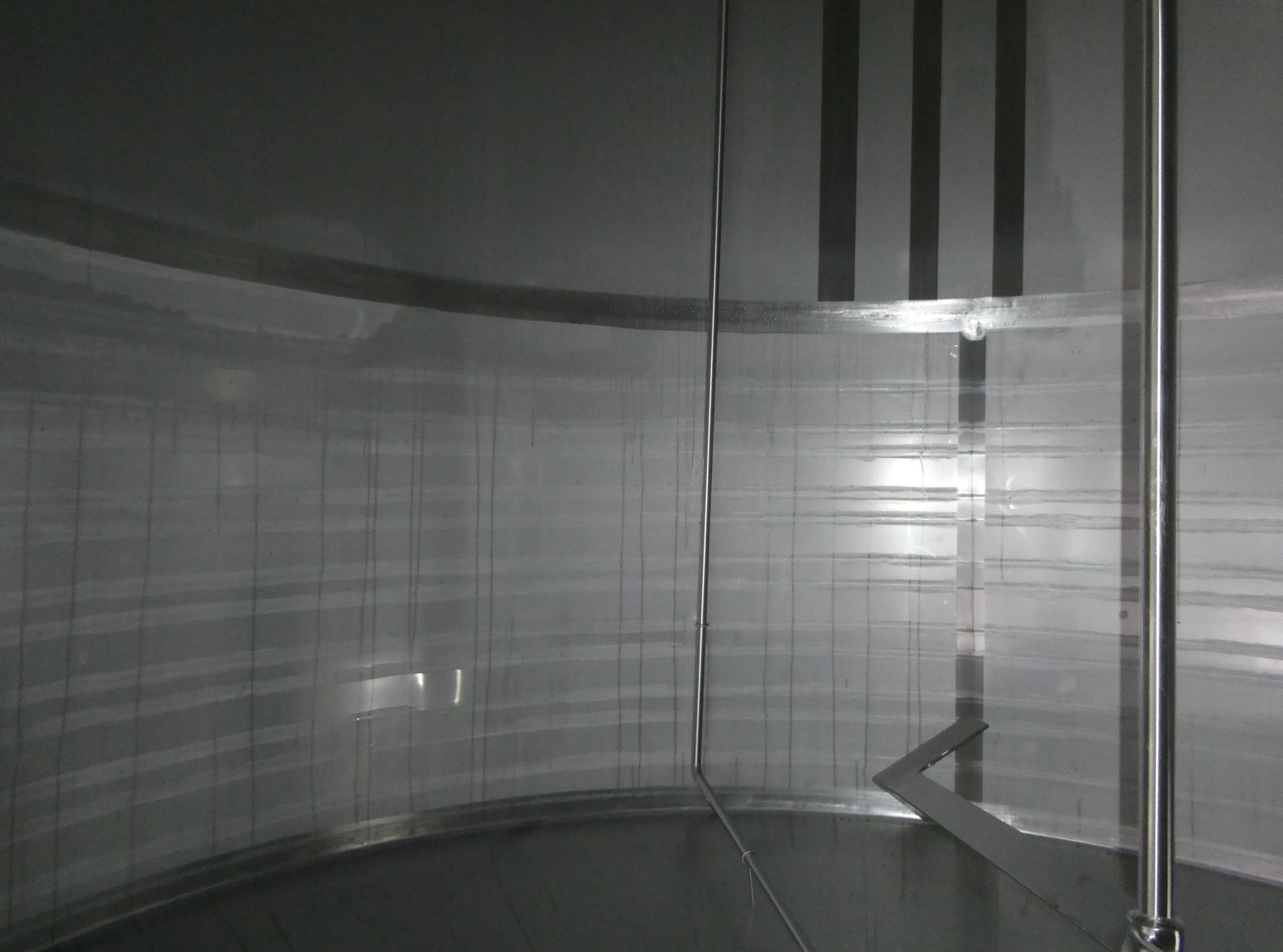

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

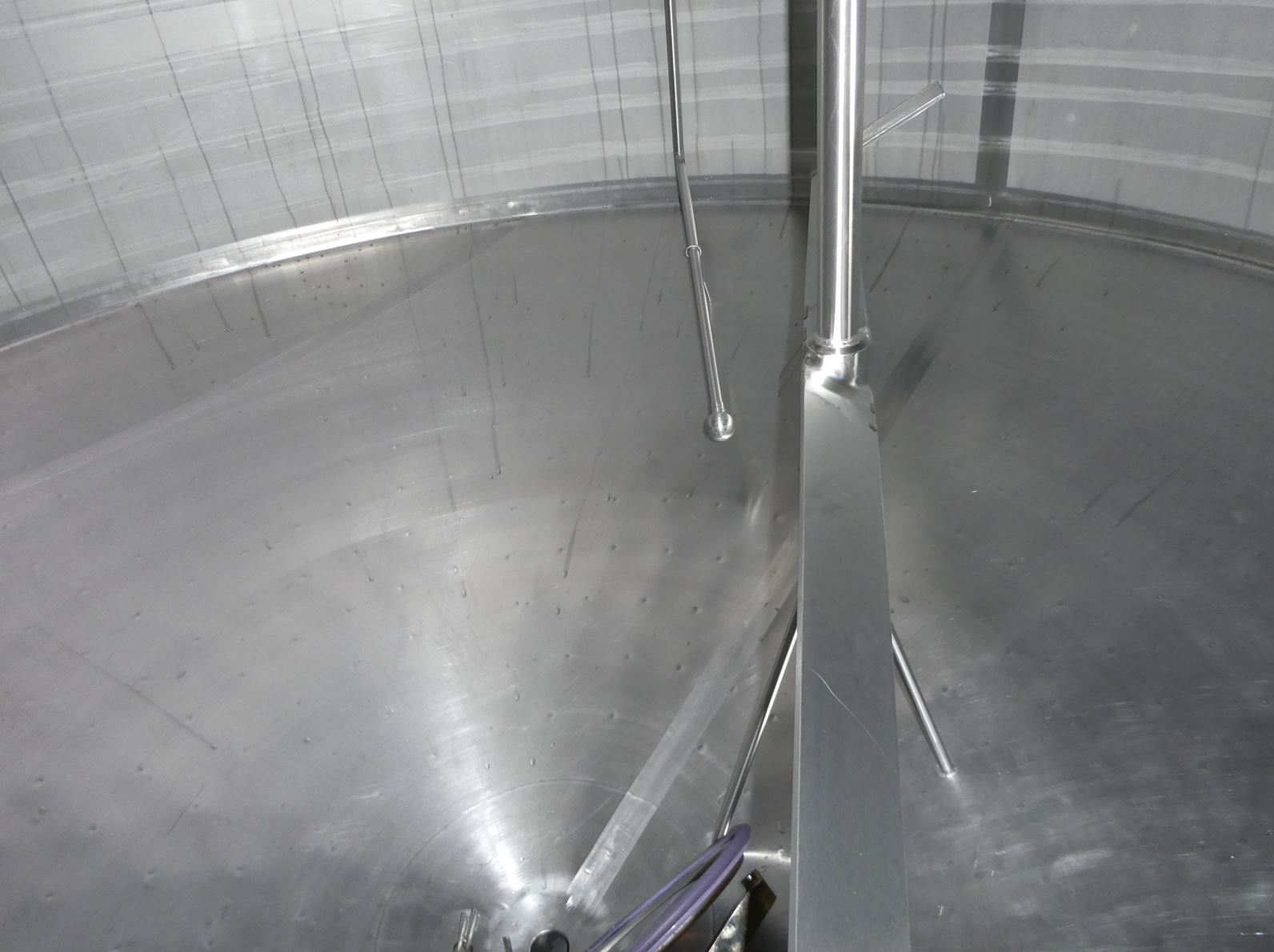

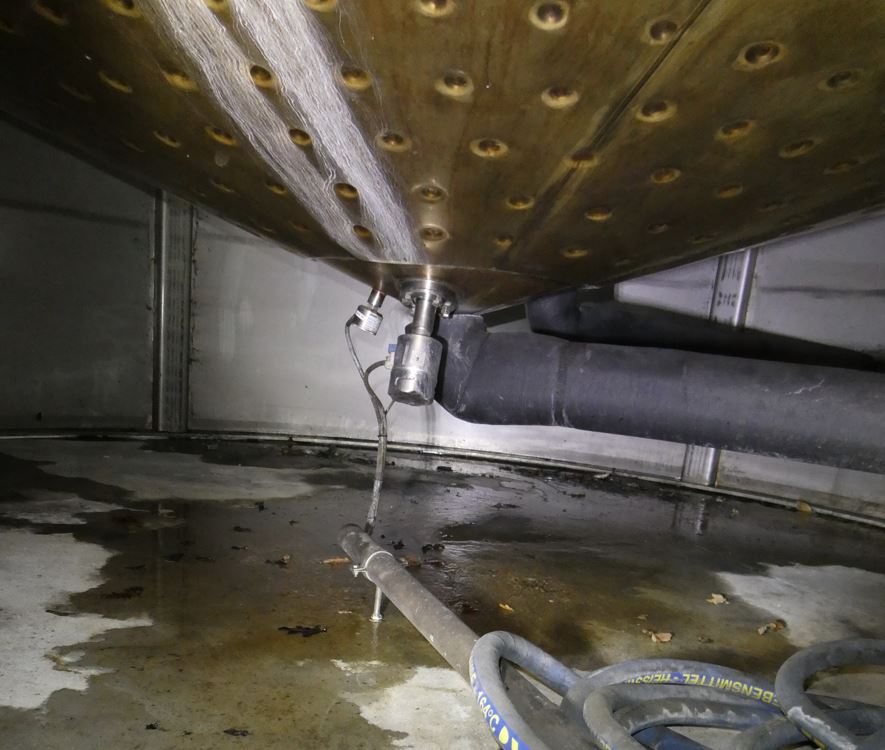

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

  • Product chamber operating temperature

  • 100,00 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Operating temperature

  • 100 °C

  • Temperature control system operating pressure/pipe chamber

  • 3,0 bar

  • Temperature control system operating temperature/pipe chamber

  • 100 °C

  • Temperature control system/pipe chamber capacity

  • 245 litres

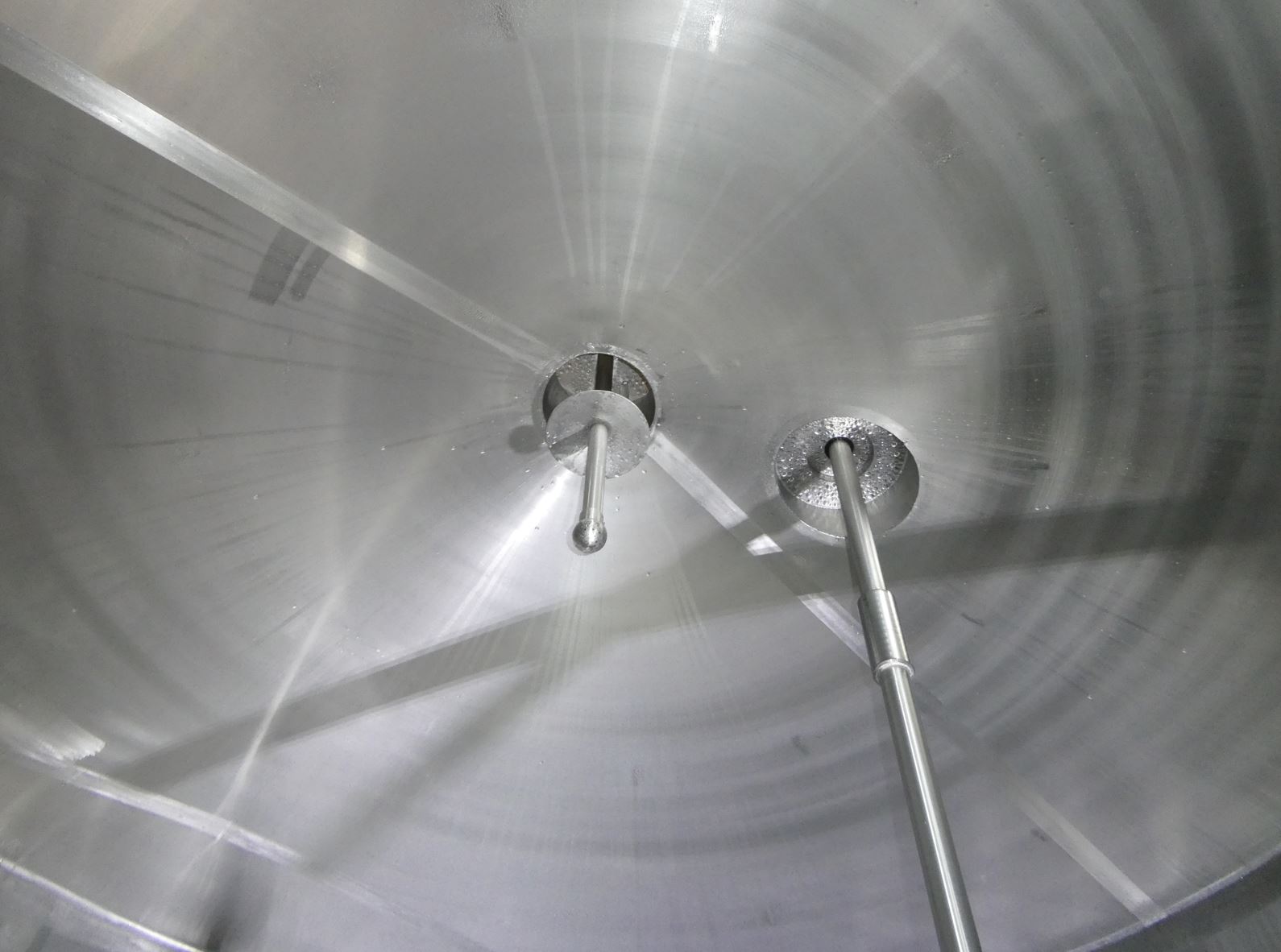

Agitator

  • Agitator quantity

  • 3 (piece)

  • Agitator type

  • Zeta agitator

  • Agitator position

  • Head off-centre

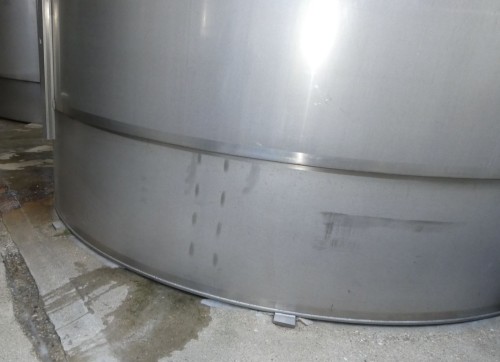

Supports

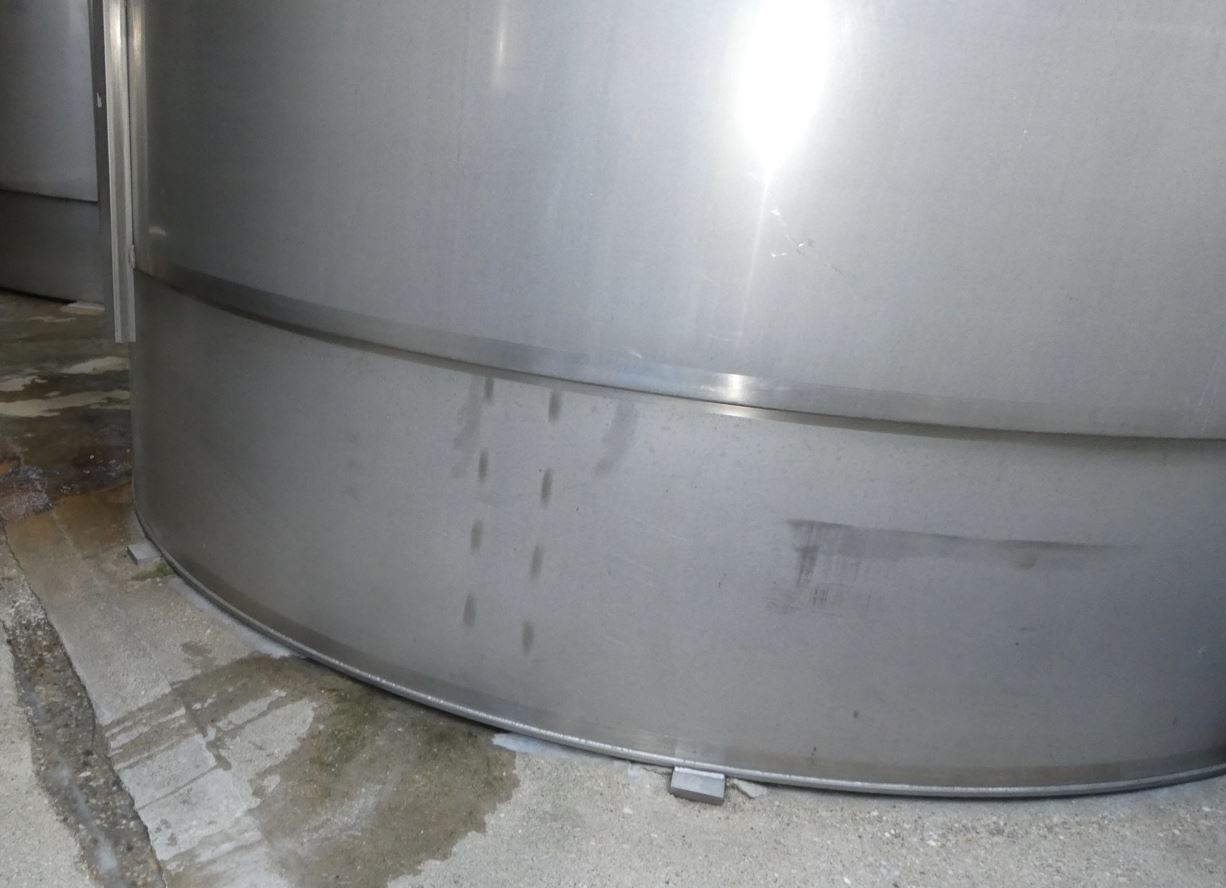

  • Supports

  • Stainless steel support skirt

  • Number of feet

  • 1 (piece)

  • Note on supports

  • Außendurchmesser Standzarge 4185 mm

Fixtures and fittings

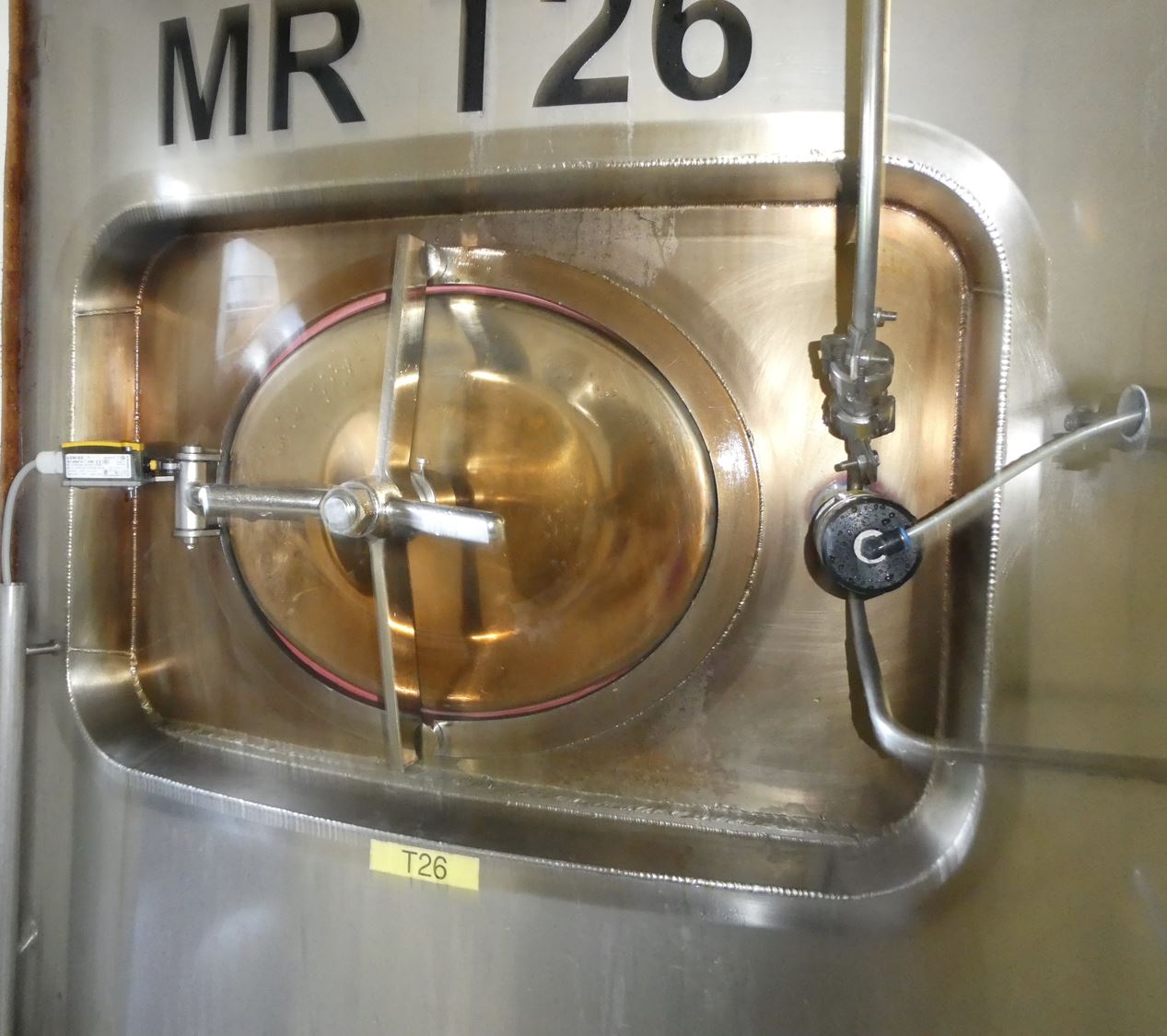

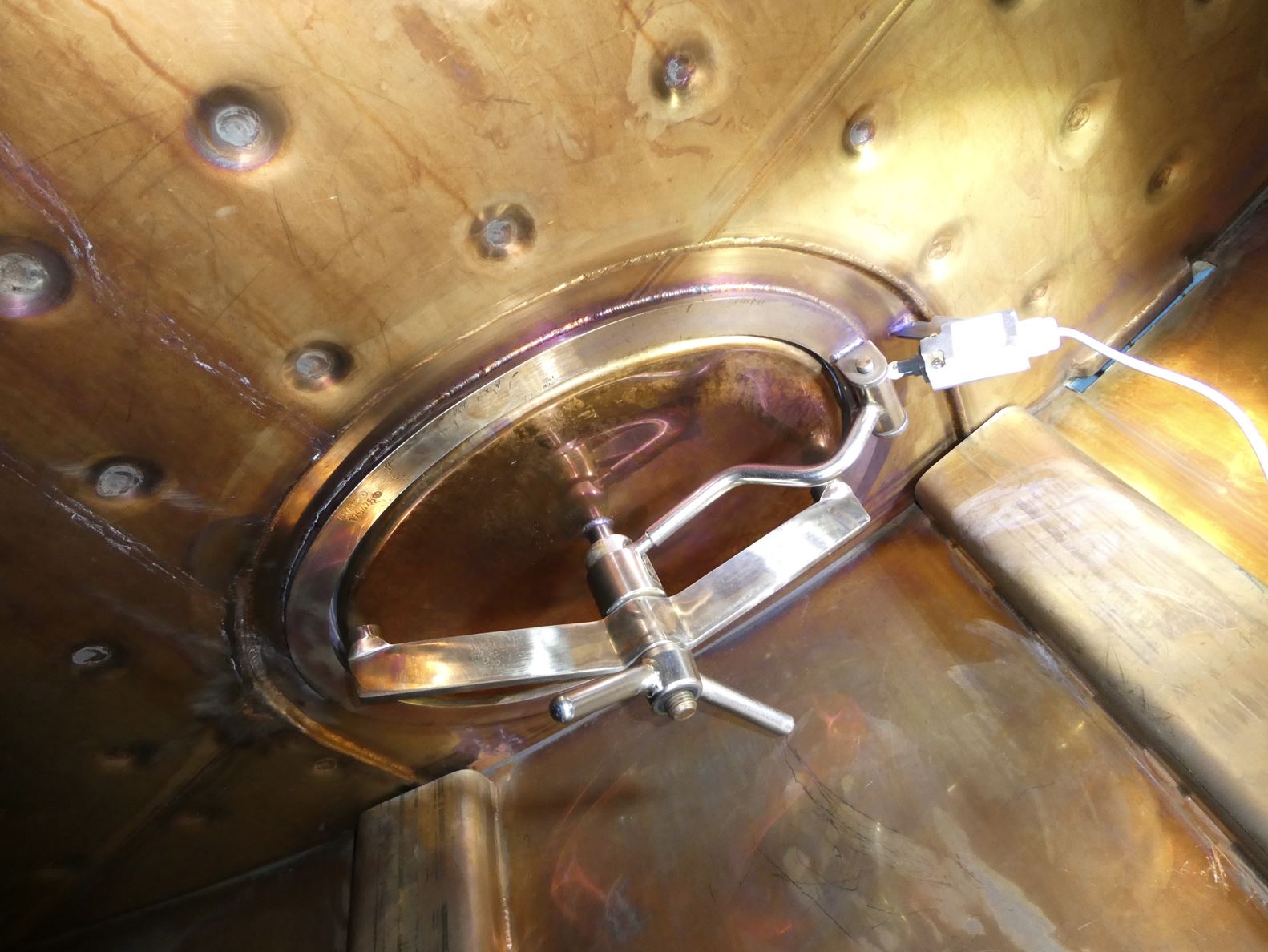

  • Manway position

  • In floor and shell

  • Outlet nozzle

  • 65

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

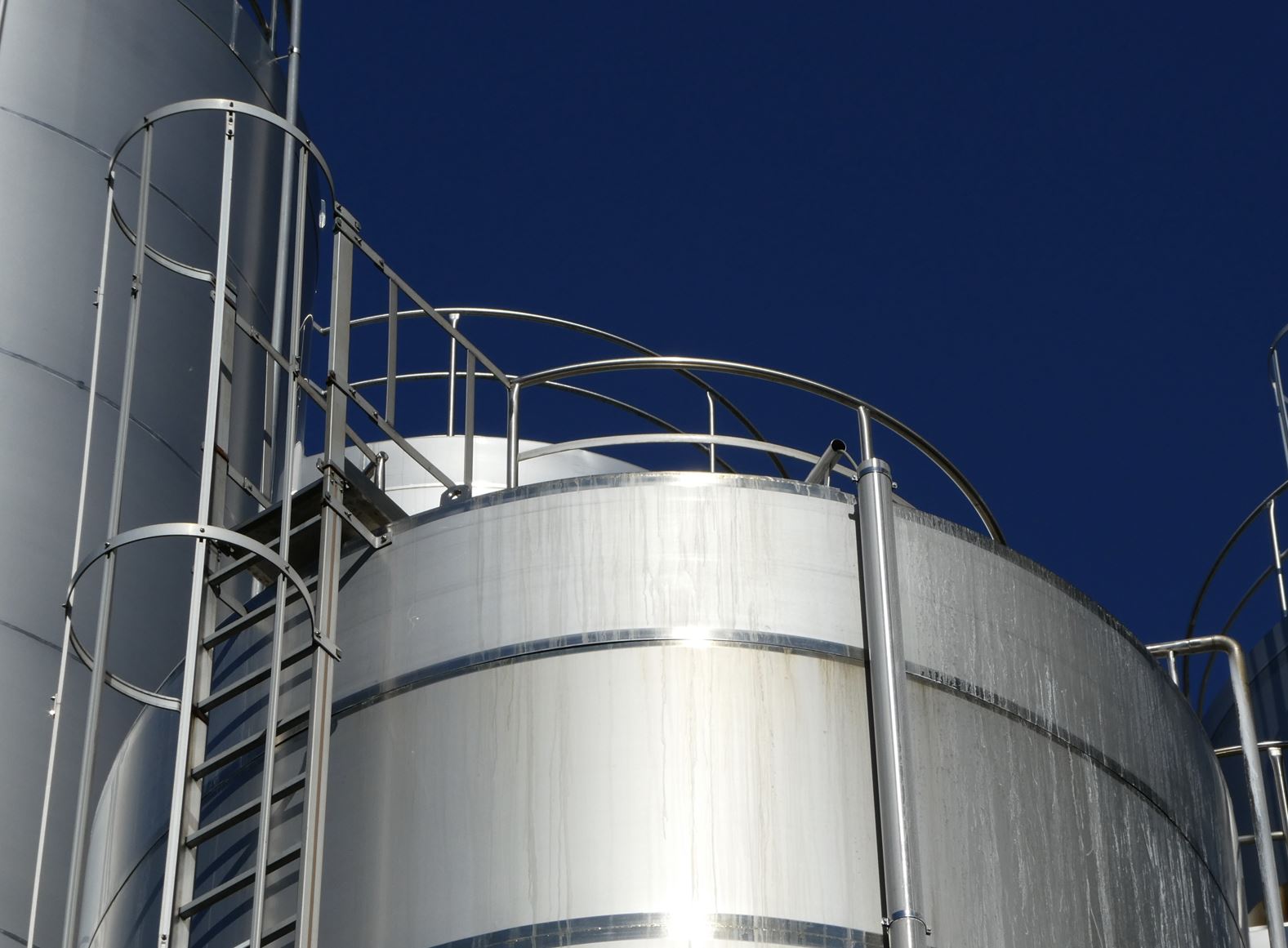

  • Additional fixtures and fittings

  • Ladder

  • Air vent

  • Handrails

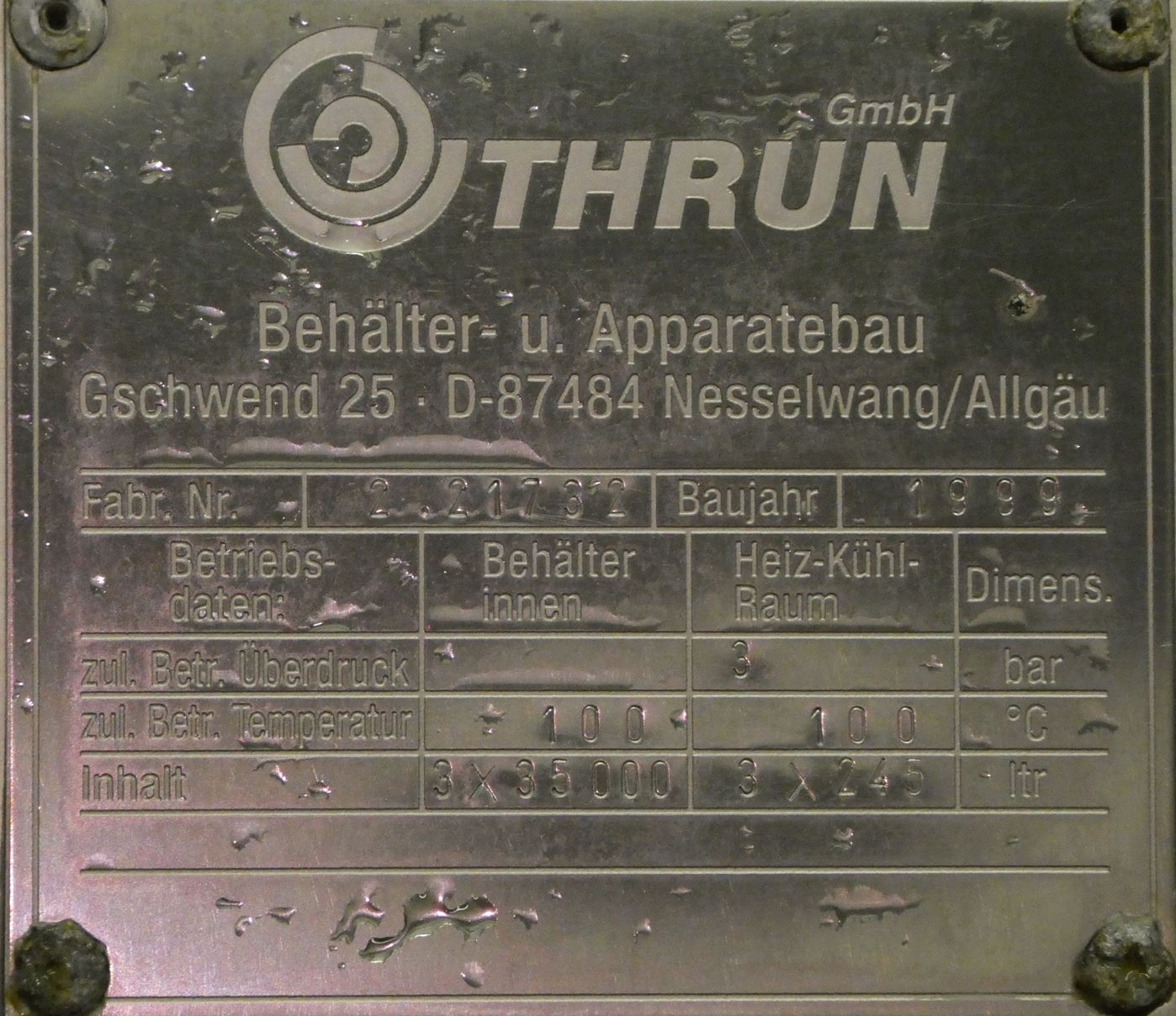

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

Other

  • Note

  • Heiz-/Kühlmantel bei einer Kammer defekt!

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
