Product no. M-2970

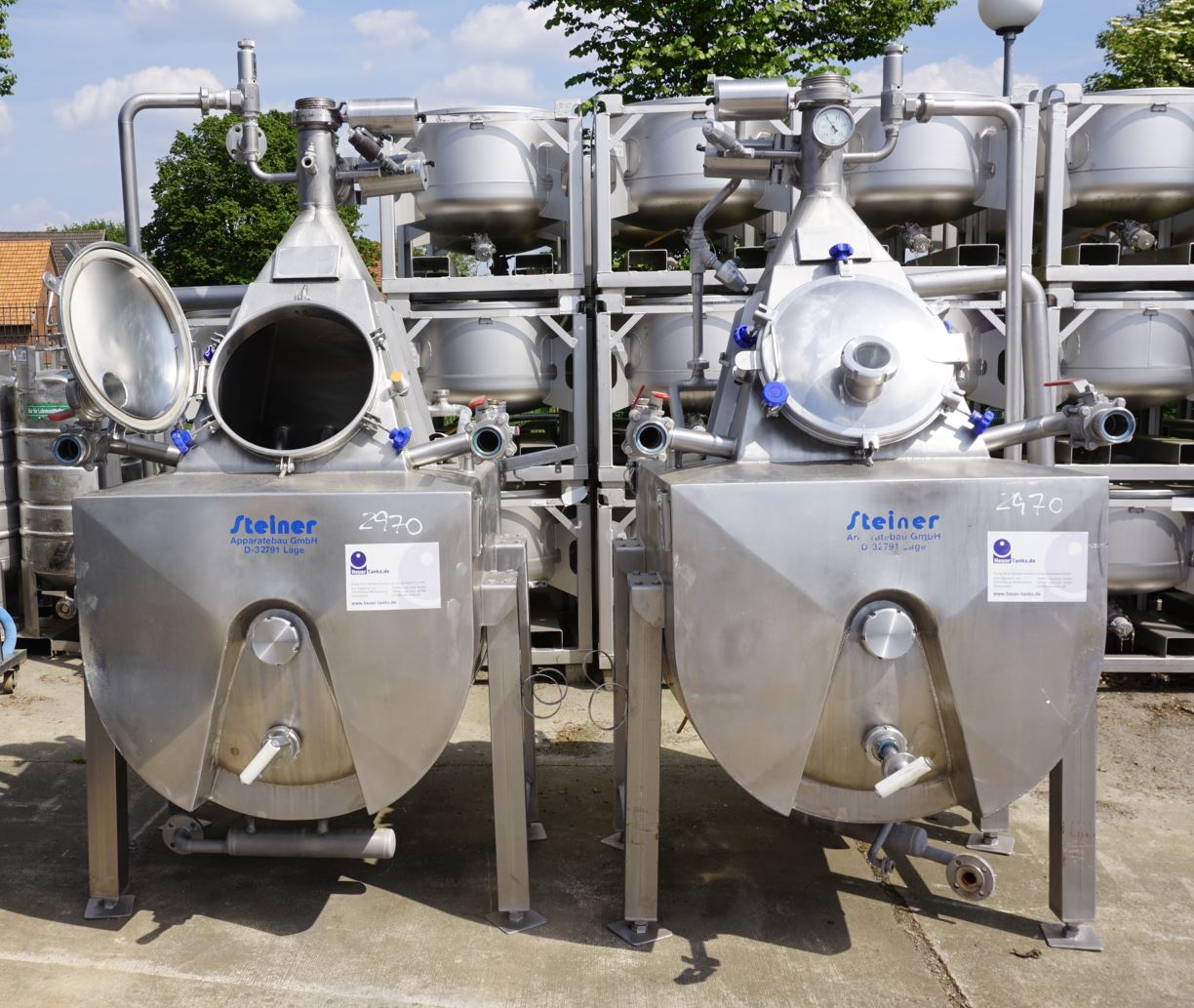

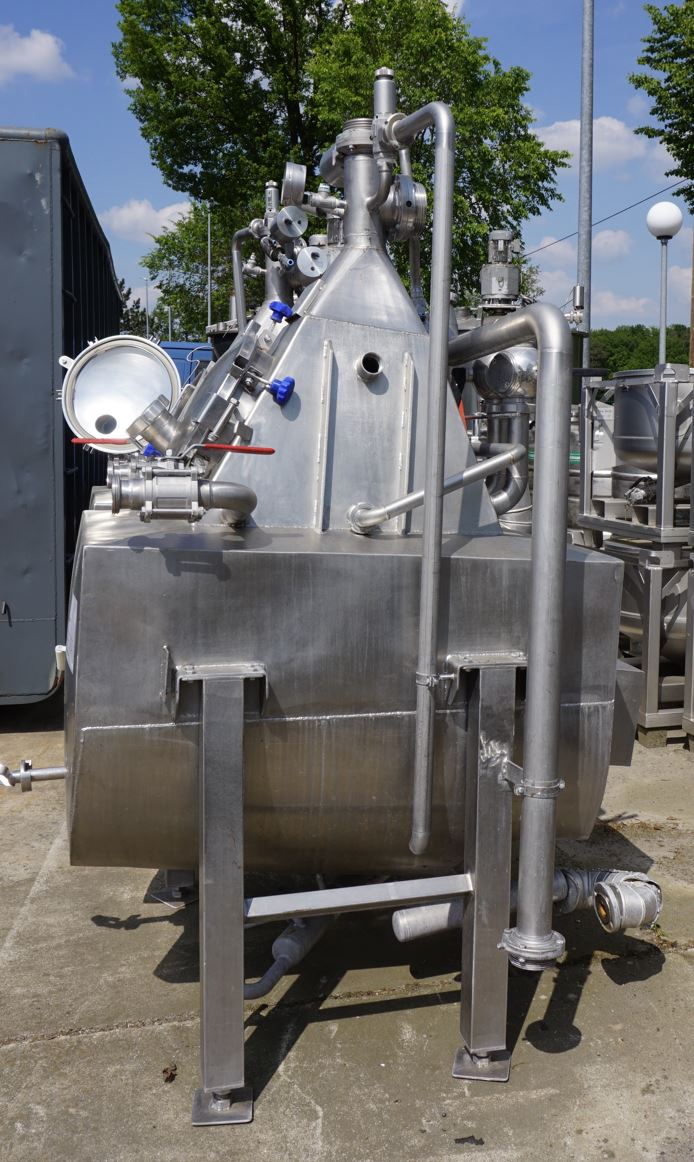

Mixer 230 liters made of V4A, temperature-controllable, isolated, used, horizontal

EUR 3.200,00

add. 19 % VAT excl. shipping costs

Volume approx. 230.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Mixer 230 liters made of V4A, temperature-controllable, isolated, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 230.00 litres. Mixer 230 liters made of V4A, temperature-controllable, isolated, used has the following dimensions: length 1,400 mm, width 920 mm,  Mixer 230 liters made of V4A, temperature-controllable, isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Tempering, Mixing, Under/over-pressure,

General

  • Volume approx.

  • 230,00 litres

  • Structure

  • Horizontal

  • Year of manufacture

  • 2000

  • Manufacturer

  • Steiner

  • Condition

  • Used

Dimensions approx.

  • Total height

  • 2.000 mm

  • Length

  • 1.400 mm

  • Width

  • 920 mm

Design

  • Weight approx.

  • 530,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Complete

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Product chamber operating over-pressure

  • 0,50 bar

  • Product chamber operating under-pressure

  • VAK bar

  • Product chamber operating temperature

  • 151,00 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell area

  • Operating temperature

  • 151 °C

  • Temperature control system operating pressure/pipe chamber

  • 4,0 bar

  • Temperature control system operating temperature/pipe chamber

  • 151 °C

  • Temperature control system/pipe chamber capacity

  • 17 litres

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Transverse mixer

  • Agitator position

  • Front face

  • Agitator 1 - Output

  • 0,75 kW

  • Agitator 1 - Voltage

  • 400 V

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway 1 size

  • 400 DN mm

  • Manway position

  • Front face

  • Outlet nozzle

  • 50

  • Cleaning/CIP nozzle

  • in head

  • Additional fixtures and fittings

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Reparaturstellen im Isoliermantel, Isolierverkleidung in V2A

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Milk tank, Storage tank, Buffer tank, Pre-buffer tank, Mixing tank, Process tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank,
