Product no. M-2987

Maischetank 5.700 liters made of V2A, single-walled, used, standing

EUR 5.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 5,700.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

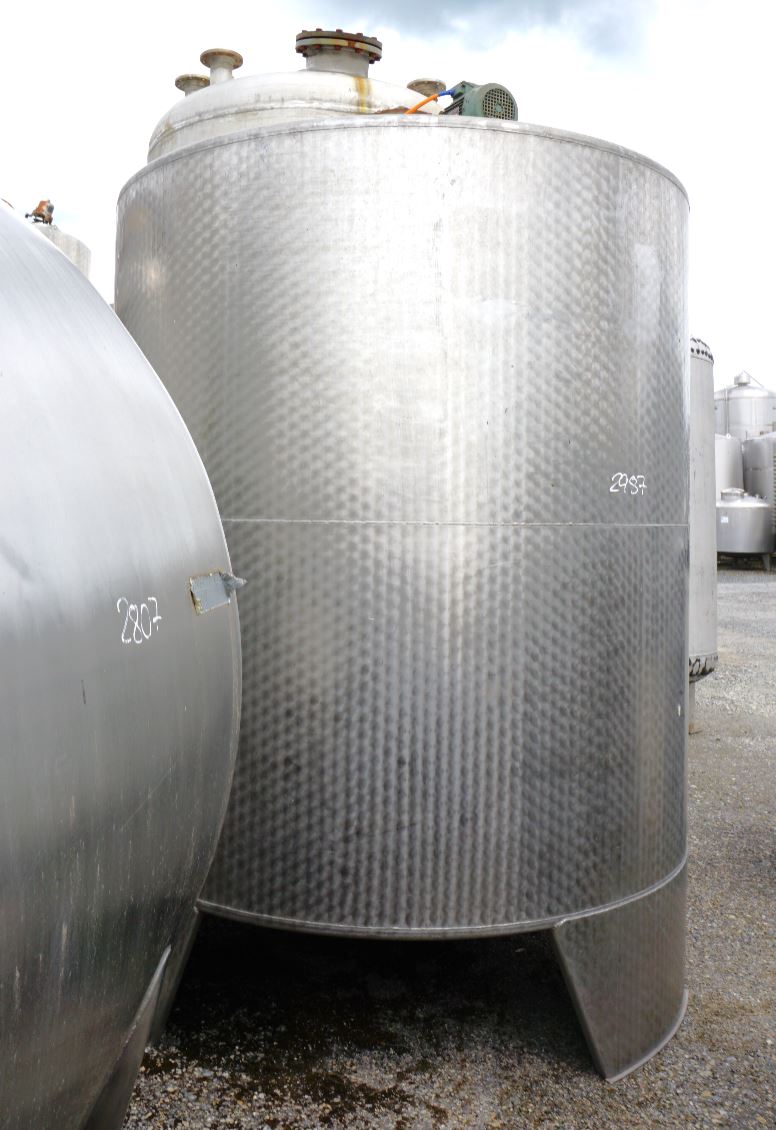

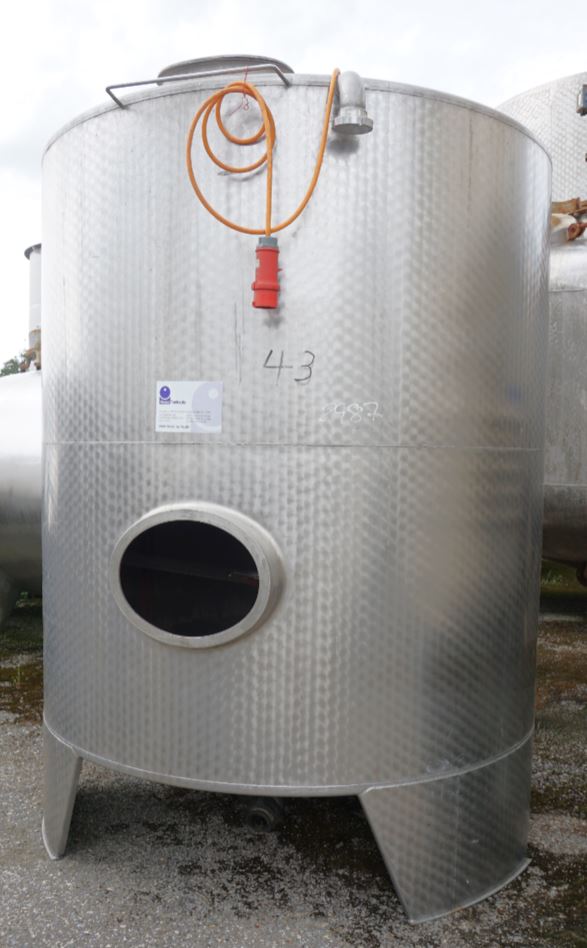

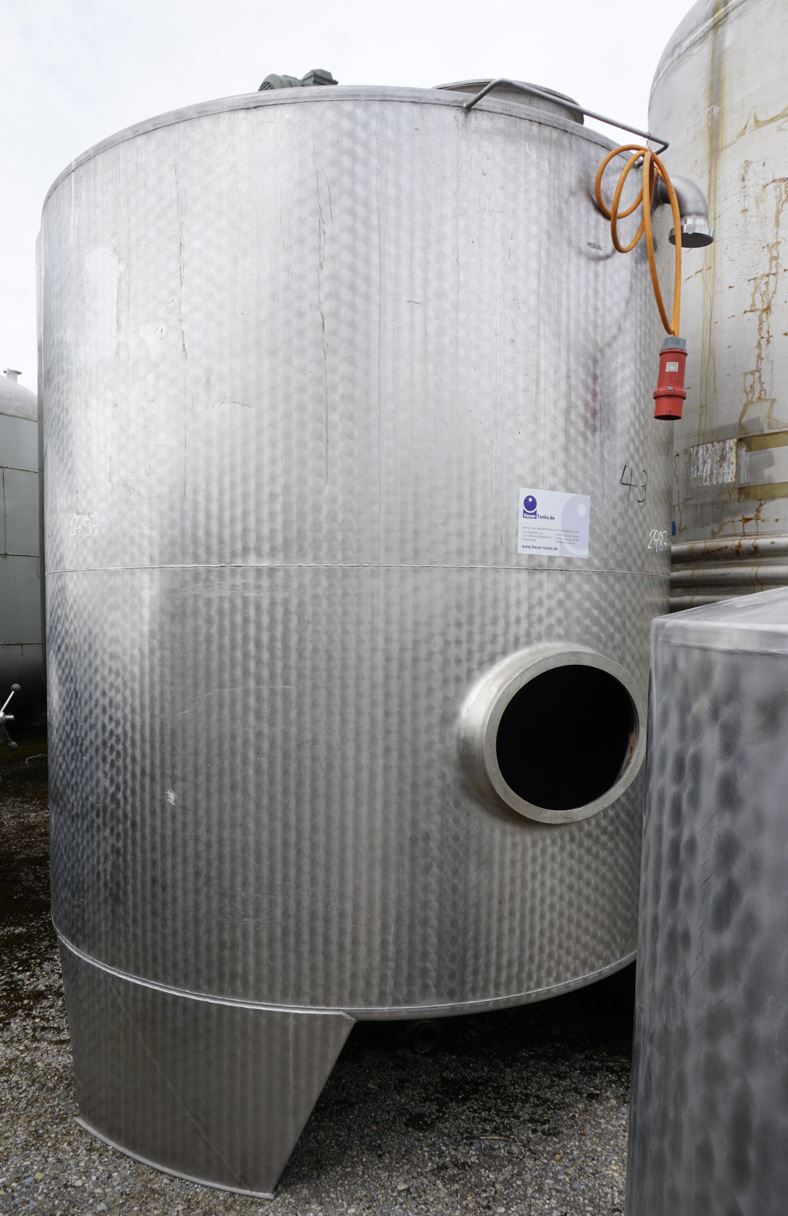

Maischetank 5.700 liters made of V2A, single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 5,700.00 litres.  Maischetank 5.700 liters made of V2A, single-walled, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 5.700,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.910 mm

  • Cyl. height

  • 2.000 mm

  • Foot height

  • 460 mm

  • Total height

  • 3.100 mm

Design

  • Weight approx.

  • 800,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

  • Floor type

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

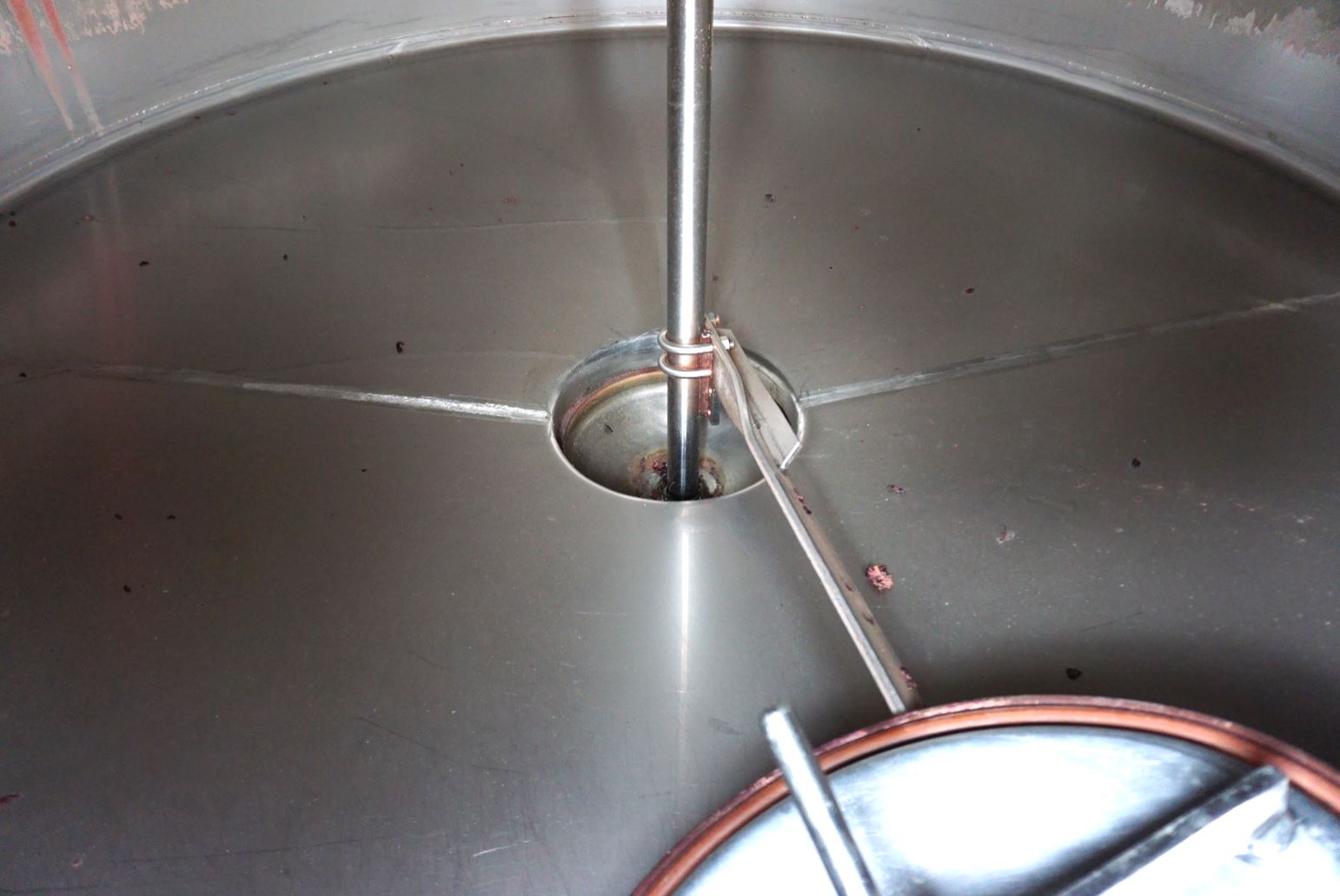

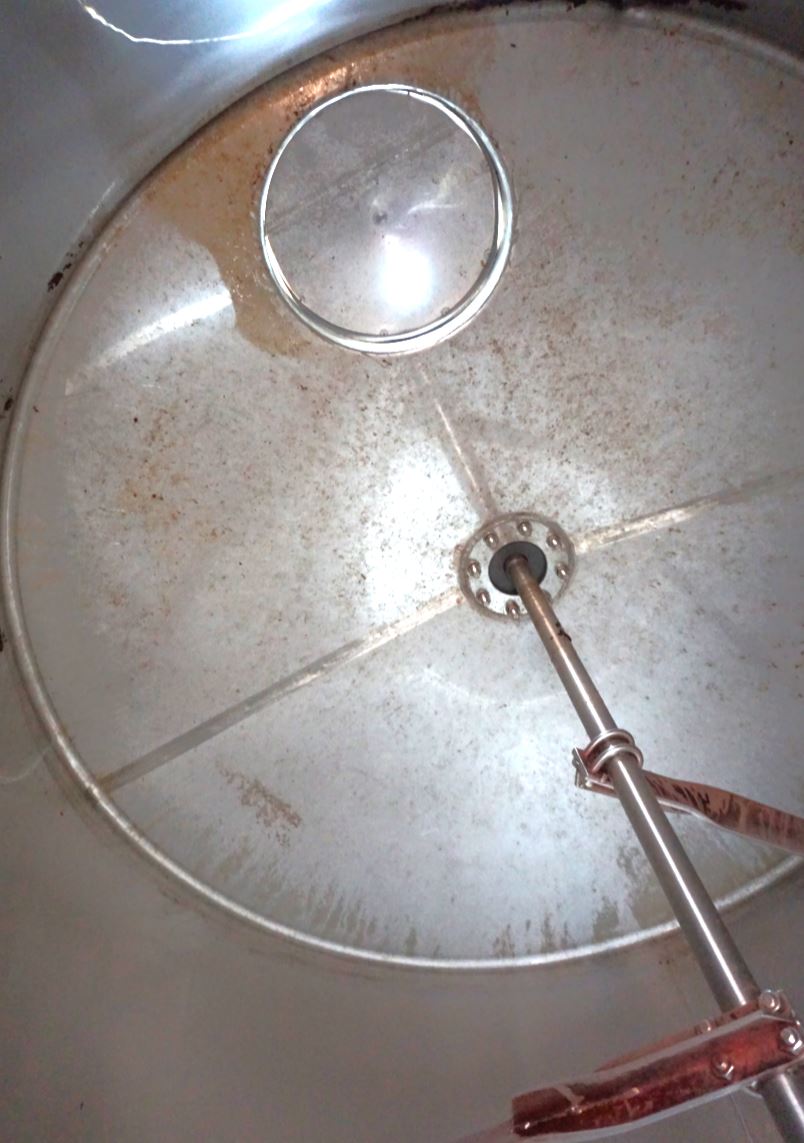

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Paddle agitator

  • Note on agitator

  • Welle bodengelagert

  • Agitator position

  • Head central

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

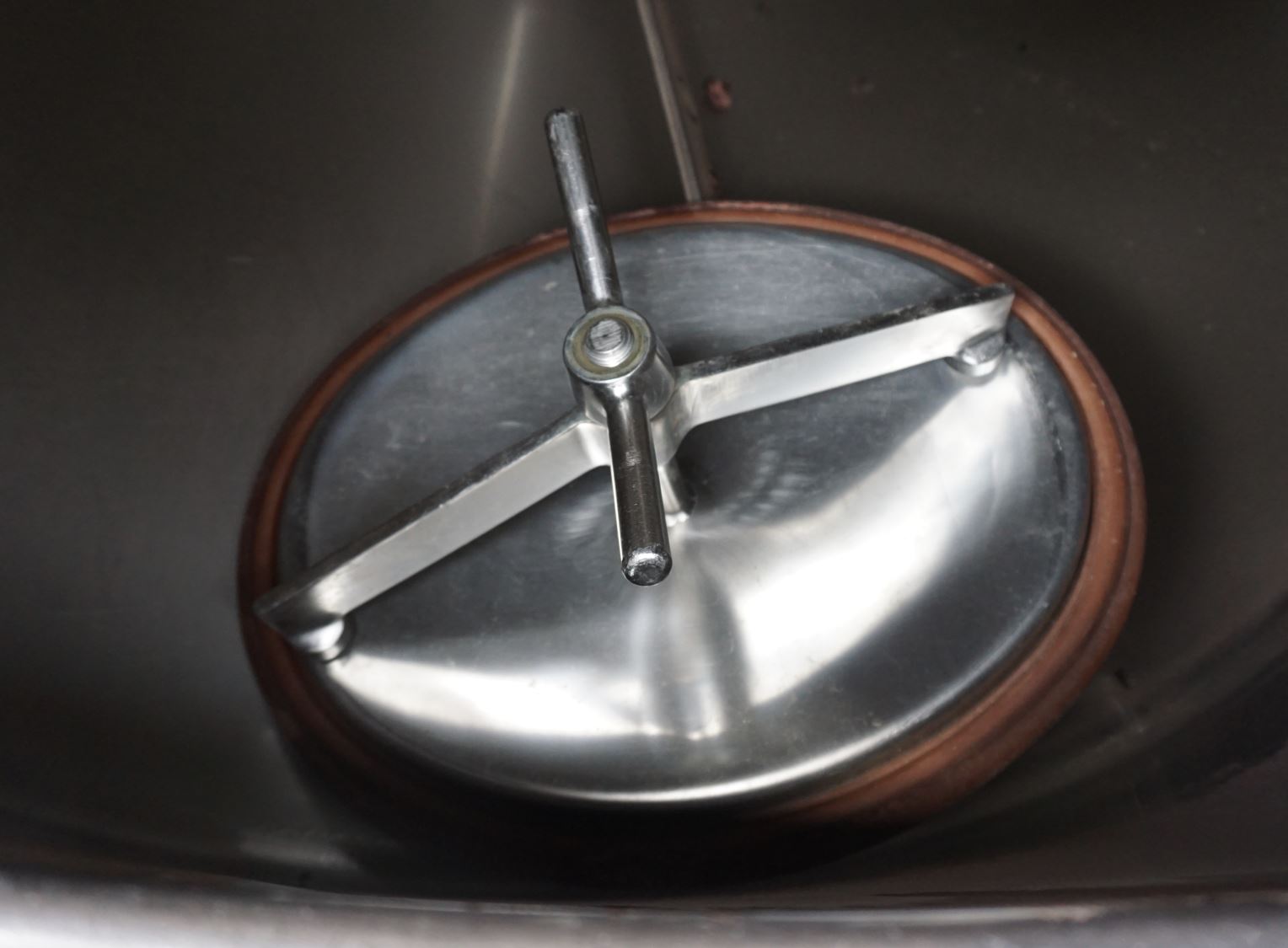

  • Manway position

  • In shell and head

  • Nozzles/connectors in shell

  • 1xDN65 (piece)

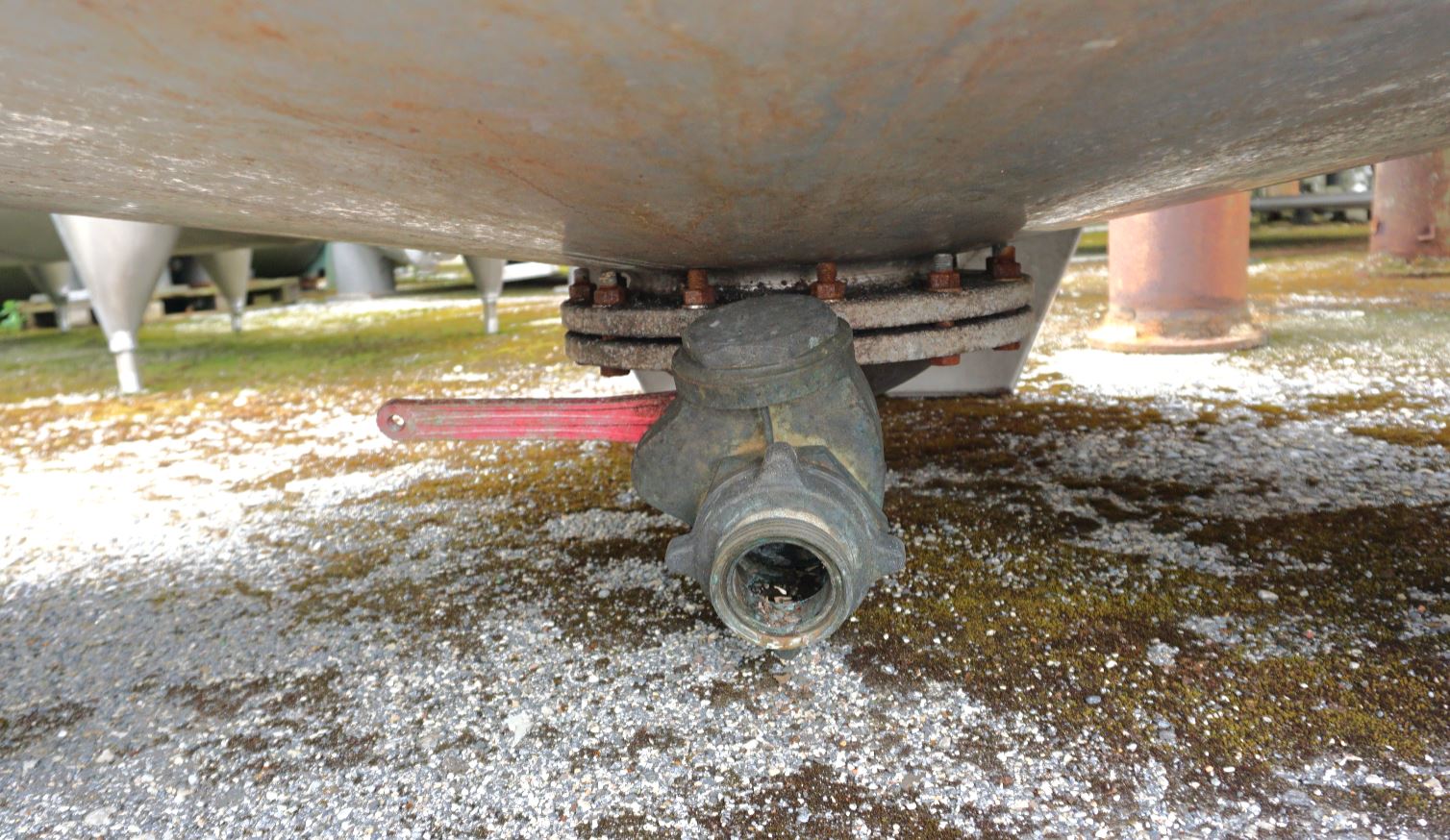

  • Outlet nozzle

  • 65

  • Additional fixtures and fittings

  • Ladder stay

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank,
