Product no. M-1661

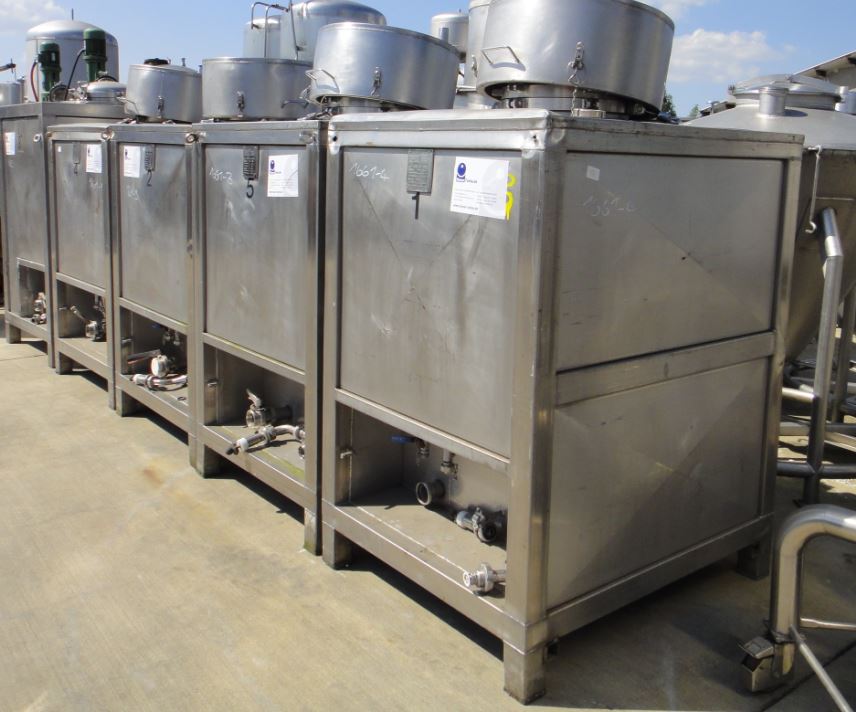

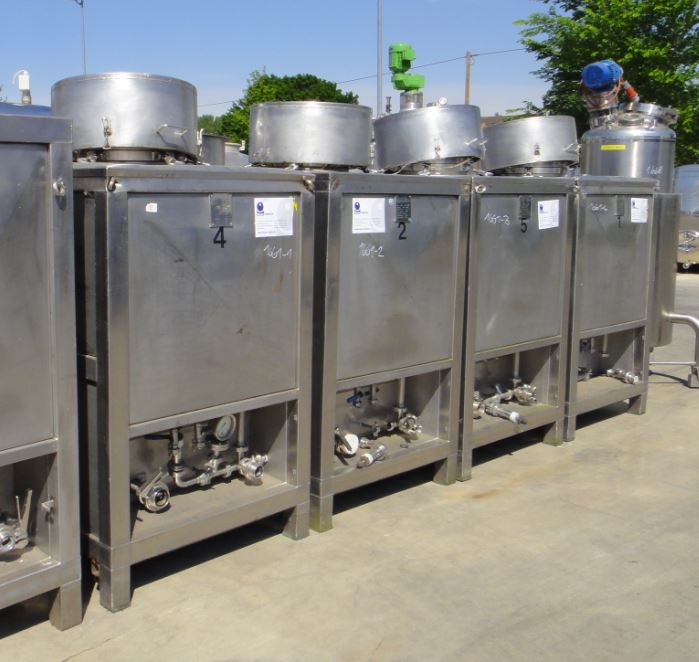

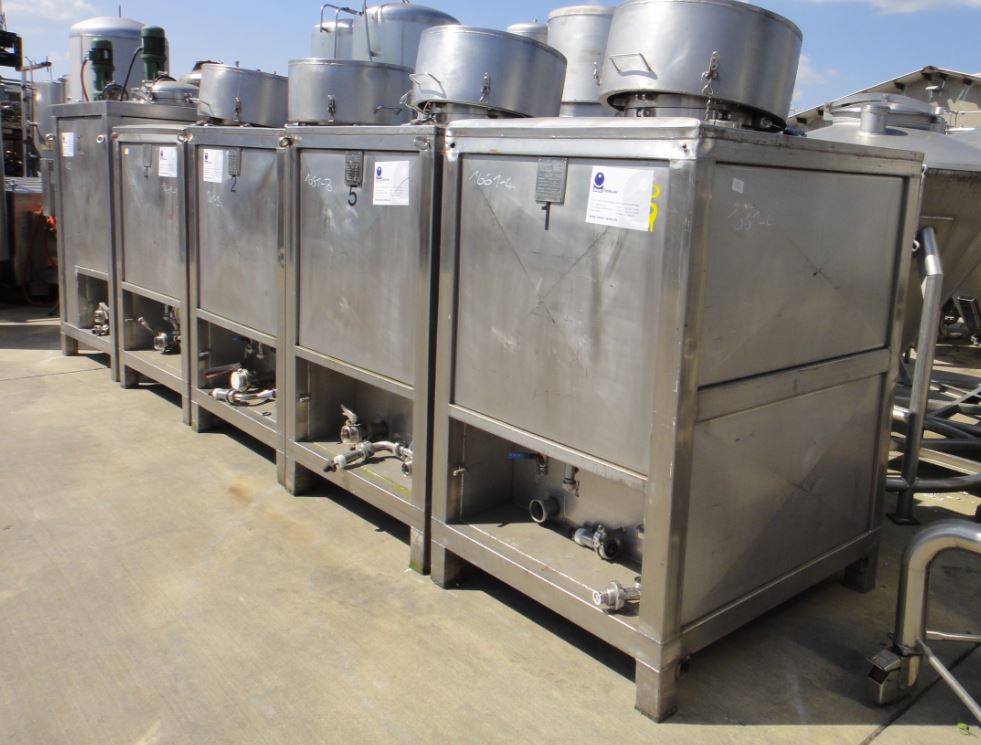

Durckbehälter 490 liters made of V2A, used, temperature-controllable, isolated, standing

EUR 2.100,00

add. 19 % VAT excl. shipping costs

Volume approx. 490.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Durckbehälter 490 liters made of V2A, used, temperature-controllable, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 490.00 litres. The diameter inside includes 700 mm. Durckbehälter 490 liters made of V2A, used, temperature-controllable, isolated has the following dimensions: length 1,200 mm, width 1,000 mm,  Durckbehälter 490 liters made of V2A, used, temperature-controllable, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Cooling, Tempering, Under/over-pressure, Anaerobic digestion,

General

  • Volume approx.

  • 490,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1987

  • Manufacturer

  • BAM, Freising

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 700 mm

  • External diameter

  • 800 mm

  • Cyl. height

  • 700 mm

  • Total height

  • 1.850 mm

  • Length

  • 1.200 mm

  • Width

  • 1000 mm

Design

  • Weight approx.

  • 300,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Complete

  • Insulation cladding

  • Fully welded stainless steel

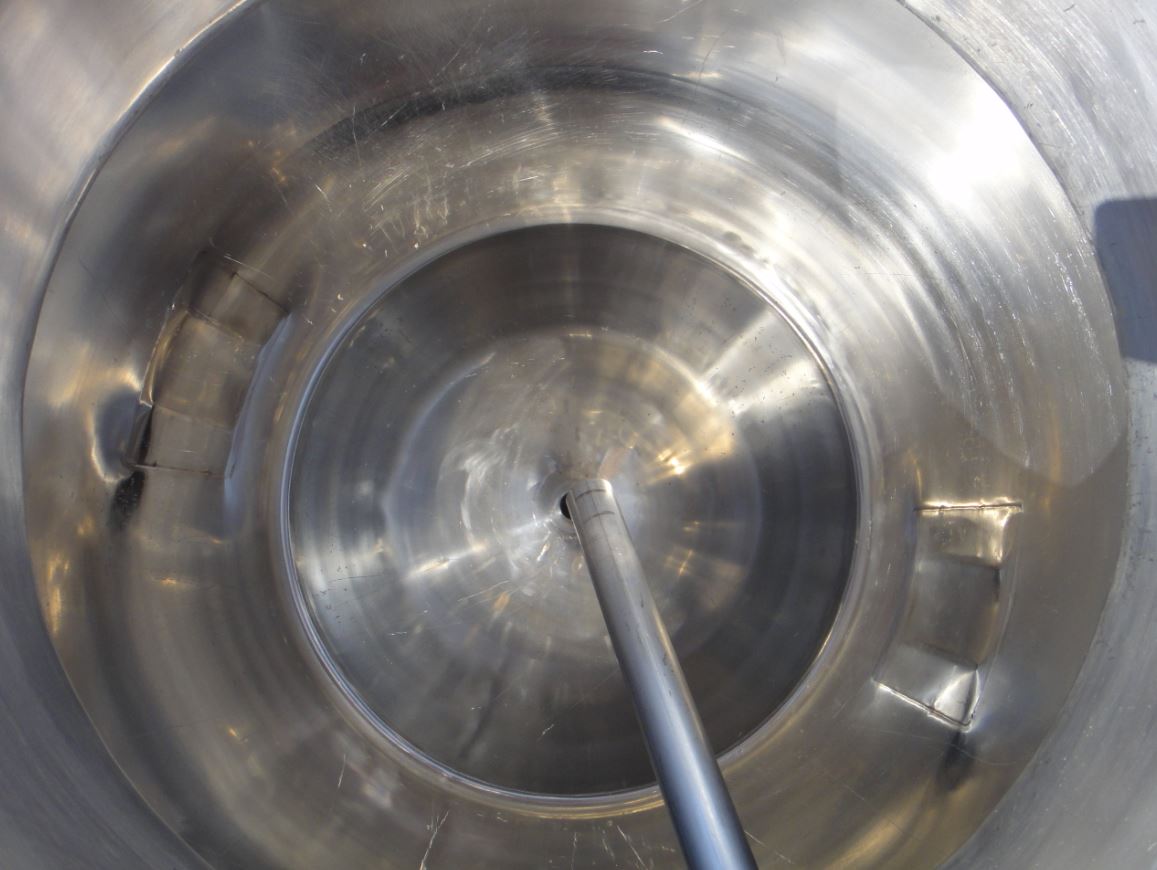

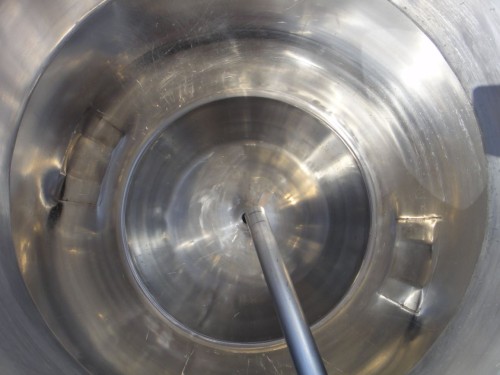

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 3,00 bar

  • Product chamber operating temperature

  • 20 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell area

  • Temperature control system

  • Double shell

  • Operating pressure

  • 3 bar

  • Operating temperature

  • 20 °C

  • Temperature control system operating pressure/pipe chamber

  • 3,0 bar

  • Temperature control system operating temperature/pipe chamber

  • 20 °C

Supports

  • Supports

  • Stainless steel frame

  • Note on supports

  • mit Gabelstapler unterfahrbar

Fixtures and fittings

  • Manway 1 size

  • 400 DN mm

  • Manway position

  • In head

  • Outlet nozzle

  • 50

  • Additional fixtures and fittings

  • Nameplate

Technical documentation

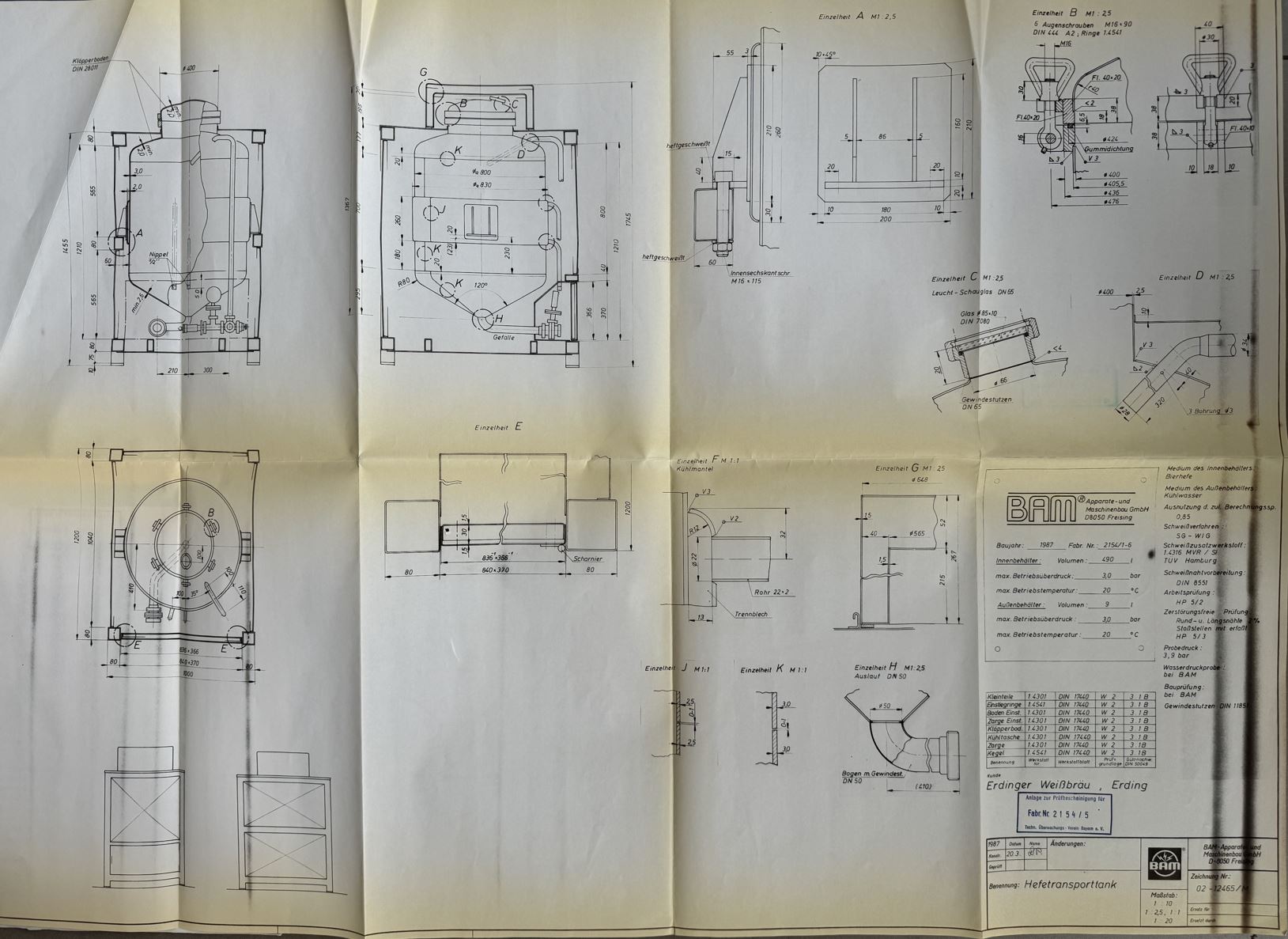

  • Technical documentation

  • Designation

  • Pressure test certificate

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Pressure tank, Process tank, Fermentation tank, Anaerobic digestion tank, Cold water tank,

Agriculture: Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Pressure tank, Process tank, CIP tank, Cooling tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Pressure tank, Process tank, Fermentation tank, Anaerobic digestion tank, Thermal buffer, Cold water tank, Filter tank,
