Product no. M-2410

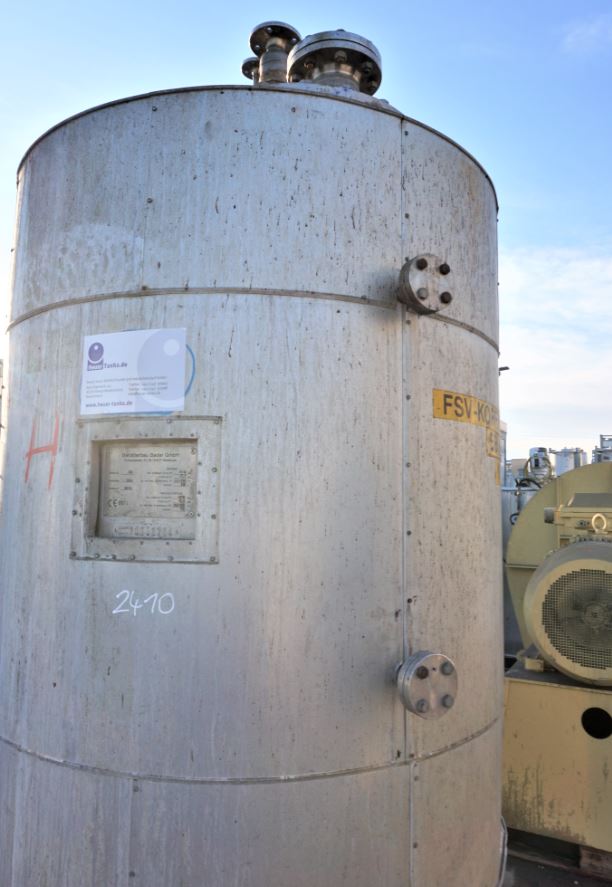

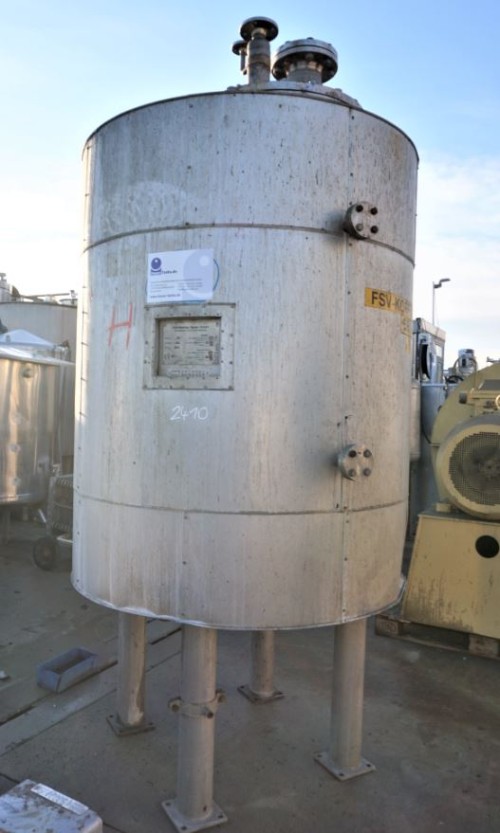

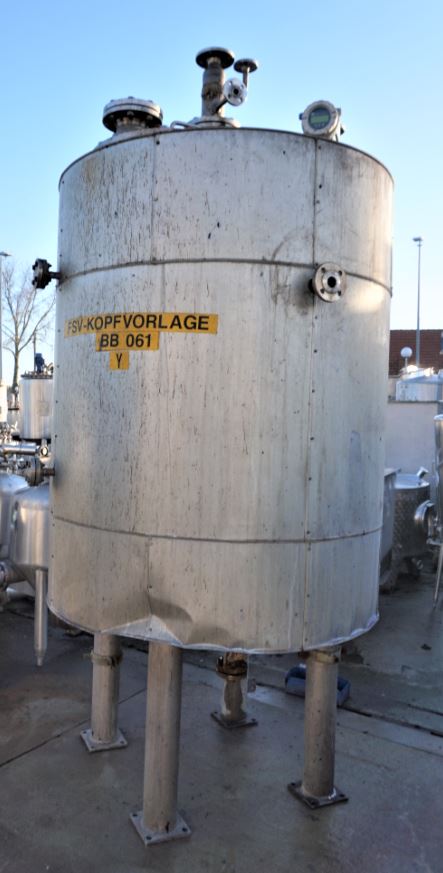

Pressure tank 930 liters made of V4A, temperature-controllable, isolated, standing

EUR 4.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 930.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 930 liters made of V4A, temperature-controllable, isolated consists of the material 1.4571(AISI316) V4A. The volume is approx. 930.00 litres. The diameter inside includes 1,000 mm.  Pressure tank 930 liters made of V4A, temperature-controllable, isolated was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Boiling, Tempering, Under/over-pressure,

General

  • Volume approx.

  • 930,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2004

  • Manufacturer

  • Bader

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.000 mm

  • External diameter

  • 1.200 mm

  • Cyl. height

  • 900 mm

  • Total height

  • 2.700 mm

  • Wall thickness of product chamber head

  • 12,00 mm

  • Wall thickness of product chamber shell

  • 10,00 mm

  • Wall thickness of product chamber floor

  • 8,00 mm

Design

  • Weight approx.

  • 900,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Complete

  • Insulation cladding

  • Bolted steel

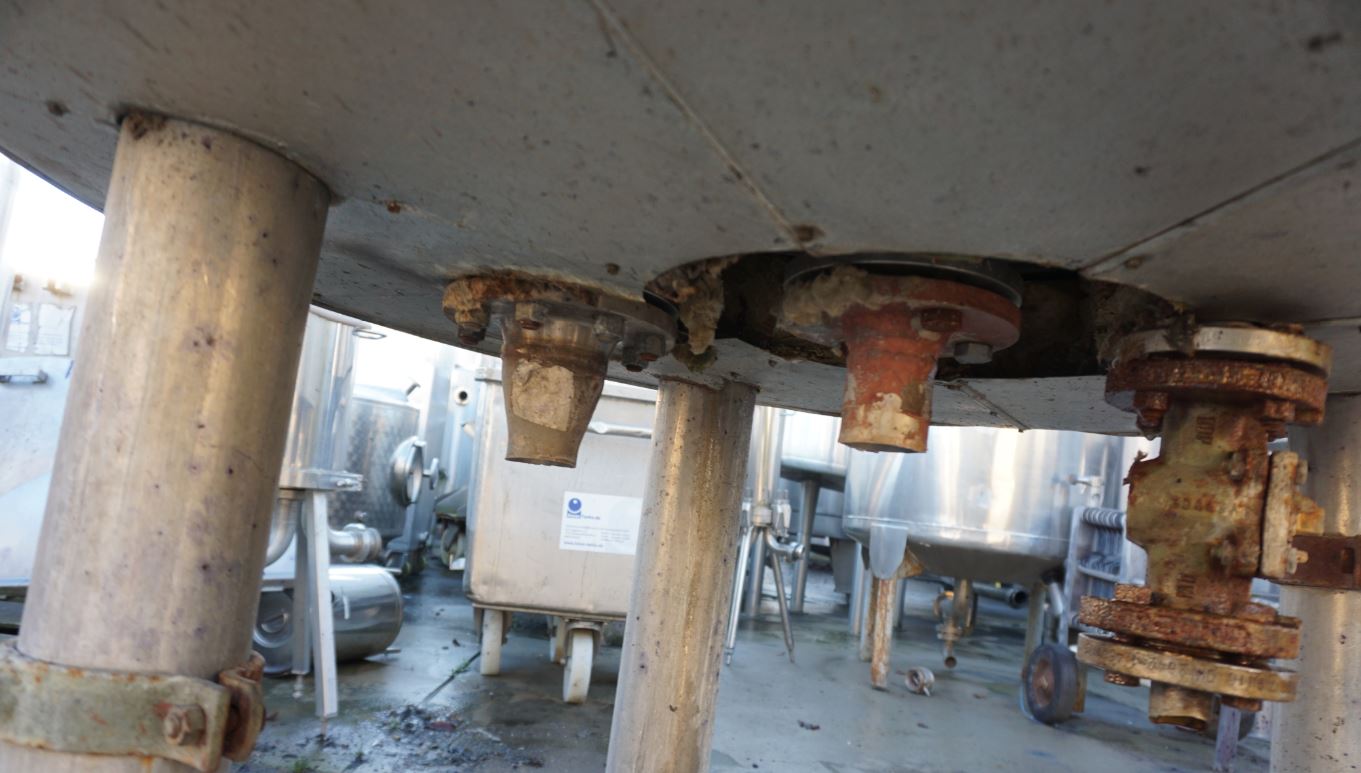

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 6,00 bar

  • Product chamber operating under-pressure

  • -1 bar

  • Product chamber operating temperature

  • 250,00 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Temperature control system

  • Double shell

  • Operating pressure

  • 6,00 bar

  • Operating temperature

  • 250 °C

  • Temperature control system operating pressure/pipe chamber

  • 6 bar

  • Temperature control system operating temperature/pipe chamber

  • 250 °C

  • Temperature control system/pipe chamber capacity

  • 170 litres

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

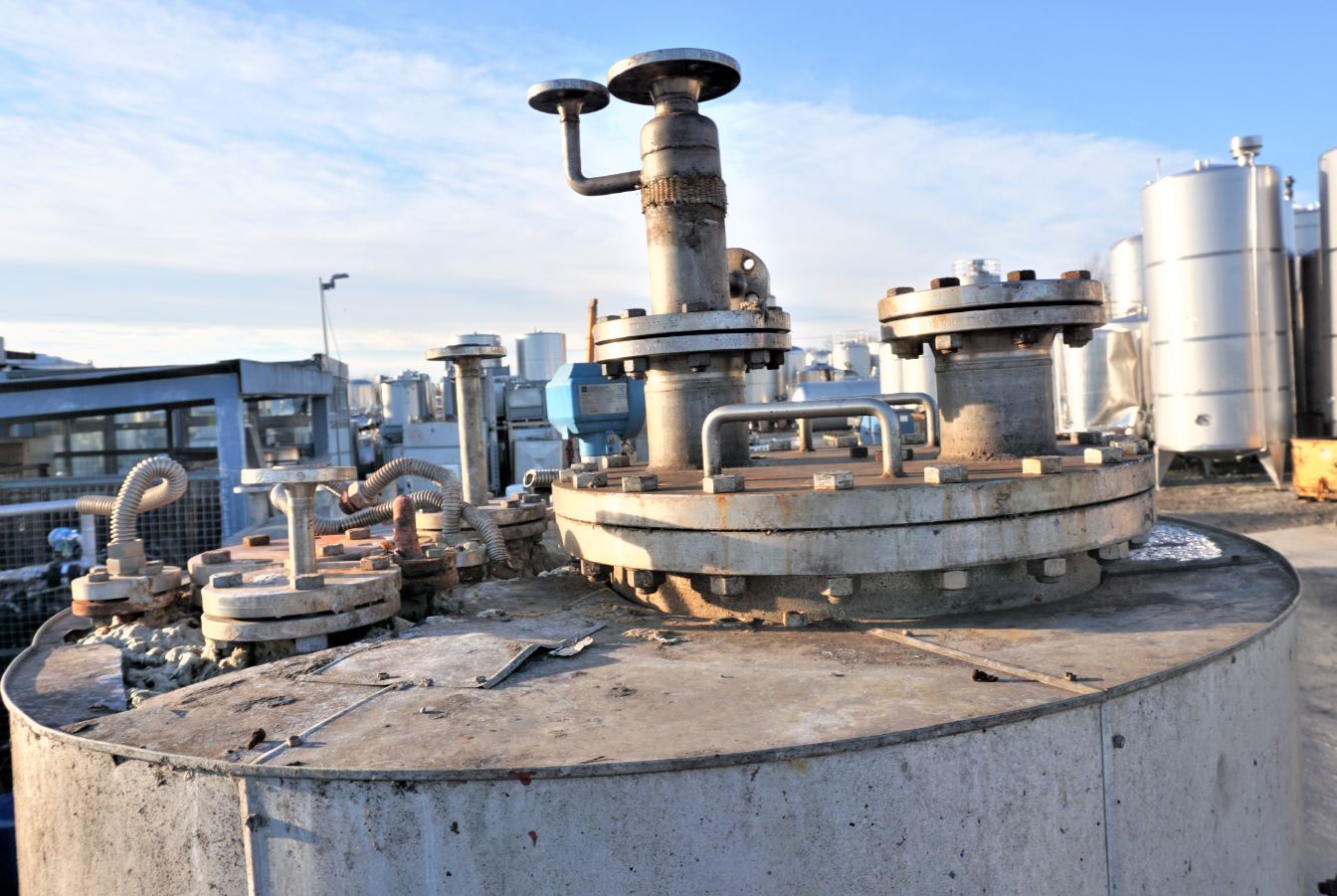

  • Manway 1 size

  • 500 DN mm

  • Manway position

  • In head

  • Nozzle connector

  • Flange

  • Nozzles/connectors in head

  • 3xDN50 2xDN80 2xDN100 (piece)

  • Outlet nozzle

  • 50

  • Additional fixtures and fittings

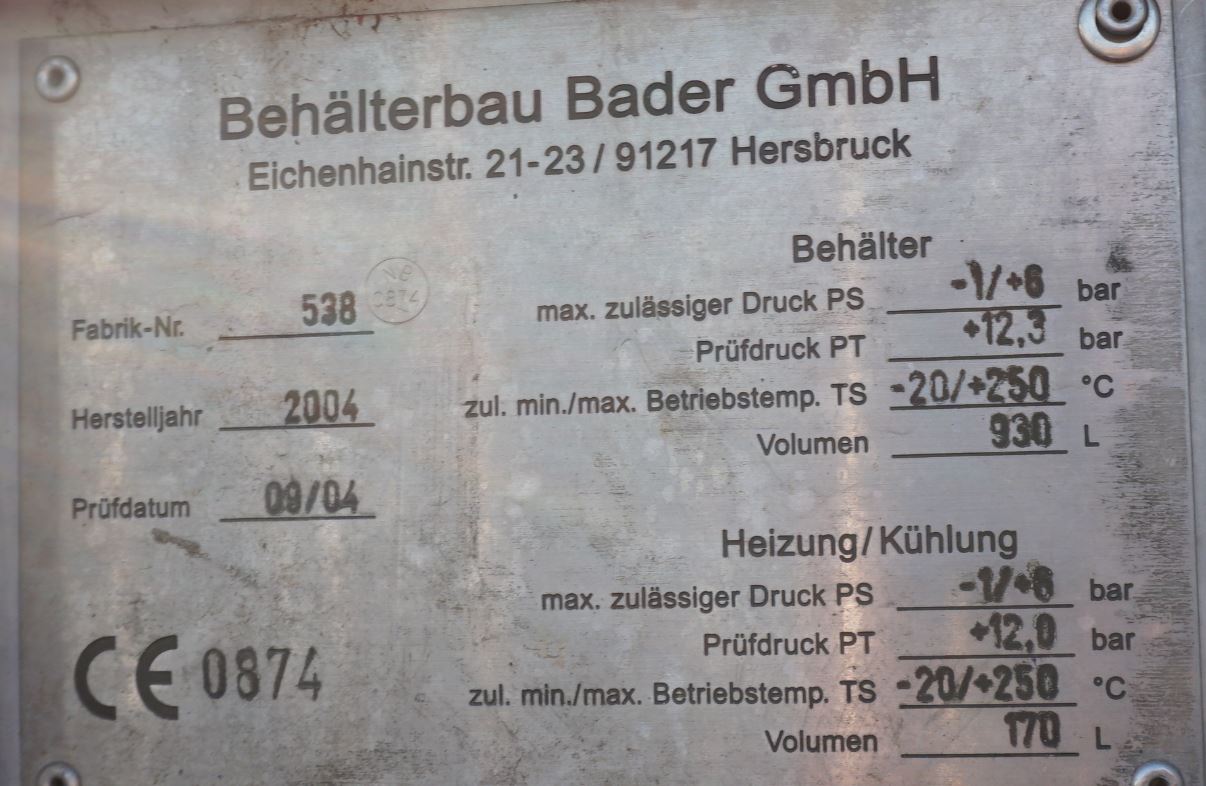

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

  • Pressure test certificate

Other

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Pressure tank, Process tank, Boiling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Pressure tank, Process tank, Cooling tank,
