Product no. M-2760

Pressure tank 6.200 liters made of V4A, single-walled, used, standing

EUR 8.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 6,200.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

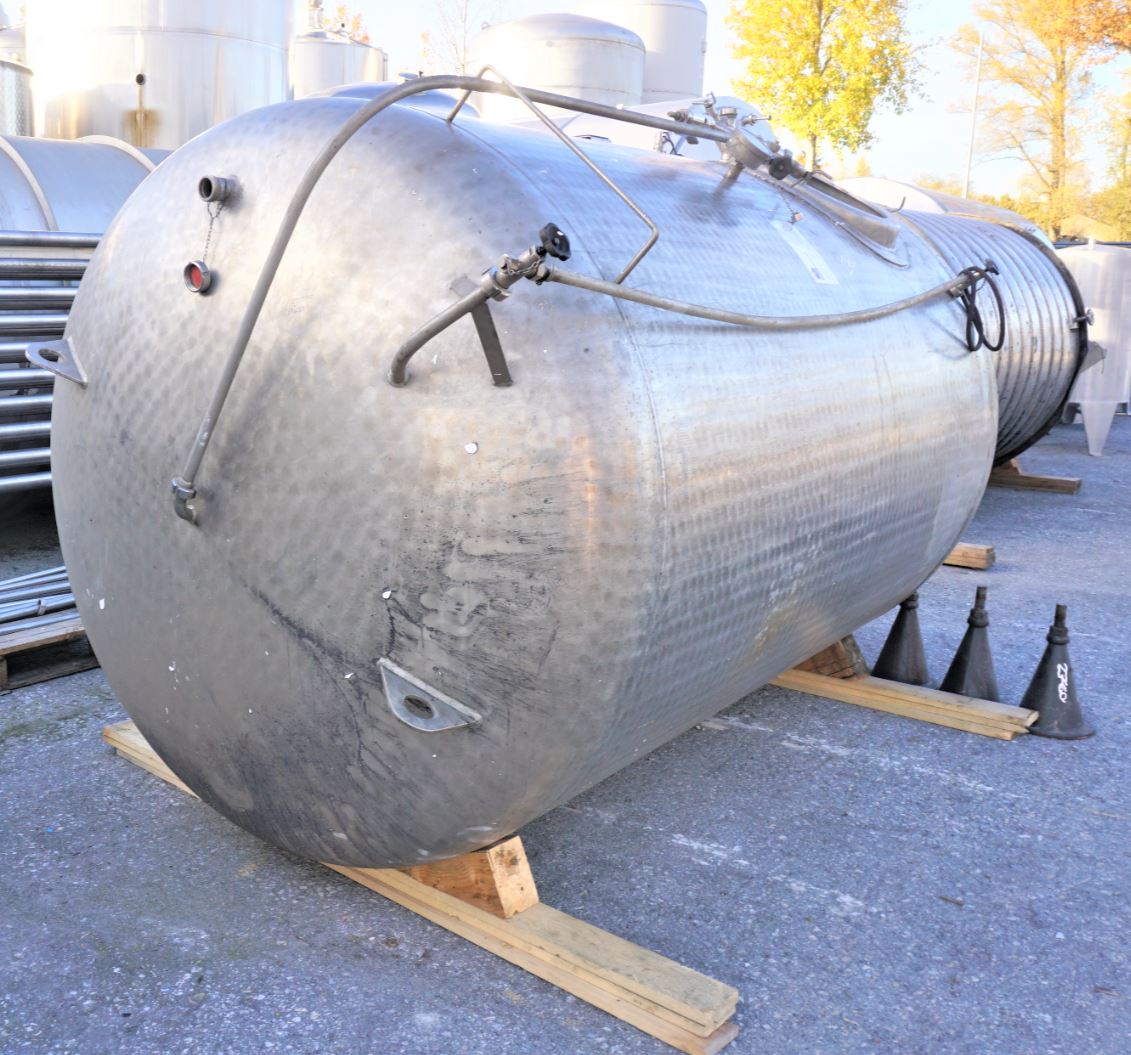

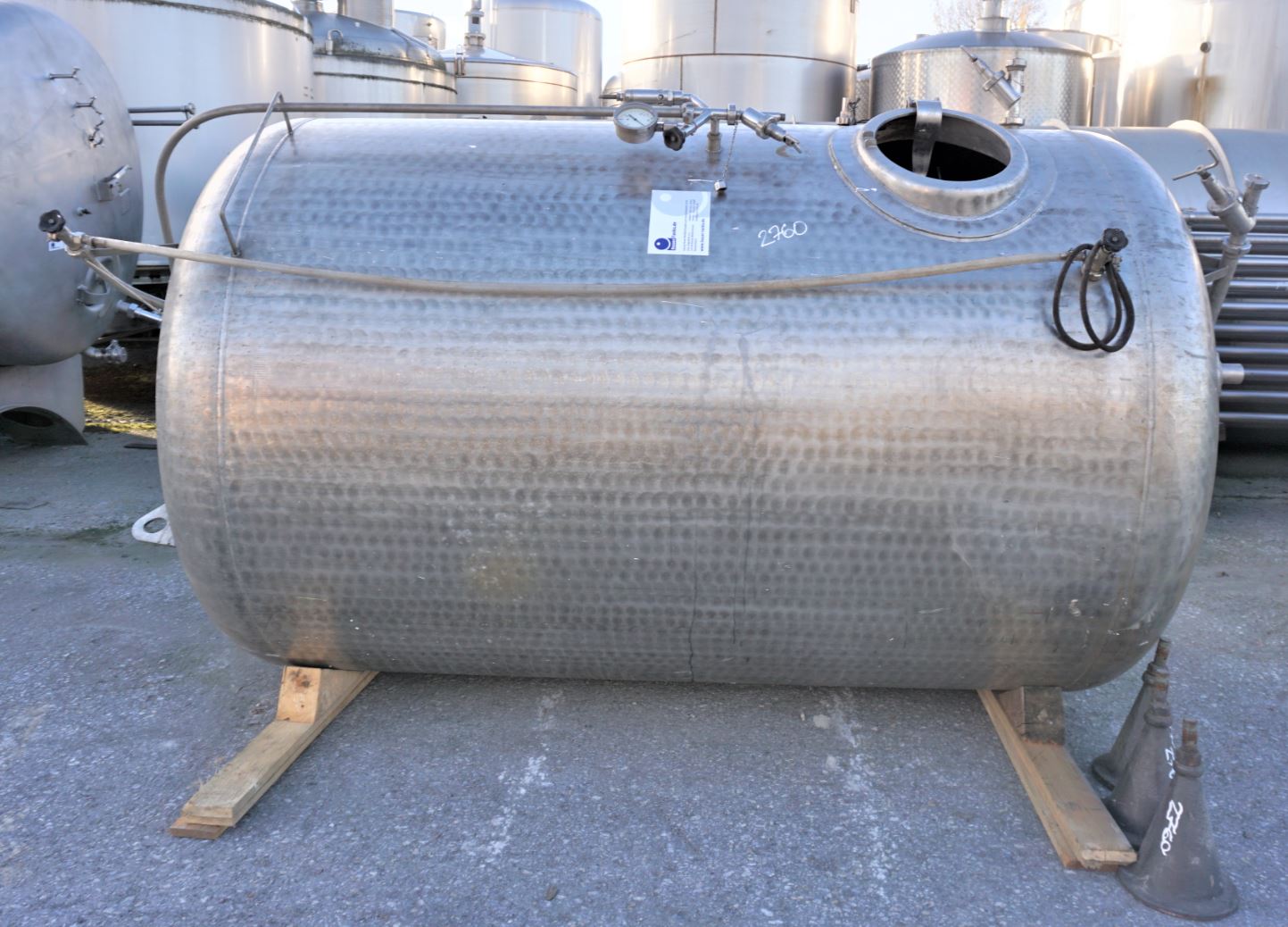

Product description

Pressure tank 6.200 liters made of V4A, single-walled, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 6,200.00 litres.  Pressure tank 6.200 liters made of V4A, single-walled, used was last used in the following area: Unknown. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure,

General

  • Volume approx.

  • 6.200,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1975

  • Manufacturer

  • Edel

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.700 mm

  • Cyl. height

  • 2.220 mm

  • Foot height

  • 650 mm

  • Total height

  • 3.400 mm

Design

  • Weight approx.

  • 800,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

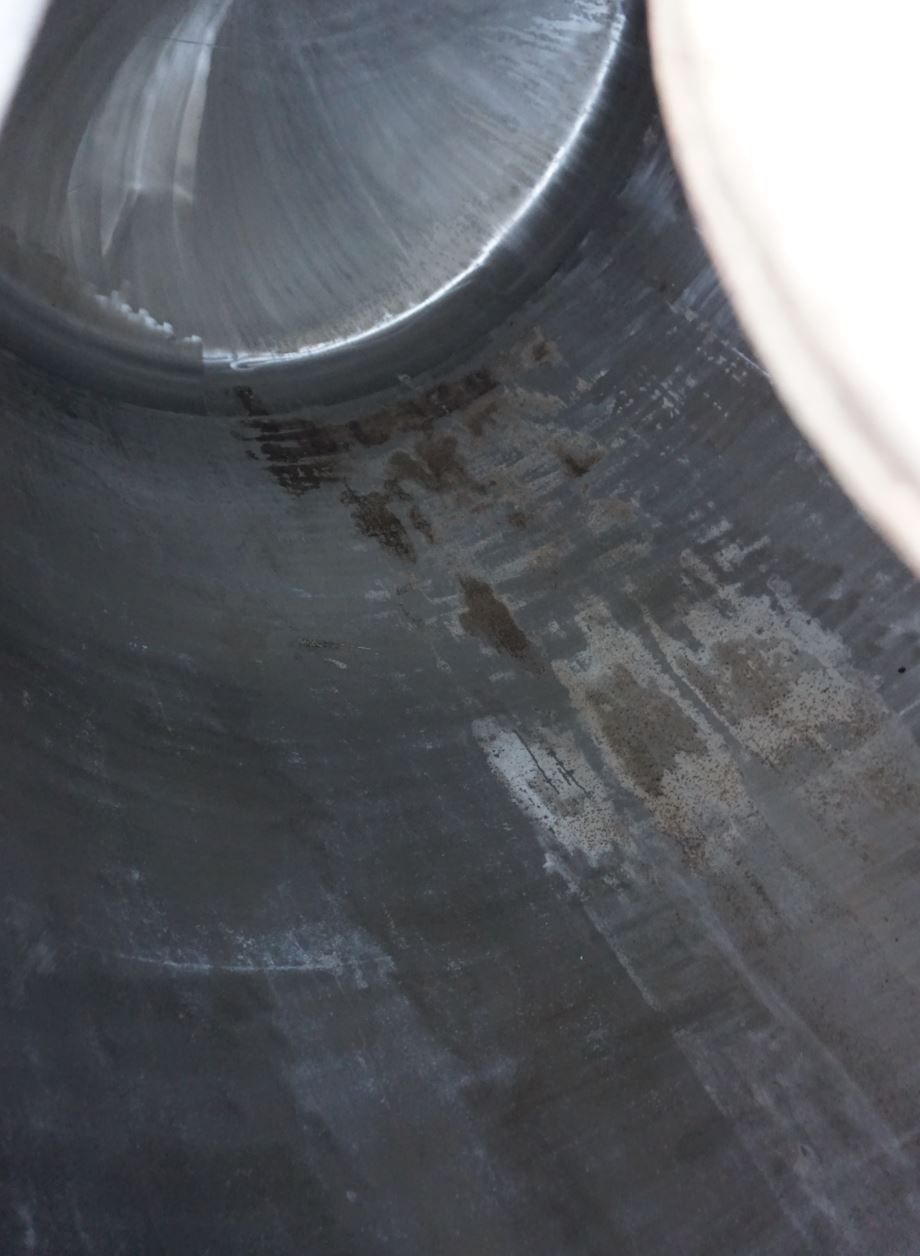

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

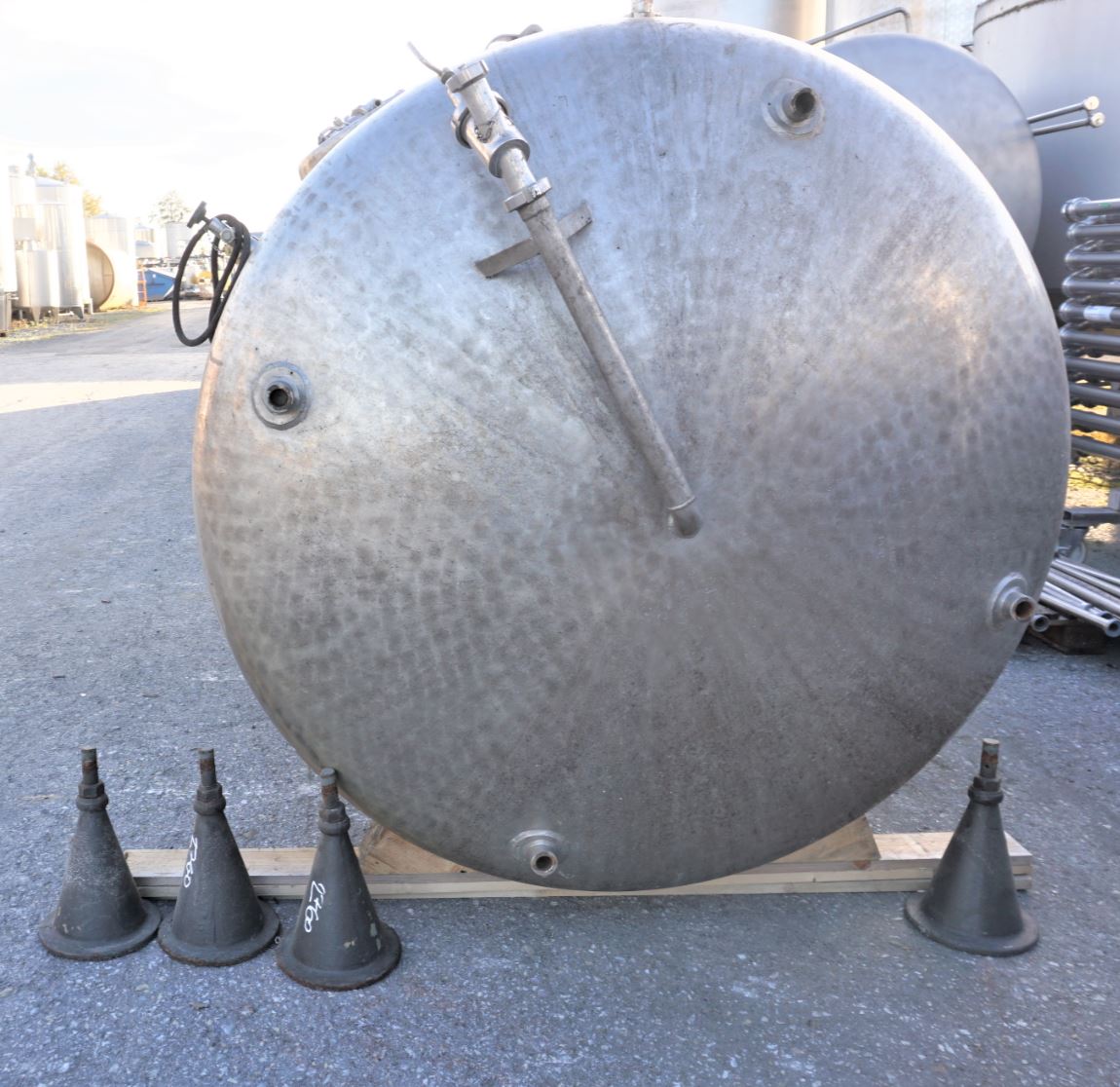

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 8,00 bar

Supports

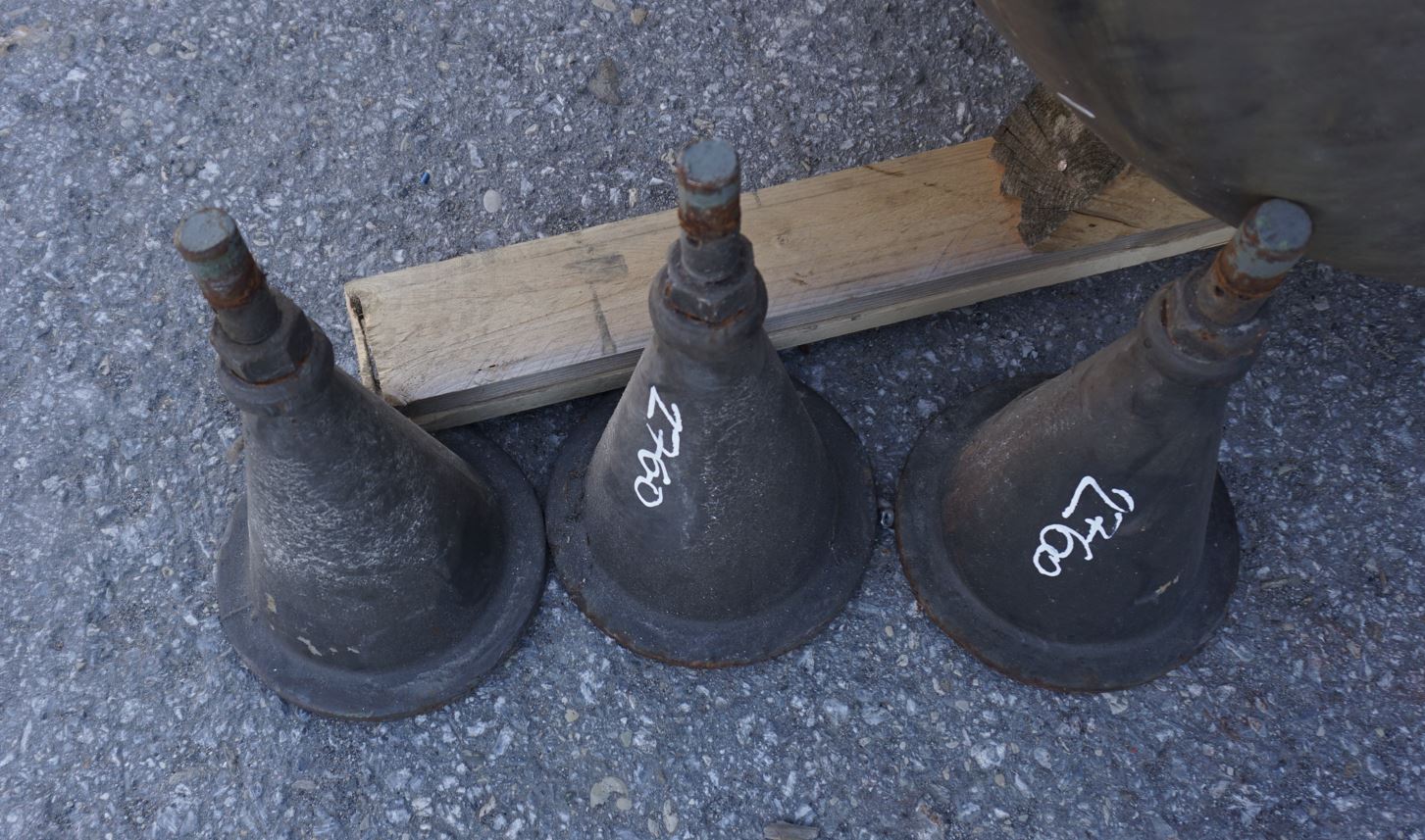

  • Supports

  • Steel feet

  • Number of feet

  • 4 (piece)

  • Note on supports

  • lose Guß-Kegelfueße

Fixtures and fittings

  • Manway position

  • In shell

  • Outlet nozzle

  • 40

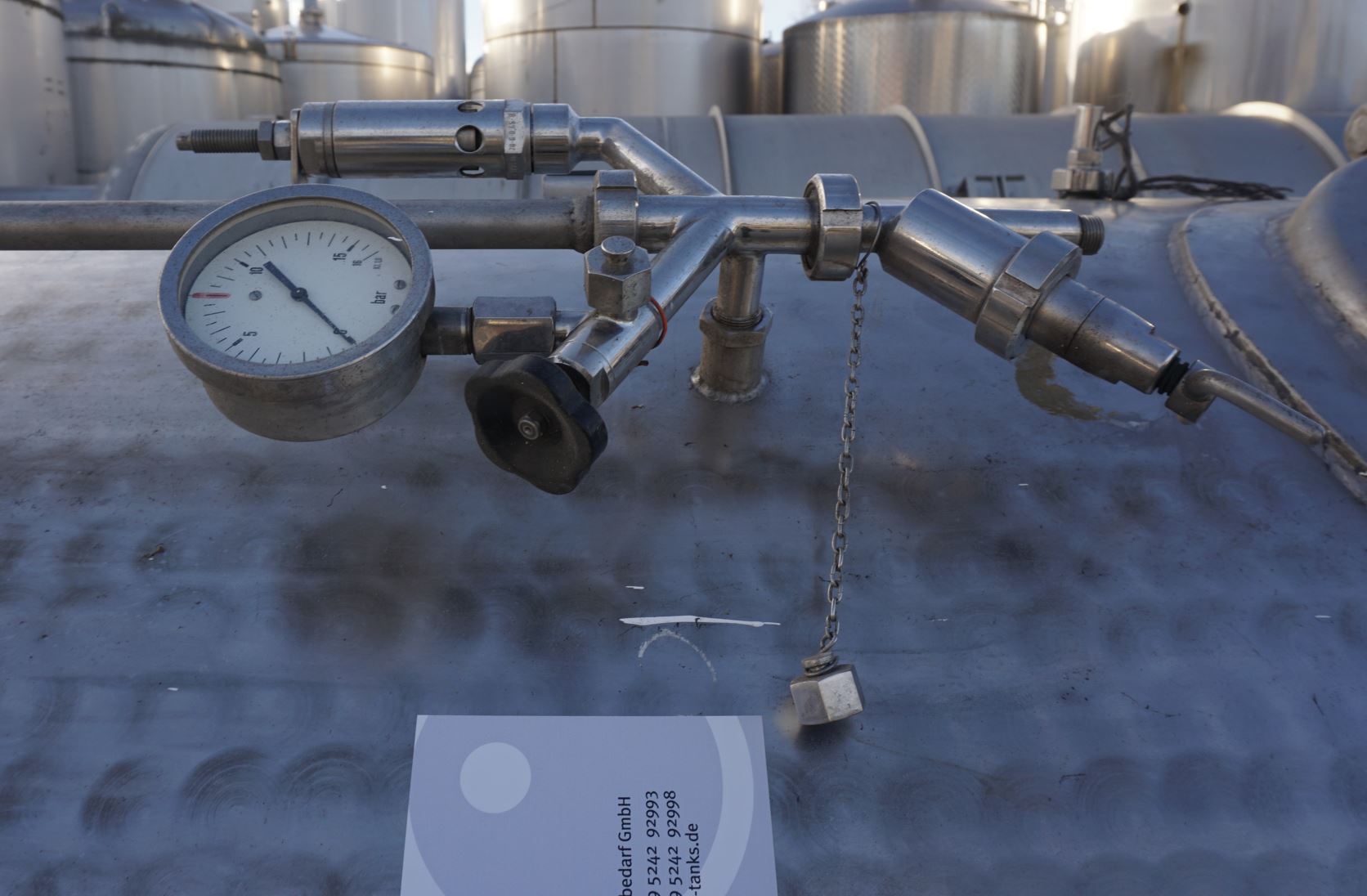

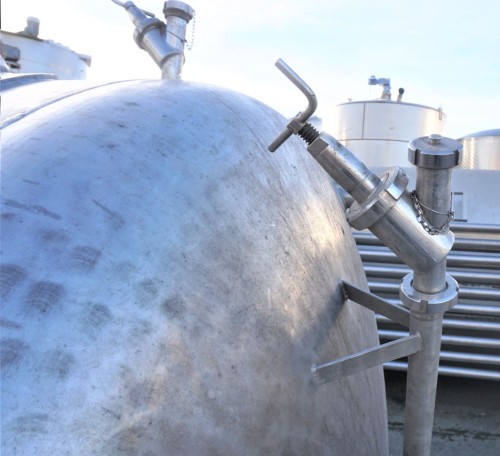

  • Fixtures and fittings

  • Lifting lugs

  • Sample taking

  • Pressure valve

  • Additional fixtures and fittings

  • Ladder stay

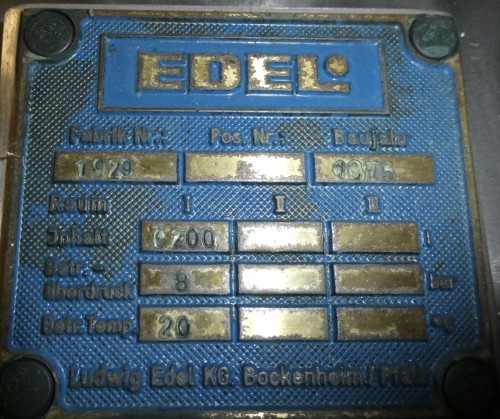

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Unknown

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Pressure tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, Cold water tank,
