Product no. M-2723

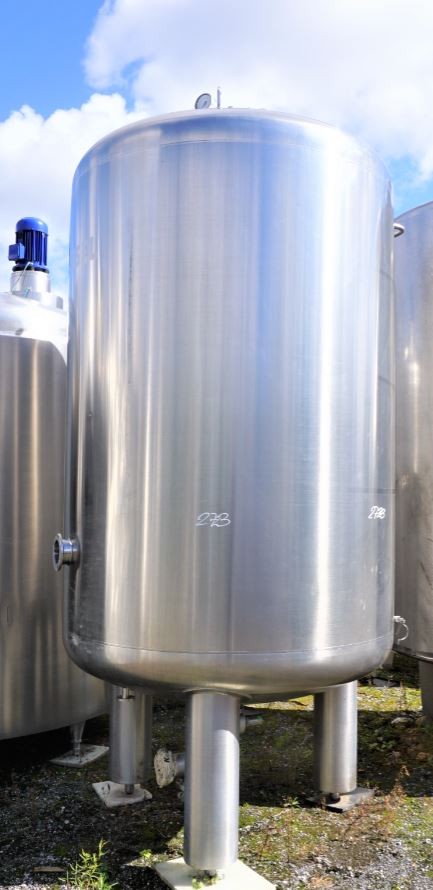

Pressure tank 4.560 liters made of V2A single-walled, used, standing

EUR 7.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 4,560.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 4.560 liters made of V2A single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 4,560.00 litres.  Pressure tank 4.560 liters made of V2A single-walled, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure,

General

  • Volume approx.

  • 4.560,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1997

  • Manufacturer

  • Diessel

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.500 mm

  • Cyl. height

  • 2.000 mm

  • Foot height

  • 900 mm

  • Total height

  • 3.500 mm

Design

  • Weight approx.

  • 1.500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 6,50 bar

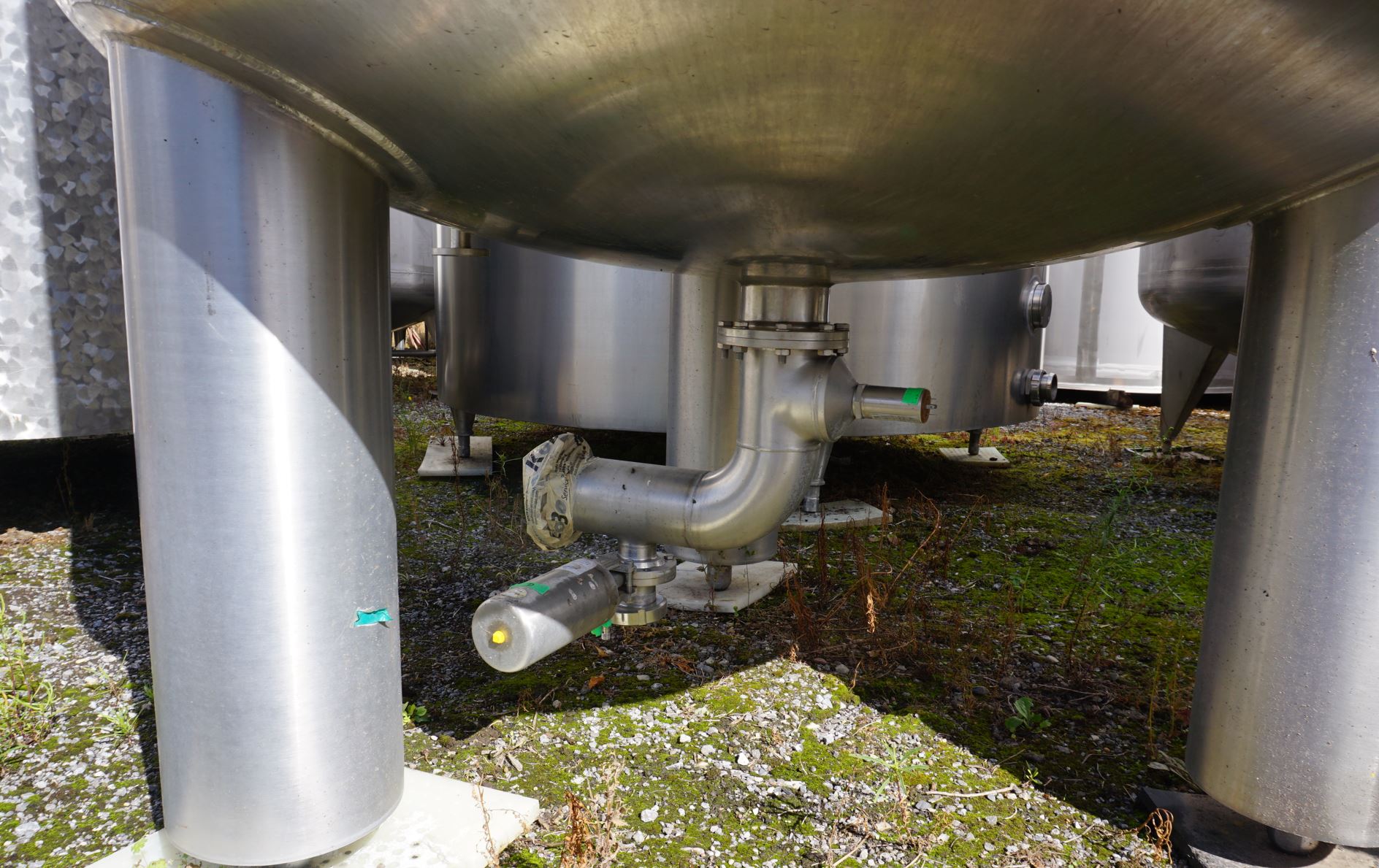

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

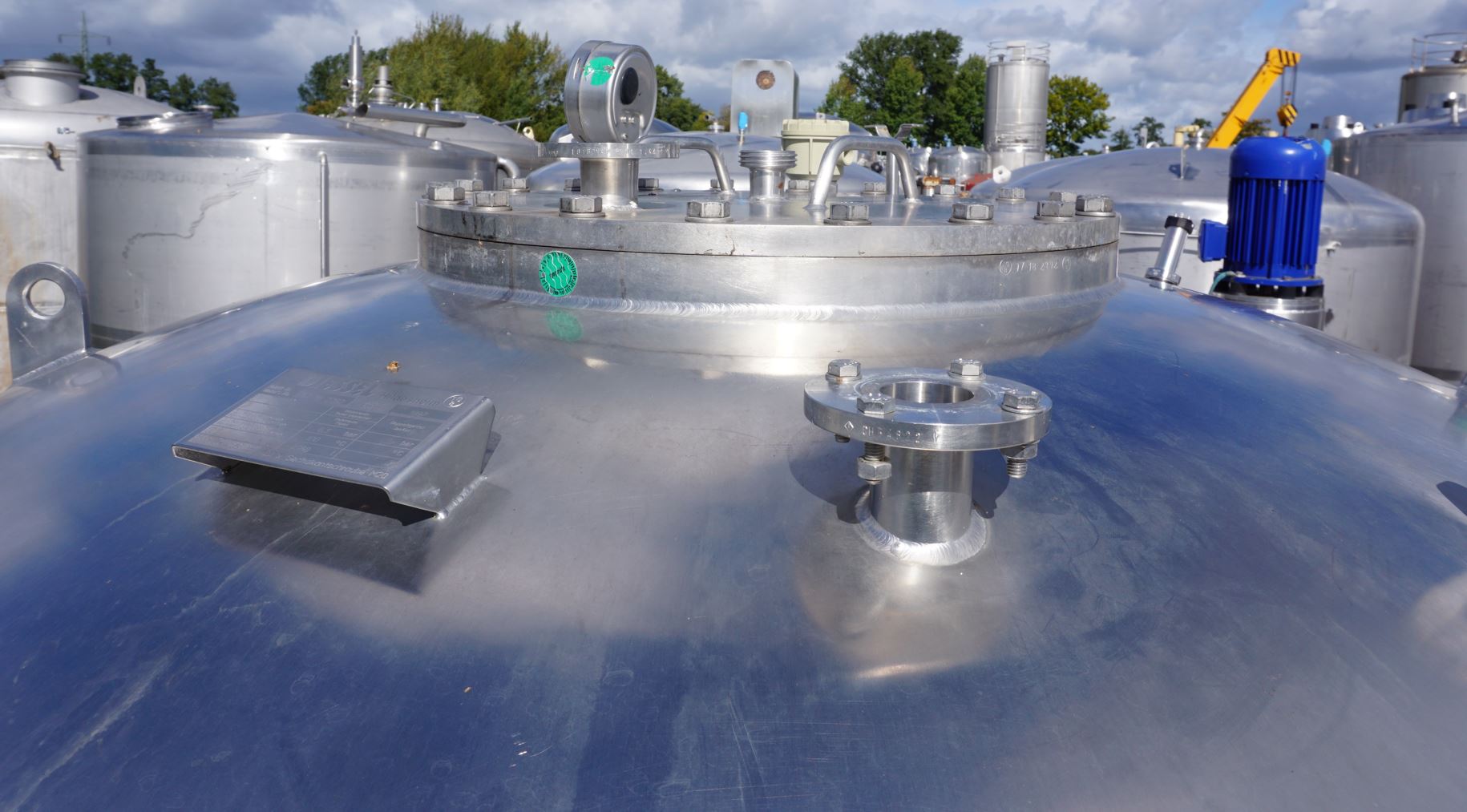

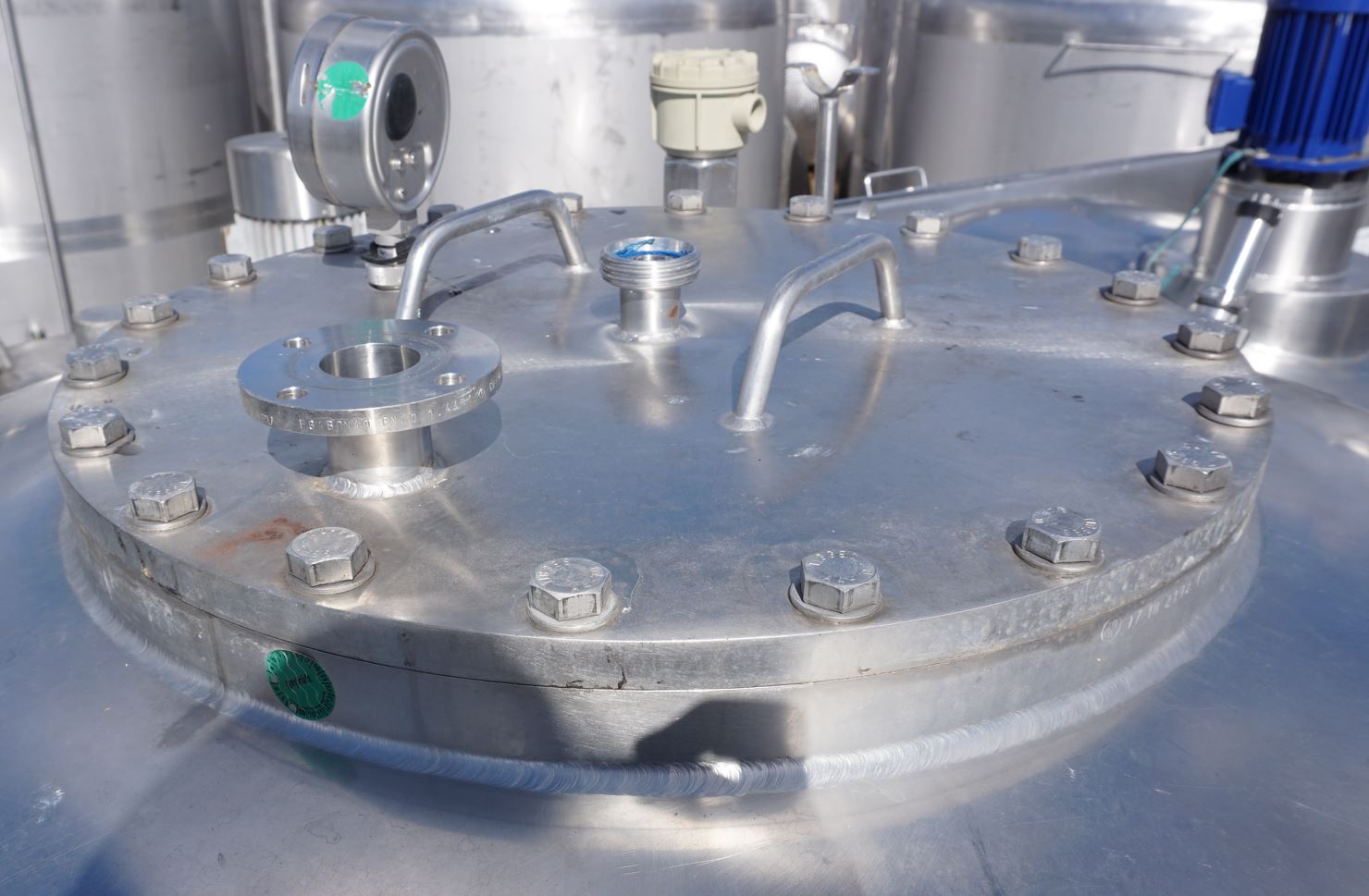

  • Manway position

  • In head

  • Nozzles/connectors in shell

  • 1xDN100 (piece)

  • Outlet nozzle

  • 100

  • Fixtures and fittings

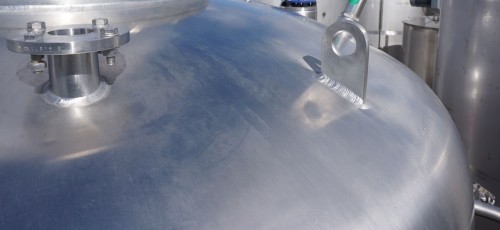

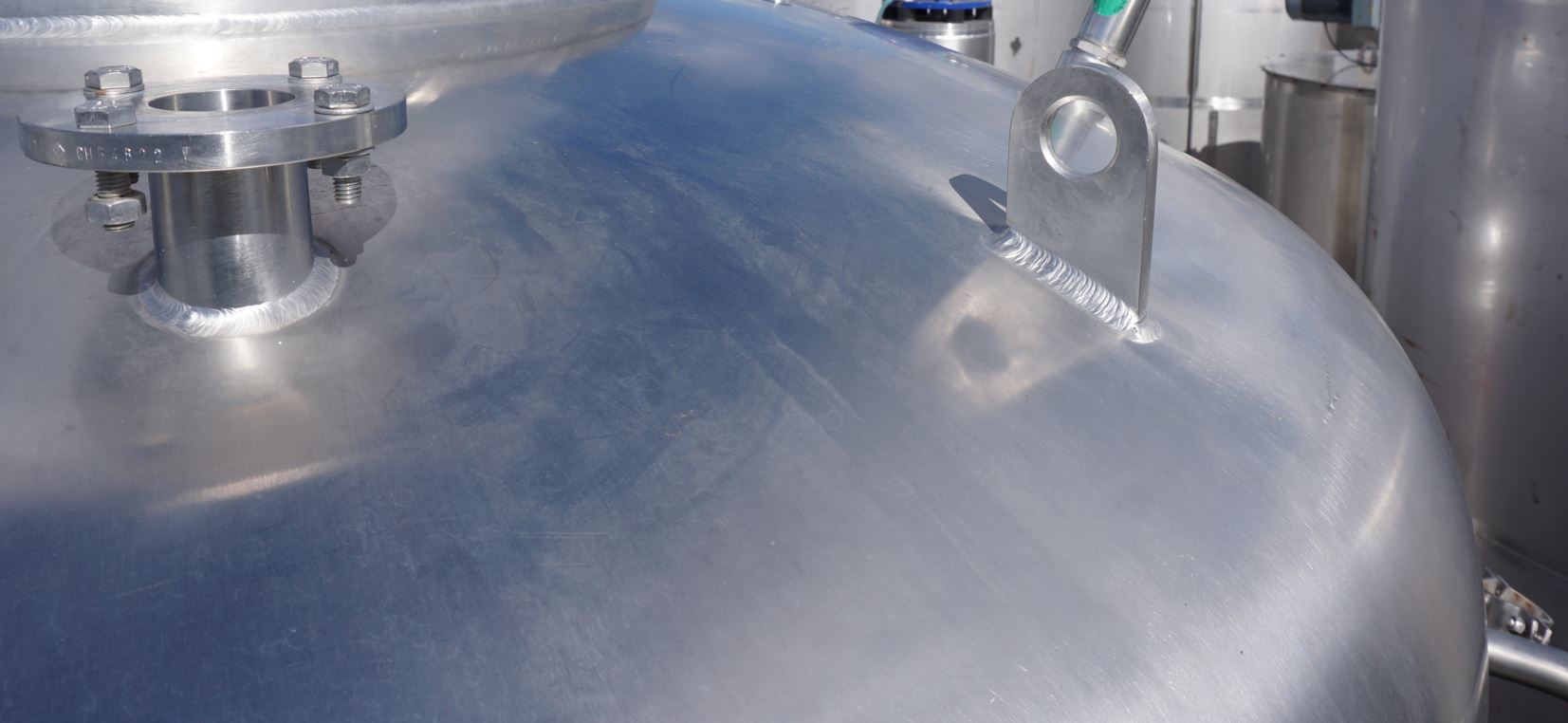

  • Lifting lugs

  • Additional fixtures and fittings

  • Ladder stay

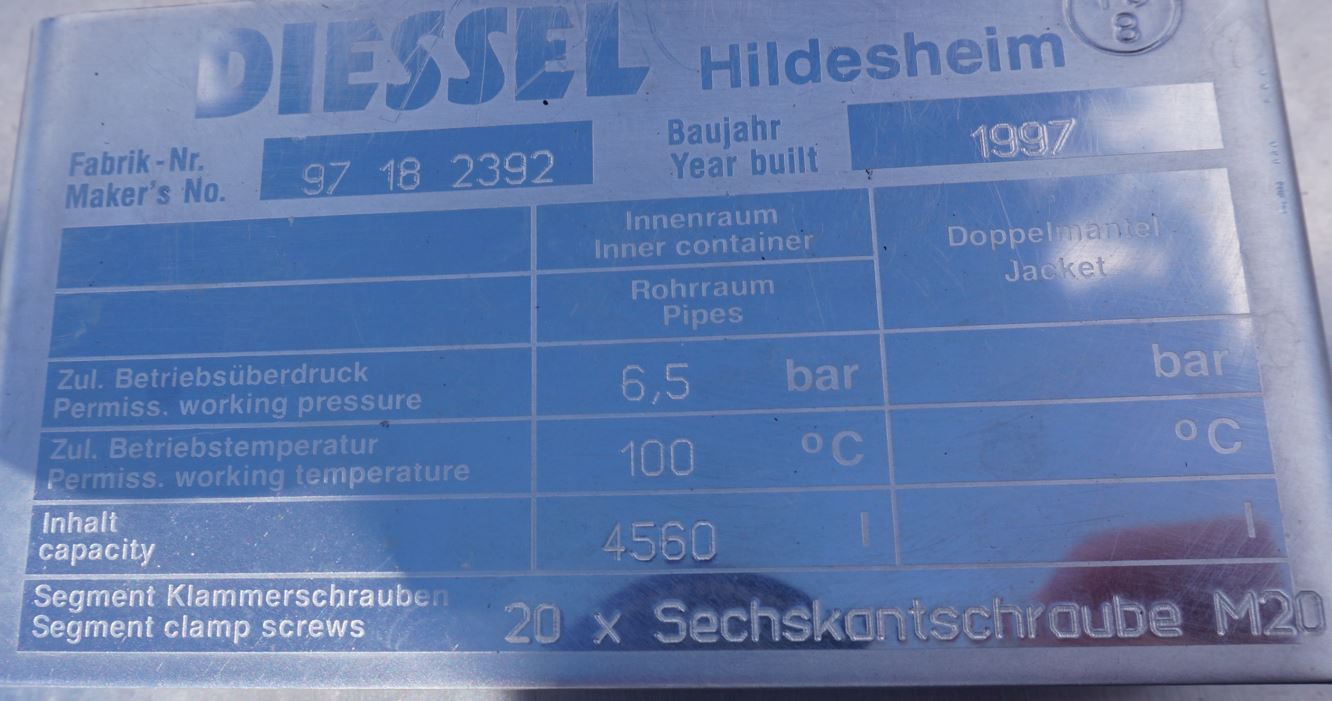

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Fruit juice tank, Spirituous beverages tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank,

Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Pressure tank,
