Product no. M-3036

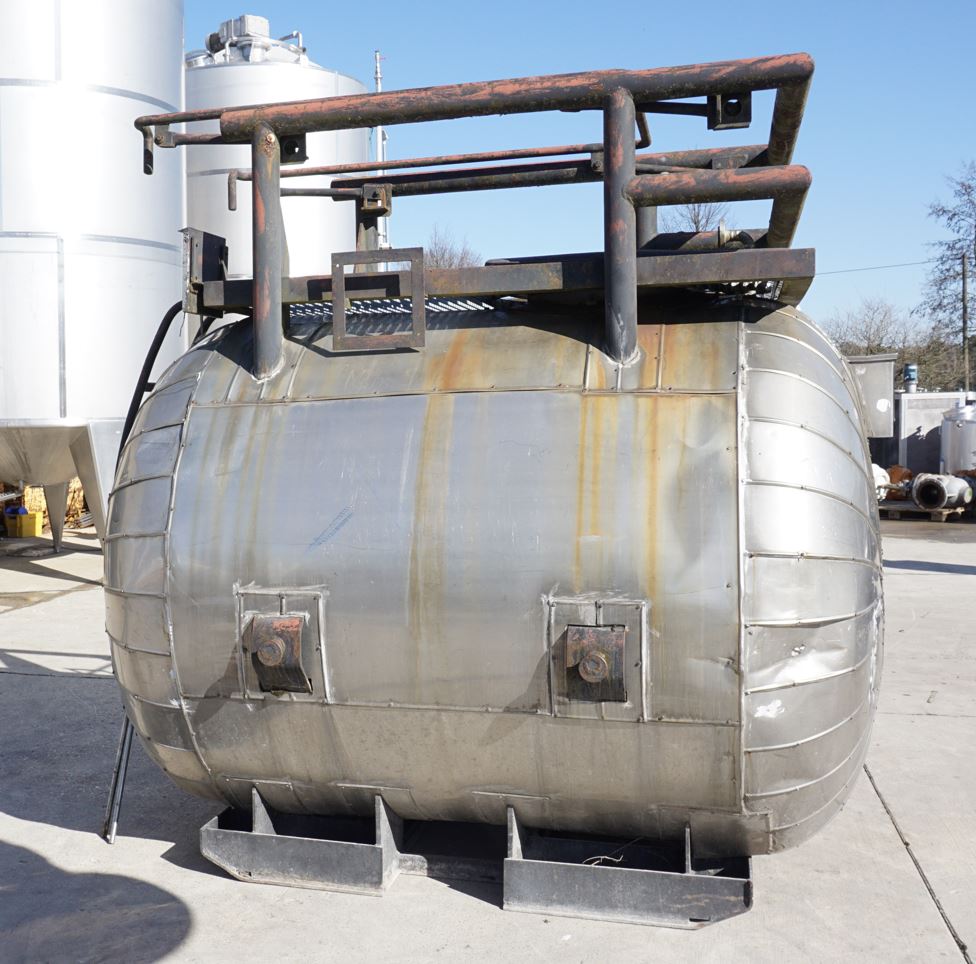

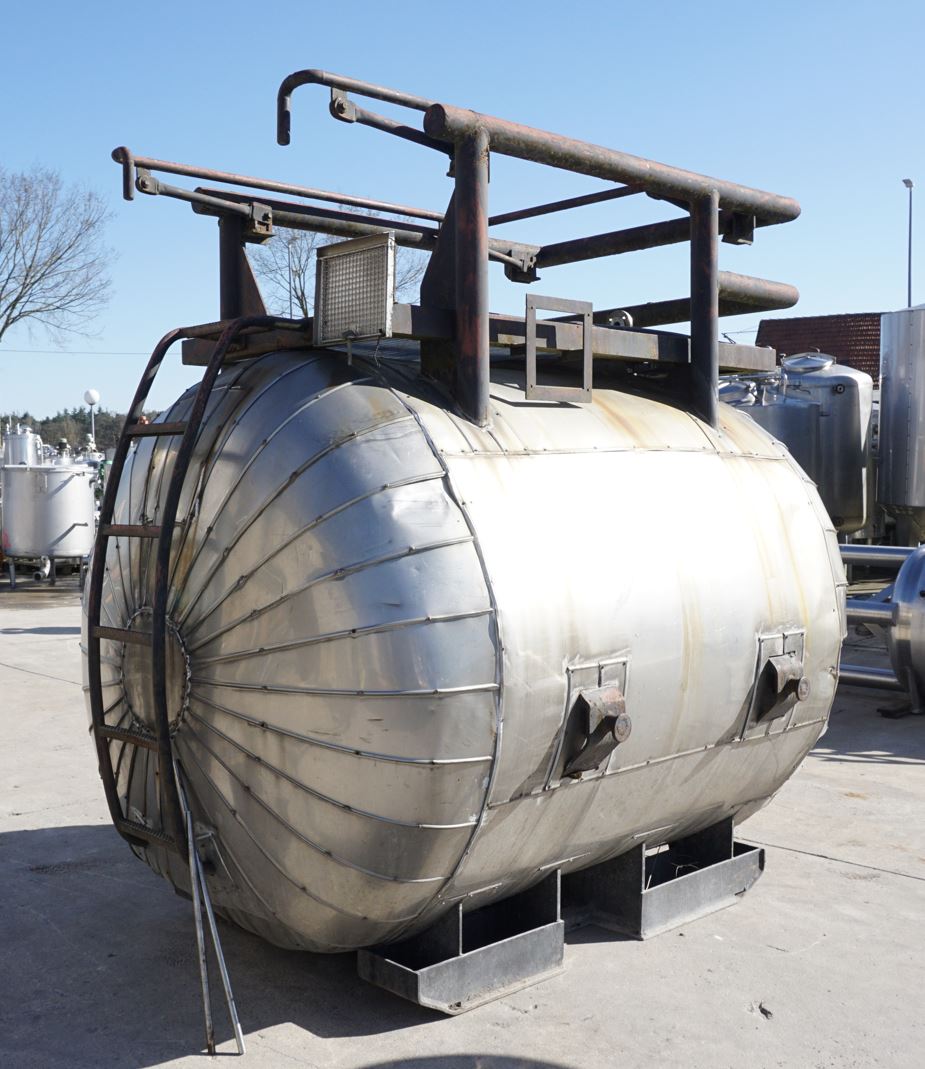

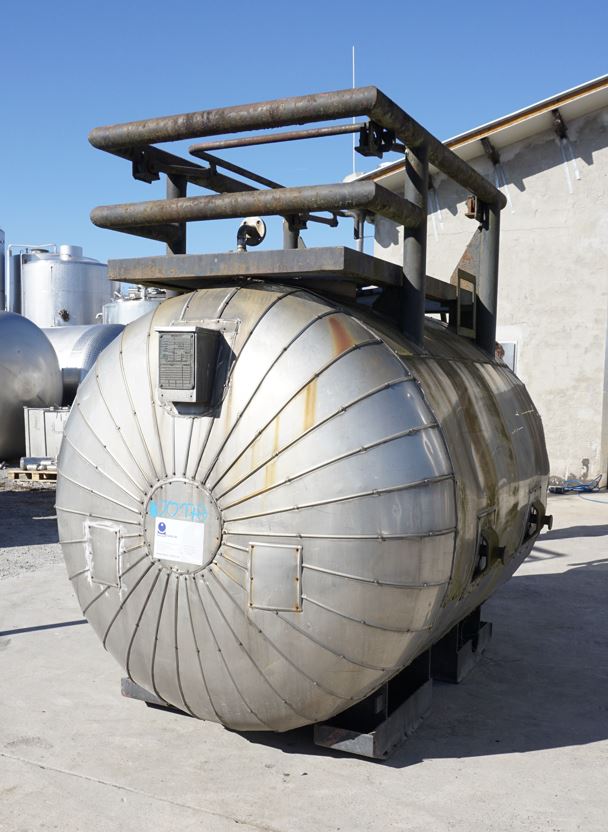

Pressure tank 4.000 liters made of V4A temperature-controllable, isolated, used, horizontal

EUR 12.300,00

add. 19 % VAT excl. shipping costs


Volume approx. 4,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details   Downloads

Product description

Pressure tank 4.000 liters made of V4A temperature-controllable, isolated, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 4,000.00 litres. The diameter inside includes 1,600 mm. Pressure tank 4.000 liters made of V4A temperature-controllable, isolated, used has the following dimensions: width 1,950 mm,  Pressure tank 4.000 liters made of V4A temperature-controllable, isolated, used was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Tempering, Transport, Under/over-pressure,

General

  • Volume approx.

  • 4.000,00 litres

  • Structure

  • Horizontal

  • Year of manufacture

  • 1987

  • Manufacturer

  • Hoechst AG

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.600 mm

  • External diameter

  • 1.850 mm

  • Cyl. length

  • 1.630 mm

  • Total height

  • 2.500 mm

  • Total length

  • 2.350 mm

  • Width

  • 1950 mm

  • Wall thickness of product chamber shell

  • 12,00 mm

  • Wall thickness of product chamber floor

  • 10,00 mm

Design

  • Weight approx.

  • 2.716,00 kg

  • Insulation

  • yes

  • Insulated area

  • Complete

  • Insulation cladding

  • Bolted stainless steel

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 6,00 bar

  • Product chamber operating under-pressure

  • -1 bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell area

  • Operating temperature

  • 250 °C

  • Temperature control system operating pressure/pipe chamber

  • 20,0 bar

  • Temperature control system operating temperature/pipe chamber

  • 250 °C

Supports

  • Supports

  • Steel storage consoles

  • Number of feet

  • 1 (piece)

  • Note on supports

  • seitlich Transportaufnahmen

Fixtures and fittings

  • Manway 1 size

  • 500 DN mm

  • Manway position

  • In head

  • Nozzle connector

  • Flange

  • Additional fixtures and fittings

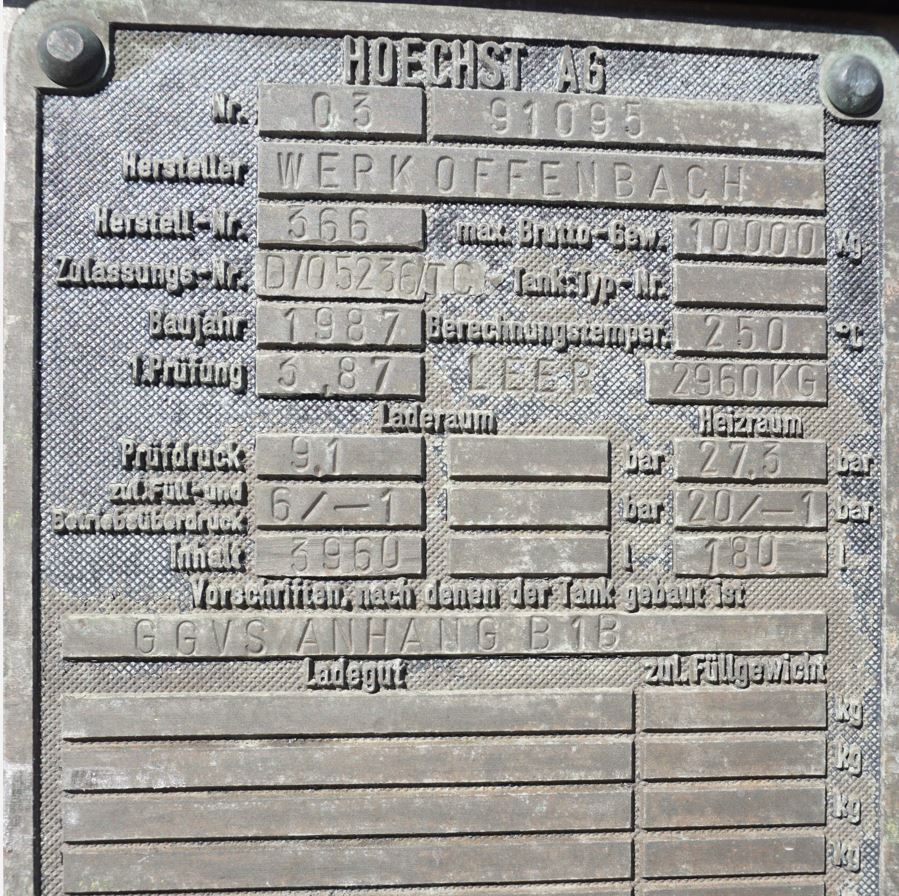

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

  • Pressure test certificate

Other

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Pressure tank, Process tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Pressure tank, Process tank,

Downloads

filefile size
  3036-7.pdf4.97 MB
  3036-8.pdf0.46 MB
  3036-9.pdf0.27 MB
