Product no. M-2926

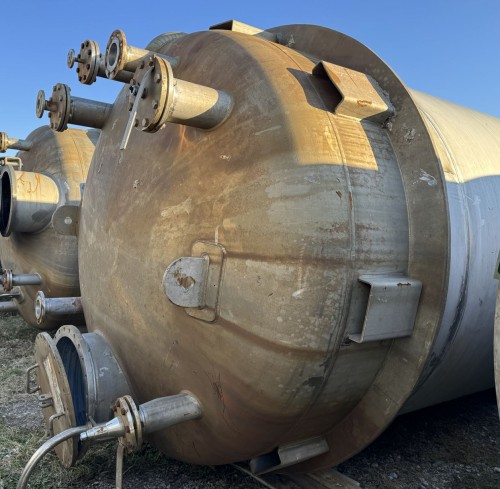

Pressure tank 33.725 liters made of V4A, temperature-controllable, used, standing

EUR 32.400,00

add. 19 % VAT excl. shipping costs

Volume approx. 33,725.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details   Downloads

Product description

Pressure tank 33.725 liters made of V4A, temperature-controllable, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 33,725.00 litres. The diameter inside includes 2,400 mm.  Pressure tank 33.725 liters made of V4A, temperature-controllable, used was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Tempering, Under/over-pressure,

General

  • Volume approx.

  • 33.725,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1992

  • Manufacturer

  • Arthur Steinbach

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.400 mm

  • External diameter

  • 2.700 mm

  • Total height

  • 8.850 mm

  • Wall thickness of product chamber head

  • 14,00 mm

  • Wall thickness of product chamber shell

  • 10,00 mm

  • Wall thickness of product chamber floor

  • 14,00 mm

Design

  • Weight approx.

  • 7.960,00 kg

  • Weight per unit volume approx.

  • 1.900,00 kg/m³

  • Insulation

  • no

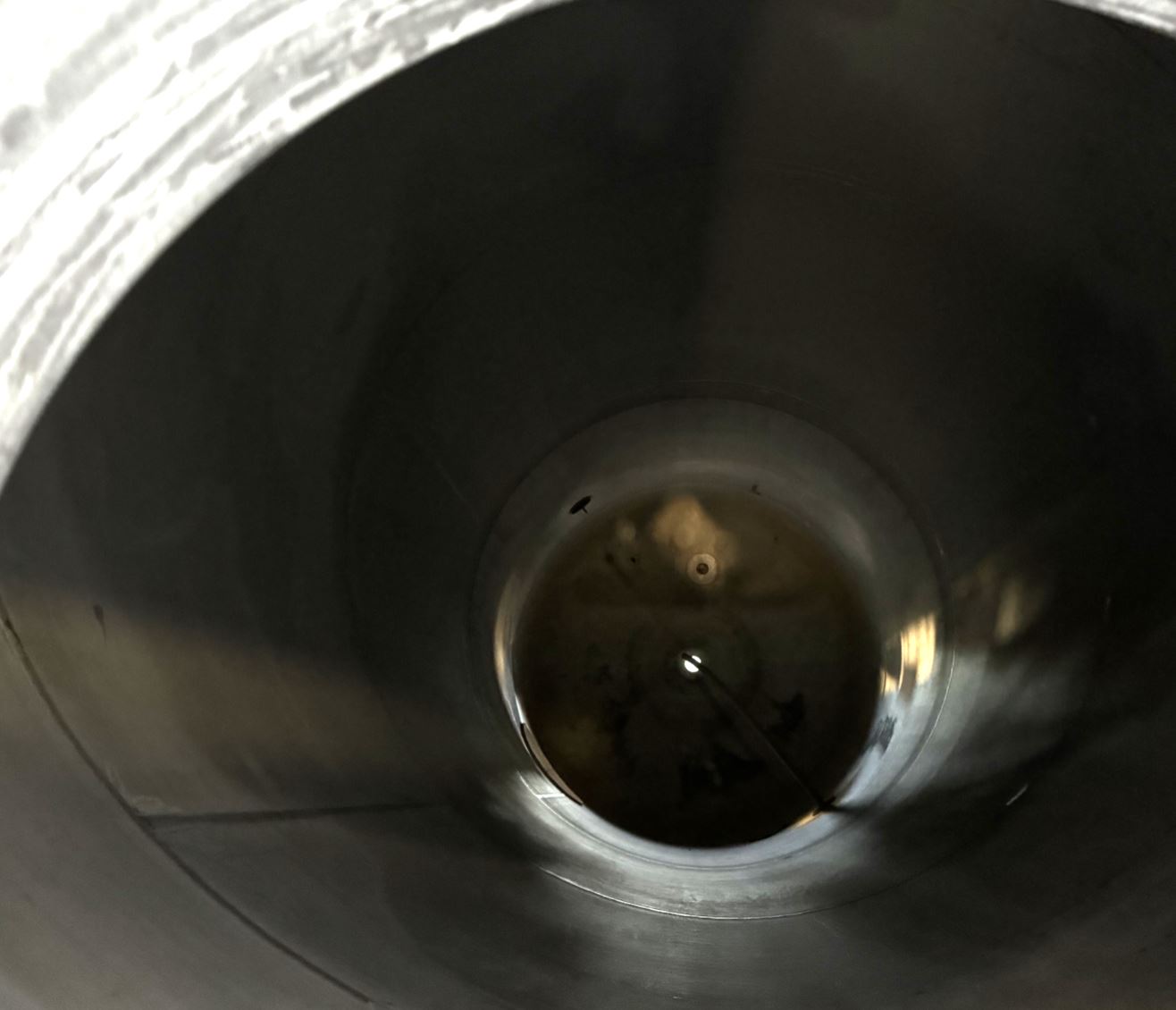

  • Interior surface

  • Matt

  • Exterior surface

  • Matt

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 6,00 bar

  • Product chamber operating under-pressure

  • -1 bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

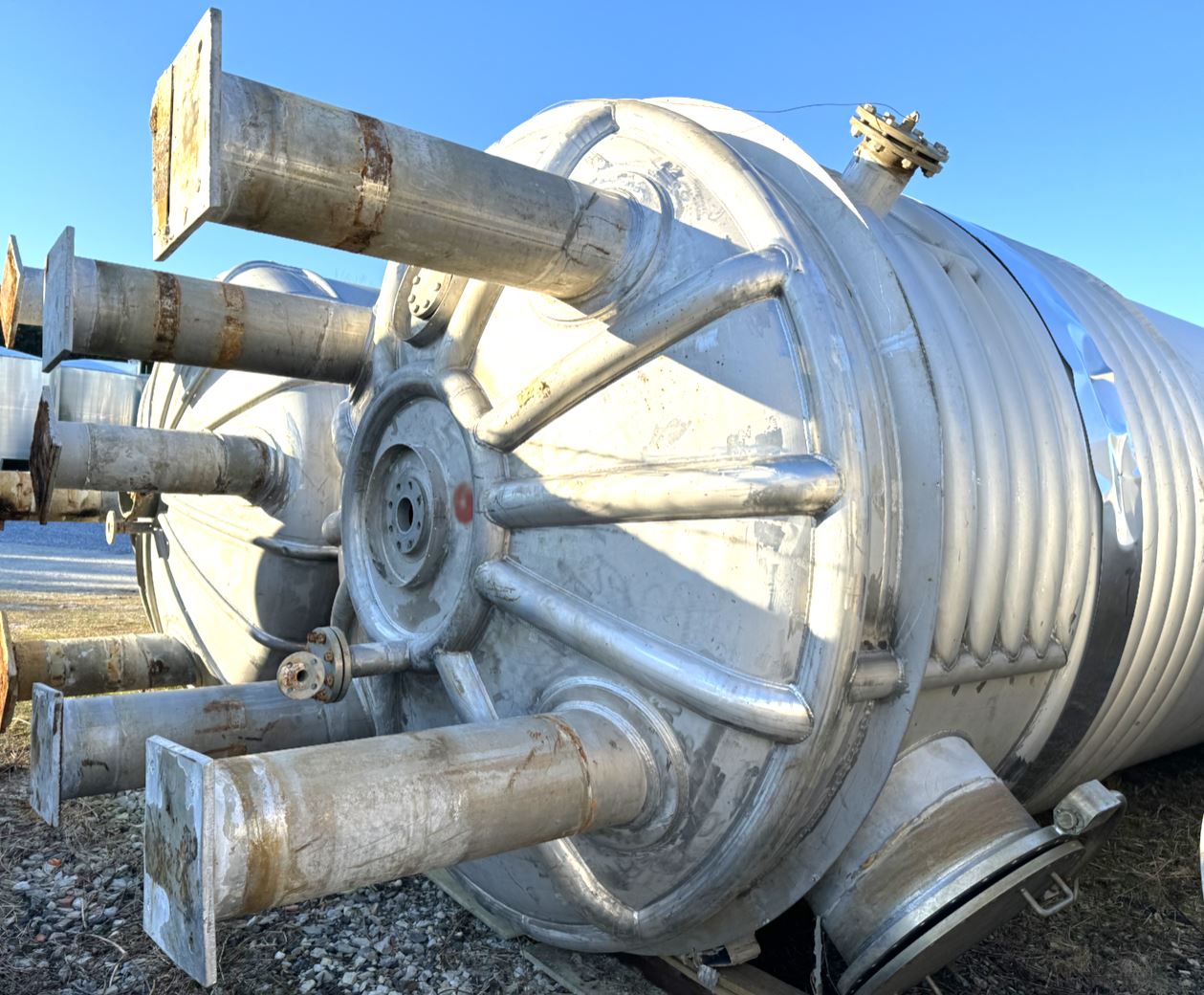

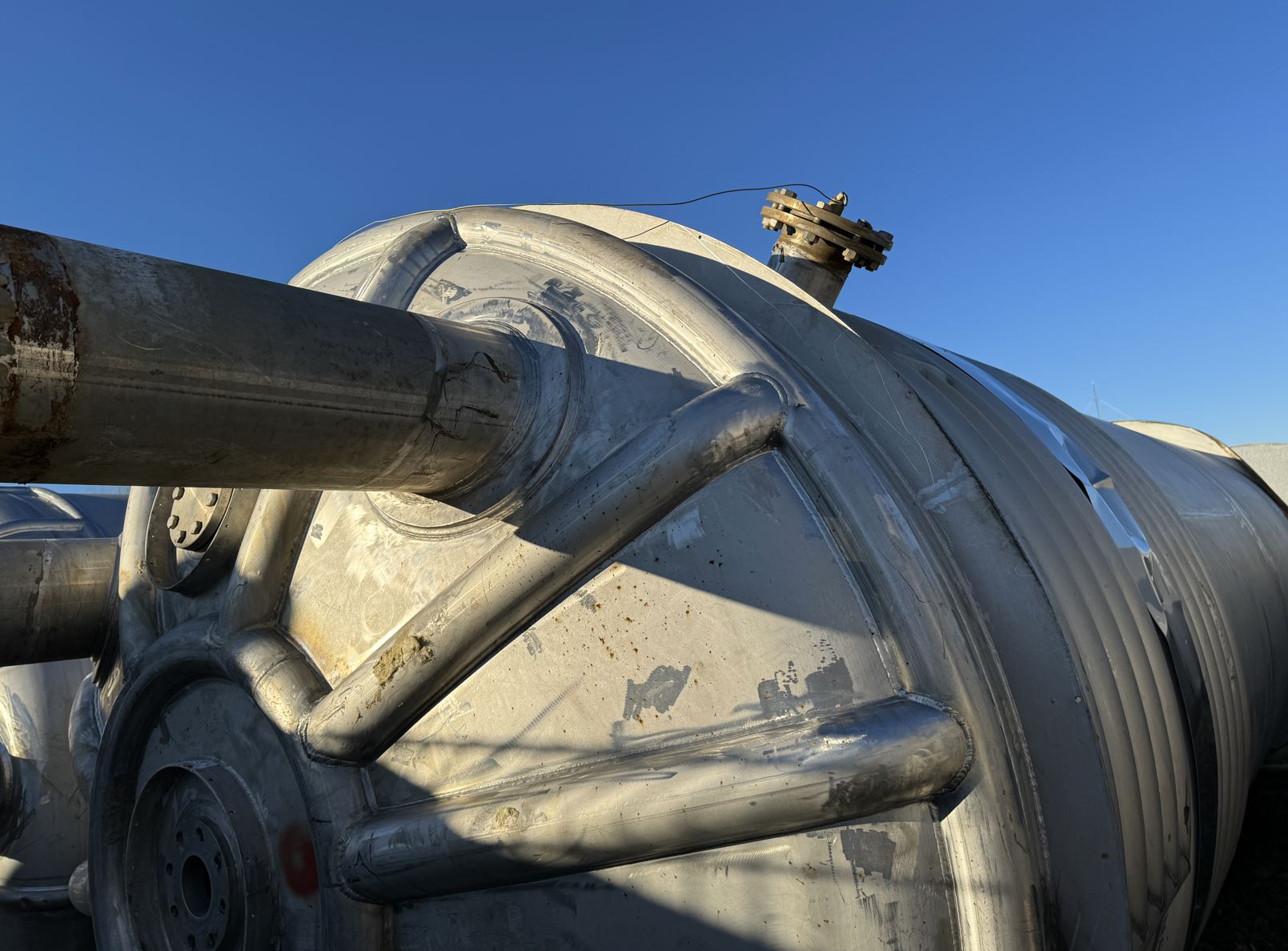

  • Temperature control system

  • Half-pipe coils

  • Operating temperature

  • 140 °C

  • Temperature control system operating pressure/pipe chamber

  • 4,0 bar

  • Temperature control system operating temperature/pipe chamber

  • 140 °C

  • Temperature control system/pipe chamber capacity

  • 420 litres

Supports

  • Supports

  • Steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

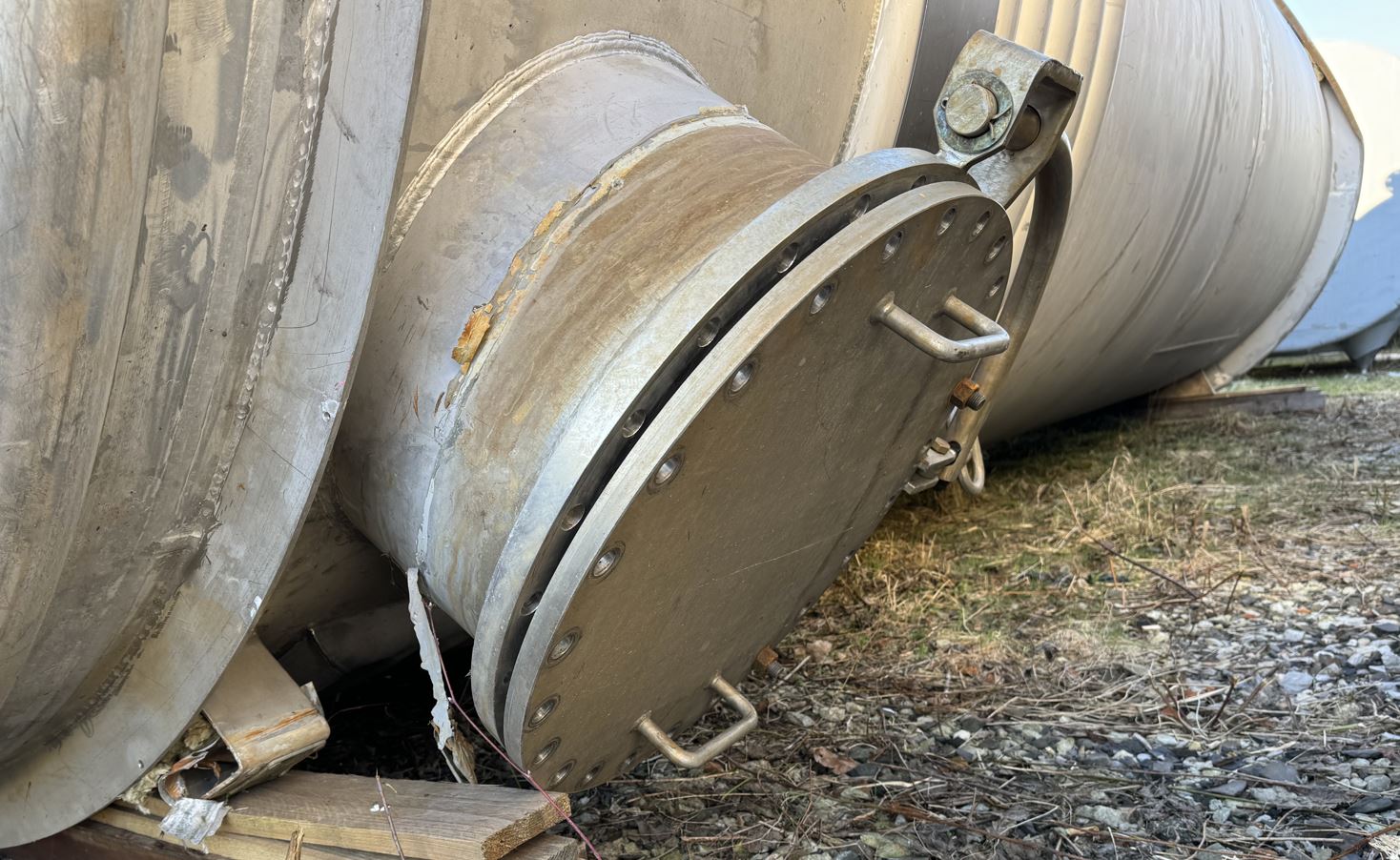

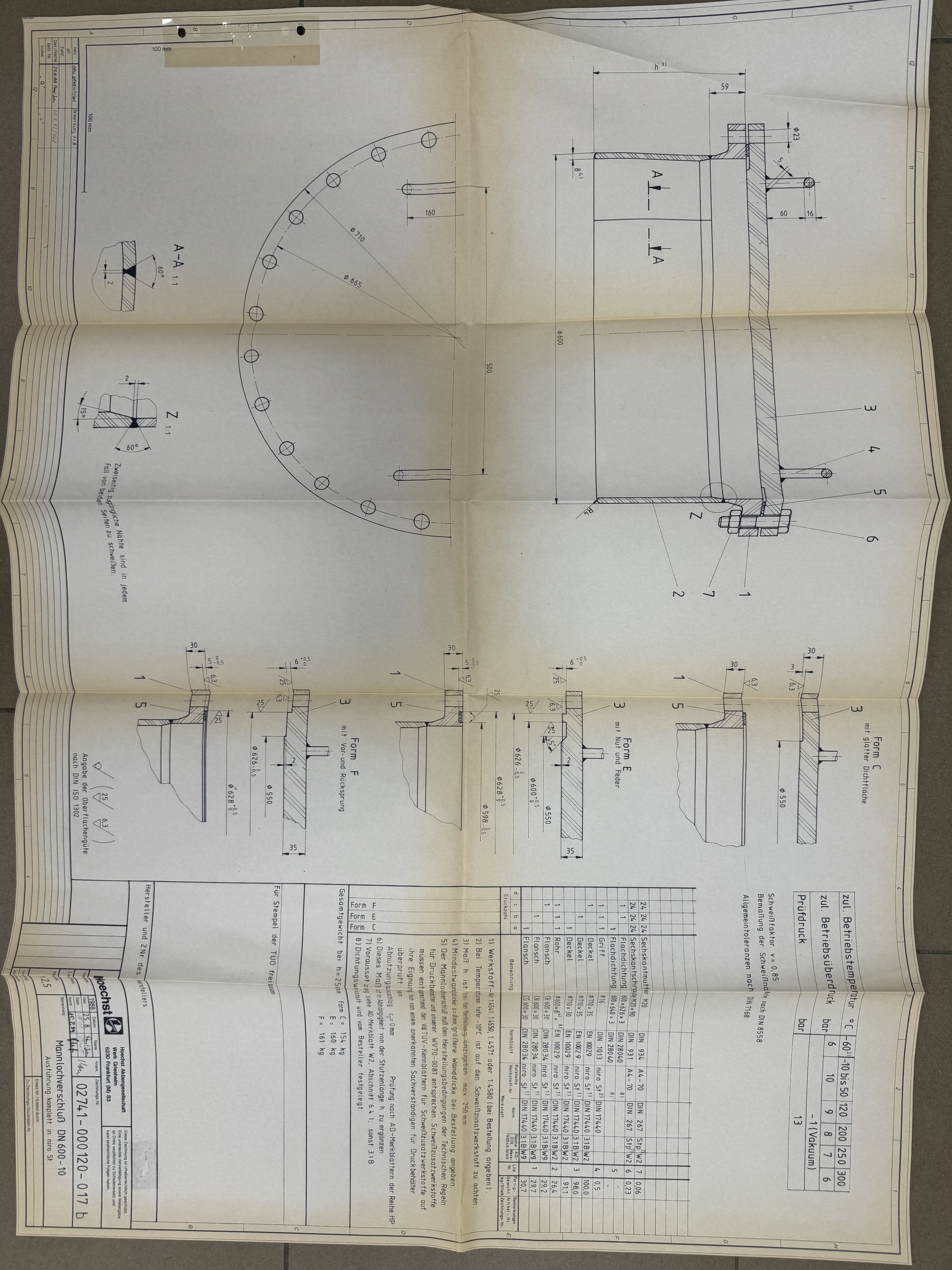

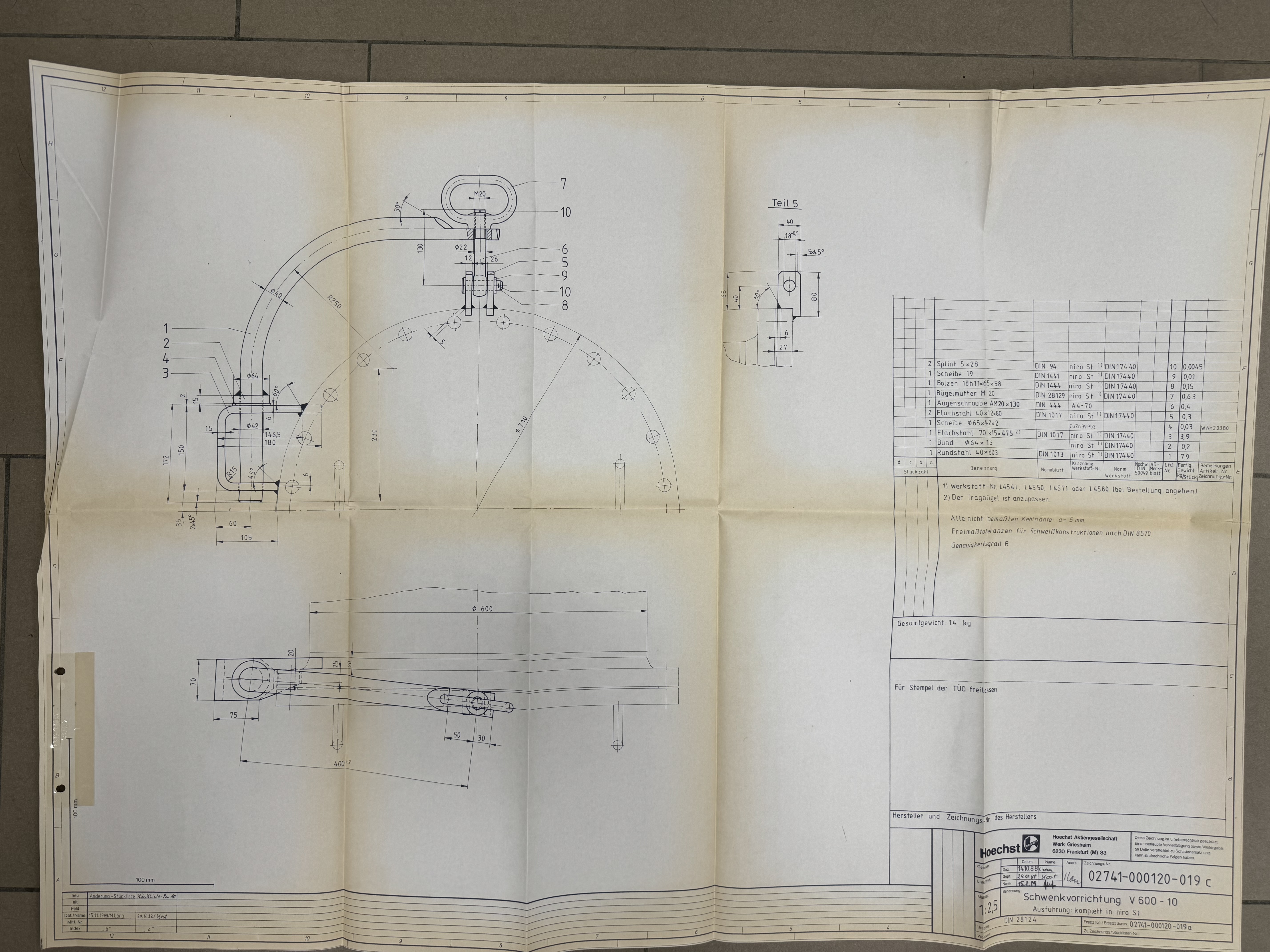

  • Manway 1 size

  • 600 DN mm

  • Manway 2 size

  • 600 DN mm

  • Manway position

  • In shell and head

  • Nozzle connector

  • Flange

  • Outlet nozzle

  • 100

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Nameplate

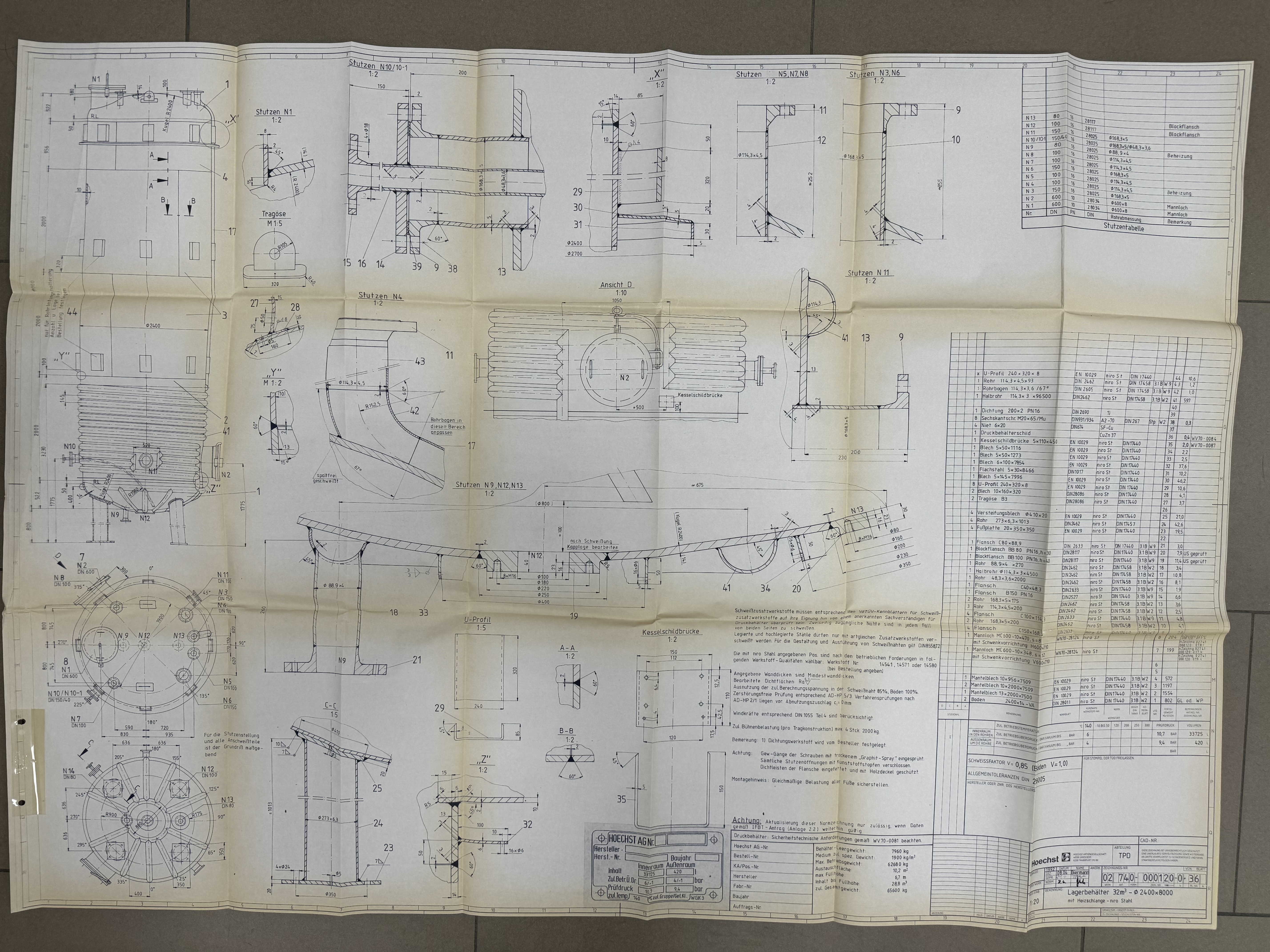

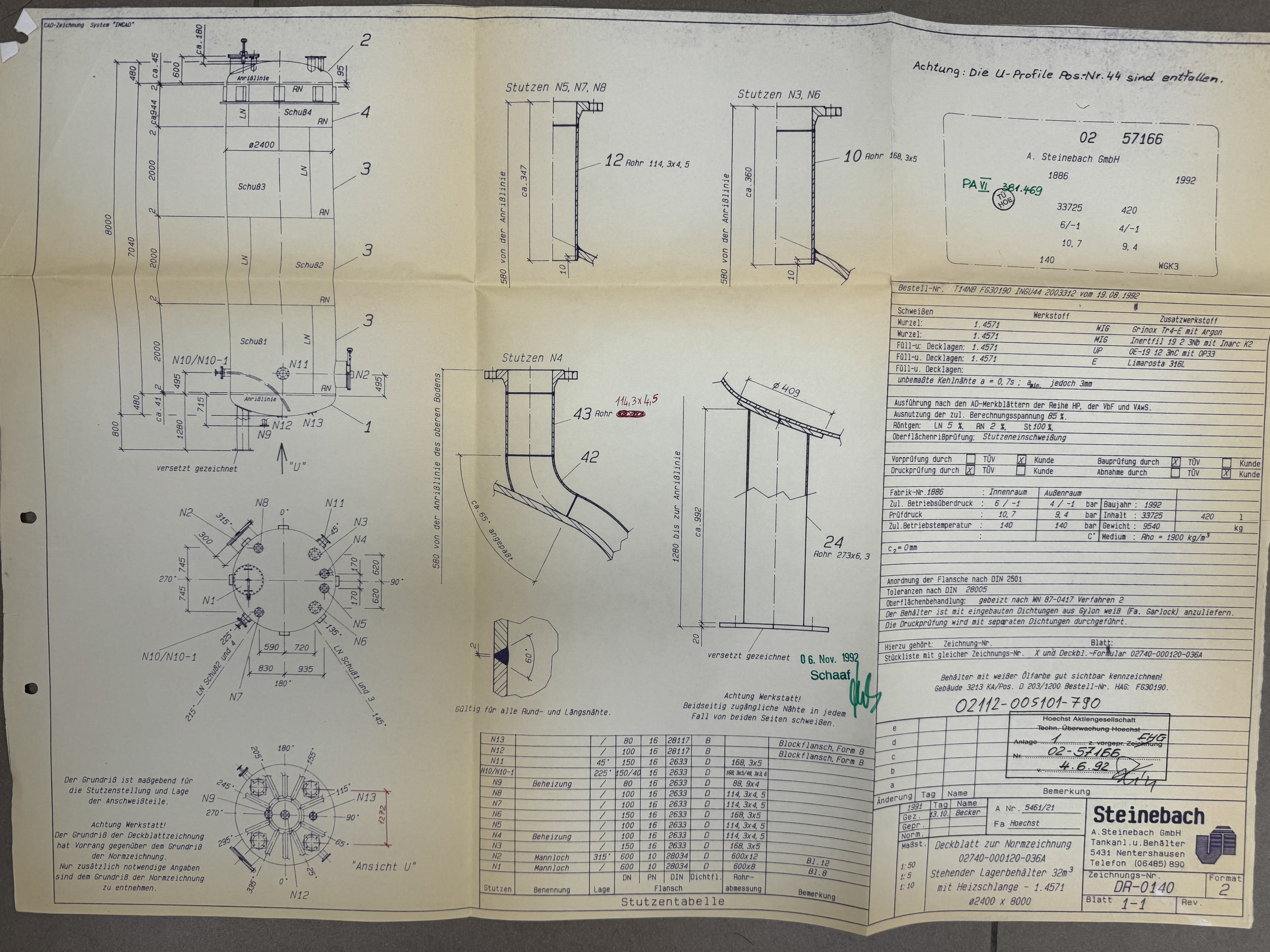

Technical documentation

  • Technical documentation

  • Designation

  • Pressure test certificate

  • Test certificate

Other

  • Note

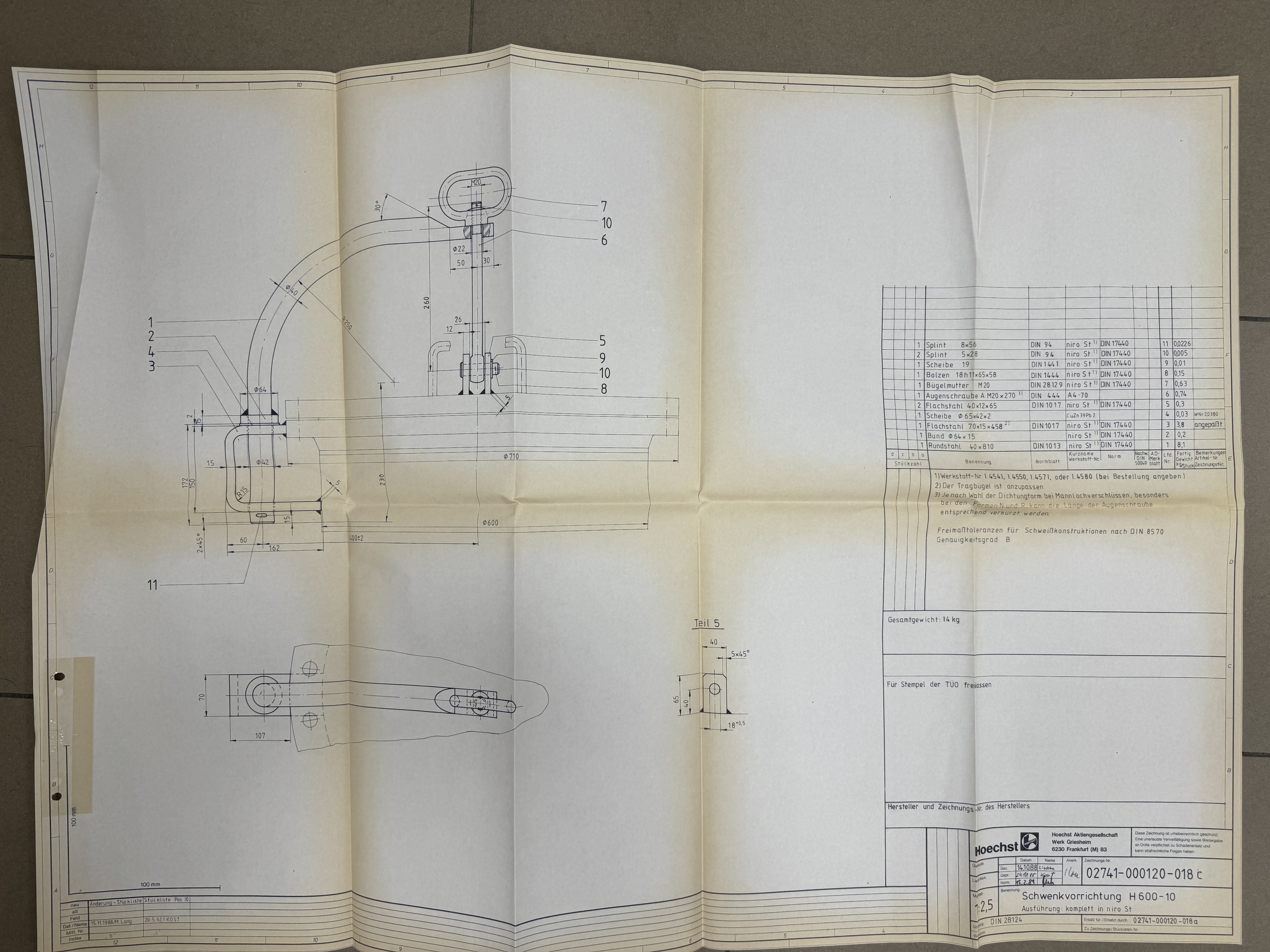

  • Mannlochdeckel VA-plattiert. Bauähnliche Behälter Art. 2923, 2924 und 2925.

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank,
