Product no. M-2627

Pressure tank 3.685 liters made of V4A temperature-controllable, isolated, used, hanging

EUR 8.500,00

add. 19 % VAT excl. shipping costs

Volume approx. 3,685.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

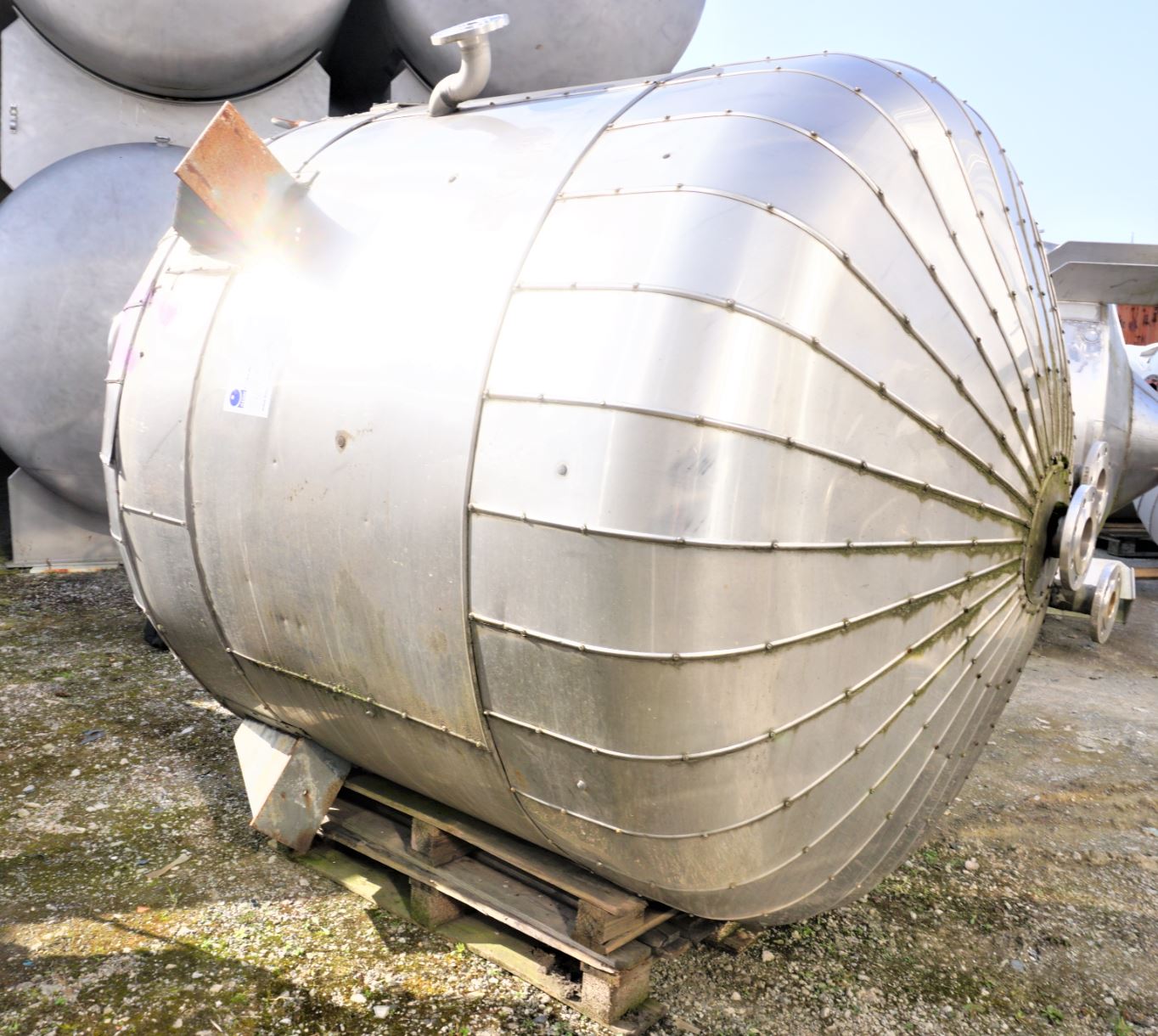

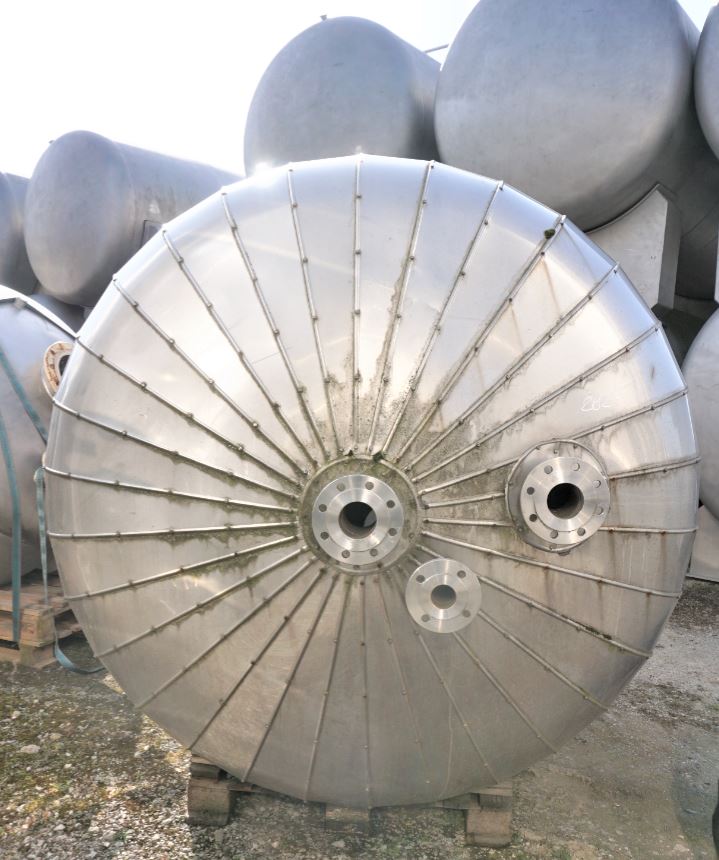

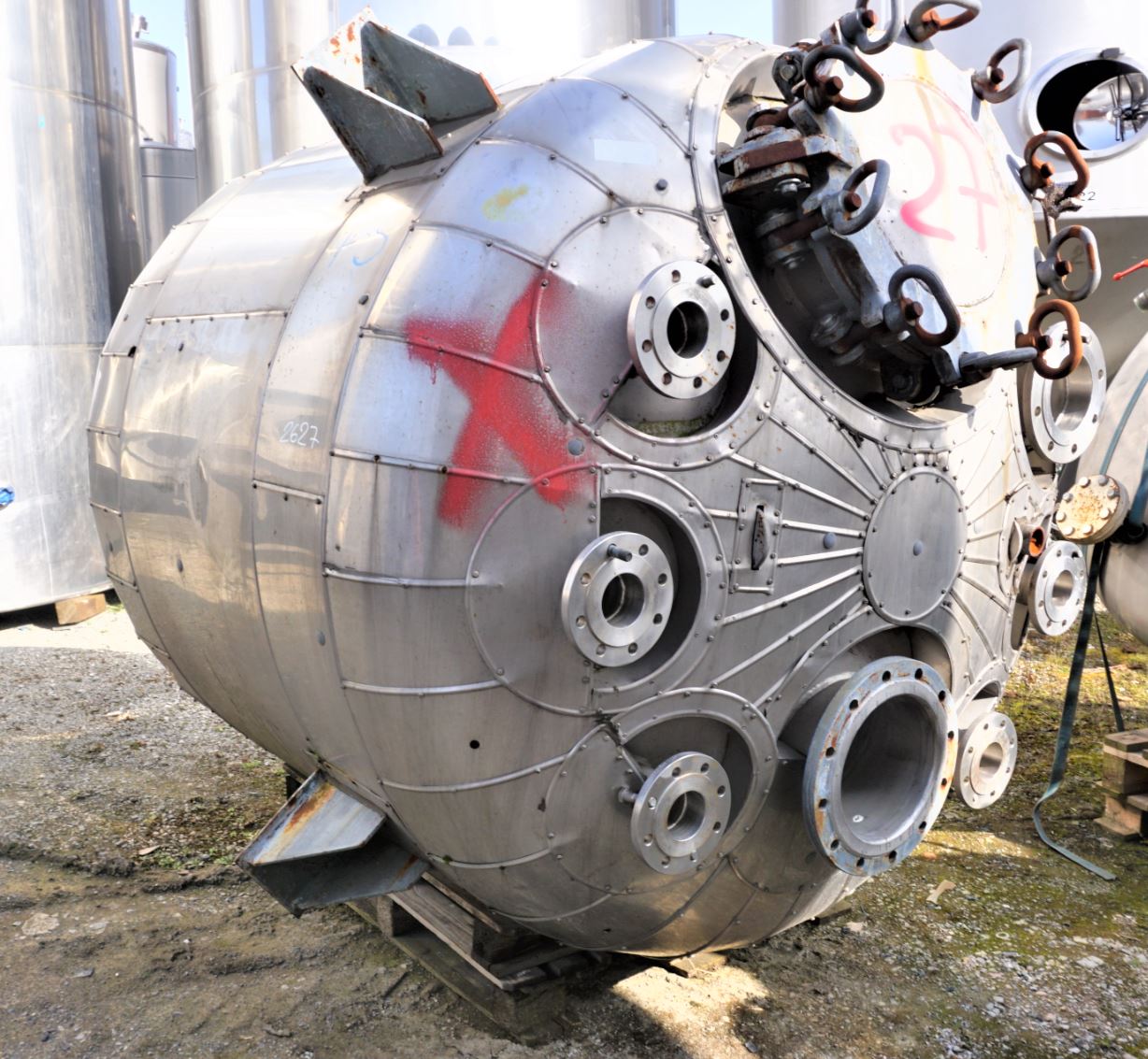

Pressure tank 3.685 liters made of V4A temperature-controllable, isolated, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 3,685.00 litres. The diameter inside includes 1,600 mm.  Pressure tank 3.685 liters made of V4A temperature-controllable, isolated, used was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Tempering, Under/over-pressure,

General

  • Volume approx.

  • 3.685,00 litres

  • Structure

  • Hanging

  • Year of manufacture

  • 1993

  • Manufacturer

  • Pass, Siegen

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.600 mm

  • External diameter

  • 1.800 mm

  • Cyl. height

  • 1.400 mm

  • Total height

  • 2.400 mm

Design

  • Weight approx.

  • 2.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulation cladding

  • Bolted stainless steel

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 3,20 bar

  • Product chamber operating under-pressure

  • -1 bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Temperature control system

  • Half-pipe coils

  • Operating temperature

  • 200 °C

  • Temperature control system operating pressure/pipe chamber

  • 6/-1 bar

  • Temperature control system operating temperature/pipe chamber

  • 200 °C

Supports

  • Supports

  • Bracket supports

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway 1 size

  • 500 DN mm

  • Manway position

  • In head

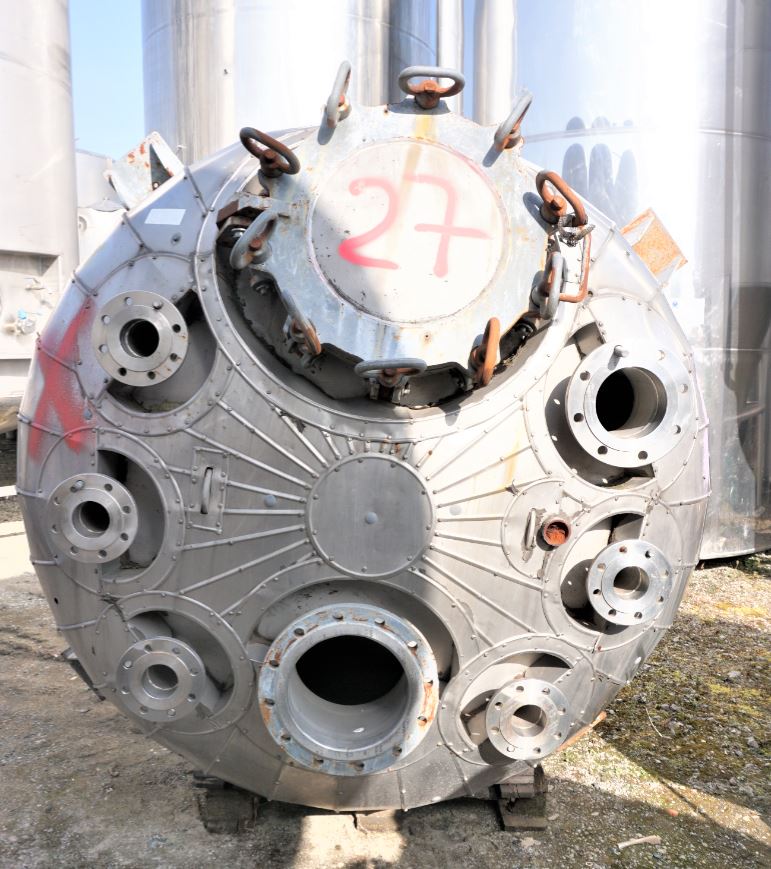

  • Nozzles/connectors in head

  • 5xDN80 1xDN100 1xDN300 (piece)

  • Outlet nozzle

  • 80

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

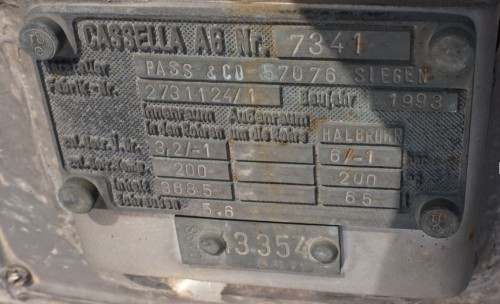

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Pressure tank, Process tank, Boiling tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Pressure tank, Process tank, Cooling tank,
