Product no. M-2436

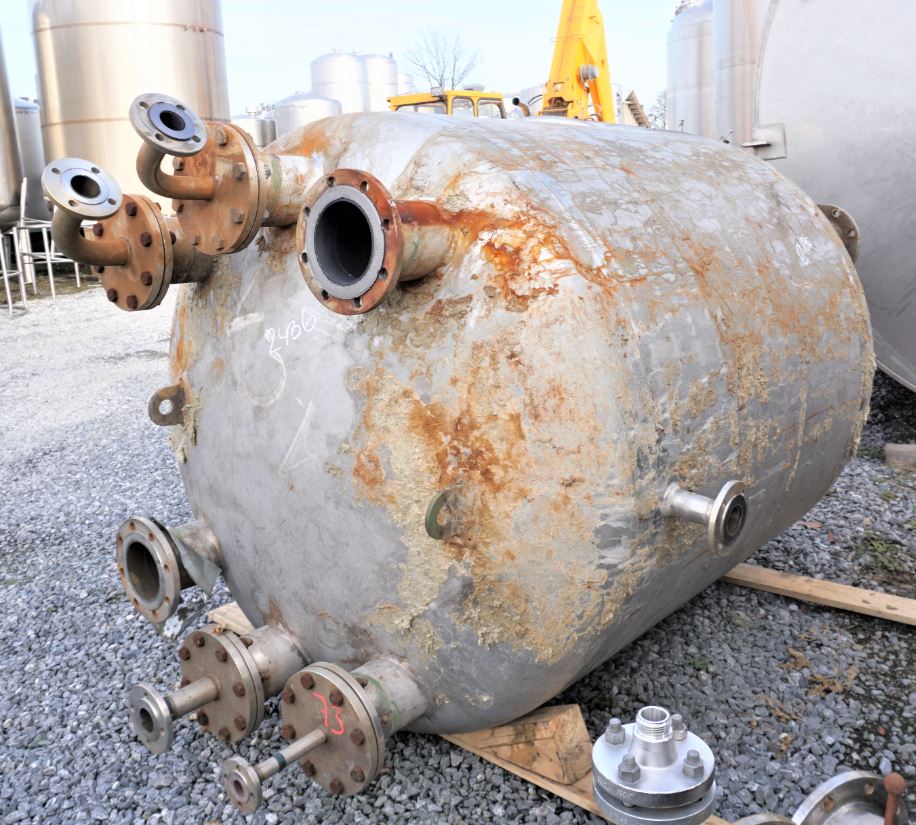

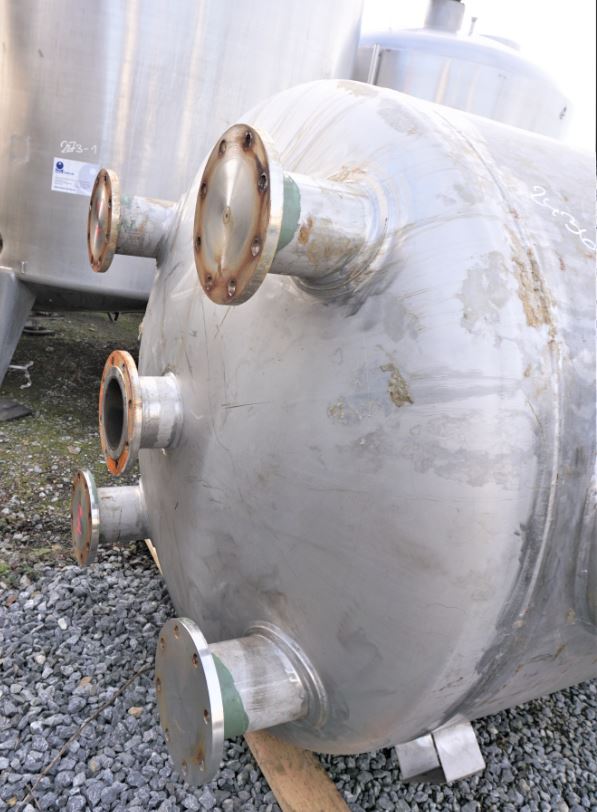

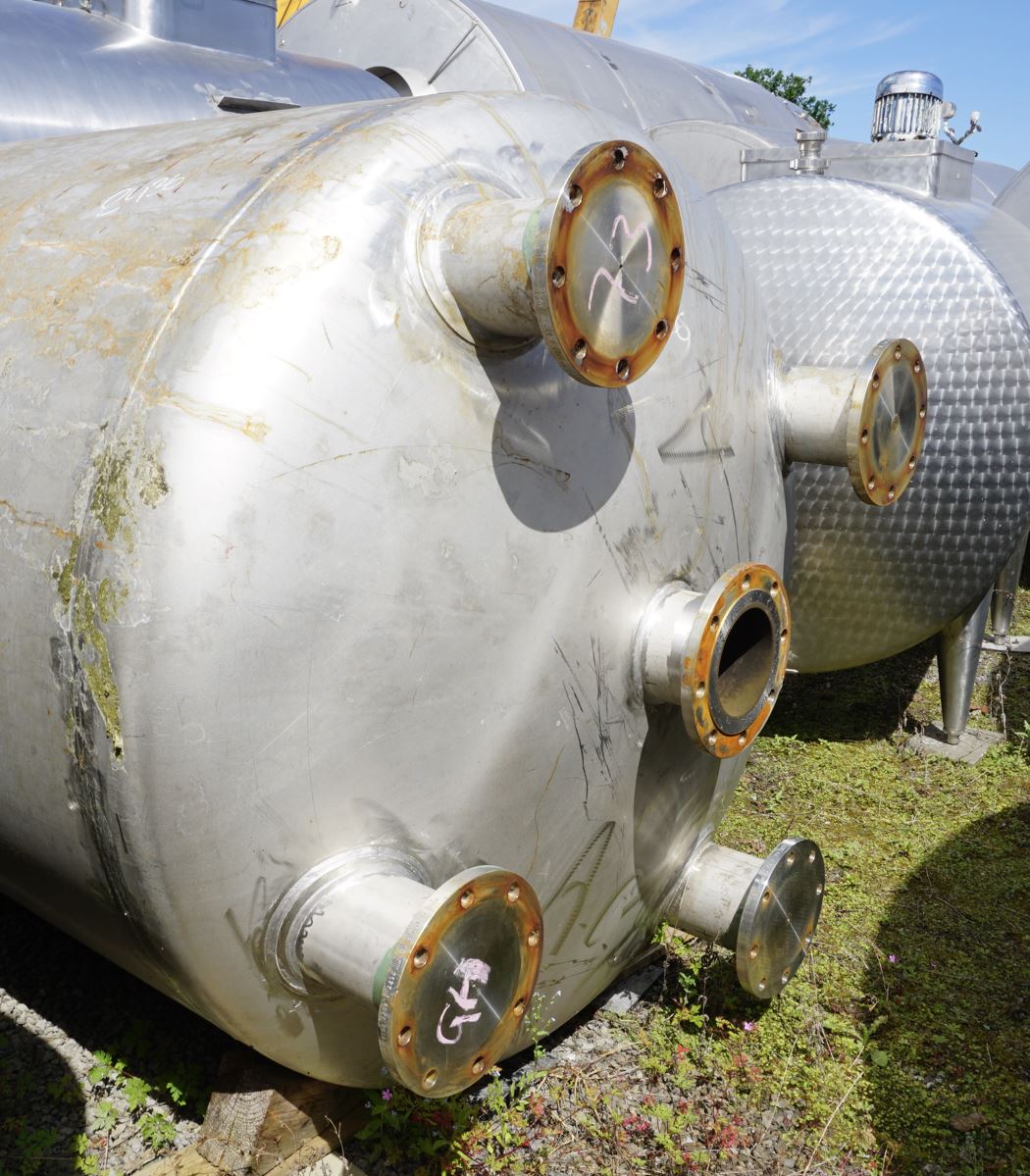

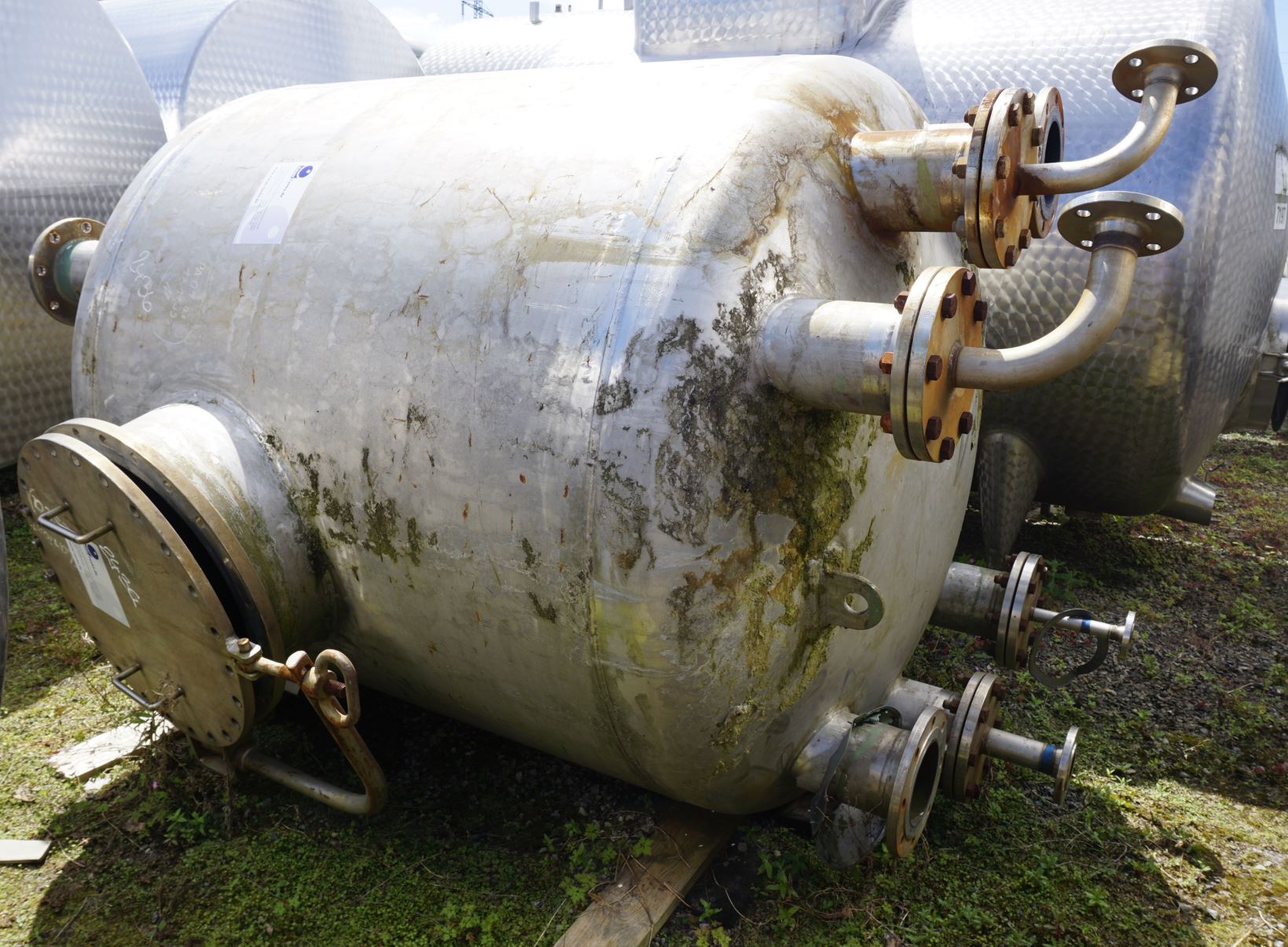

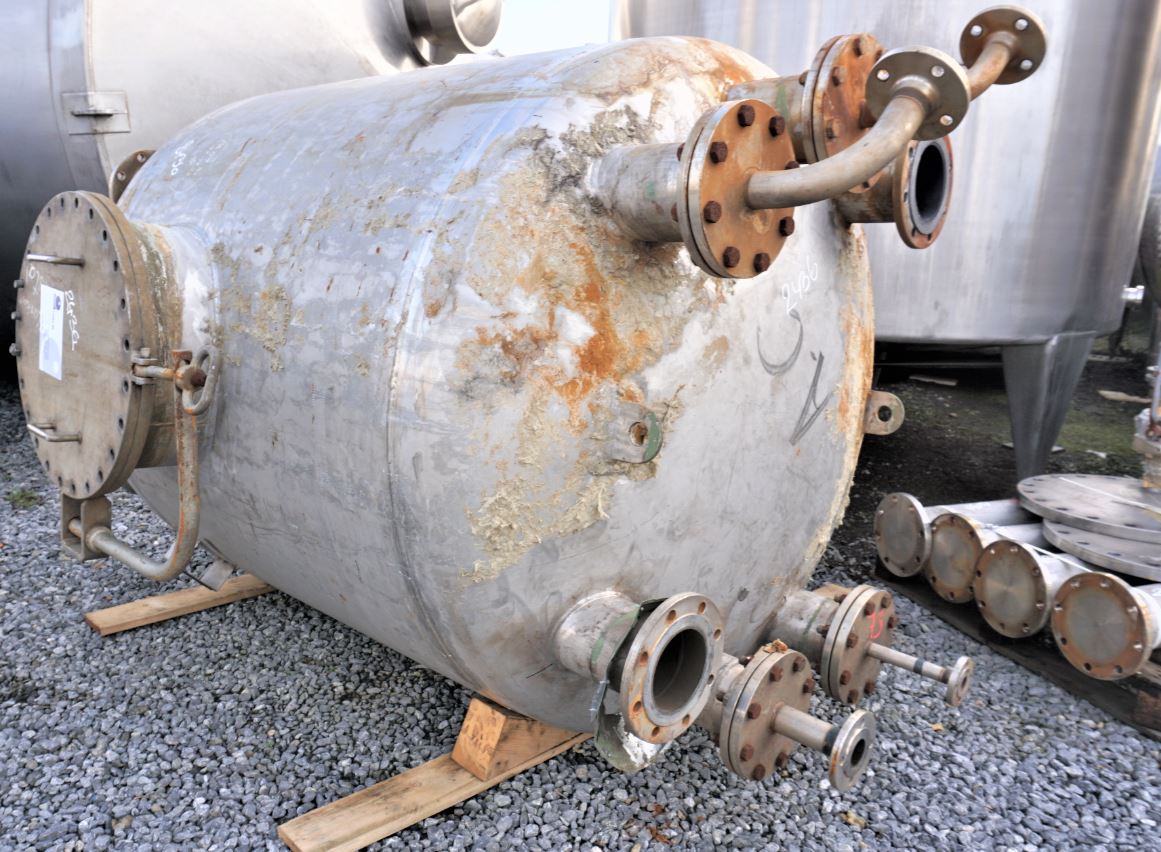

Pressure tank 3.670 liters made of V4A single-walled, used, standing

EUR 5.100,00

add. 19 % VAT excl. shipping costs


Volume approx. 3,670.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 3.670 liters made of V4A single-walled, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 3,670.00 litres.  Pressure tank 3.670 liters made of V4A single-walled, used was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure,

General

  • Volume approx.

  • 3.670,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1989

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.600 mm

  • Cyl. height

  • 1.350 mm

  • Total height

  • 2.500 mm

Design

  • Weight approx.

  • 1.500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 6,00 bar

  • Product chamber operating under-pressure

  • -1 bar

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

  • Note on supports

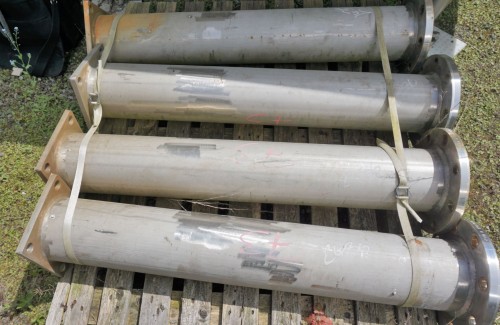

  • zusätzlich Fußverlängerung 1040 mm

Fixtures and fittings

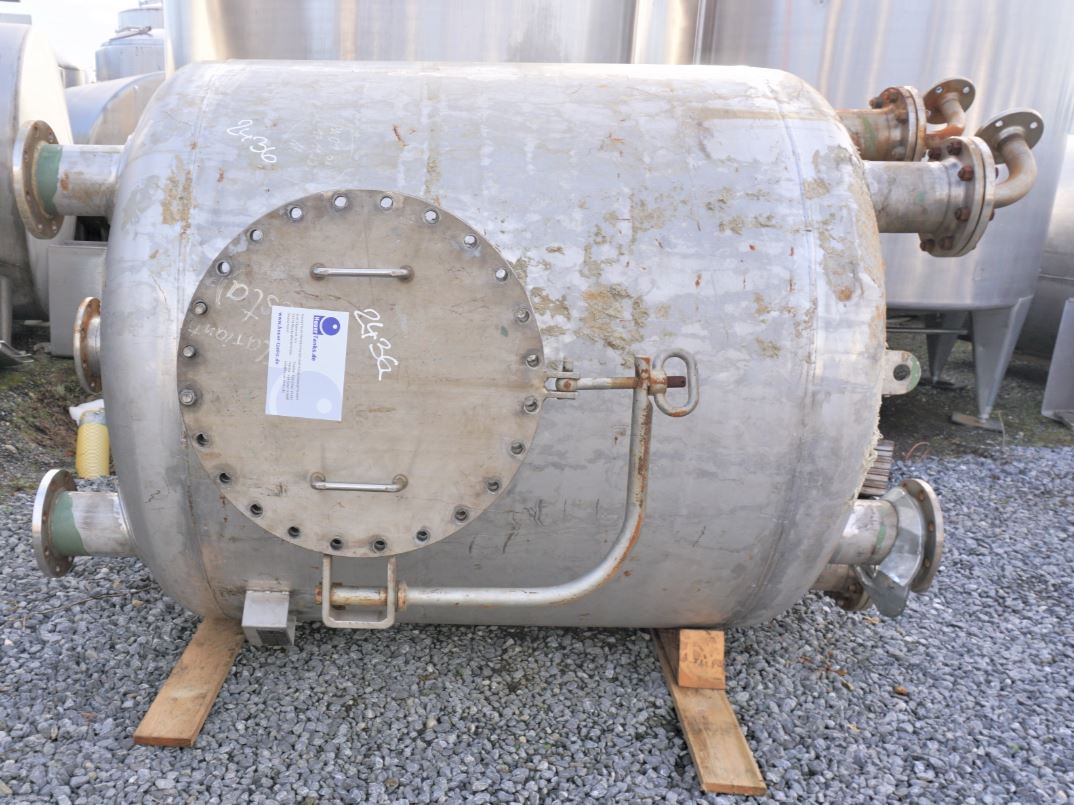

  • Manway 1 size

  • 600 DN mm

  • Manway position

  • In shell

  • Nozzle connector

  • Flange

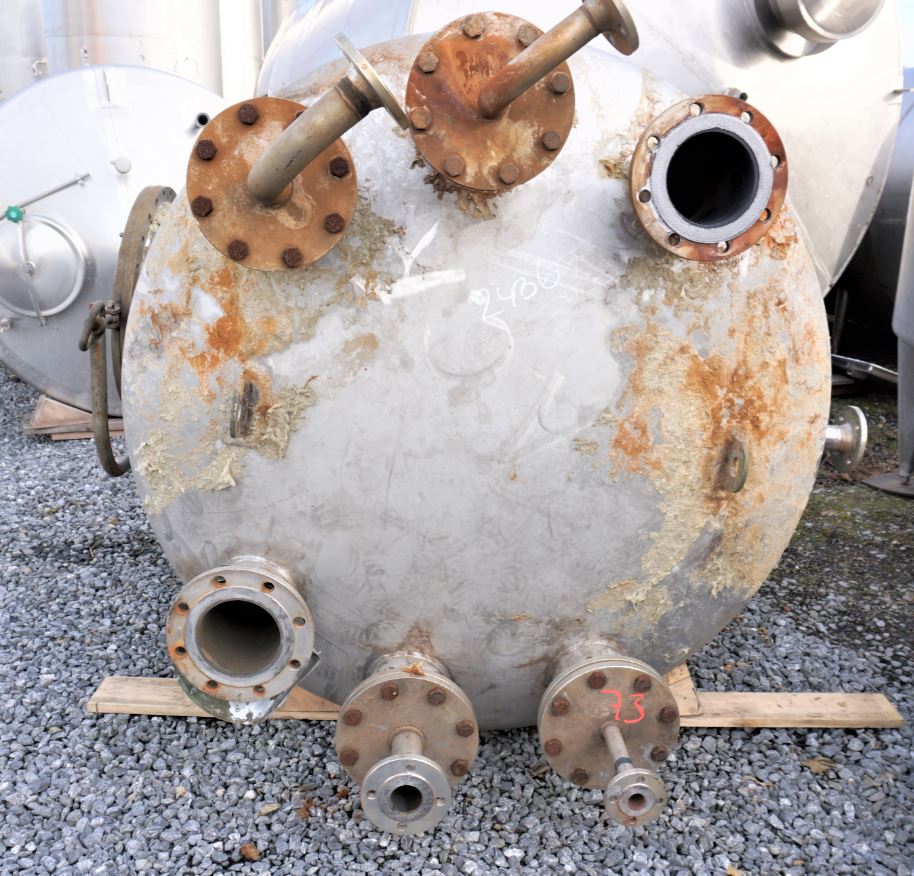

  • Nozzles/connectors in head

  • 5xDN150 (piece)

  • Outlet nozzle

  • 160

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

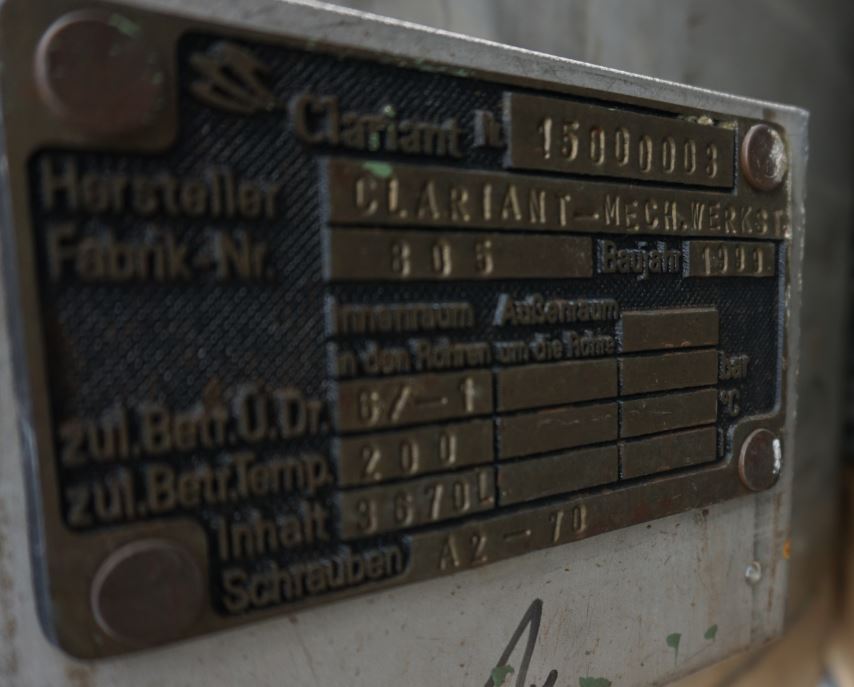

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Pressure tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Pressure tank,
