Product no. M-2675

Pressure tank 21.241 liters made of V4A isolated, used, standing

EUR 18.700,00

add. 19 % VAT excl. shipping costs


Volume approx. 21,241.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 21.241 liters made of V4A isolated, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 21,241.00 litres. The diameter inside includes 2,800 mm.  Pressure tank 21.241 liters made of V4A isolated, used was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure,

General

  • Volume approx.

  • 21.241,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1988

  • Manufacturer

  • Gassella AG

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.800 mm

  • External diameter

  • 3.100 mm

  • Cyl. height

  • 2.400 mm

  • Foot height

  • 1.080 mm

  • Total height

  • 5.000 mm

Design

  • Weight approx.

  • 4.000,00 kg

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Bolted steel

  • Exterior surface

  • Lacquered

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 3,20 bar

  • Product chamber operating under-pressure

  • -1 bar

Supports

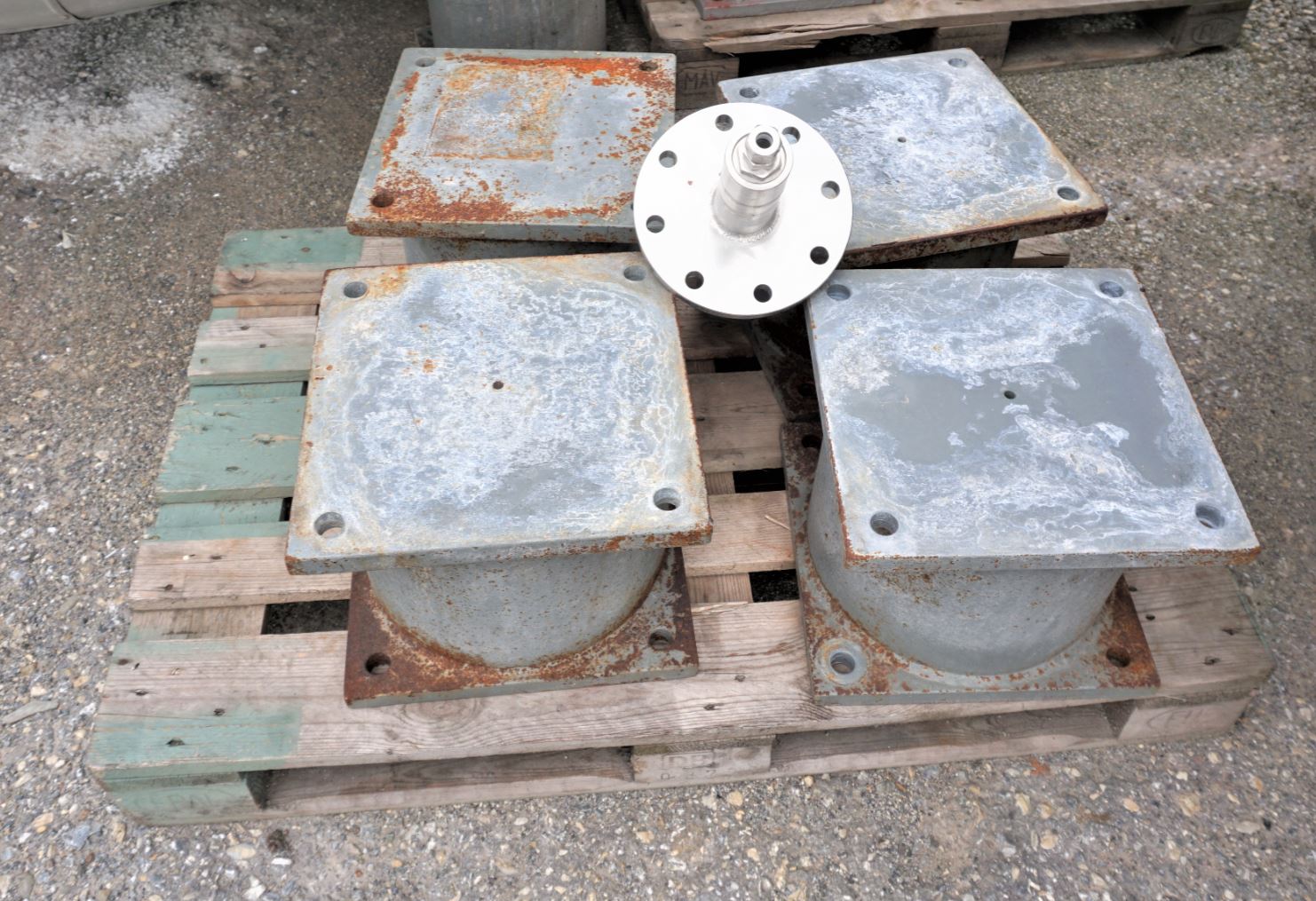

  • Supports

  • Steel feet

  • Number of feet

  • 4 (piece)

  • Note on supports

  • Füße mit Distanzstücken 250 mm

Fixtures and fittings

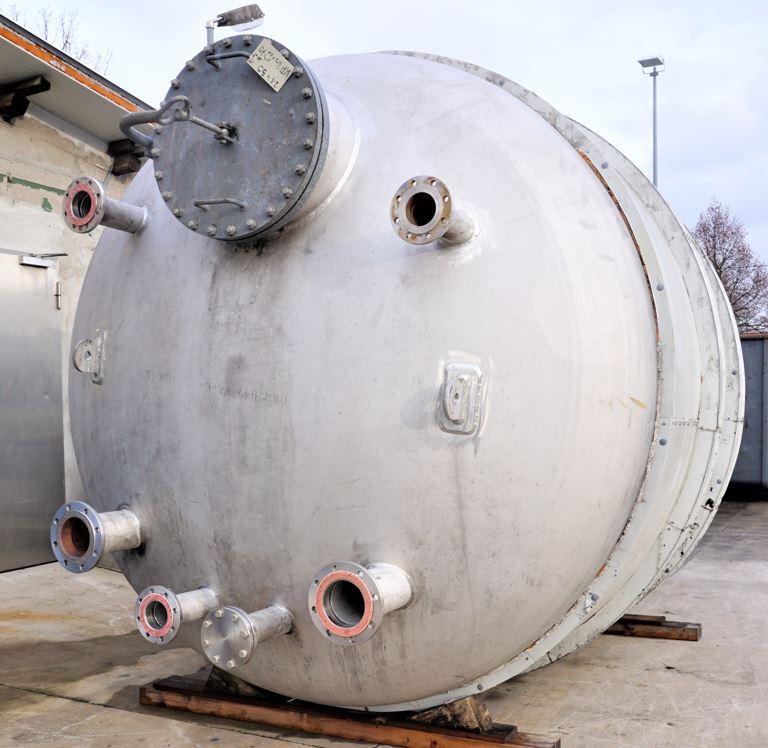

  • Manway 1 size

  • 500 DN mm

  • Manway position

  • In shell and head

  • Nozzle connector

  • Flange

  • Fixtures and fittings

  • Lifting lugs

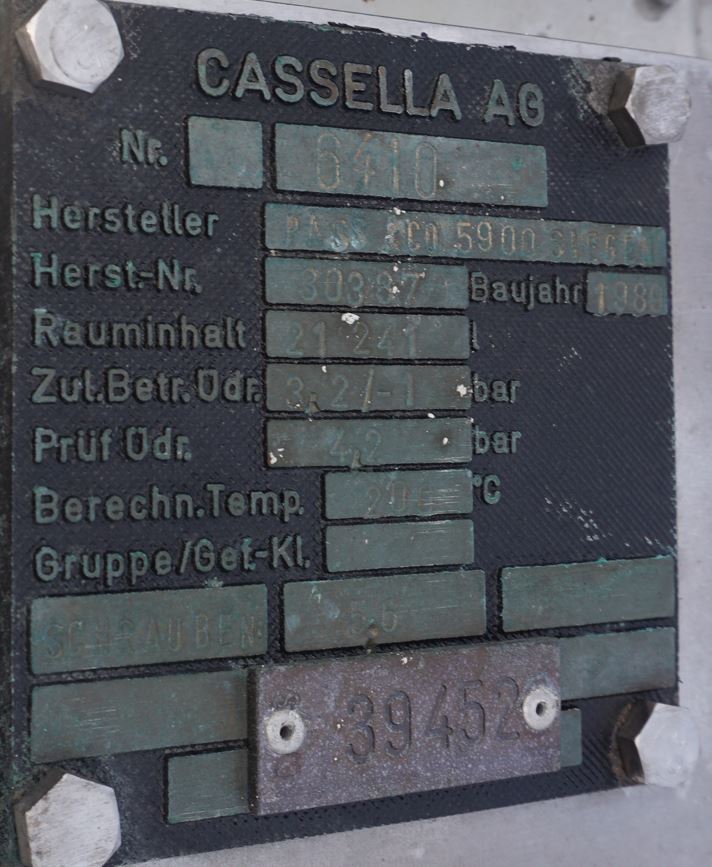

  • Additional fixtures and fittings

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Isolierstärke 60 mm

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Pressure tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Pressure tank,
