Product no. M-2629

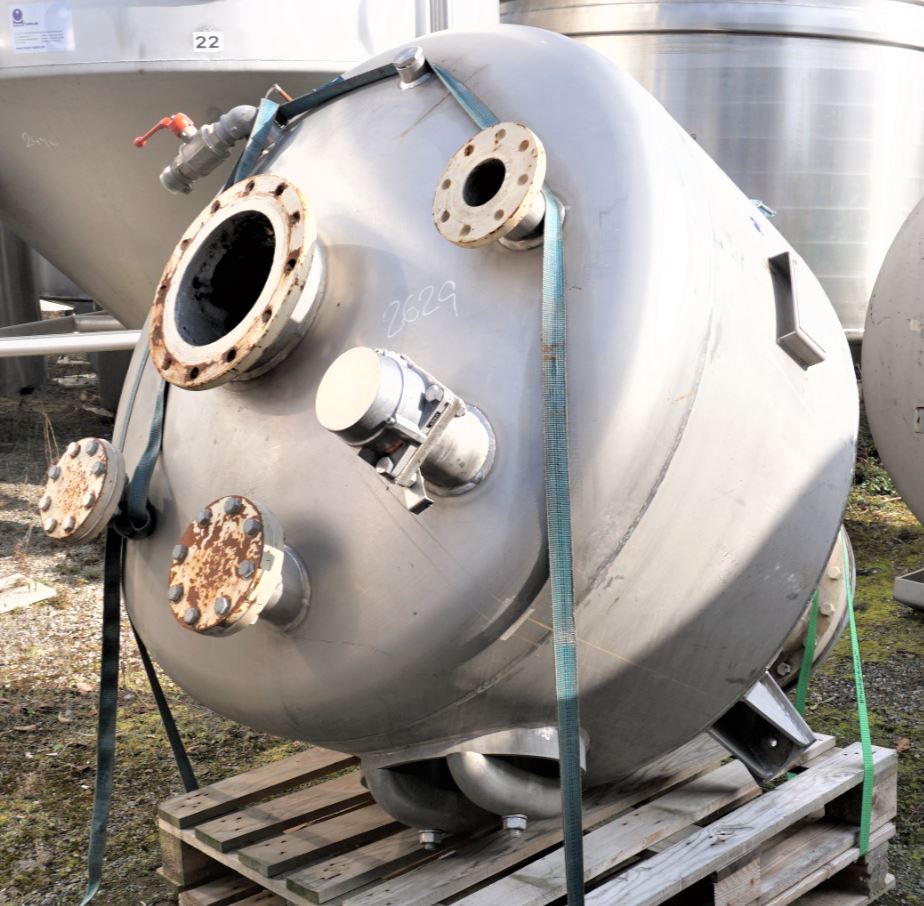

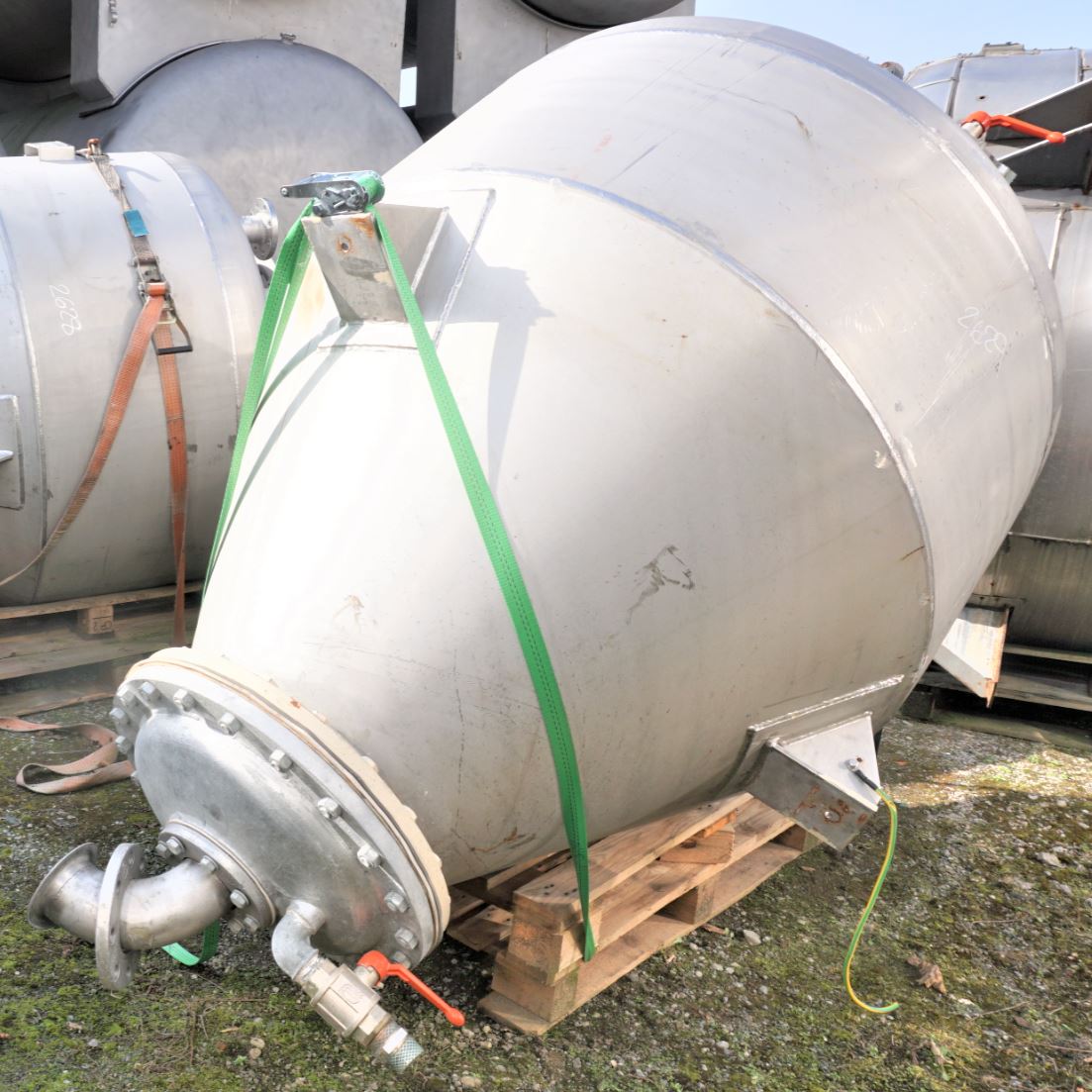

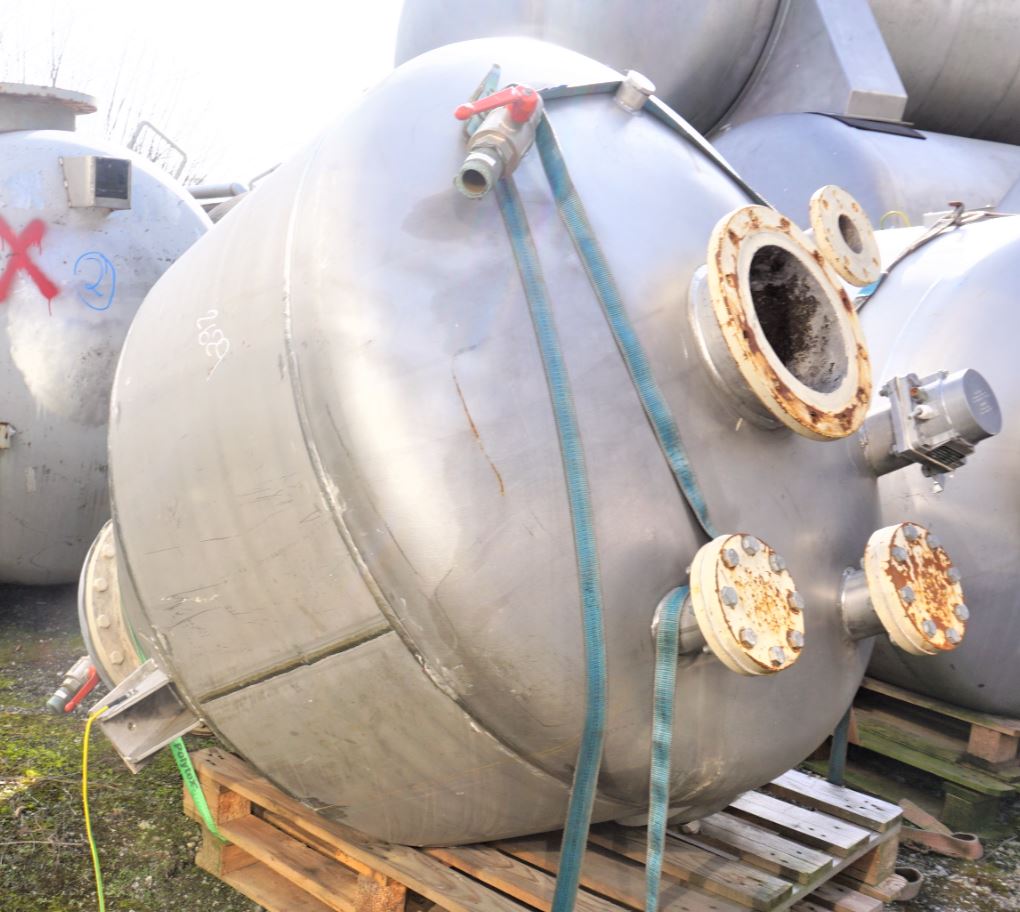

Pressure tank 2.000 liters made of V2A, single-walled, used, hanging

EUR 2.400,00

add. 19 % VAT excl. shipping costs


Volume approx. 2,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 2.000 liters made of V2A, single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 2,000.00 litres.  Pressure tank 2.000 liters made of V2A, single-walled, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure,

General

  • Volume approx.

  • 2.000,00 litres

  • Structure

  • Hanging

  • Year of manufacture

  • 1992

  • Manufacturer

  • PTA Brachbach

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.400 mm

  • Cyl. height

  • 560 mm

  • Total height

  • 2.060 mm

Design

  • Weight approx.

  • 700,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Floor type

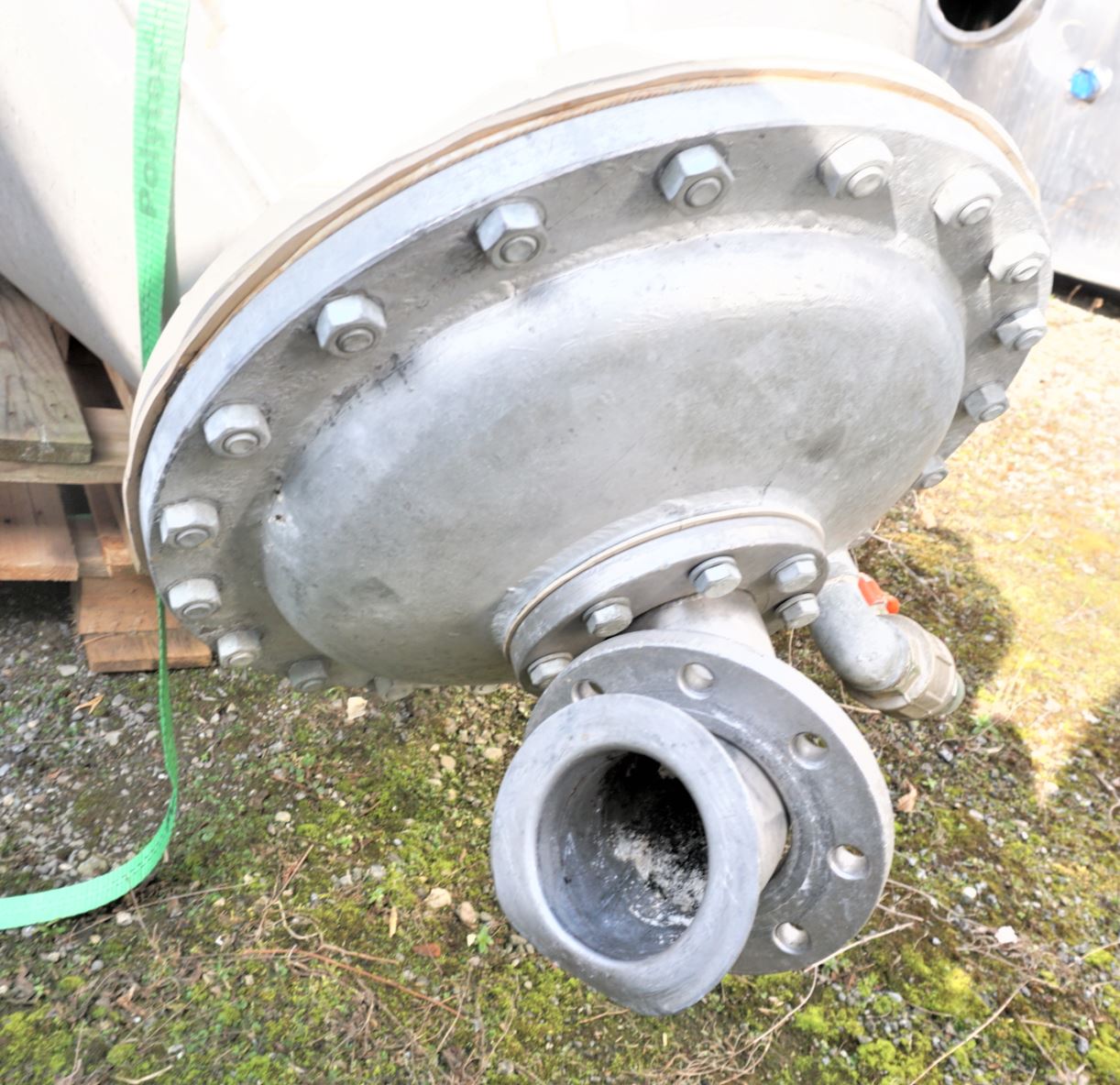

  • Cone

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 4,00 bar

Supports

  • Supports

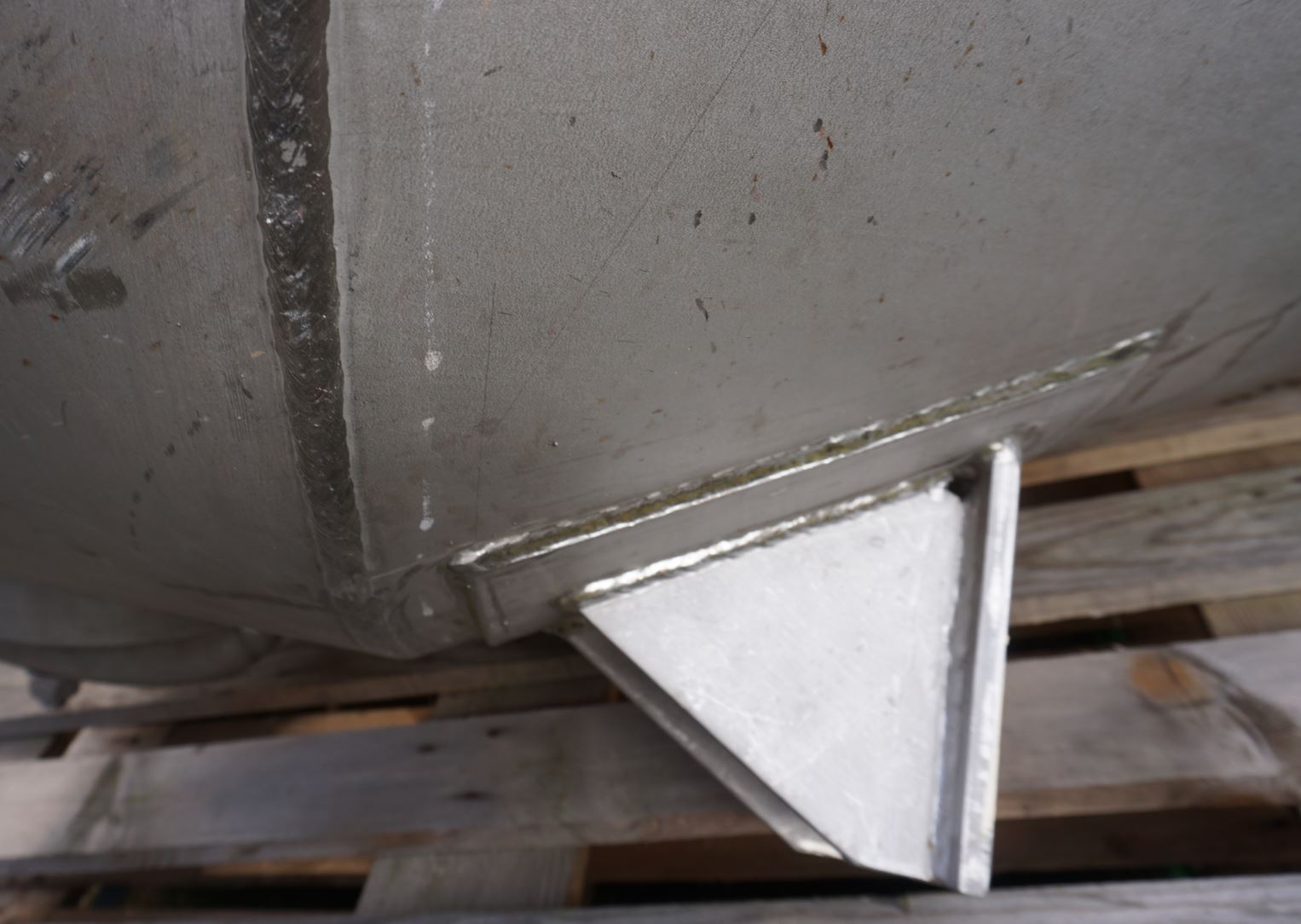

  • Bracket supports

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway 1 size

  • 400 DN mm

  • Manway position

  • In shell

  • Nozzles/connectors in head

  • 3xDN300 1xDN100 1xDN80 (piece)

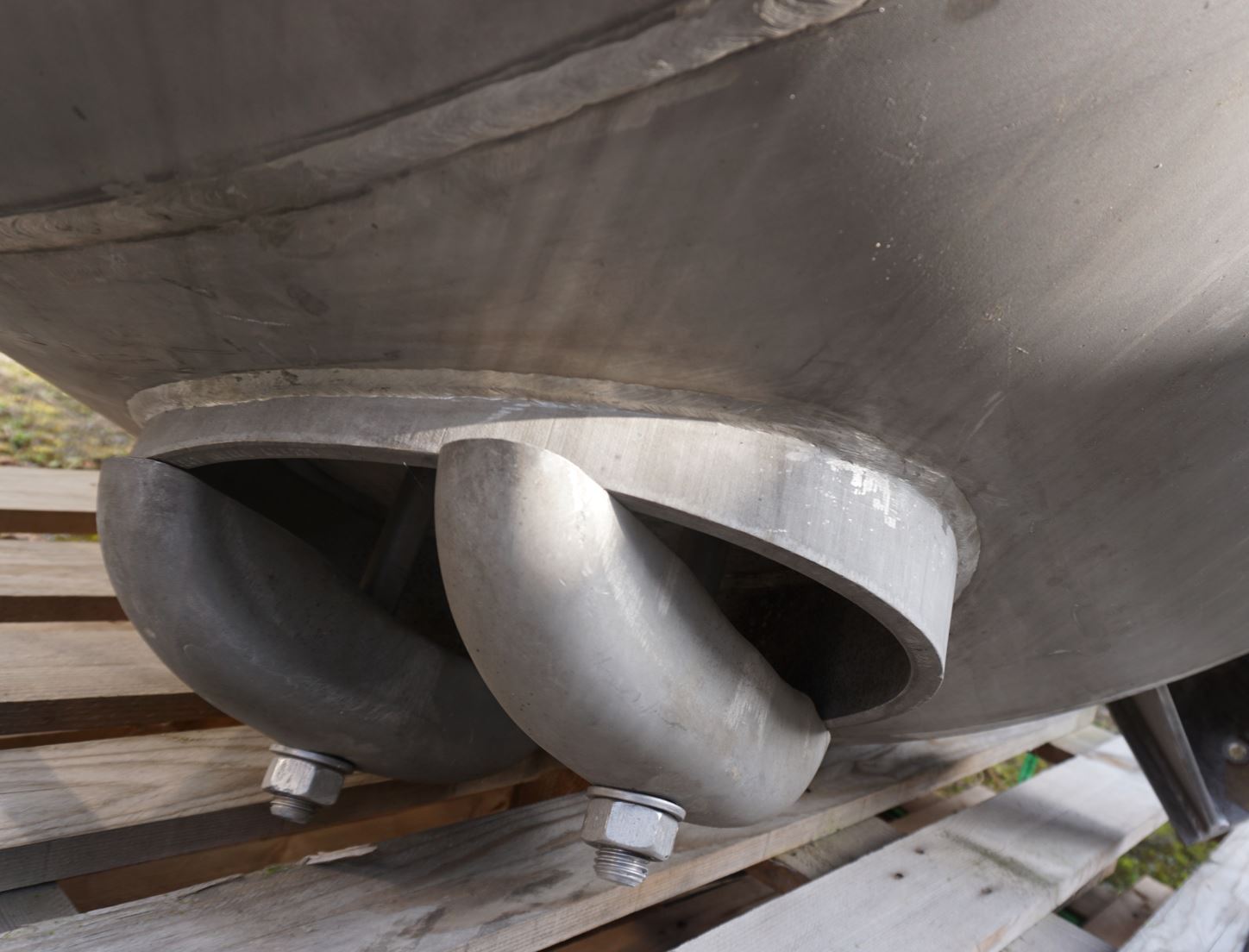

  • Outlet nozzle

  • 100

  • Additional fixtures and fittings

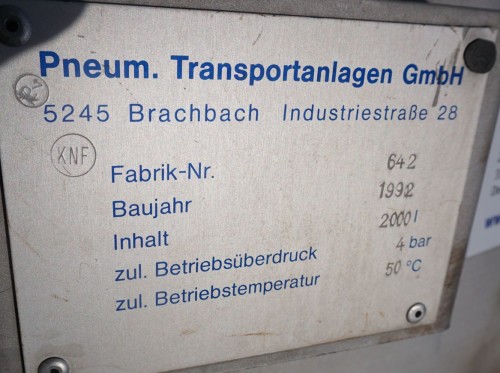

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Anhaftungen im Produktraum

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Pressure tank,

Agriculture: Silo, Storage tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank,
