Product no. M-2717

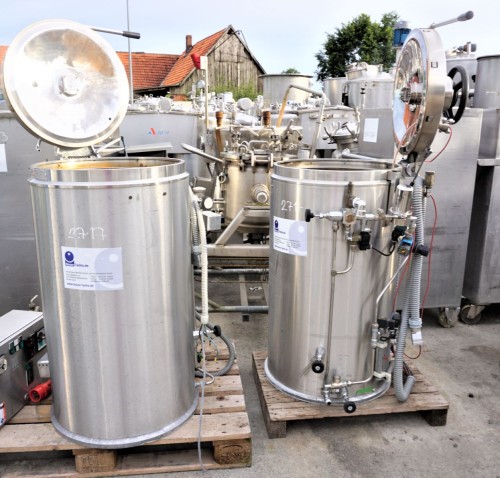

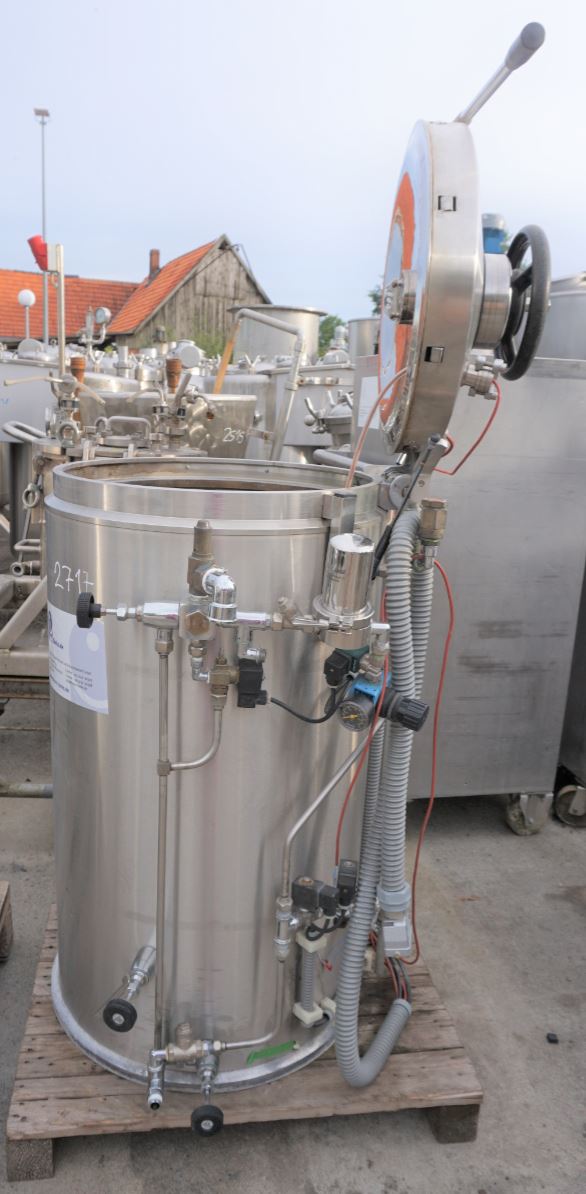

Pressure tank 170 liters made of V2A, isolated, temperature-controllable, used, standing

EUR 2.900,00

add. 19 % VAT excl. shipping costs


Volume approx. 170.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 170 liters made of V2A, isolated, temperature-controllable, used consists of the material 1.4541(AISI321). The volume is approx. 170.00 litres. The diameter inside includes 500 mm.  Pressure tank 170 liters made of V2A, isolated, temperature-controllable, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Tempering, Under/over-pressure, Processes,

General

  • Volume approx.

  • 170,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1992

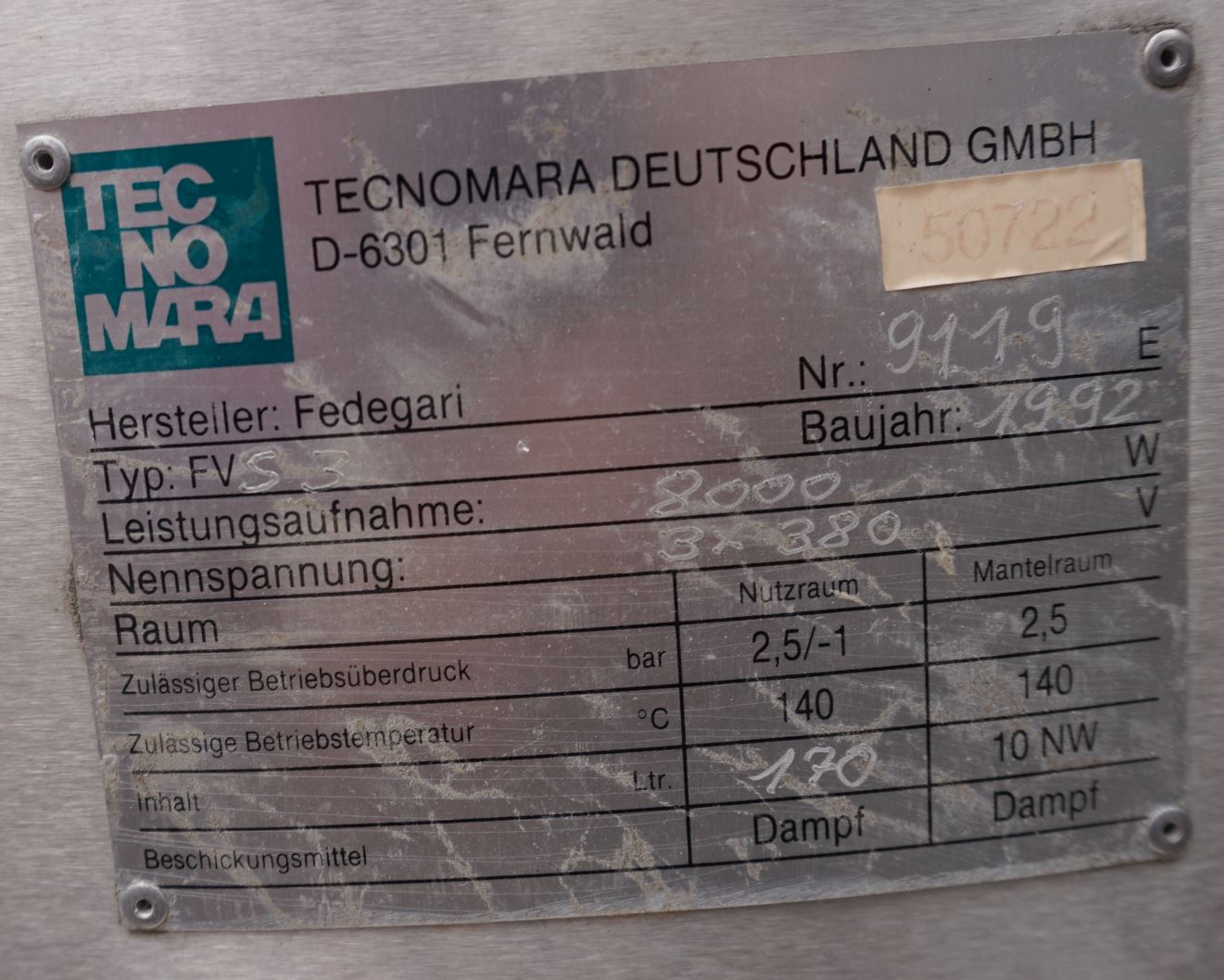

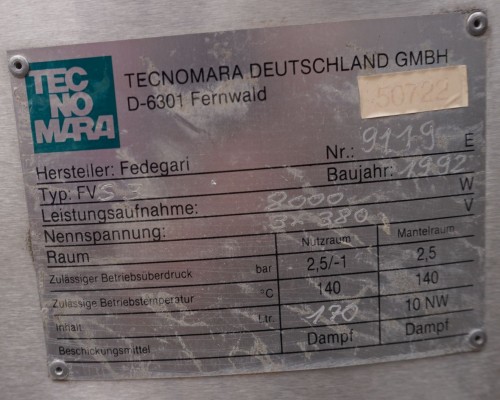

  • Manufacturer

  • Tecnomara, Fernwald

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 500 mm

  • External diameter

  • 650 mm

  • Cyl. height

  • 750 mm

  • Total height

  • 1.200 mm

Design

  • Weight approx.

  • 200,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

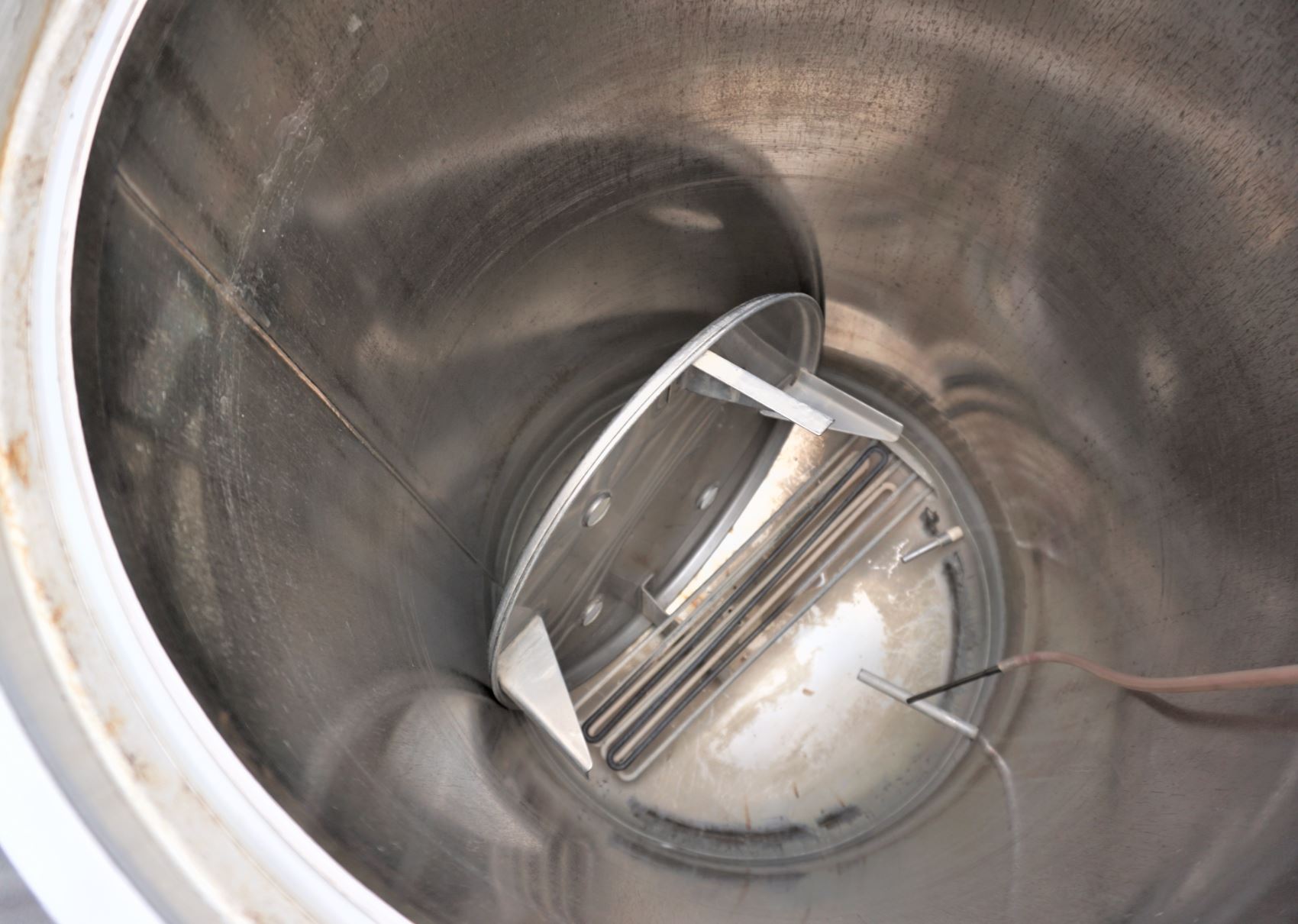

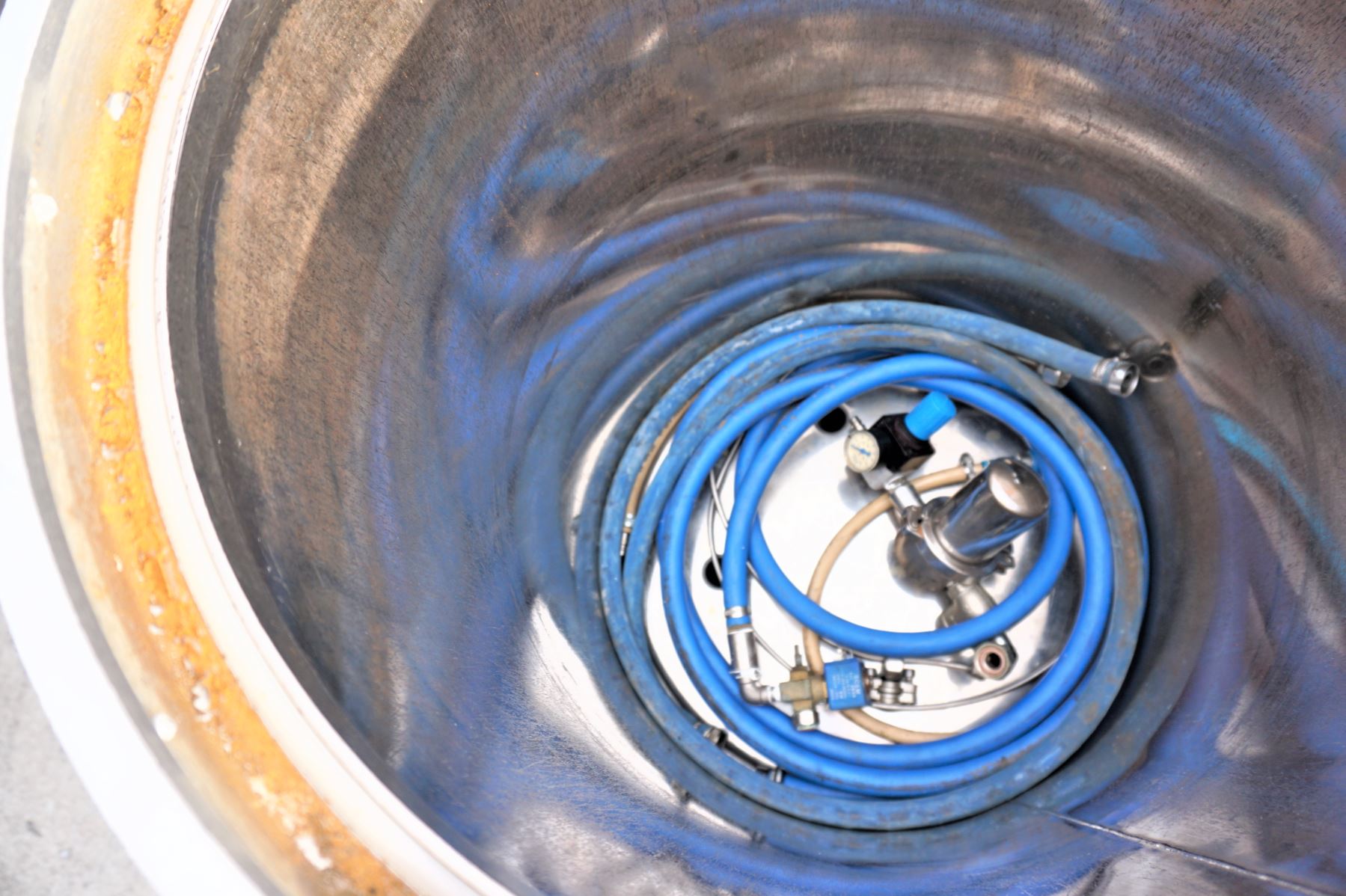

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

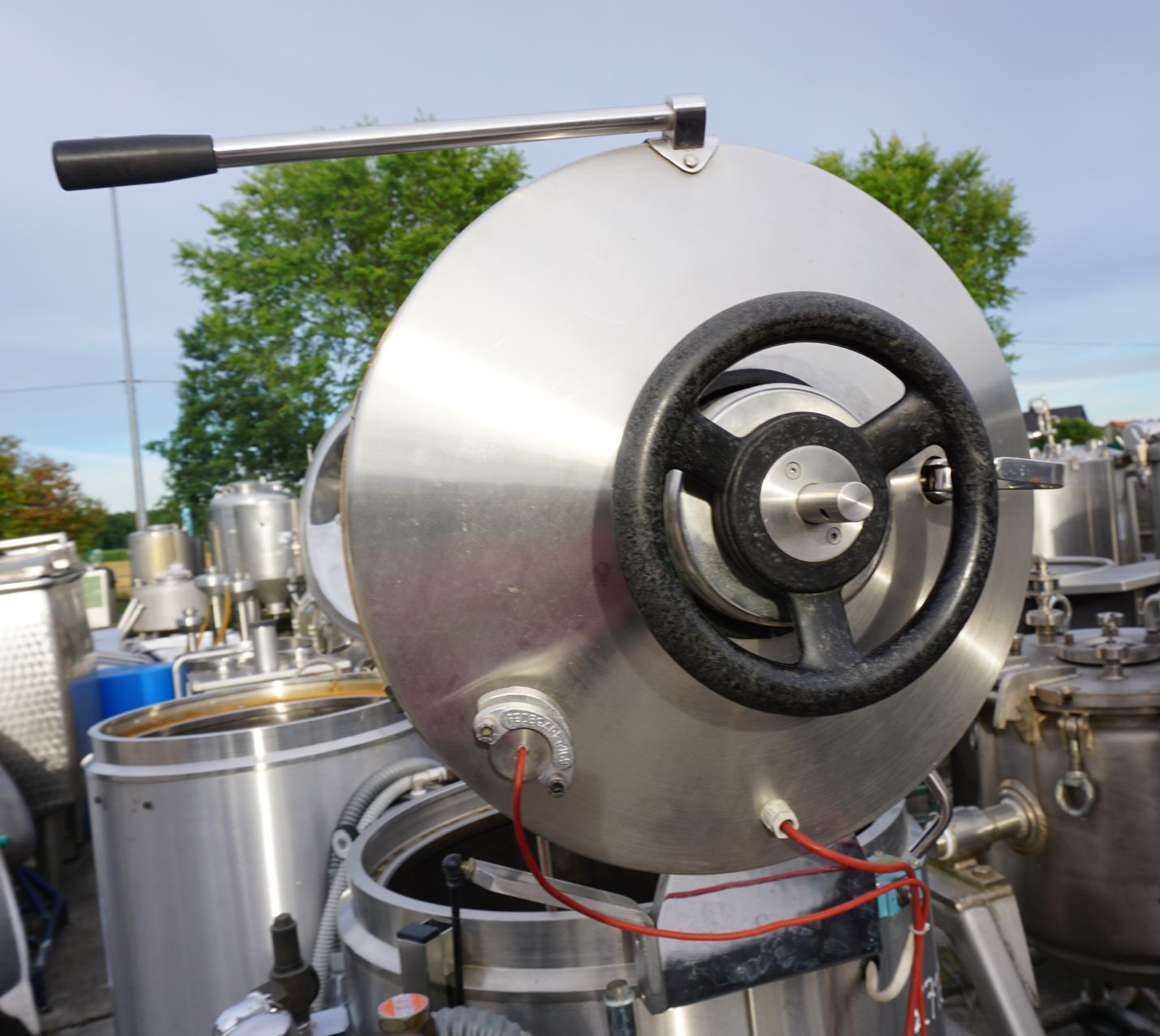

  • Head design

  • Hinged lid

  • Product chamber operating over-pressure

  • 2,50 bar

  • Product chamber operating under-pressure

  • -1 bar

Equipment

  • Temperature-controllable

  • Yes

  • Operating temperature

  • 140 °C

  • Heating medium

  • Steam

  • Temperature control system operating pressure/pipe chamber

  • 2,5 bar

  • Temperature control system operating temperature/pipe chamber

  • 140 °C

Supports

  • Supports

  • Stainless steel support skirt

Fixtures and fittings

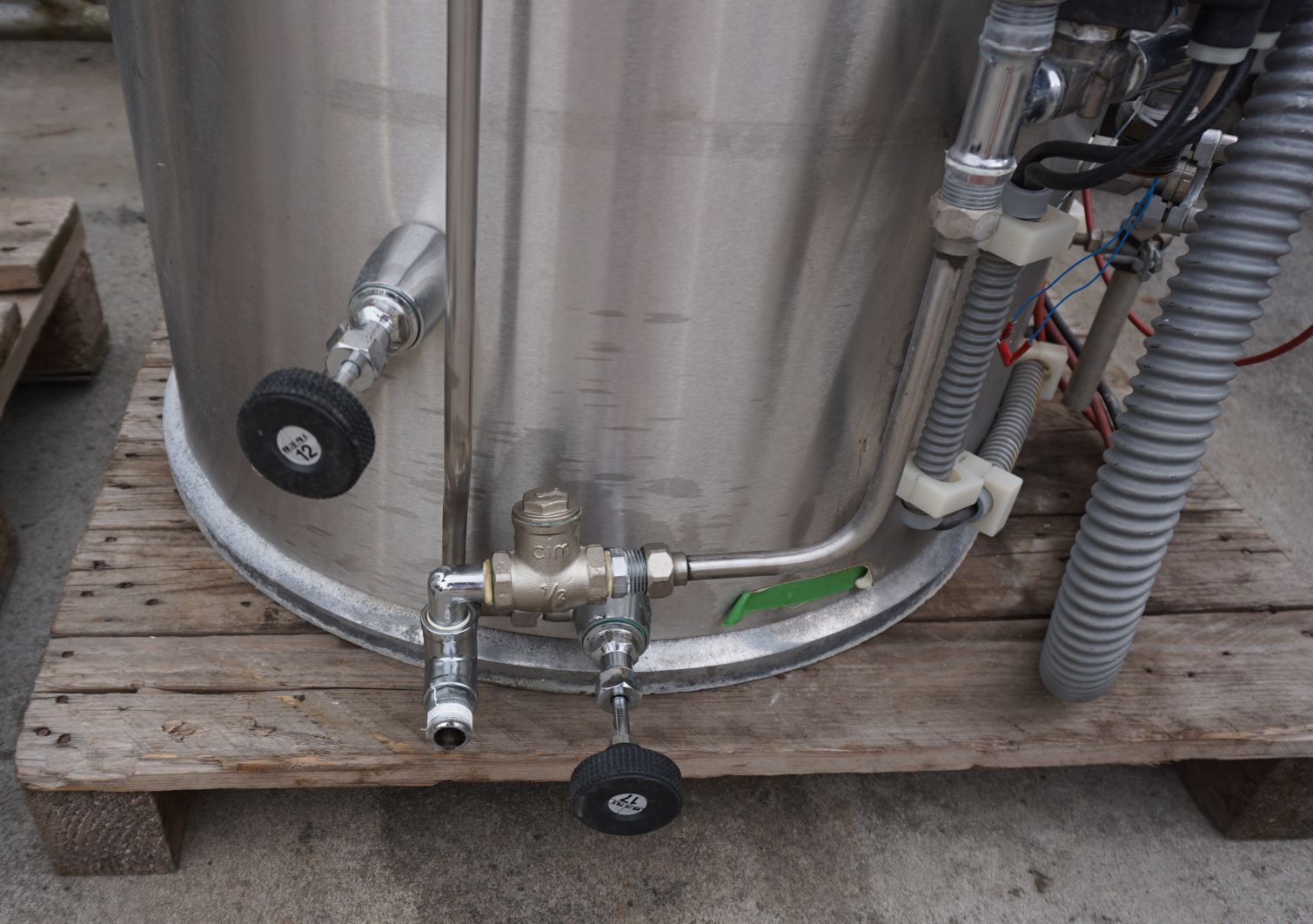

  • Outlet nozzle

  • 25

Technical documentation

  • Technical documentation

  • None

Other

  • Note

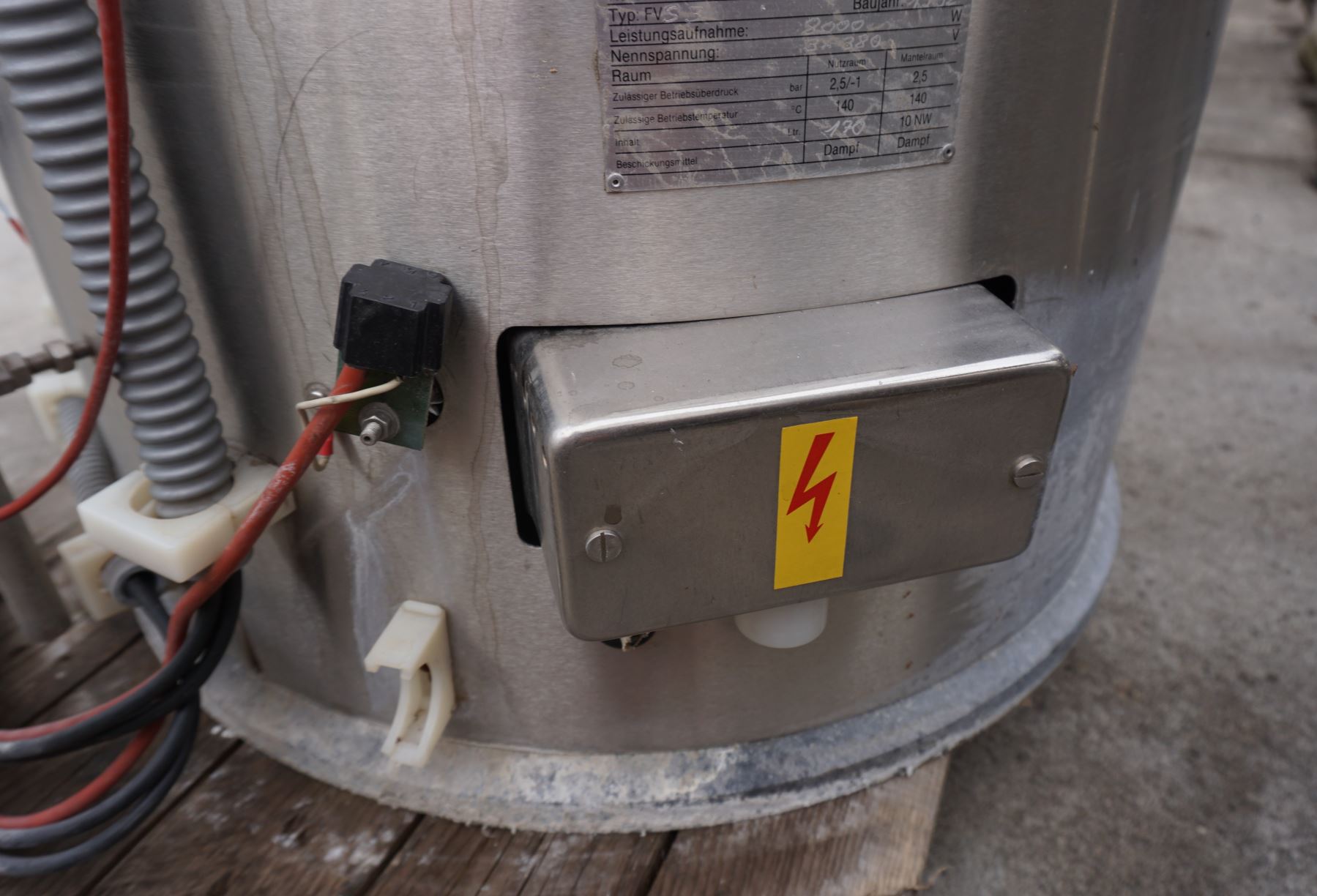

  • Elektroheizung ohne Gewaehr

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Fruit juice tank, Milk tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, Process tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Pressure tank, Process tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Pressure tank, Process tank,
