Product no. M-2993

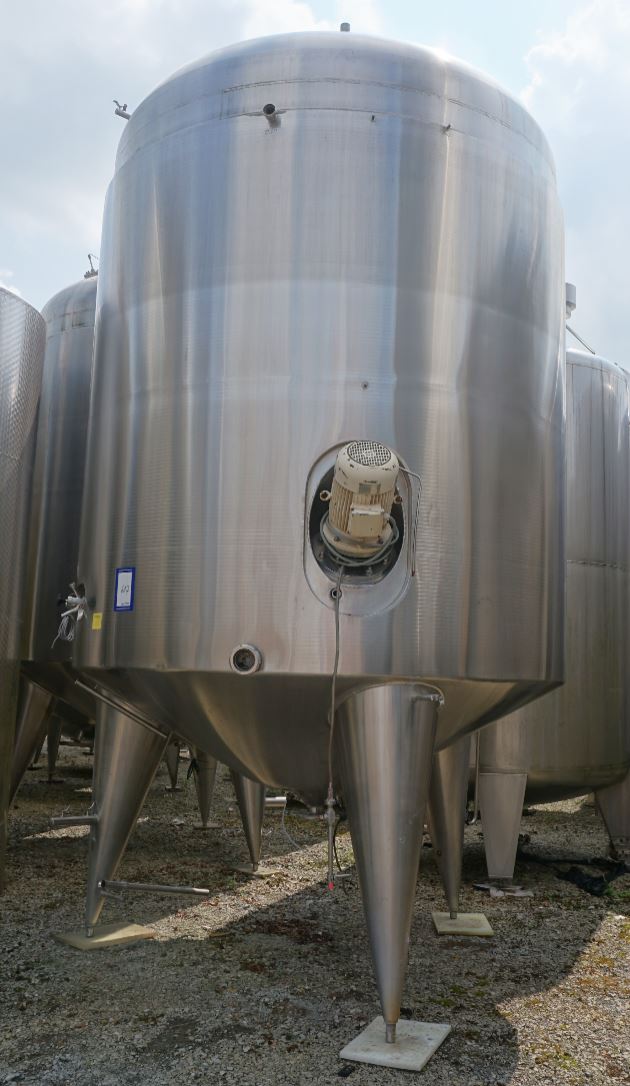

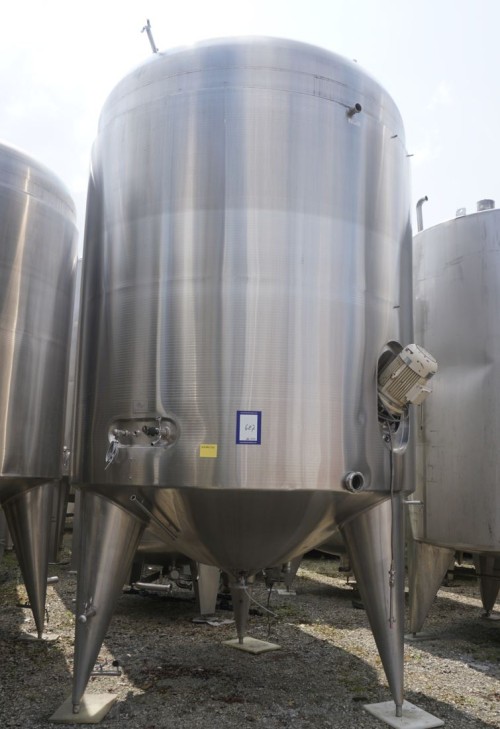

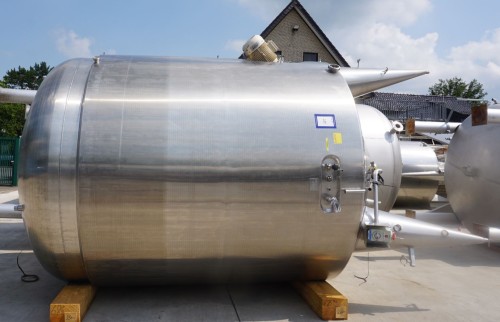

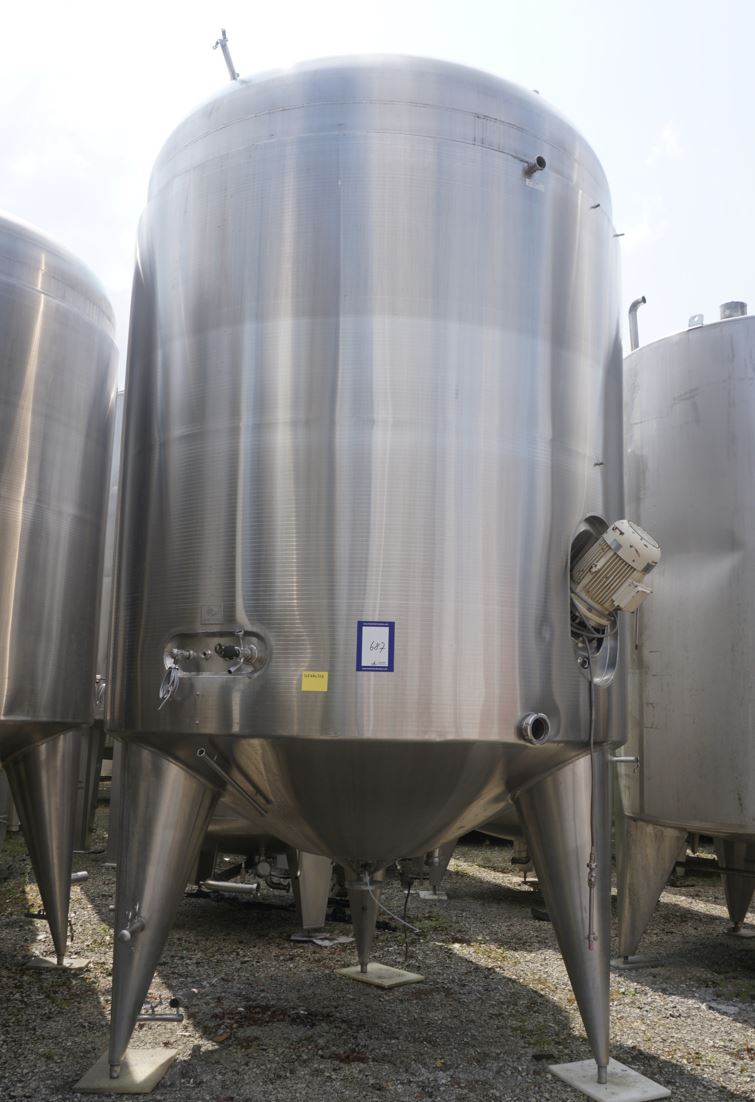

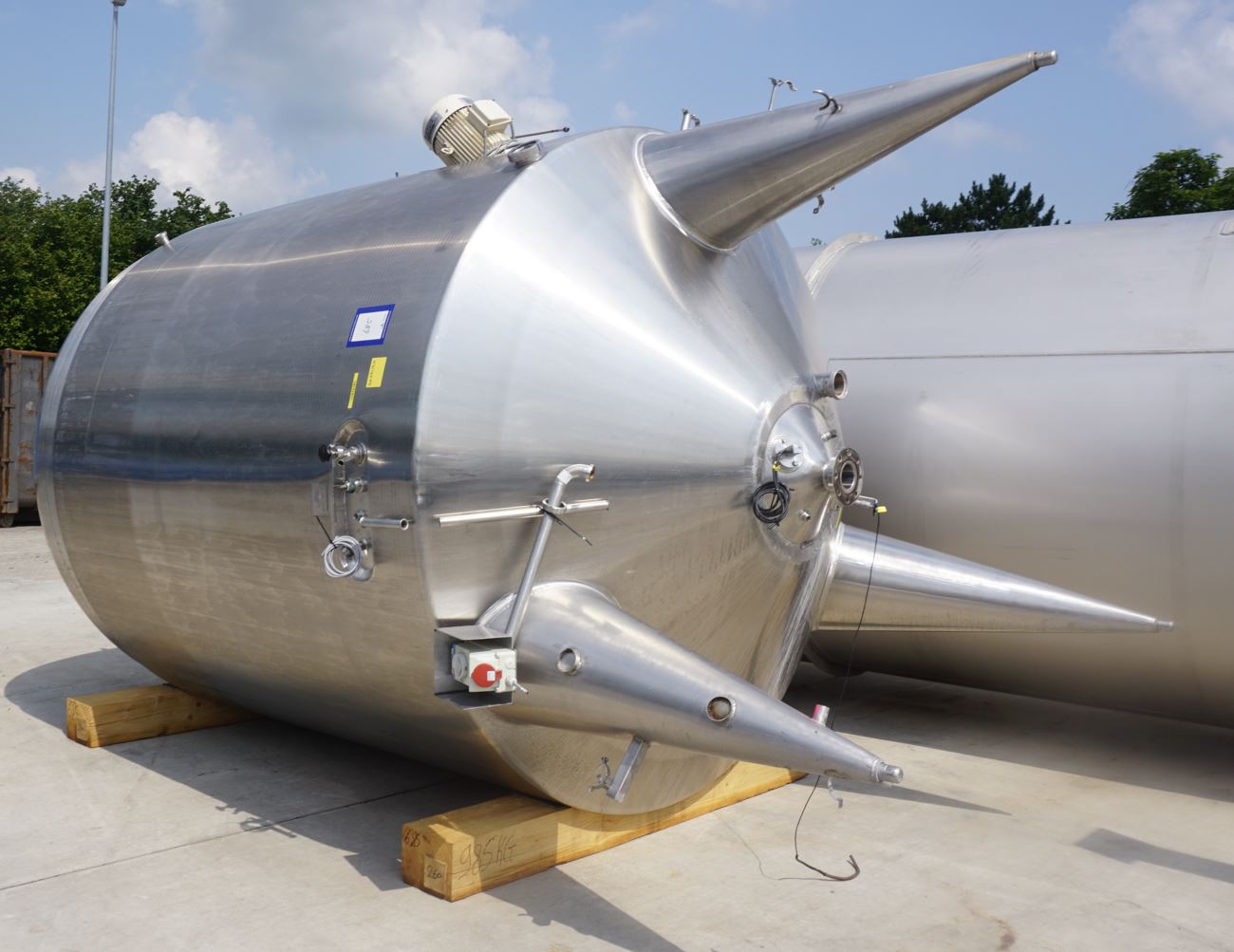

Pressure tank 16.150 liters made of V4A, temperature-controllable, used, standing

EUR 19.500,00

add. 19 % VAT excl. shipping costs

Volume approx. 16,150.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 16.150 liters made of V4A, temperature-controllable, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 16,150.00 litres. The diameter inside includes 2,490 mm.  Pressure tank 16.150 liters made of V4A, temperature-controllable, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Tempering, Under/over-pressure,

General

  • Volume approx.

  • 16.150,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1979

  • Manufacturer

  • Bolz

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.490 mm

  • External diameter

  • 2.580 mm

  • Cyl. height

  • 2.500 mm

  • Total height

  • 5.000 mm

  • Wall thickness of product chamber head

  • 6,00 mm

  • Wall thickness of product chamber shell

  • 8,00 mm

  • Wall thickness of product chamber floor

  • 6,00 mm

Design

  • Weight approx.

  • 3.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

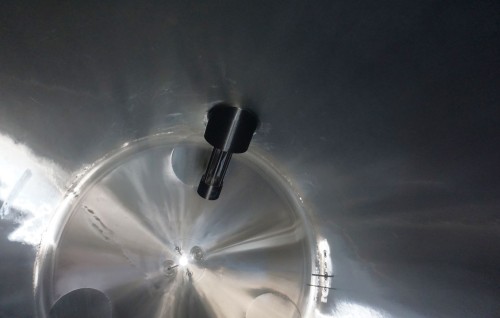

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

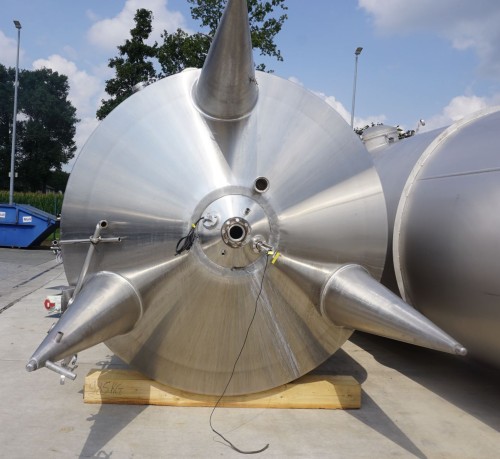

  • Floor type

  • Conical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 3,20 bar

  • Product chamber operating temperature

  • 150,00 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Temperature control system

  • Double shell

  • Operating temperature

  • 150 °C

  • Temperature control system operating pressure/pipe chamber

  • 0,0 bar

  • Temperature control system operating temperature/pipe chamber

  • 150 °C

  • Temperature control system/pipe chamber capacity

  • 1000 litres

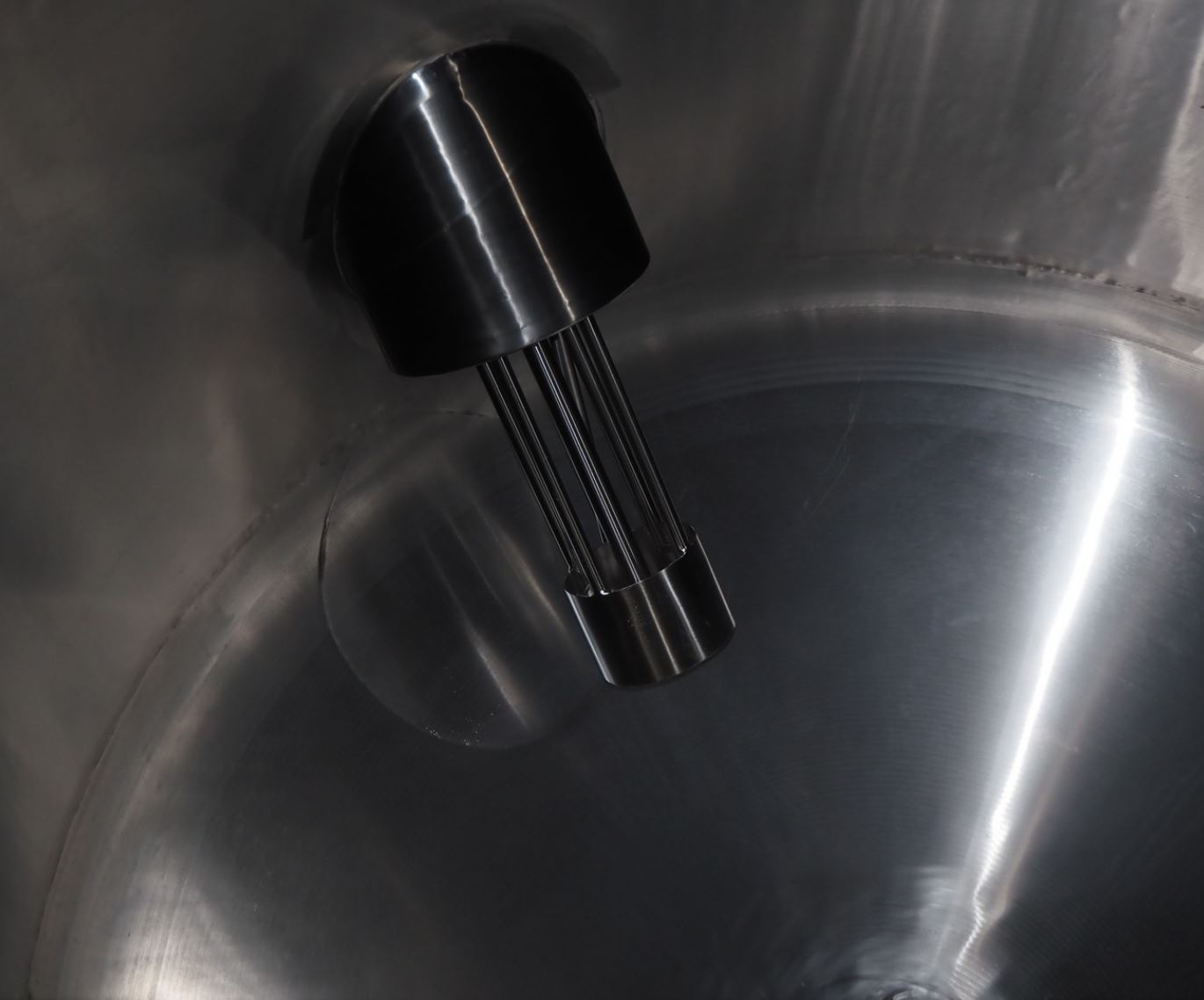

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

    • Note on agitator

    • Rührwerksleistung unterschiedlich

    • Agitator position

    • At bottom at the side in shell

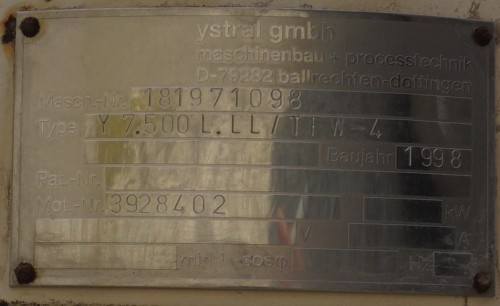

    • Agitator manufacturer

    • Ystral

    • Agitator 1 - Output

    • 1,7 / 6,8 kW

    • Agitator 1 - RPM

    • 720/1460 UpM

    Supports

    • Supports

    • Stainless steel feet

    • Number of feet

    • 3 (piece)

    • Note on supports

    • höhenverstellbar

    Fixtures and fittings

    • Manway 1 size

    • 500 DN mm

    • Manway position

    • In head

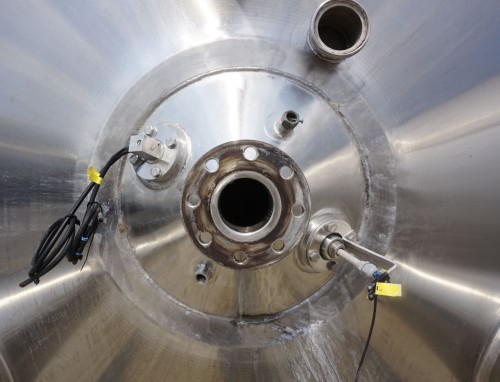

    • Outlet nozzle

    • 80

    • Cleaning/CIP nozzle

    • in shell and head

    • Additional fixtures and fittings

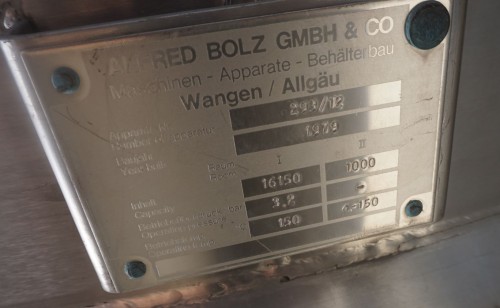

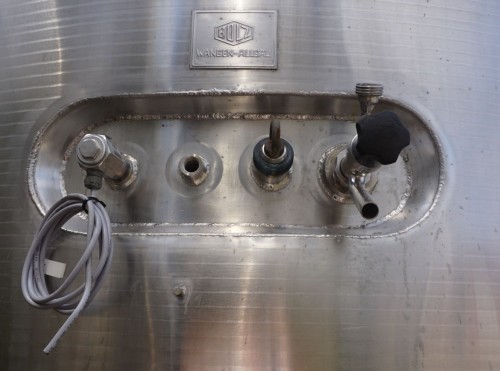

    • Nameplate

    Technical documentation

    • Technical documentation

    • Designation

    Other

    • Note

    • 1 Behälter unten seitlich Beulen

    • Last usage

    • Foodstuffs

    This product is suitable for use as:

    Foodstuffs: Foodstuffs tank, Fruit juice tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Mixing tank, Pressure tank,

    Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Pressure tank,

    Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Pressure tank,
