Product no. M-3001
Pressure tank 150 liters made of V2A, single-walled, used, standing
EUR 1.300,00
add. 19 % VAT excl. shipping costs
Volume approx. 150.00 litres
Product description

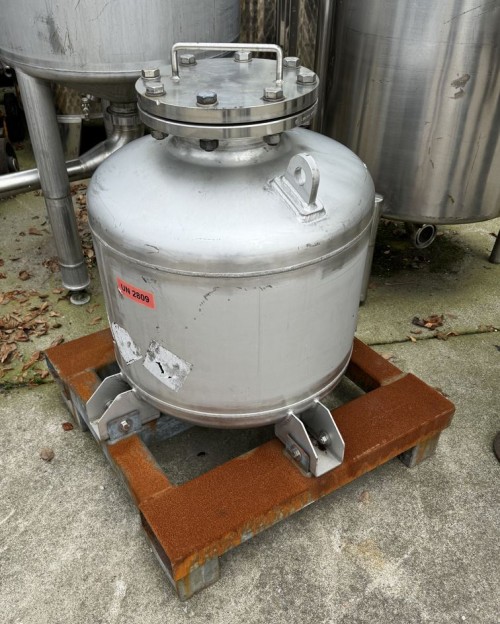

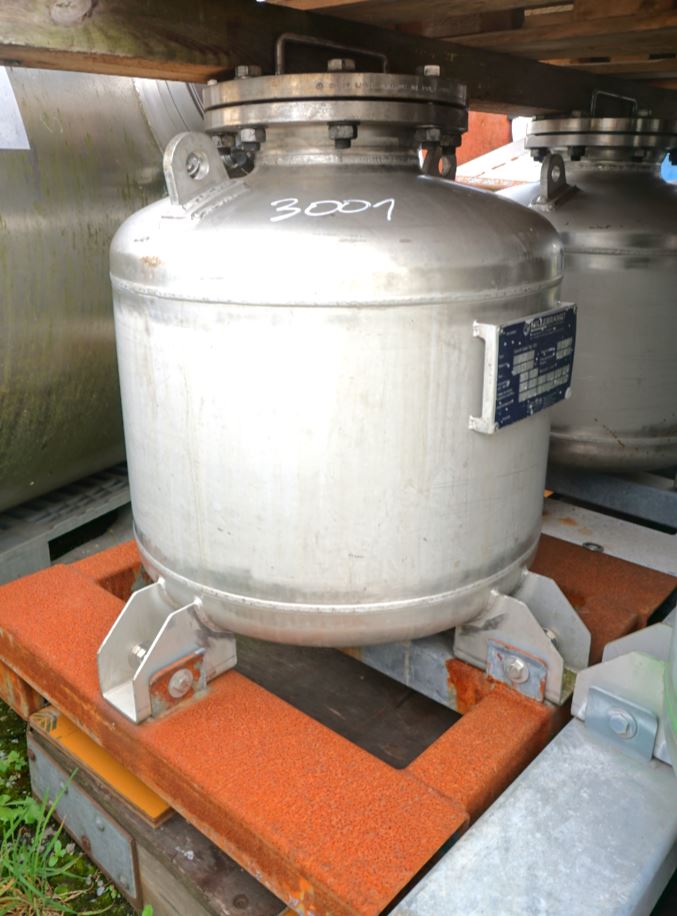

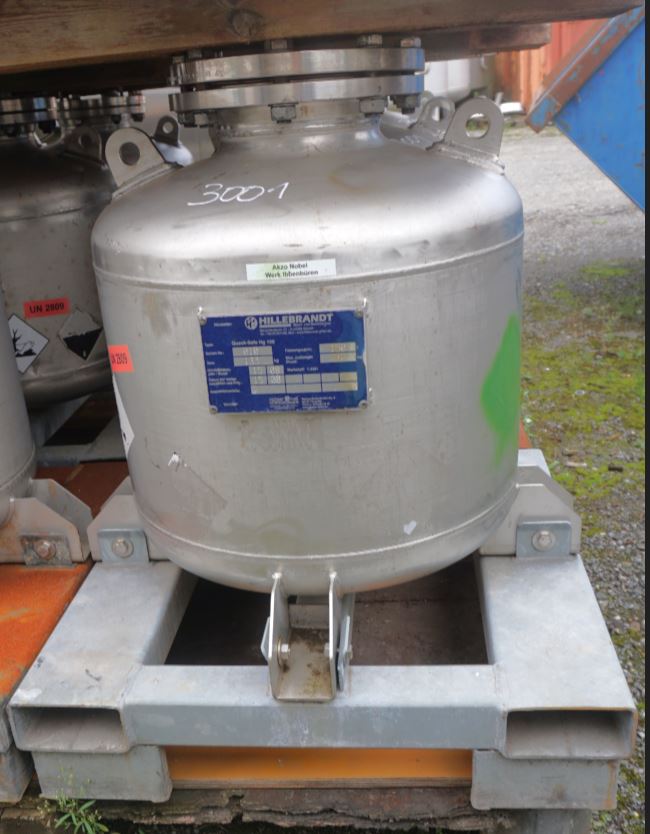

Pressure tank 150 liters made of V2A, single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 150.00 litres. Pressure tank 150 liters made of V2A, single-walled, used has the following dimensions: length 800 mm, width 800 mm, Pressure tank 150 liters made of V2A, single-walled, used was last used in the following area: Chemistry. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Transport, Under/over-pressure,General
Volume approx.
150,00 litres
Structure
Standing
Year of manufacture
2008
Manufacturer
Hillebrandt
Condition
Used
Dimensions approx.
External diameter
470 mm
Cyl. height
350 mm
Total height
940 mm
Length
800 mm
Width
800 mm
Design
Weight approx.
133,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
no

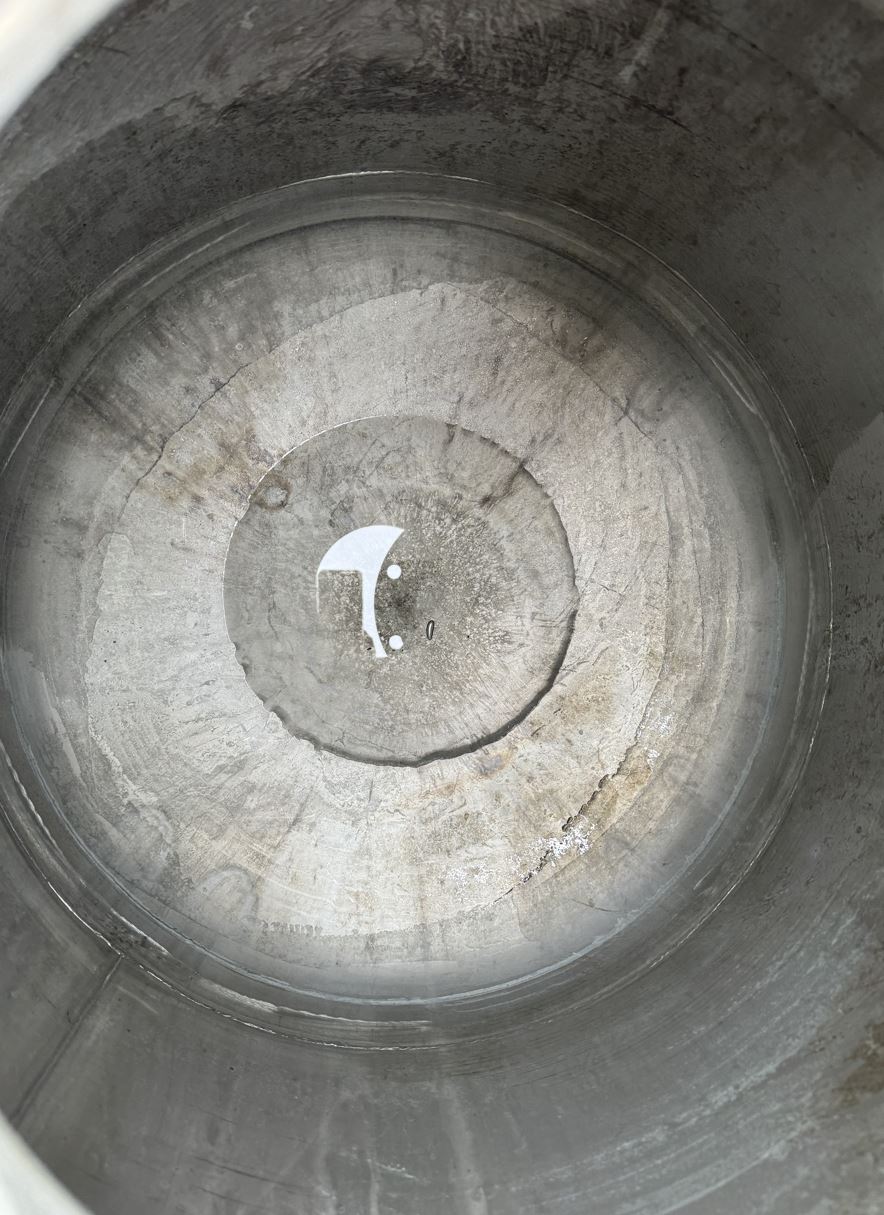

Interior surface
Smoothed
Exterior surface
Smoothed
Floor type
Torispherical bottom
Head design
Torispherical bottom
Supports
Supports
Steel frame
Note on supports
mit Stapler unterfahrbar
Fixtures and fittings
Handhole 1 size
200 DN mm
Handlochposition Handhole position
In head
Additional fixtures and fittings

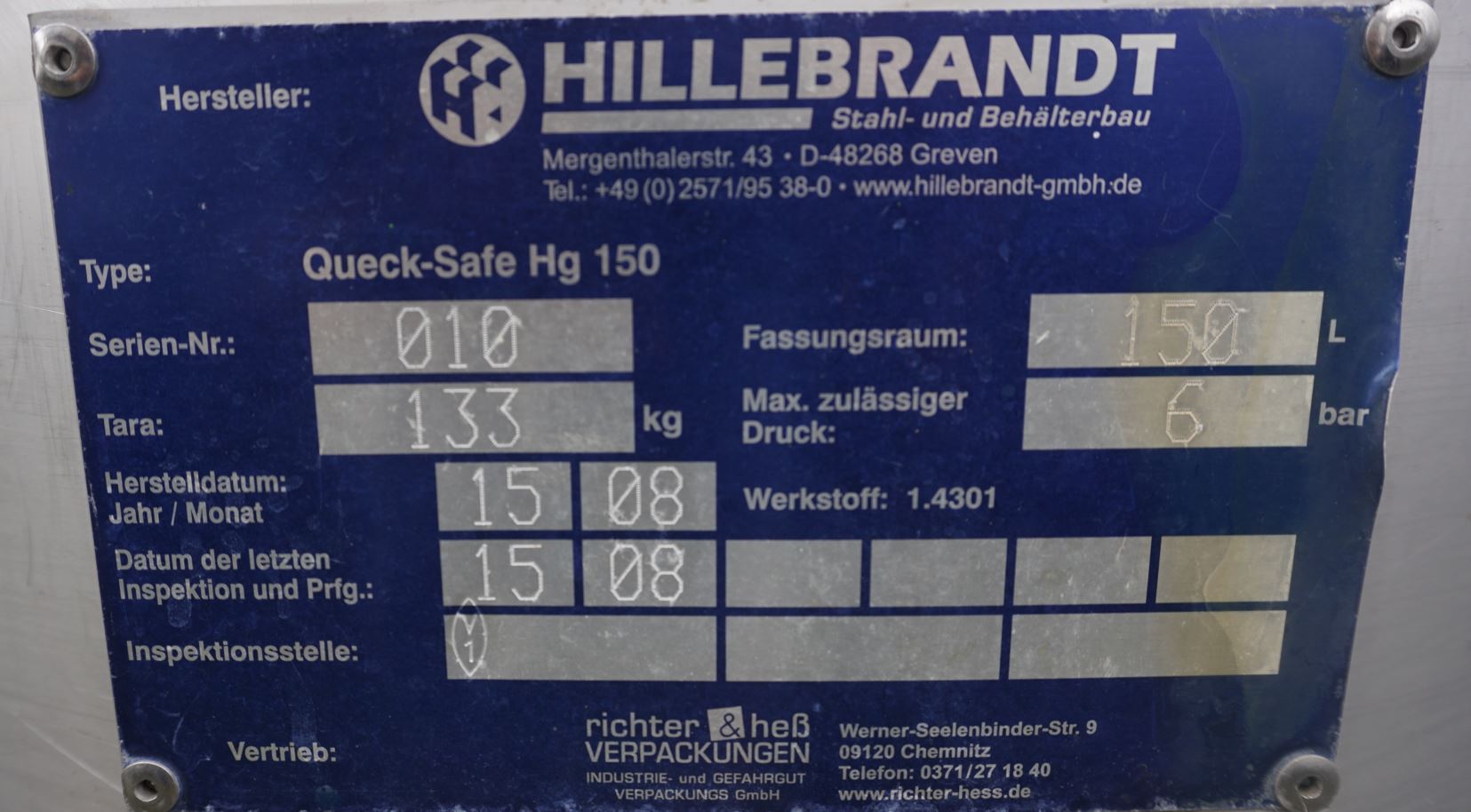

Nameplate
Technical documentation
Technical documentation
None
Other
Note
ohne Auslaufstutzen
Last usage
Chemistry
This product is suitable for use as:
Foodstuffs:
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Pressure tank,
Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Transport tank, Pressure tank,
