Product no. M-2816

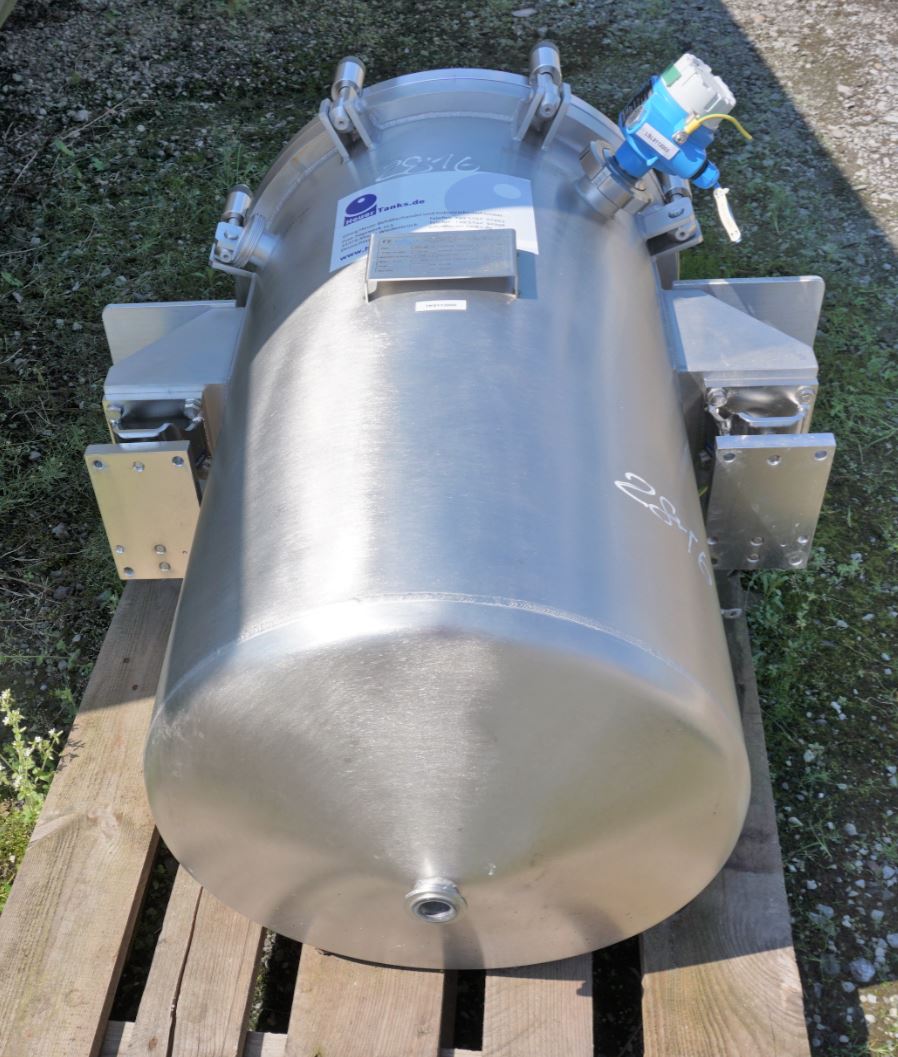

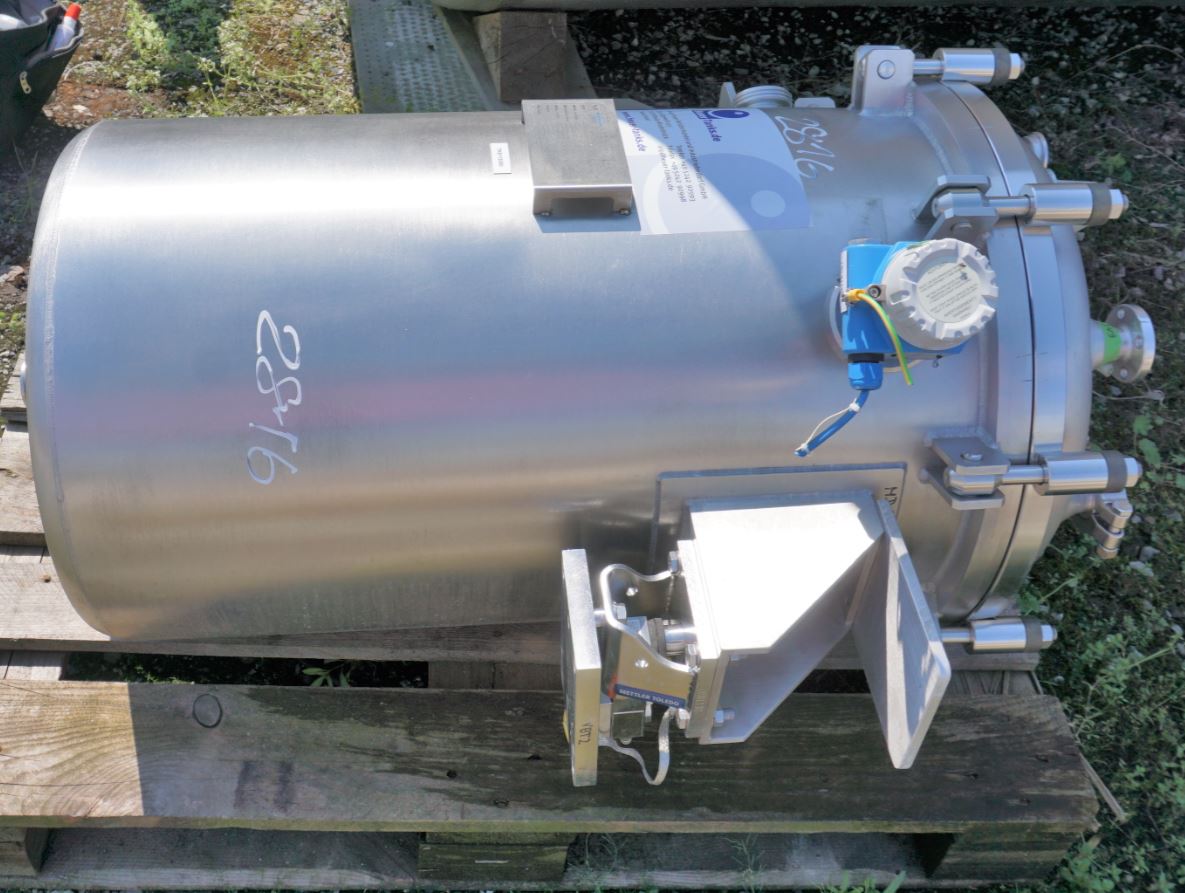

Pressure tank 120 liters made of V4A single-walled, used, hanging

EUR 2.600,00

add. 19 % VAT excl. shipping costs


Volume approx. 120.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 120 liters made of V4A single-walled, used consists of the material 1.4401(AISI316) V4A. The volume is approx. 120.00 litres.  Pressure tank 120 liters made of V4A single-walled, used was last used in the following area: Cosmetics. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure,

General

  • Volume approx.

  • 120,00 litres

  • Structure

  • Hanging

  • Year of manufacture

  • 2015

  • Manufacturer

  • Nirosta Tschechien

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 500 mm

  • Cyl. height

  • 780 mm

  • Total height

  • 1.100 mm

Design

  • Weight approx.

  • 148,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Removable

  • Product chamber operating over-pressure

  • 0,20 bar

  • Product chamber operating under-pressure

  • -1 bar

  • Product chamber operating temperature

  • 30,00 °C

Supports

  • Supports

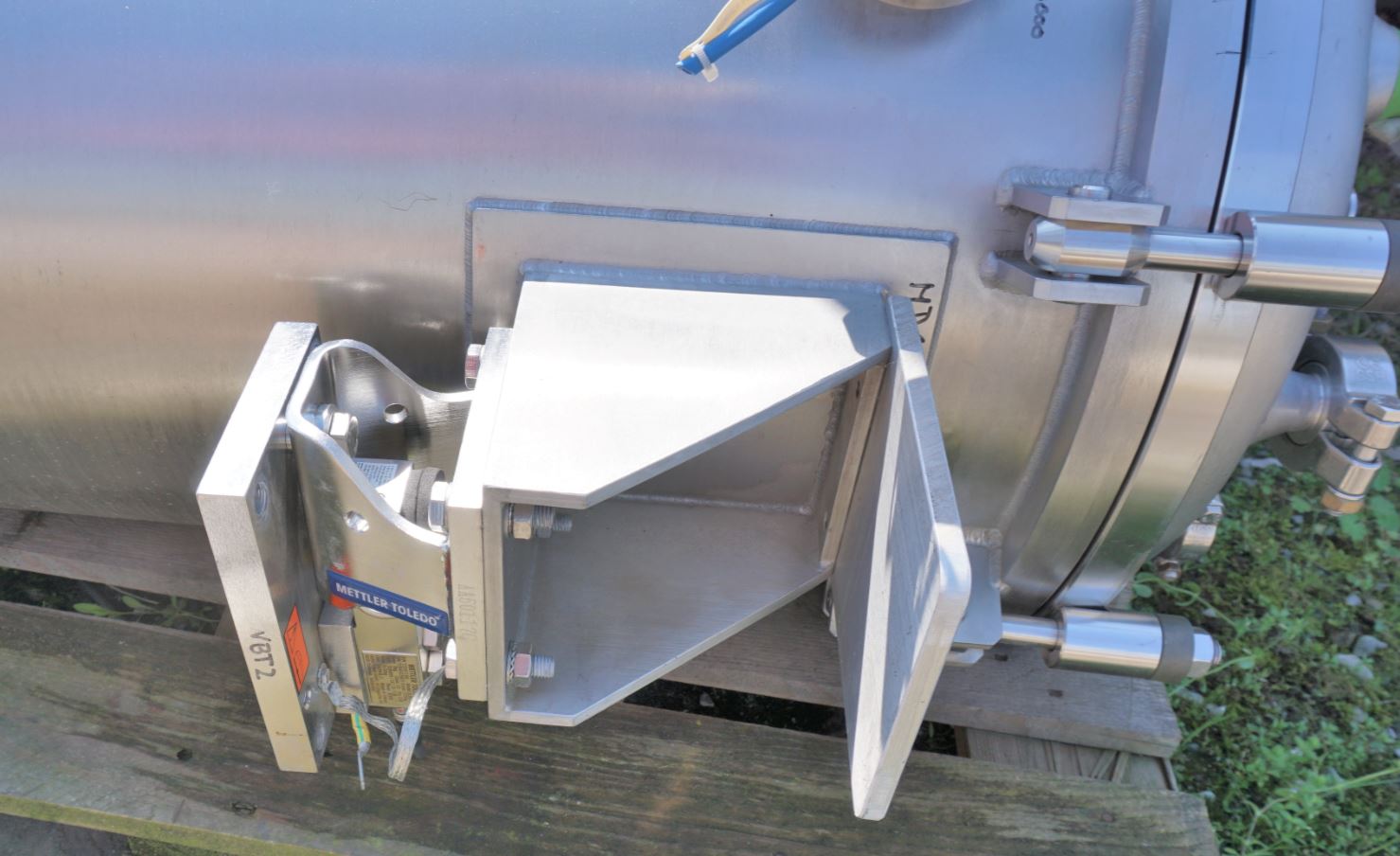

  • Bracket supports

  • Number of feet

  • 2 (piece)

Fixtures and fittings

  • Nozzles/connectors in shell

  • 1xDN50 (piece)

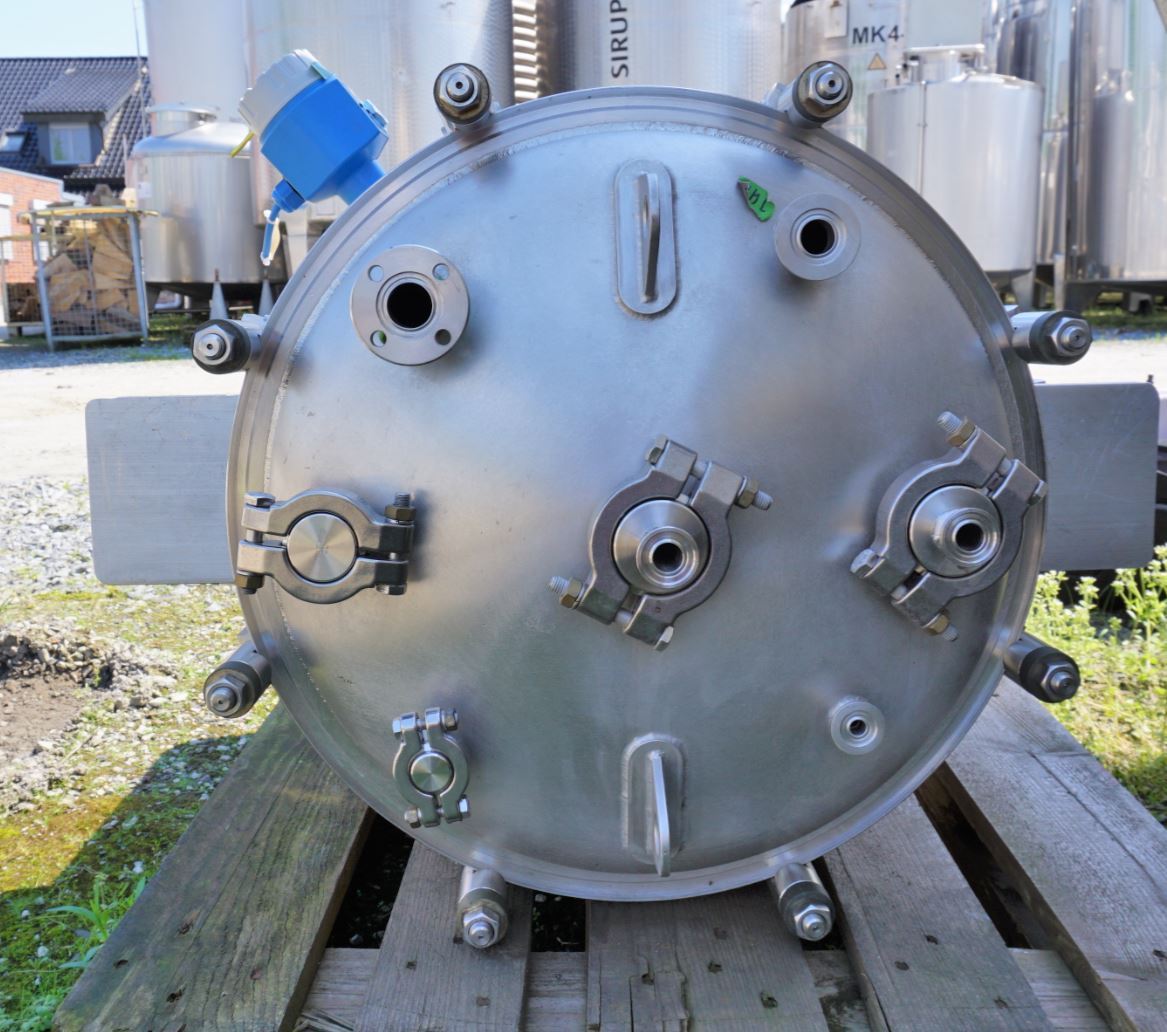

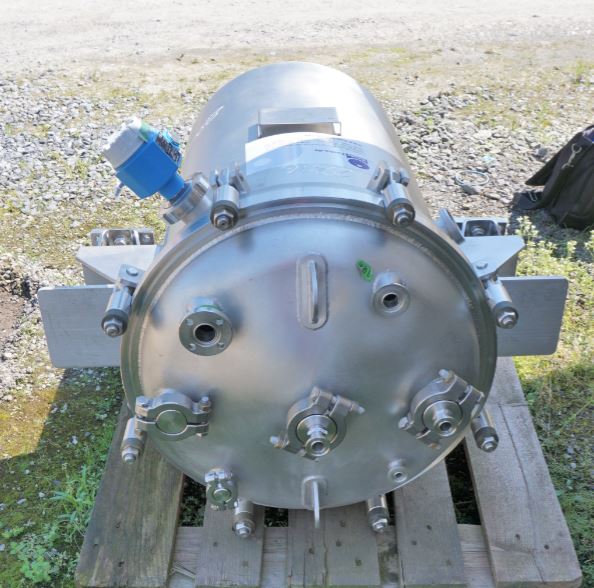

  • Nozzles/connectors in head

  • 6 (piece)

  • Outlet nozzle

  • 25

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

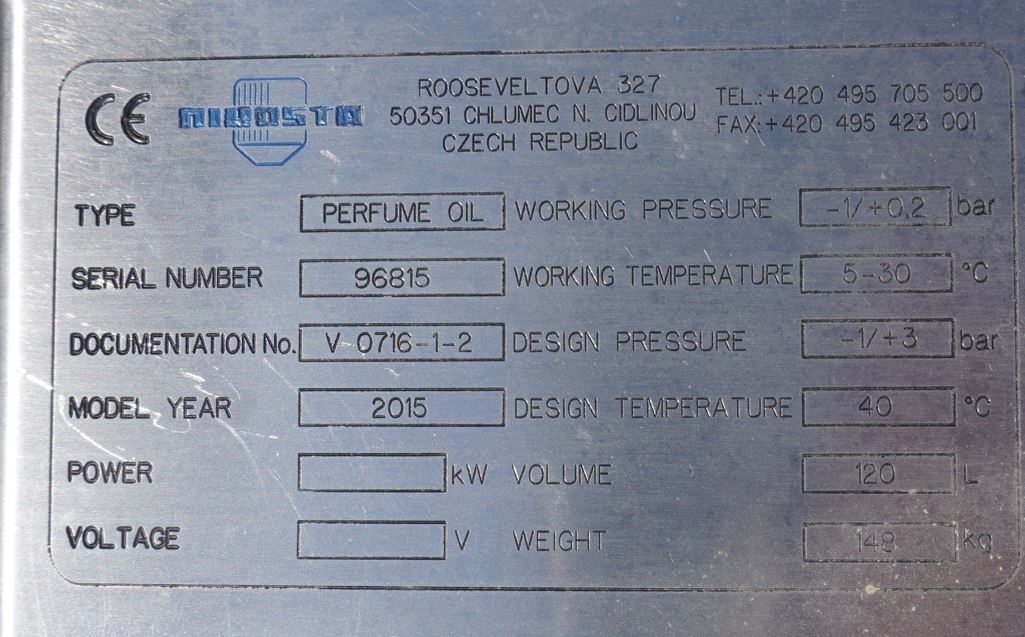

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Cosmetics

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank,

Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Pressure tank,
