Product no. M-2815

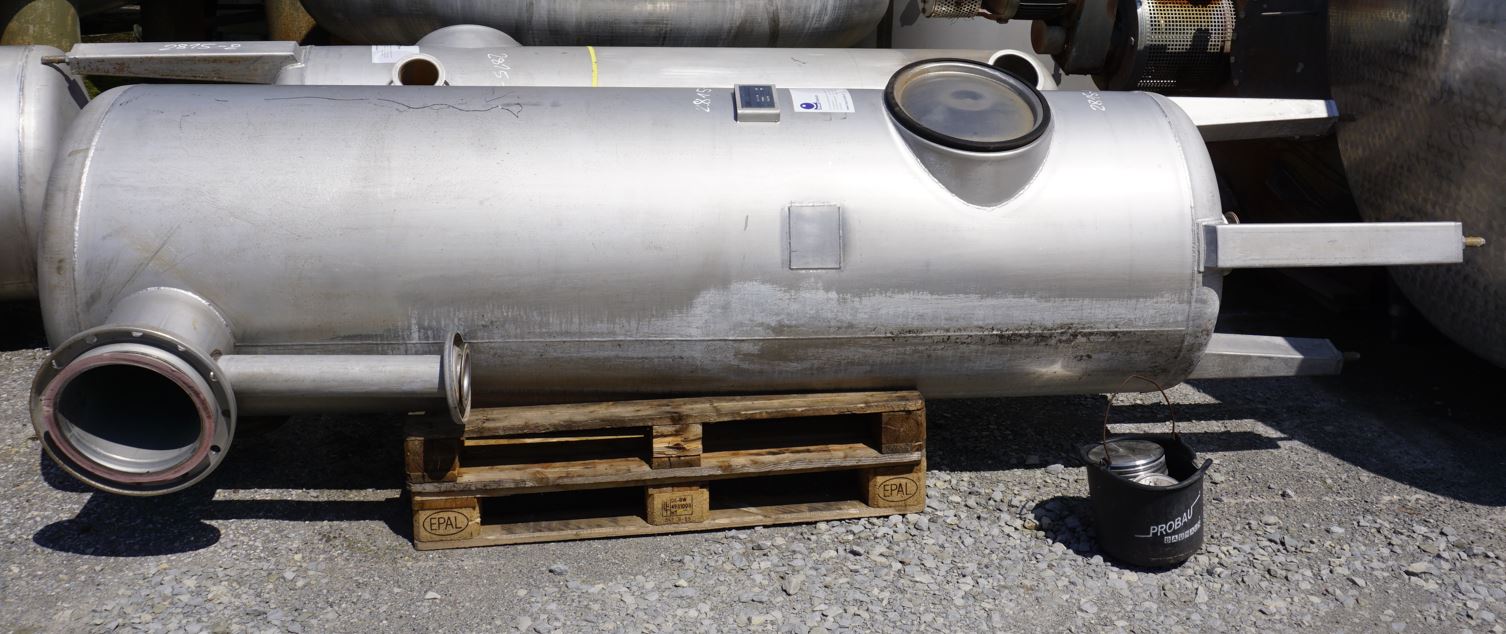

Pressure tank 1.500 liters made of V2A single-walled, used , standing

EUR 2.100,00

add. 19 % VAT excl. shipping costs


Volume approx. 1,500.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 1.500 liters made of V2A single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 1,500.00 litres.  Pressure tank 1.500 liters made of V2A single-walled, used was last used in the following area: CIP/water tank. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure,

General

  • Volume approx.

  • 1.500,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1996

  • Manufacturer

  • G&S

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 800 mm

  • Cyl. height

  • 2.500 mm

  • Foot height

  • 750 mm

  • Total height

  • 3.650 mm

Design

  • Weight approx.

  • 400,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 0,80 bar

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

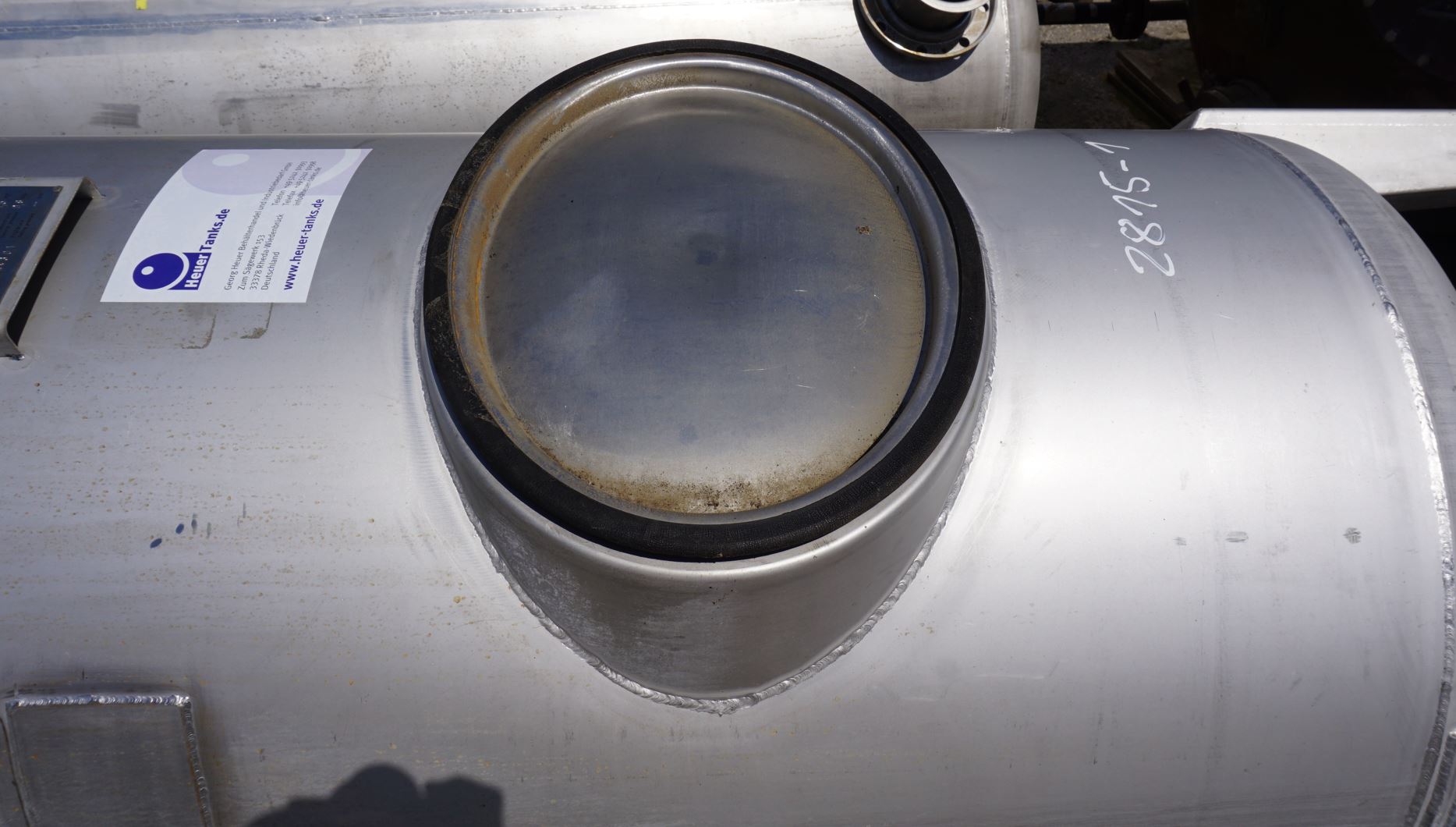

  • Manway position

  • In shell

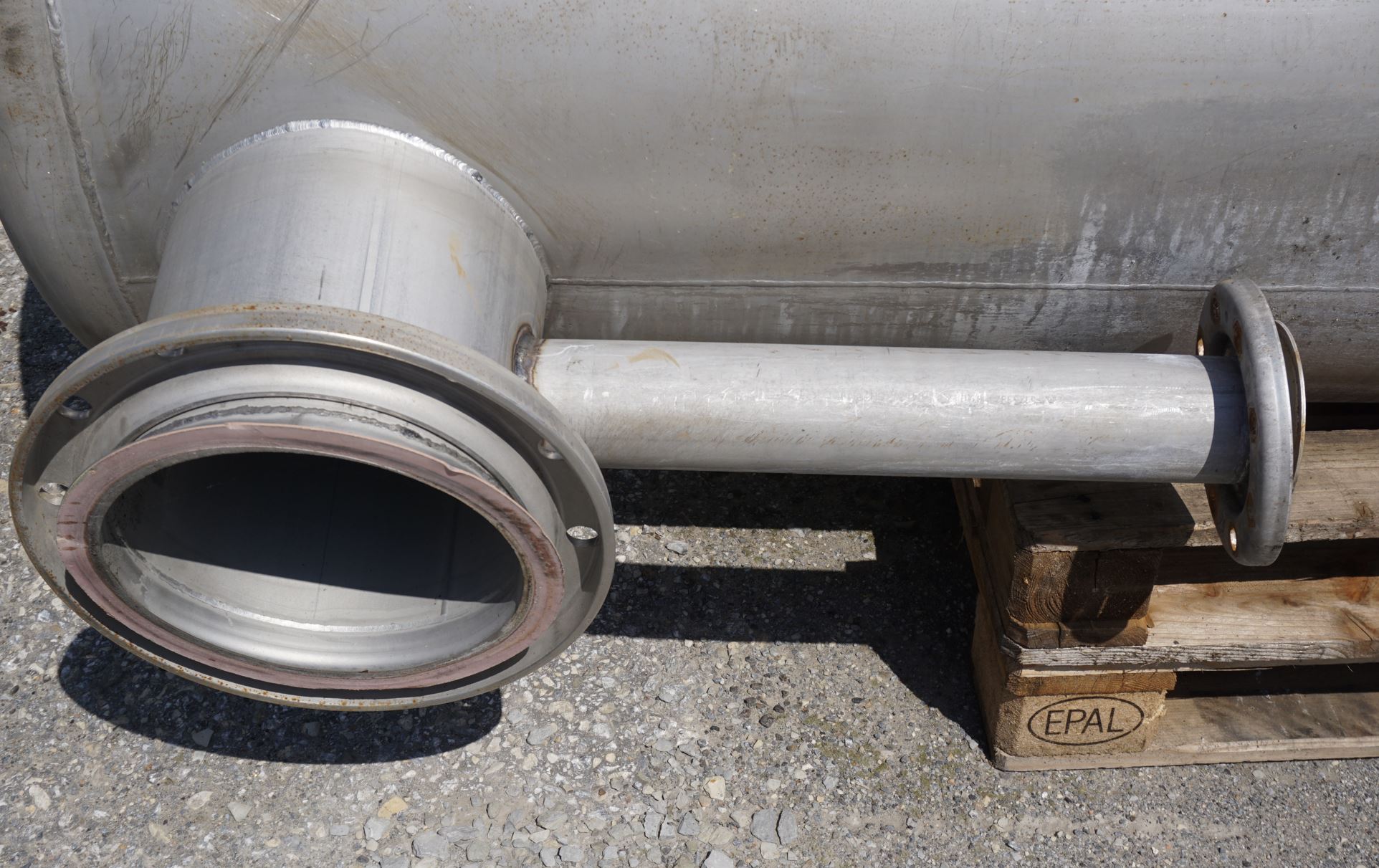

  • Outlet nozzle

  • 80

  • Additional fixtures and fittings

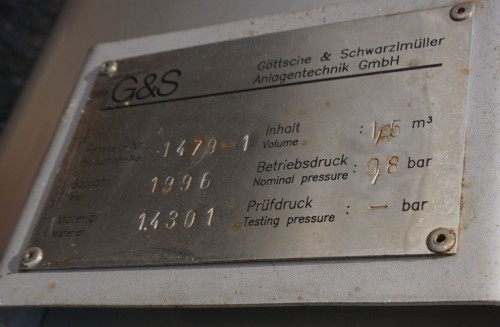

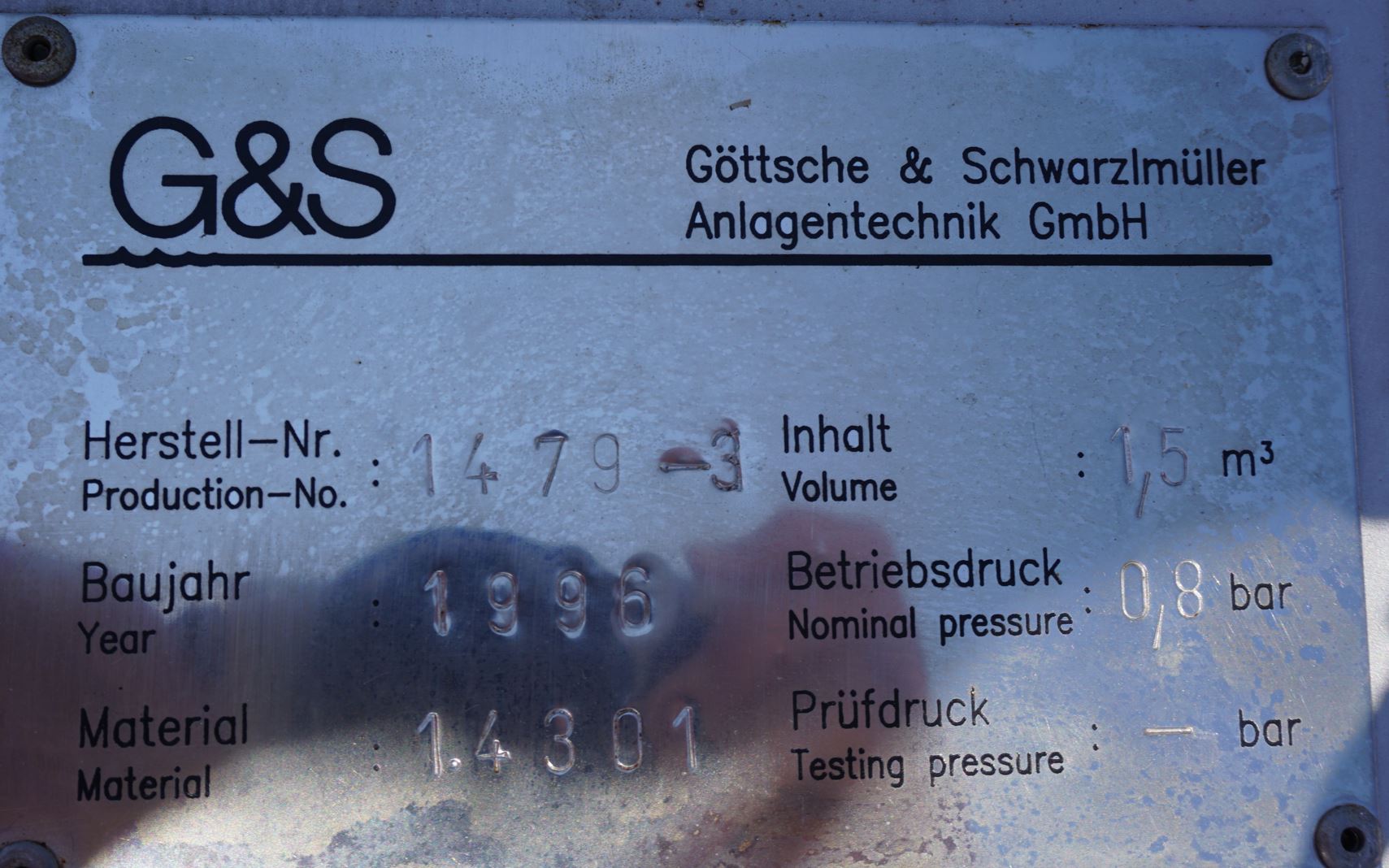

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Stutzen sind unterschiedlich

  • Last usage

  • CIP/water tank

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank,

Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Pressure tank,
