Product no. M-2711

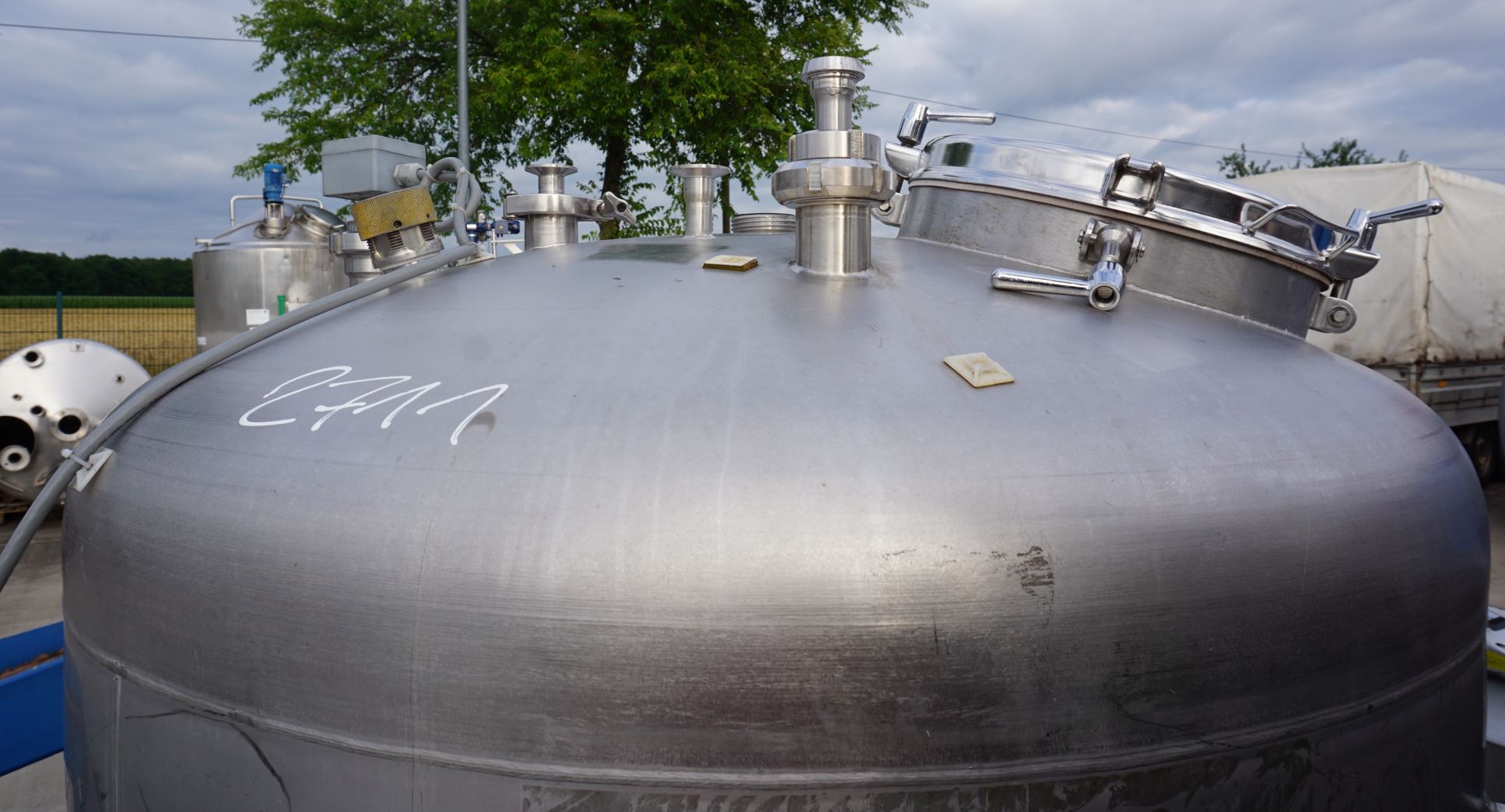

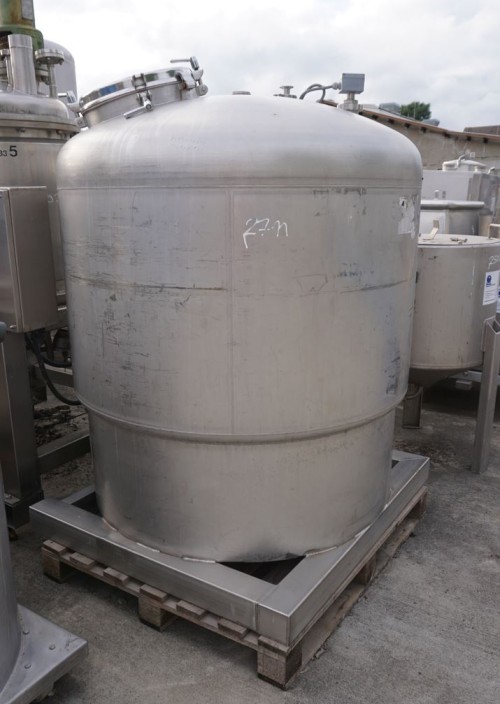

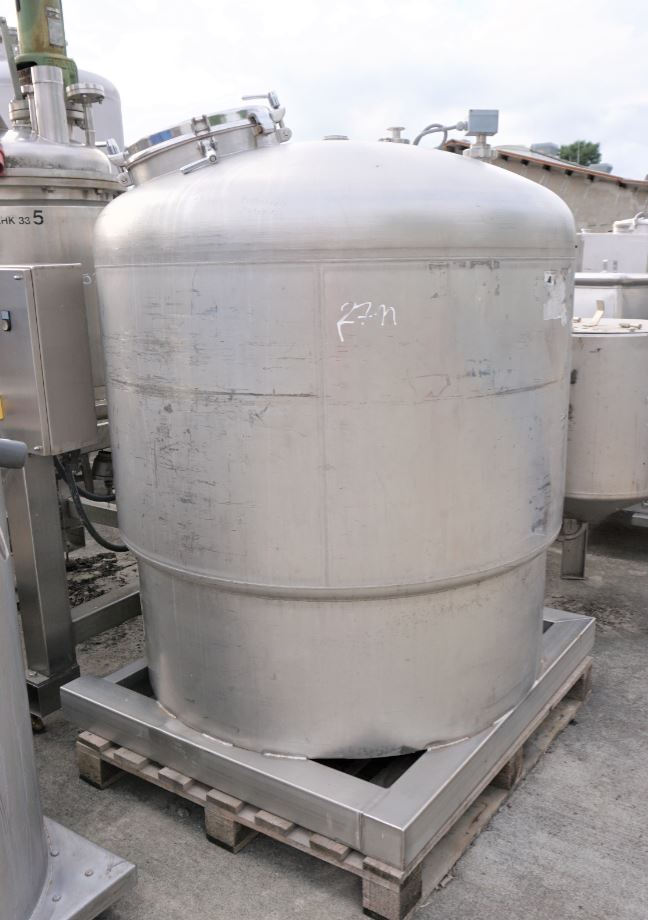

Pressure tank 1.078 liters made of V4A, single-walled, used, standing

EUR 3.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 1,078.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 1.078 liters made of V4A, single-walled, used consists of the material 1.4401(AISI316) V4A. The volume is approx. 1,078.00 litres.  Pressure tank 1.078 liters made of V4A, single-walled, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure,

General

  • Volume approx.

  • 1.078,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2002

  • Manufacturer

  • BSI France

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.200 mm

  • Cyl. height

  • 660 mm

  • Foot height

  • 550 mm

  • Total height

  • 1.610 mm

Design

  • Weight approx.

  • 206,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

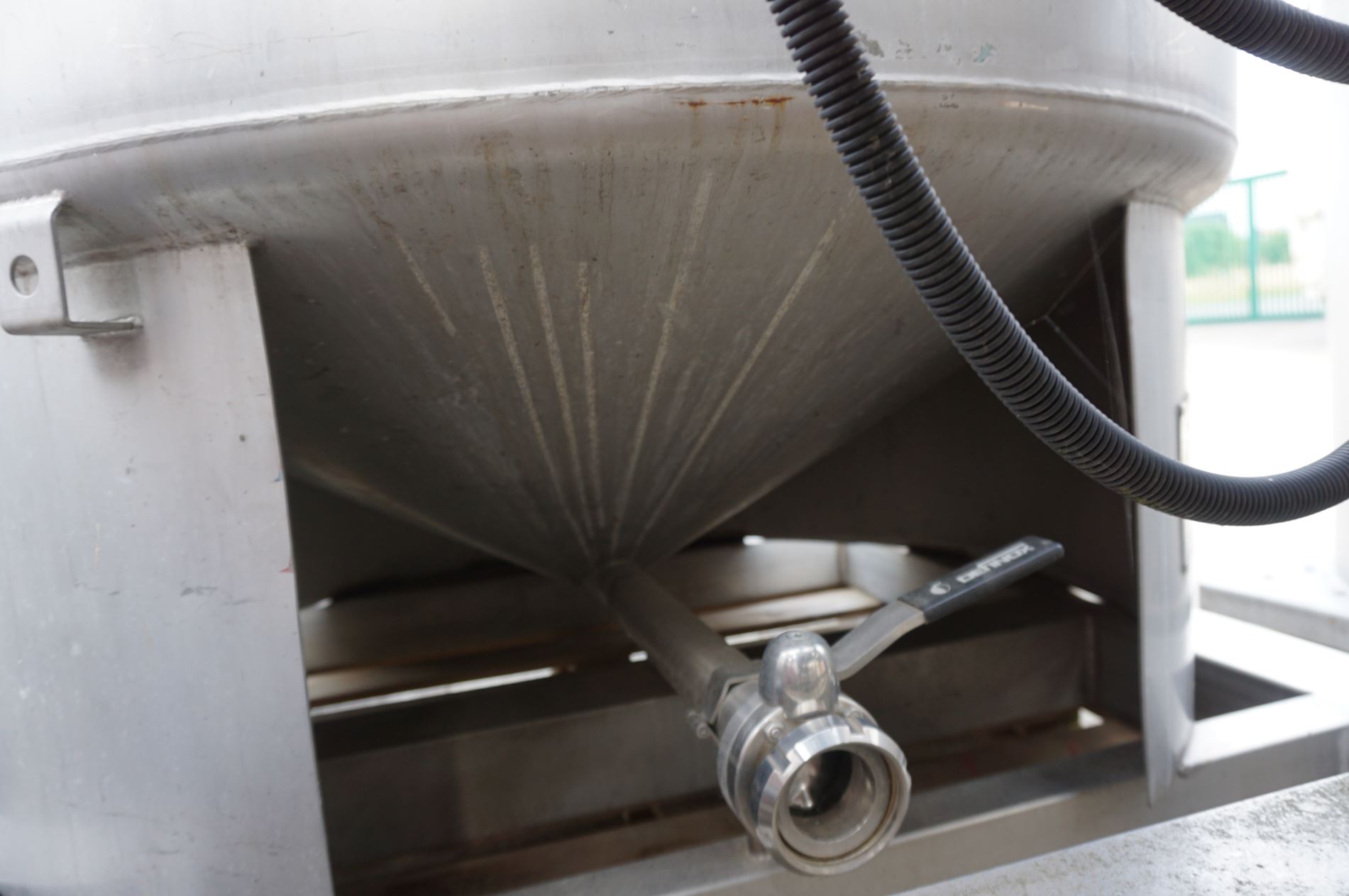

  • Floor type

  • Conical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 1,50 bar

Supports

  • Supports

  • Stainless steel support skirt

  • Number of feet

  • 1 (piece)

  • Note on supports

  • auf eine Edelstahlkonstruktion geschweißt

Fixtures and fittings

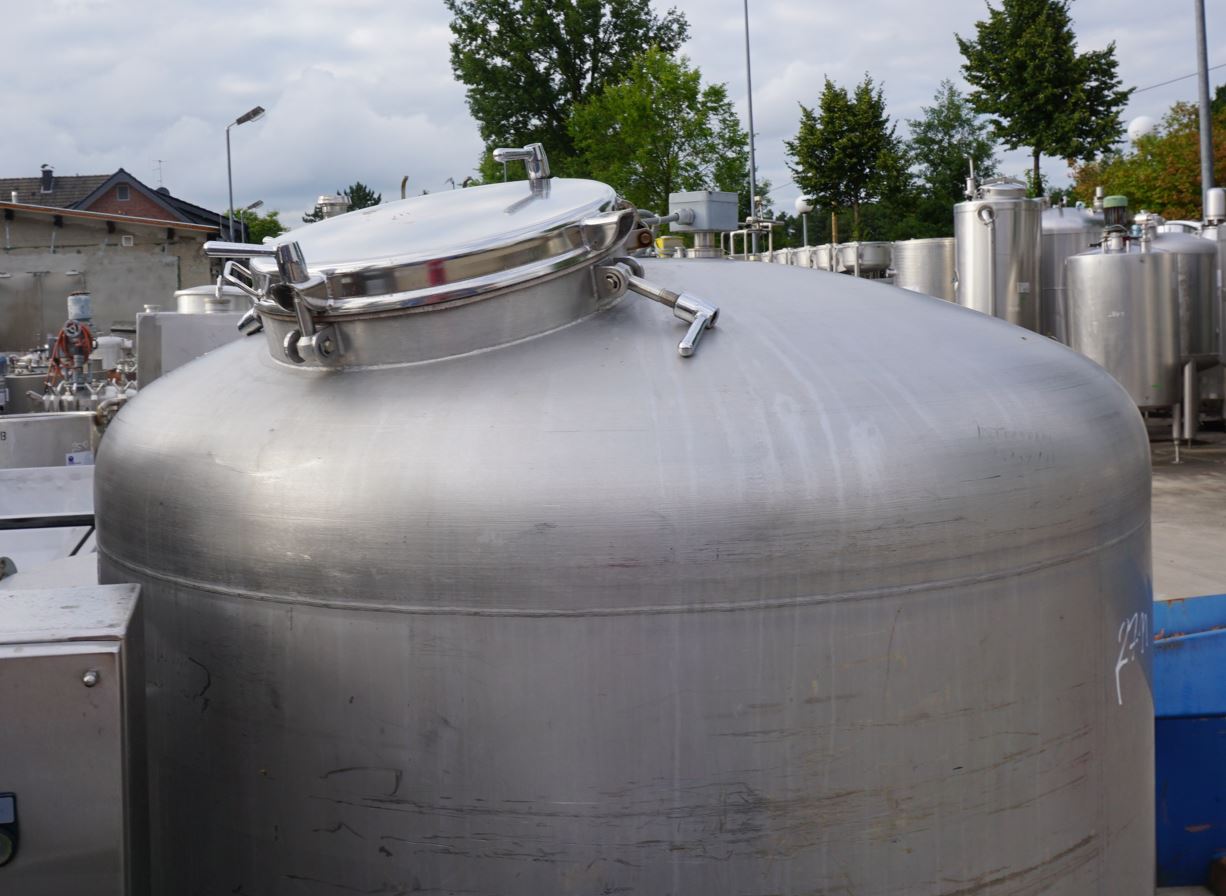

  • Manway position

  • In head

  • Nozzles/connectors in head

  • 4xDN40 (piece)

  • Outlet nozzle

  • 50

  • Additional fixtures and fittings

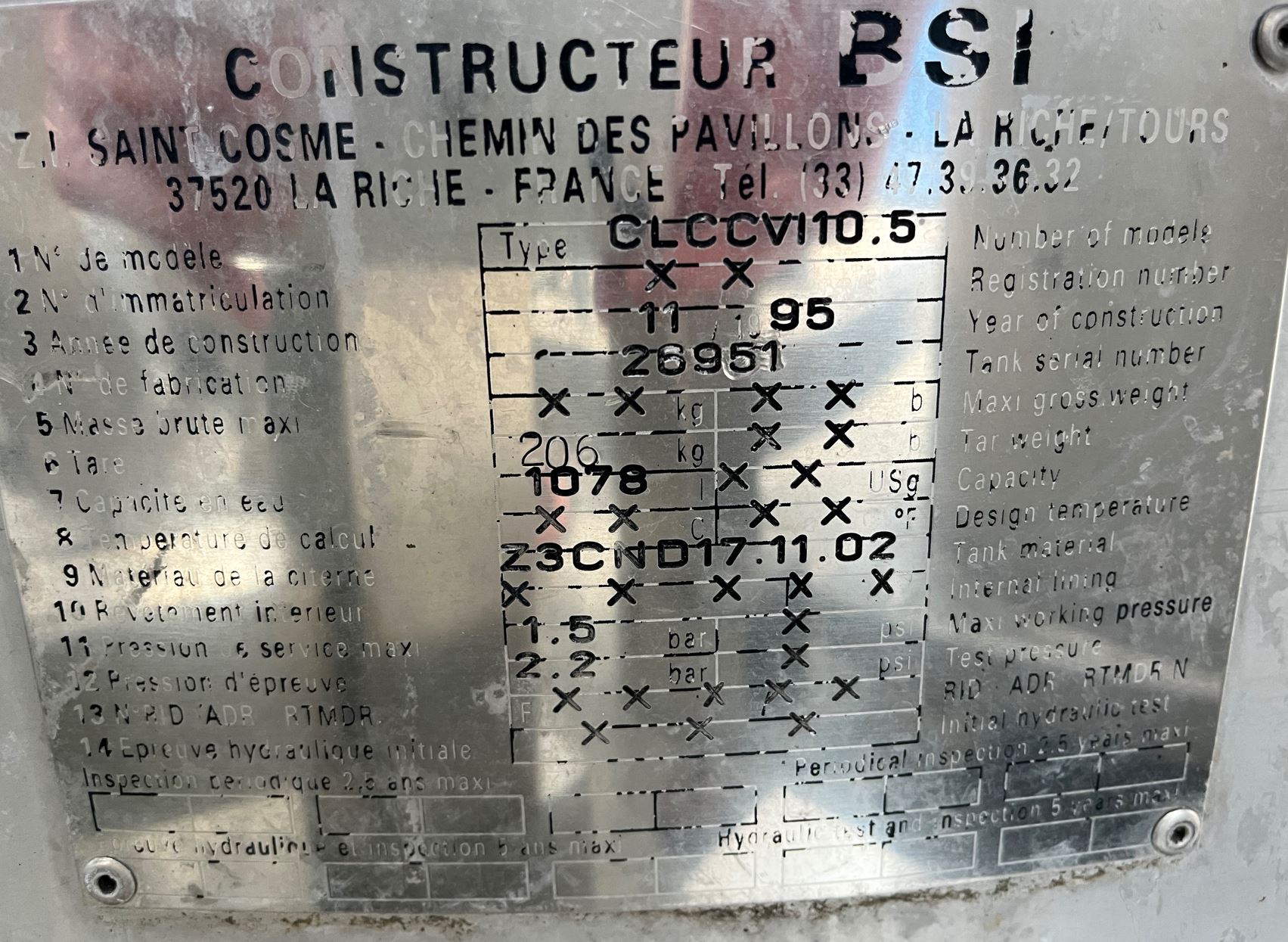

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Pressure tank, CIP tank, Cold water tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, CIP tank, Cold water tank,
