Product no. M-2961

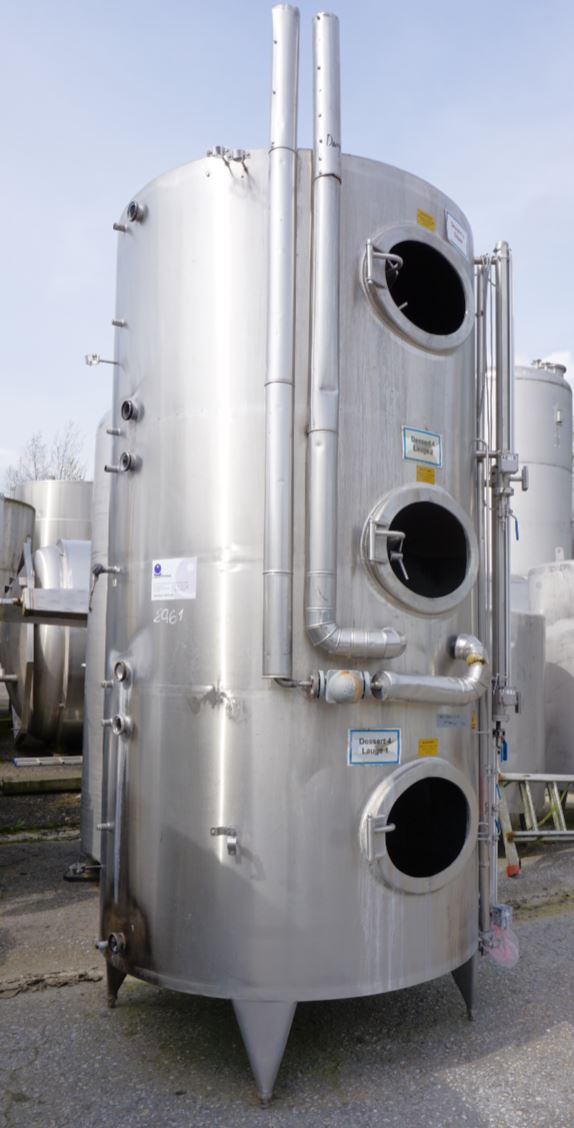

CIP-Container 3 x 2.000 liters made of V2A, single-walled, used, standing

EUR 6.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 6,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

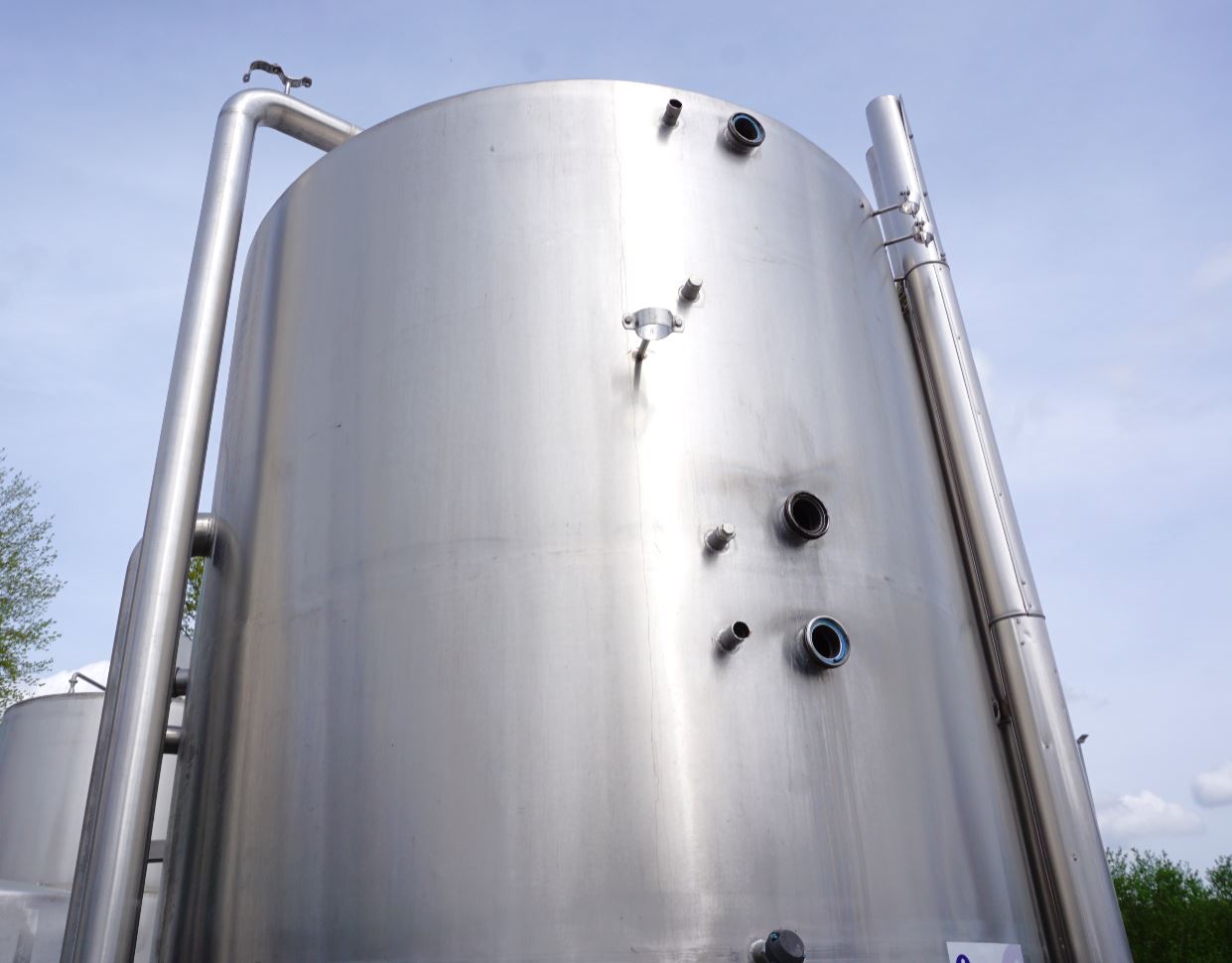

CIP-Container 3 x 2.000 liters made of V2A, single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 6,000.00 litres.  CIP-Container 3 x 2.000 liters made of V2A, single-walled, used was last used in the following area: CIP/cleaning system. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing, Cleaning/CIP,

General

  • Volume approx.

  • 6.000,00 litres

  • Chamber volume 1

  • 2000 litres

  • Chamber volume 2

  • 2000 litres

  • Chamber volume 3

  • 2000 litres

  • divided into chambers

  • 3 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.600 mm

  • Cyl. height

  • 3.000 mm

  • Foot height

  • 400 mm

  • Total height

  • 4.000 mm

Design

  • Weight approx.

  • 800,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

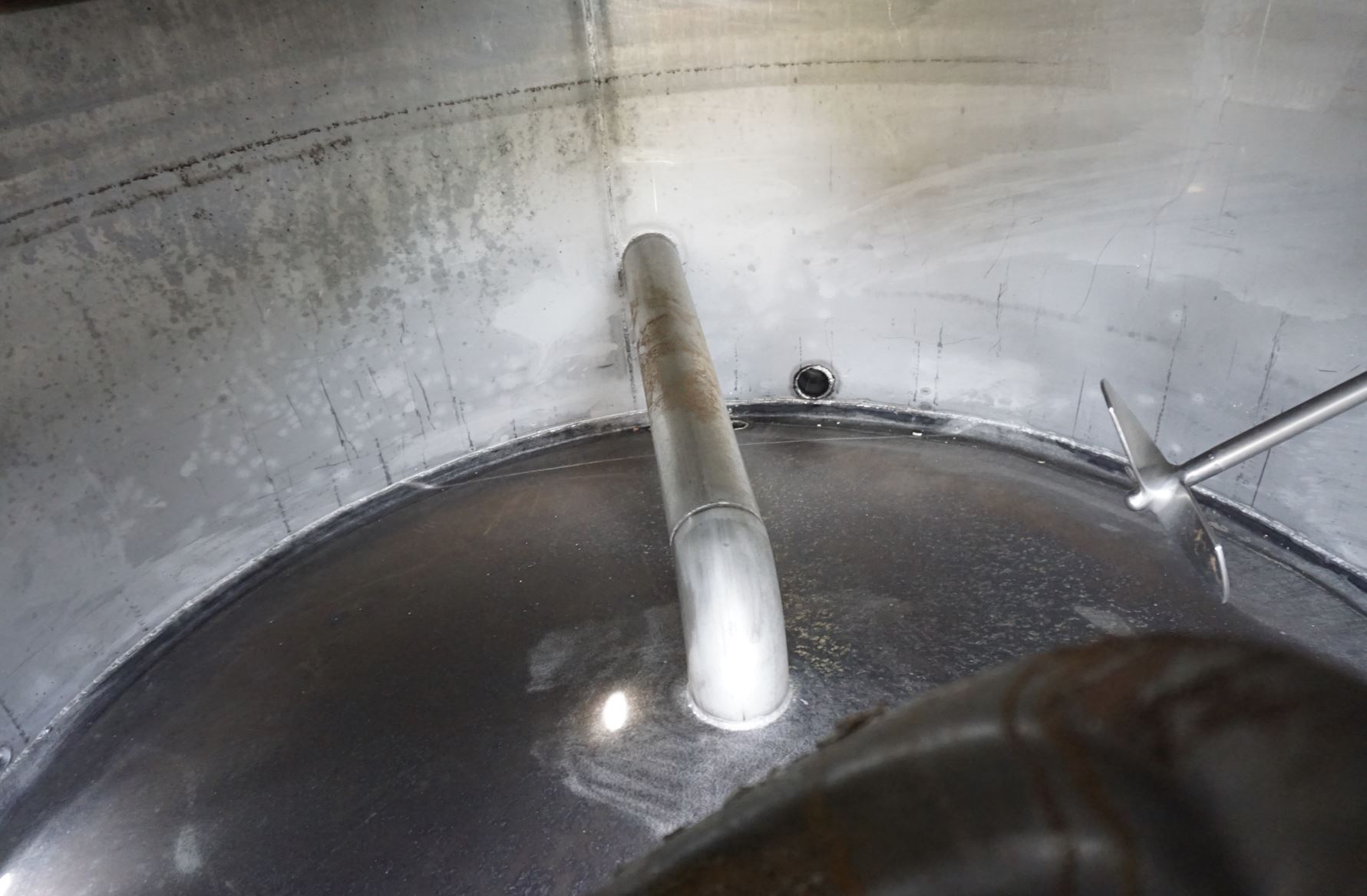

  • Floor type

  • Inverted bottom with slope towards outlet

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Interior

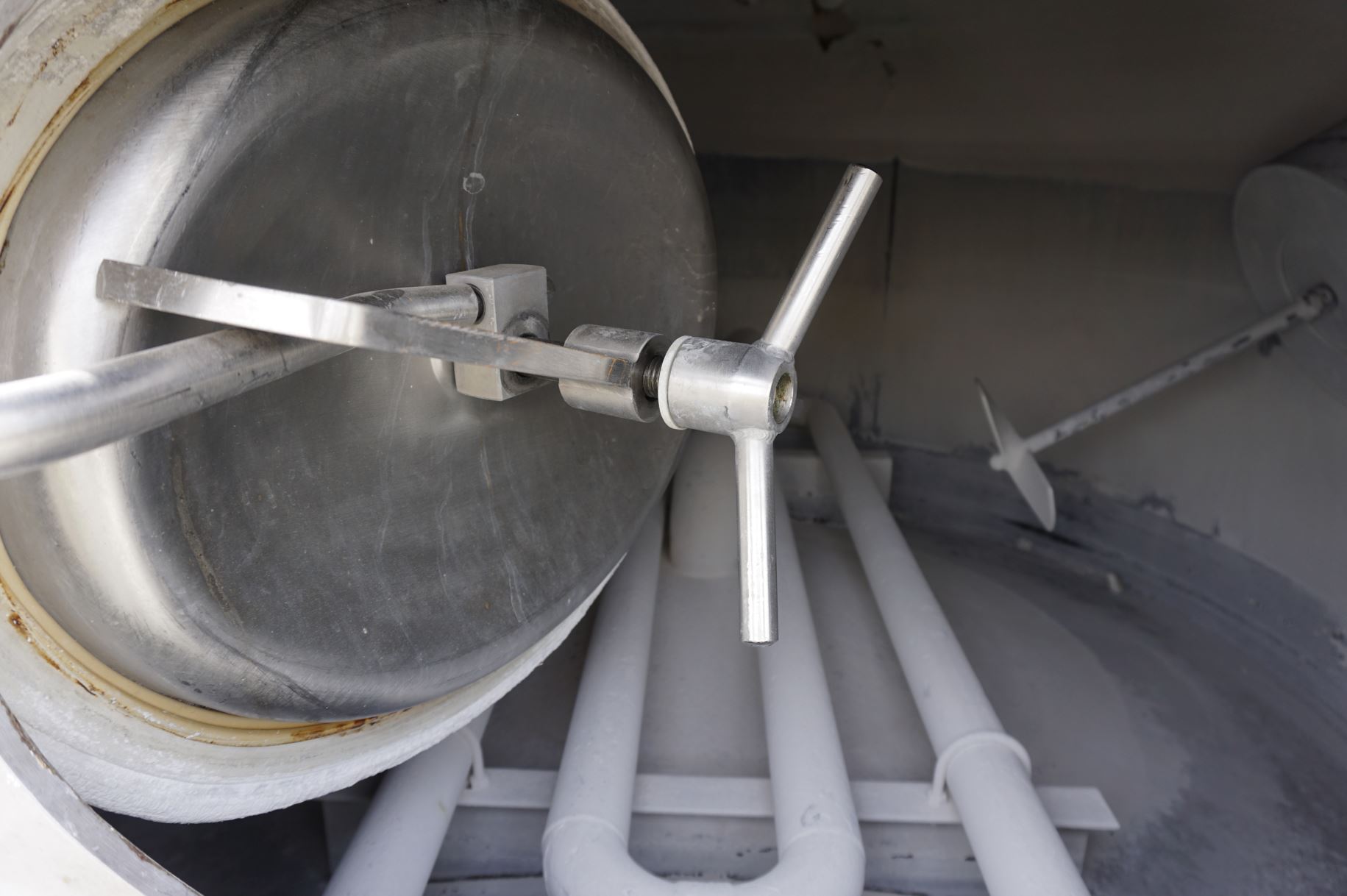

  • Temperature control system

  • Interior pipe coils

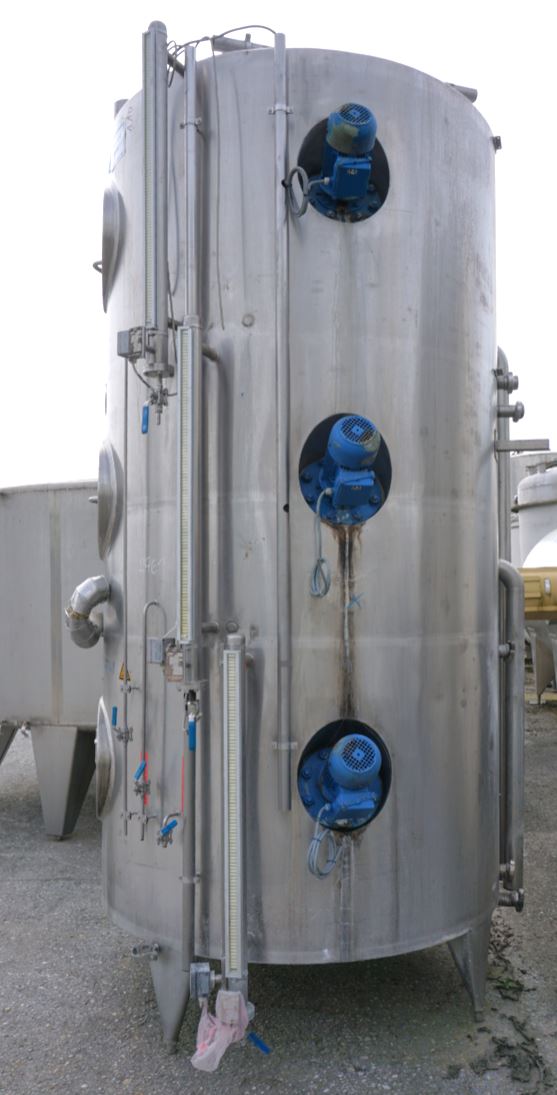

Agitator

  • Agitator quantity

  • 3 (piece)

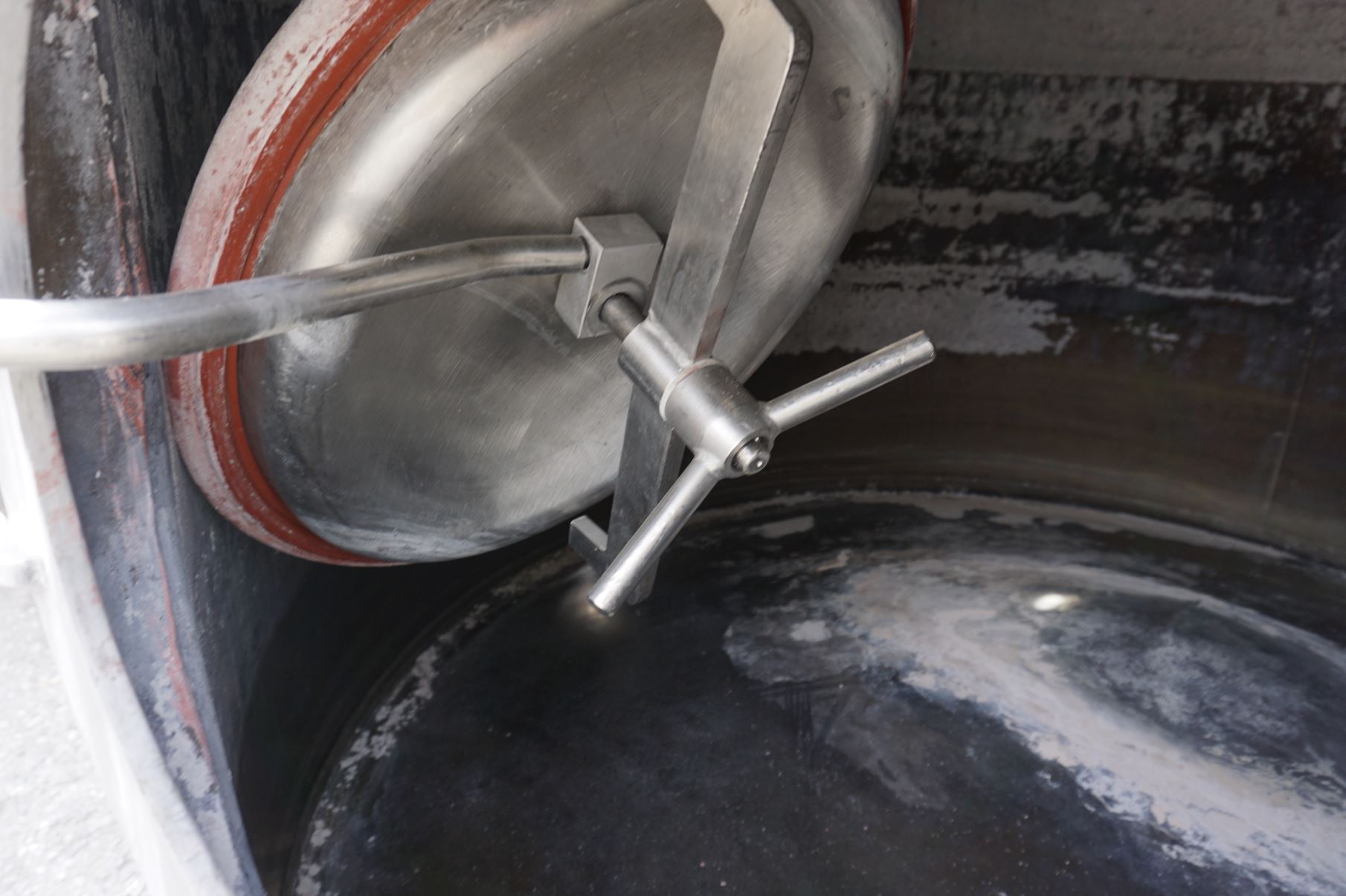

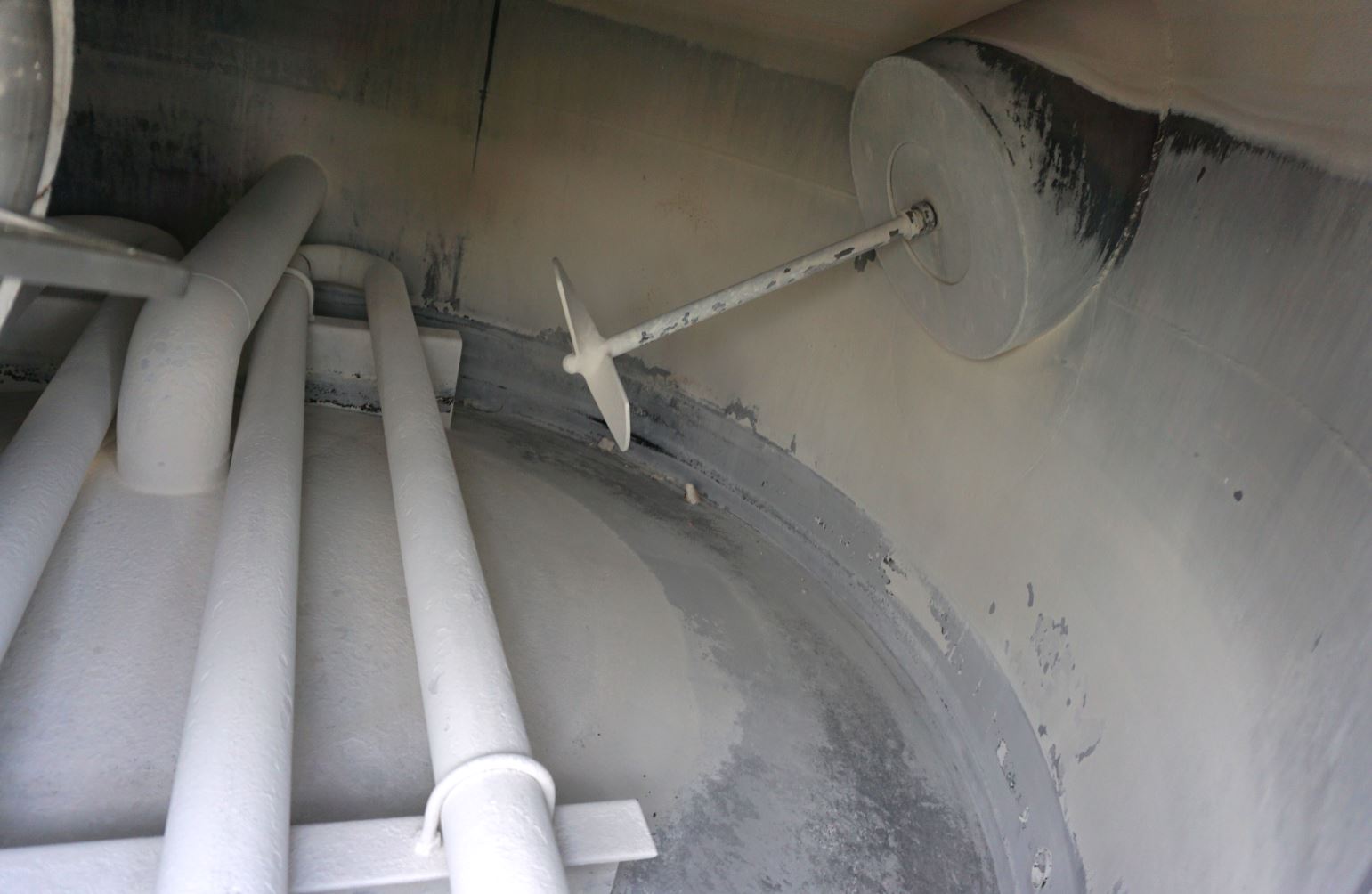

  • Agitator type

  • Propeller

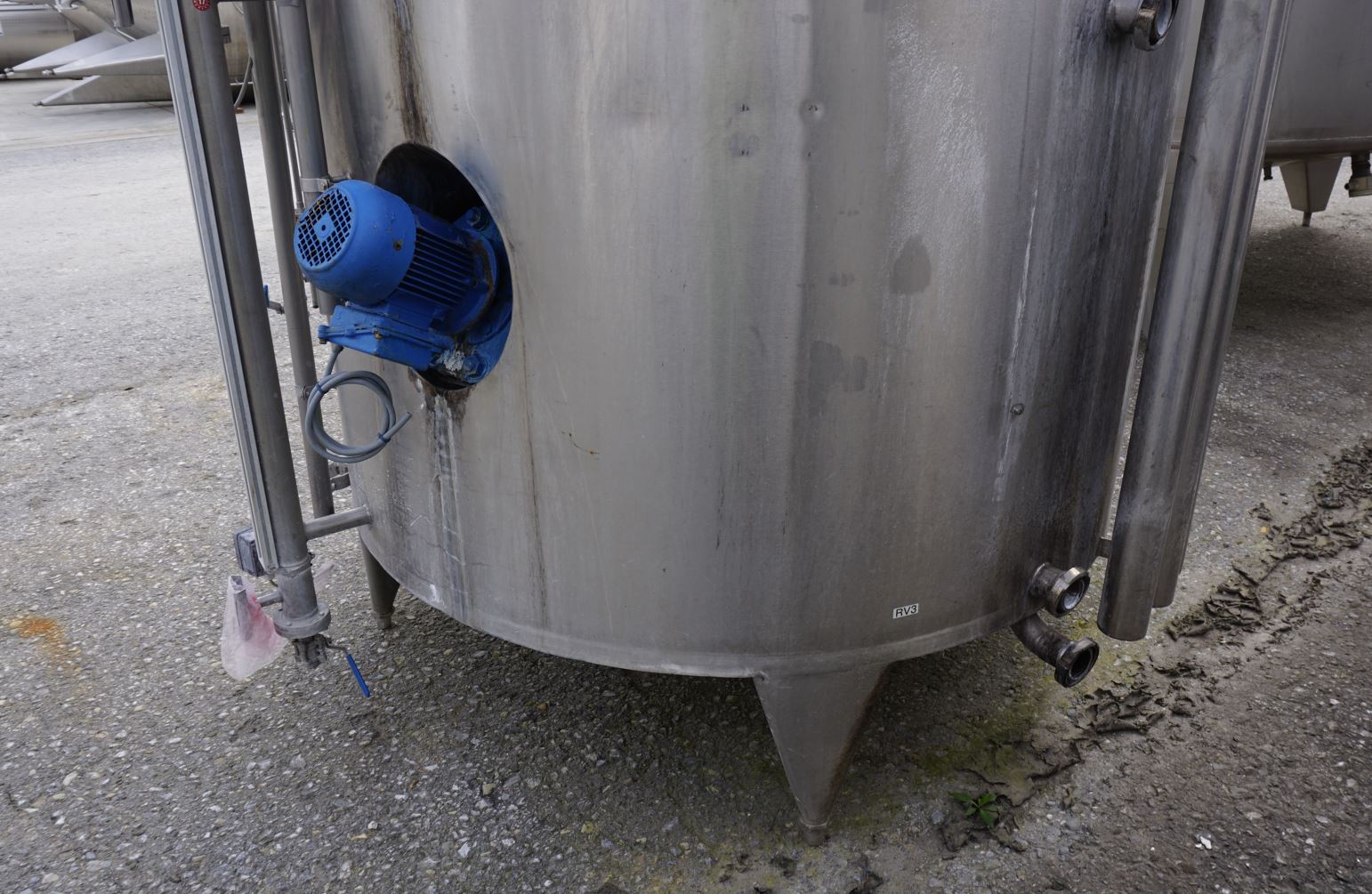

  • Agitator position

  • At bottom at the side in shell

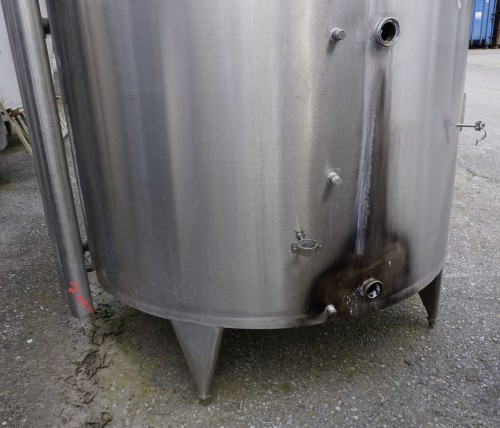

Supports

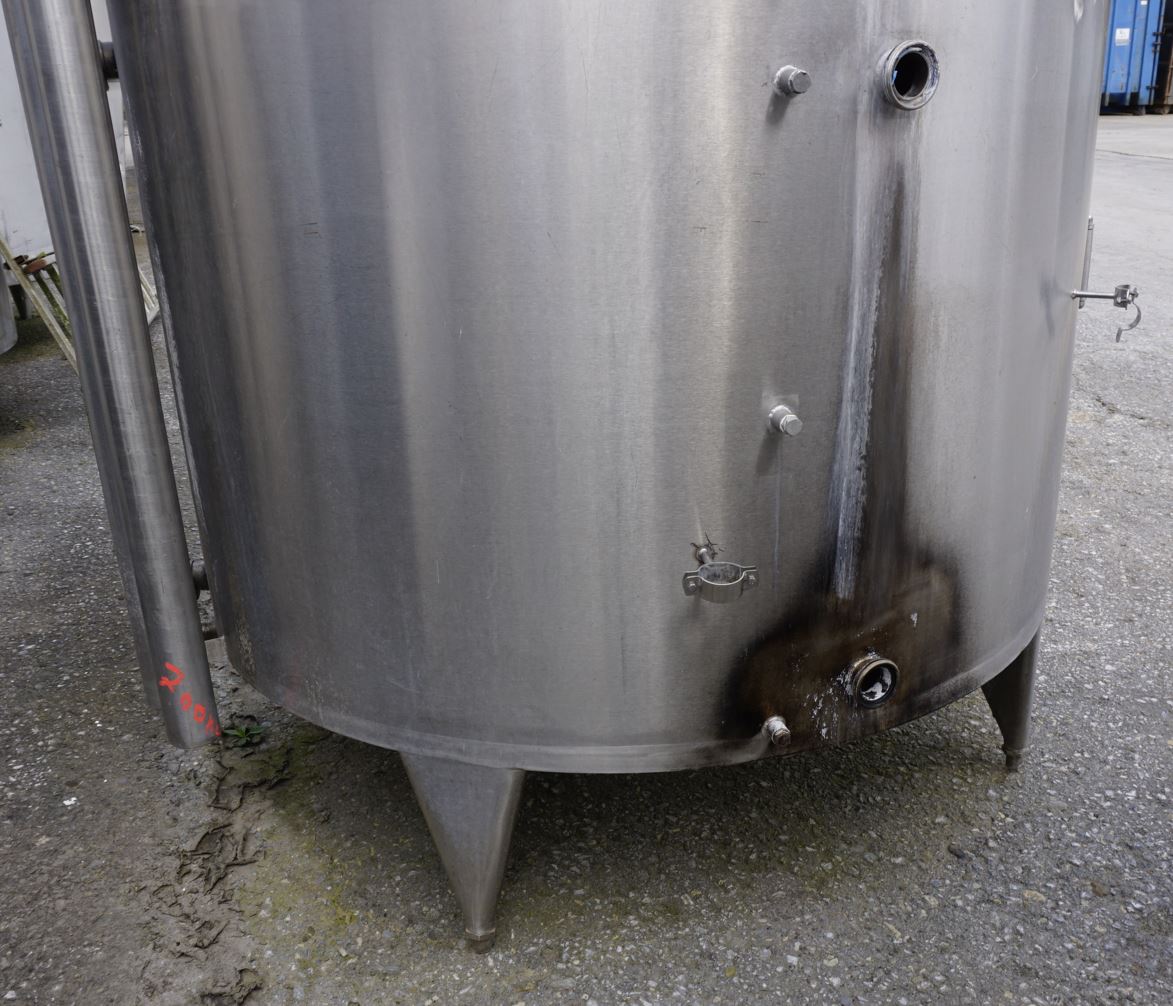

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

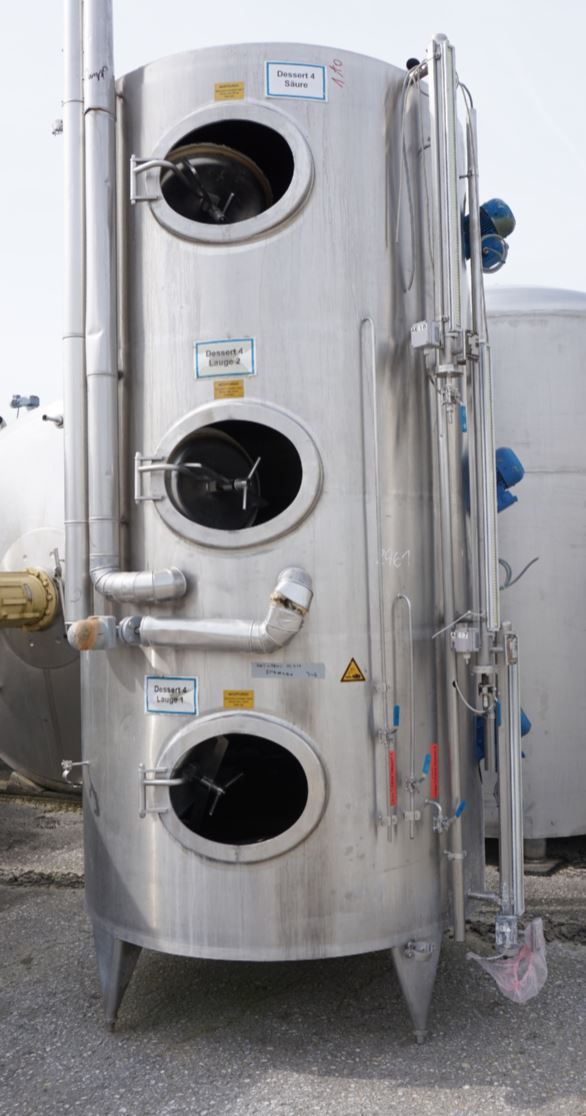

  • Manway position

  • In shell

  • Outlet nozzle

  • 50

Other

  • Note

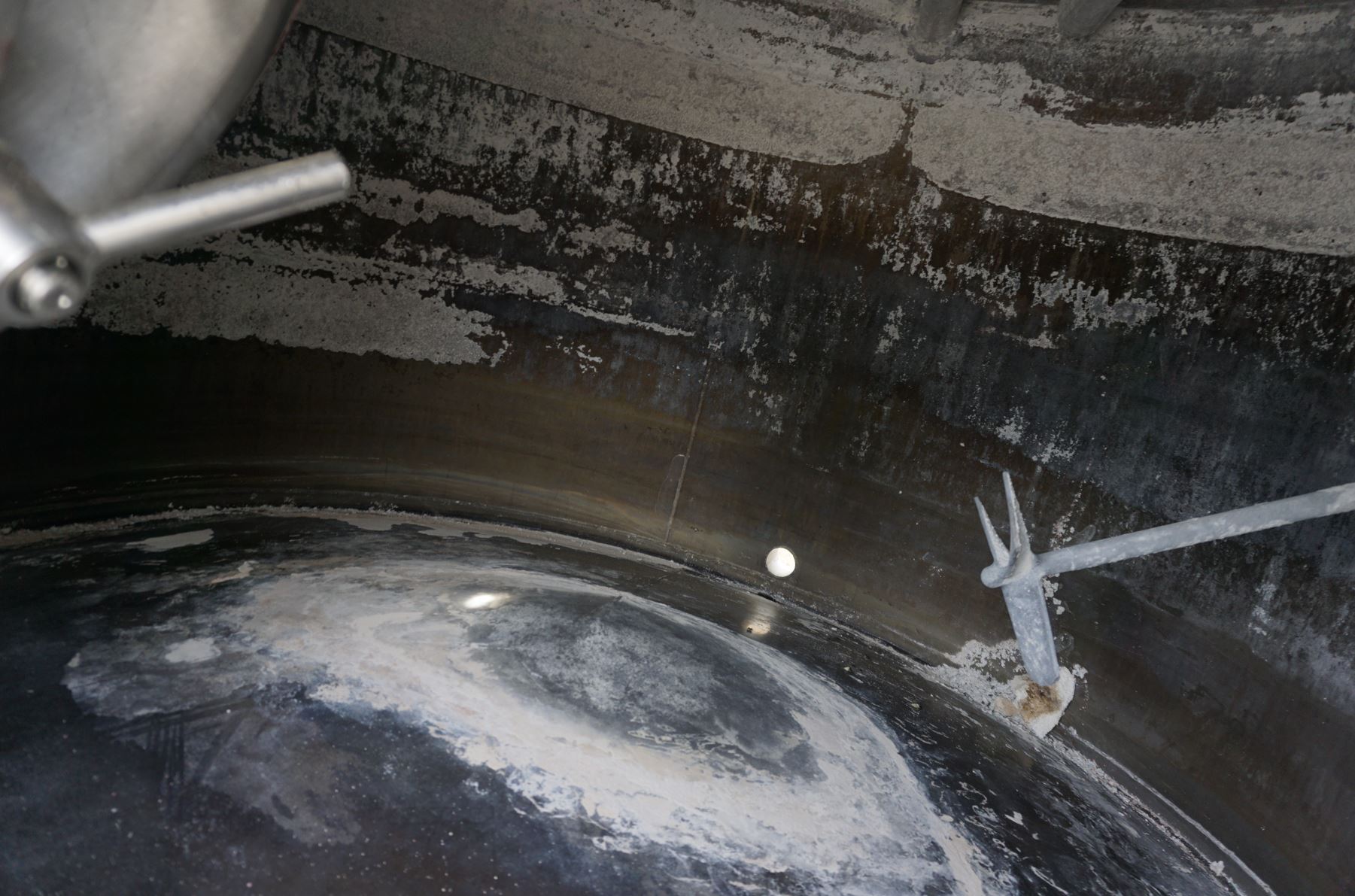

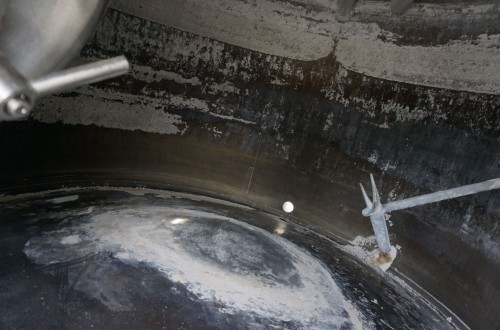

  • Produktraum leicht verfärbt/Anhaftungen.

  • Last usage

  • CIP/cleaning system

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, CIP tank,

Chemistry and pharmaceuticals : Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Mixing tank, CIP tank,
