Product no. M-2949

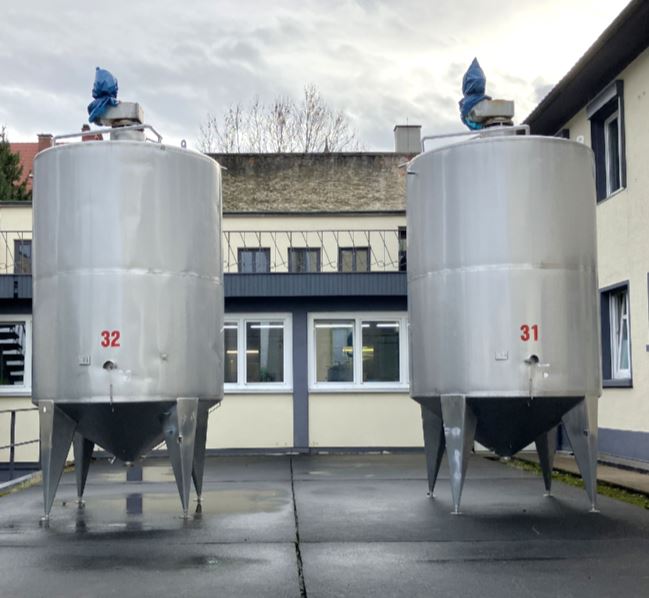

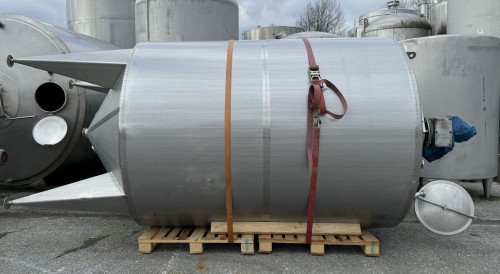

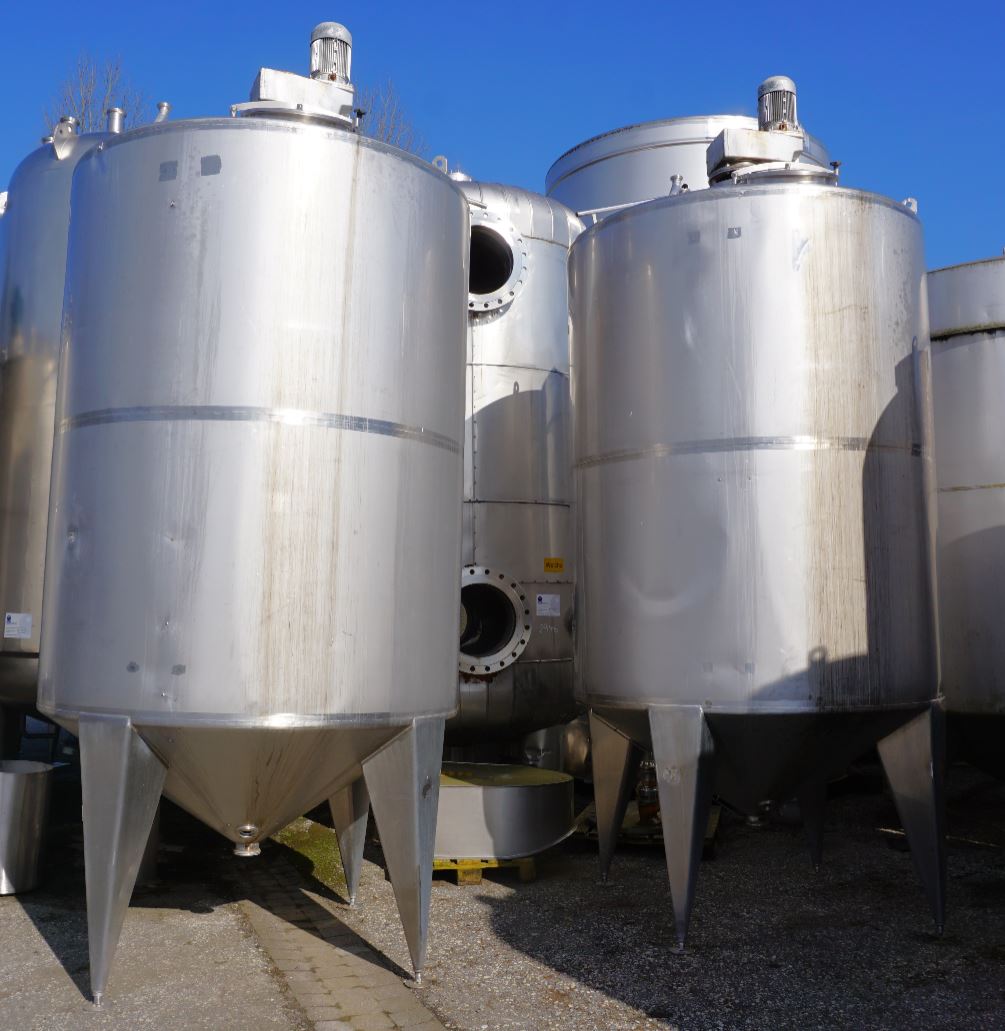

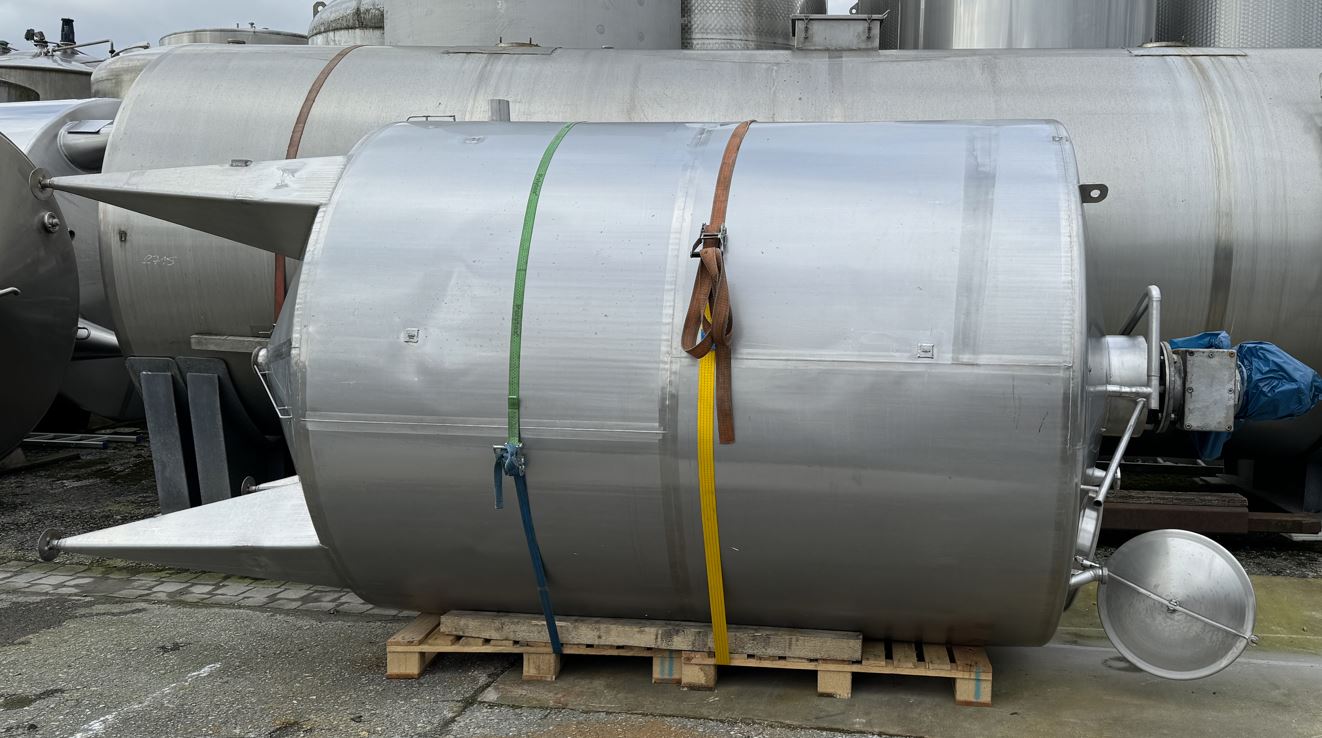

Container 8.500 liters made of V2A single-walled, used, standing
EUR 9.800,00
add. 19 % VAT excl. shipping costs
Volume approx. 8,500.00 litres
Product description
Container 8.500 liters made of V2A single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 8,500.00 litres. Container 8.500 liters made of V2A single-walled, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Mixing,General
Volume approx.
8.500,00 litres
Structure
Standing
Year of manufacture
1989
Manufacturer
Ullmann
Condition
Used
Dimensions approx.
External diameter
2.000 mm
Cyl. height
2.500 mm
Foot height
1.150 mm
Total height
5.000 mm
Wall thickness of product chamber head
3,00 mm
Wall thickness of product chamber shell
2,50 mm
Wall thickness of product chamber floor
2,50 mm
Design
Weight approx.
1.000,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
no
Interior surface
Smoothed
Exterior surface
Smoothed

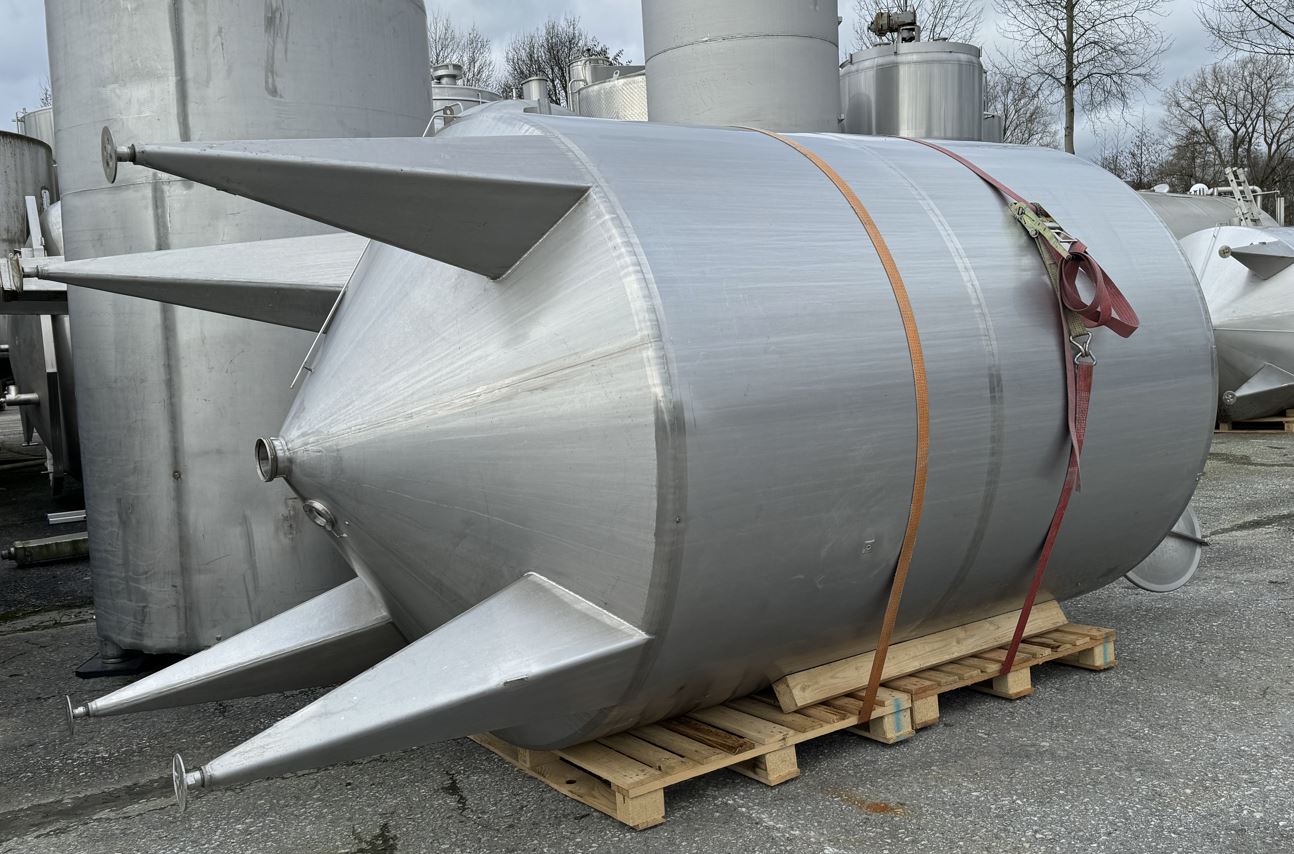

Floor type
Conical bottom
Head design
Conical bottom

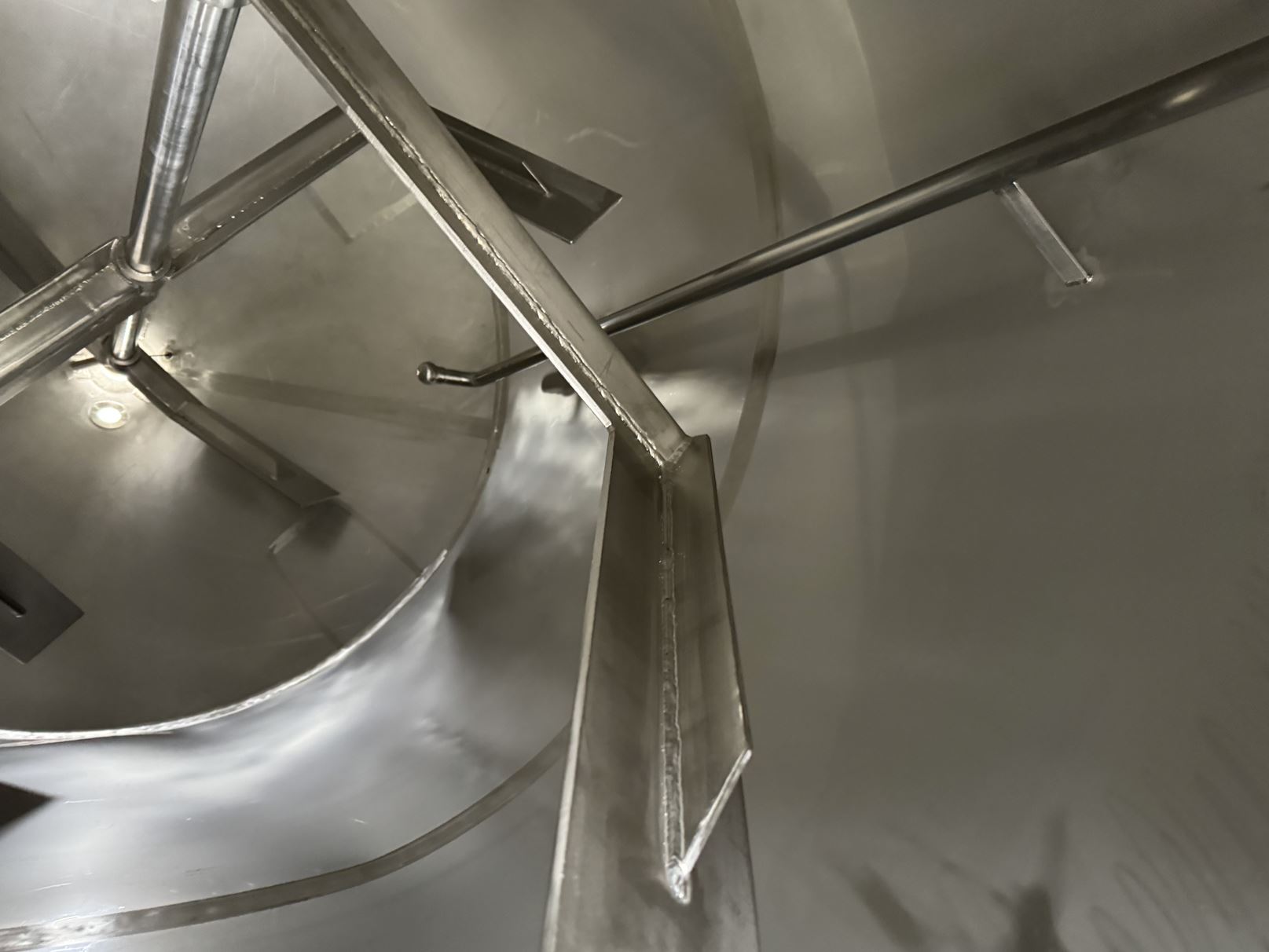

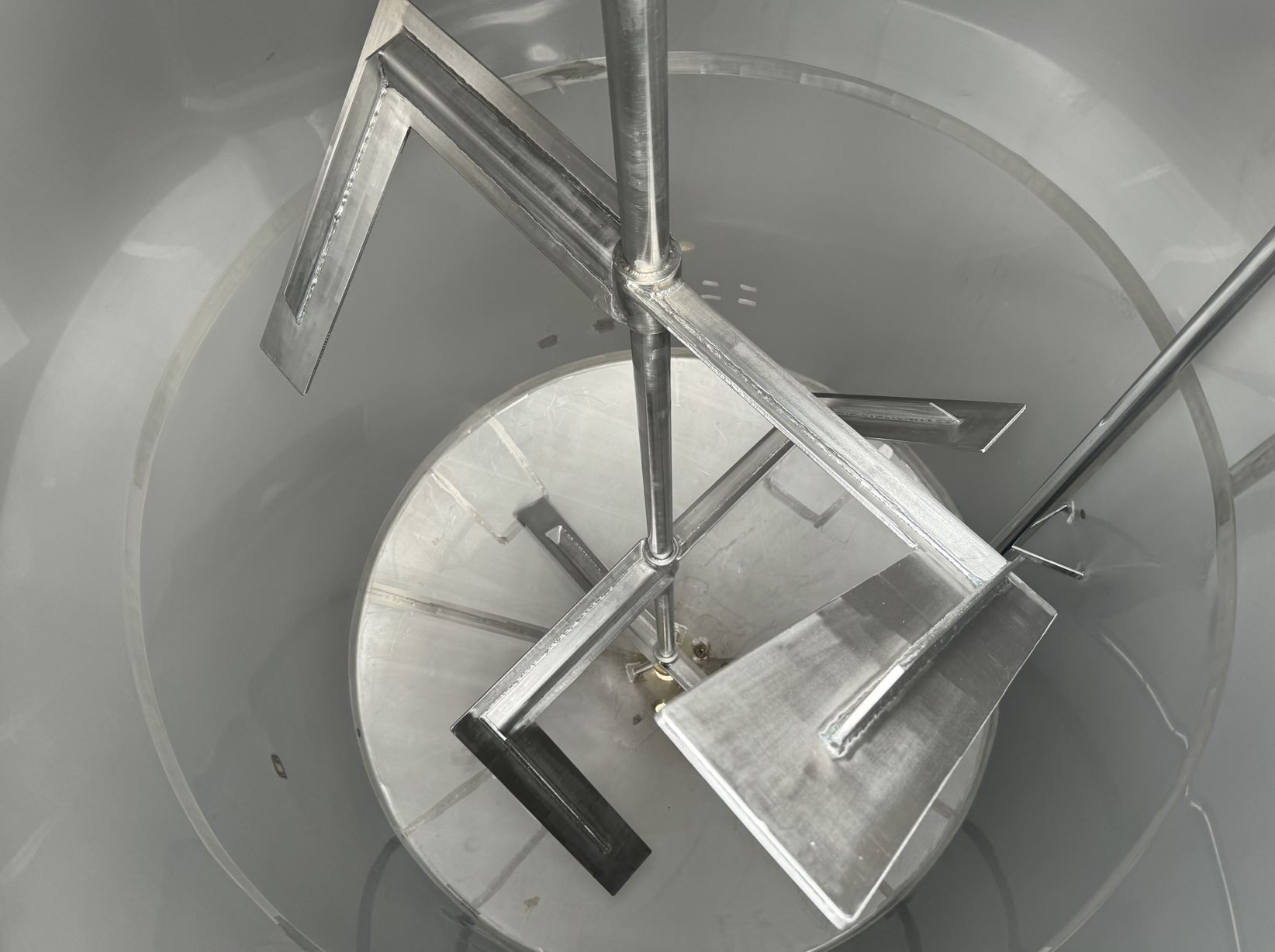

Agitator
Agitator quantity
1 (piece)
Agitator type
Zeta agitator
Agitator position
Head central
Supports
Supports
Stainless steel feet
Number of feet
4 (piece)
Note on supports
höhenverstellbar
Fixtures and fittings

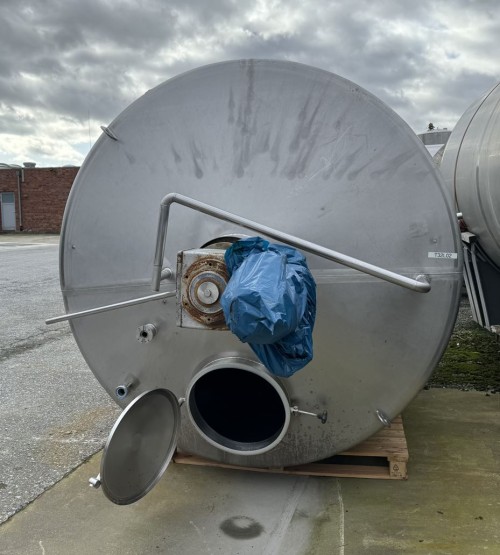

Manway position
In head
Outlet nozzle
100
Cleaning/CIP nozzle
in head
Fixtures and fittings
Lifting lugs
Additional fixtures and fittings

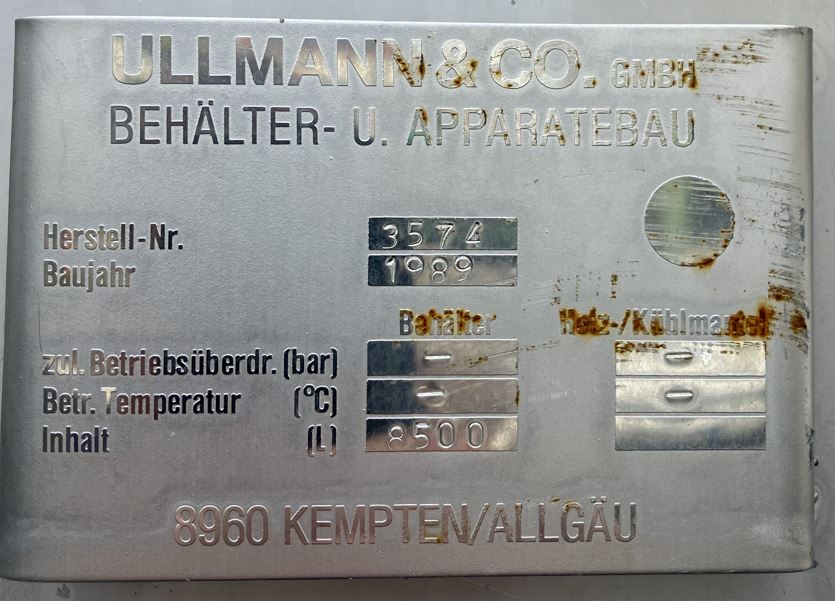

Nameplate
Technical documentation
Technical documentation
Designation
Comment on technical documentation

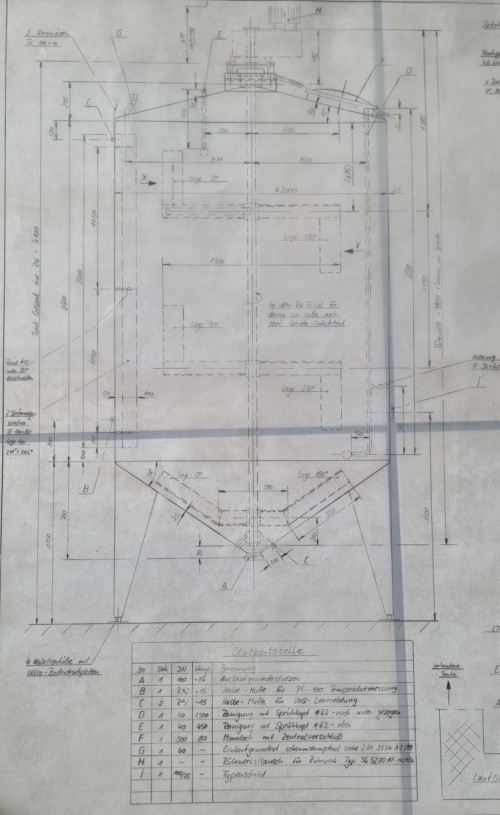

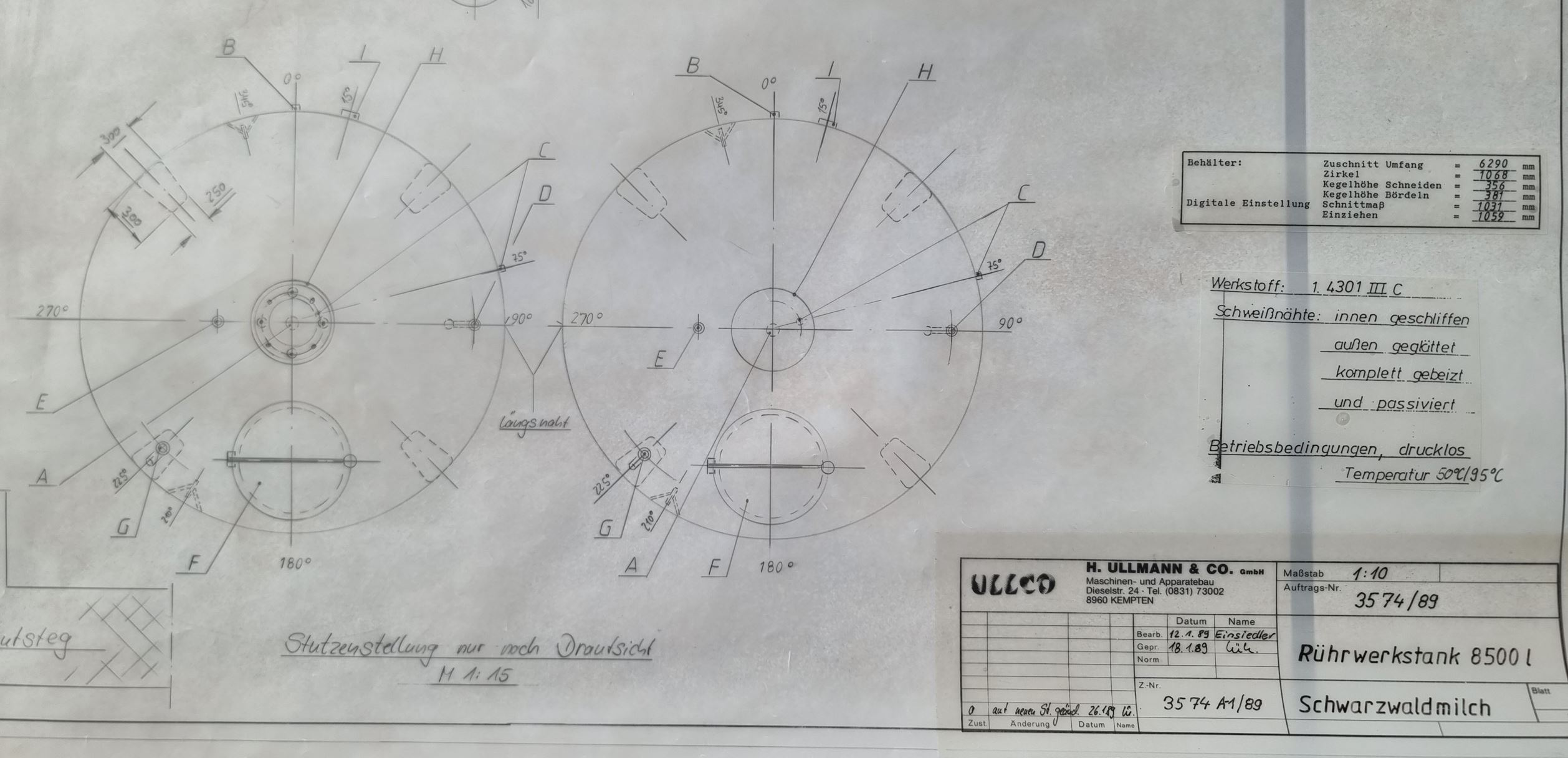

Auszug aus der Zeichnung
Other
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Wine tank, Mash tank, Fruit juice tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
Chemistry and pharmaceuticals : Storage tank, Pre-buffer tank, Settling tank, Mixing tank,
