Product no. M-2897

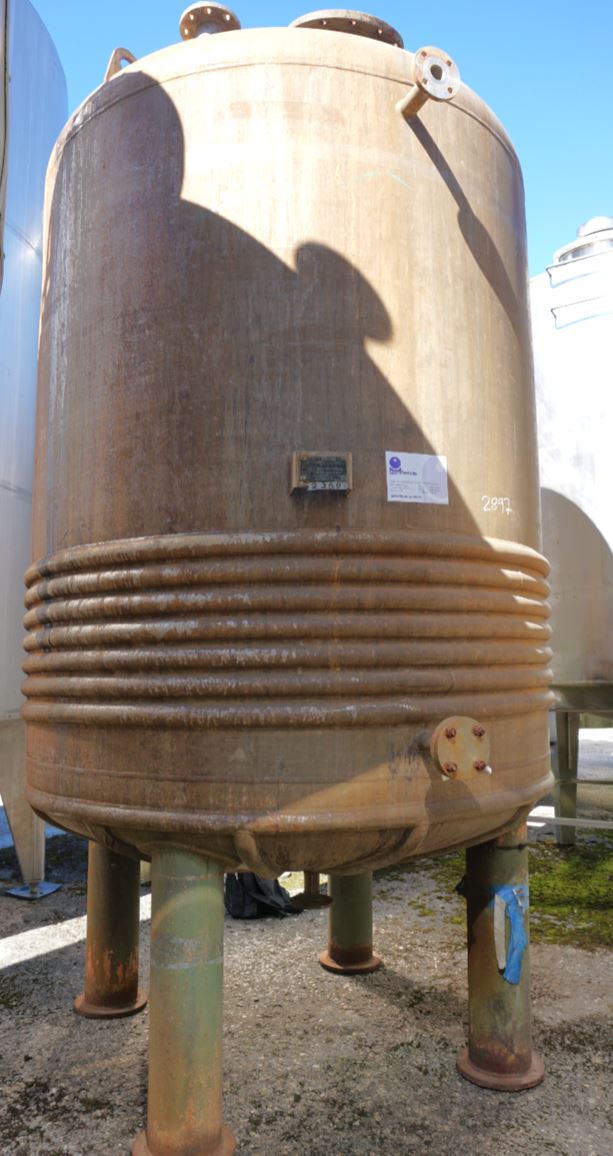

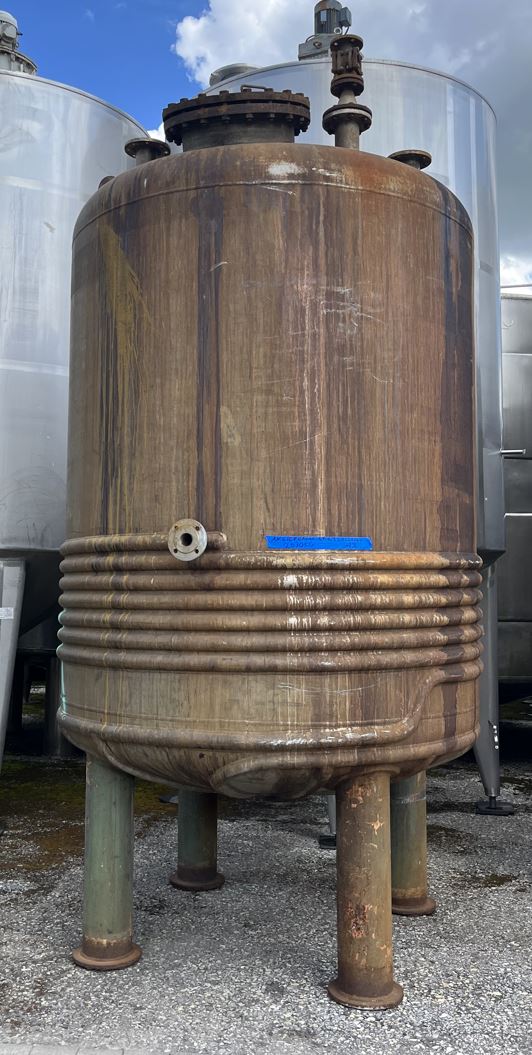

Container 8.000 liters made of V4A, temperature-controllable, used, standing

EUR 9.800,00

add. 19 % VAT excl. shipping costs

Volume approx. 8,000.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details   Downloads

Product description

Container 8.000 liters made of V4A, temperature-controllable, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 8,000.00 litres.  Container 8.000 liters made of V4A, temperature-controllable, used was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Tempering, Under/over-pressure, Processes,

General

  • Volume approx.

  • 8.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1970

  • Manufacturer

  • Apparatebau Hünsborn

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 2.000 mm

  • Cyl. height

  • 2.128 mm

  • Foot height

  • 1.165 mm

  • Total height

  • 4.300 mm

  • Wall thickness of product chamber head

  • 8,00 mm

  • Wall thickness of product chamber shell

  • 8,00 mm

  • Wall thickness of product chamber floor

  • 8,00 mm

Design

  • Weight approx.

  • 2.030,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Matt

  • Exterior surface

  • Matt

  • Floor type

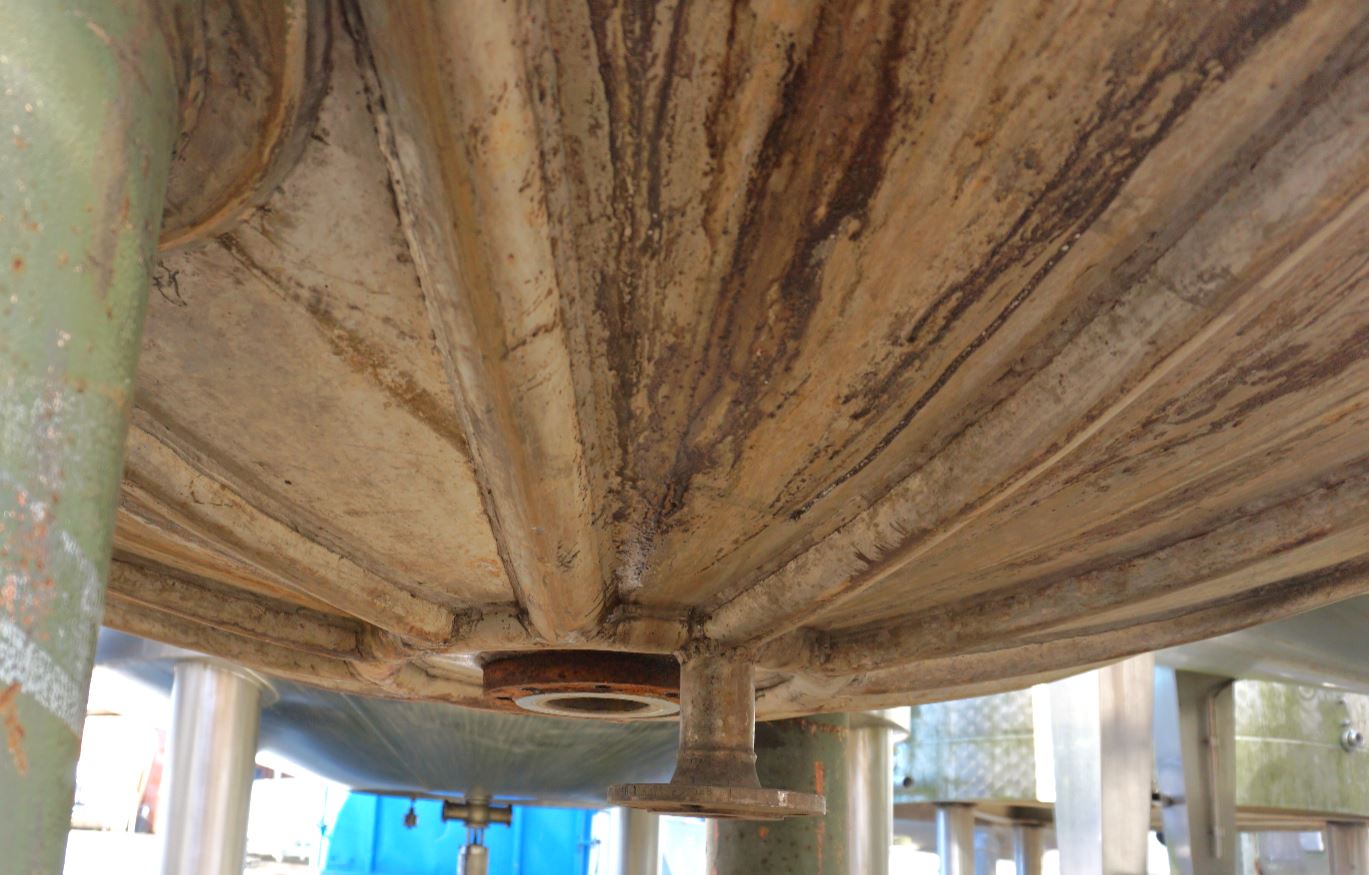

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 3,00 bar

  • Product chamber operating under-pressure

  • Vak bar

  • Product chamber operating temperature

  • 200,00 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Temperature control system

  • Half-pipe coils

  • Operating pressure

  • 3,00 bar

  • Operating temperature

  • 200 °C

  • Heating medium

  • Steam

  • Temperature control system operating pressure/pipe chamber

  • 6,0 bar

  • Temperature control system operating temperature/pipe chamber

  • 200 °C

  • Temperature control system/pipe chamber capacity

  • 70 litres

Supports

  • Supports

  • Steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway 1 size

  • 500 DN mm

  • Manway position

  • In head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

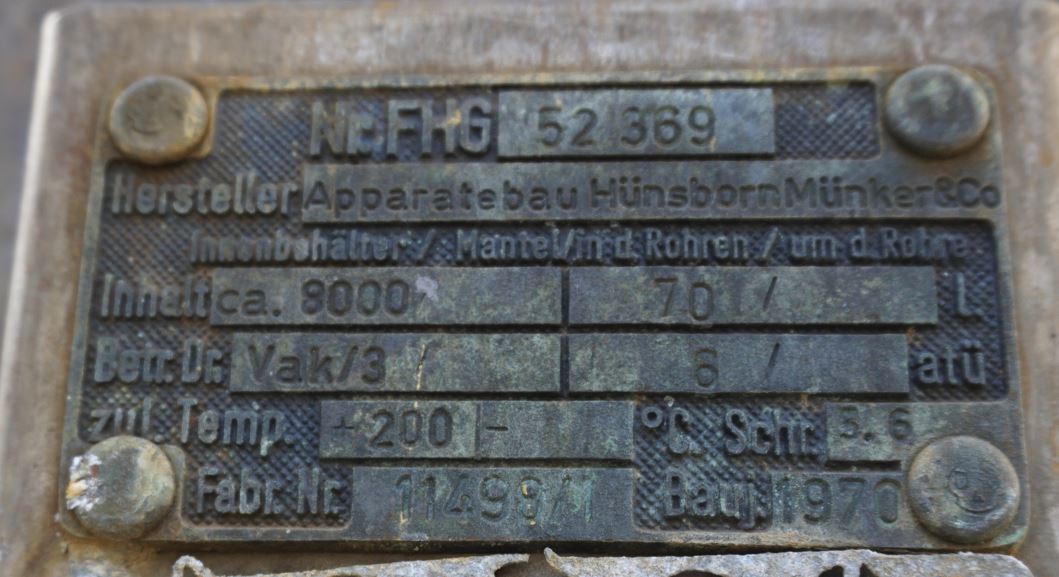

  • Nameplate

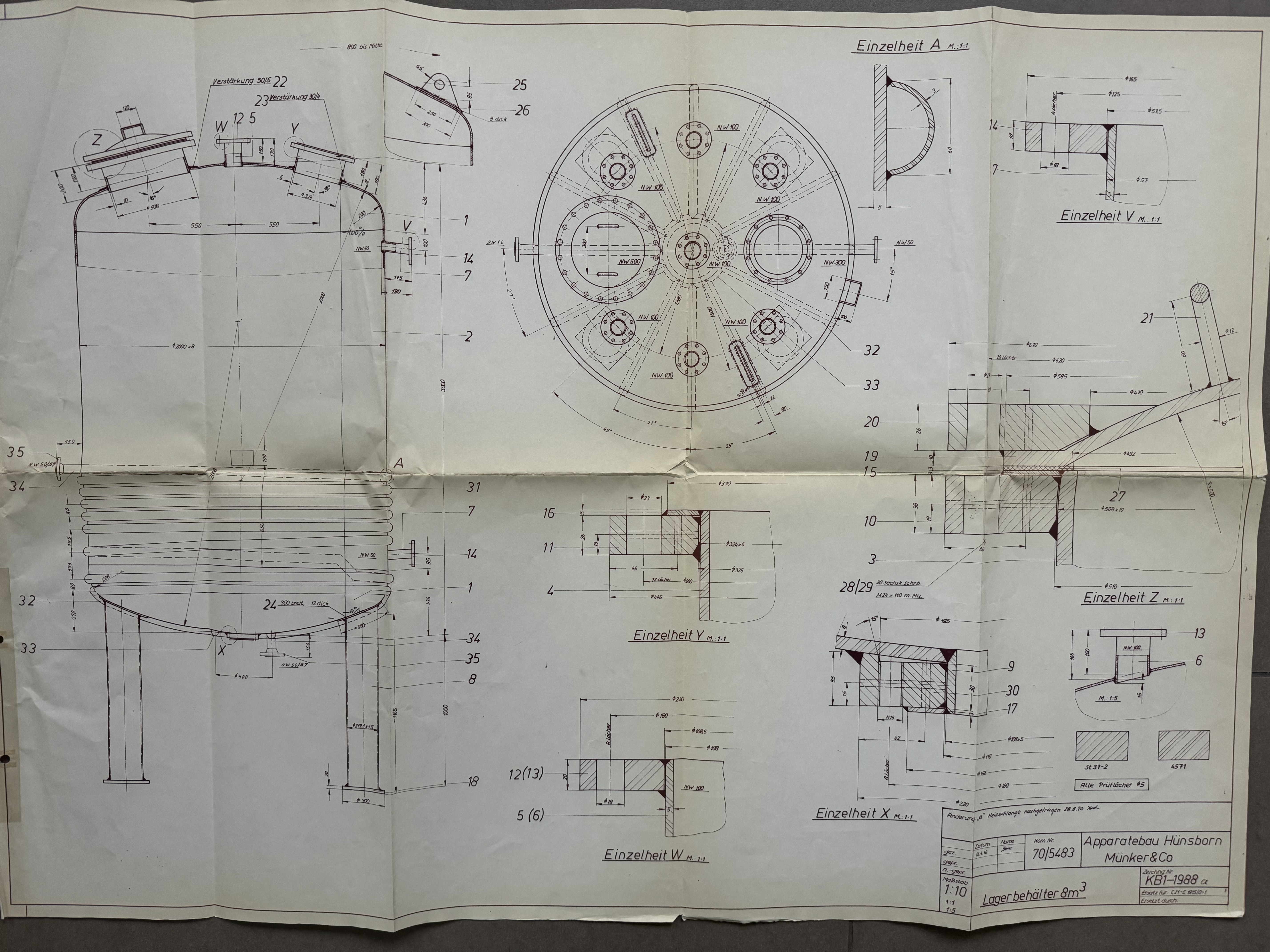

Technical documentation

  • Technical documentation

  • Designation

  • Pressure test certificate

Other

  • Note

  • bauähnlicher Behälter siehe Art. 2896

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, Process tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Chemical tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank,
