Product no. M-3026

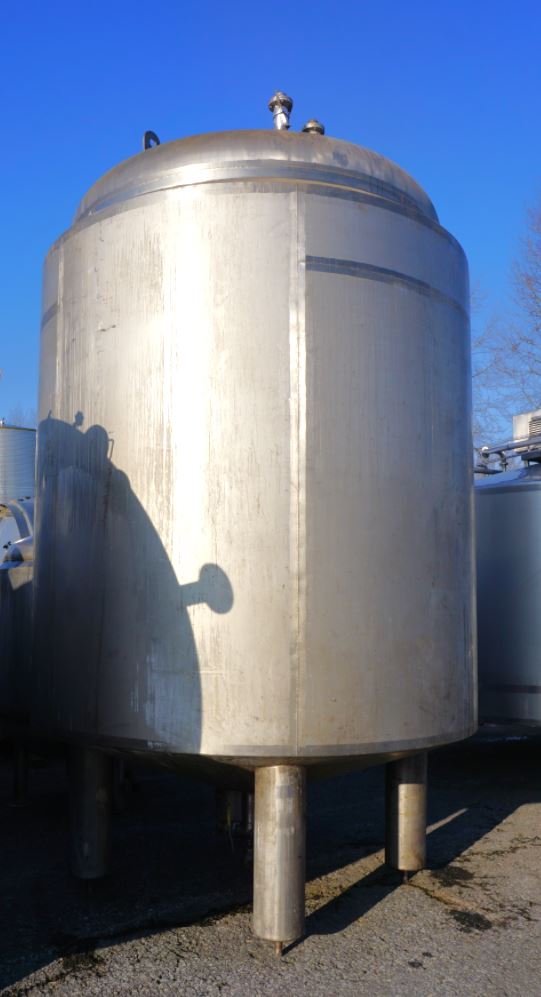

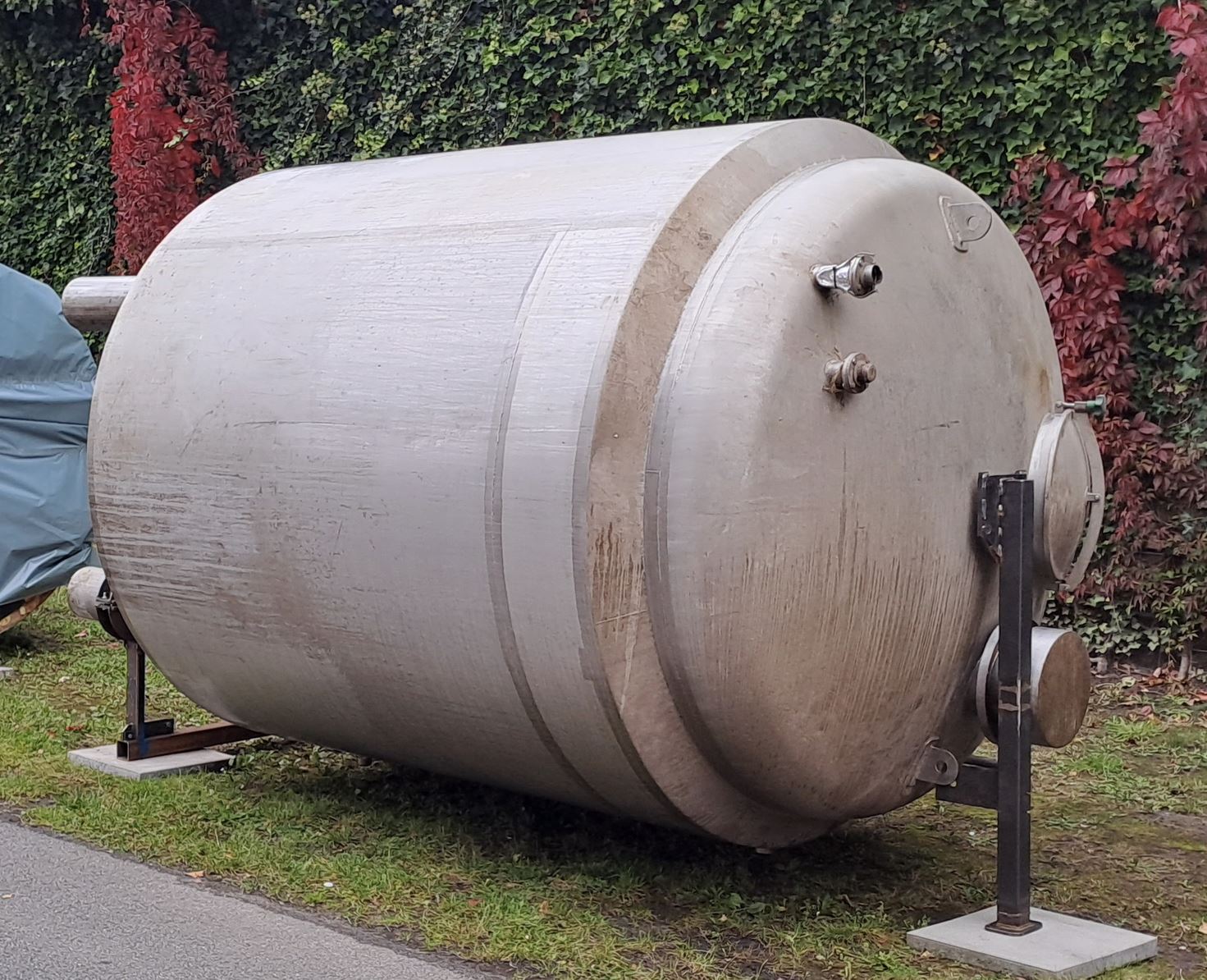

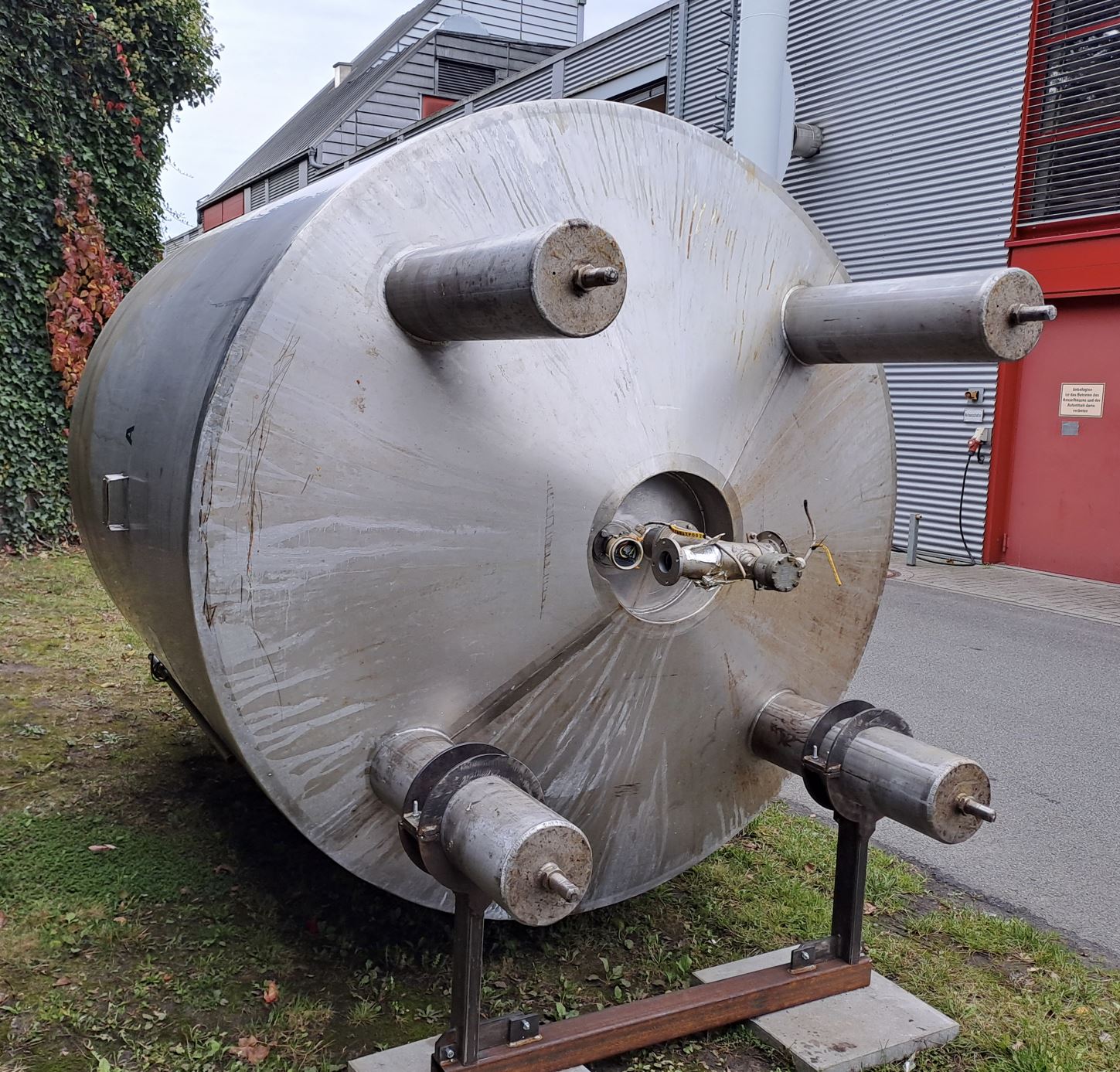

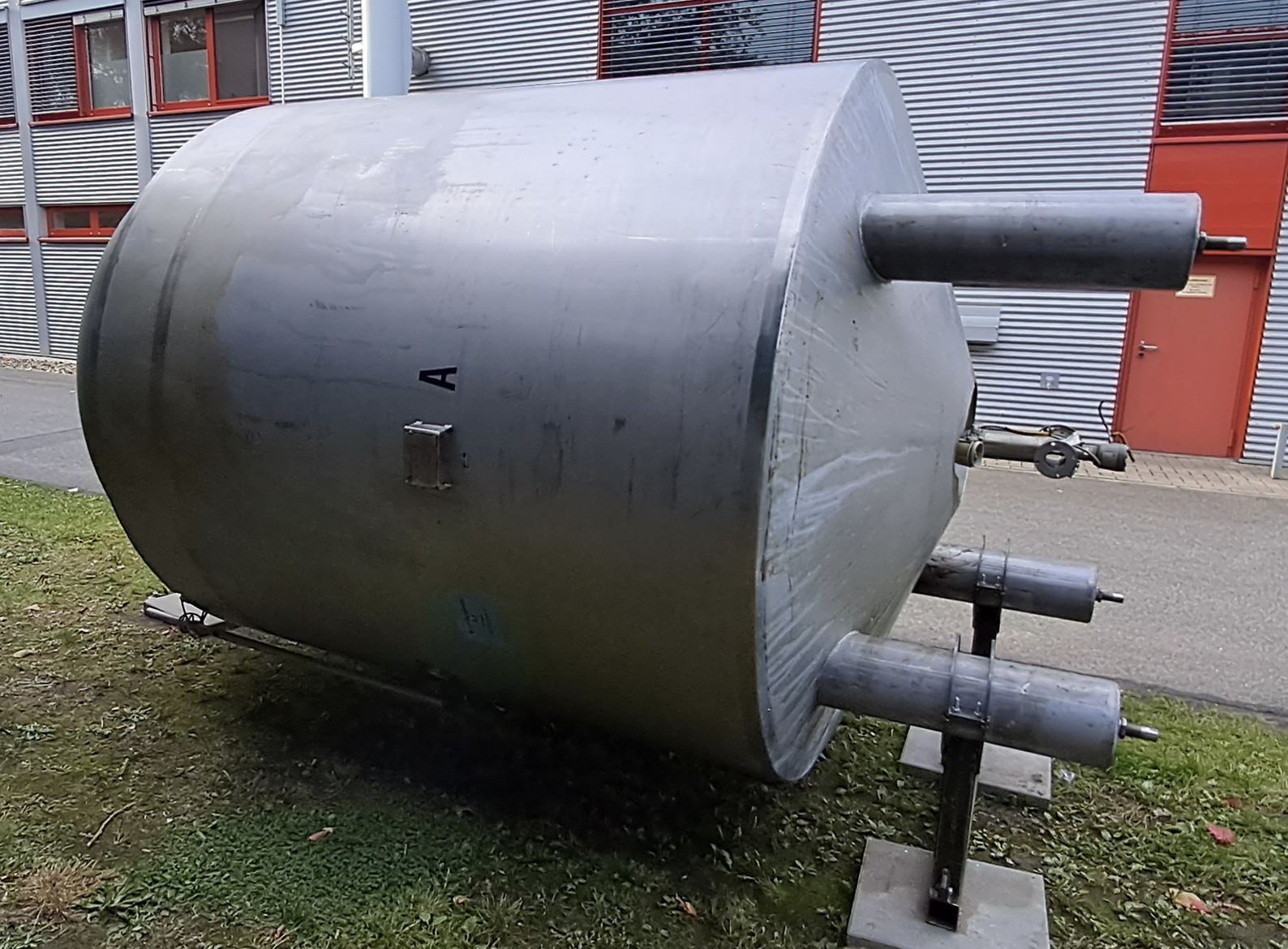

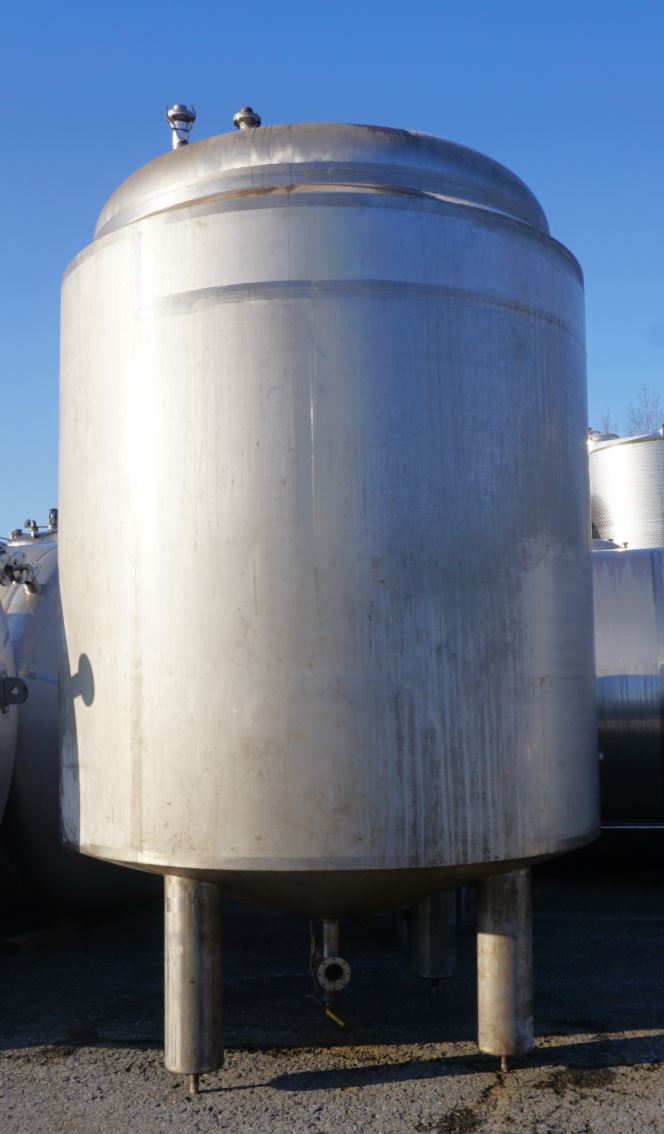

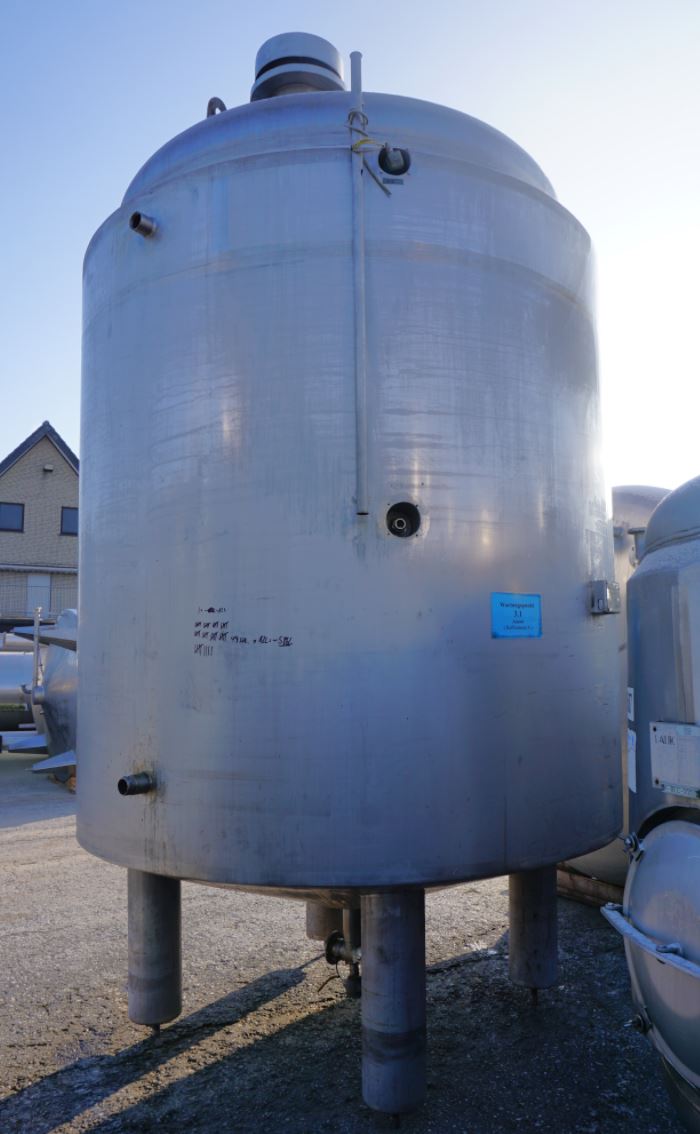

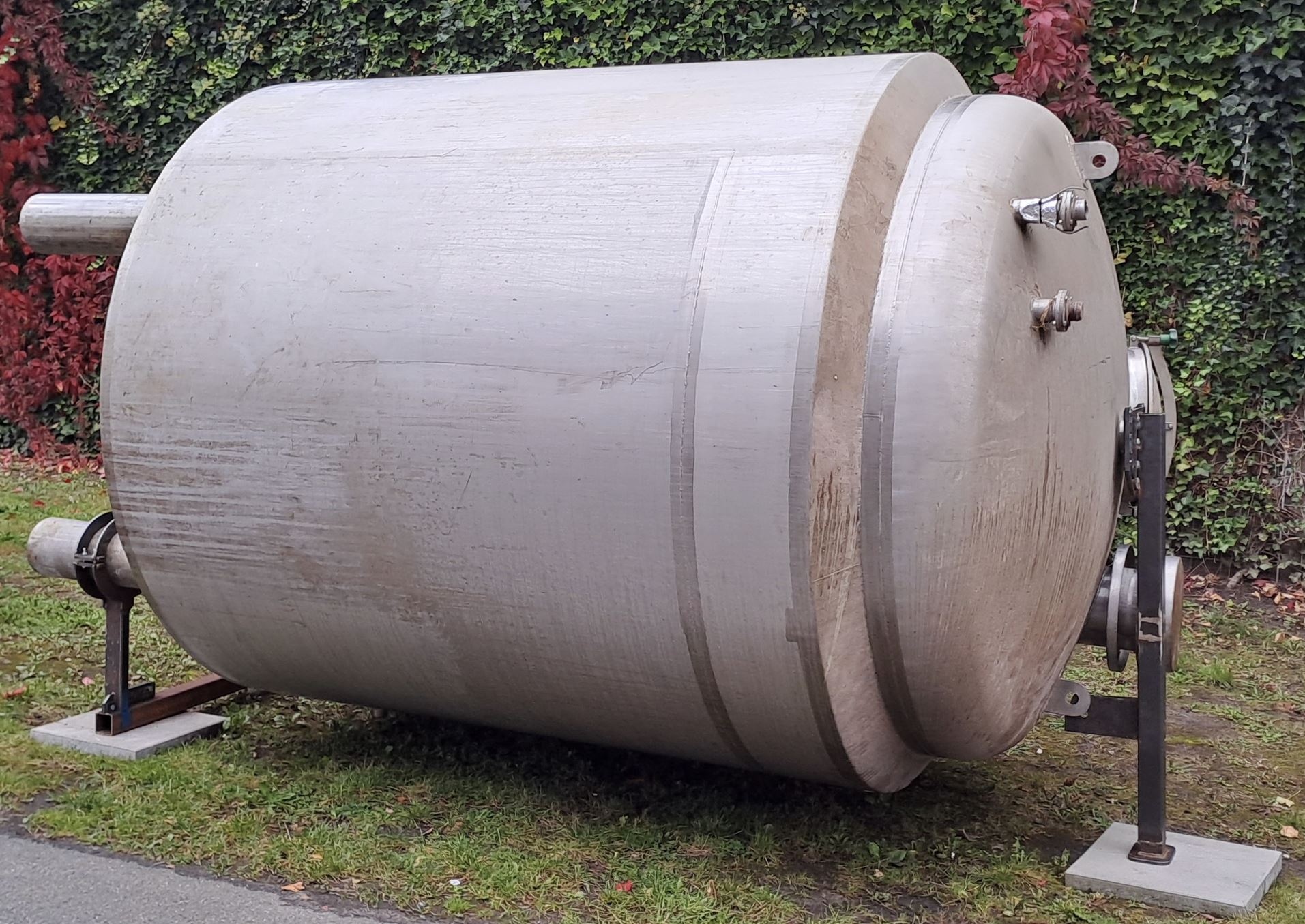

Container 8.000 liters made of V2A, temperature-controllable, isolated, used, standing

EUR 9.300,00

add. 19 % VAT excl. shipping costs


Volume approx. 8,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 8.000 liters made of V2A, temperature-controllable, isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 8,000.00 litres.  Container 8.000 liters made of V2A, temperature-controllable, isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Tempering,

General

  • Volume approx.

  • 8.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1991

  • Manufacturer

  • Niggemeier GmbH, Essen

  • Condition

  • Used

Dimensions approx.

Design

  • Weight approx.

  • 1.500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

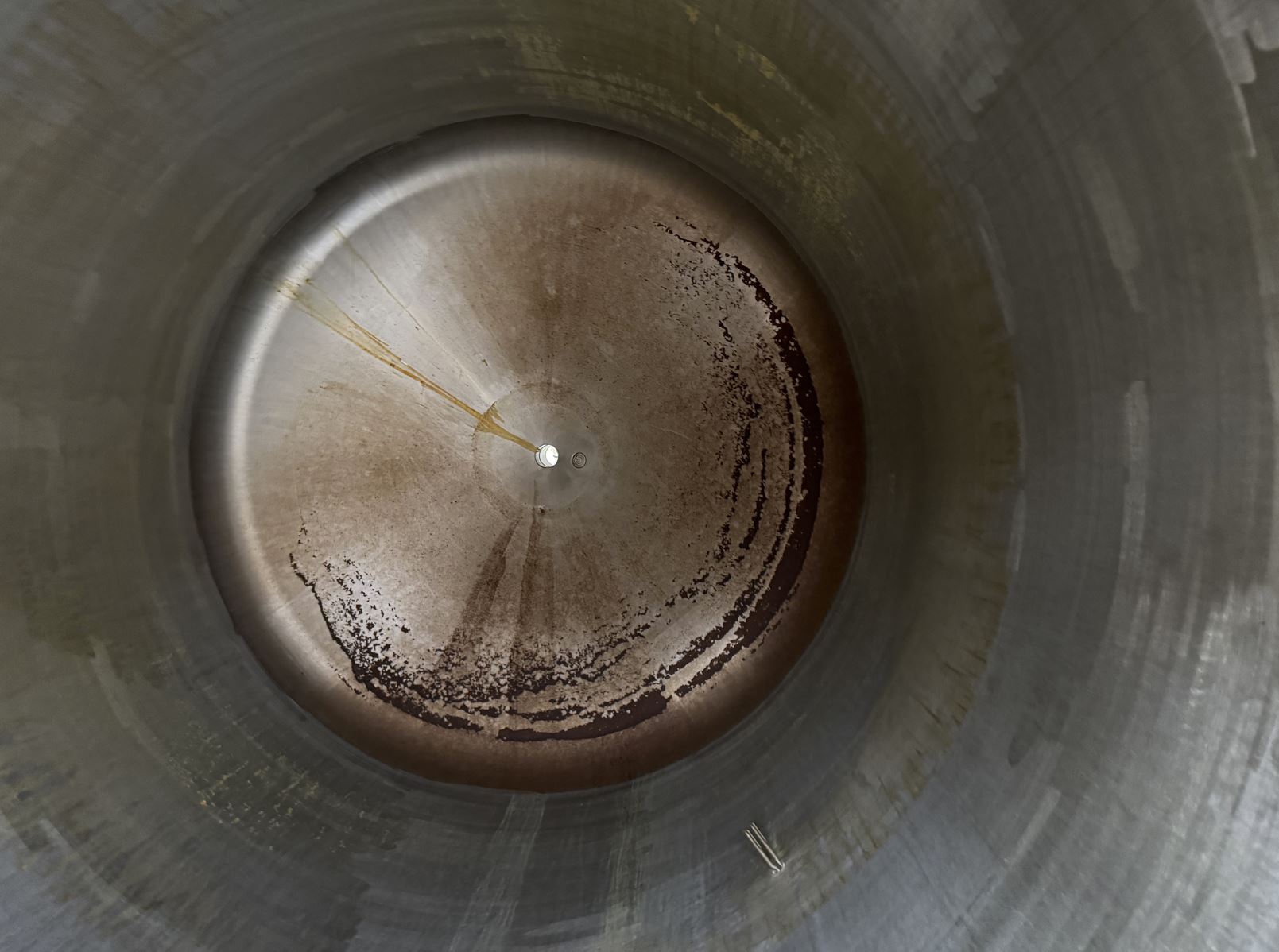

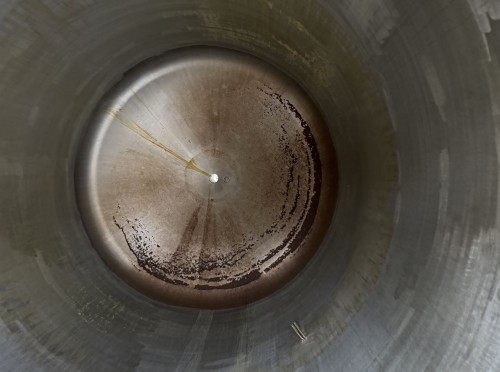

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

  • Product chamber operating temperature

  • 75,00 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell area

  • Operating temperature

  • 75 °C

  • Temperature control system operating pressure/pipe chamber

  • 3,0 bar

  • Temperature control system operating temperature/pipe chamber

  • 75 °C

  • Temperature control system/pipe chamber capacity

  • 605 litres

Supports

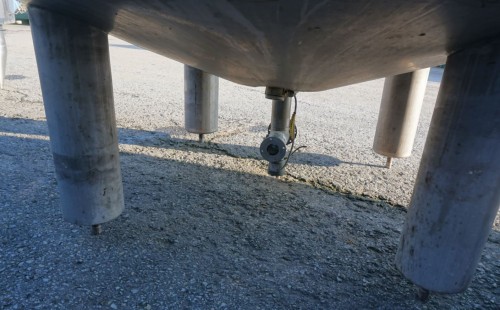

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

  • Manway position

  • In head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Air vent

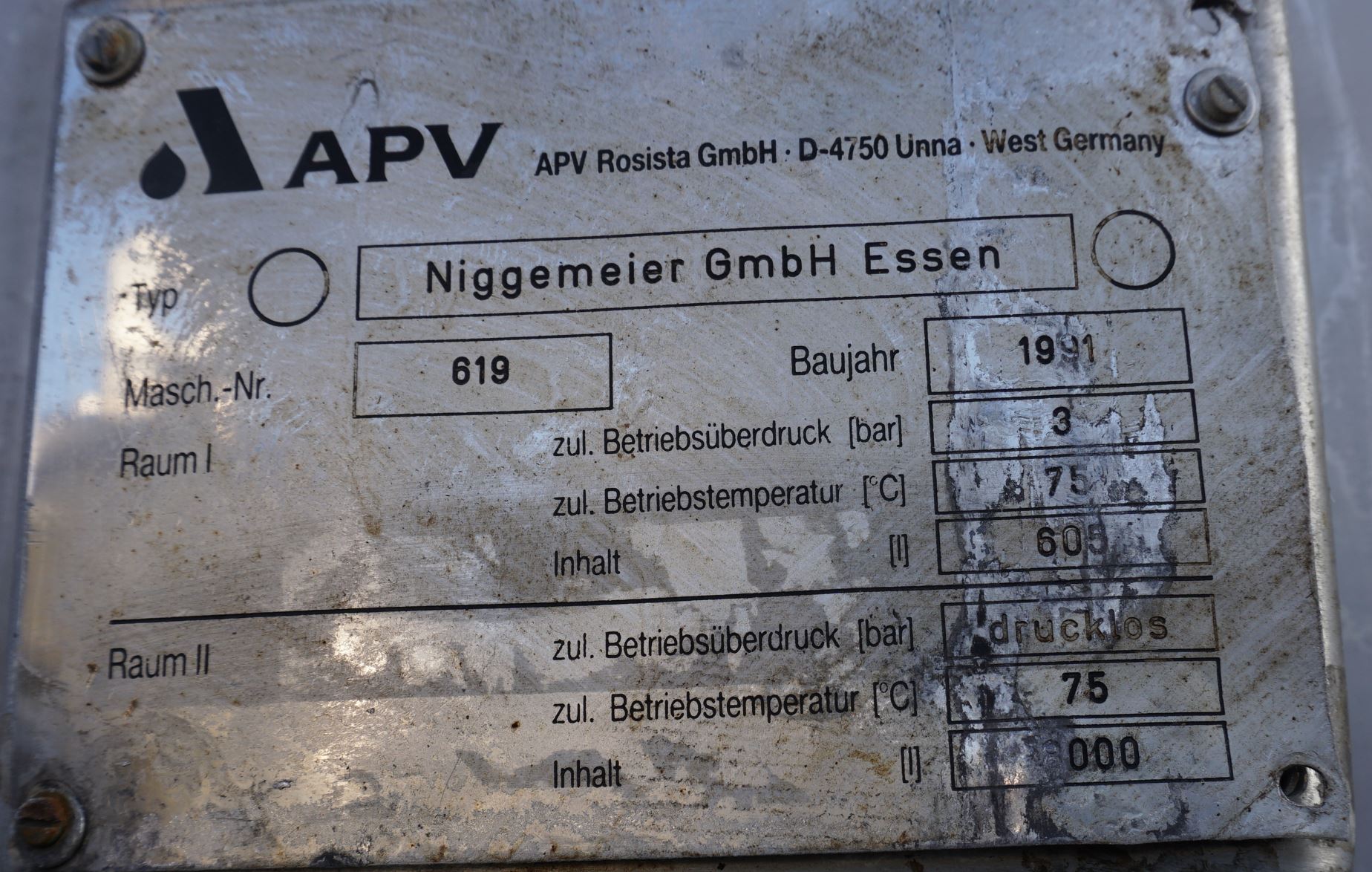

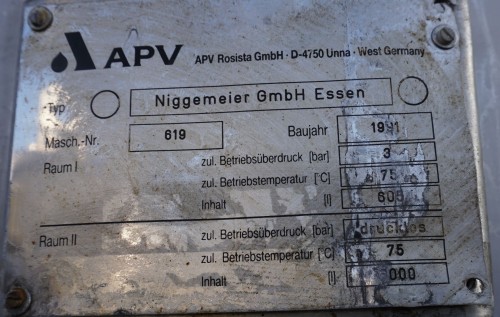

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • 1 Behälter unten seitlich Beulen

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Storage tank, Buffer tank, Pre-buffer tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank,
