Product no. M-2786

Container 75.000 / 35.000 liters made of V2A isolated, used, standing

EUR 37.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 110,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

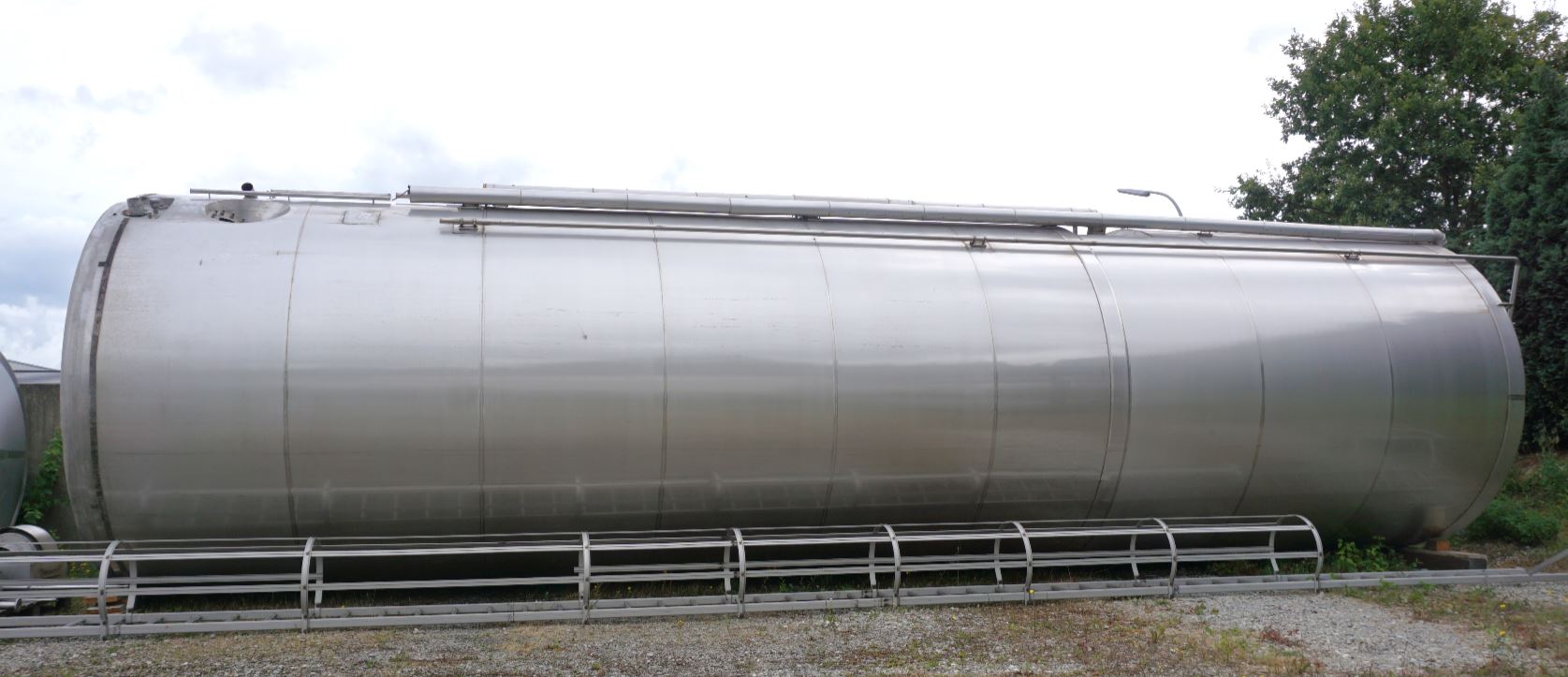

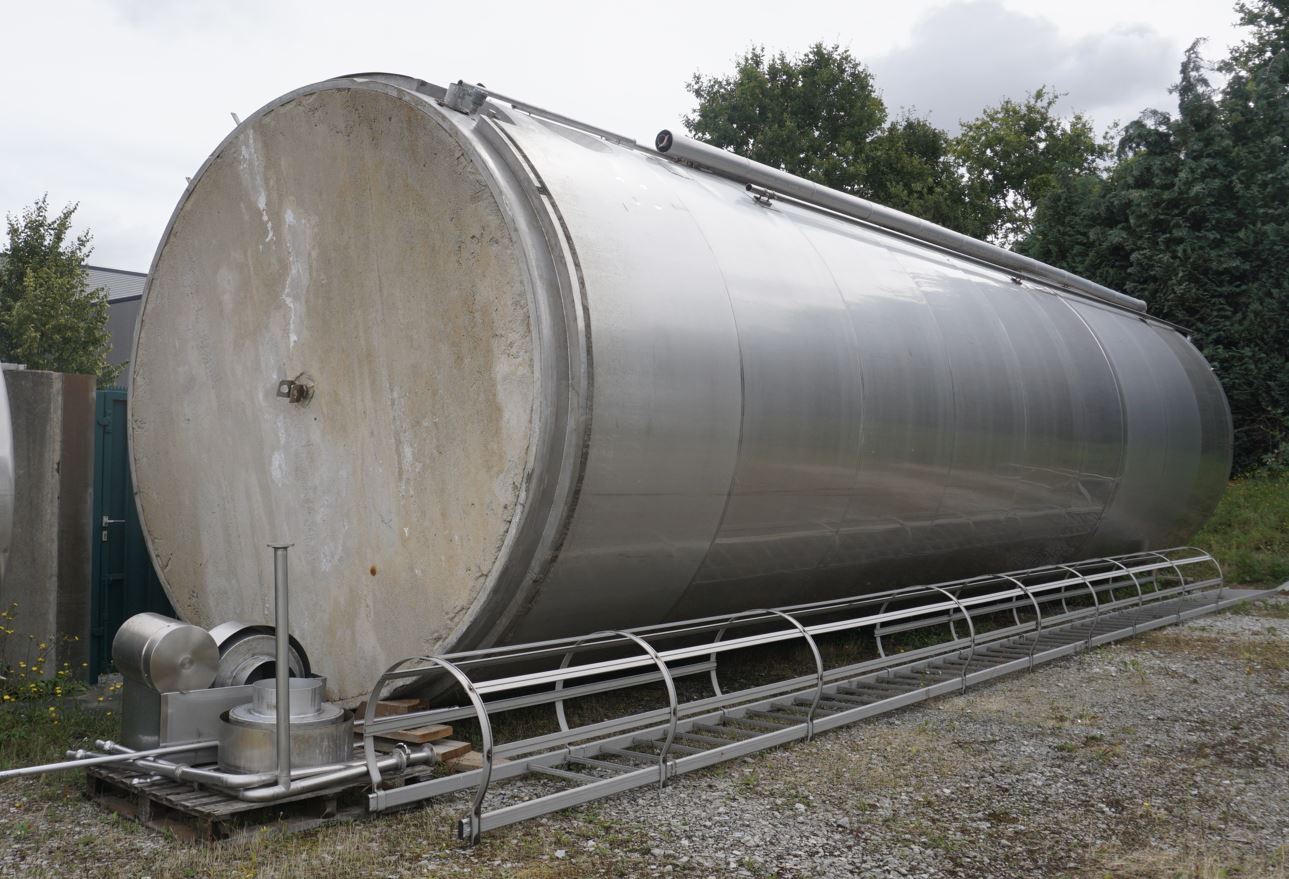

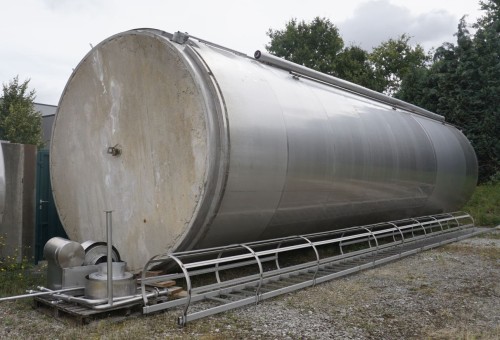

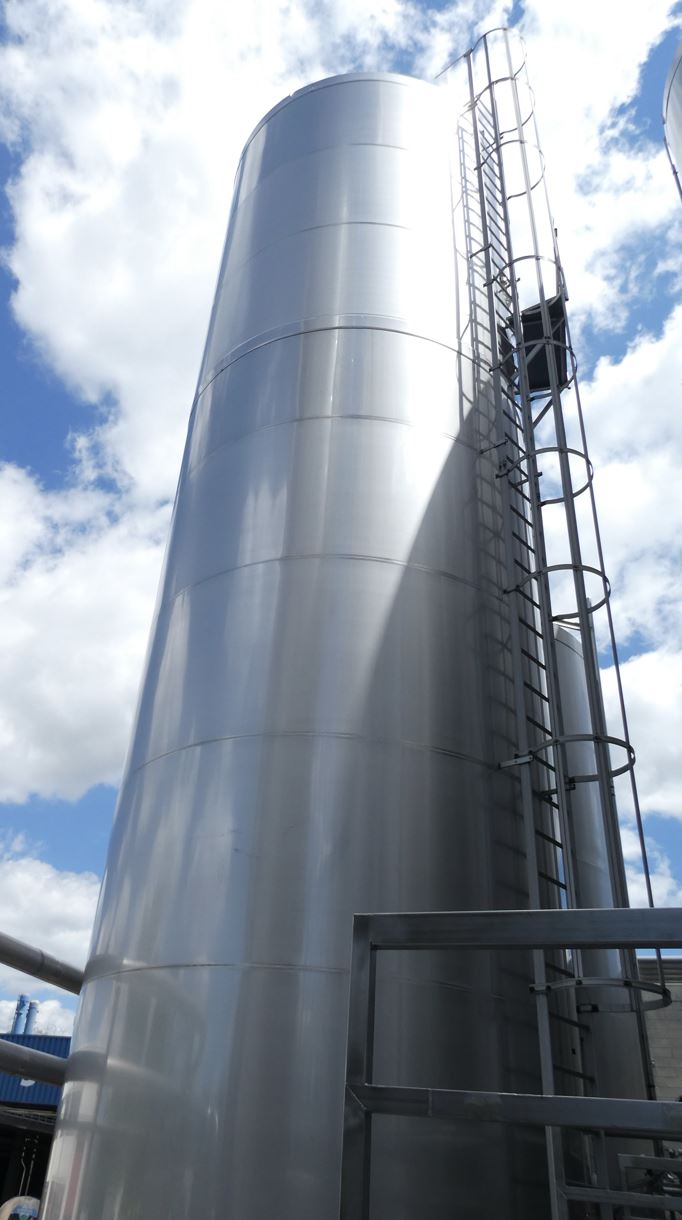

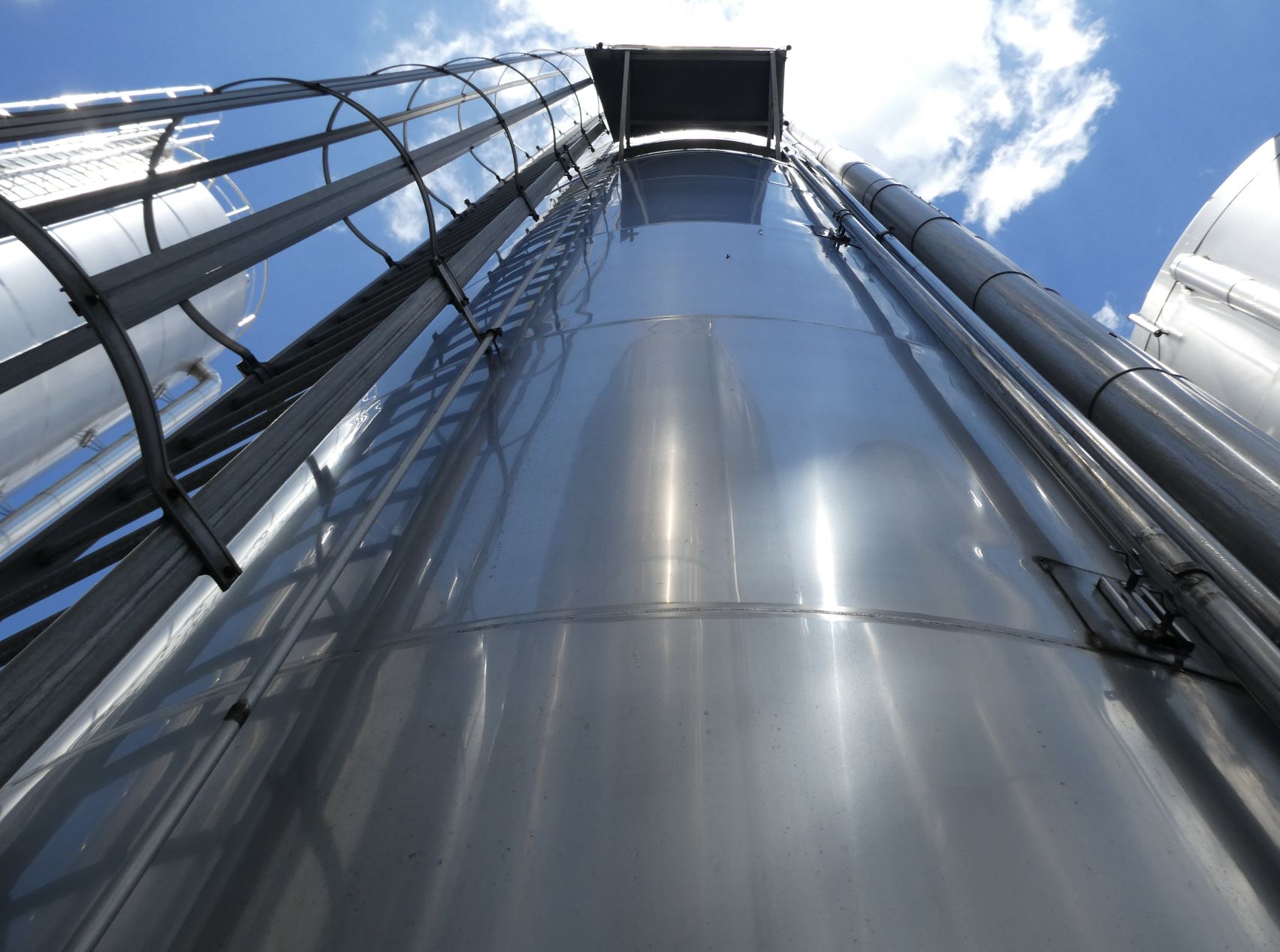

Container 75.000 / 35.000 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 110,000.00 litres. The diameter inside includes 3,484 mm.  Container 75.000 / 35.000 liters made of V2A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 110.000,00 litres

  • Chamber volume 1

  • 75000 litres

  • Chamber volume 2

  • 35000 litres

  • divided into chambers

  • 2 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1992

  • Manufacturer

  • Gea Ahlborn

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 3.484 mm

  • External diameter

  • 3.624 mm

  • Cyl. height

  • 13.330 mm

  • Frame height

  • 220 mm

  • Total height

  • 14.550 mm

Design

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell

  • Insulation cladding

  • Fully welded stainless steel

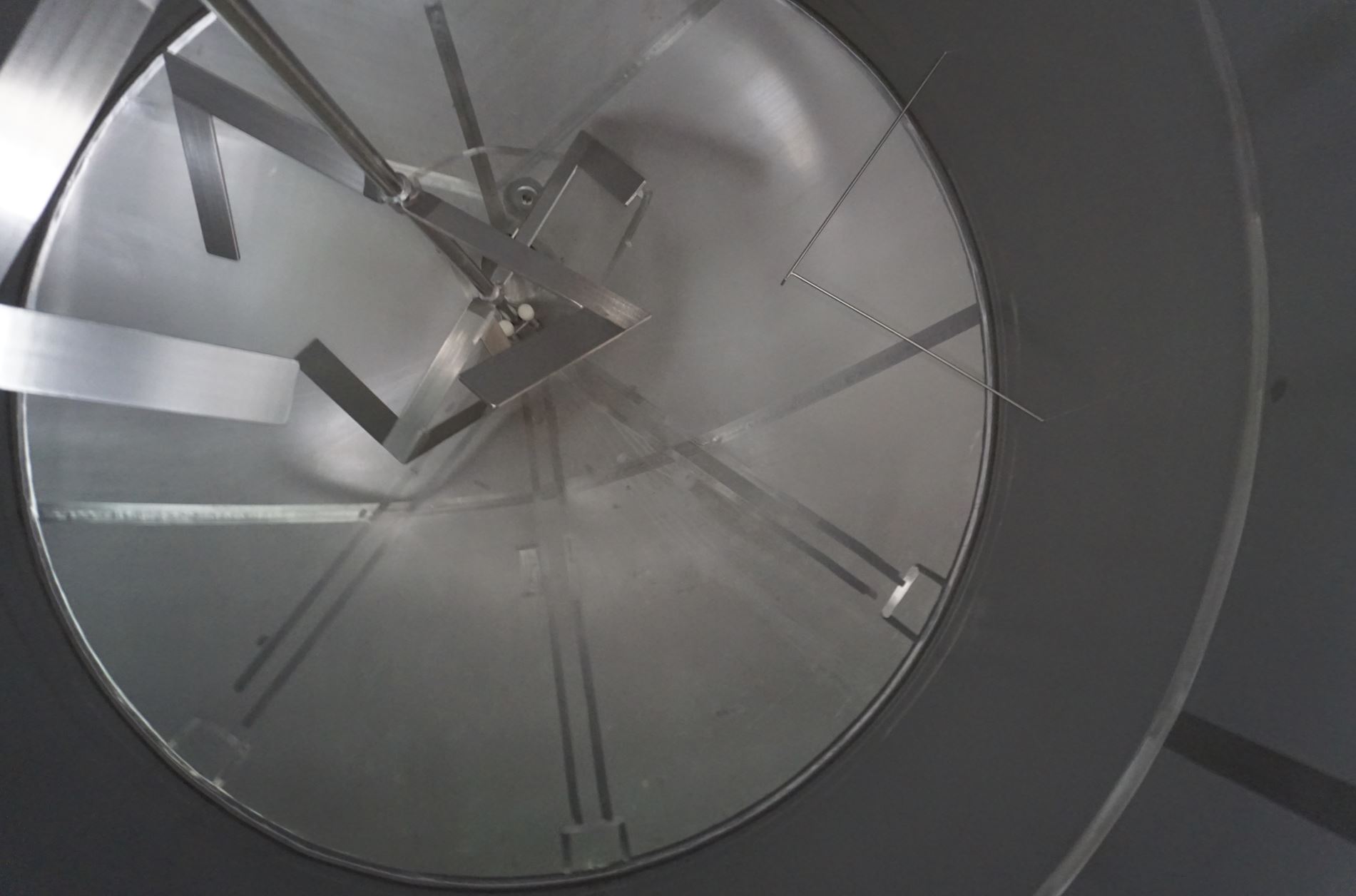

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Flat bottom with slope towards outlet

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

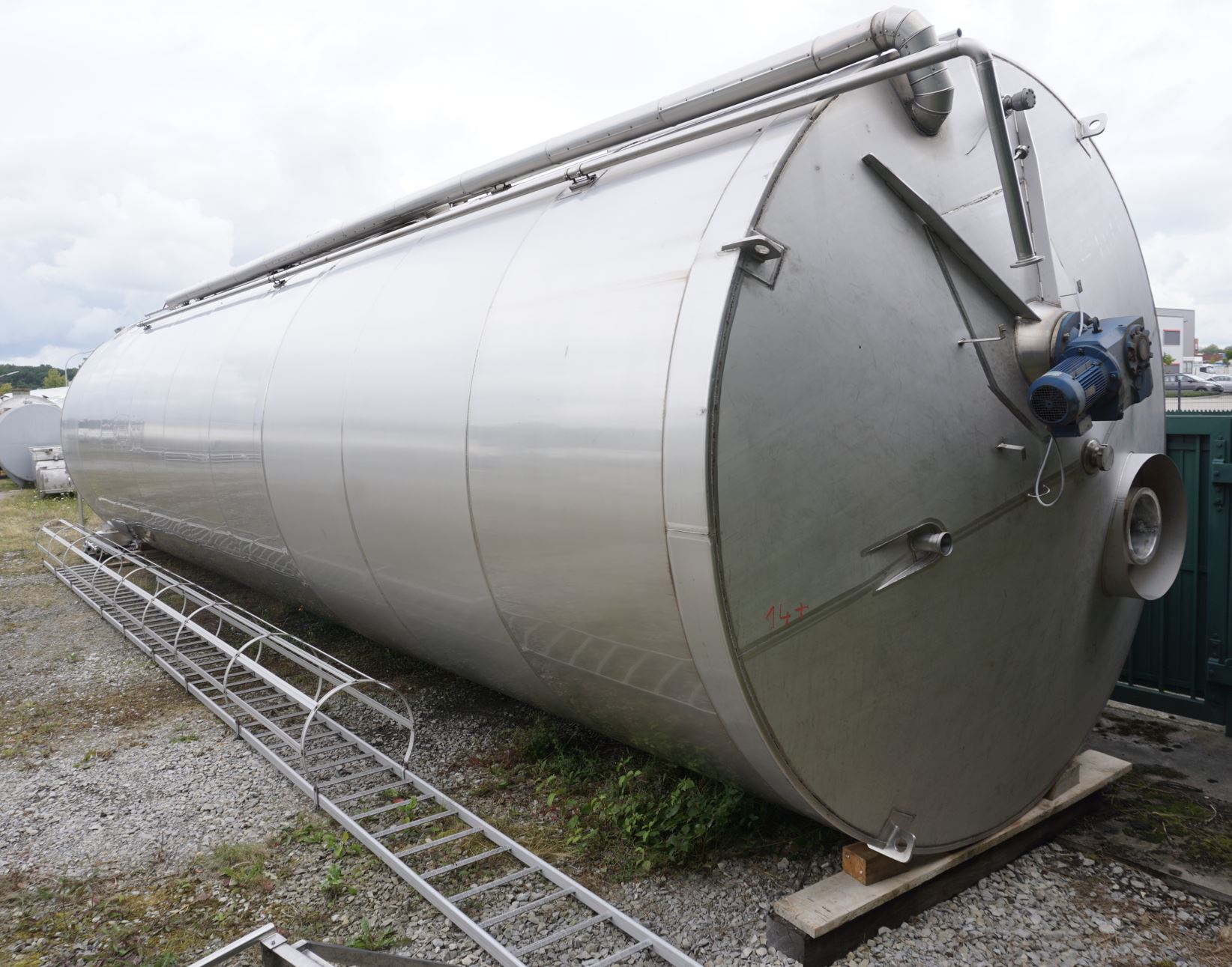

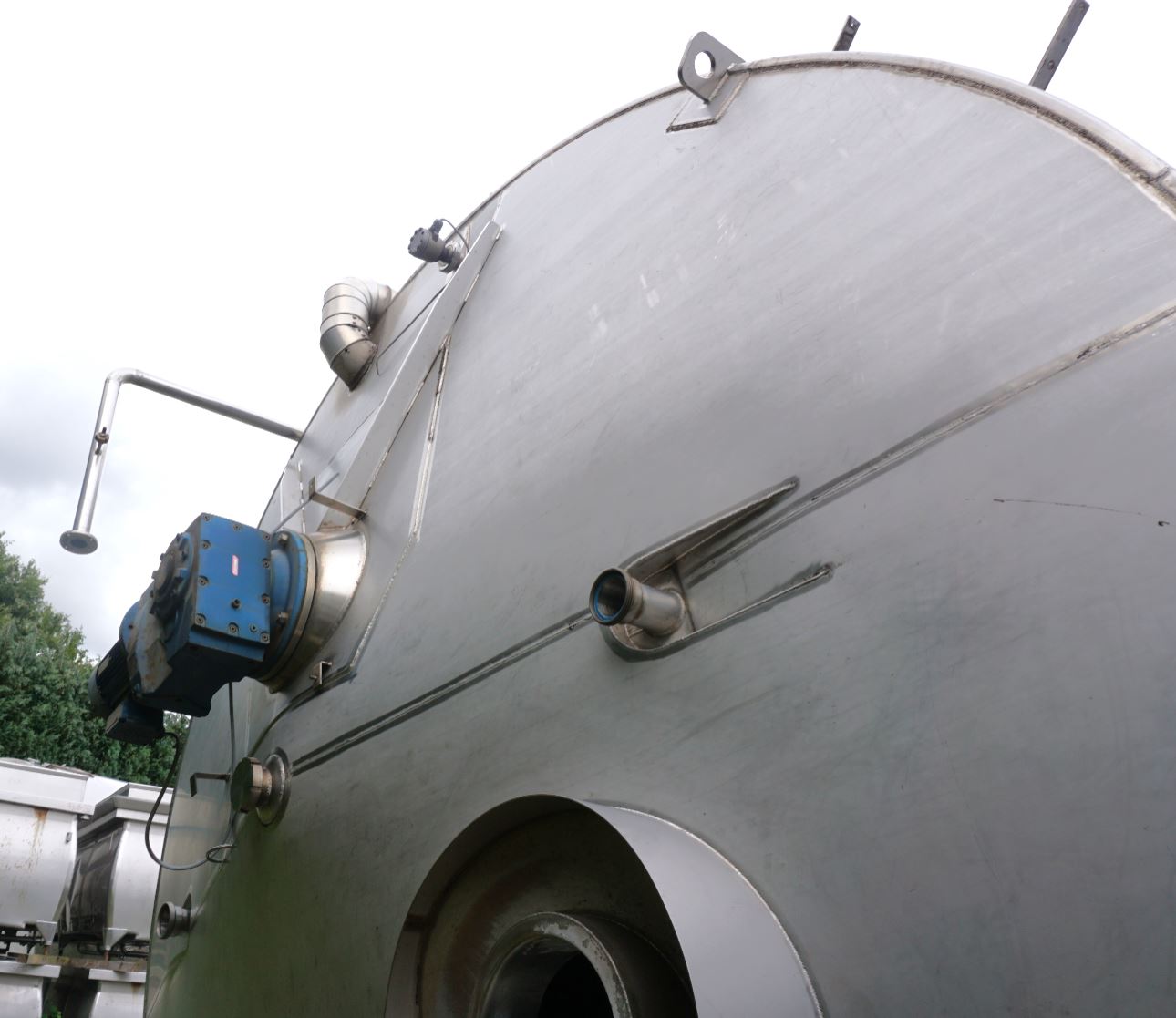

Agitator

  • Agitator quantity

  • 2 (piece)

  • Agitator type

  • Propeller

  • Note on agitator

  • jede Kammer ist mit 1 Rührwerk ausgestattet

  • Agitator position

  • At bottom at the side in shell

Supports

  • Supports

  • Stainless steel support skirt

Fixtures and fittings

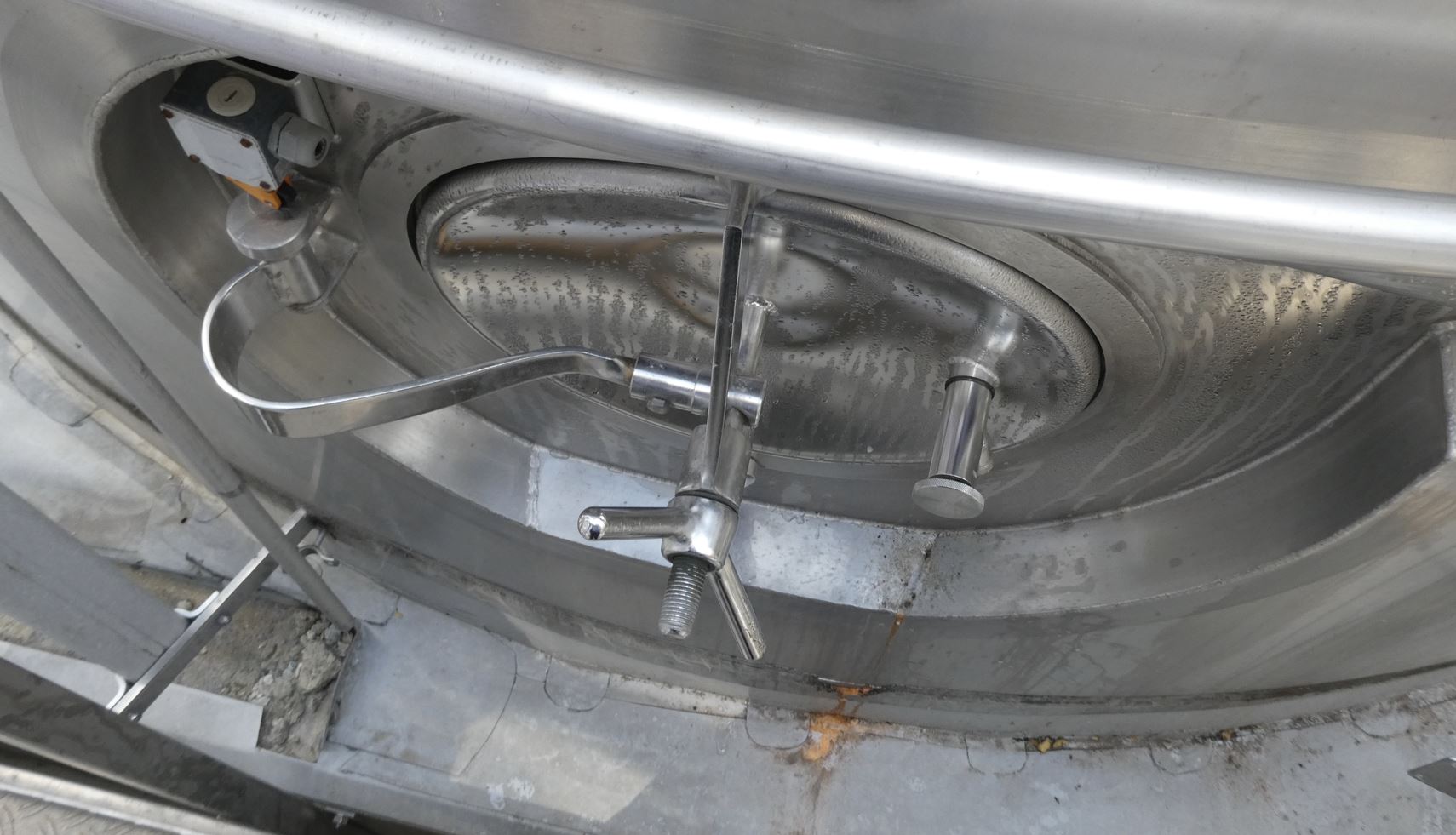

  • Manway position

  • In shell

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Ladder

  • Air vent

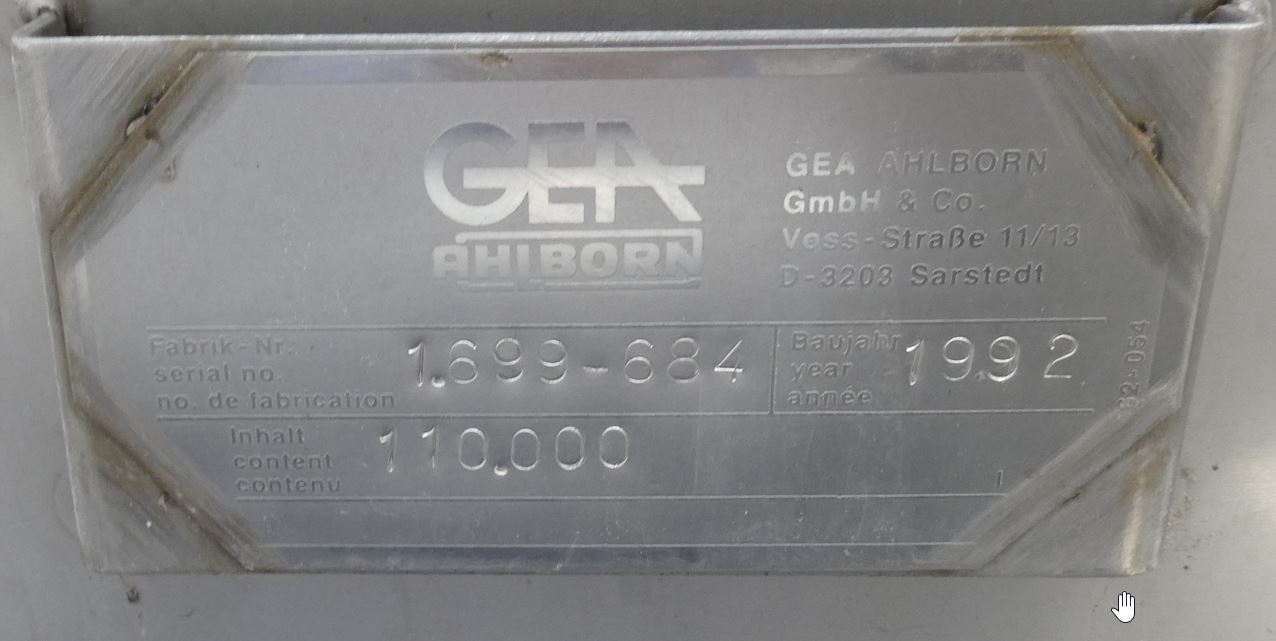

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
