Product no. M-2976

Container 7.000 liters made of V2A, single-walled, used, standing

EUR 3.900,00

add. 19 % VAT excl. shipping costs


Volume approx. 7,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

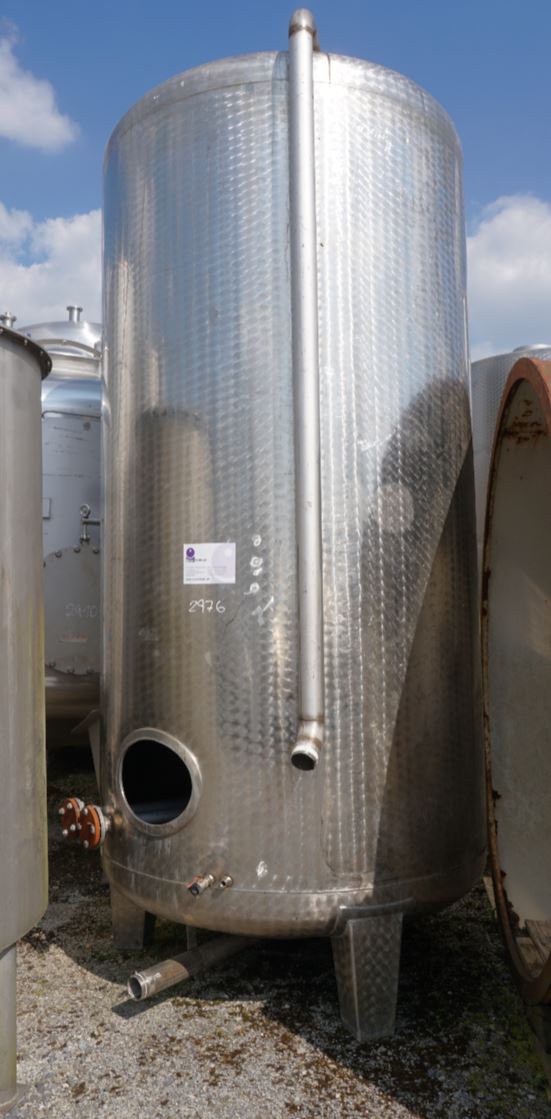

Container 7.000 liters made of V2A, single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 7,000.00 litres.  Container 7.000 liters made of V2A, single-walled, used was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 7.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.700 mm

  • Cyl. height

  • 3.000 mm

  • Foot height

  • 540 mm

  • Total height

  • 4.000 mm

Design

  • Weight approx.

  • 800,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

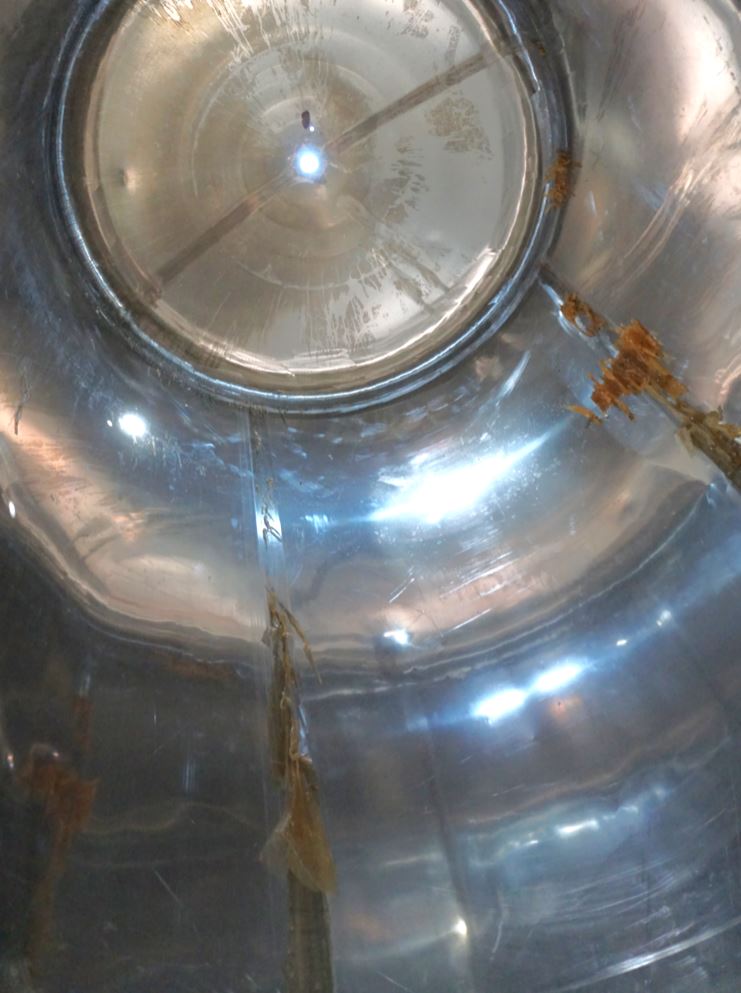

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Interior

  • Temperature control system

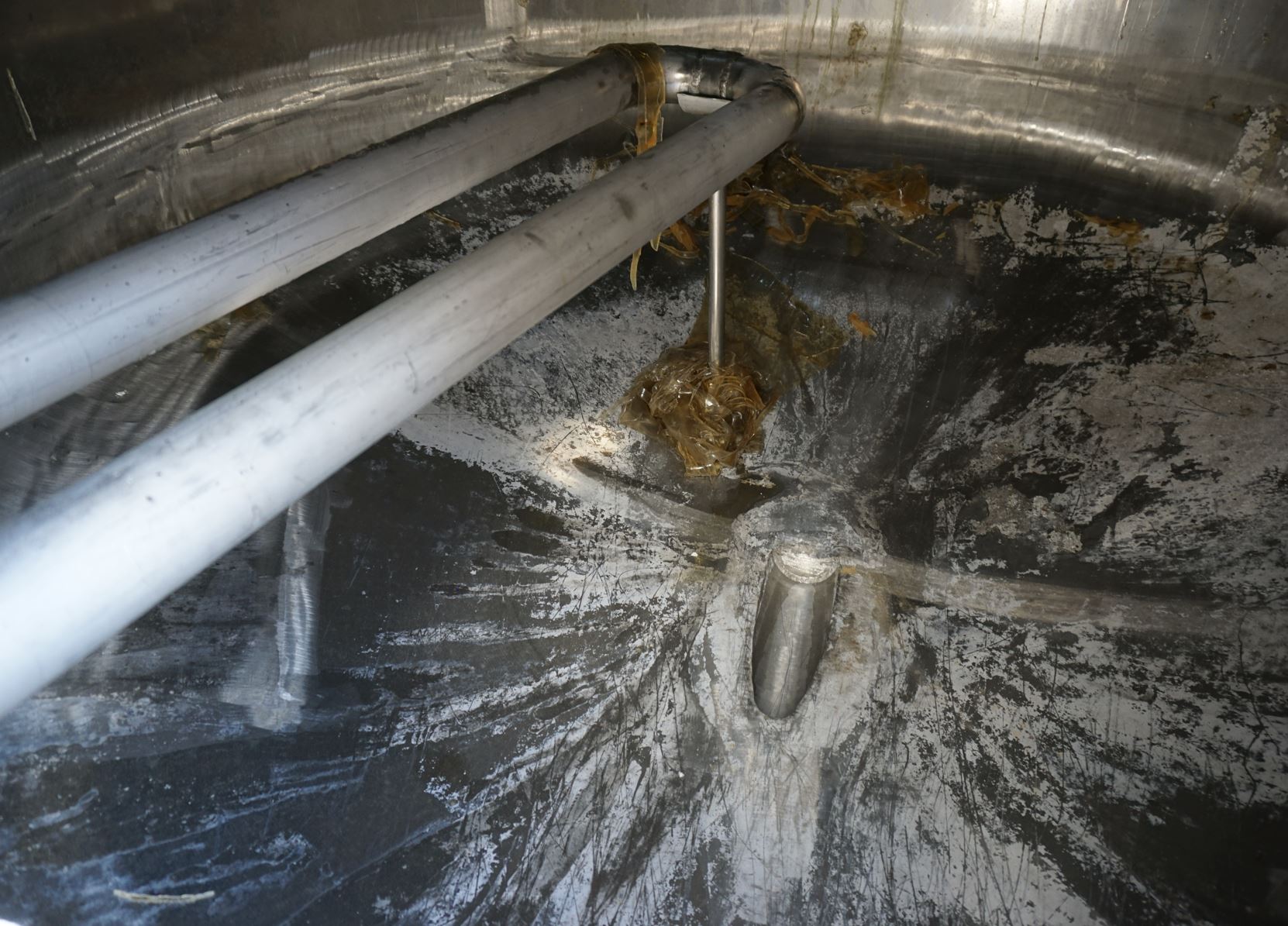

  • Interior pipe coils

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • Kastenfüße

Fixtures and fittings

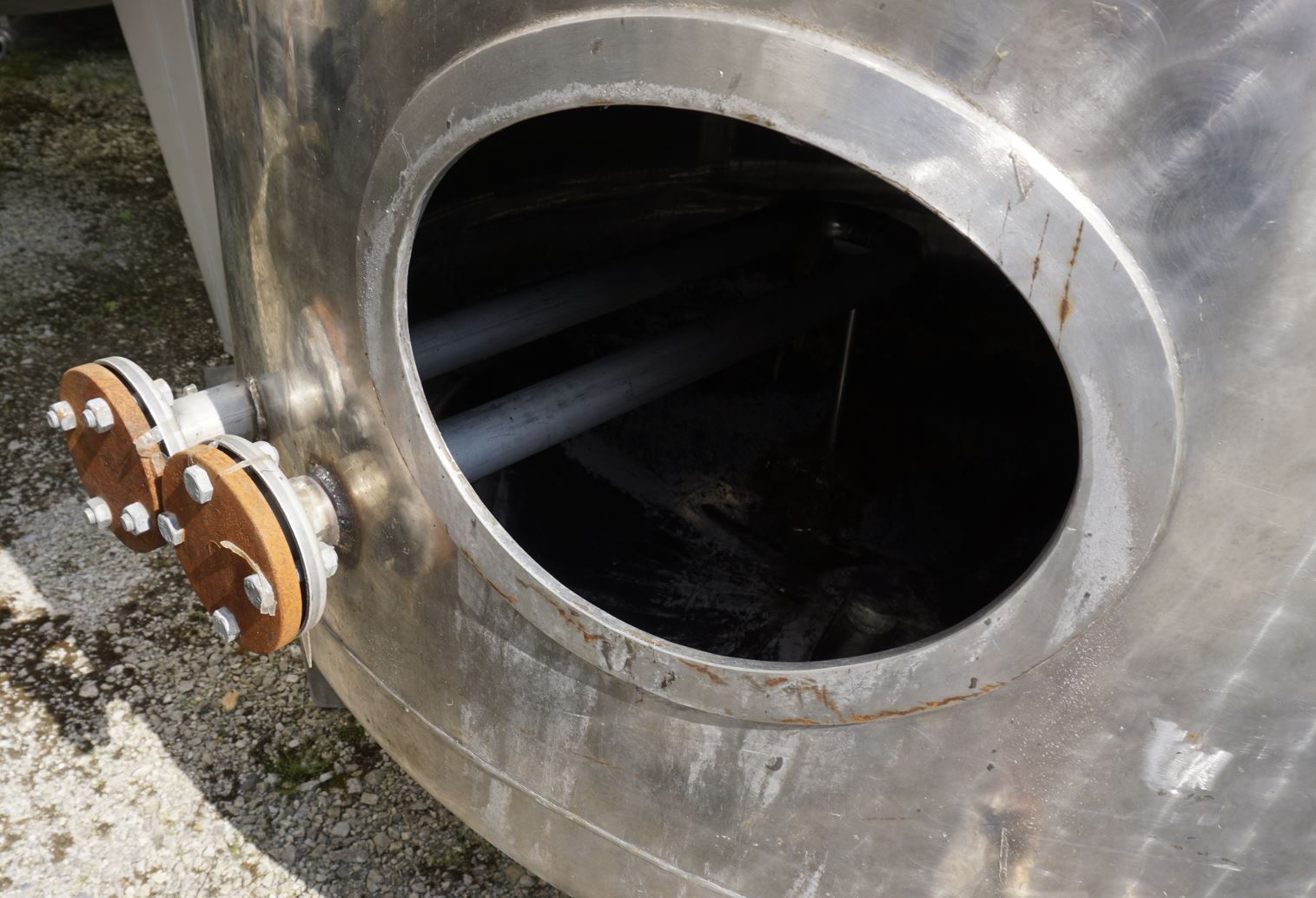

  • Manway position

  • In shell

  • Nozzles/connectors in head

  • 1xDN50 1xDN65 (piece)

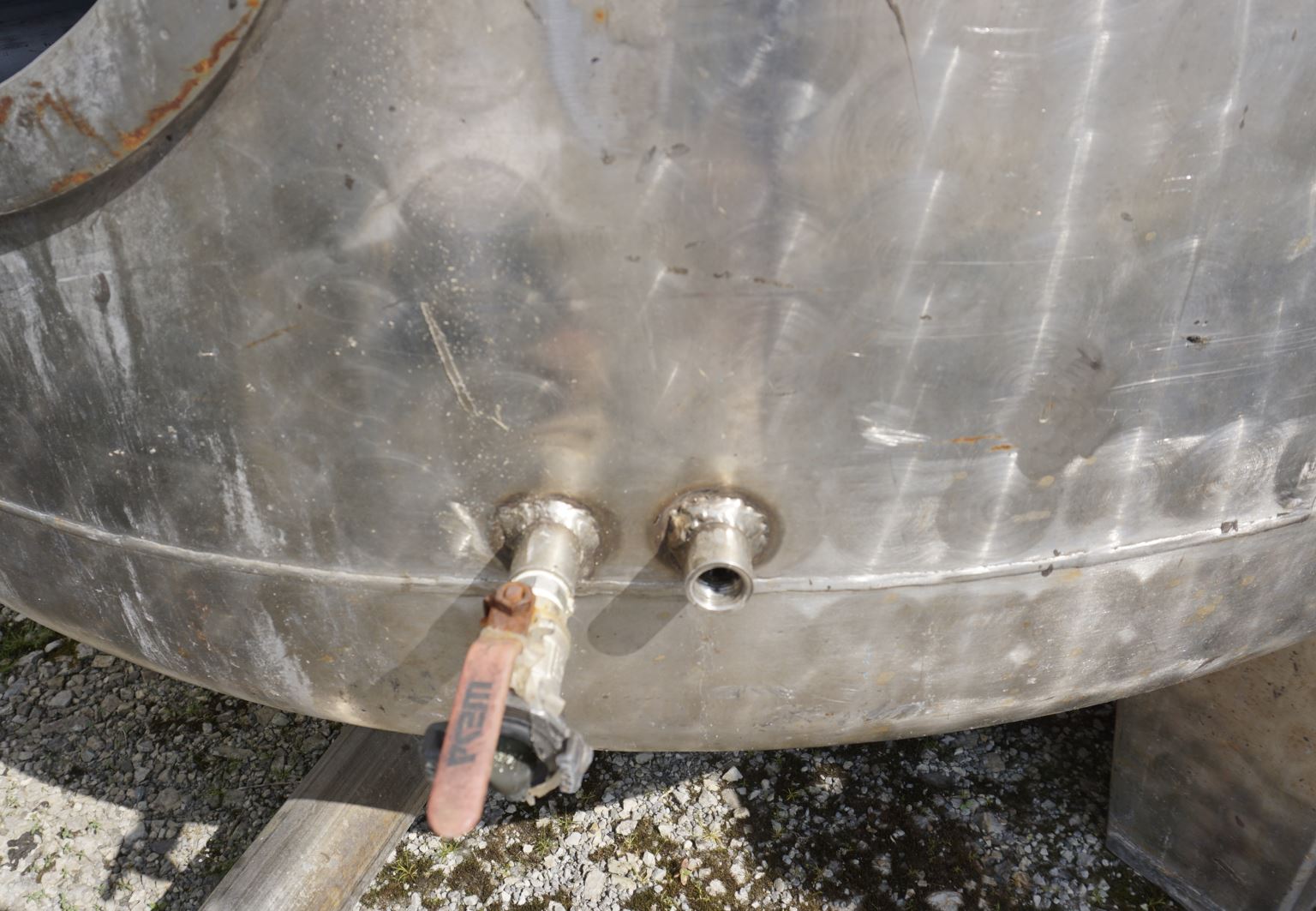

  • Outlet nozzle

  • 80

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Innen leichte Anhaftungen und Roststellen an den Schweißnähten.

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Settling tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Cold water tank,
