Product no. M-2865

Container 600 liters made of V2A isolated, used, standing

EUR 2.100,00

add. 19 % VAT excl. shipping costs


Volume approx. 600.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

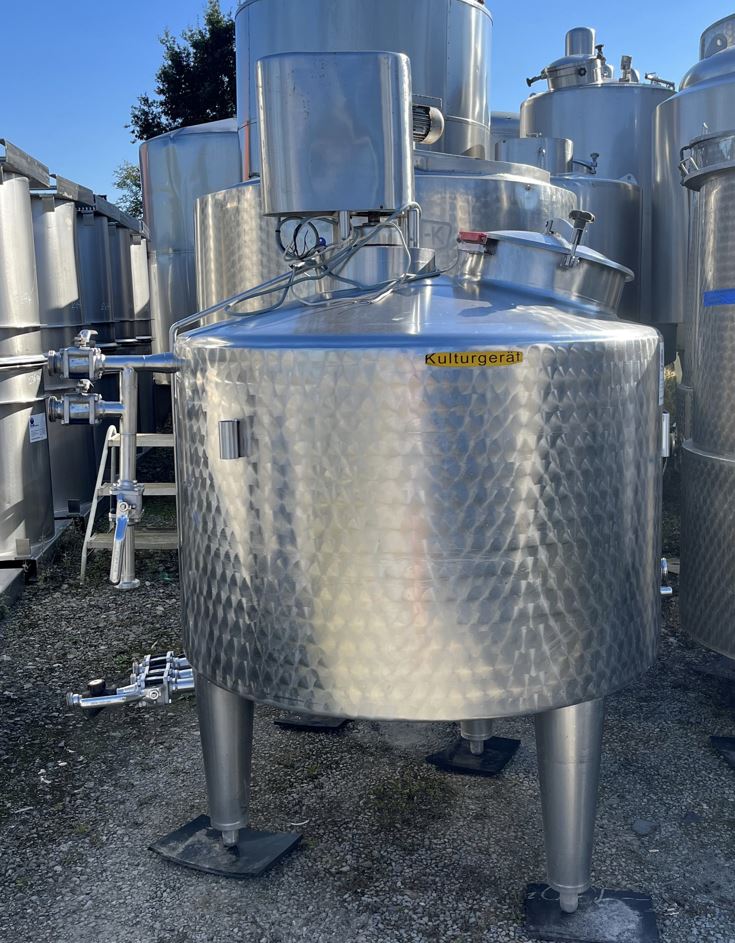

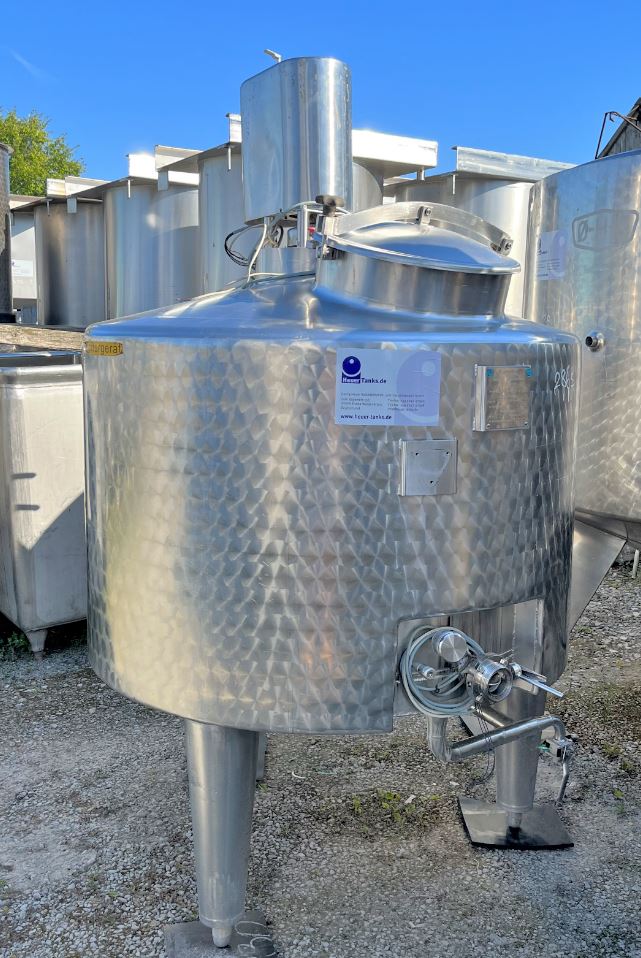

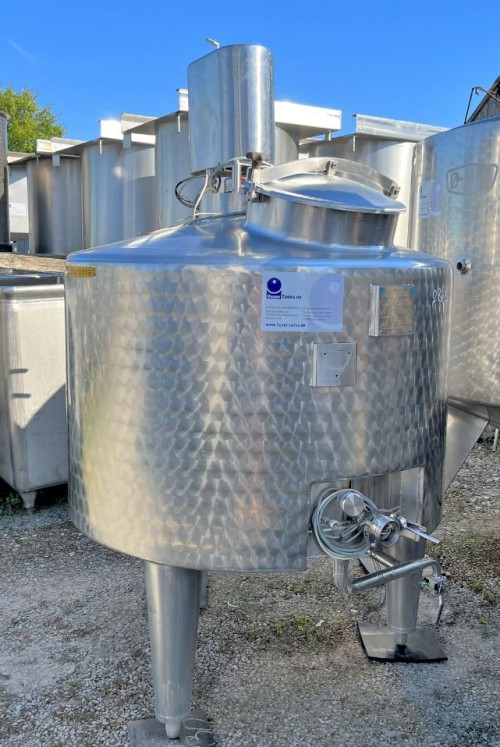

Container 600 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 600.00 litres. The diameter inside includes 1,100 mm.  Container 600 liters made of V2A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 600,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1985

  • Manufacturer

  • Ritter

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.100 mm

  • External diameter

  • 1.300 mm

  • Cyl. height

  • 790 mm

  • Foot height

  • 550 mm

  • Total height

  • 2.340 mm

Design

  • Weight approx.

  • 300,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

  • Floor type

  • Flat bottom with slope towards outlet

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

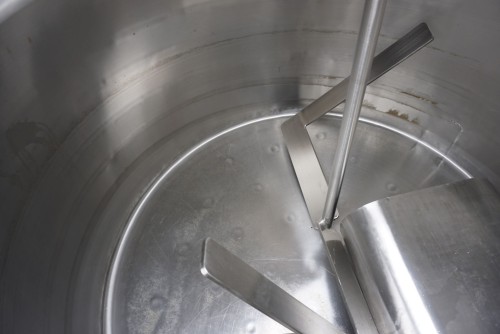

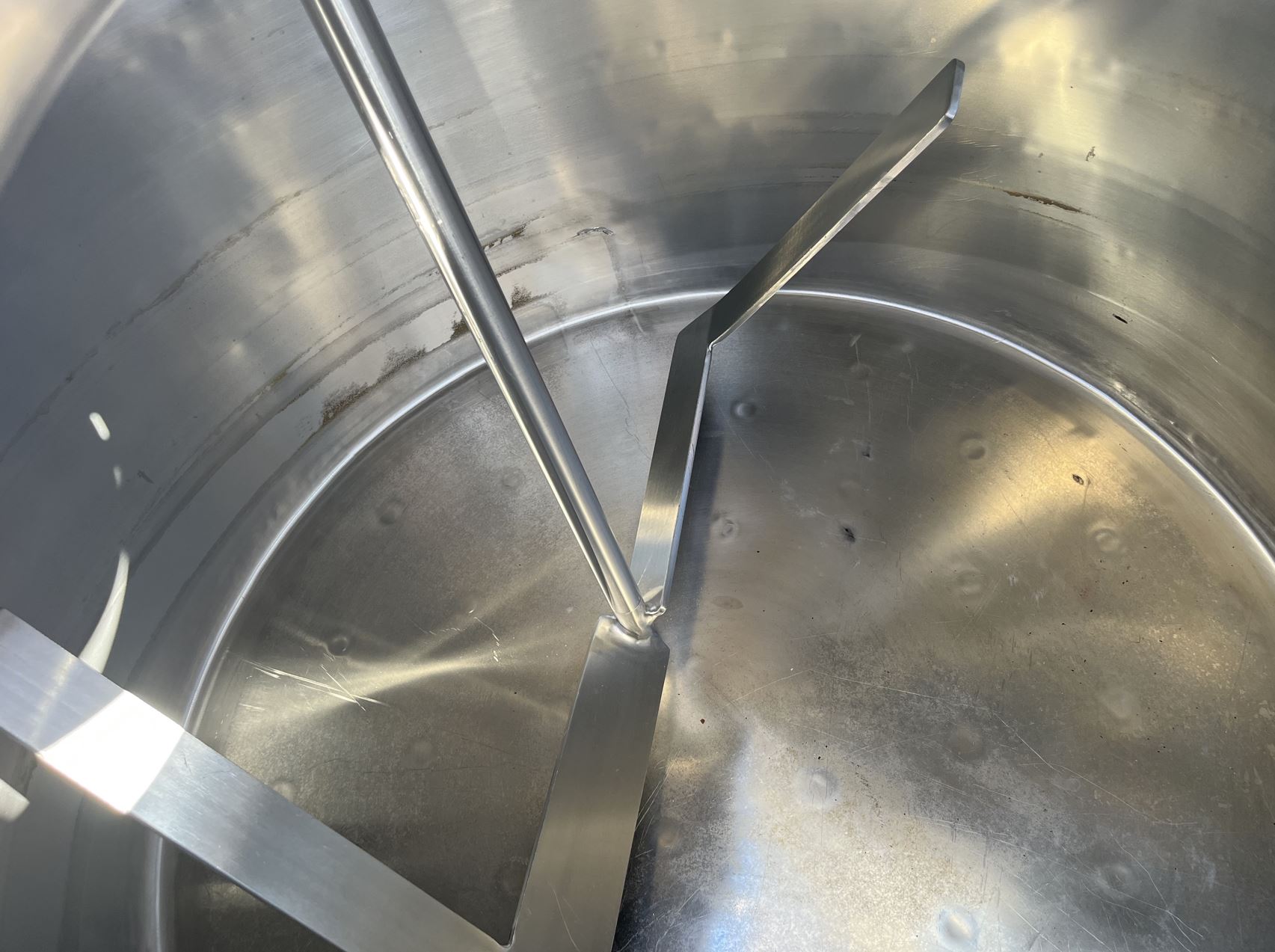

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Zeta agitator

  • Agitator position

  • Head off-centre

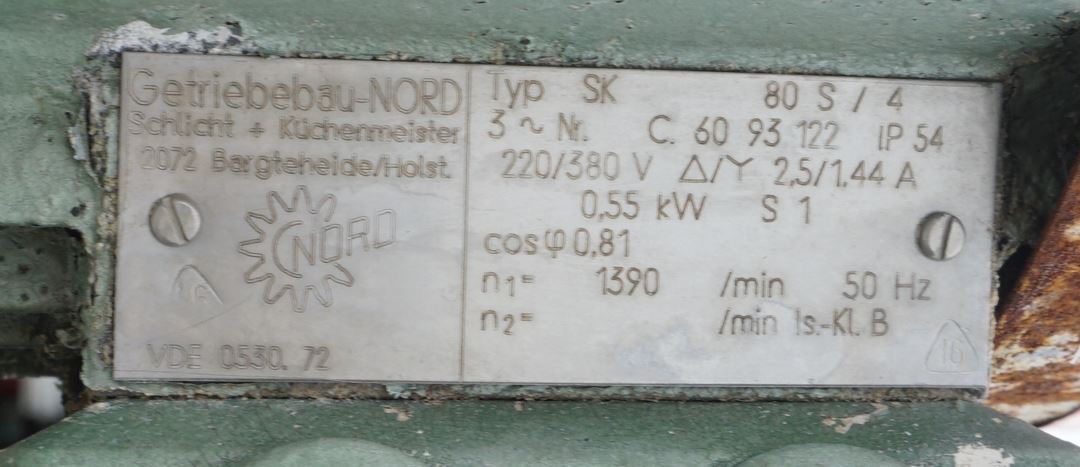

  • Agitator 1 - Output

  • 0,55 kW

  • Agitator 1 - Voltage

  • 220/380 V

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

  • Manway position

  • In head

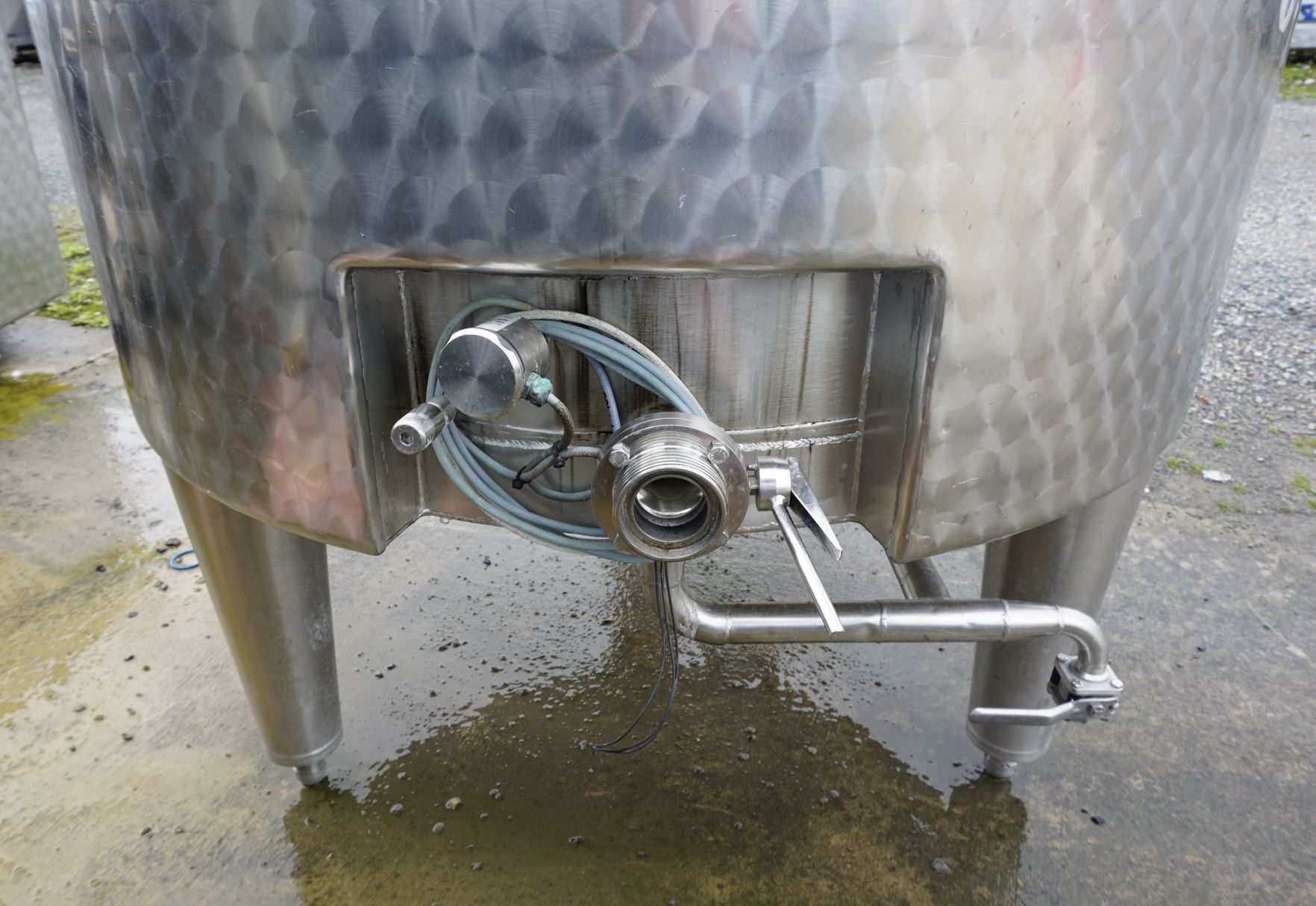

  • Outlet nozzle

  • 50

  • Cleaning/CIP nozzle

  • in head

  • Additional fixtures and fittings

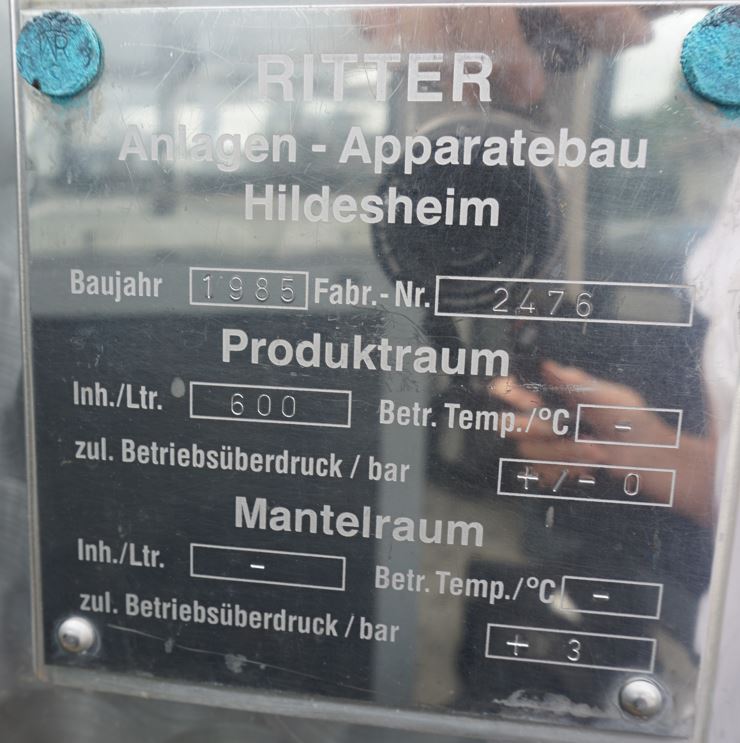

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Temperiermantel defekt

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
