Product no. M-2836

Container 600 liters made of V2A isolated, used, standing

EUR 1.500,00

add. 19 % VAT excl. shipping costs


Volume approx. 600.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

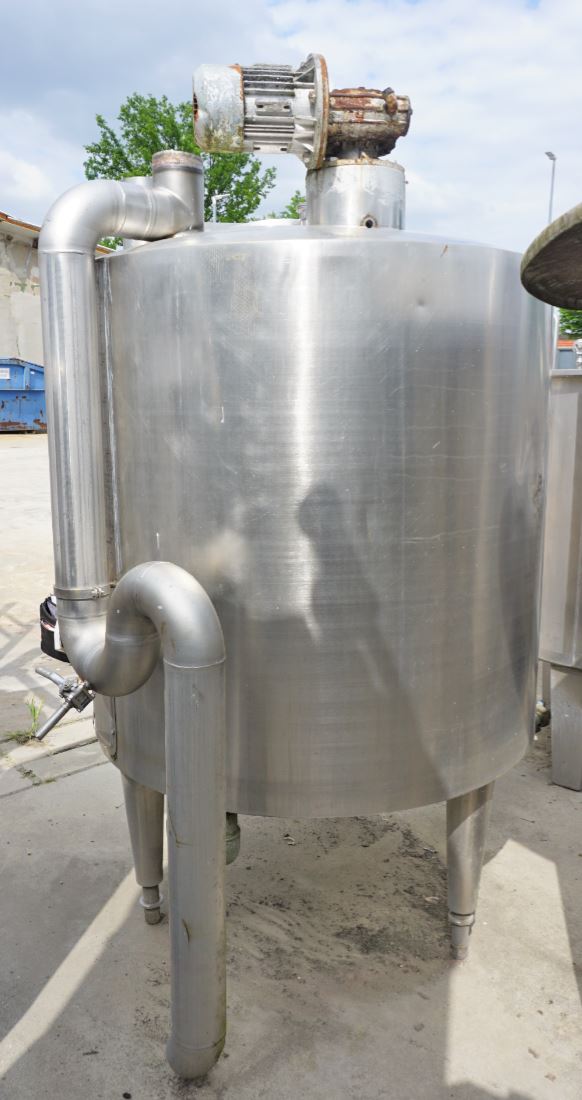

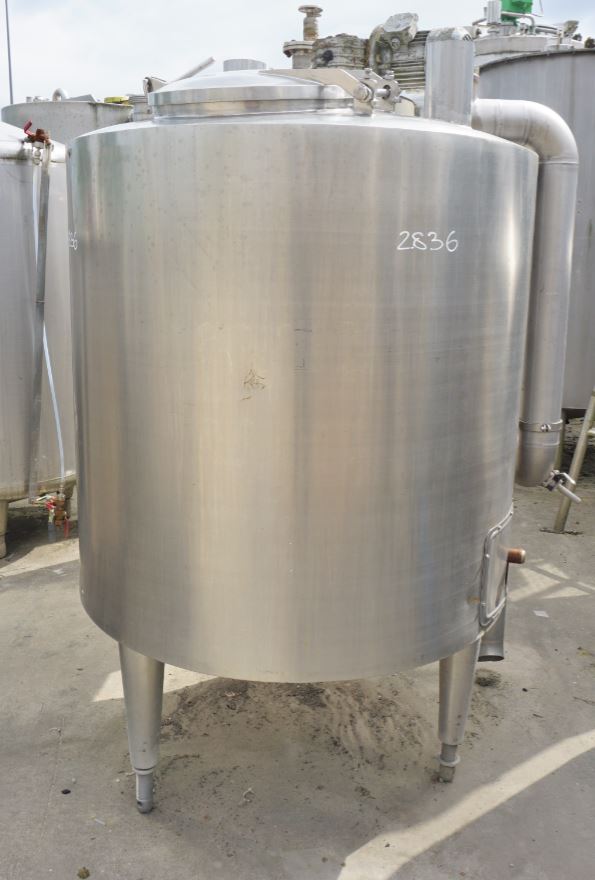

Container 600 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 600.00 litres. The diameter inside includes 960 mm.  Container 600 liters made of V2A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 600,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 960 mm

  • External diameter

  • 1.100 mm

  • Cyl. height

  • 1.100 mm

  • Foot height

  • 520 mm

  • Total height

  • 2.300 mm

Design

  • Weight approx.

  • 500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Flat bottom with slope towards outlet

  • Head design

  • Dished

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

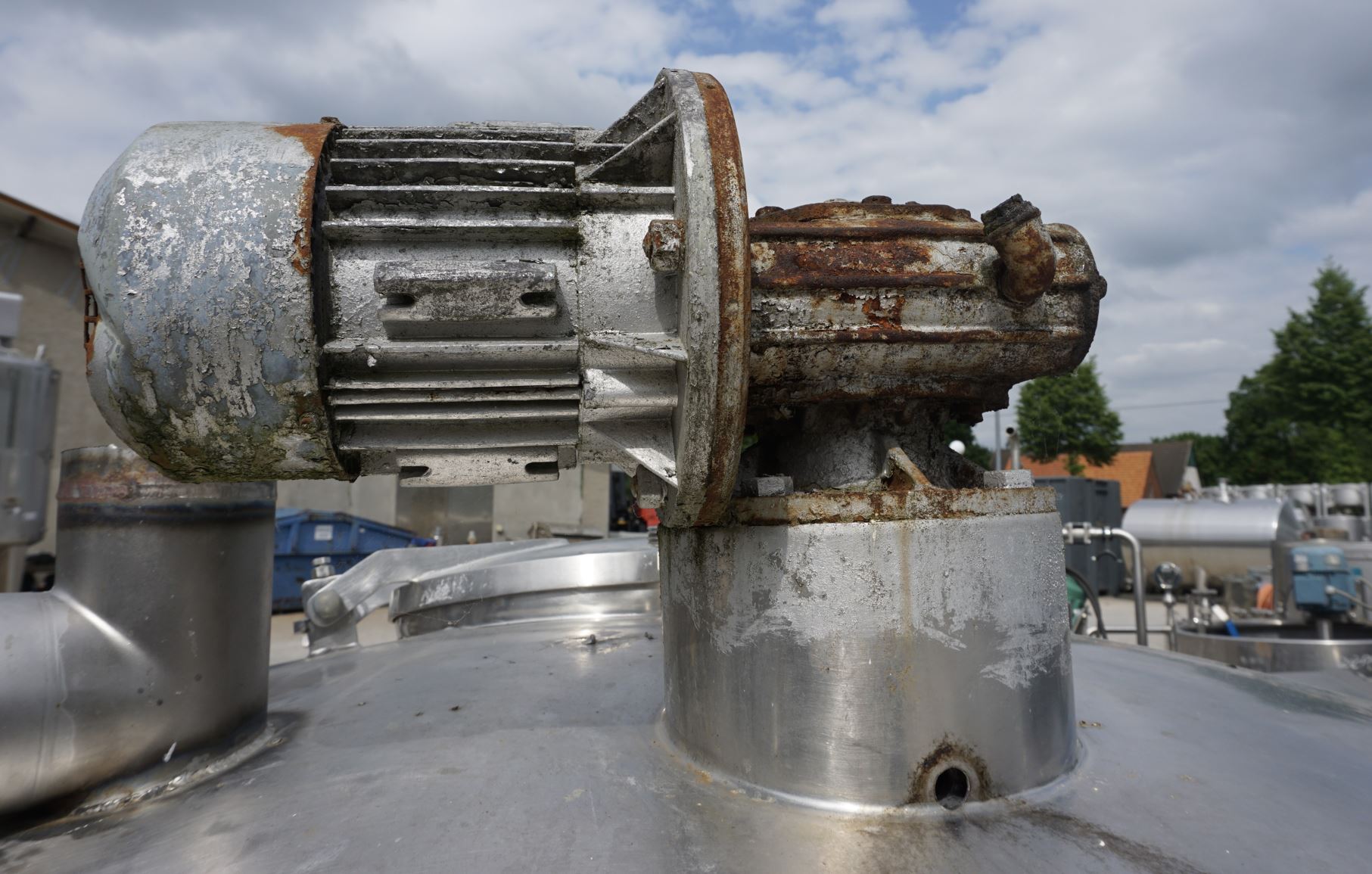

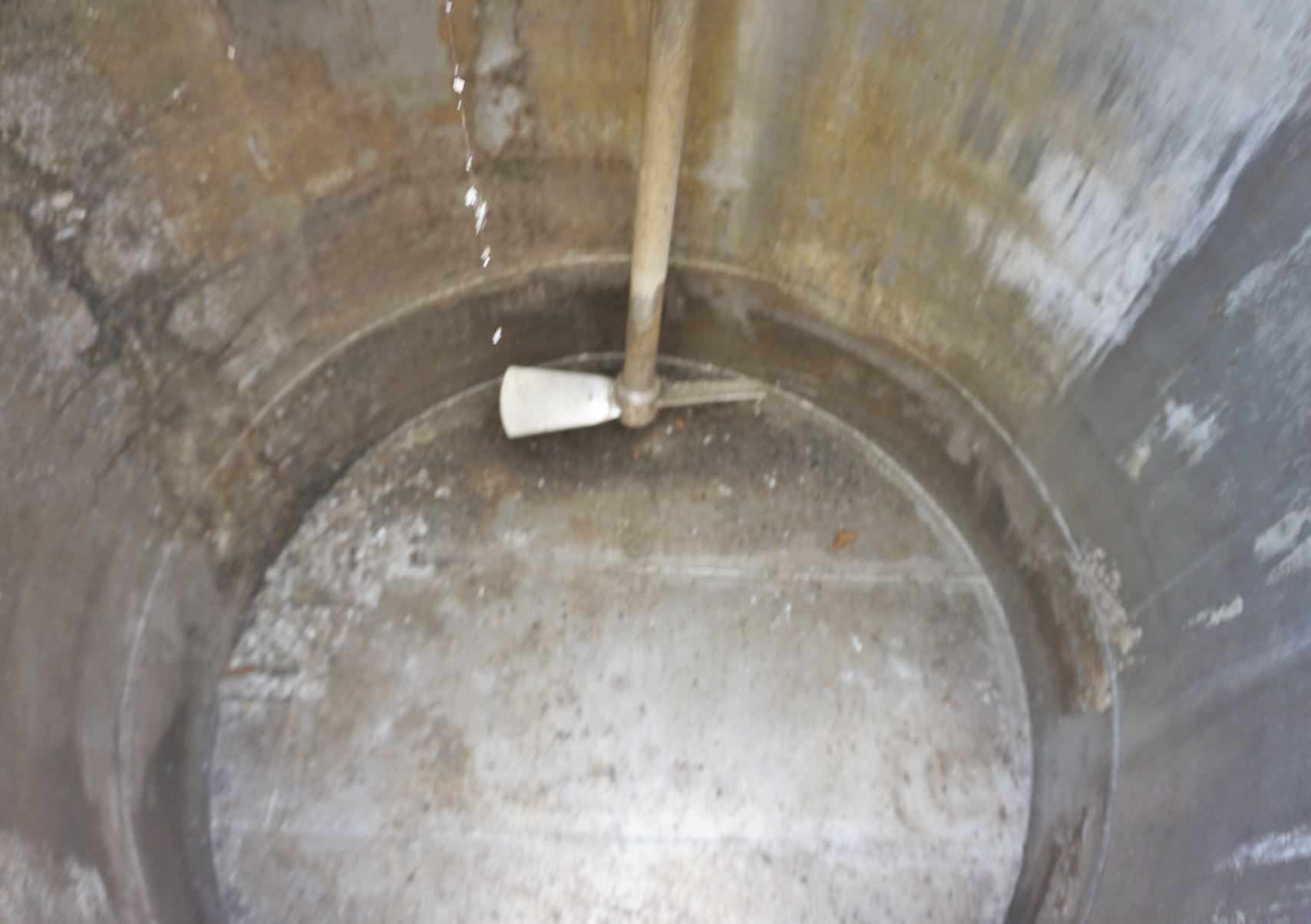

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Note on agitator

  • Motor und Getriebe korrodiert

  • Agitator position

  • Head off-centre

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

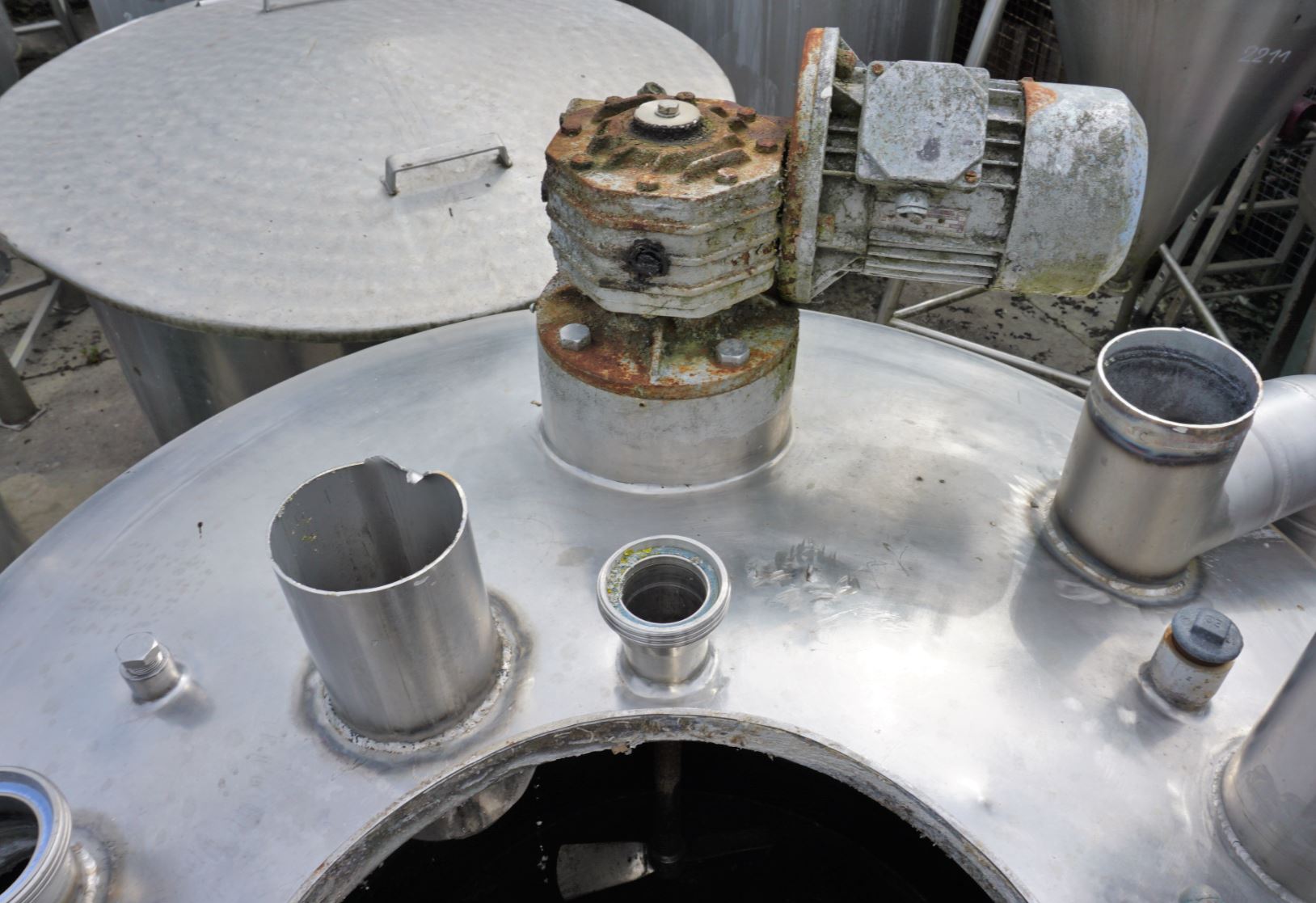

  • Manway position

  • In head

  • Outlet nozzle

  • 65

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Behälter innen mit Anhaftungen

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Fruit juice tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Mixing tank,

Chemistry and pharmaceuticals : Storage tank, Settling tank, Sprinkler tank, Mixing tank,
