Product no. M-2933

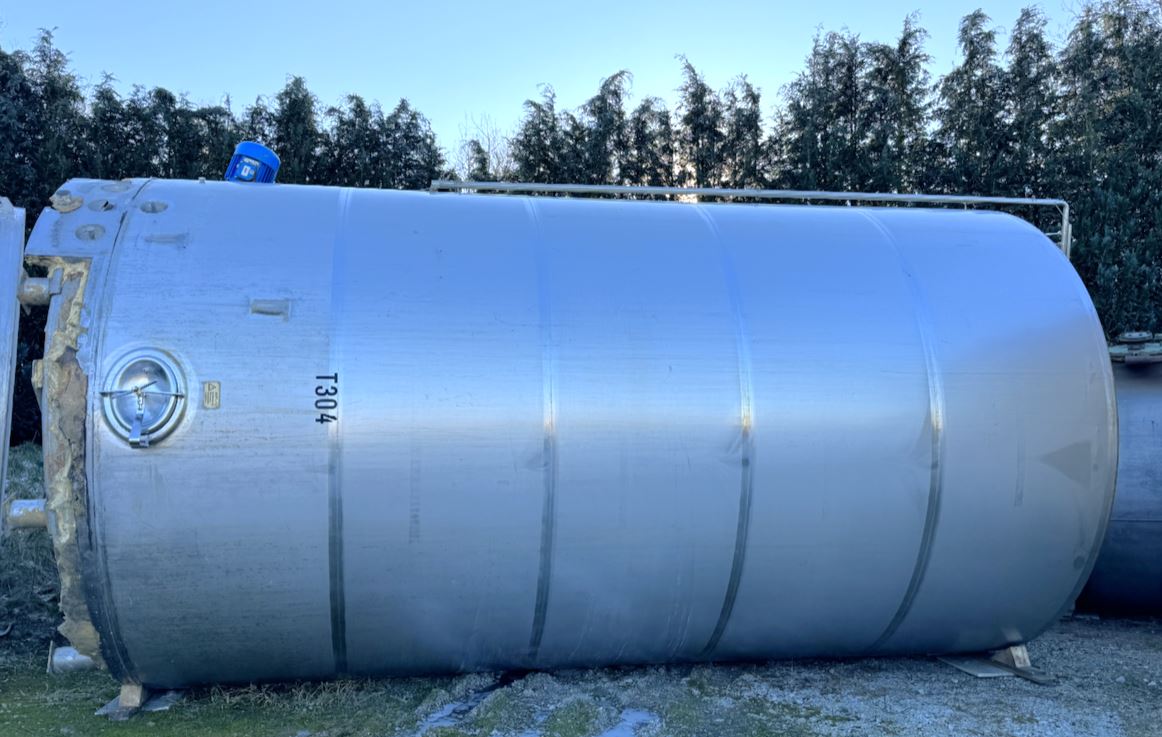

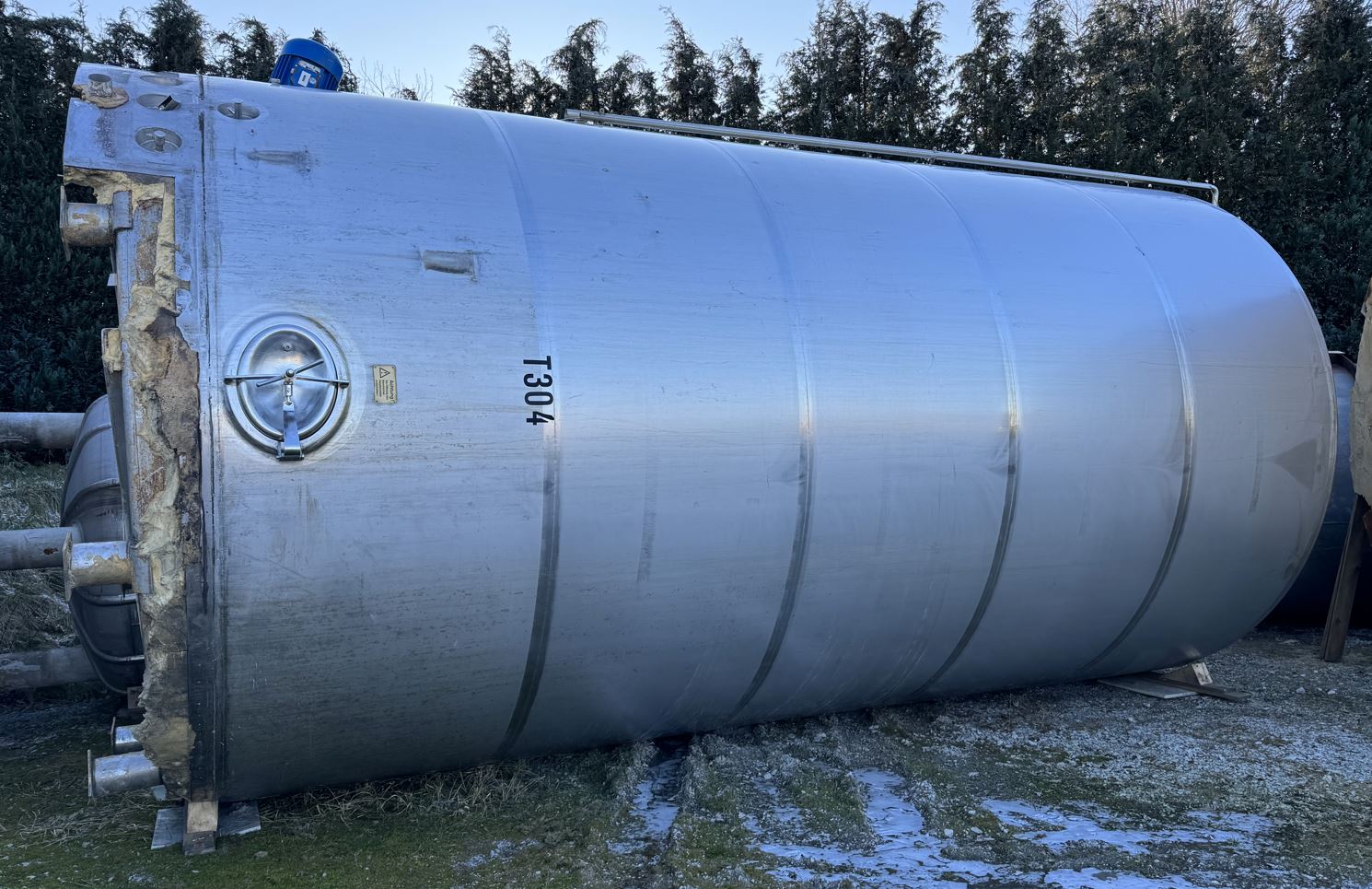

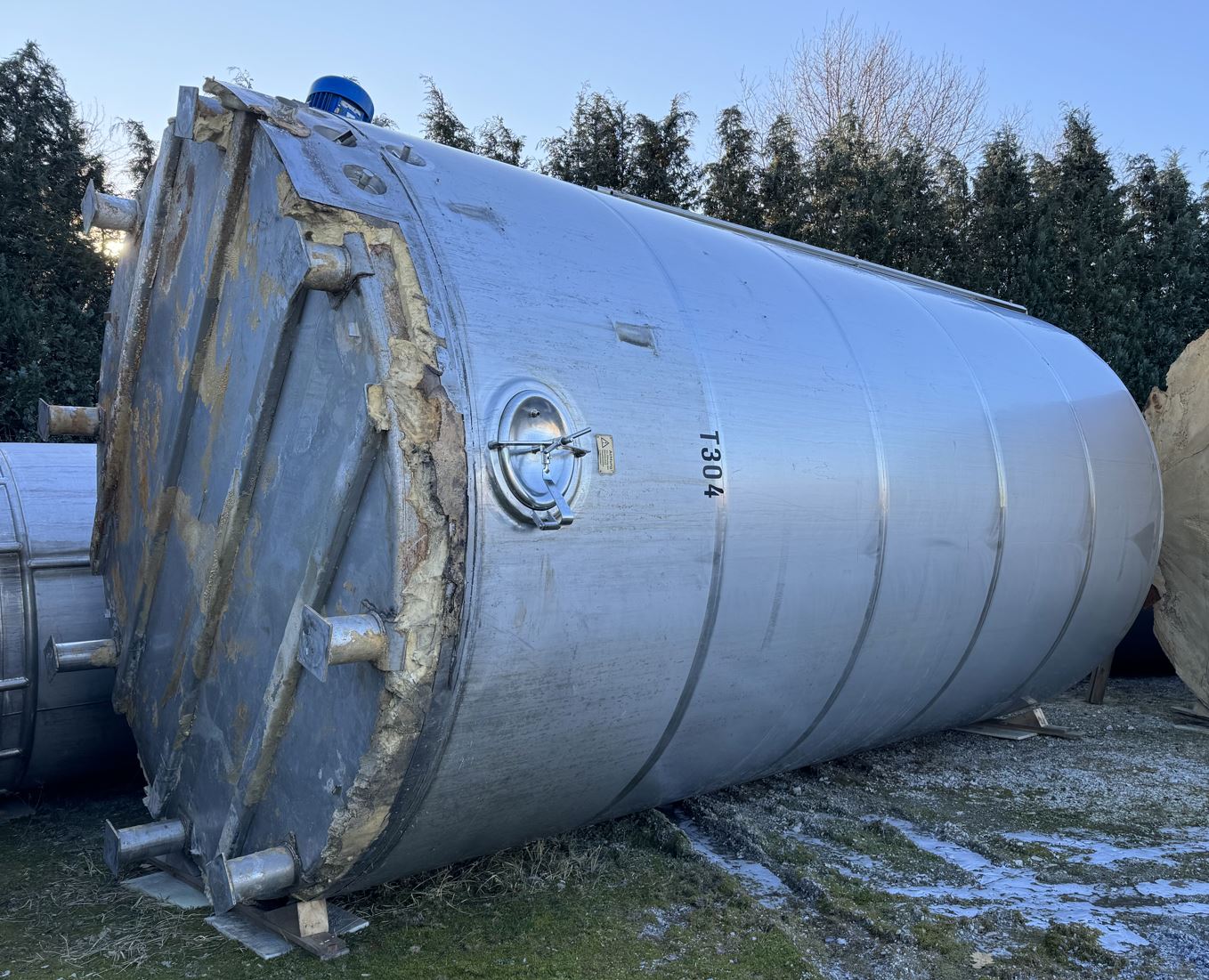

Container 60.000 liters made of V2A isolated, used, standing

EUR 22.300,00

add. 19 % VAT excl. shipping costs


Volume approx. 60,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 60.000 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 60,000.00 litres. The diameter inside includes 3,500 mm.  Container 60.000 liters made of V2A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 60.000,00 litres

  • Structure

  • Standing

  • Manufacturer

  • Ahlborn

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 3.500 mm

  • External diameter

  • 3.610 mm

  • Cyl. height

  • 6.500 mm

  • Total height

  • 7.200 mm

Design

  • Weight approx.

  • 6.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and head

  • Insulation cladding

  • Fully welded stainless steel

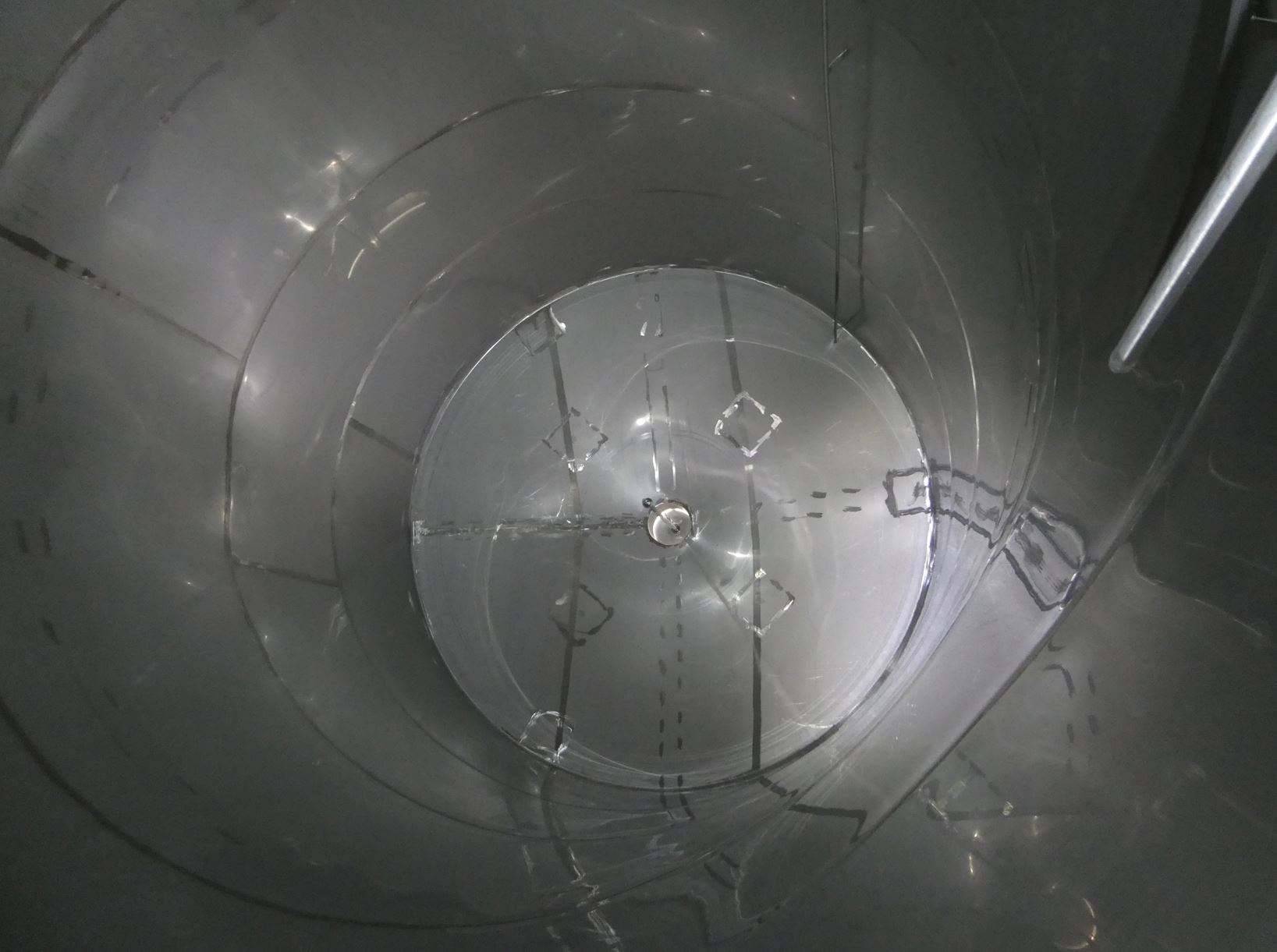

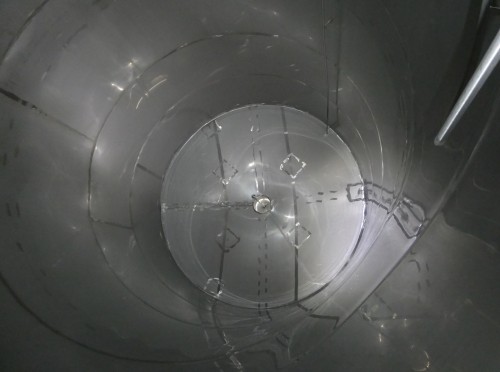

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Flat bottom with slope towards outlet

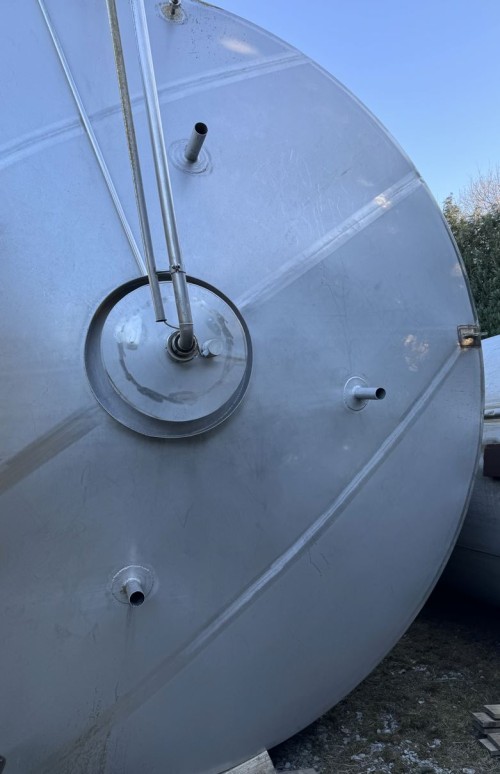

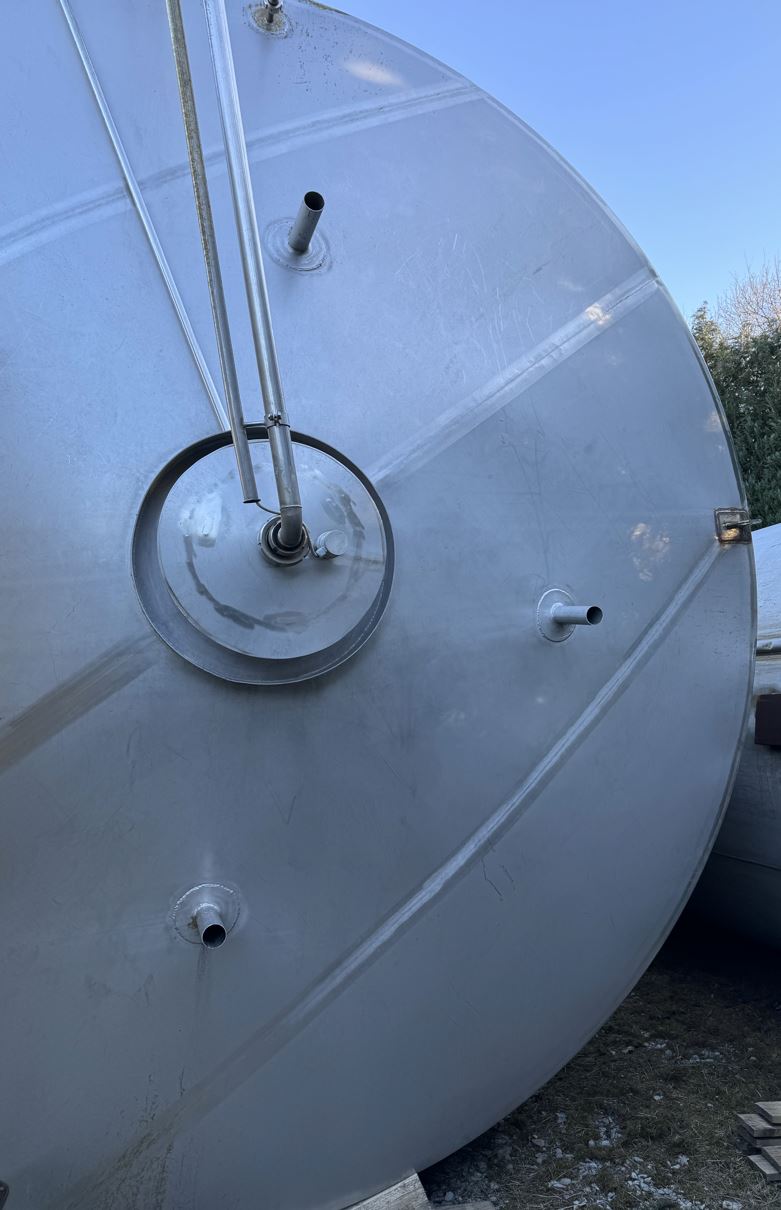

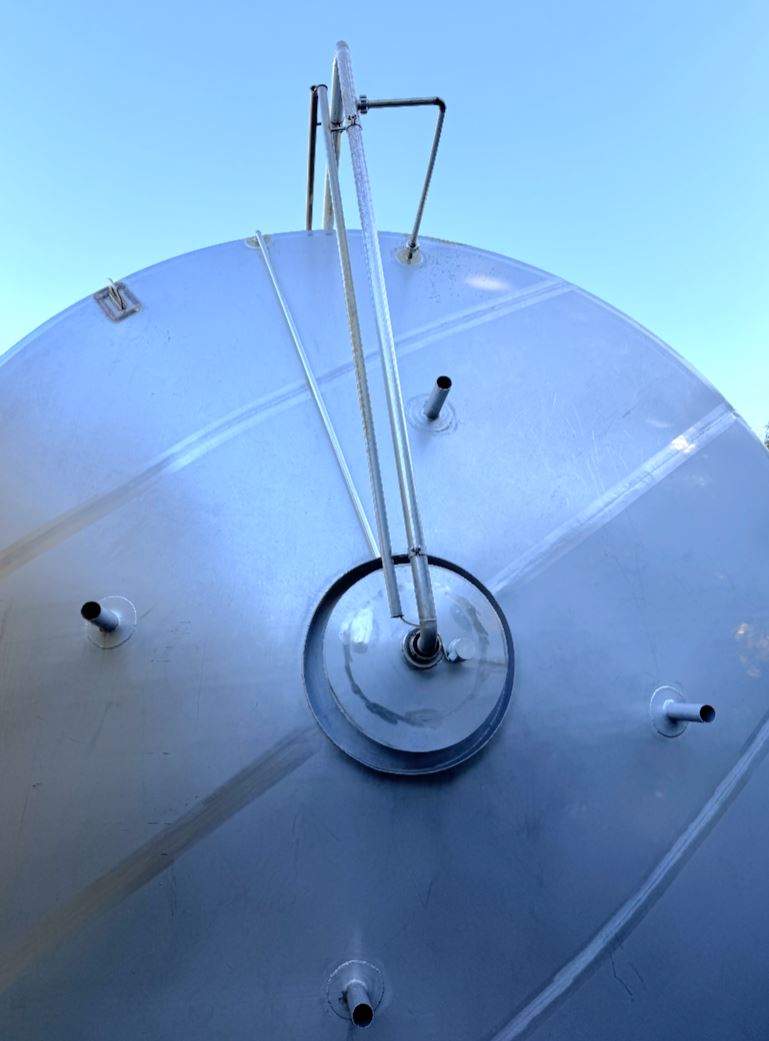

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

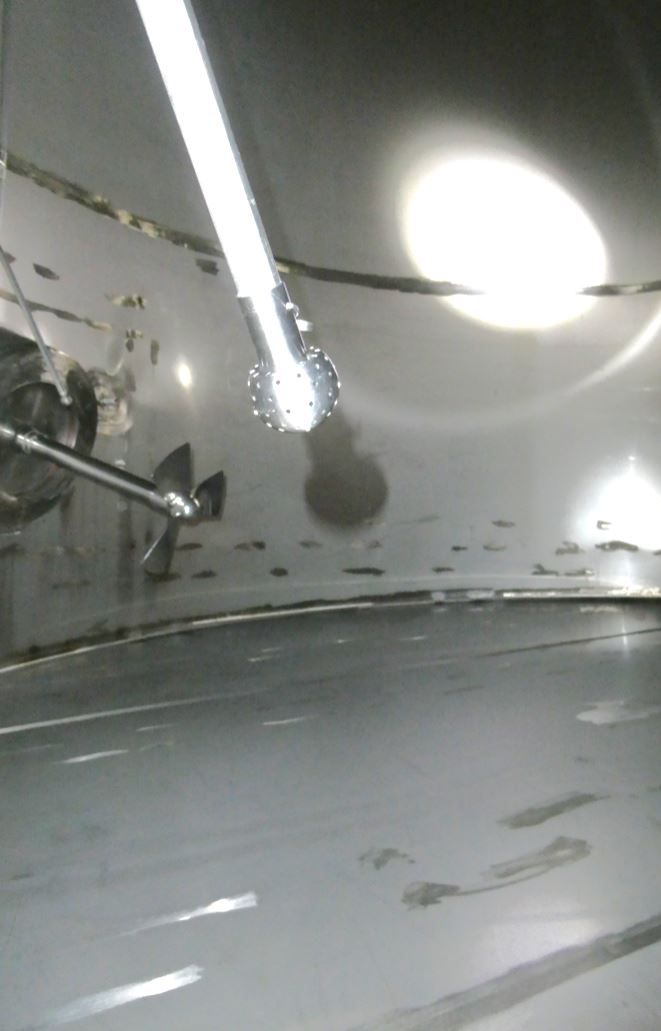

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • At bottom at the side in shell

Fixtures and fittings

  • Manway position

  • In shell

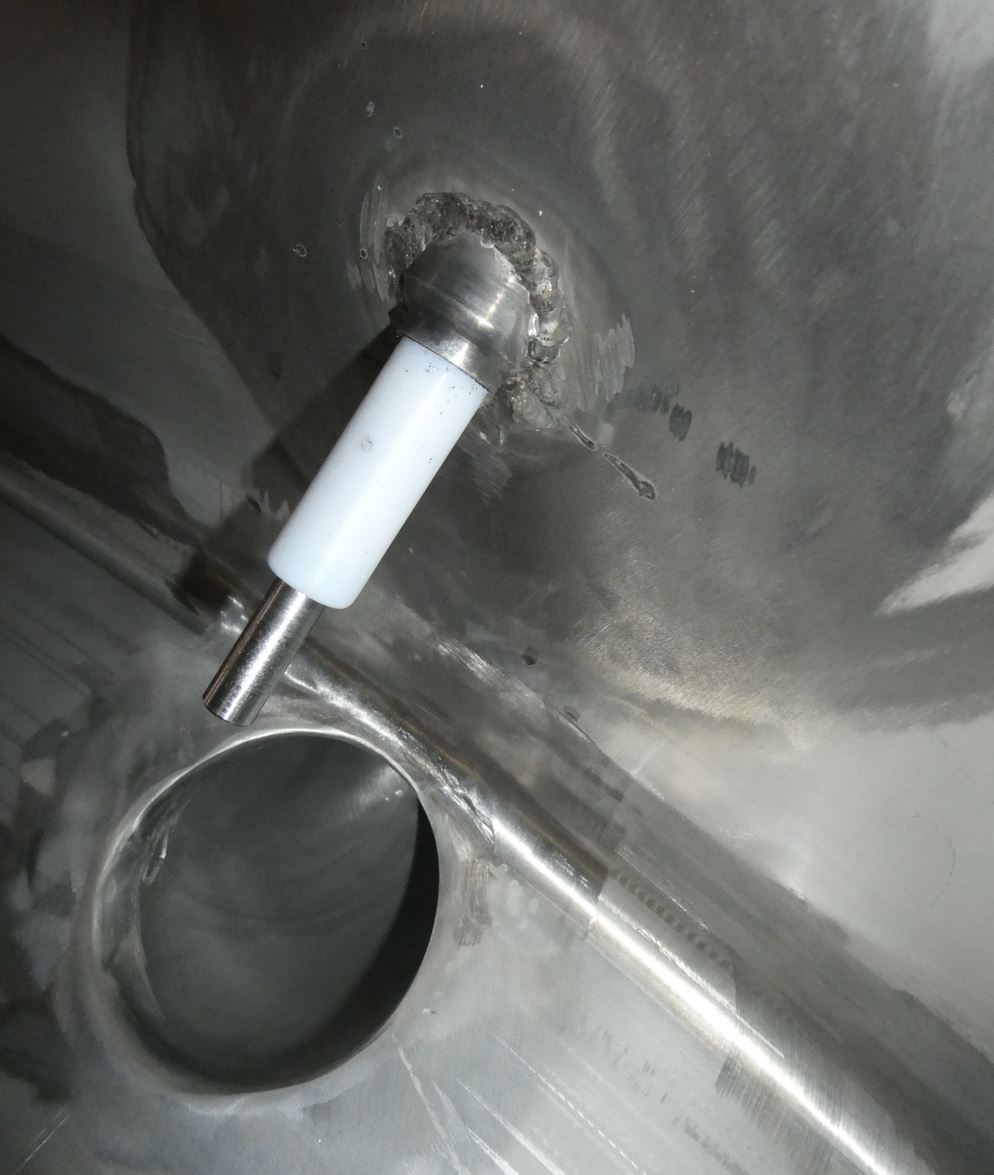

  • Outlet nozzle

  • 80

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Air vent

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Behälterfüße sind Abstandshalter für den Unterbau/Fundament

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
