Product no. M-2781

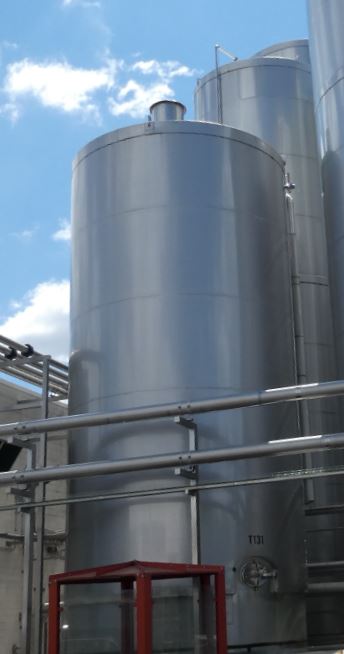

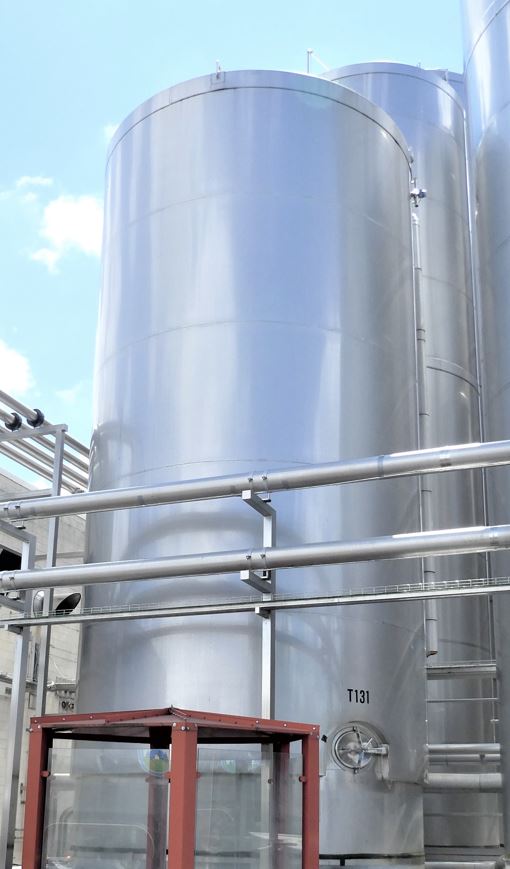

Container 60.000 liters made of V2A isolated, used, standing
EUR 32.000,00
add. 19 % VAT excl. shipping costs
Volume approx. 60,000.00 litres
Product description
Container 60.000 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 60,000.00 litres. The diameter inside includes 3,700 mm. Container 60.000 liters made of V2A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Mixing,General
Volume approx.
60.000,00 litres
Structure
Standing
Condition
Used
Dimensions approx.
Internal diameter
3.700 mm
External diameter
3.880 mm
Frame height
890 mm
Total height
9.200 mm
Design
Weight approx.
26.000,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
yes
Insulated area
Shell and head
Insulation cladding
Fully welded stainless steel
Interior surface
Smoothed
Exterior surface
Smoothed
Floor type
Conical bottom
Head design
Conical bottom
Agitator
Agitator quantity
1 (piece)

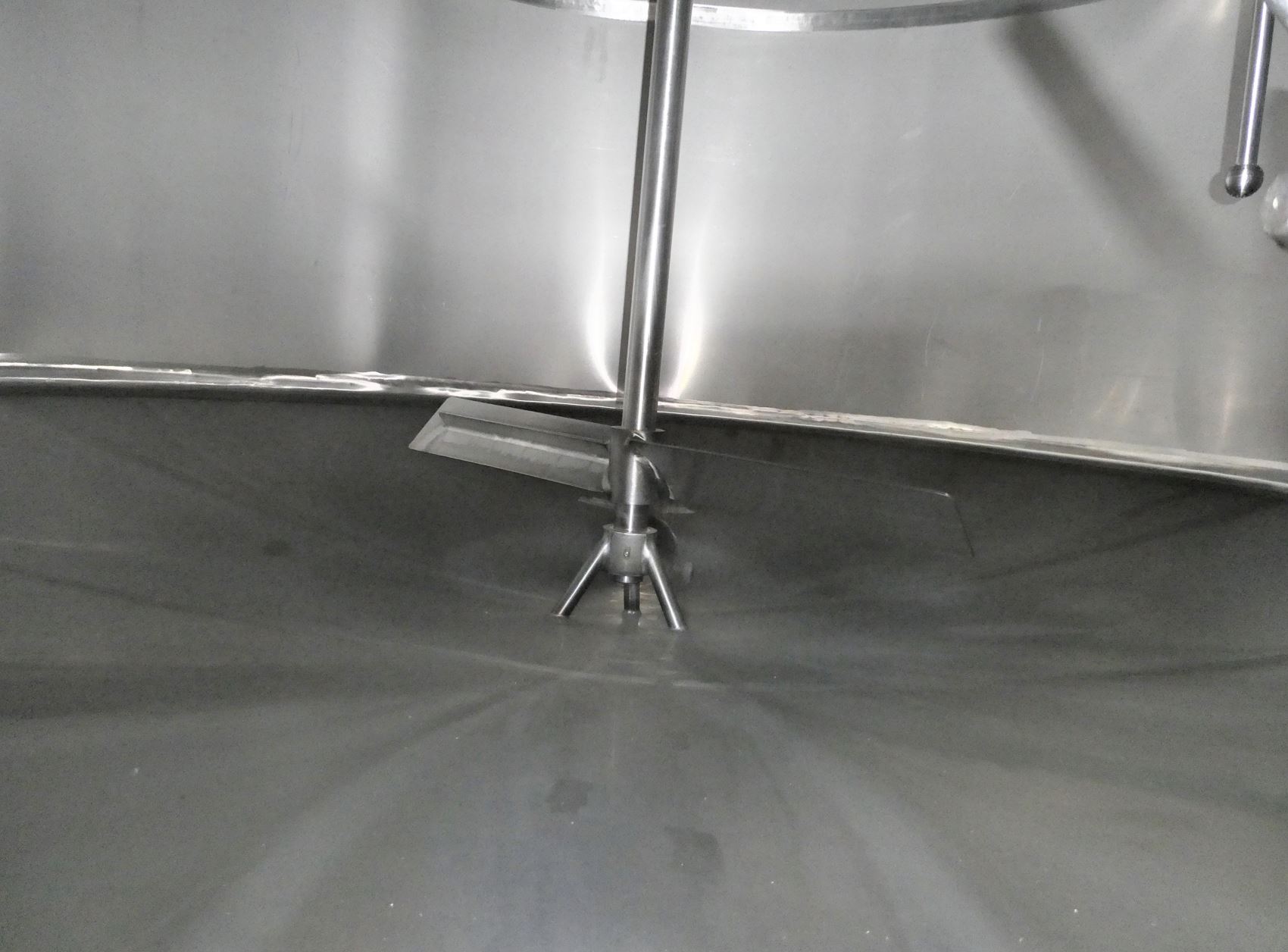

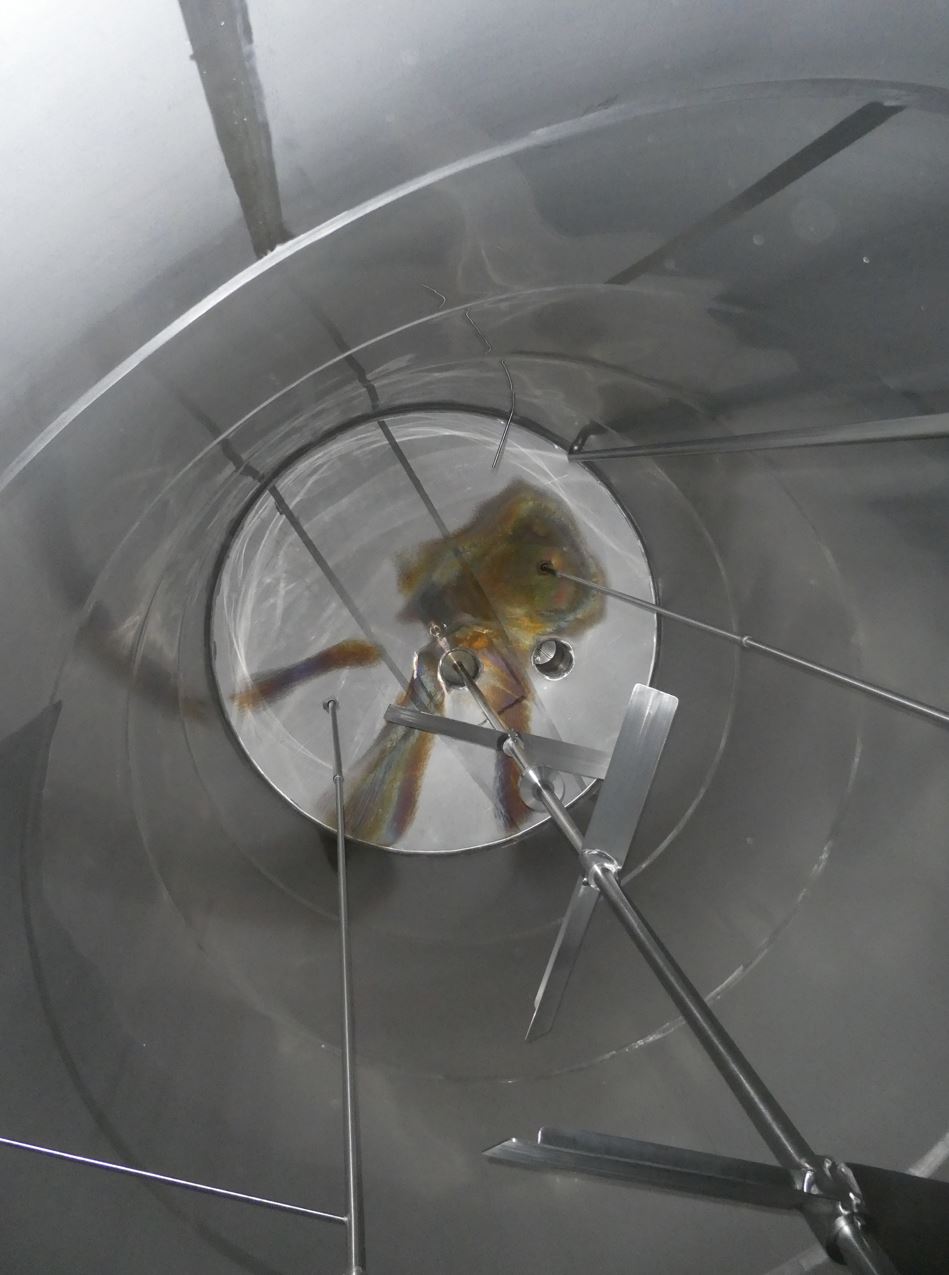

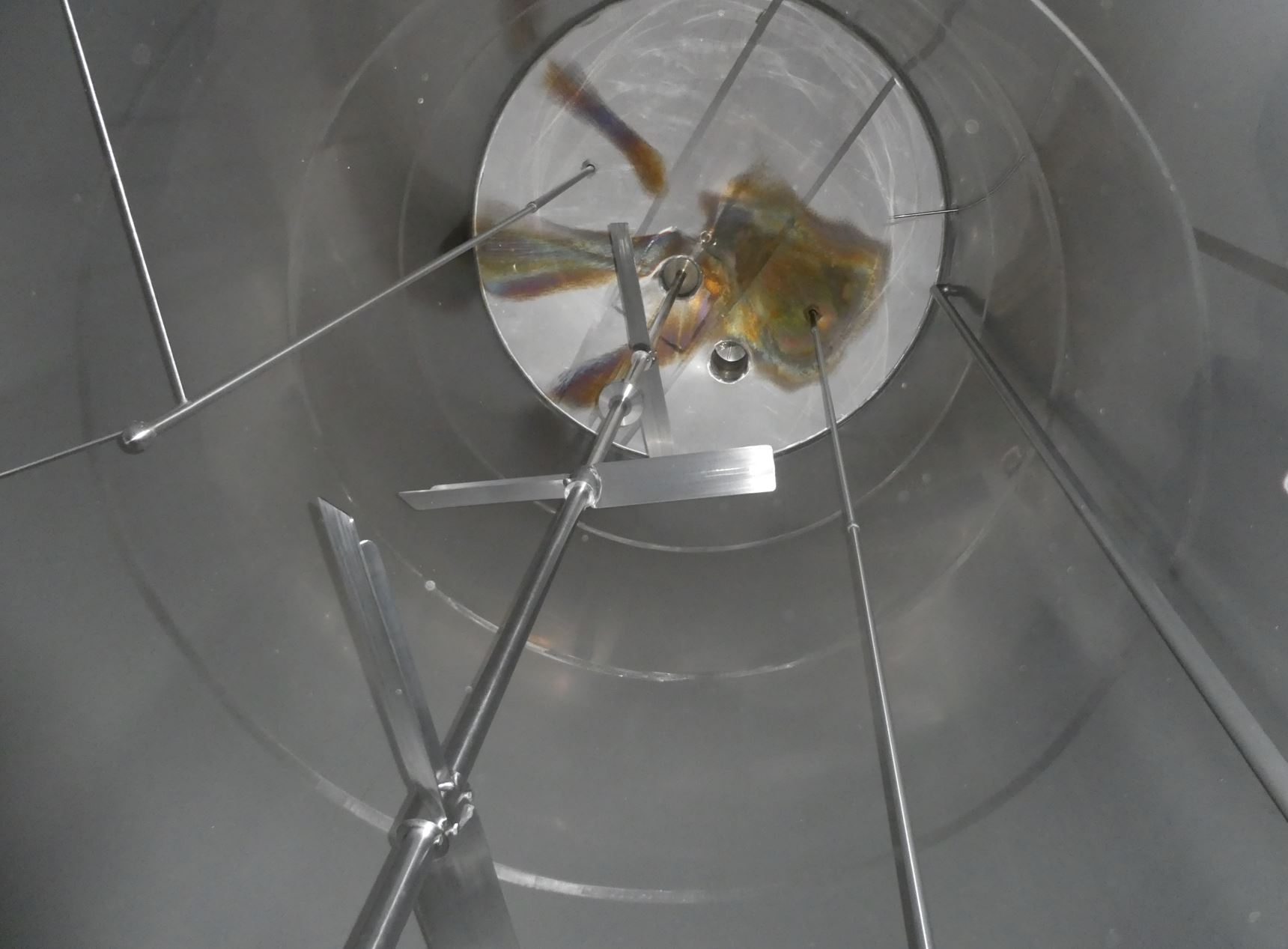

Agitator type
Paddle agitator
Agitator position
Head off-centre
Supports
Supports
Concrete support skirt
Number of feet
1 (piece)
Fixtures and fittings

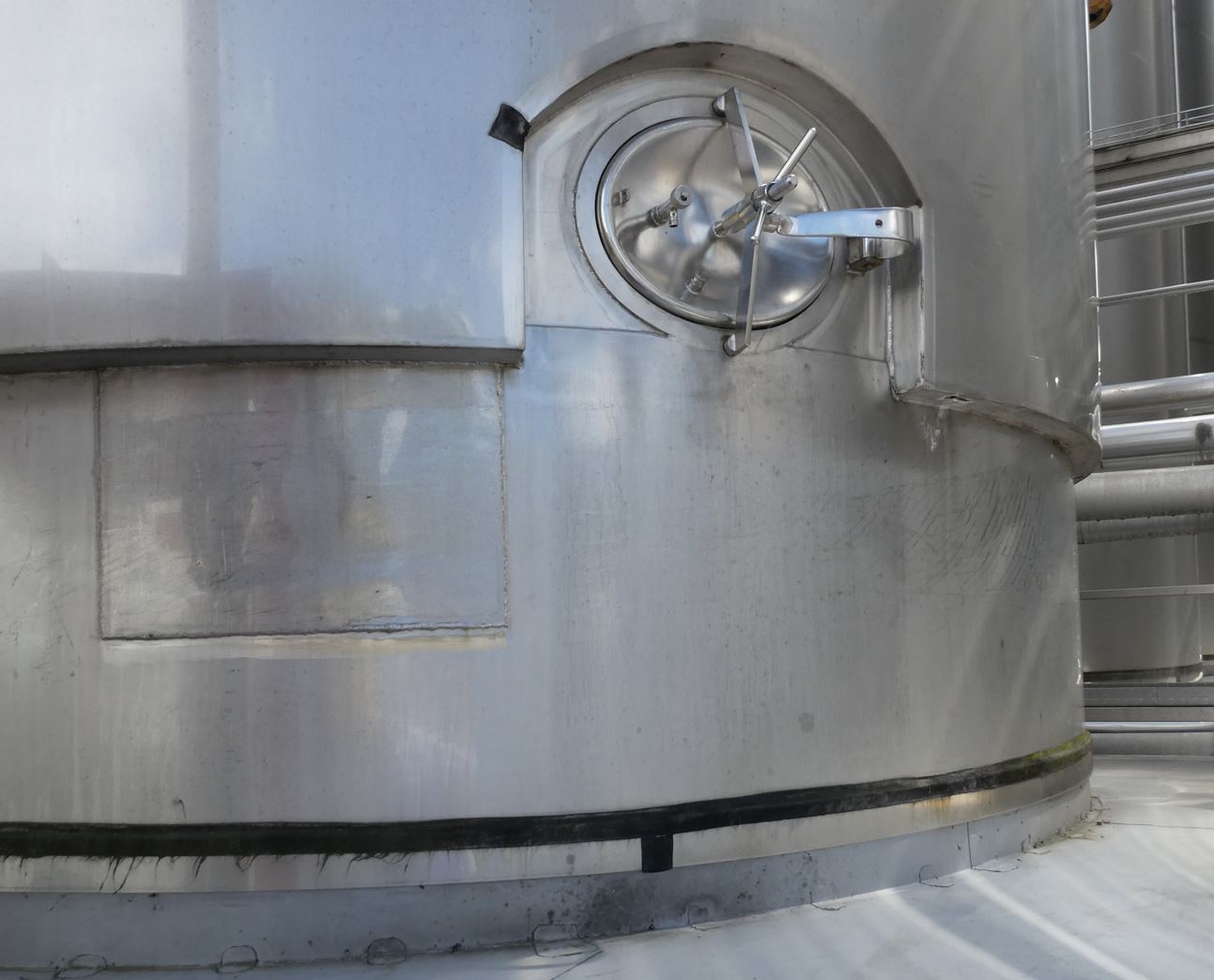

Manway position
In shell
Cleaning/CIP nozzle
in head
Fixtures and fittings
Lifting lugs
Additional fixtures and fittings

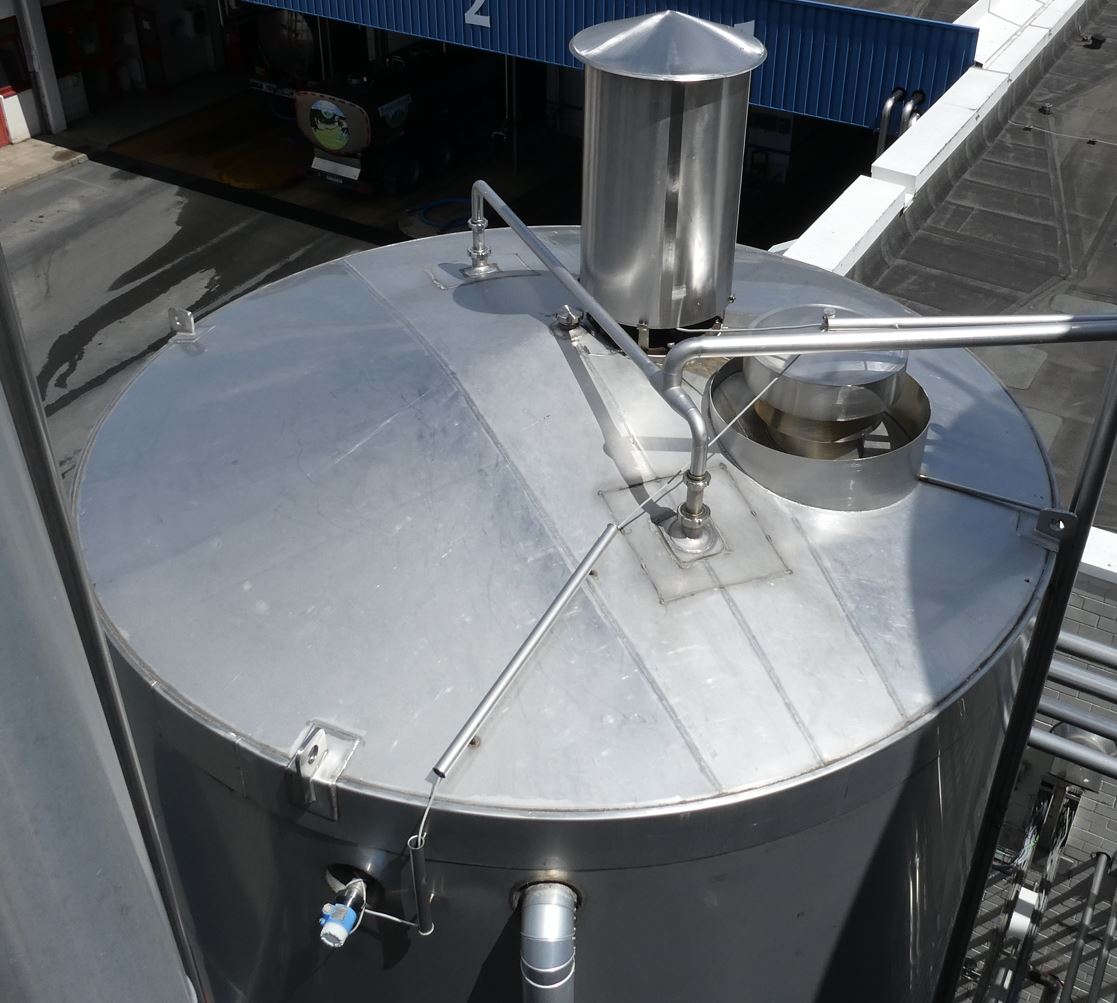

Air vent
Technical documentation
Technical documentation
None
Other
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
