Product no. M-2750

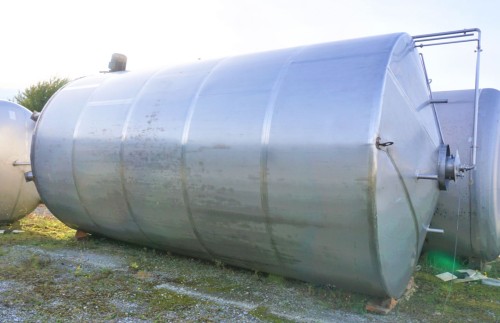

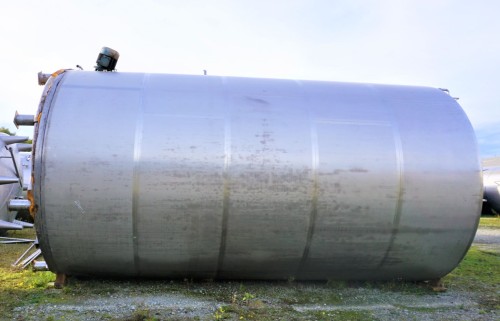

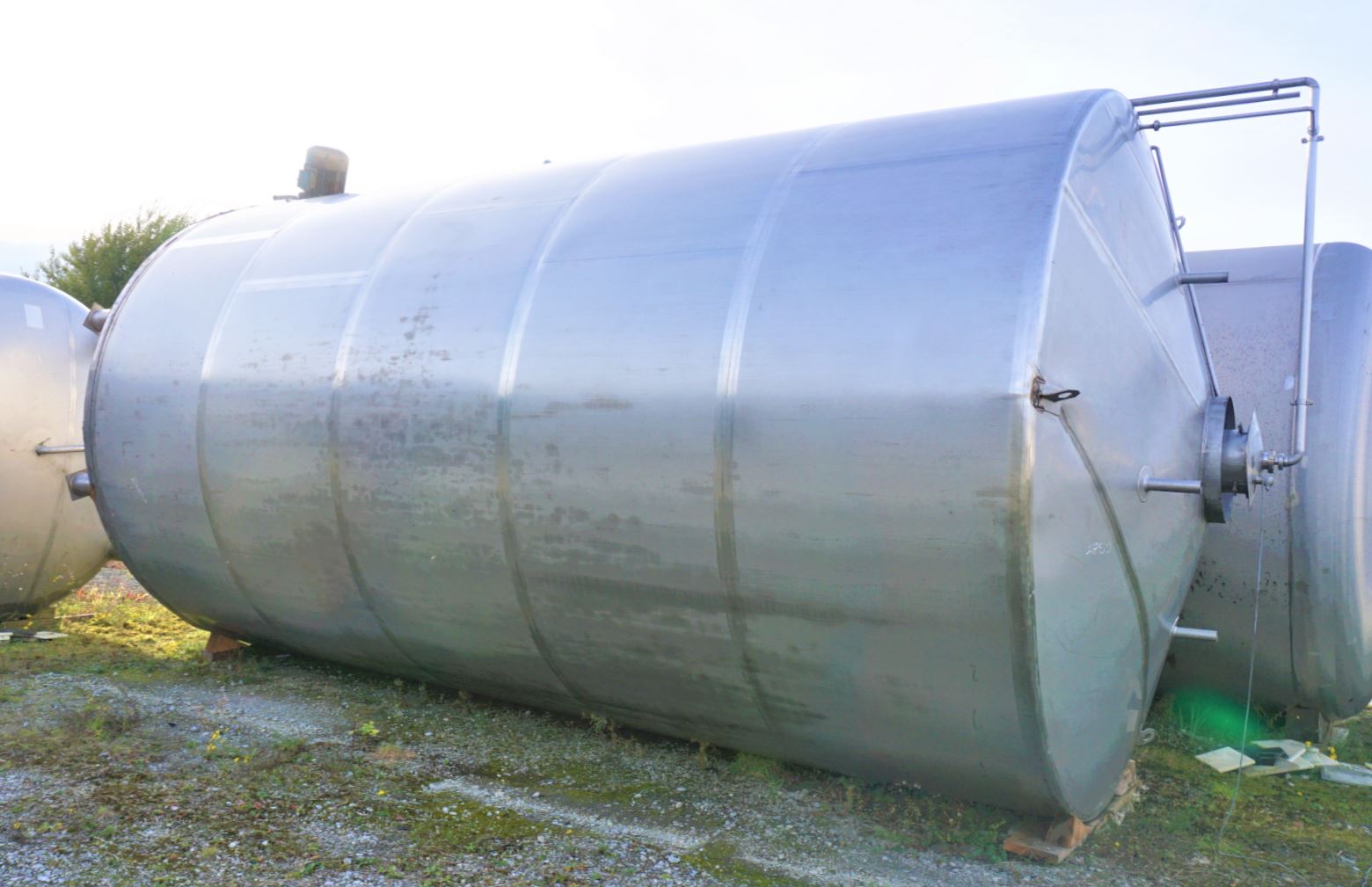

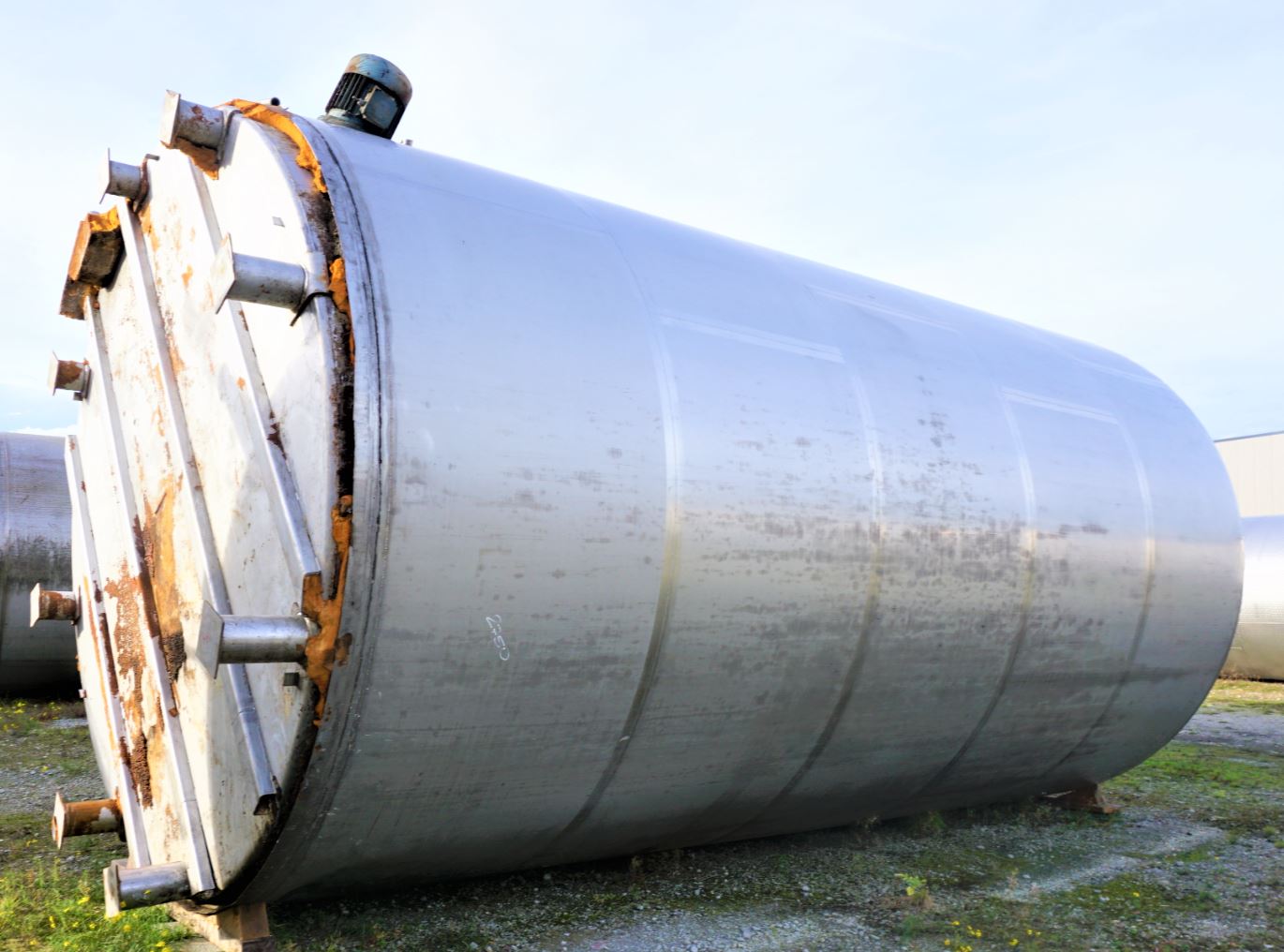

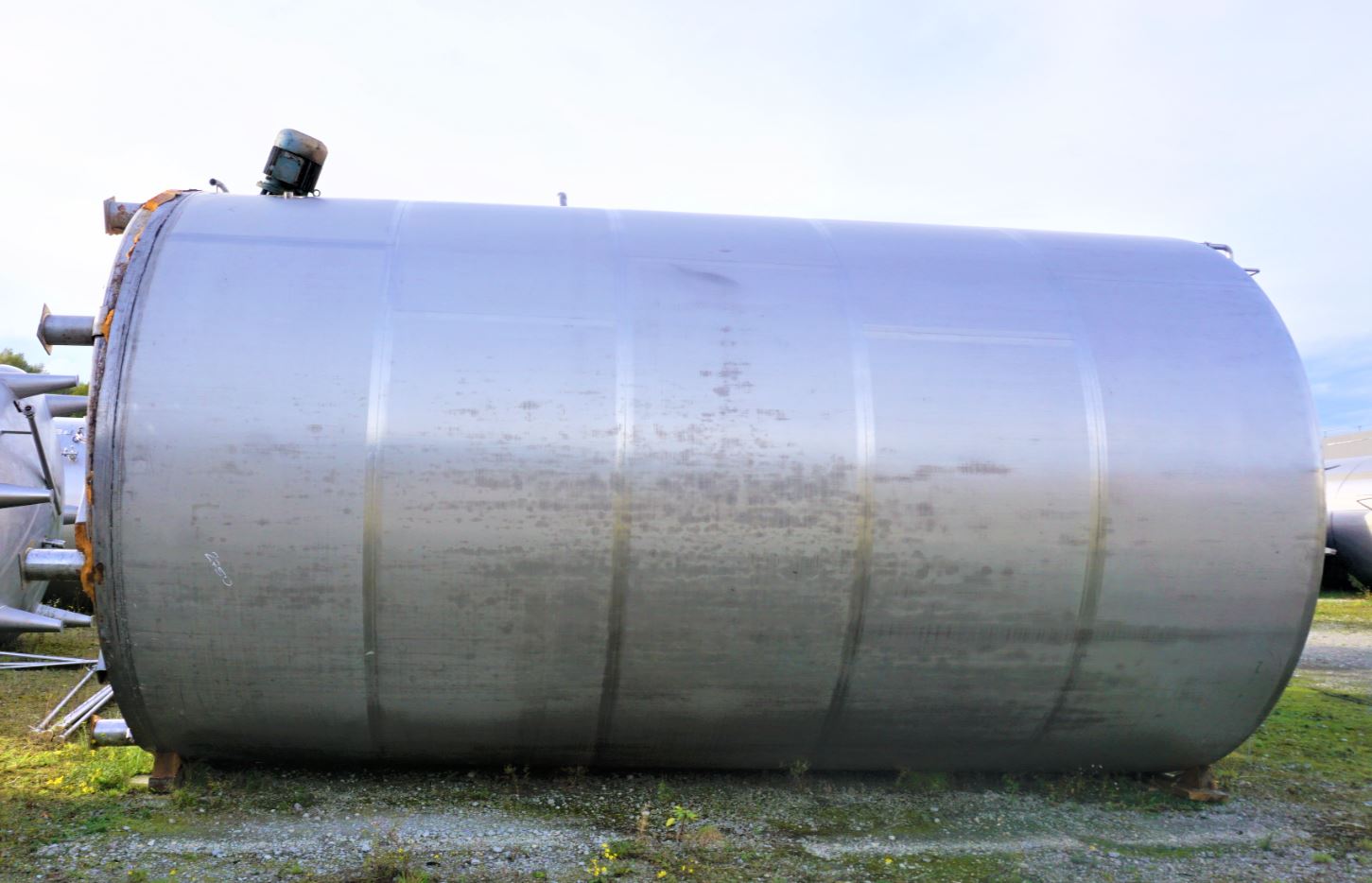

Container 60.000 liters made of V2A isolated, used, standing
EUR 22.300,00
add. 19 % VAT excl. shipping costs
Volume approx. 60,000.00 litres
Product description
Container 60.000 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 60,000.00 litres. The diameter inside includes 3,500 mm. Container 60.000 liters made of V2A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Mixing,General
Volume approx.
60.000,00 litres
Structure
Standing
Condition
Used
Dimensions approx.
Internal diameter
3.500 mm
External diameter
3.610 mm
Cyl. height
6.500 mm
Total height
7.200 mm
Design
Weight approx.
6.000,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
yes
Insulated area
Shell and head
Insulation cladding
Fully welded stainless steel

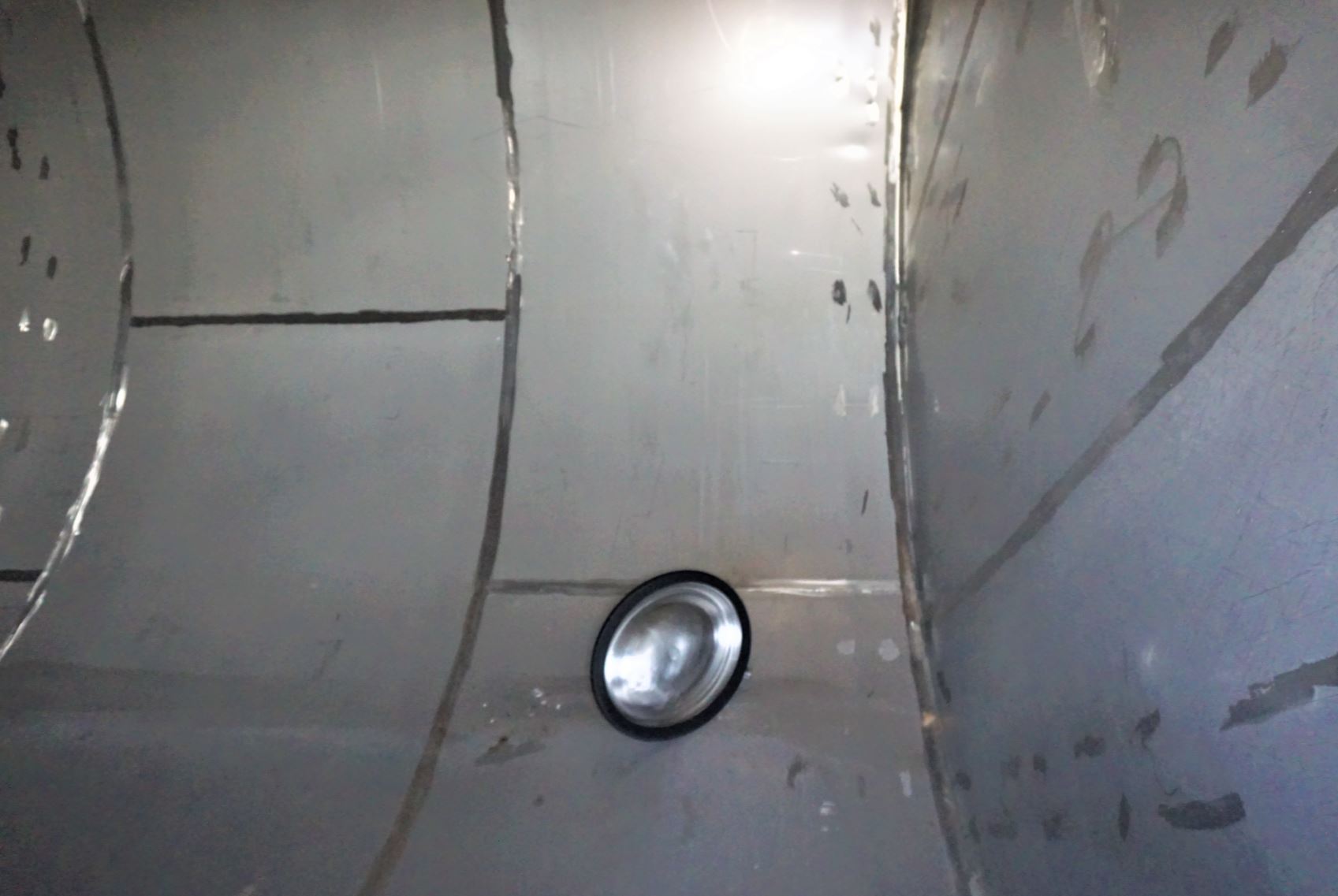

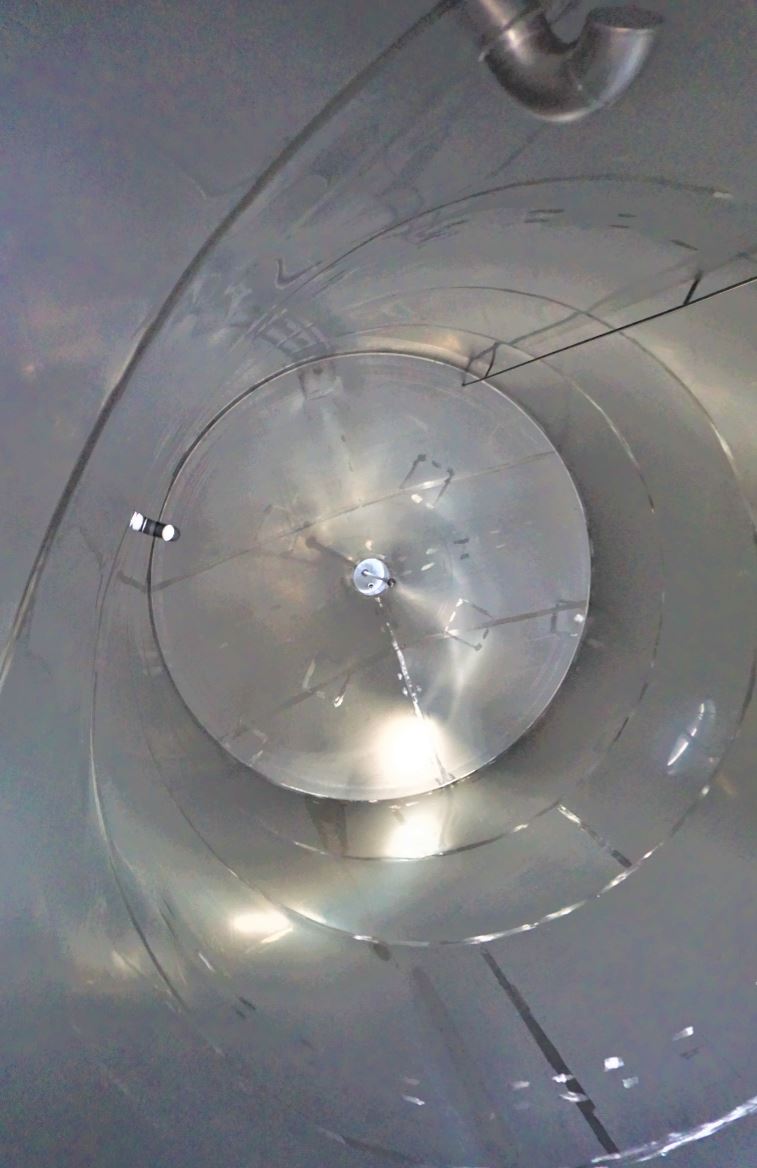

Interior surface
Smoothed
Exterior surface
Smoothed

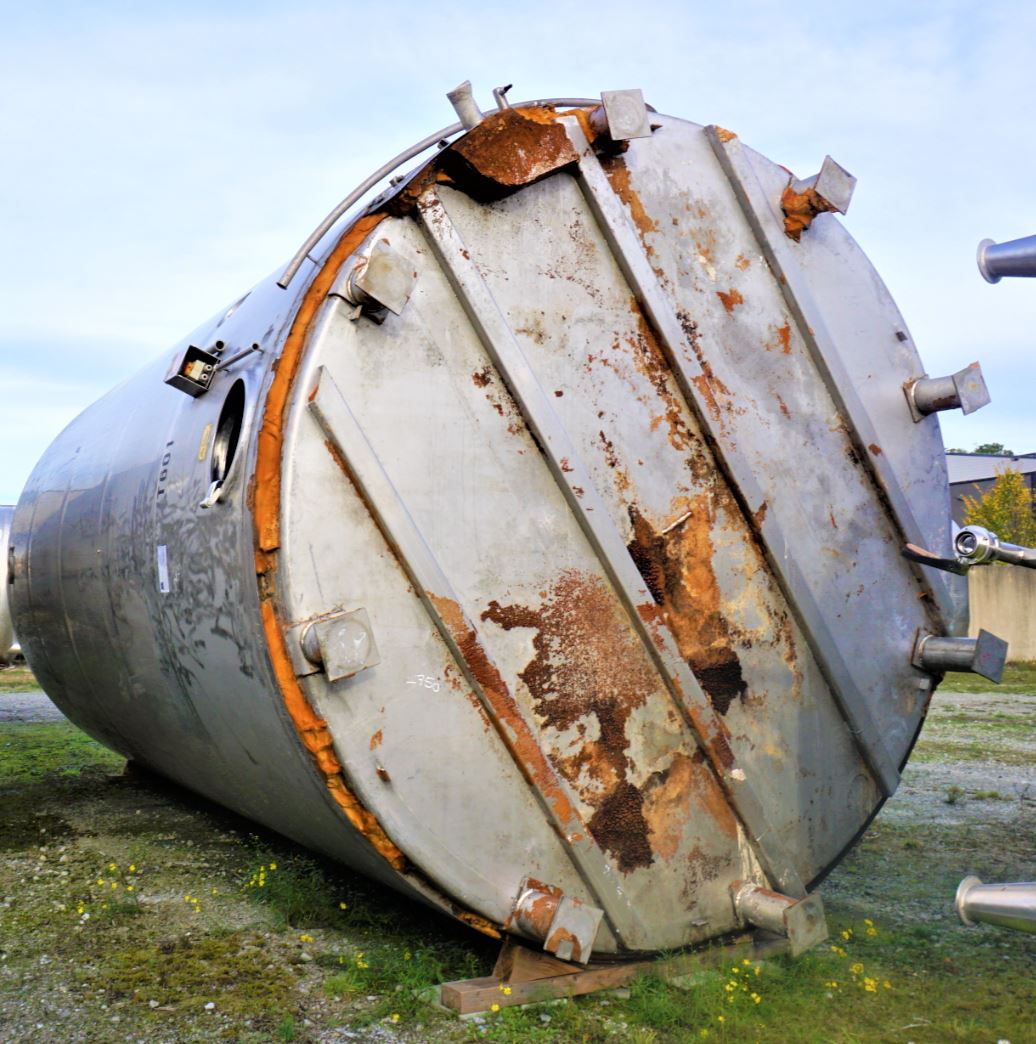

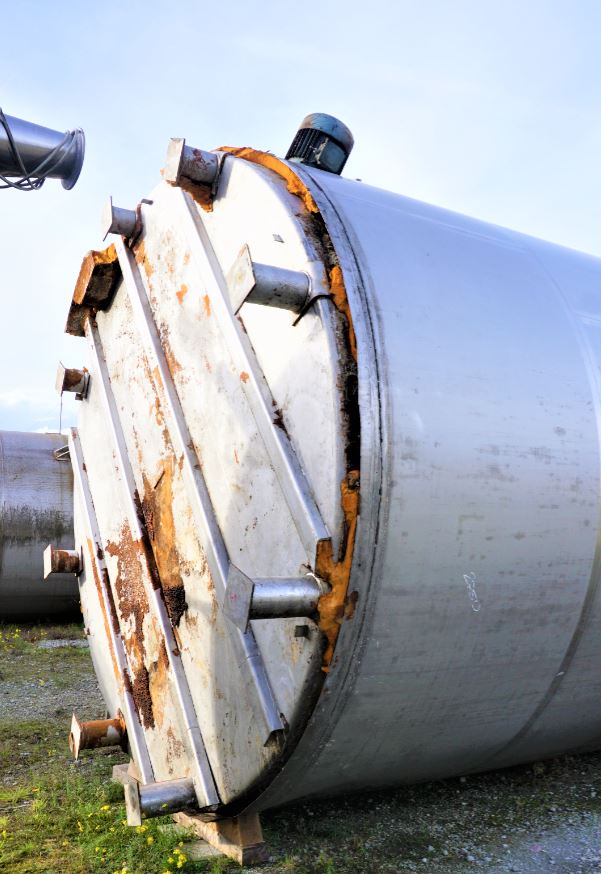

Floor type
Flat bottom with slope towards outlet
Head design
Conical bottom

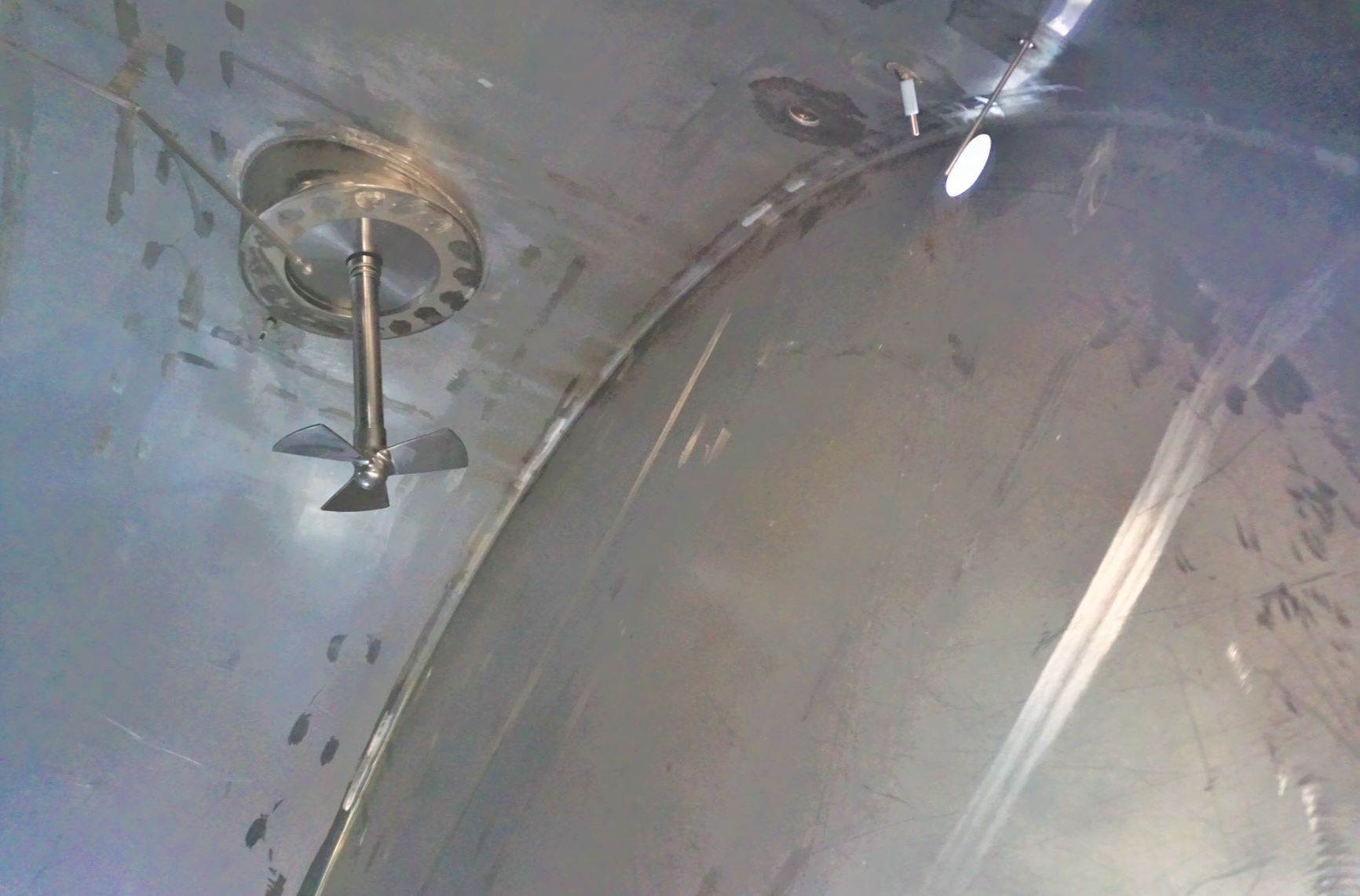

Agitator
Agitator quantity
1 (piece)
Agitator type
Propeller
Agitator position
At bottom at the side in shell
Fixtures and fittings

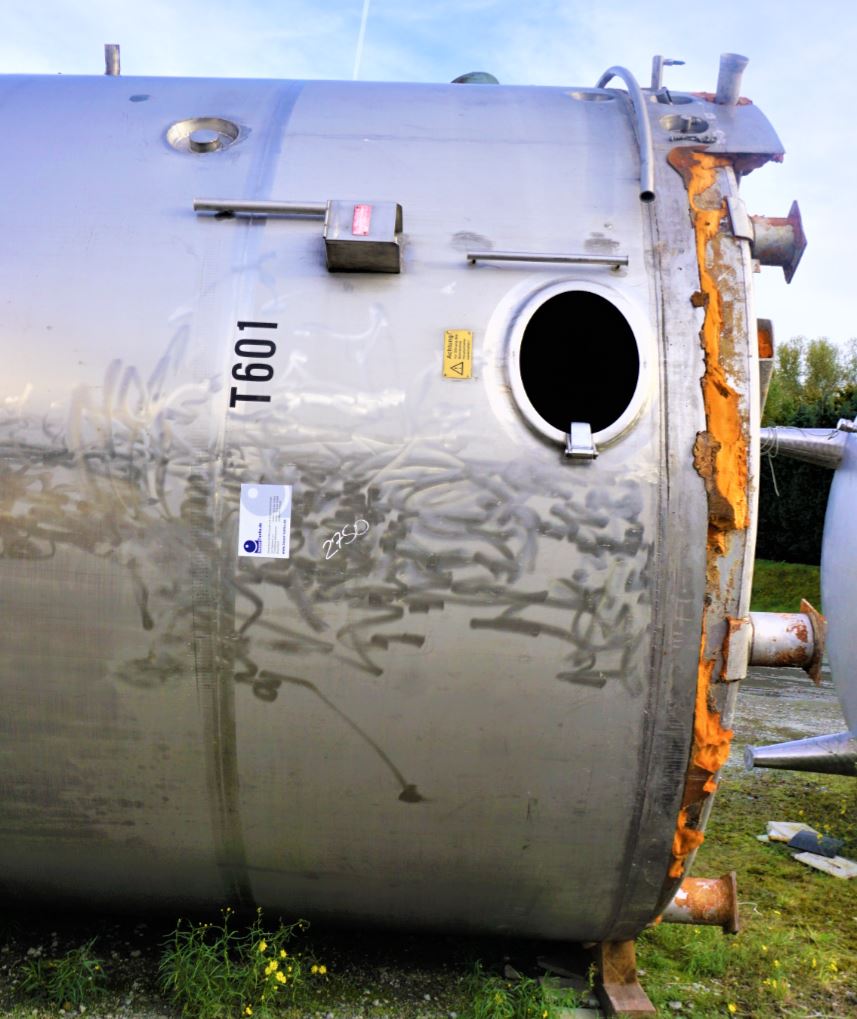

Manway position
In shell
Nozzles/connectors in shell
1xDN80 (piece)
Outlet nozzle
80
Fixtures and fittings
Lifting lugs
Additional fixtures and fittings
Air vent
Other
Note
Behälterfüße sind Abstandshalter für den Unterbau/Fundament
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
