Product no. M-2792

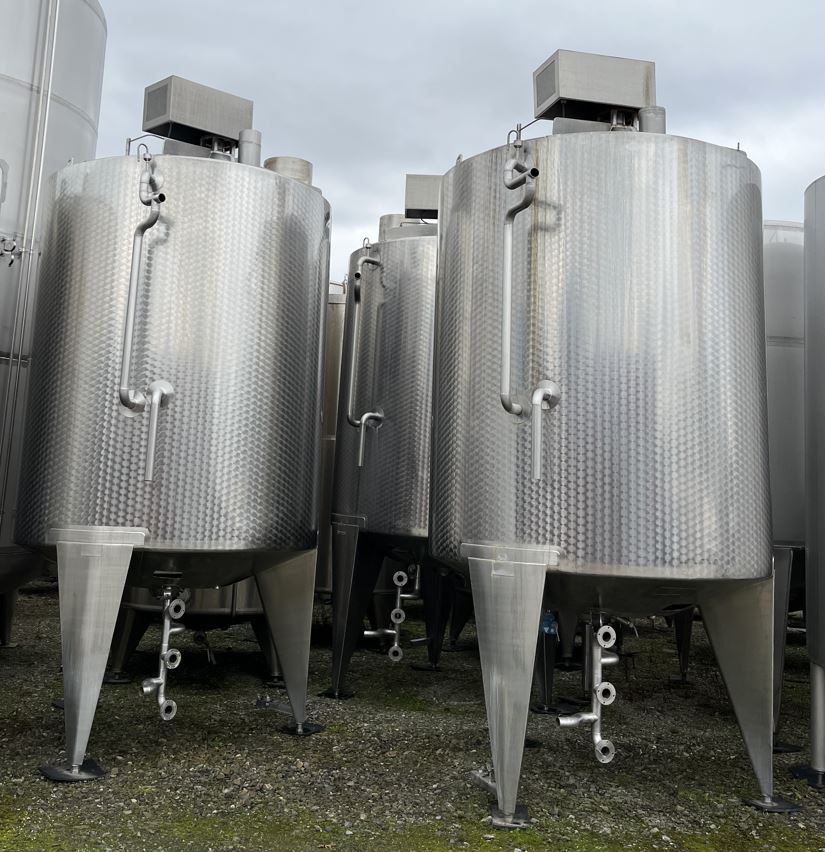

Container 6.500 liters made of V2A isolated, used, standing

EUR 9.800,00

add. 19 % VAT excl. shipping costs

Volume approx. 6,500.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details   Downloads

Product description

Container 6.500 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 6,500.00 litres. The diameter inside includes 1,850 mm. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Cooling, Tempering, Processes,

General

  • Volume approx.

  • 6.500,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1998

  • Manufacturer

  • OHK

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.850 mm

  • External diameter

  • 1.992 mm

  • Cyl. height

  • 2.480 mm

  • Total height

  • 4.285 mm

Design

  • Weight approx.

  • 2.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

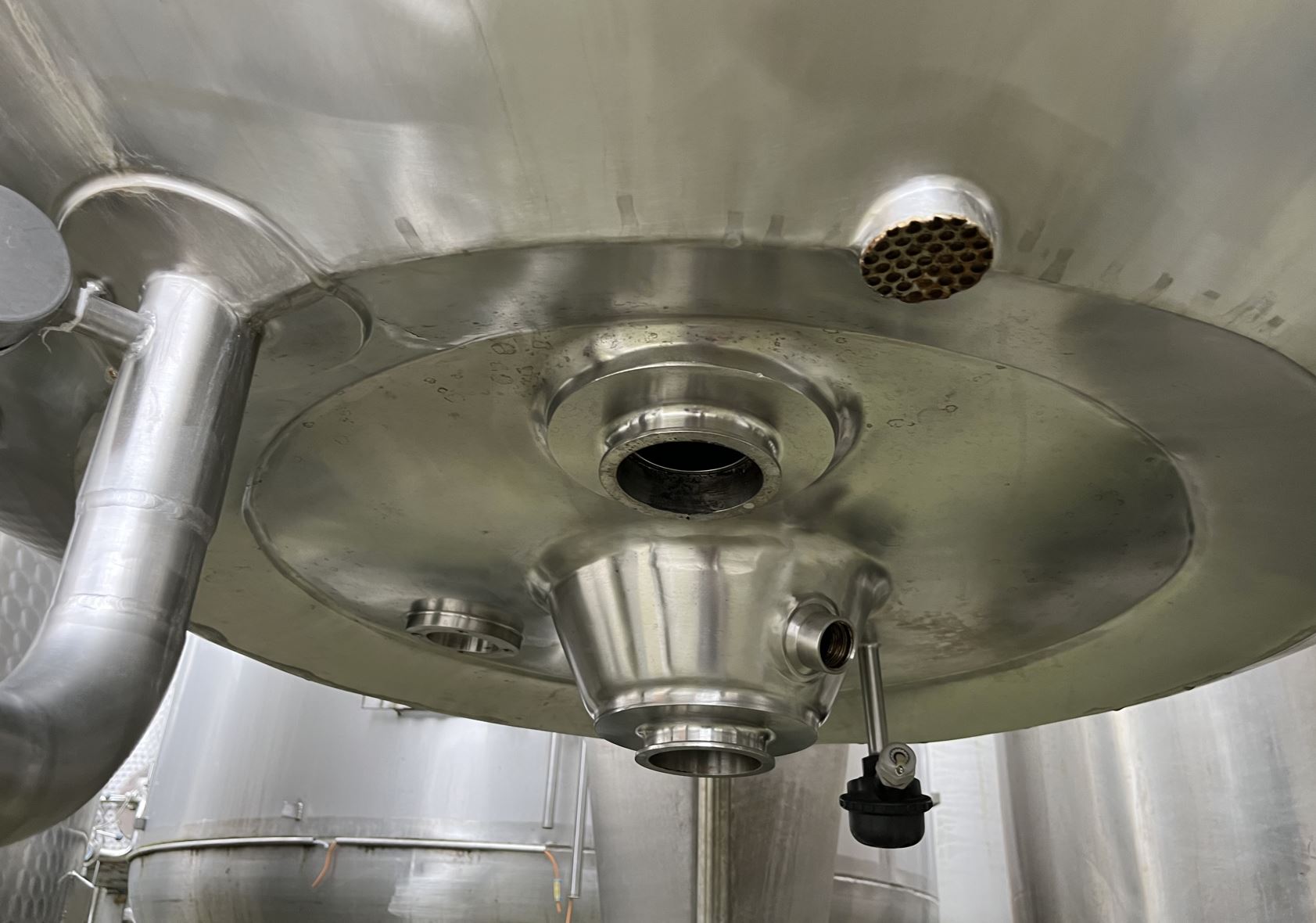

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

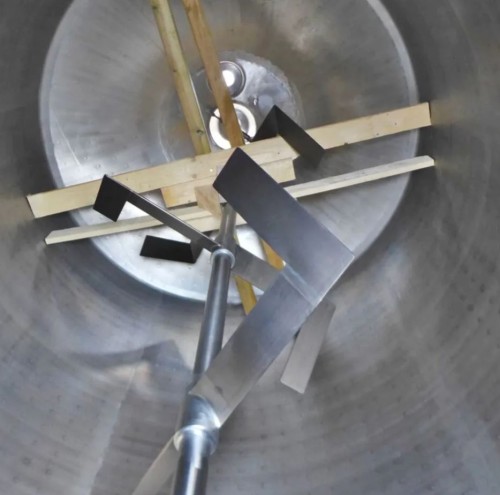

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Paddle agitator

  • Agitator position

  • Head central

  • Agitator 1 - Output

  • 2,2 kW

  • Agitator 1 - RPM

  • 49 UpM

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • hoehenverstellbar

Fixtures and fittings

  • Manway position

  • In head

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

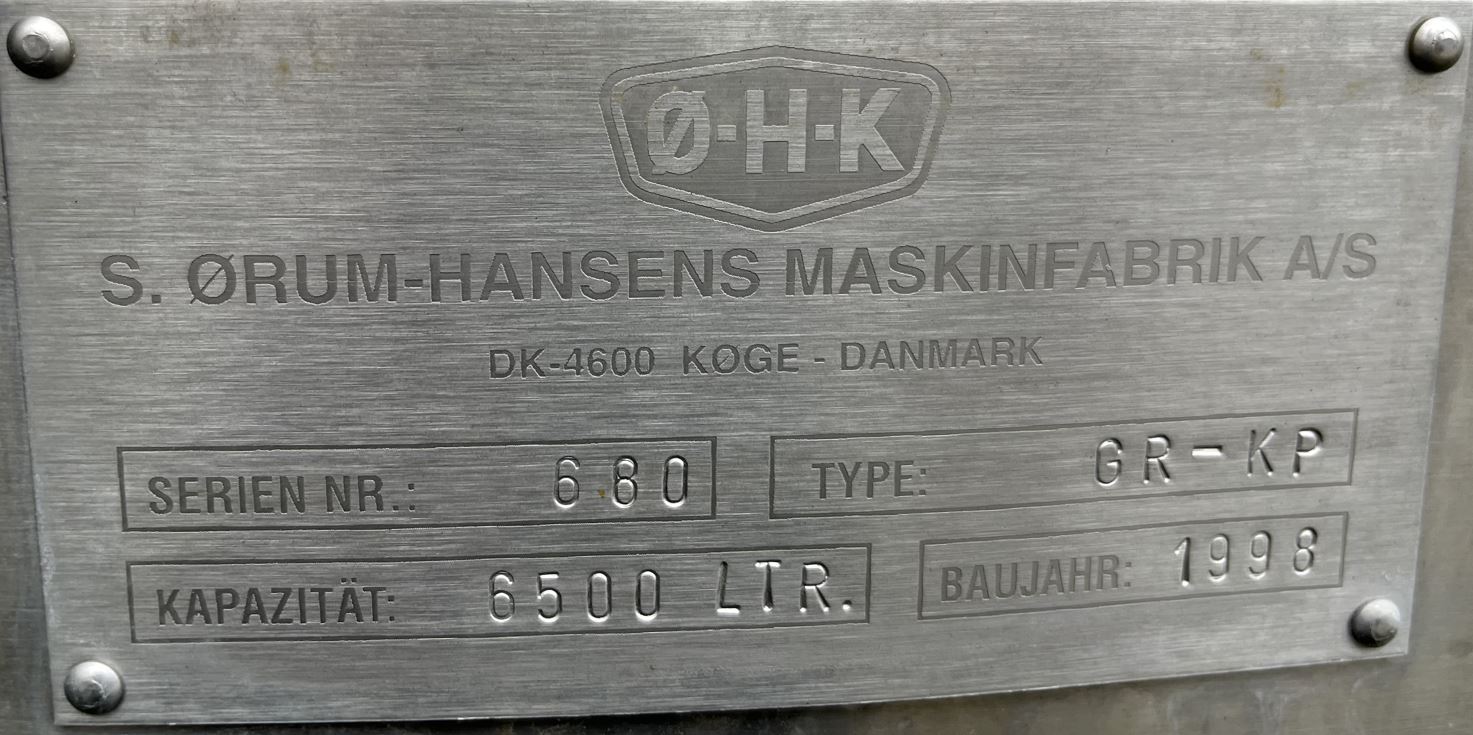

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

Other

  • Note

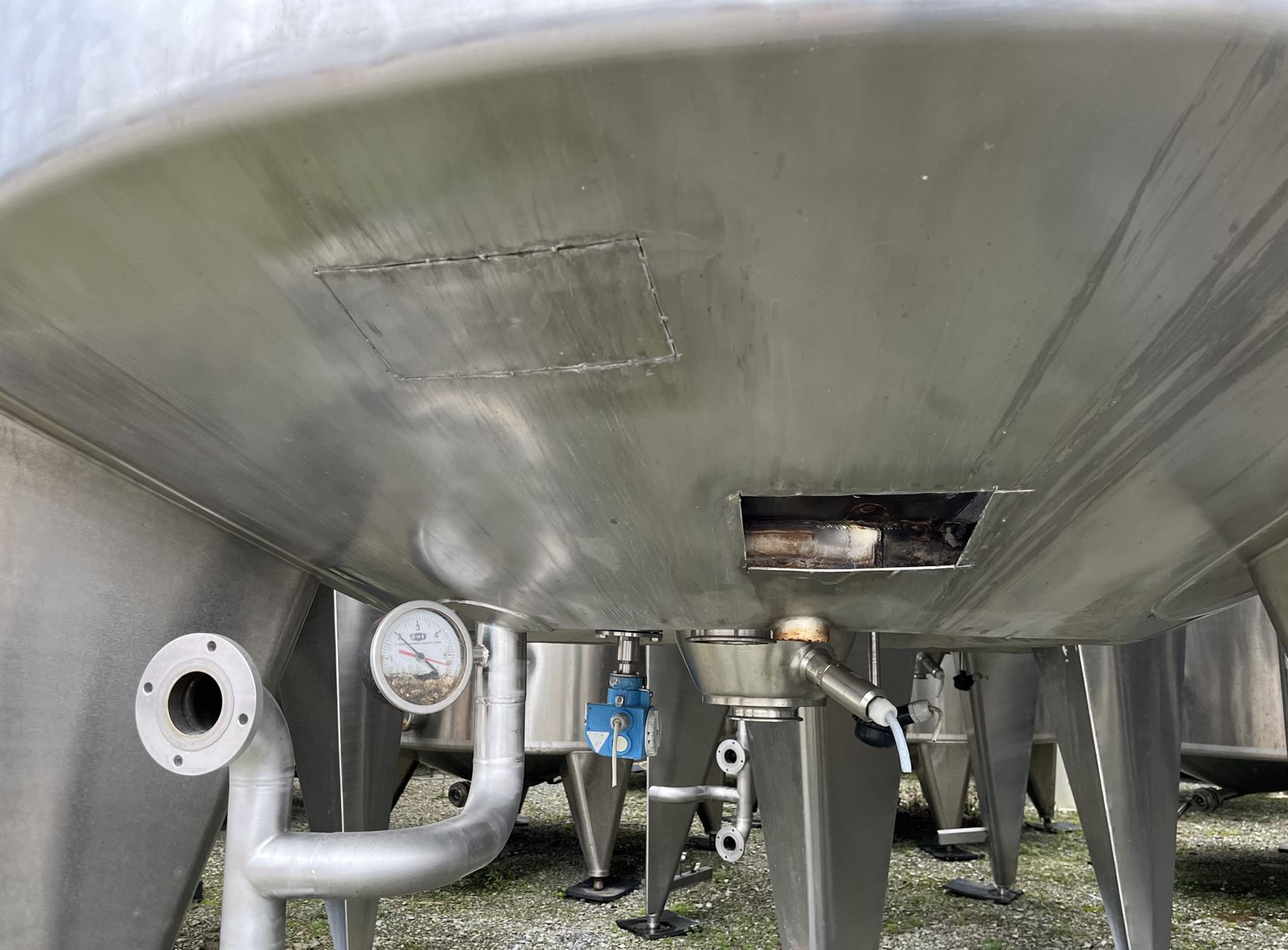

  • Isoliermantel im Boden teilweise aufgeschnitten. Temperierzonen defekt.

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank, Cooling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank,

Downloads

filefile size
  2792-6.pdf1.86 MB
