Product no. M-1906

Container 6.000 liters made of V2A, used, isolated, standing

EUR 9.600,00

add. 19 % VAT excl. shipping costs


Volume approx. 6,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 6.000 liters made of V2A, used, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 6,000.00 litres. The diameter inside includes 1,950 mm.  Container 6.000 liters made of V2A, used, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Mixing,

General

  • Volume approx.

  • 6.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1989

  • Manufacturer

  • Apparate- Behältertechnik Harrislee

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.950 mm

  • External diameter

  • 2.085 mm

  • Cyl. height

  • 2.000 mm

  • Foot height

  • 1.250 mm

  • Outlet height

  • 600 mm

  • Total height

  • 4.200 mm

Design

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating over-pressure

  • 0,5 bar

  • Product chamber operating under-pressure

  • -0,0075 bar

  • Product chamber operating temperature

  • 100 °C

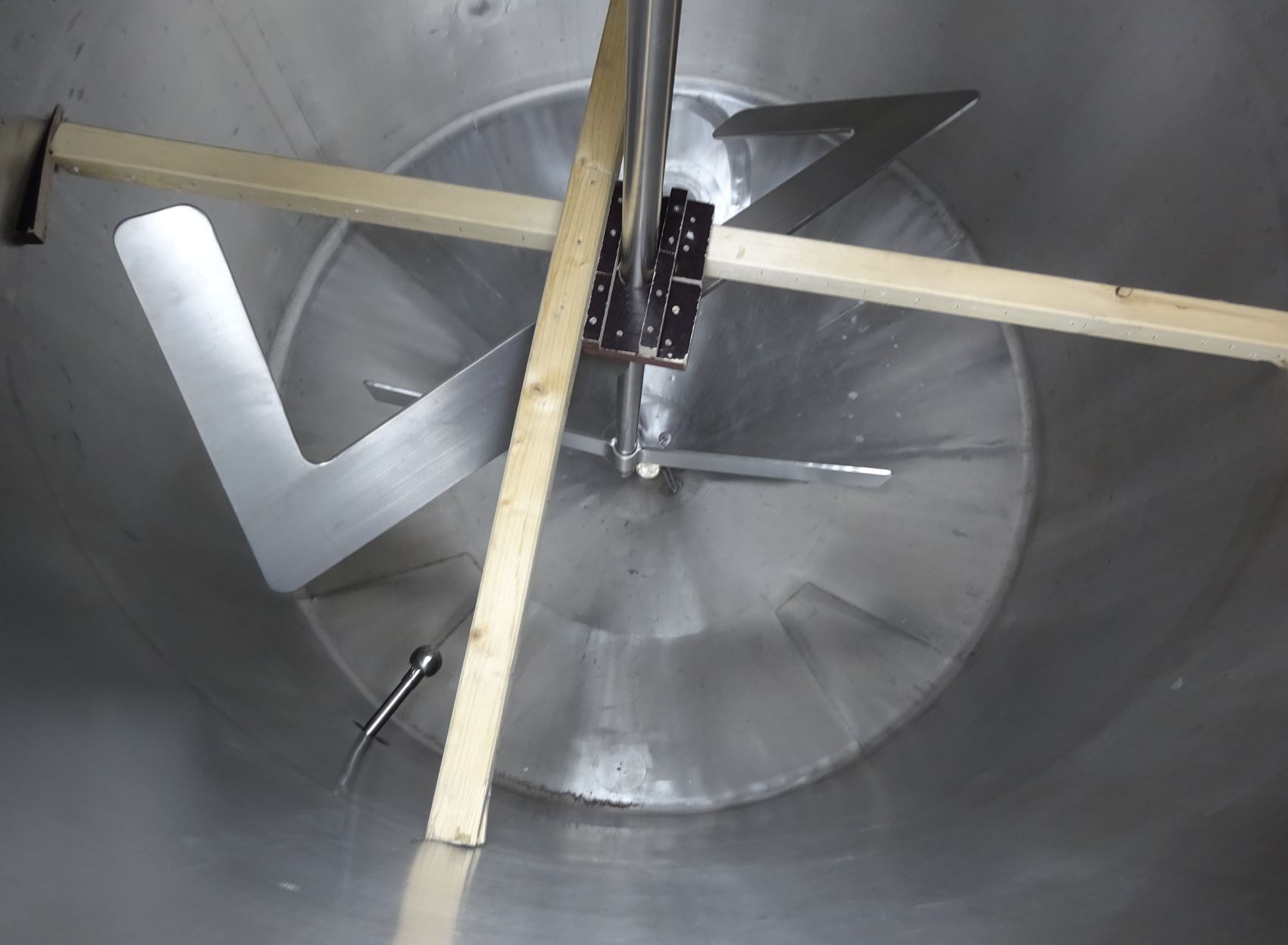

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Zeta agitator

  • Agitator position

  • Head off-centre

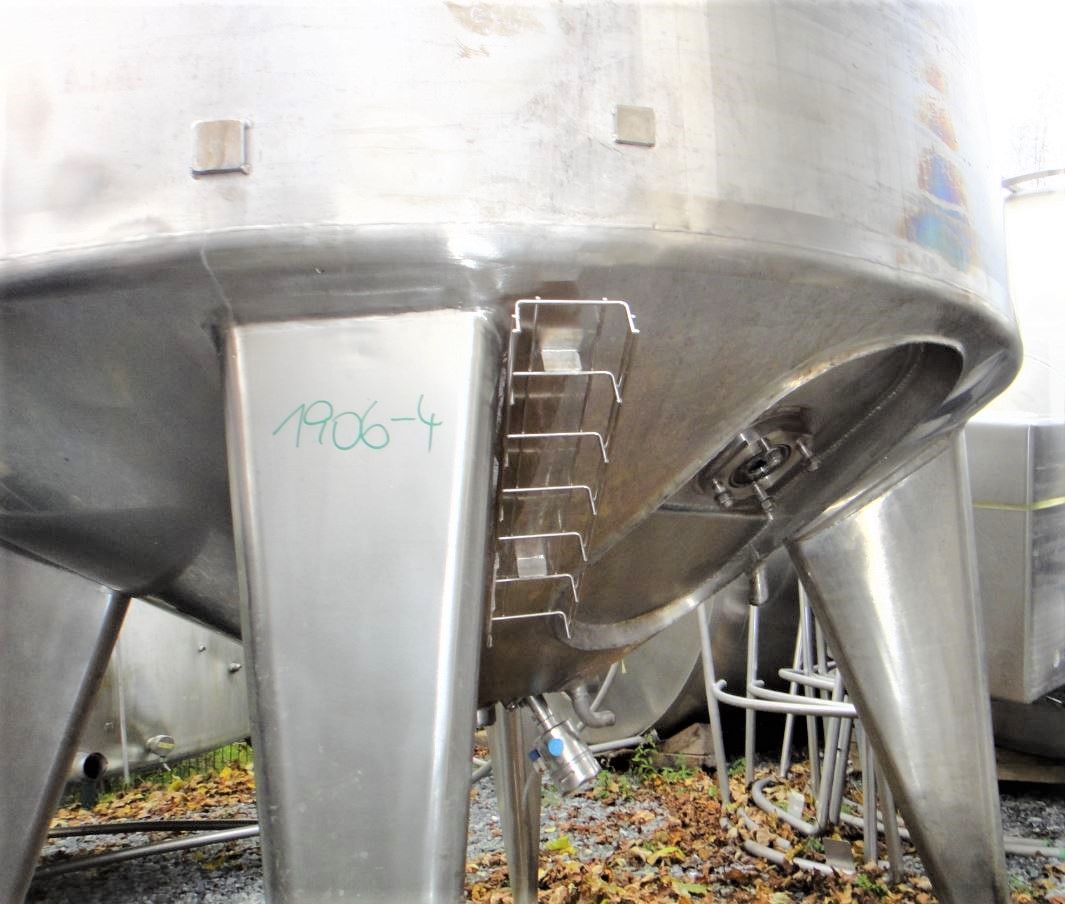

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

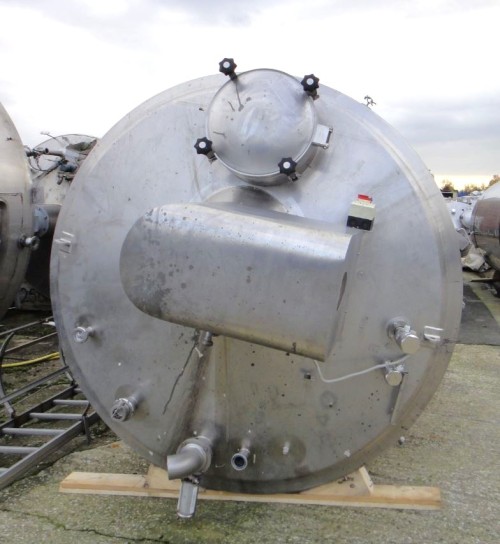

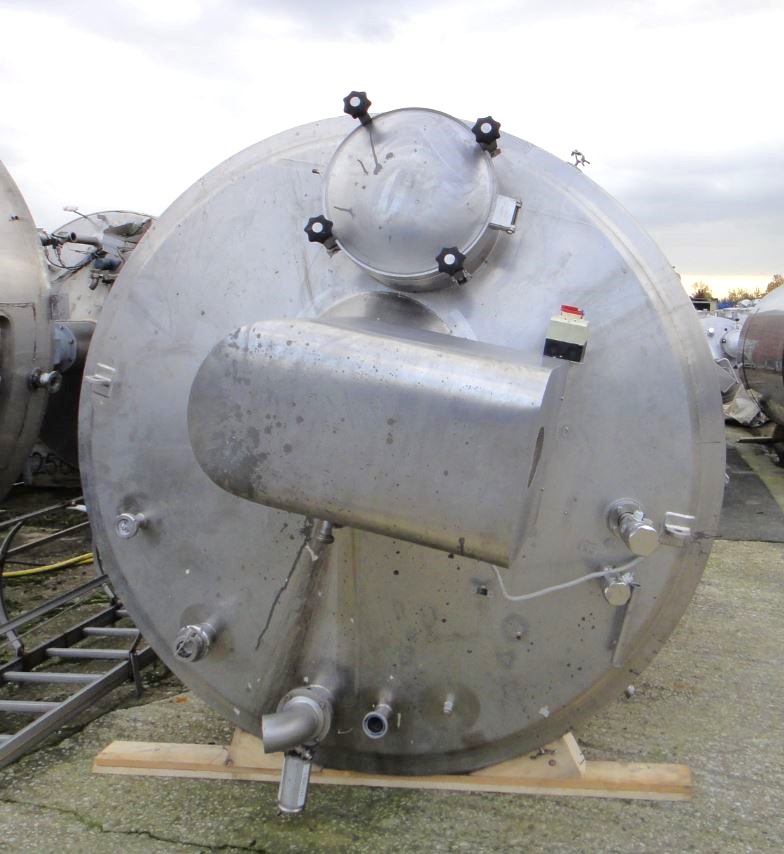

  • Manway 1 size

  • 450 DN mm

  • Manway position

  • In head

  • Nozzles/connectors in head

  • 1xDN40 1xDN50 1xDN65 1xDN100 (piece)

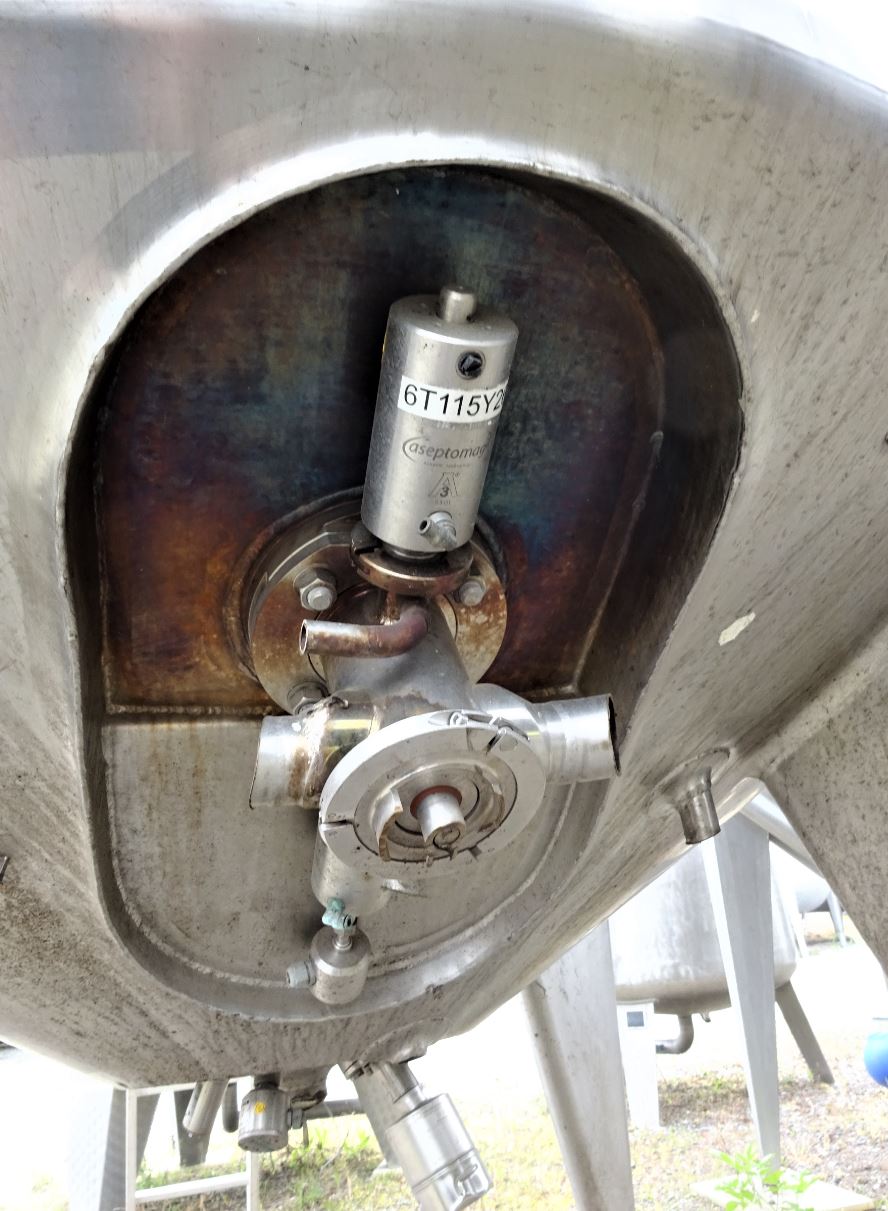

  • Outlet nozzle

  • 65

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Sample taking

  • Additional fixtures and fittings

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

Other

  • Note

  • 1 Behälter ohne Rührwerk. Vorhandene Temperiermantel defekt, Anschlüsse sind entfernt.

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
