Product no. M-3016

Container 6.000 liters made of V2A, single-walled, used, standing

EUR 4.100,00

add. 19 % VAT excl. shipping costs


Volume approx. 6,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 6.000 liters made of V2A, single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 6,000.00 litres.  Container 6.000 liters made of V2A, single-walled, used was last used in the following area: CIP/cleaning system. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Cleaning/CIP,

General

  • Volume approx.

  • 6.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2002

  • Manufacturer

  • Lübbers

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.700 mm

  • Cyl. height

  • 3.000 mm

  • Foot height

  • 800 mm

  • Total height

  • 4.400 mm

Design

  • Weight approx.

  • 604,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

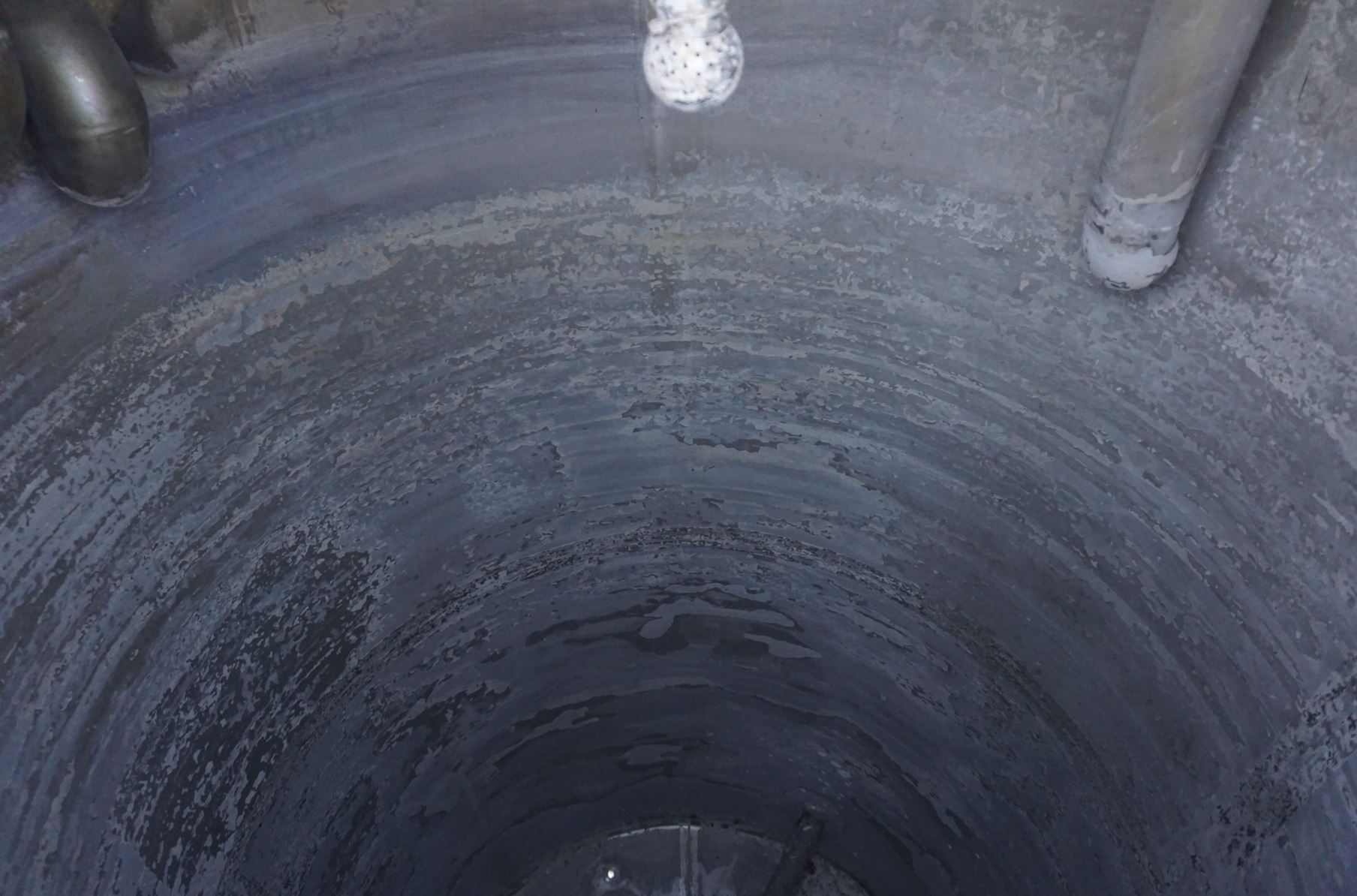

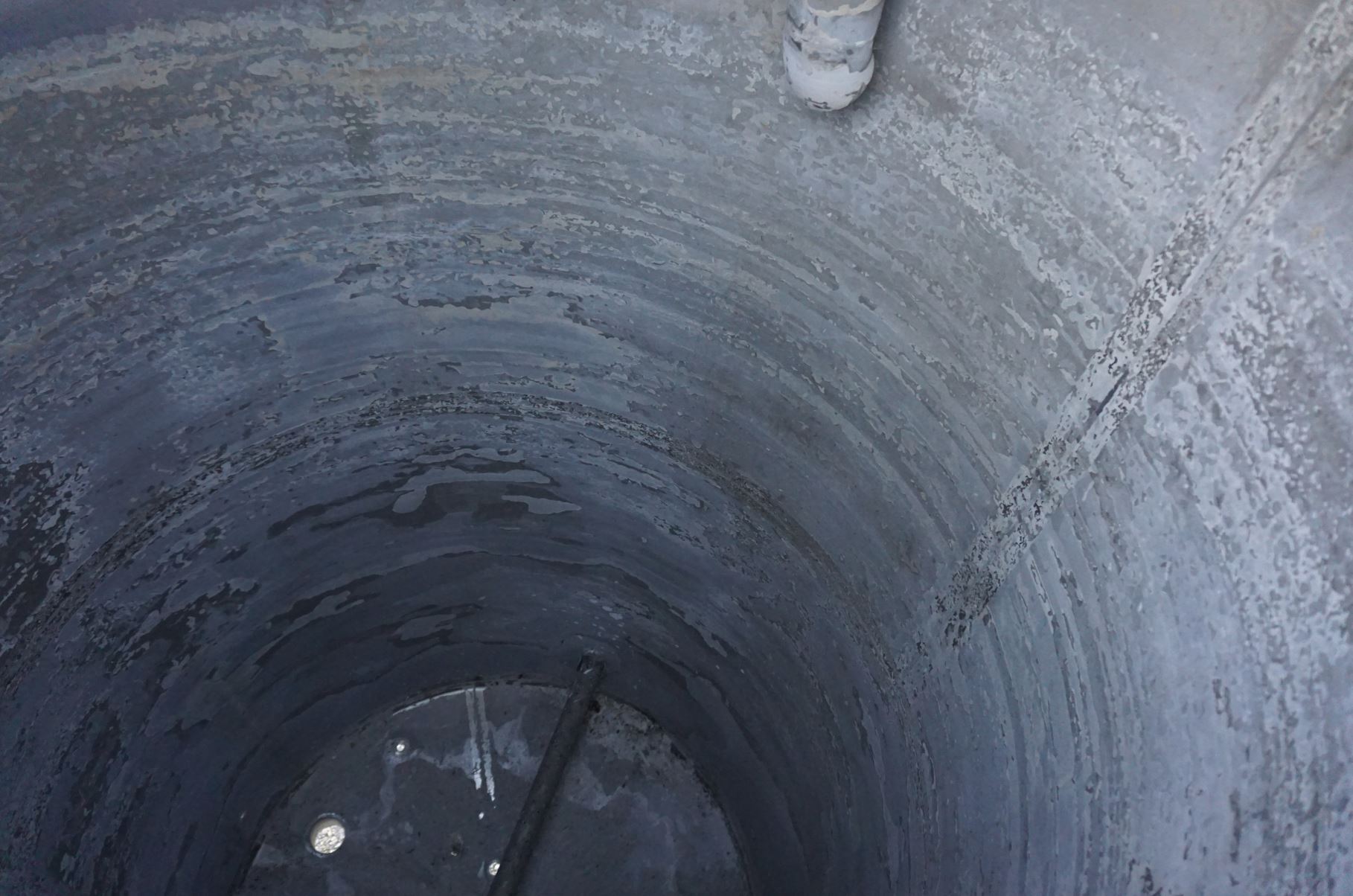

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

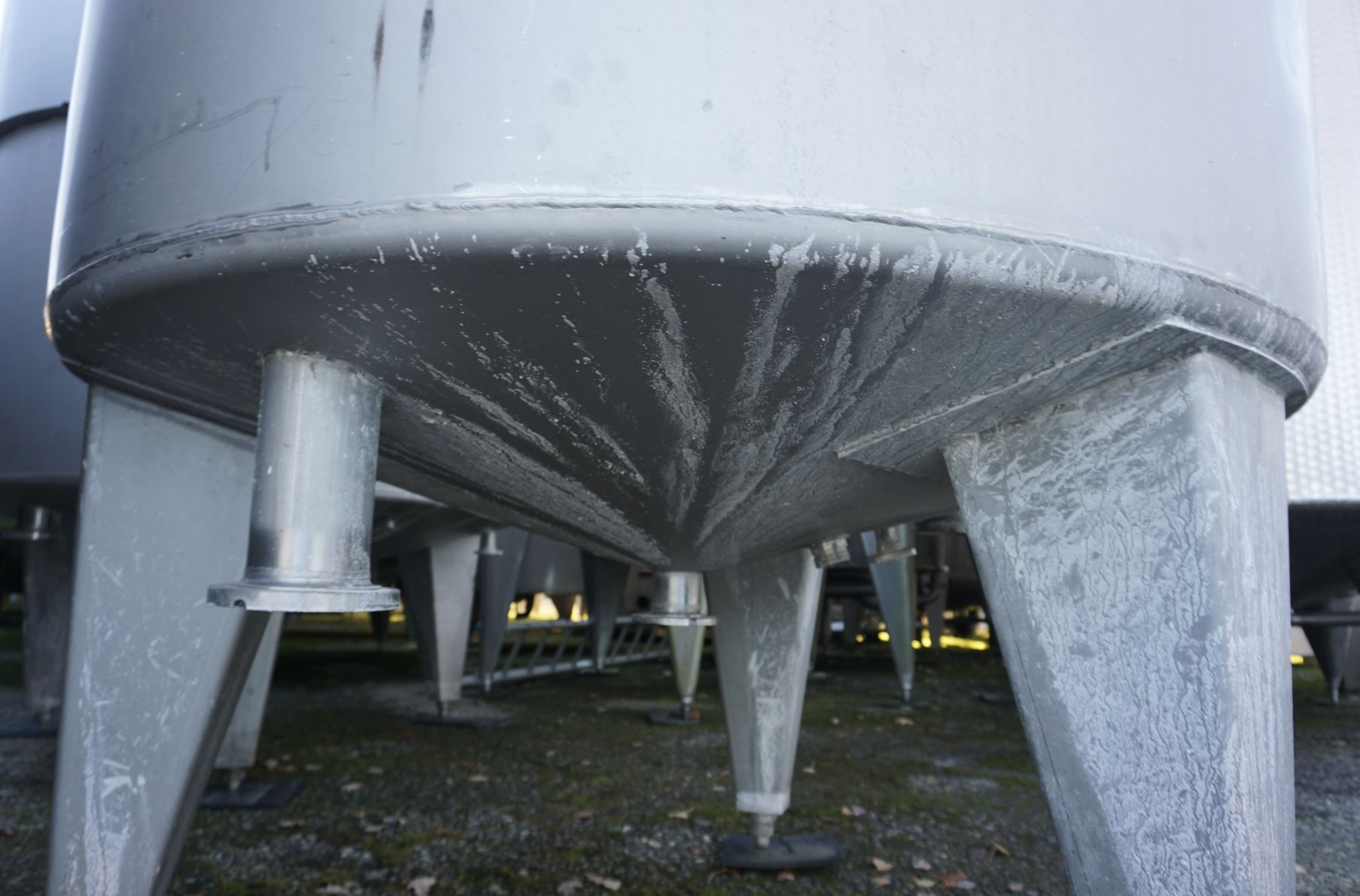

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

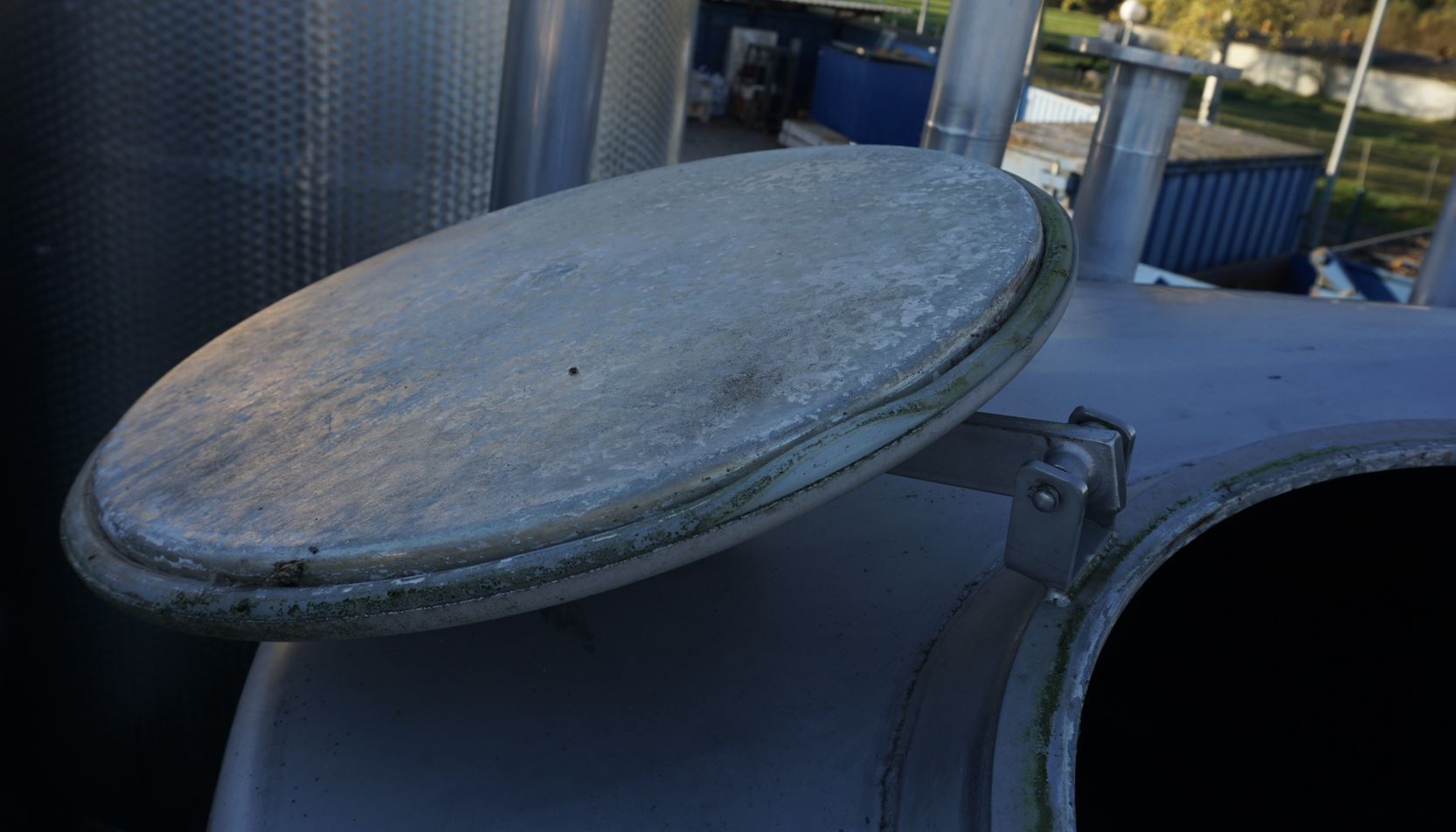

  • Manway position

  • In head

  • Nozzles/connectors in shell

  • 2xDN65 2xDN80 (piece)

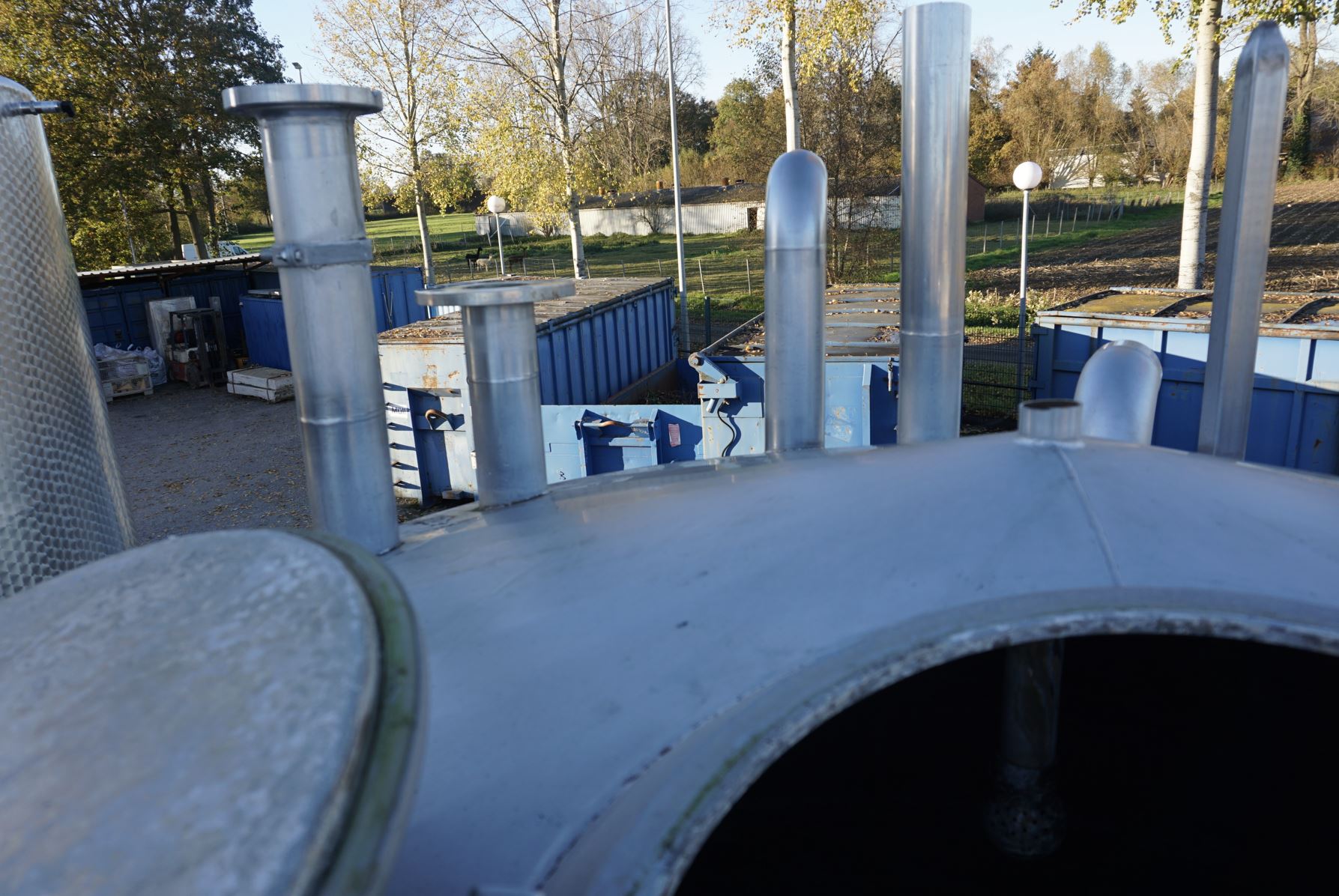

  • Nozzles/connectors in head

  • verschiedene Stutzen (piece)

  • Nozzles/connectors in floor

  • 2xDN100 (piece)

  • Outlet nozzle

  • 80

  • Fixtures and fittings

  • Sample taking

  • Additional fixtures and fittings

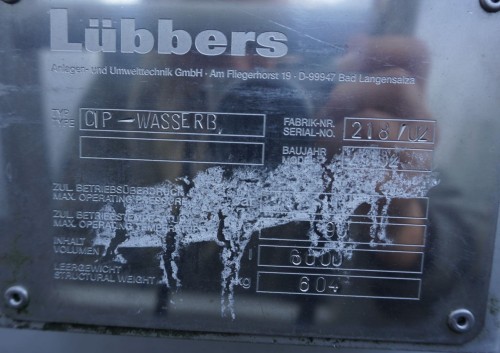

  • Nameplate

Other

  • Note

  • Lecihte Anhaftungen im Produktraum

  • Last usage

  • CIP/cleaning system

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,

Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,
