Product no. M-2805

Container 592 liters made of V4A isolated, used, standing

EUR 3.500,00

add. 19 % VAT excl. shipping costs


Volume approx. 592.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 592 liters made of V4A isolated, used consists of the material 1.4401(AISI316) V4A. The volume is approx. 592.00 litres. The diameter inside includes 560 mm.  Container 592 liters made of V4A isolated, used was last used in the following area: CIP/cleaning system. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing, Cleaning/CIP,

General

  • Volume approx.

  • 592,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2014

  • Manufacturer

  • Schrader

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 560 mm

  • External diameter

  • 660 mm

  • Cyl. height

  • 1.950 mm

  • Foot height

  • 680 mm

  • Total height

  • 3.230 mm

Design

  • Weight approx.

  • 250,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

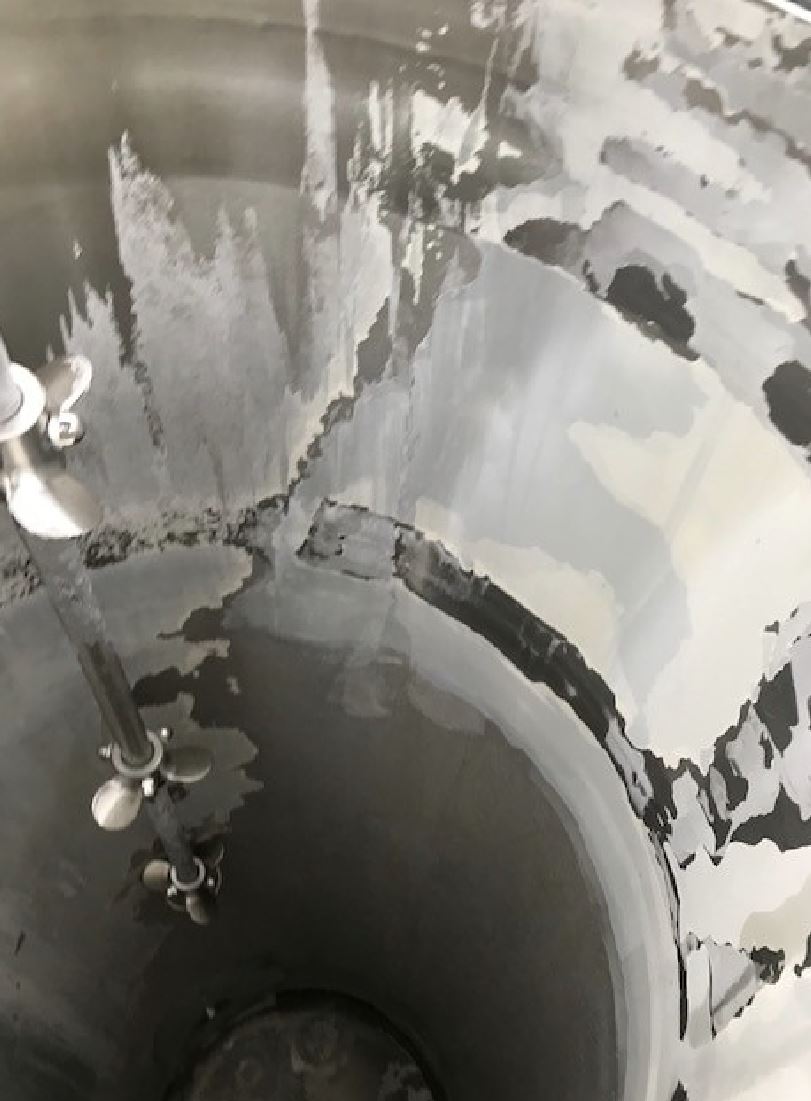

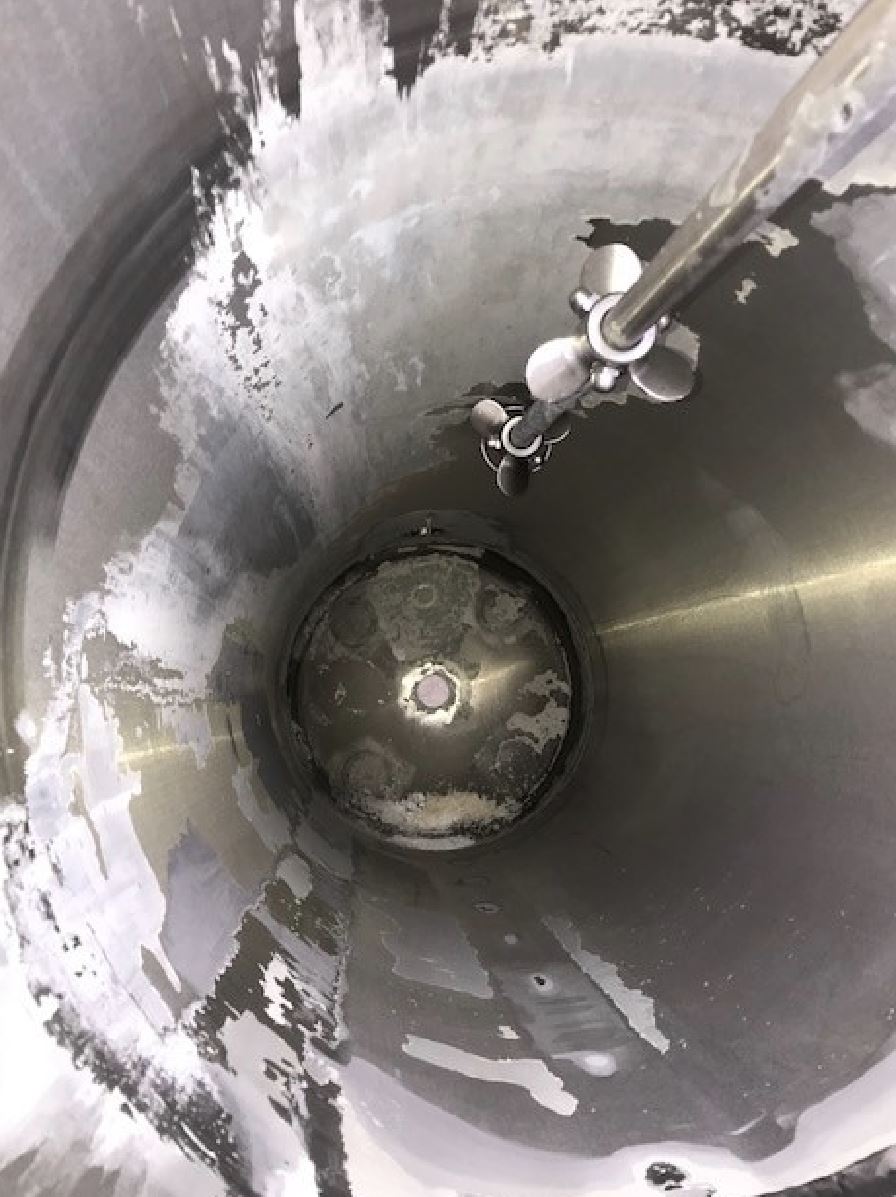

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Head central

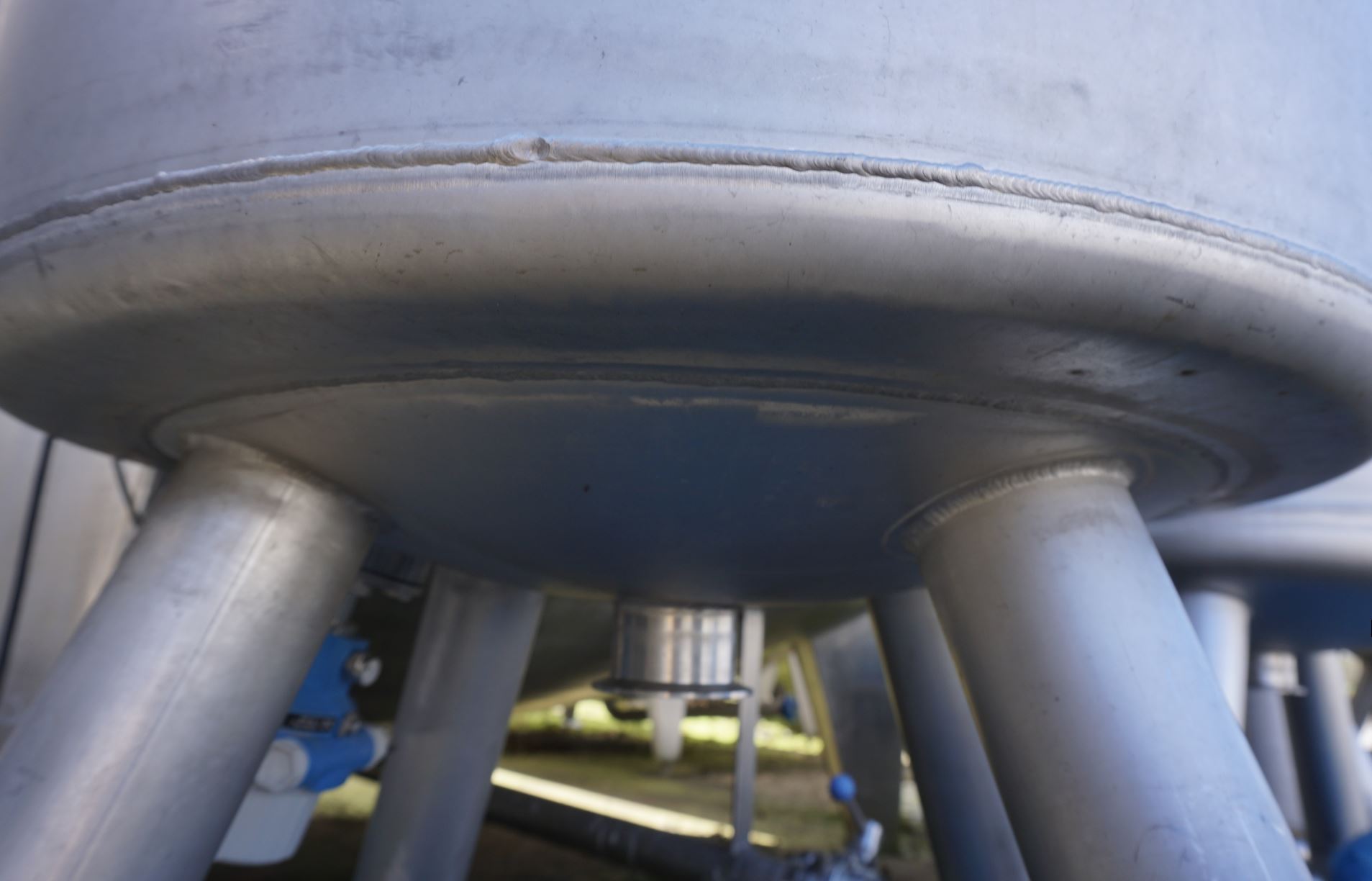

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

  • Note on supports

  • hoehenverstellbar

Fixtures and fittings

  • Outlet nozzle

  • 65

  • Fixtures and fittings

  • Lifting lugs

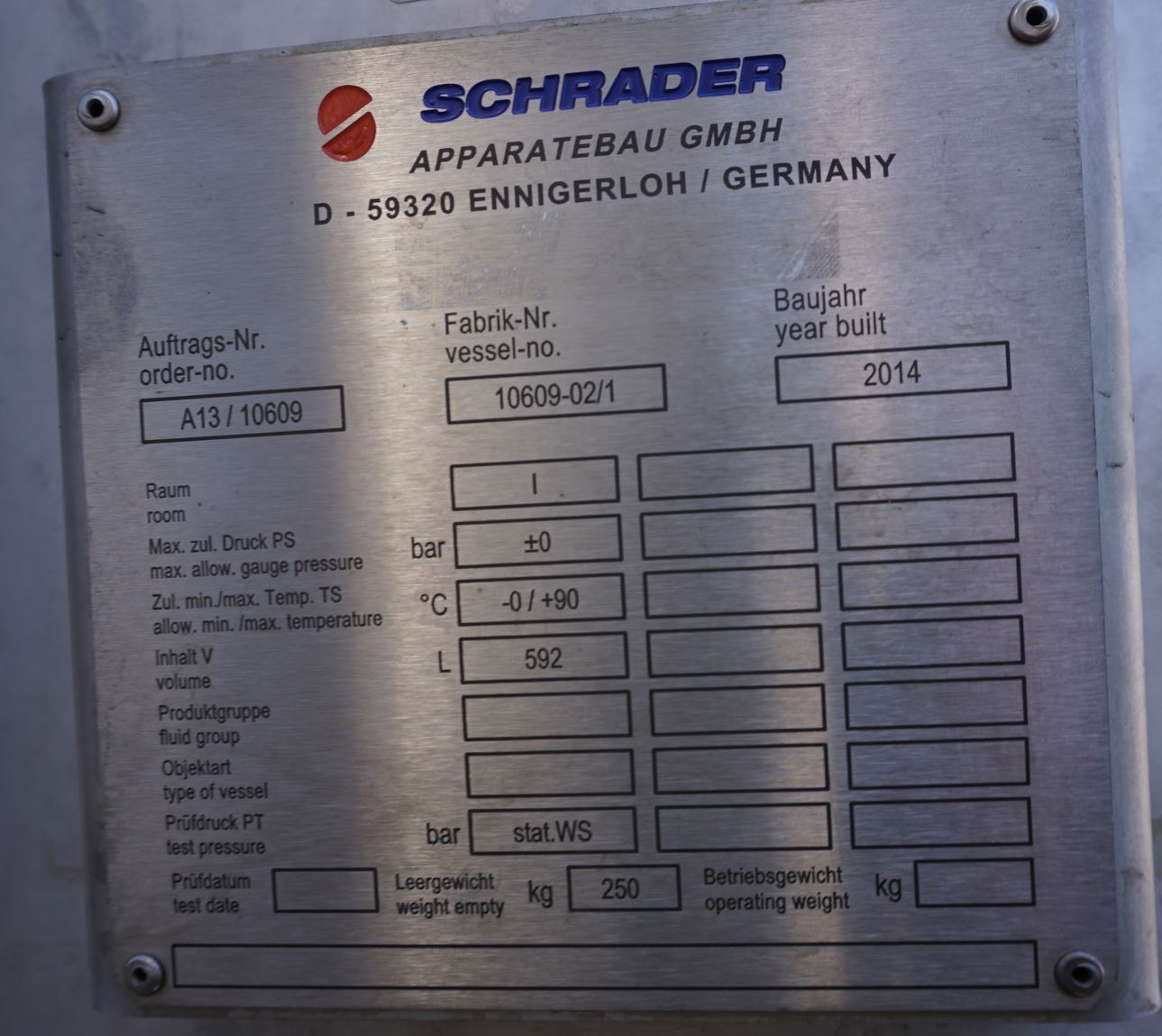

  • Additional fixtures and fittings

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • CIP/cleaning system

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,

Chemistry and pharmaceuticals : Pharmaceuticals tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Cold water tank,
