Product no. M-2797

Container 592 liters made of V4A single-walled, used, standing

EUR 2.100,00

add. 19 % VAT excl. shipping costs


Volume approx. 592.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

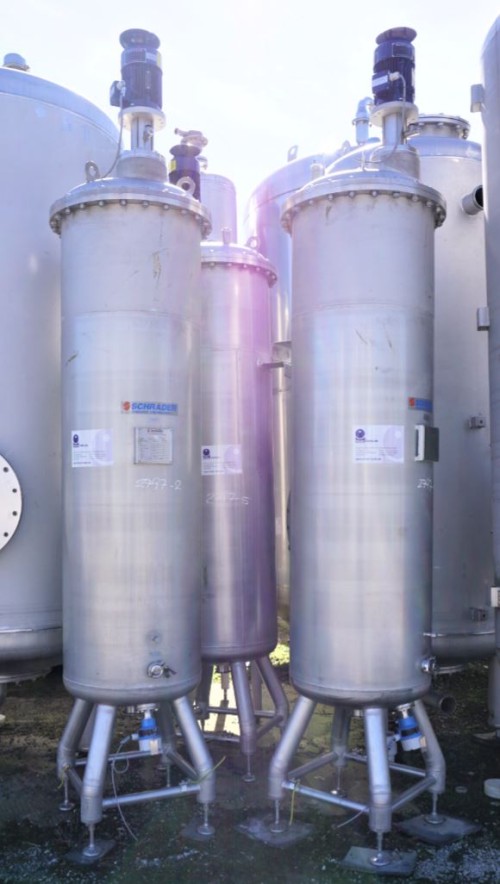

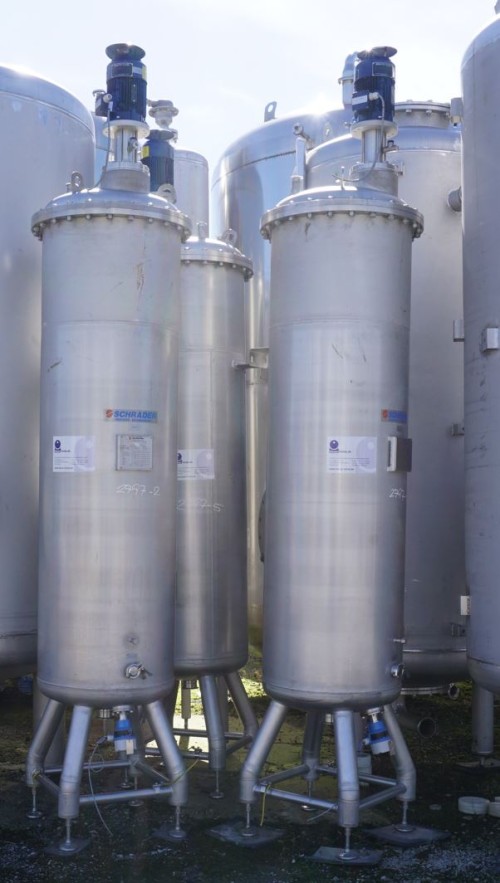

Container 592 liters made of V4A single-walled, used consists of the material 1.4401(AISI316) V4A. The volume is approx. 592.00 litres.  Container 592 liters made of V4A single-walled, used was last used in the following area: CIP/cleaning system. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing, Cleaning/CIP,

General

  • Volume approx.

  • 592,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2014

  • Manufacturer

  • Schrader

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 560 mm

  • Cyl. height

  • 1.950 mm

  • Foot height

  • 680 mm

  • Total height

  • 3.230 mm

Design

  • Weight approx.

  • 235,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

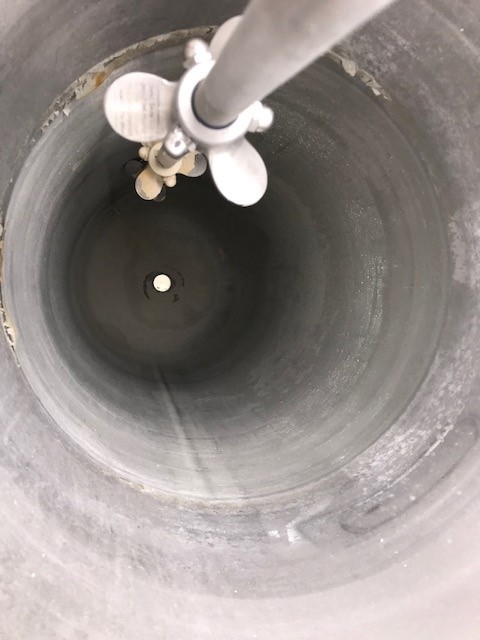

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Head central

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

  • Note on supports

  • oehenverstellbar

Fixtures and fittings

  • Outlet nozzle

  • 65

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

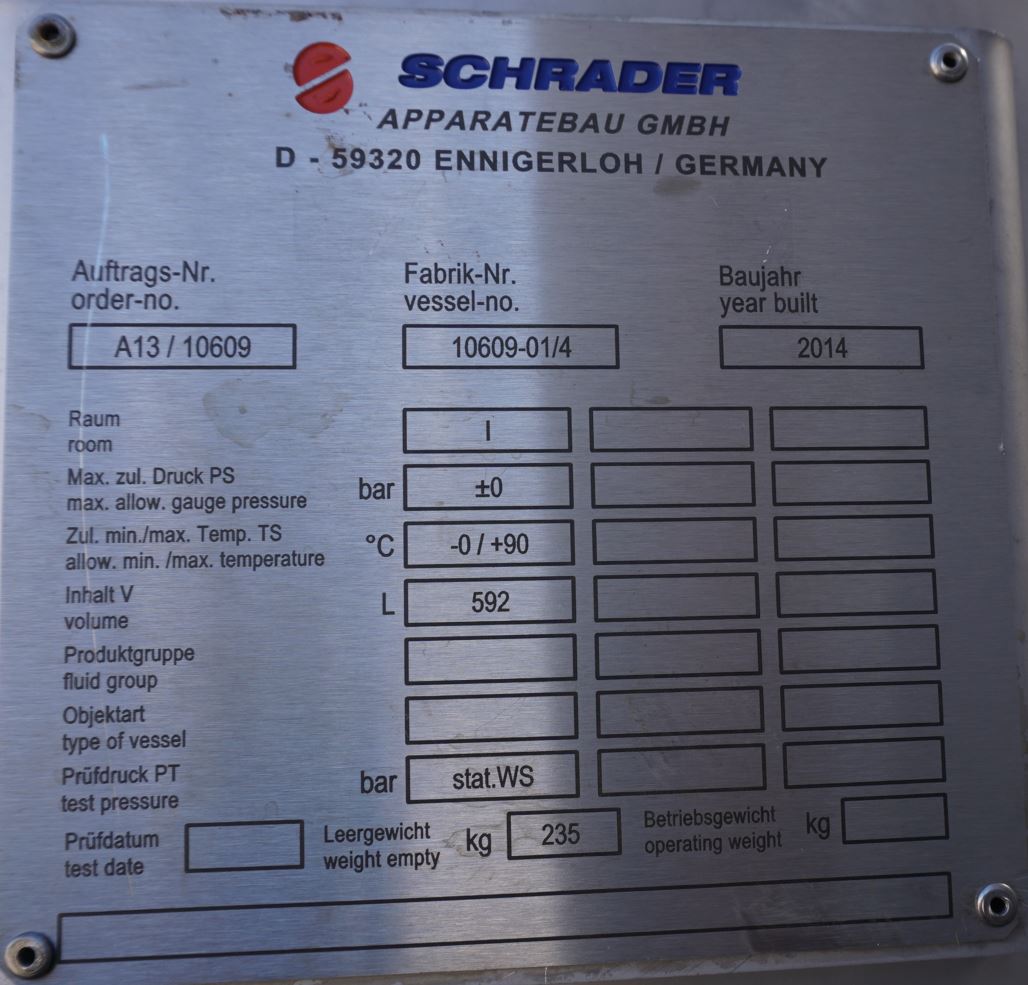

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • CIP/cleaning system

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,

Chemistry and pharmaceuticals : Pharmaceuticals tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Cold water tank,
