Behälter 50.000 Liter aus V2A, isoliert, gebraucht

Product no. M-2937

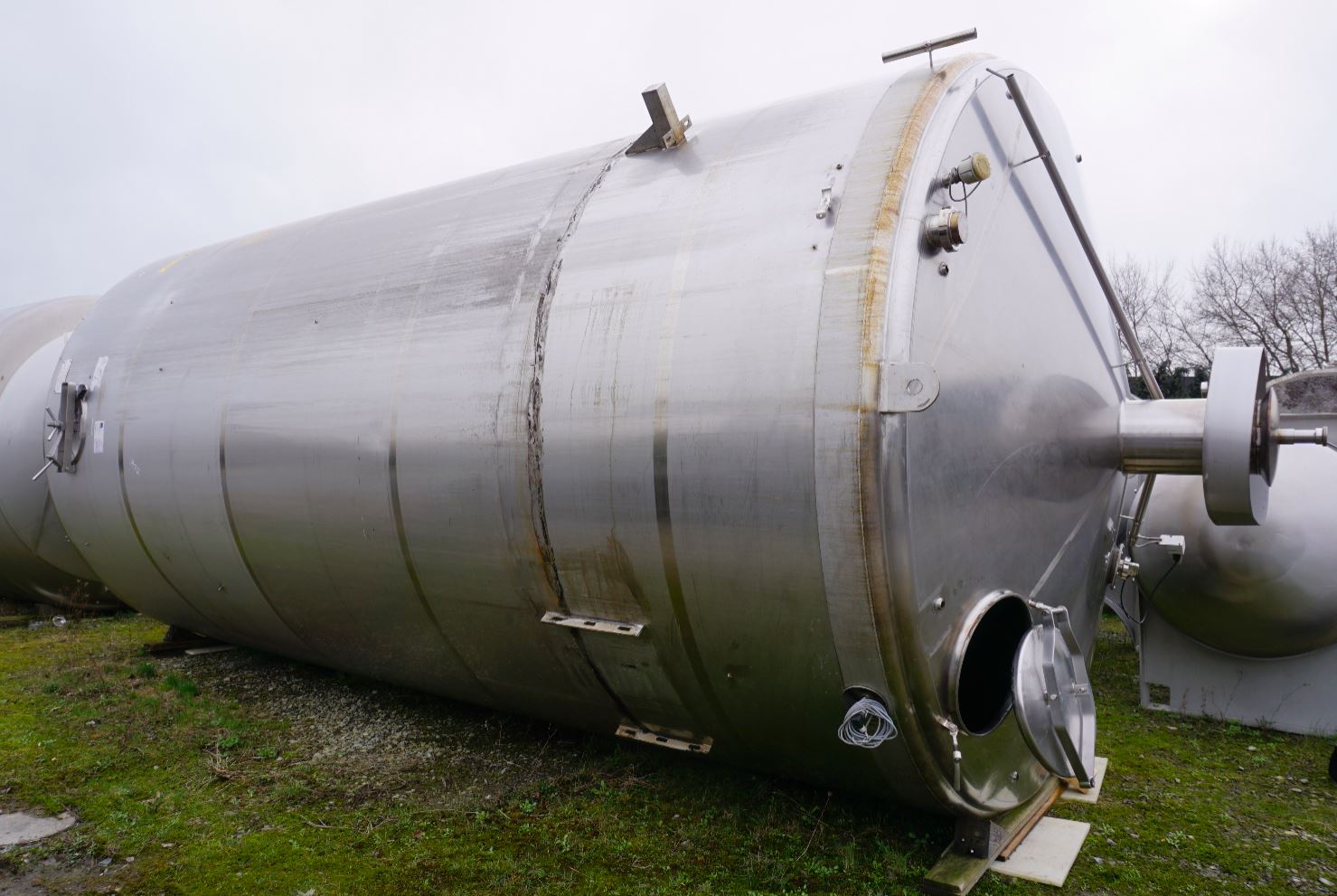

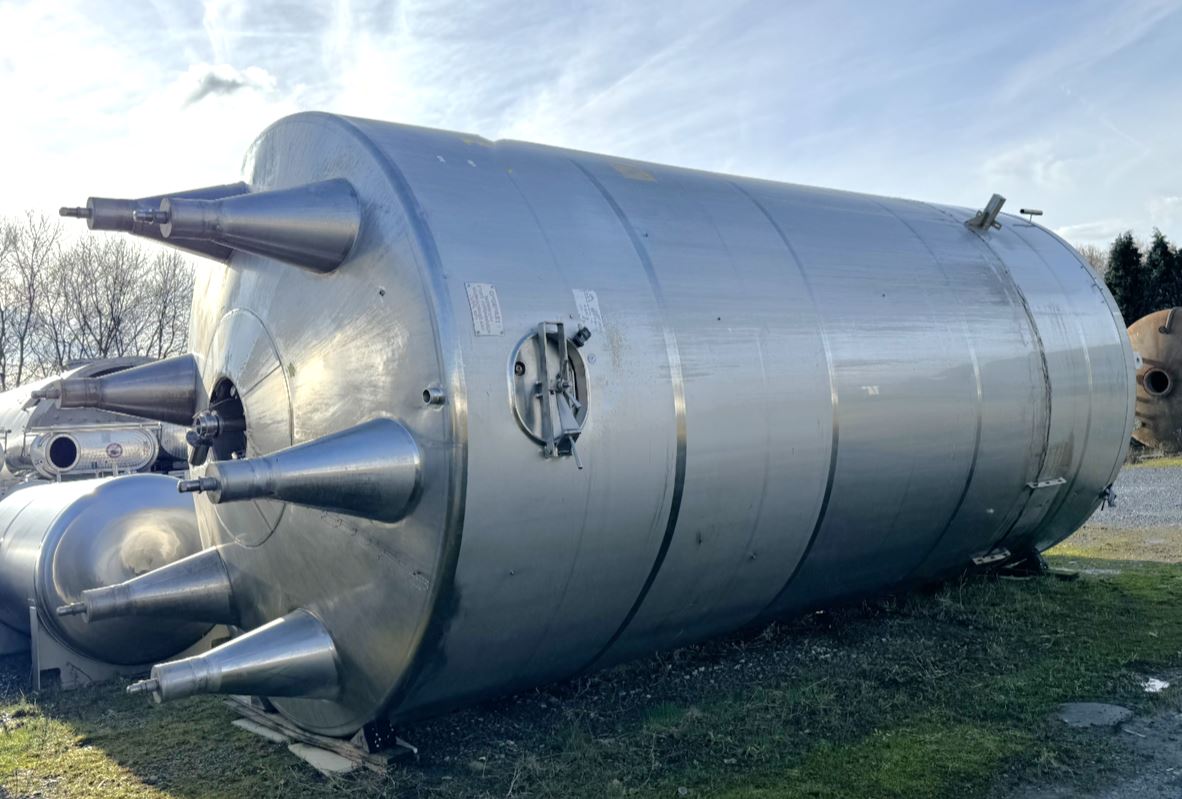

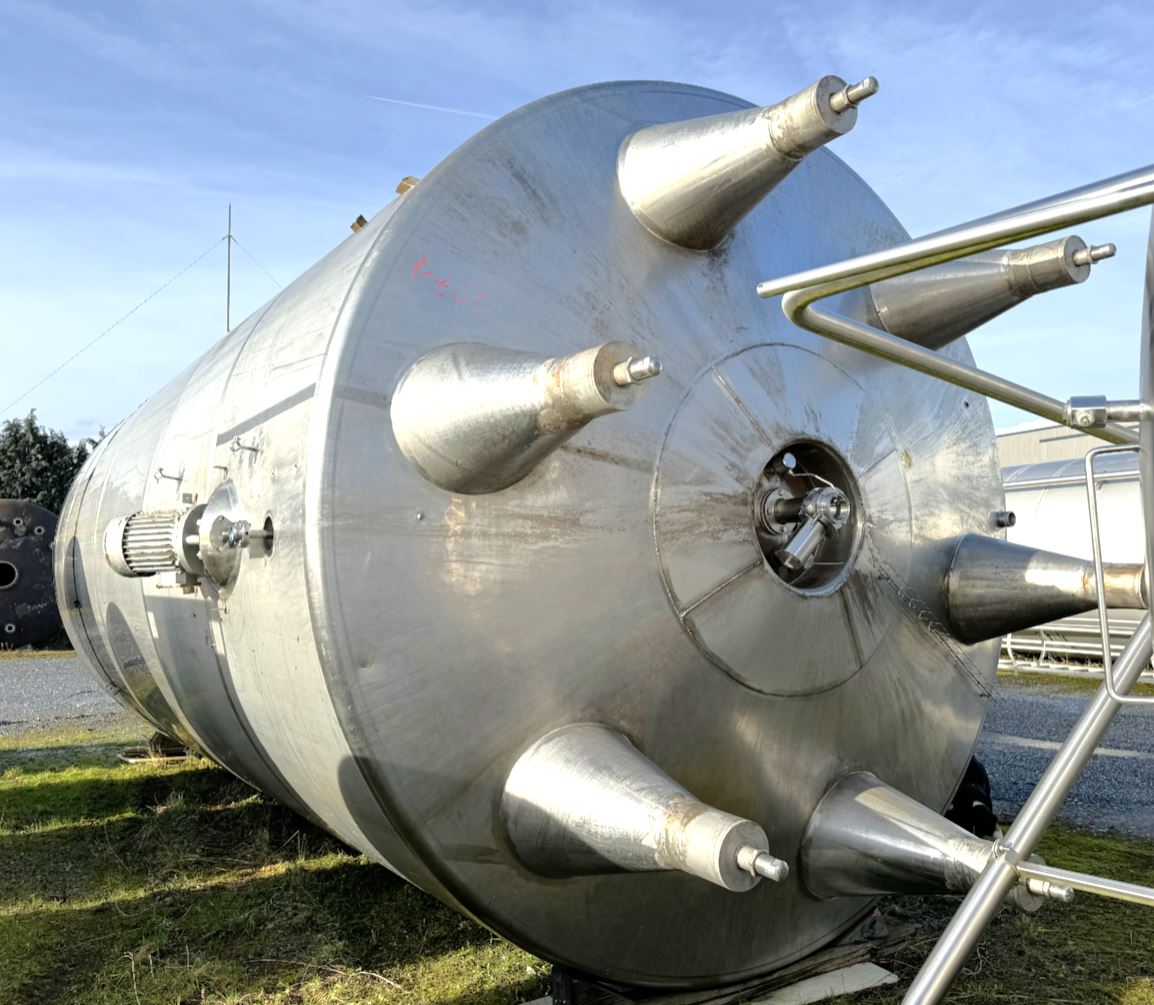

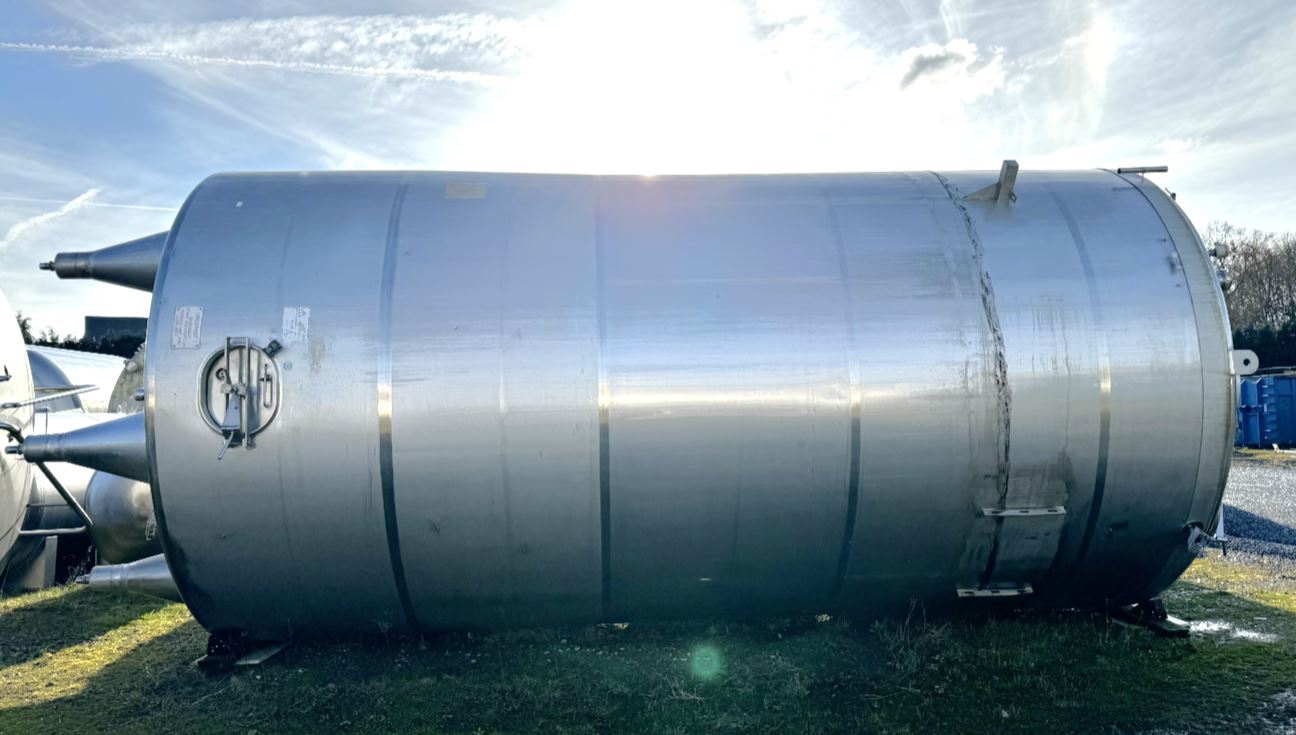

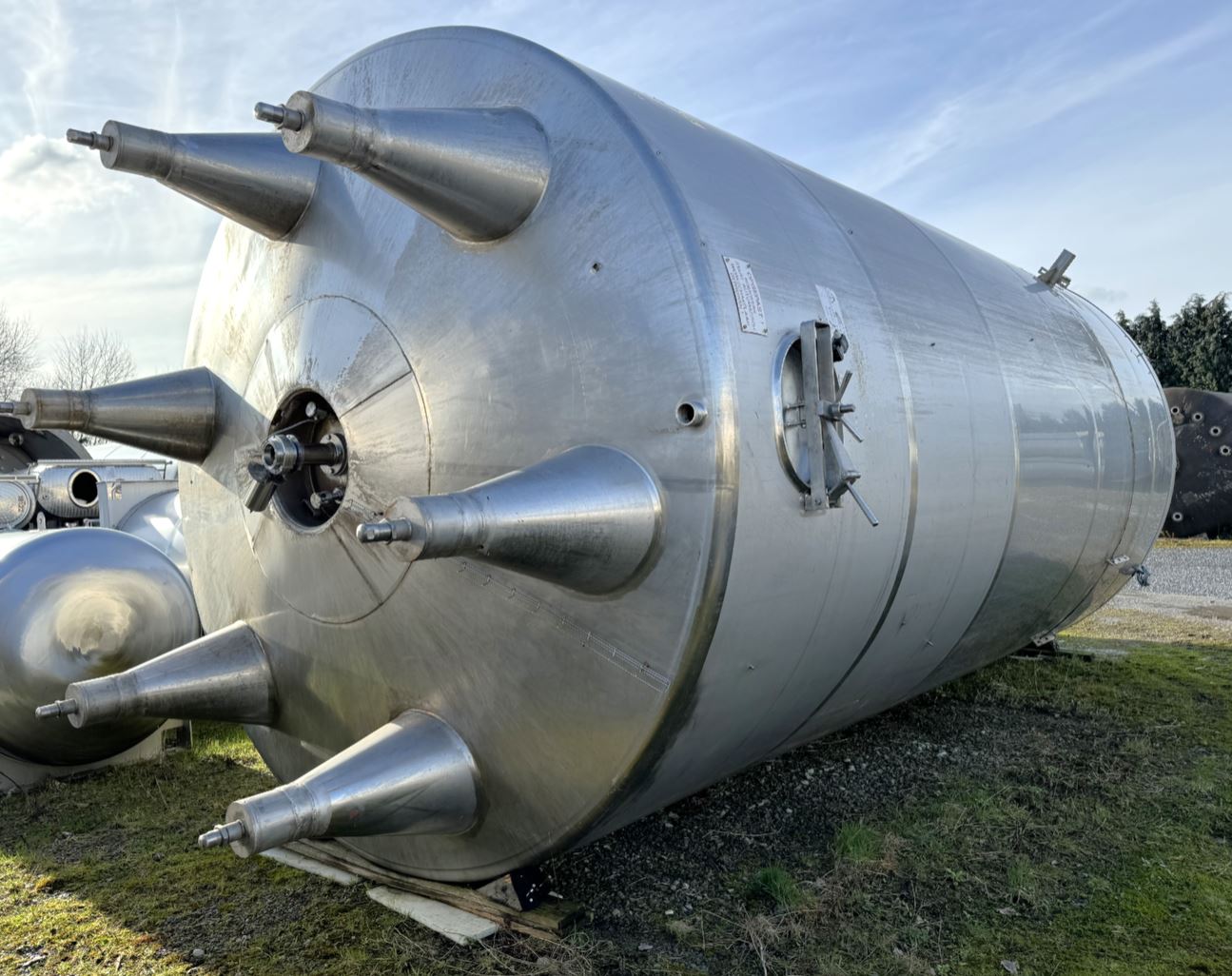

Container 50.000 liters made of V2A, isolated, used, standing

Name: Behälter 50.000 Liter aus V2A, isoliert, gebraucht
SKU: M-2937
Price: 21500 EUR

EUR 21.500,00

add. 19 % VAT excl. shipping costs

Volume approx. 50,000.00 litres

Behälter 50.000 Liter aus V2A, isoliert, gebraucht

more details

Product description

Container 50.000 liters made of V2A, isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 50,000.00 litres. The diameter inside includes 3,200 mm. Container 50.000 liters made of V2A, isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

Volume approx.

50.000,00 litres

Structure

Standing

Condition

Used

Dimensions approx.

Internal diameter

3.200 mm

External diameter

3.300 mm

Cyl. height

6.300 mm

Foot height

900 mm

Total height

8.200 mm

Design

Weight approx.

4.000,00 kg

Weight per unit volume approx.

1.000,00 kg/m³

Insulation

Insulated area

Shell and floor

Insulation cladding

Fully welded stainless steel

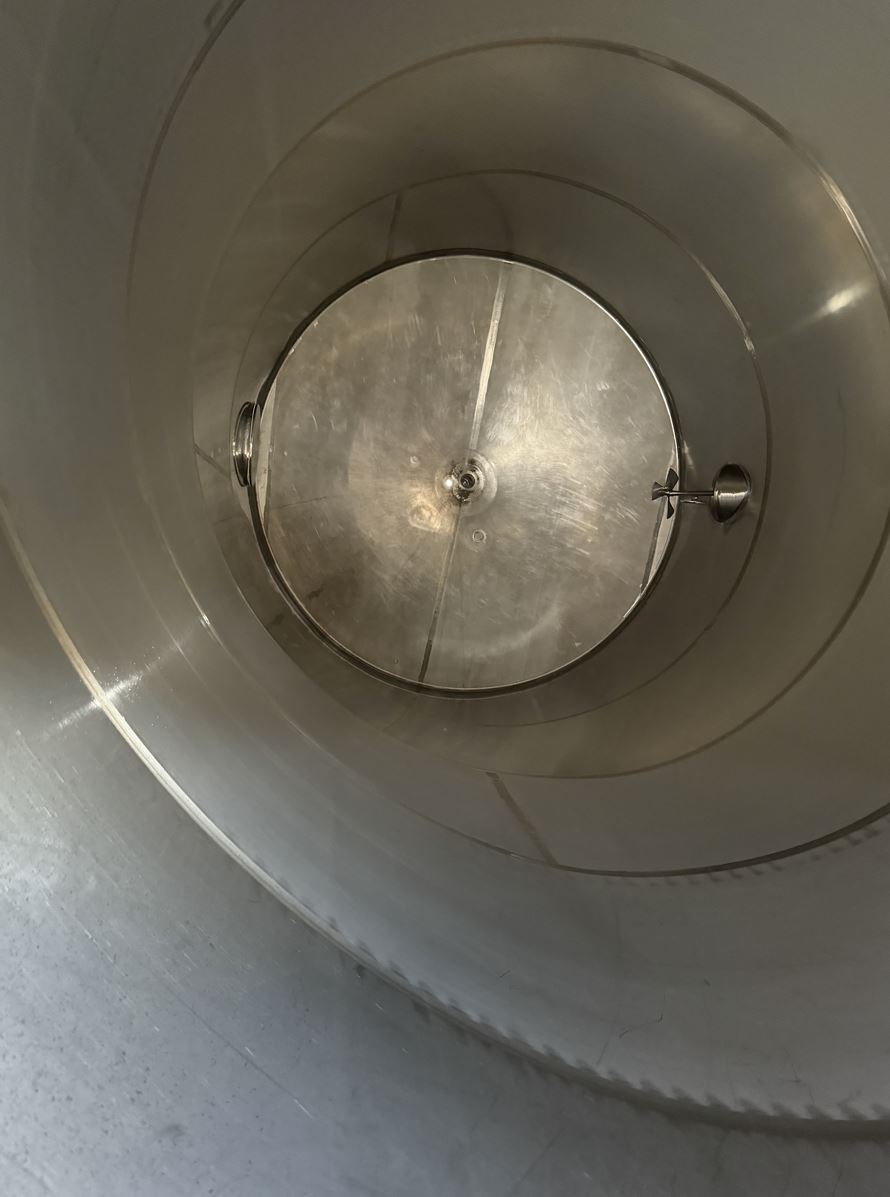

Interior surface

Smoothed

Exterior surface

Smoothed

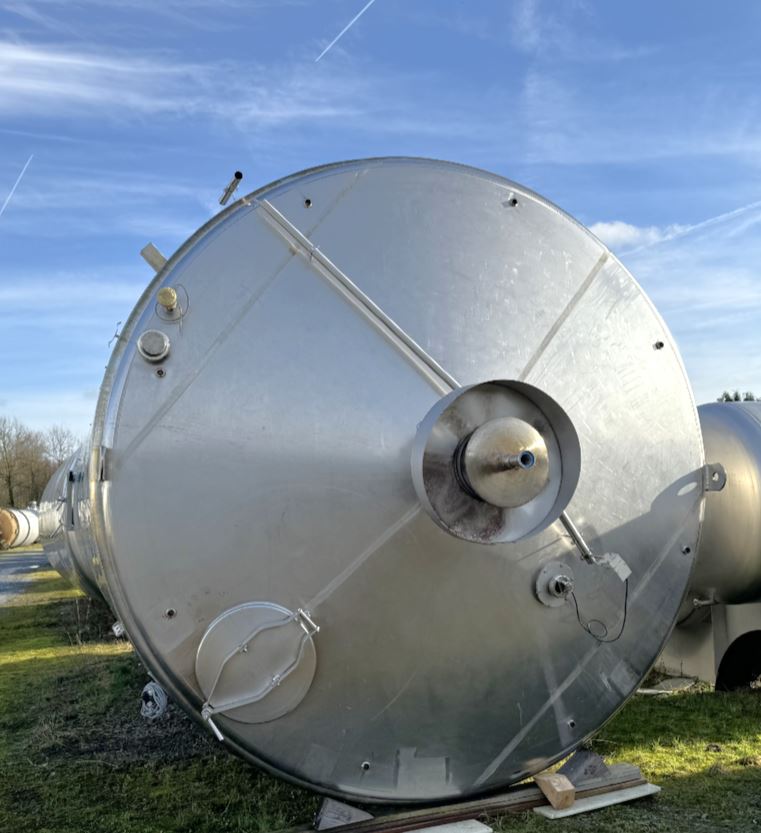

Floor type

Conical bottom

Head design

Conical bottom

Product chamber operating pressure

Atmospheric/unpressurised bar

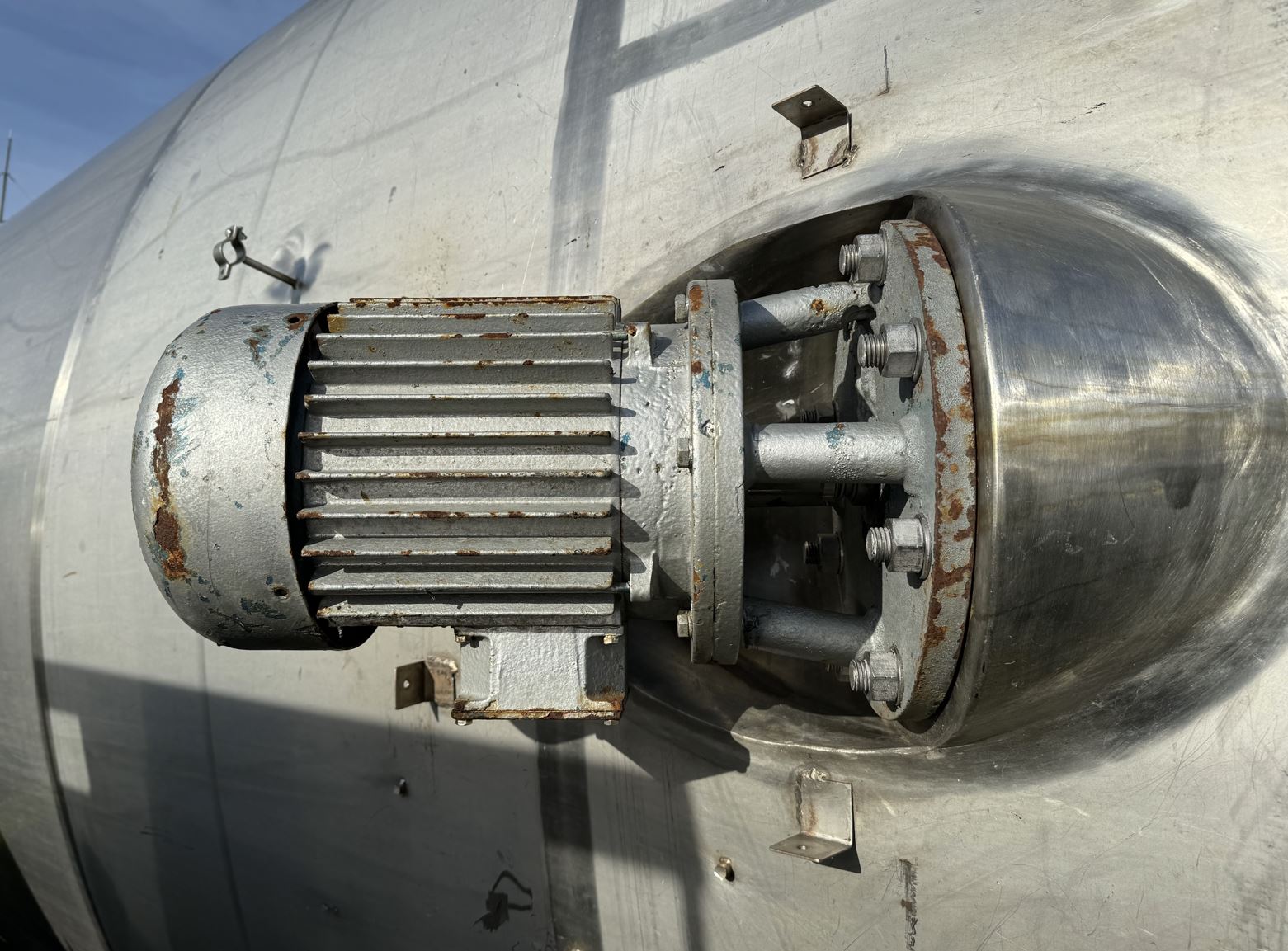

Agitator

Agitator quantity

1 (piece)

Agitator type

Propeller

Agitator position

At bottom at the side in shell

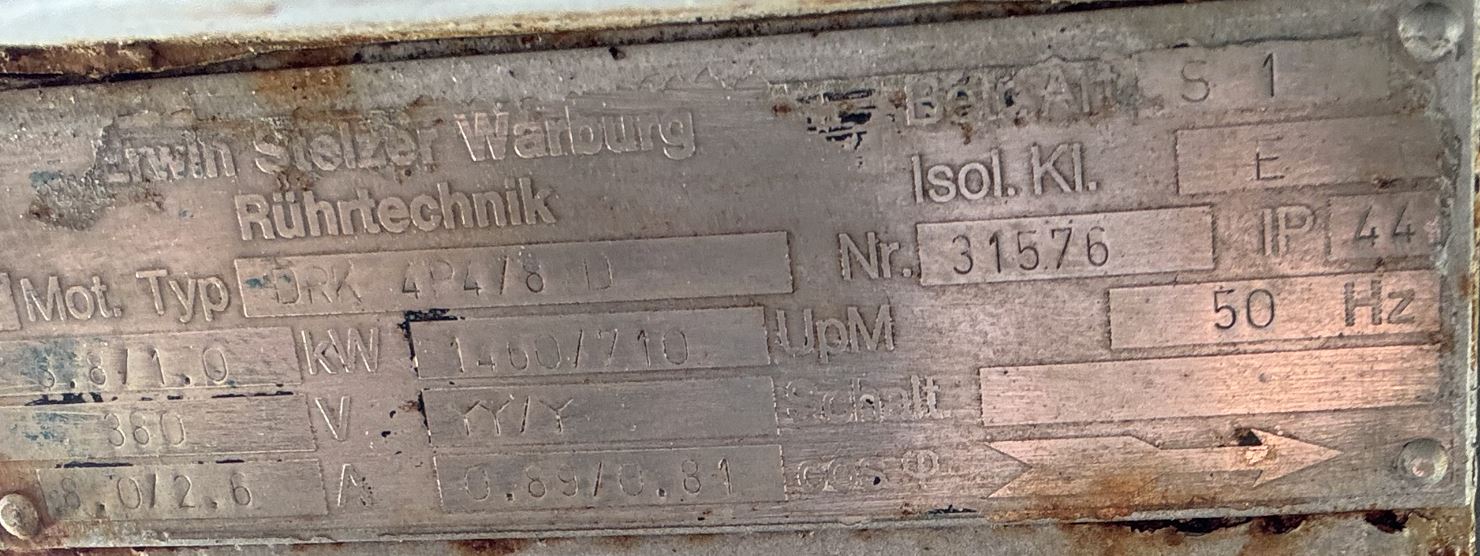

Agitator 1 - Output

3,8 / 1,0 kW

Agitator 1 - RPM

1460/710 UpM

Agitator 1 - Voltage

380 V

Supports

Supports

Stainless steel feet

Number of feet

6 (piece)

Note on supports

höhenverstellbar

Fixtures and fittings

Manway 1 size

500 DN mm

Manway position

In shell and head

Outlet nozzle

Cleaning/CIP nozzle

in head

Fixtures and fittings

Lifting lugs

Additional fixtures and fittings

Air vent

Technical documentation

Technical documentation

None

Other

Last usage

Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
