Product no. M-2598

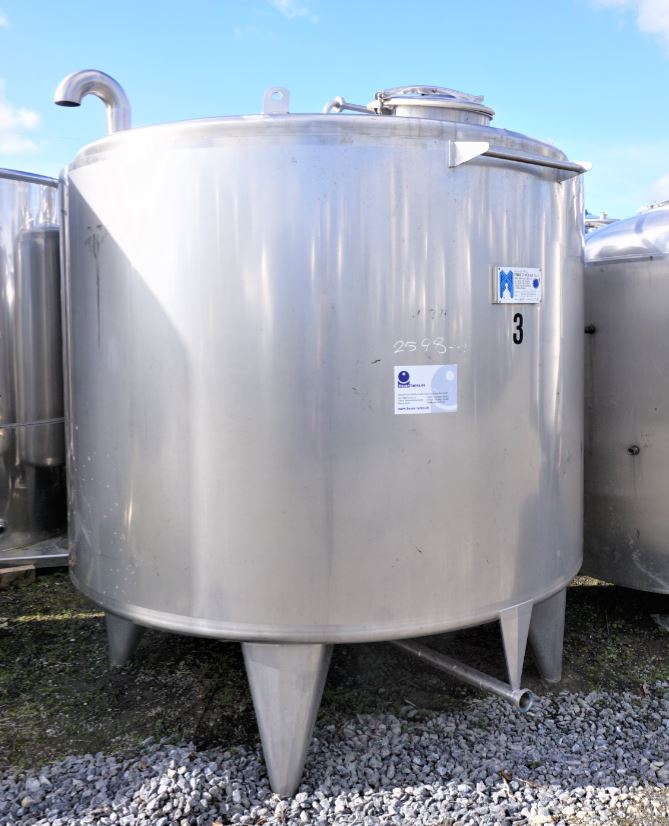

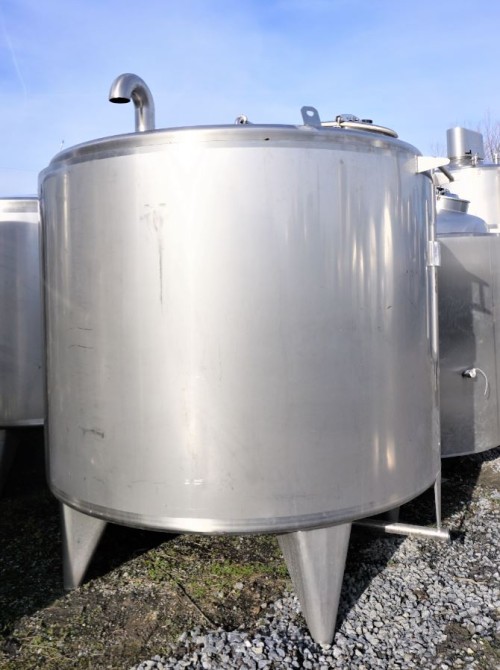

Container 5.000 liters made of V2A isolated, temperature-controllable, used, standing
EUR 8.800,00
add. 19 % VAT excl. shipping costs
Volume approx. 5,000.00 litres
Product description
Container 5.000 liters made of V2A isolated, temperature-controllable, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 5,000.00 litres. The diameter inside includes 2,000 mm. Container 5.000 liters made of V2A isolated, temperature-controllable, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Cooling, Tempering, Processes,General
Volume approx.
5.000,00 litres
Structure
Standing
Year of manufacture
2012
Manufacturer
Fracchiolla Italien
Condition
Used
Dimensions approx.
Internal diameter
2.000 mm
External diameter
2.100 mm
Cyl. height
1.500 mm
Foot height
600 mm
Total height
2.600 mm
Design
Weight approx.
1.500,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
yes
Insulated area
Shell and floor
Insulation cladding
Fully welded stainless steel
Interior surface
Smoothed
Exterior surface
Smoothed

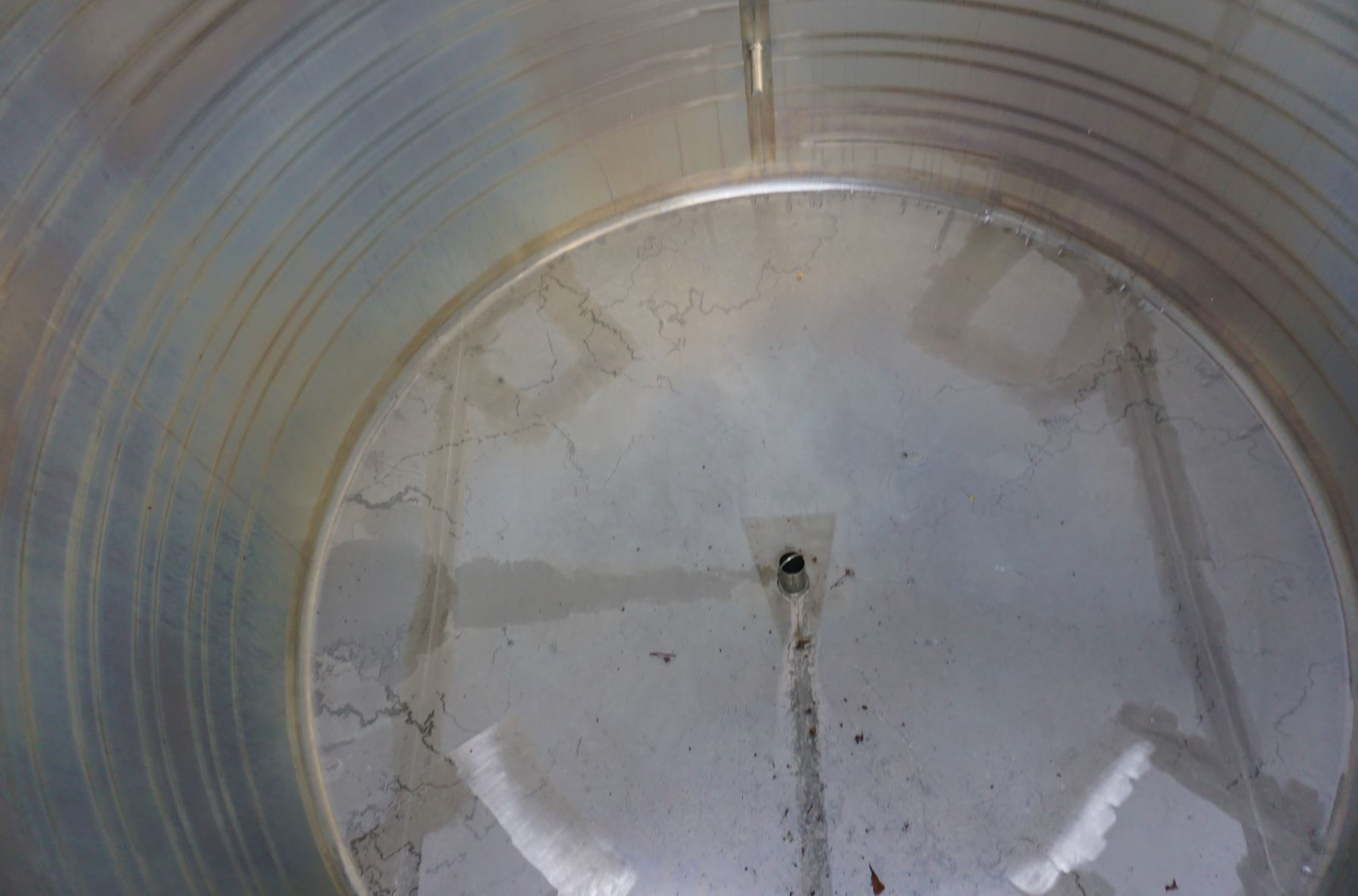

Floor type
Conical bottom
Head design
Conical bottom
Equipment
Temperature-controllable
Yes

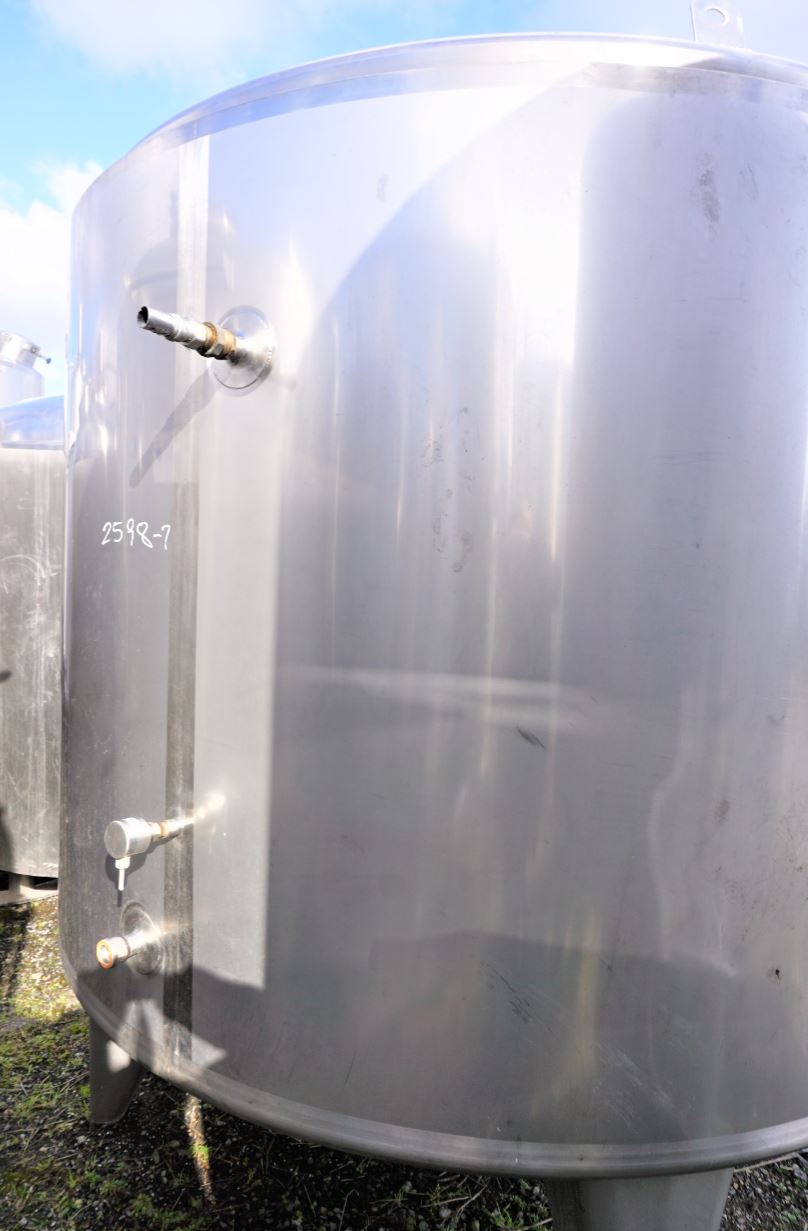

Temperature control area
Shell area
Temperature control system
Half-pipe coils

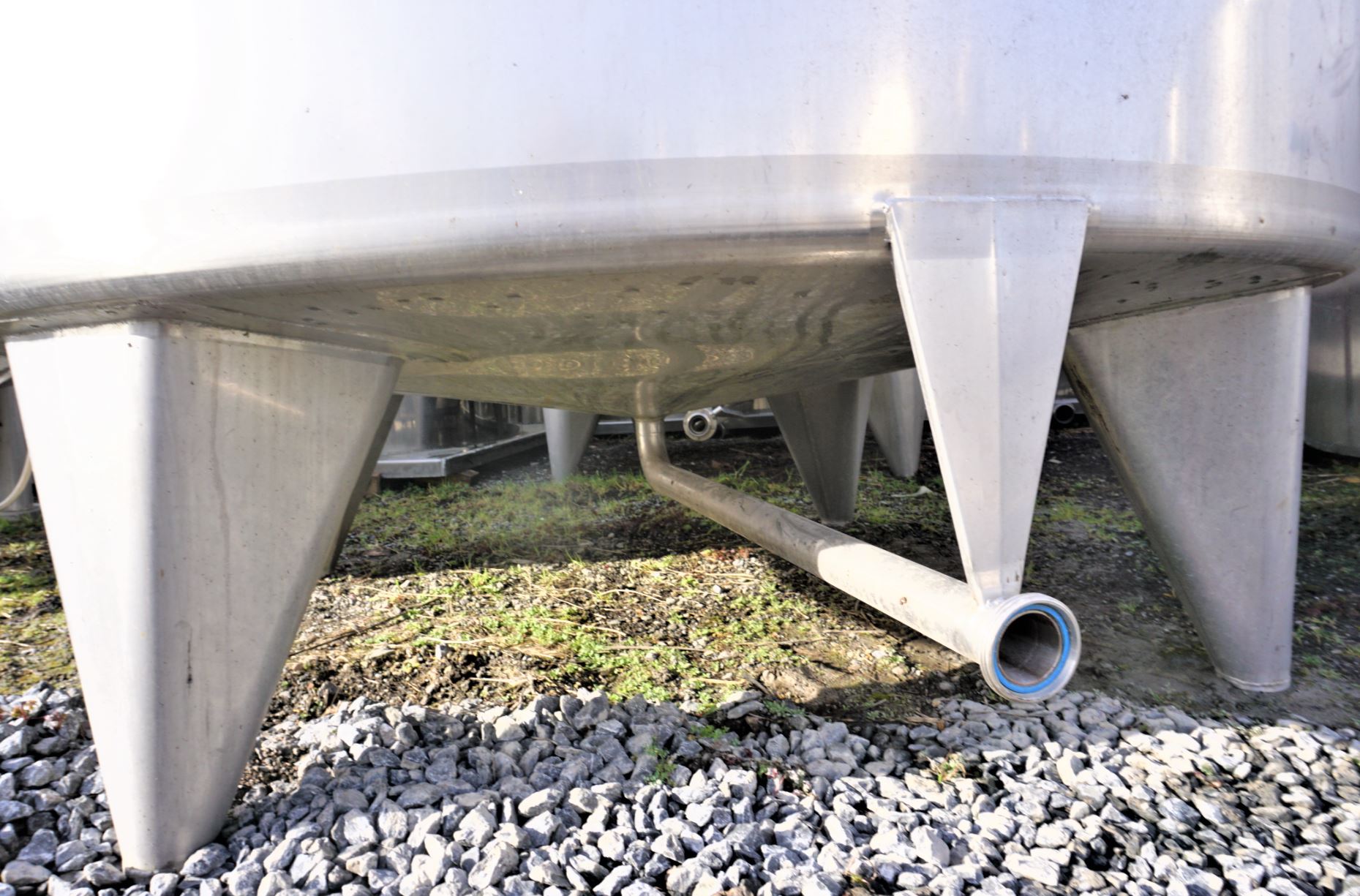

Supports
Supports
Stainless steel feet
Number of feet
4 (piece)
Note on supports
höhenverstellbar
Fixtures and fittings

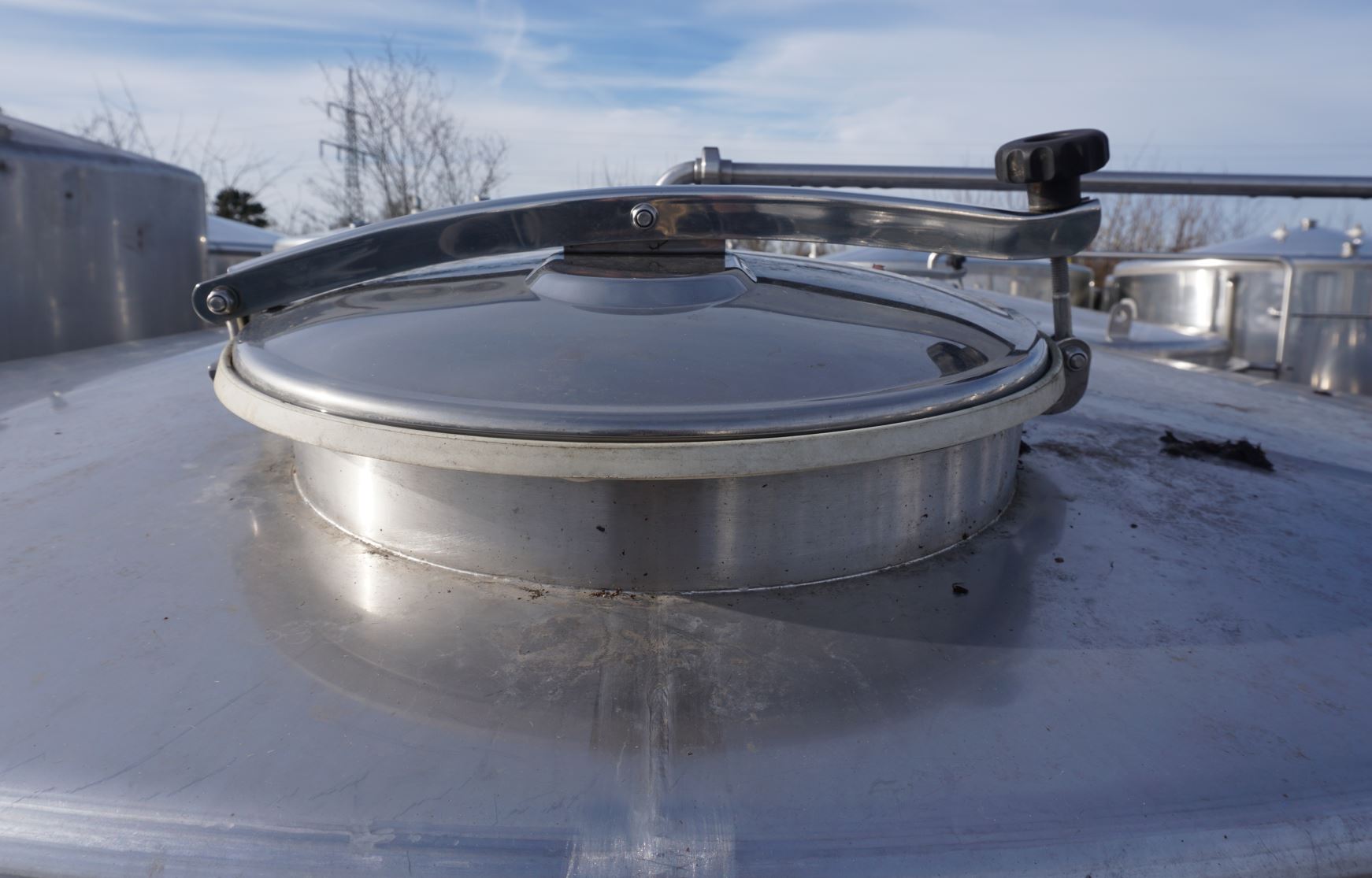

Manway 1 size
400 DN mm
Manway position
In head

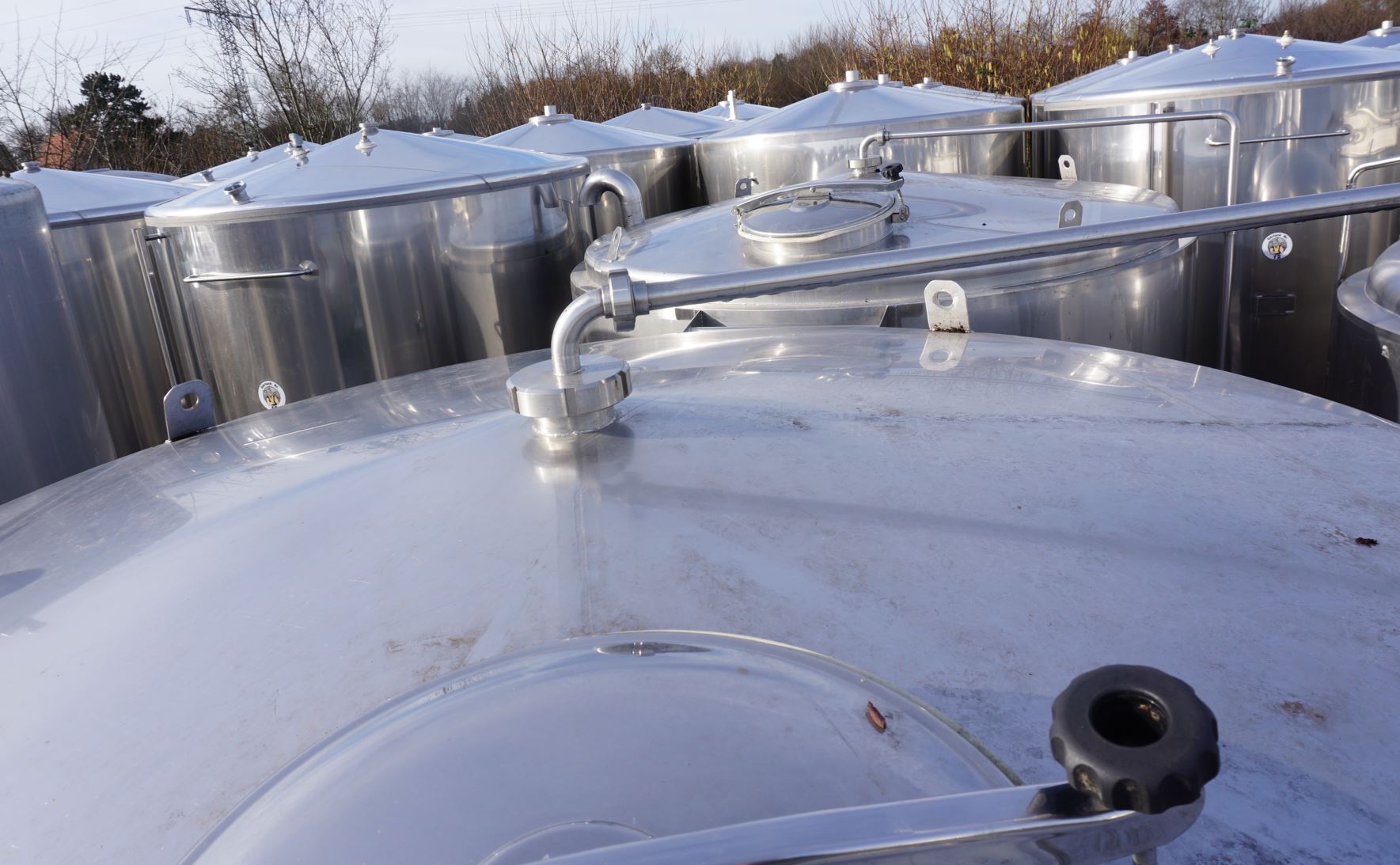

Nozzles/connectors in head
1xDN80 (piece)
Outlet nozzle
50

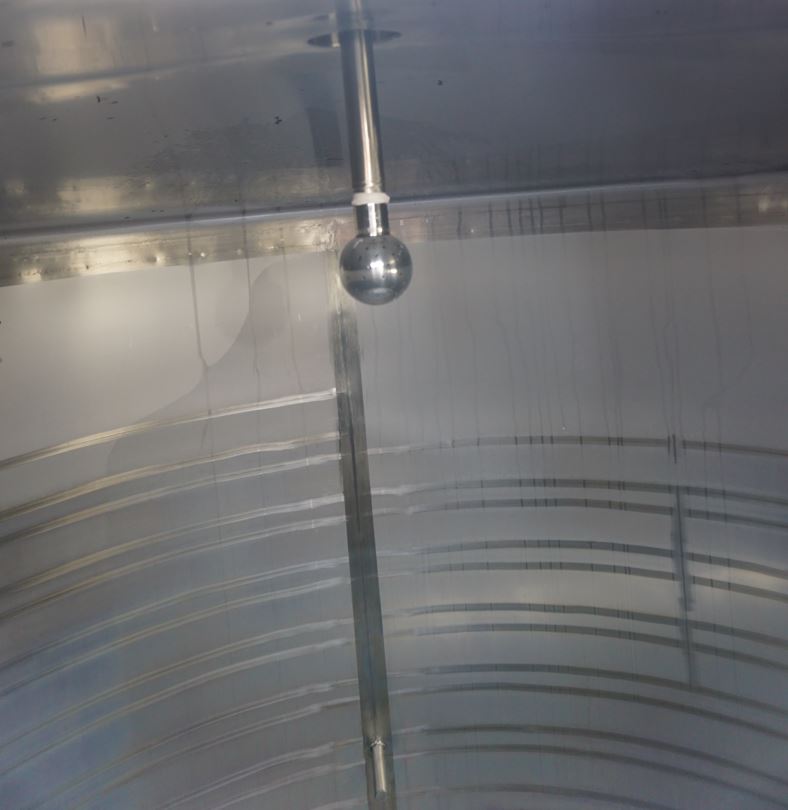

Cleaning/CIP nozzle
in head
Fixtures and fittings
Lifting lugs
Additional fixtures and fittings

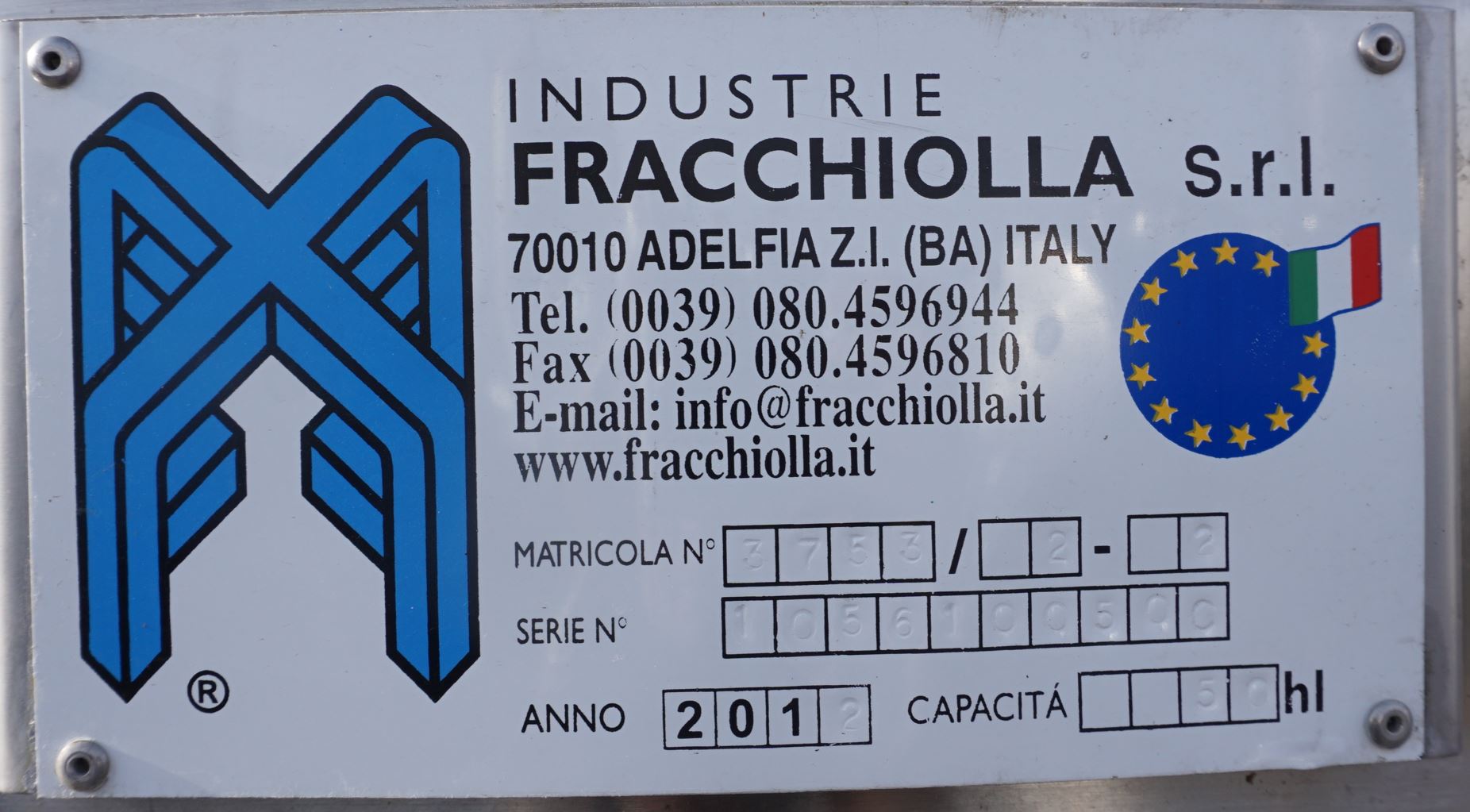

Nameplate
Technical documentation
Technical documentation
None
Other
Note
Isoliermantel vermutlich ohne Dämmung, Luftisoliert
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank,
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank, Cooling tank,
Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank,
