Product no. M-2833

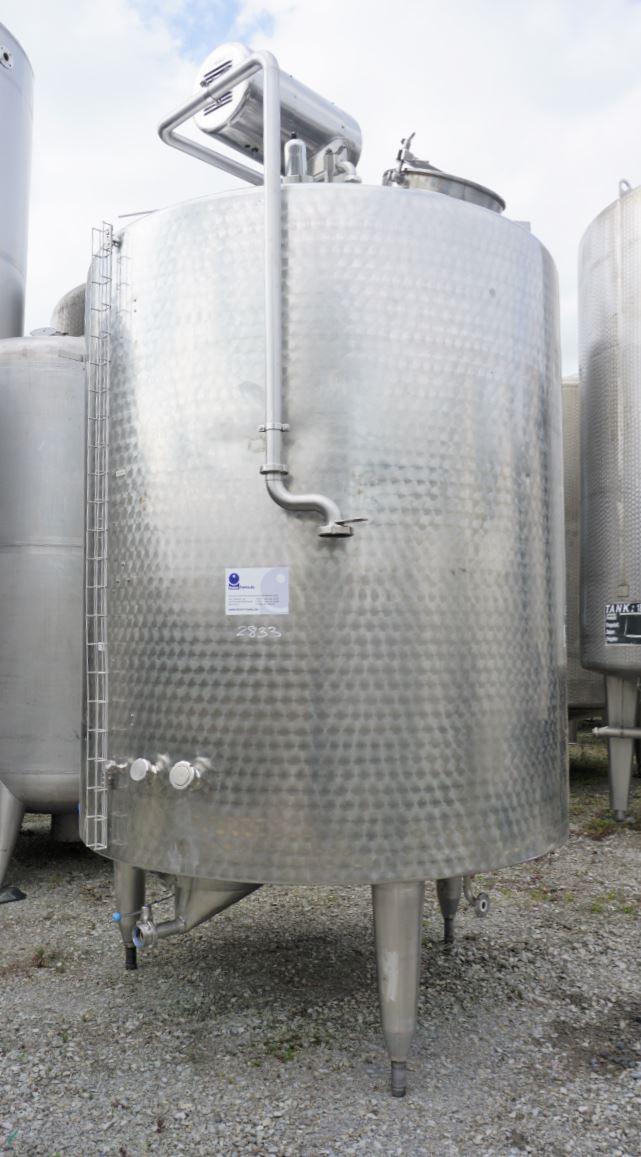

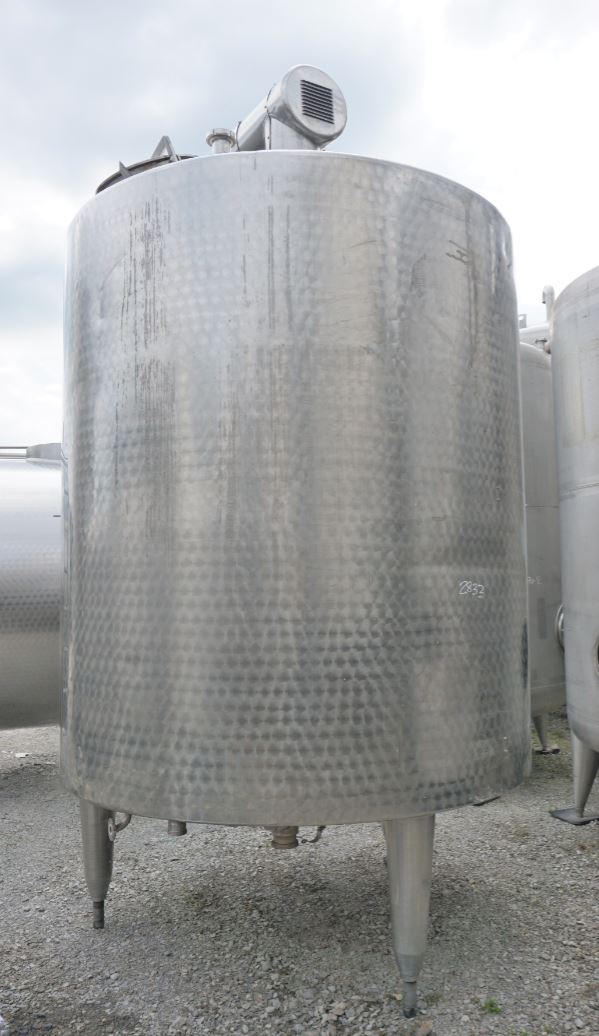

Container 5.000 liters made of V2A, isolated, used, standing
EUR 6.200,00
add. 19 % VAT excl. shipping costs
Volume approx. 5,000.00 litres
Product description
Container 5.000 liters made of V2A, isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 5,000.00 litres. The diameter inside includes 1,800 mm. Container 5.000 liters made of V2A, isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Mixing,General
Volume approx.
5.000,00 litres
Structure
Standing
Condition
Used
Dimensions approx.
Internal diameter
1.800 mm
External diameter
2.000 mm
Cyl. height
2.200 mm
Foot height
720 mm
Total height
4.200 mm
Design
Weight approx.
1.500,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
yes
Insulated area
Shell and floor
Insulation cladding
Fully welded stainless steel
Interior surface
Smoothed
Exterior surface
Marbled

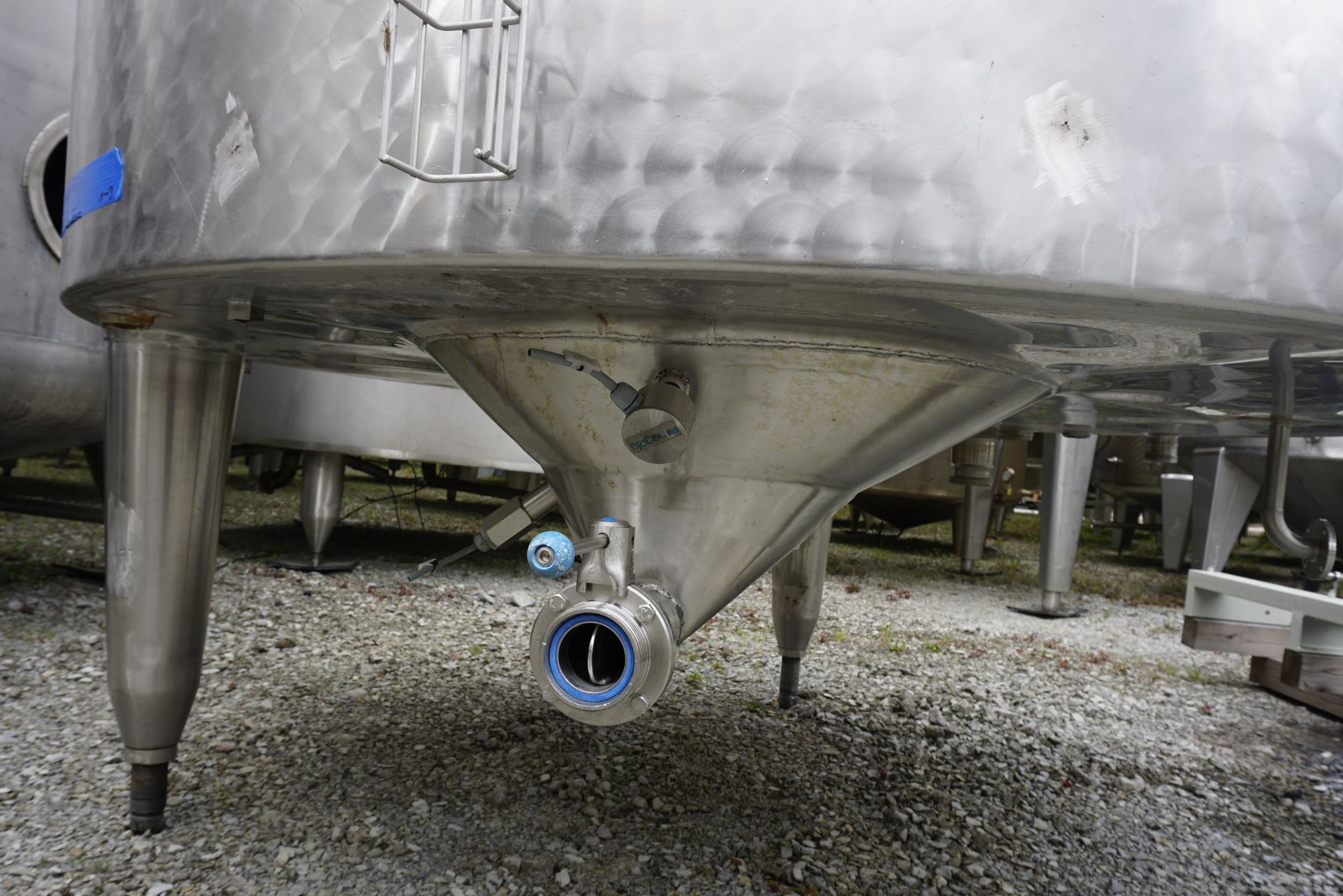

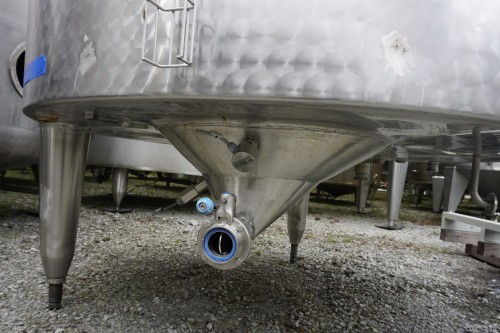

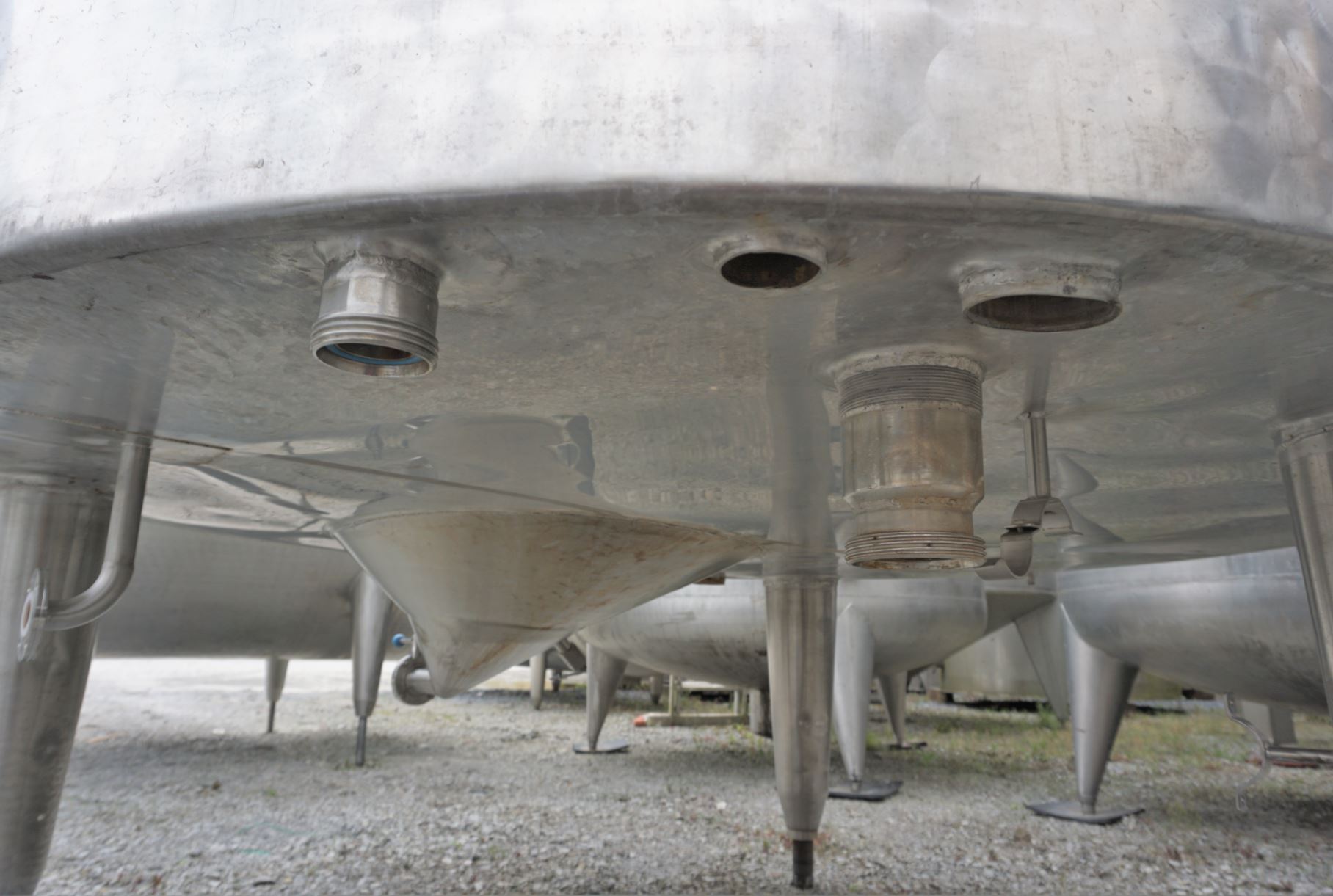

Floor type
Conical bottom
Head design
Dished

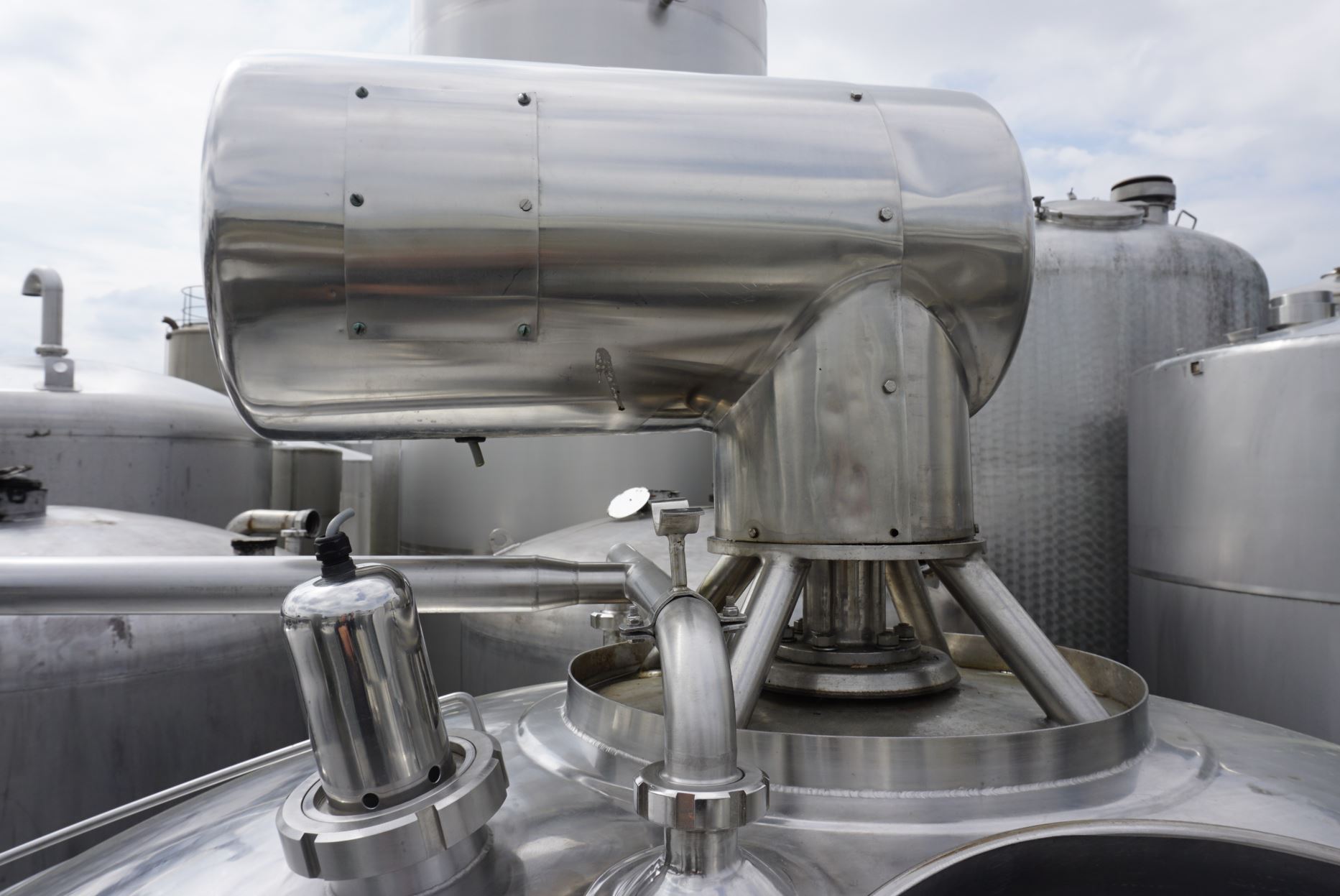

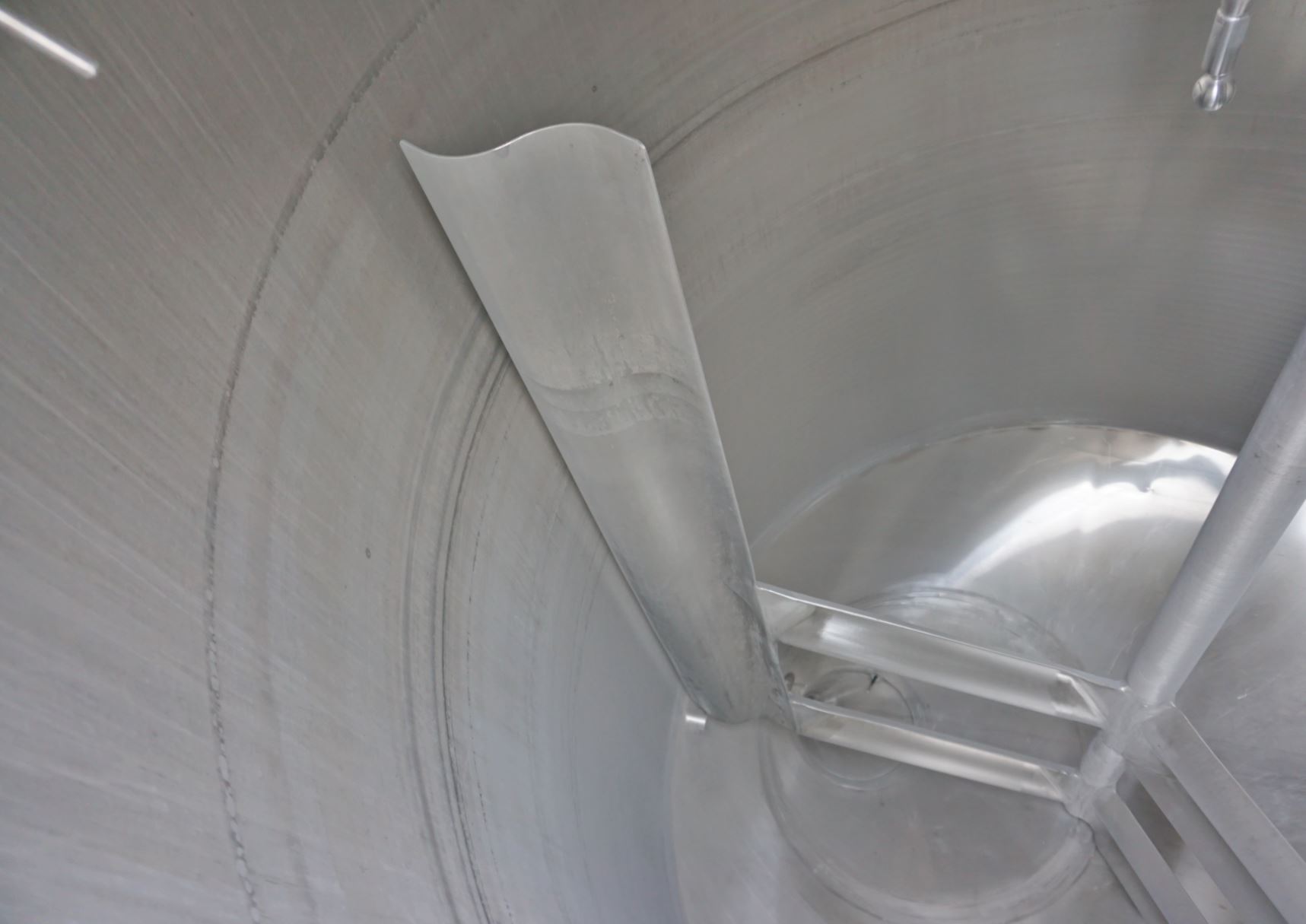

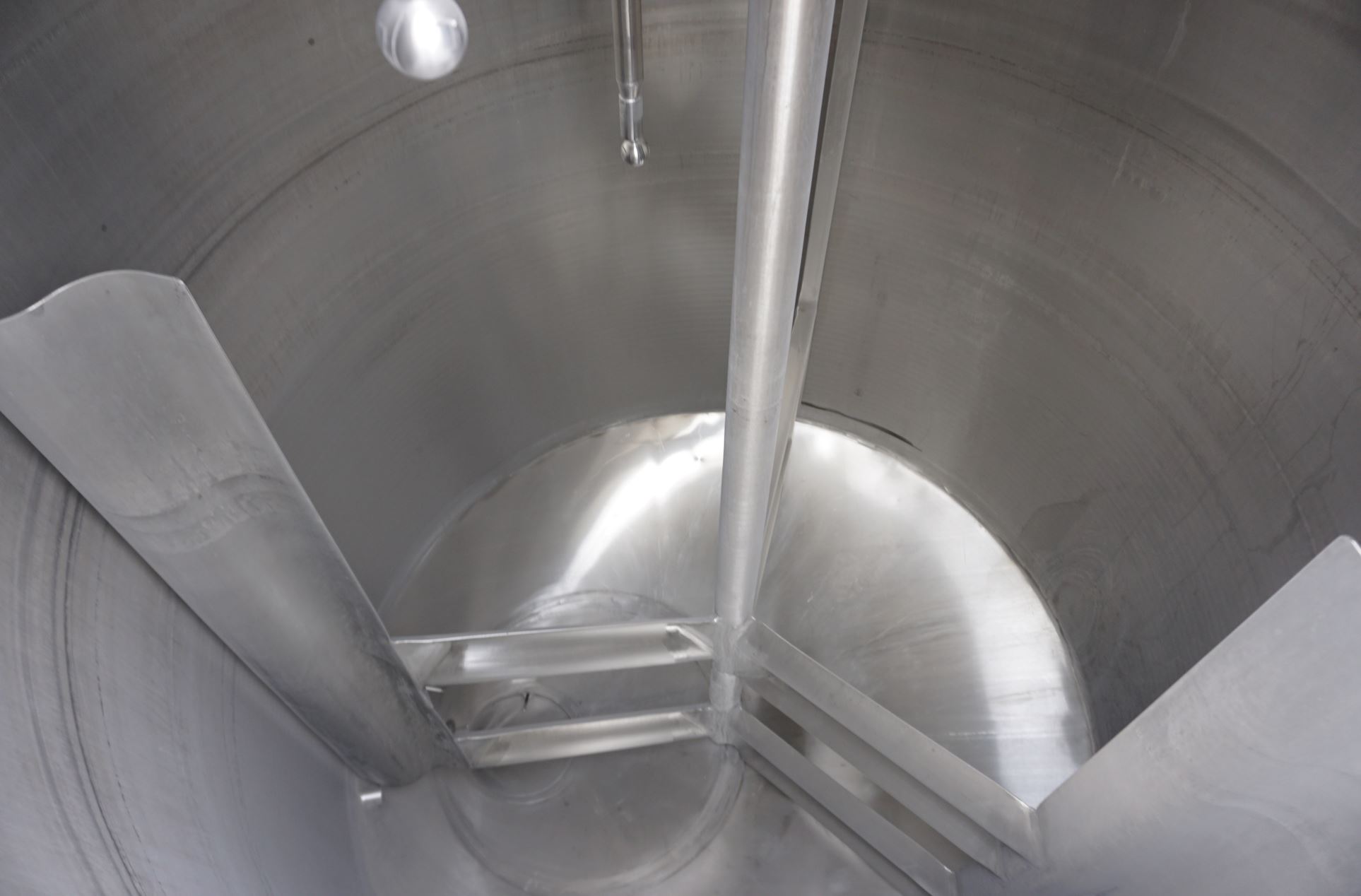

Agitator
Agitator quantity
1 (piece)
Agitator type
Wall scraper
Agitator position
Head central
Supports
Supports
Stainless steel feet
Number of feet
3 (piece)
Note on supports
höhenverstellbar
Fixtures and fittings

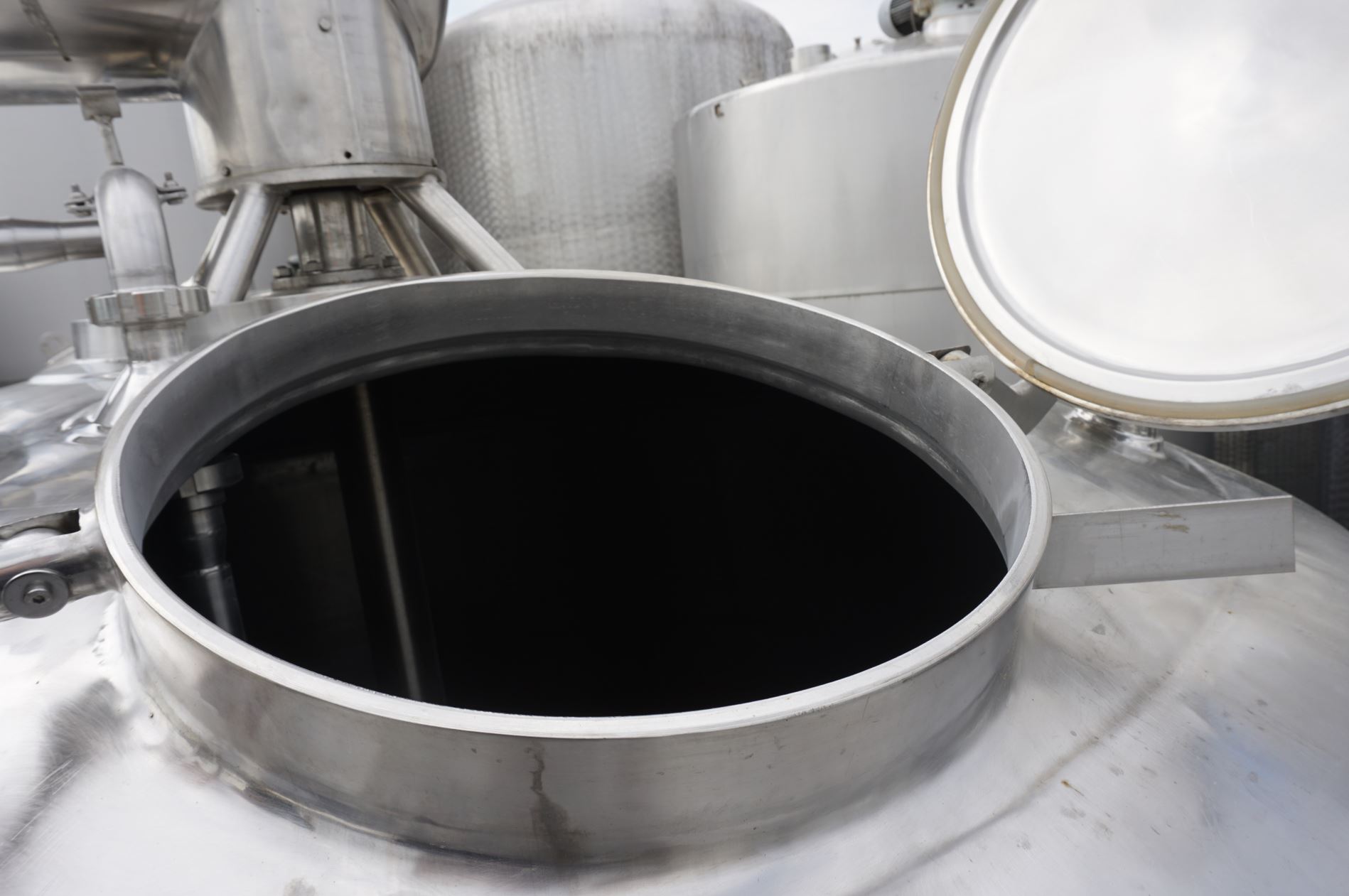

Manway 1 size
430 DN mm
Manway position
In head
Nozzle connector
Screw thread

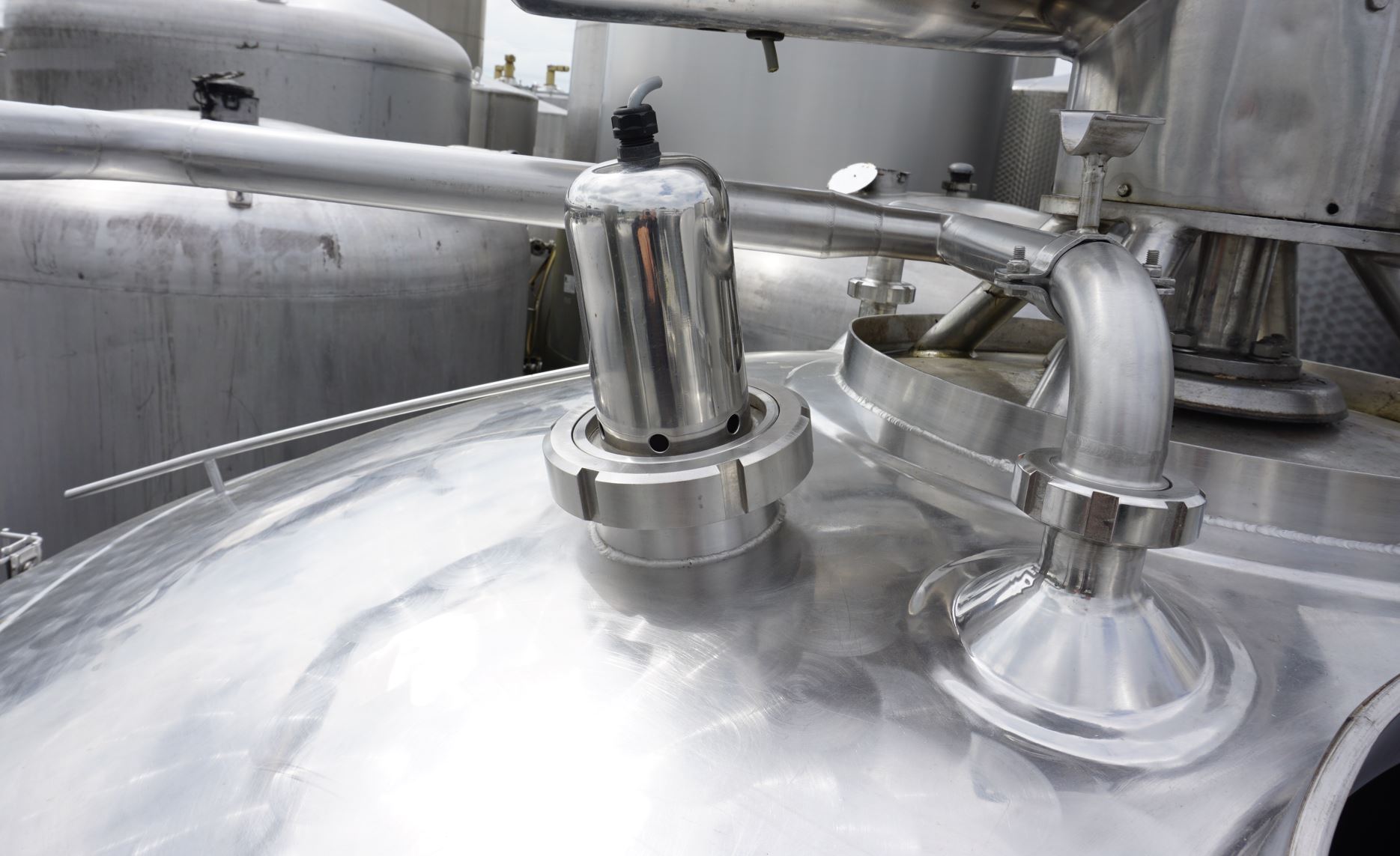

Nozzles/connectors in head
1 (piece)
Outlet nozzle
50

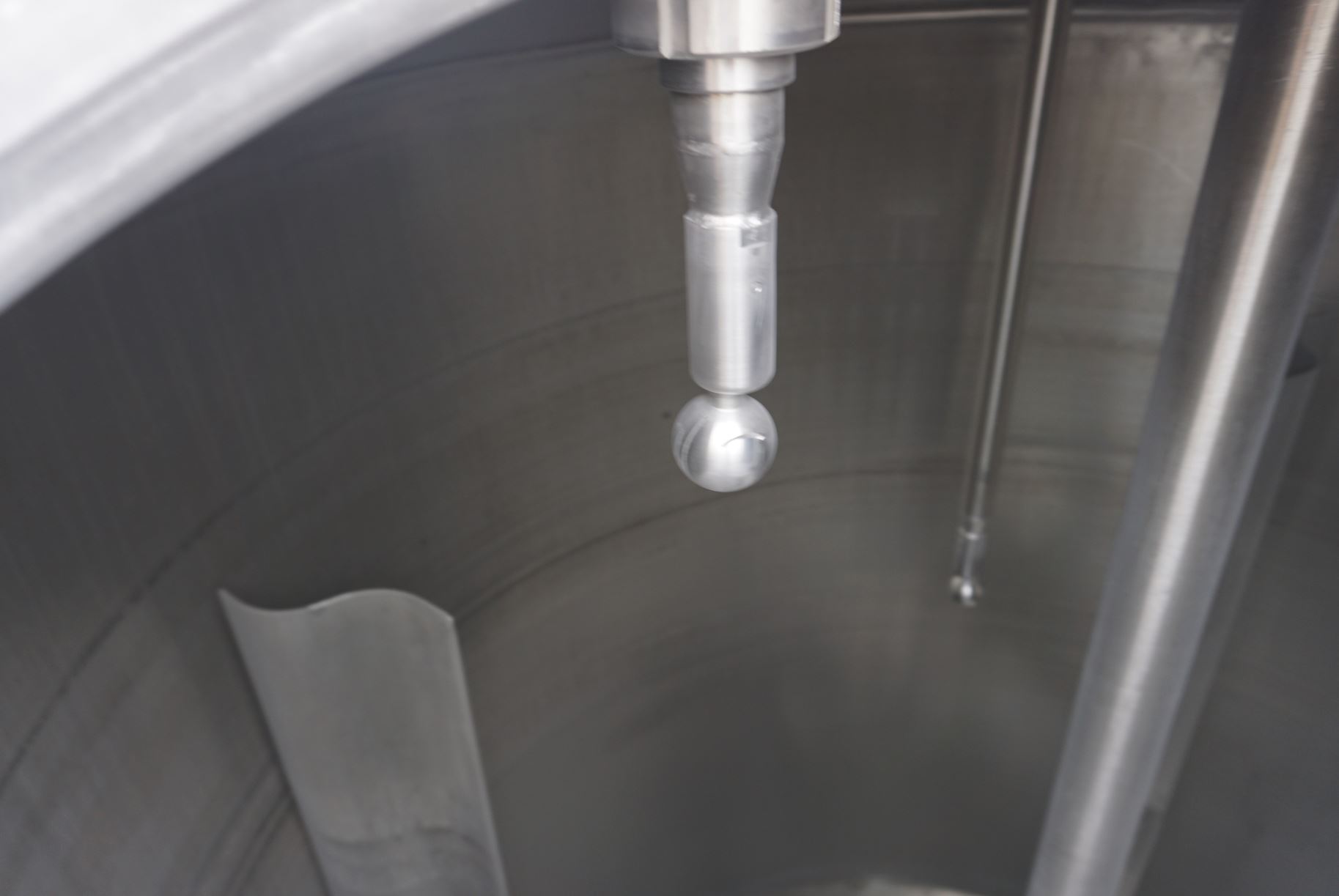

Cleaning/CIP nozzle
in head
Technical documentation
Technical documentation
None
Other
Note
Leichte Kratzer im Produktraum
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,
Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
