Product no. M-2843

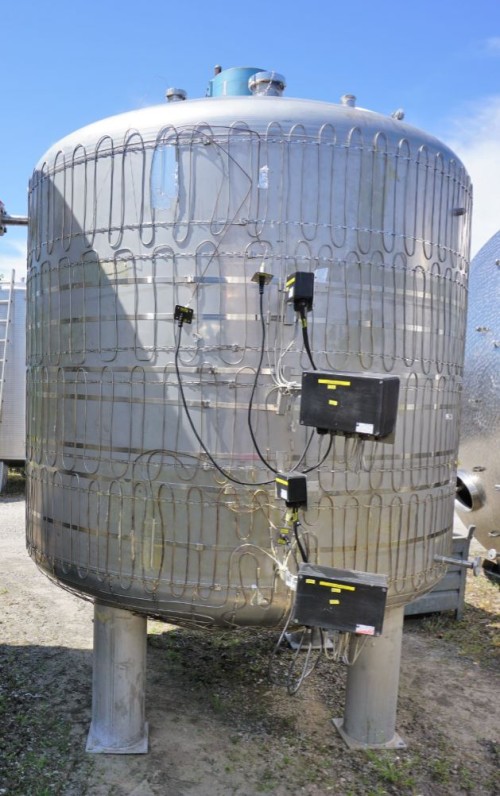

Container 5.000 liters made of V2A single-walled, heizbar, used, standing
EUR 7.800,00
add. 19 % VAT excl. shipping costs
Volume approx. 5,000.00 litres
Product description
Container 5.000 liters made of V2A single-walled, heizbar, used consists of the material 1.4541(AISI321). The volume is approx. 5,000.00 litres. Container 5.000 liters made of V2A single-walled, heizbar, used was last used in the following area: Chemistry. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Mixing,General
Volume approx.
5.000,00 litres
Structure
Standing
Condition
Used
Dimensions approx.
External diameter
2.000 mm
Cyl. height
1.500 mm
Foot height
800 mm
Total height
3.200 mm
Design
Weight approx.
1.000,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
no
Interior surface
Smoothed
Exterior surface
Smoothed
Floor type
Torispherical bottom
Head design
Torispherical bottom
Equipment
Temperature-controllable
Yes
Temperature control area
Shell and floor area
Temperature control system
Electric

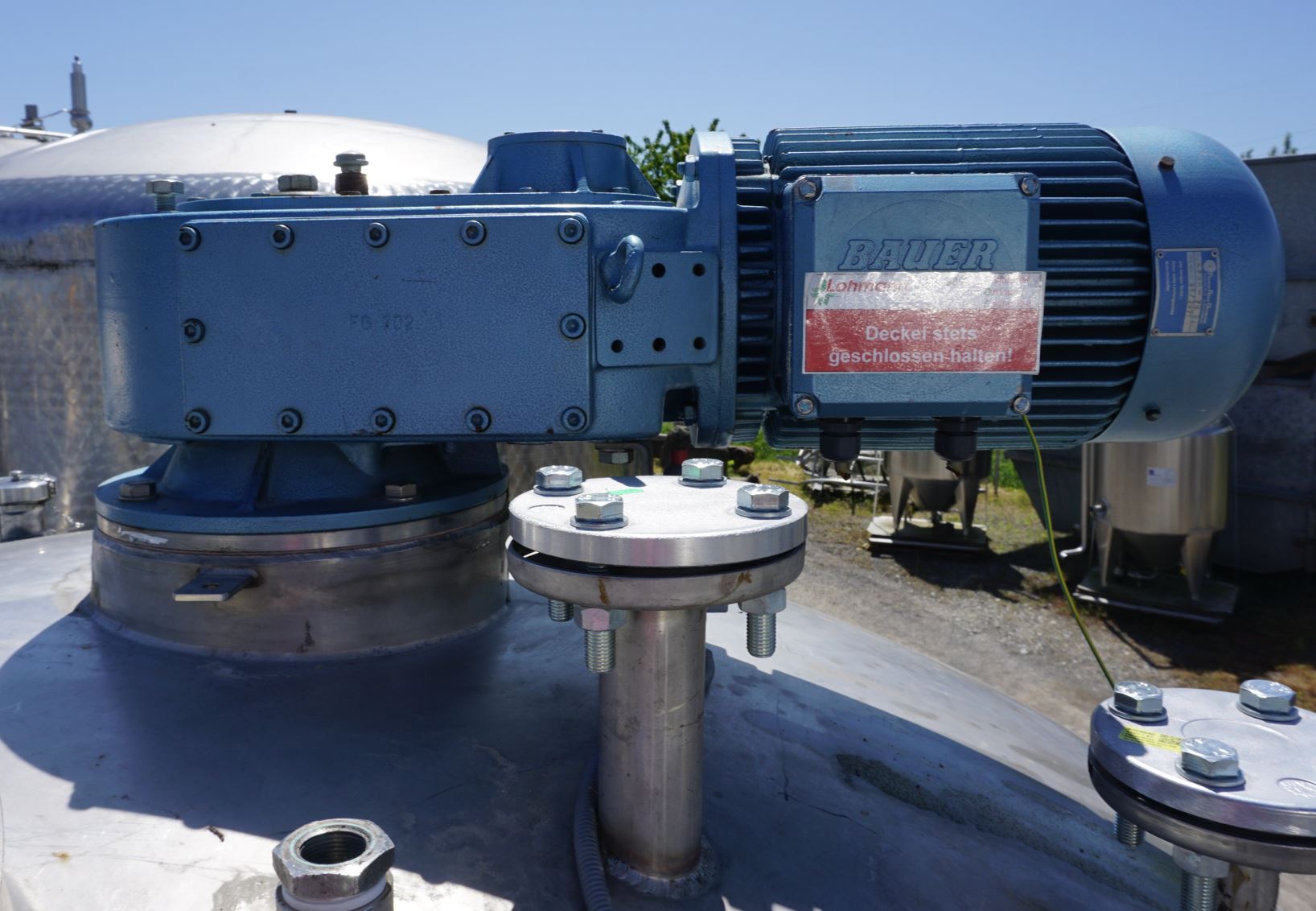

Agitator
Agitator quantity
1 (piece)

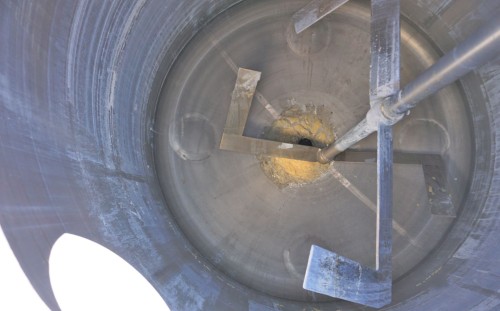

Agitator type
Zeta agitator
Agitator position
Head off-centre
Agitator manufacturer
PRG
Agitator 1 - Output
3,0/4,4 kW
Agitator 1 - RPM
10/20 UpM
Agitator 1 - Voltage
380 V

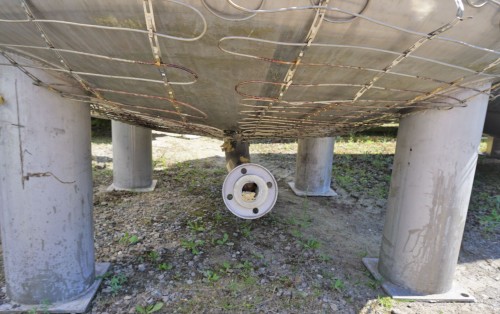

Supports
Supports
Stainless steel feet
Number of feet
4 (piece)
Fixtures and fittings

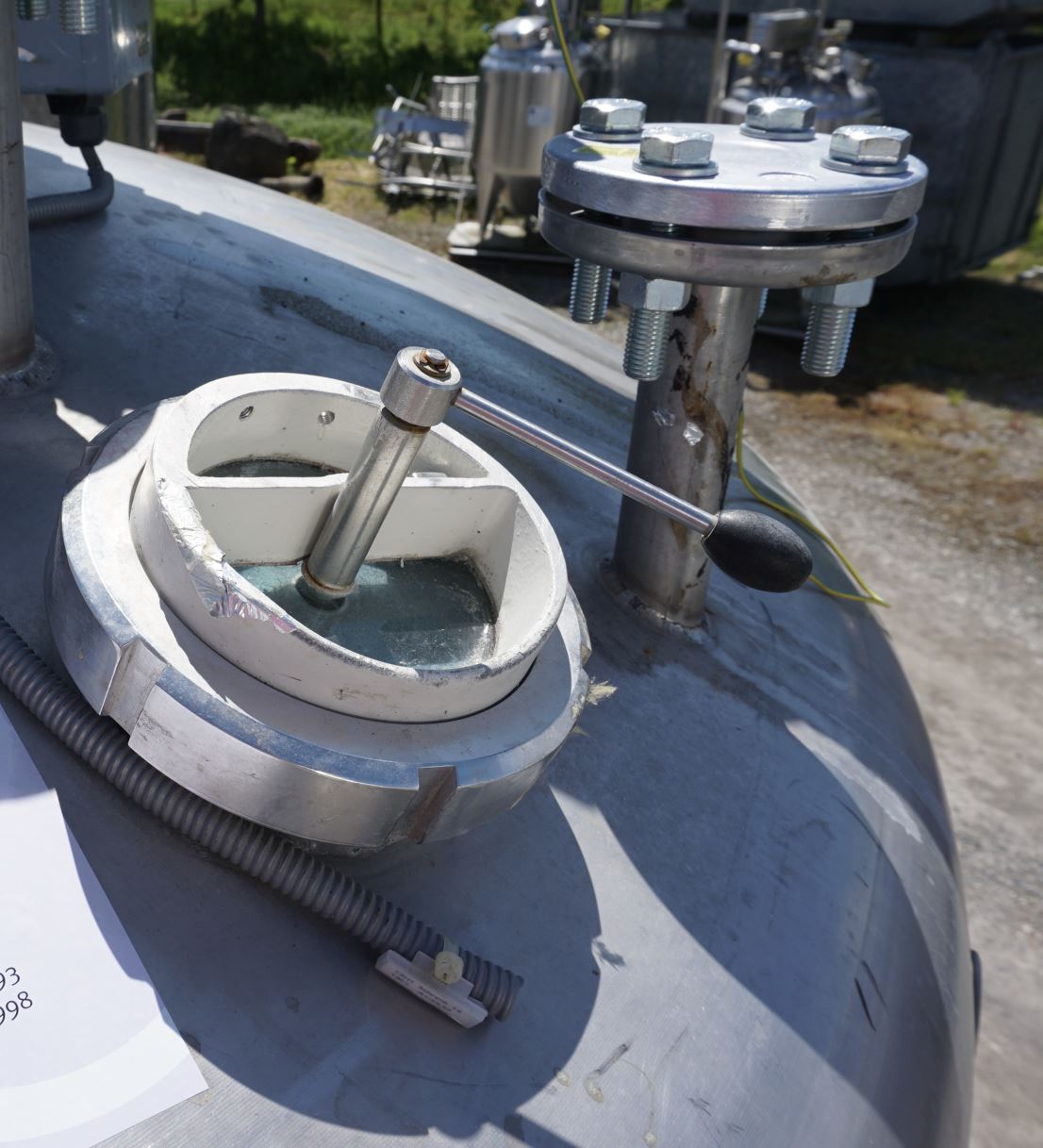

Manway position
In head
Nozzles/connectors in shell
1xDN40 (piece)

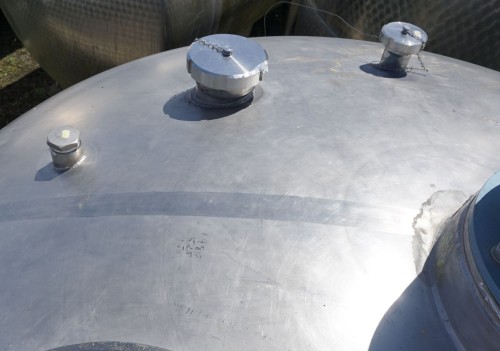

Nozzles/connectors in head
2xDN80 2xDN50 1xDN40 2x2" (piece)
Outlet nozzle
100/50
Technical documentation
Technical documentation
None
Other
Note
Steuerung der Heizdrähte ohne Gewähr
Last usage
Chemistry
This product is suitable for use as:
Foodstuffs:
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
