Product no. M-2868

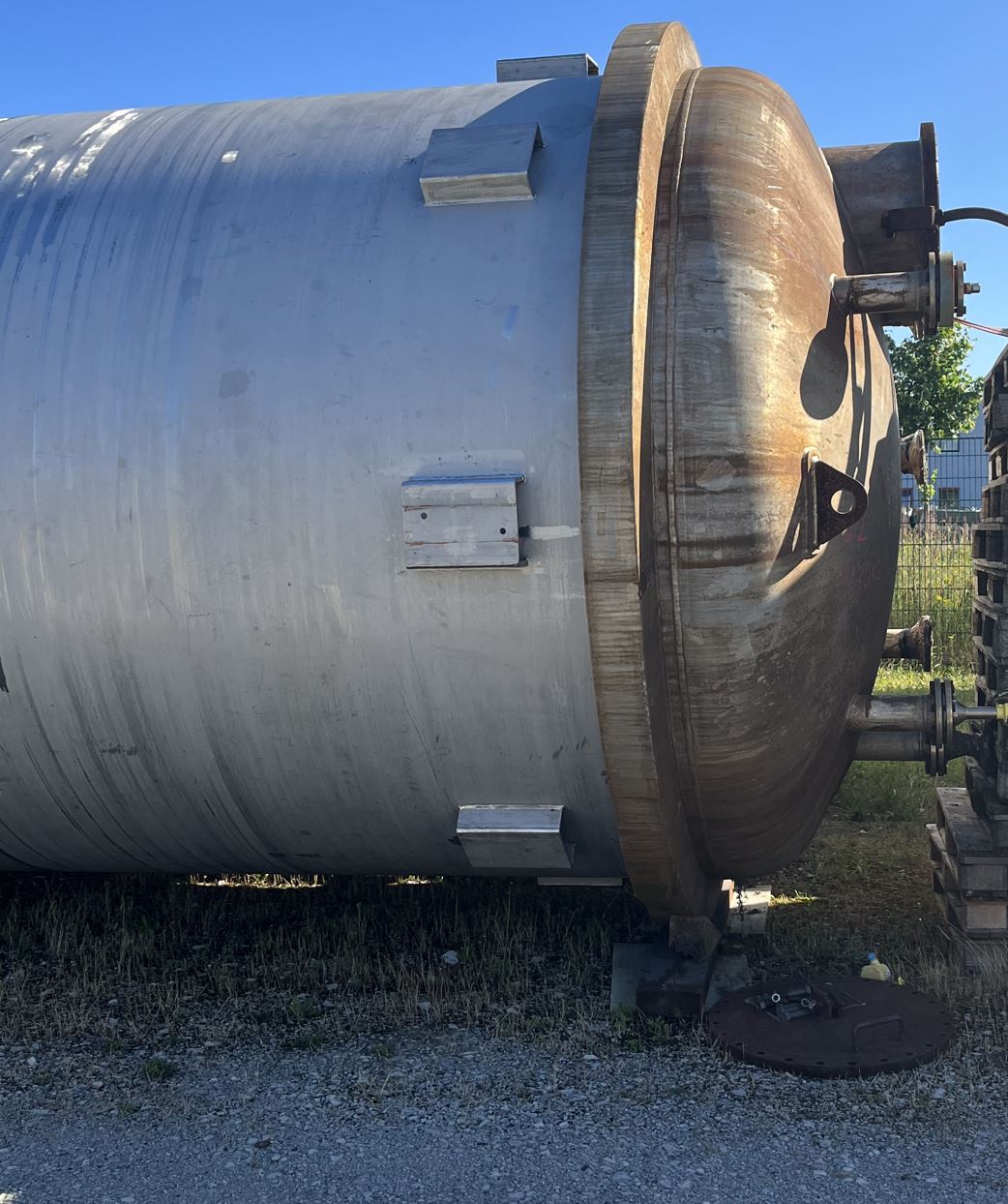

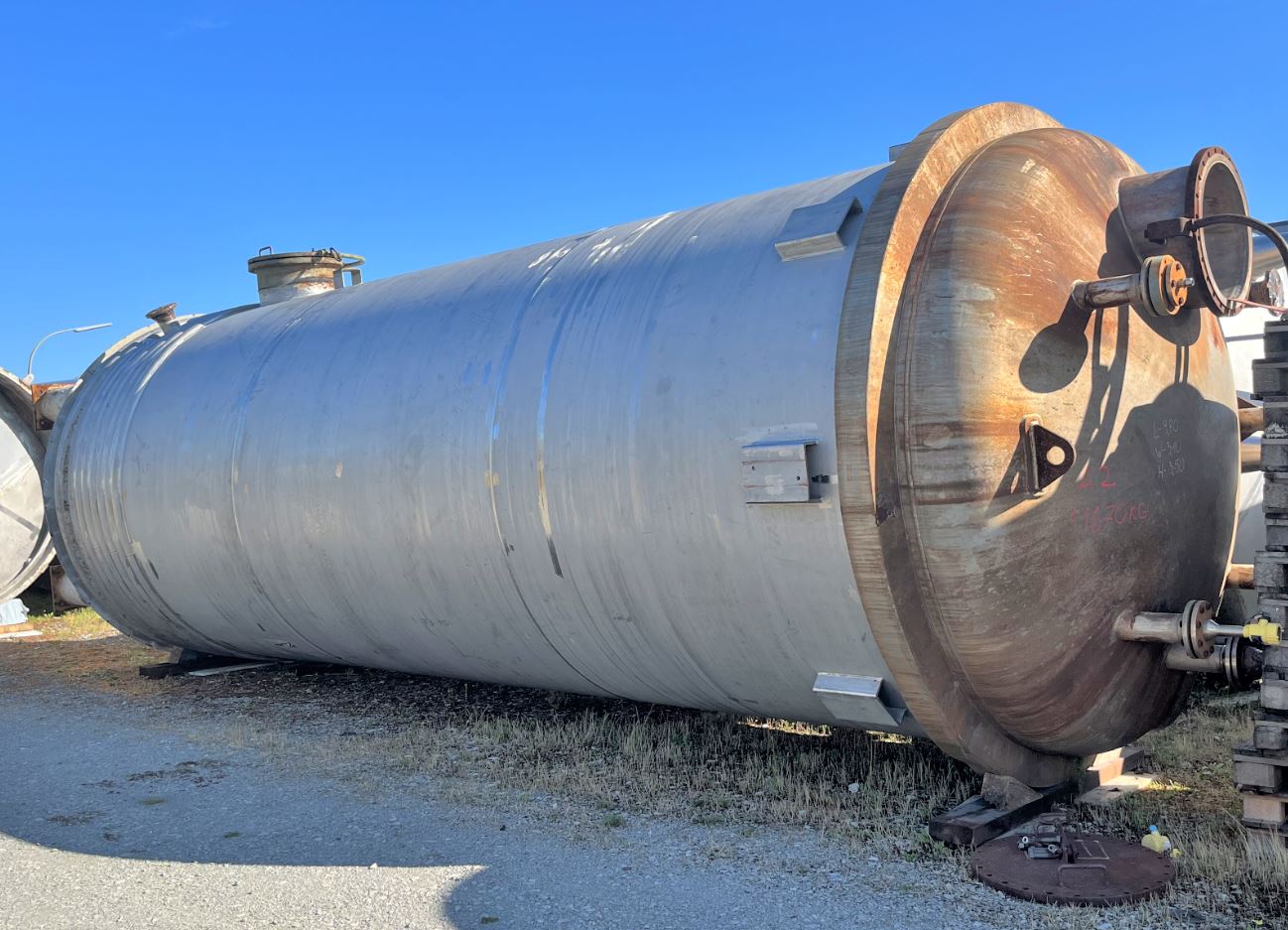

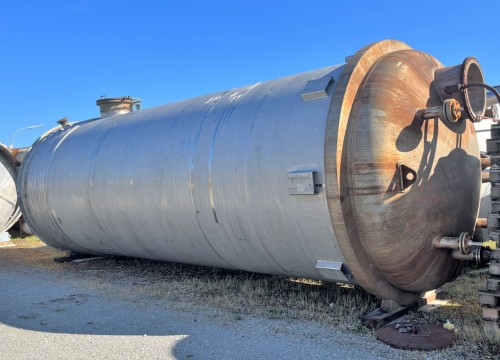

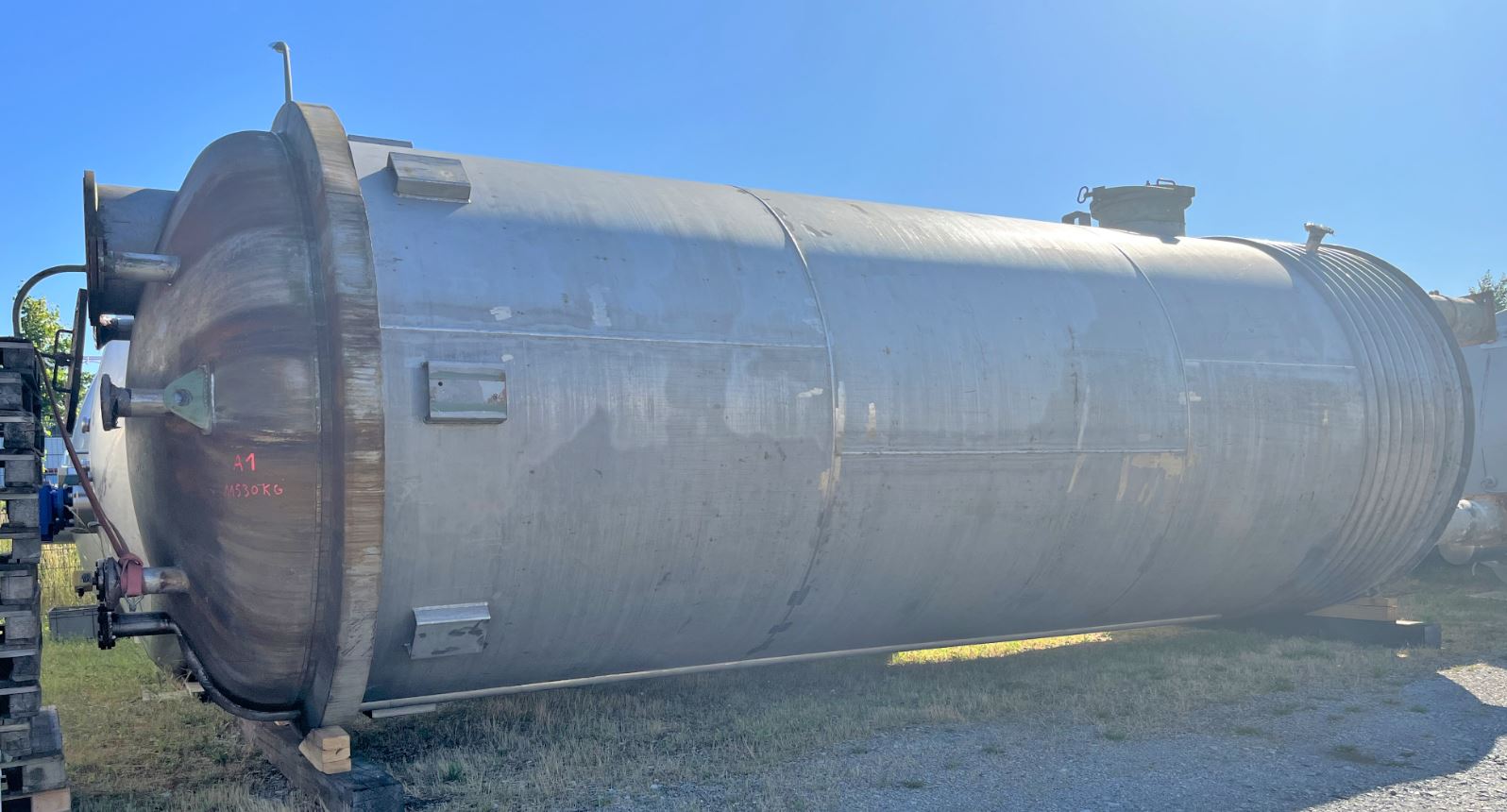

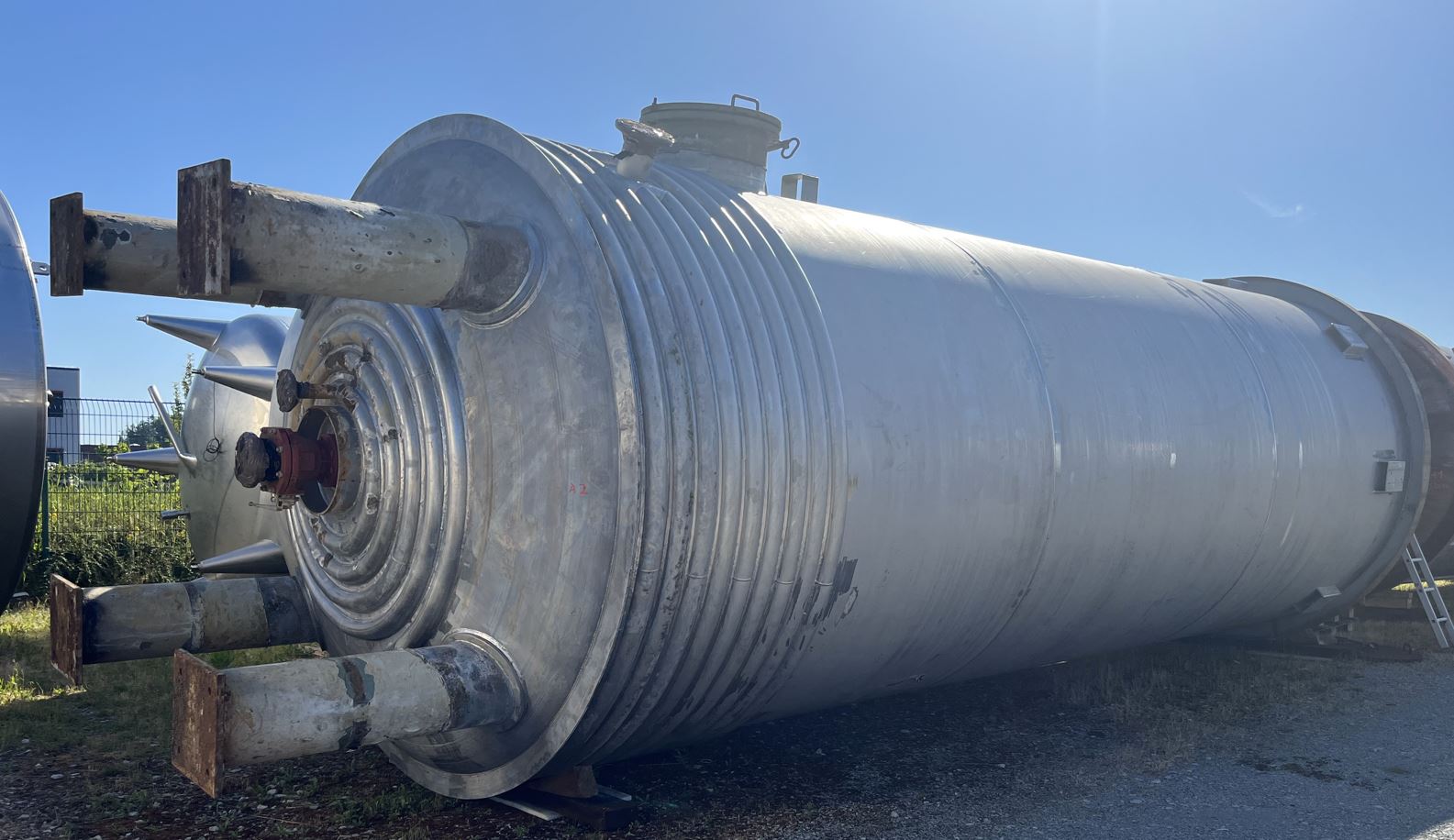

Container 49.338 liters made of V4A, single-walled, temperature-controllable, used, standing

EUR 39.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 49,338.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details   Downloads

Product description

Container 49.338 liters made of V4A, single-walled, temperature-controllable, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 49,338.00 litres. The diameter inside includes 2,800 mm.  Container 49.338 liters made of V4A, single-walled, temperature-controllable, used was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Tempering, Under/over-pressure, Processes,

General

  • Volume approx.

  • 49.338,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1982

  • Manufacturer

  • Schleifenbaum & Weber

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.800 mm

  • External diameter

  • 3.100 mm

  • Cyl. height

  • 7.483 mm

  • Total height

  • 10.000 mm

  • Wall thickness of product chamber head

  • 15,00 mm

  • Wall thickness of product chamber shell

  • 14,00 mm

  • Wall thickness of product chamber floor

  • 18,00 mm

Design

  • Weight approx.

  • 11.600,00 kg

  • Weight per unit volume approx.

  • 1.500,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Matt

  • Exterior surface

  • Matt

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 6,00 bar

  • Product chamber operating under-pressure

  • -1 bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Temperature control system

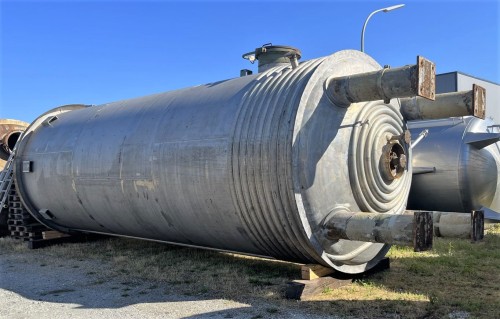

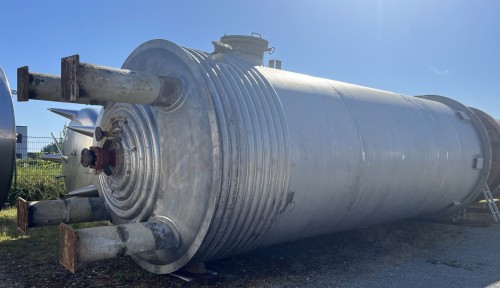

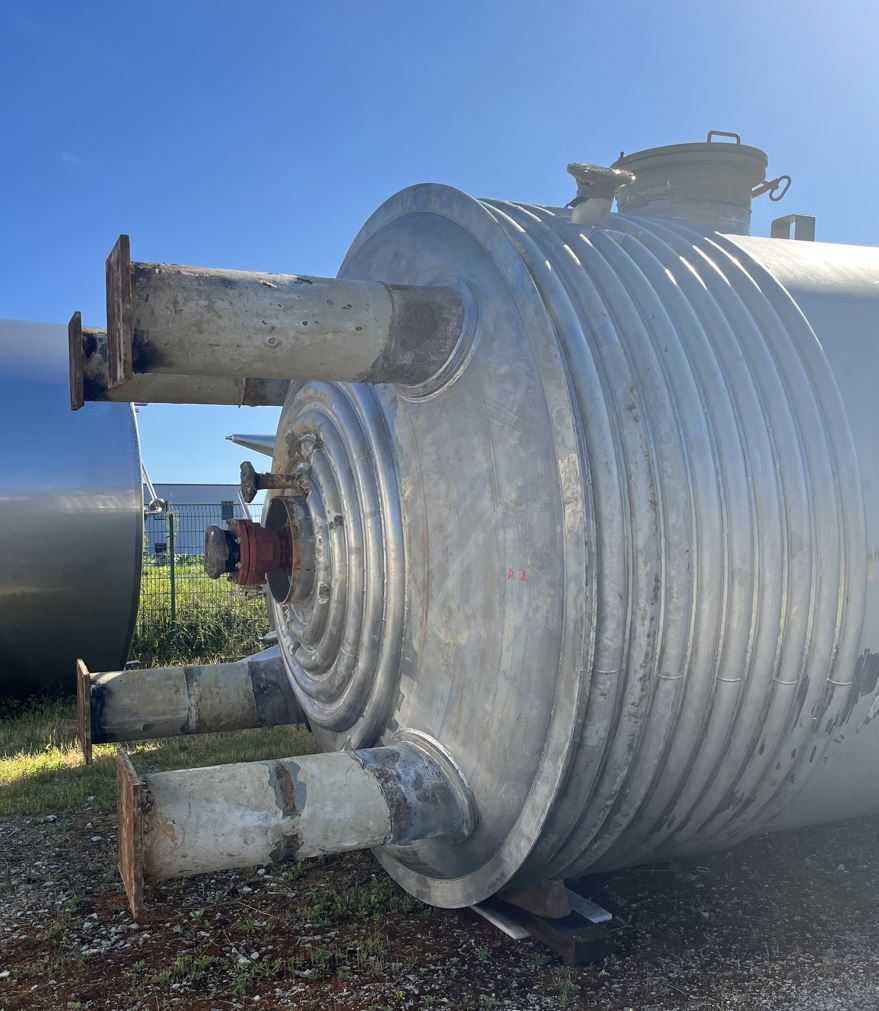

  • Half-pipe coils

  • Operating temperature

  • 200 °C

  • Temperature control system operating pressure/pipe chamber

  • 6,0 bar

  • Temperature control system operating temperature/pipe chamber

  • 200 °C

Supports

  • Supports

  • Steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

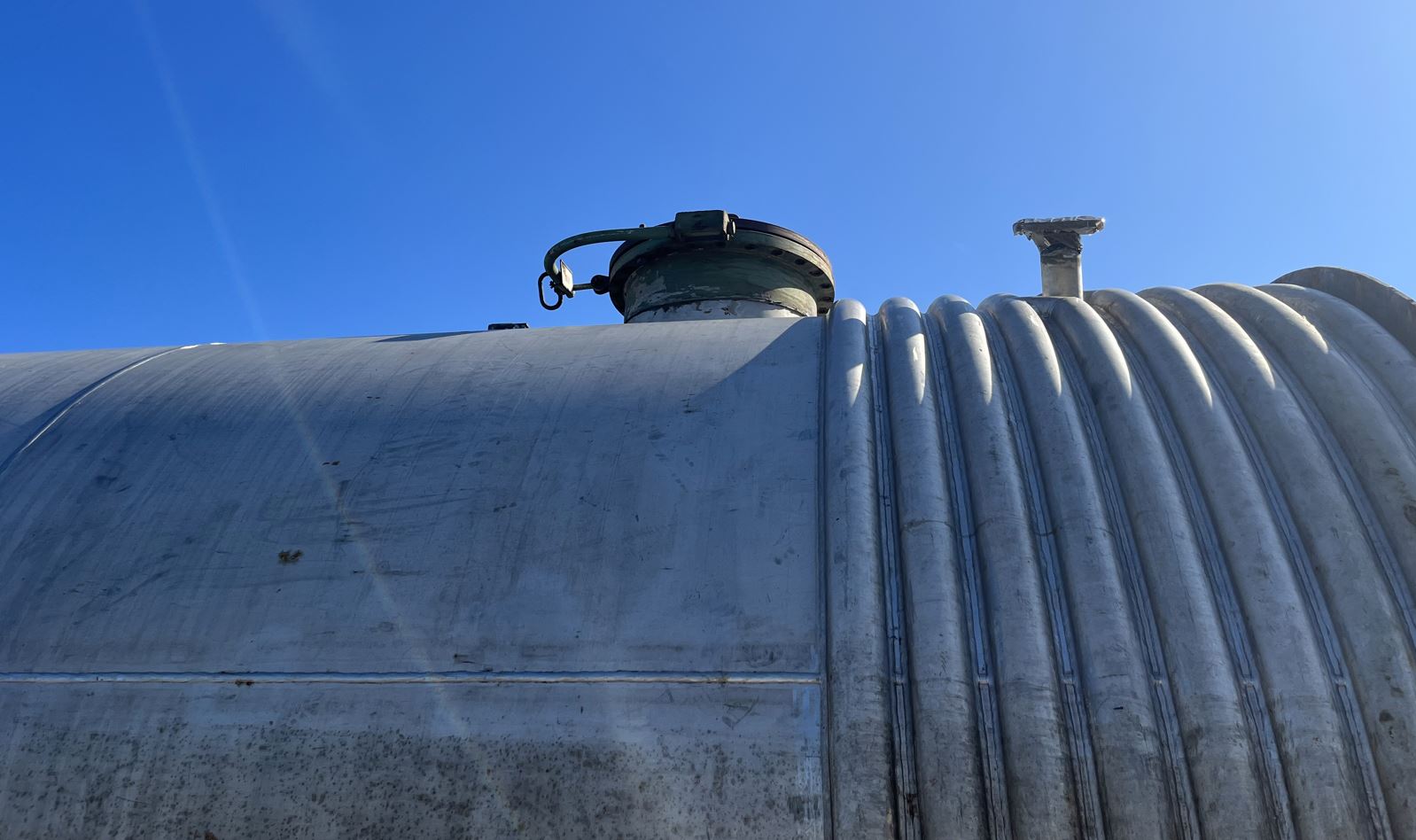

  • Manway 1 size

  • 600 DN mm

  • Manway 2 size

  • 600 DN mm

  • Manway position

  • In shell and head

  • Outlet nozzle

  • 100

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

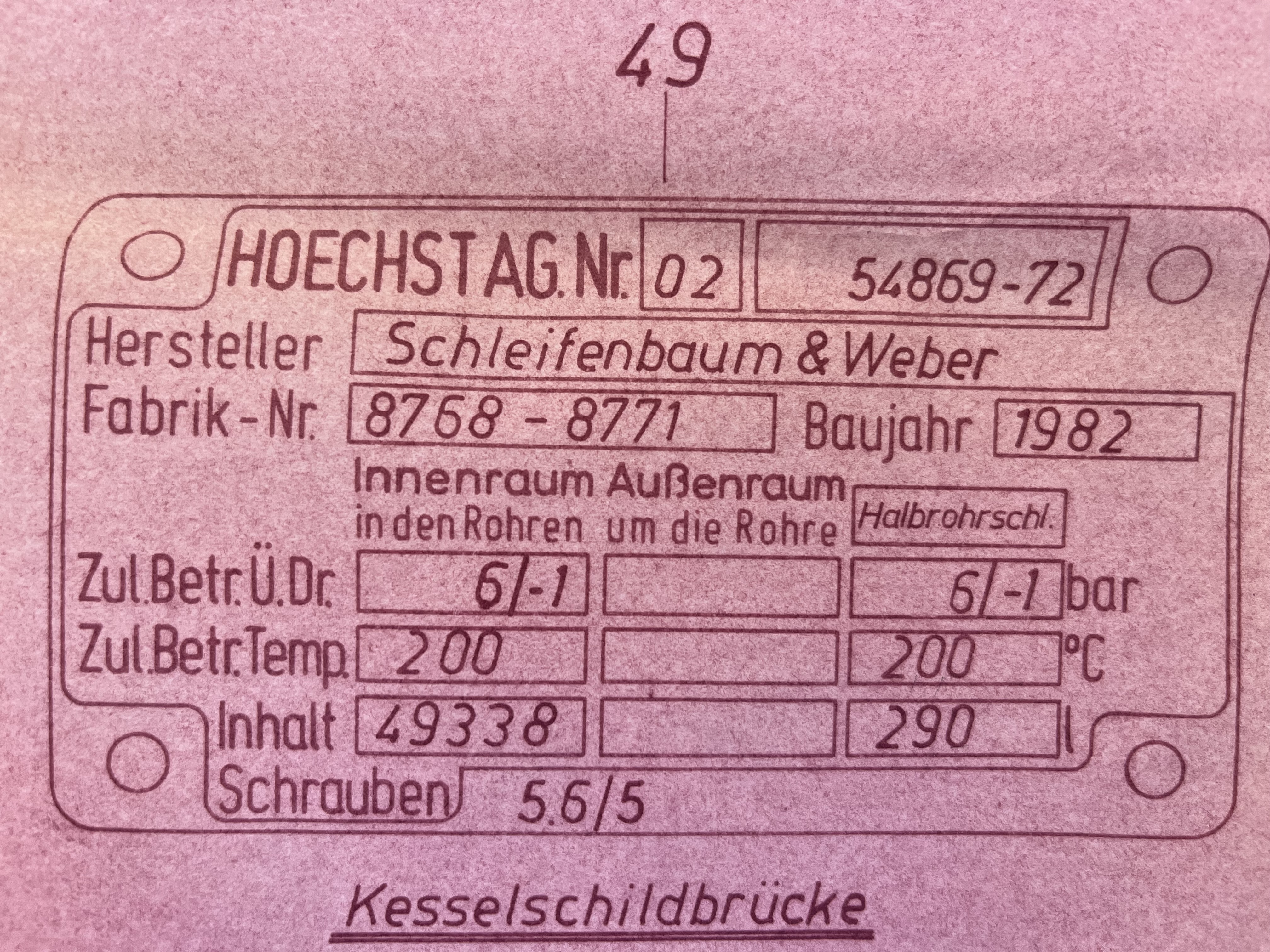

  • Nameplate

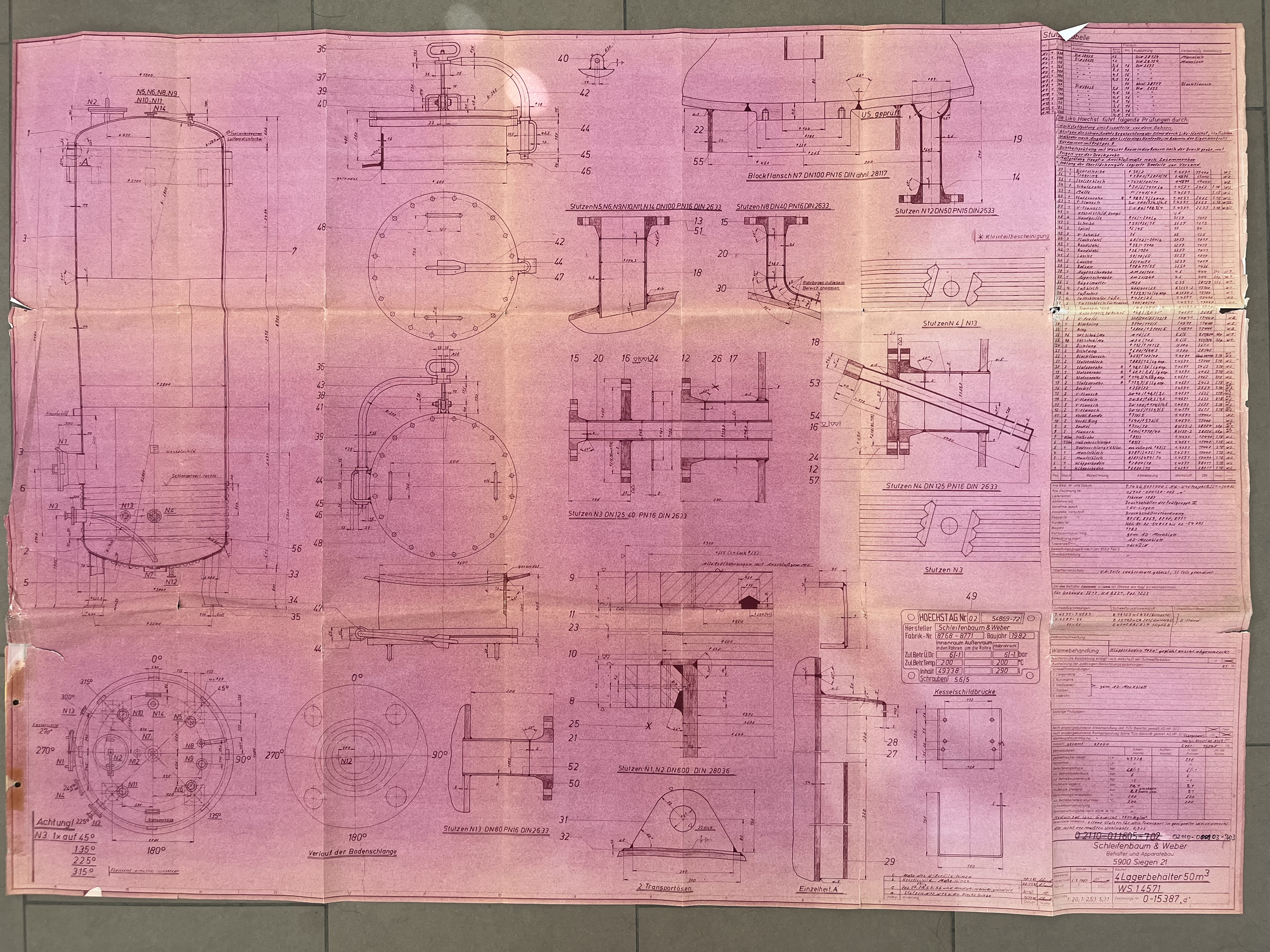

Technical documentation

  • Technical documentation

  • Designation

  • Pressure test certificate

Other

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Pressure tank, Process tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Pressure tank, Process tank,

Downloads

filefile size
  2868-7.pdf1.53 MB
  2868-8.jpg4.10 MB
  2868-9.jpg4.90 MB
