Product no. M-2715

Container 40.000 liters made of V2A single-walled, used Bauform: horizontal, horizontal

EUR 16.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 40,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

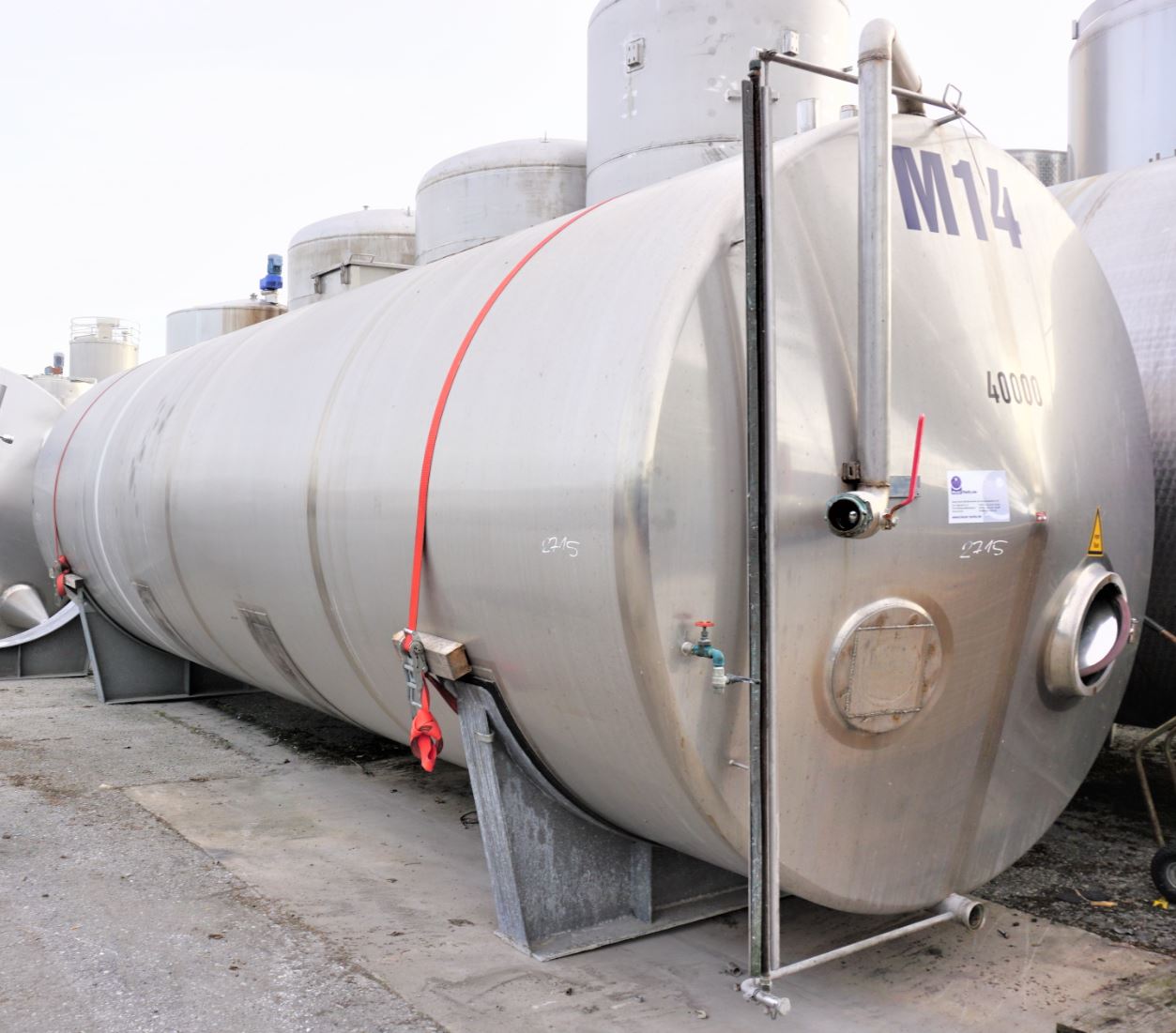

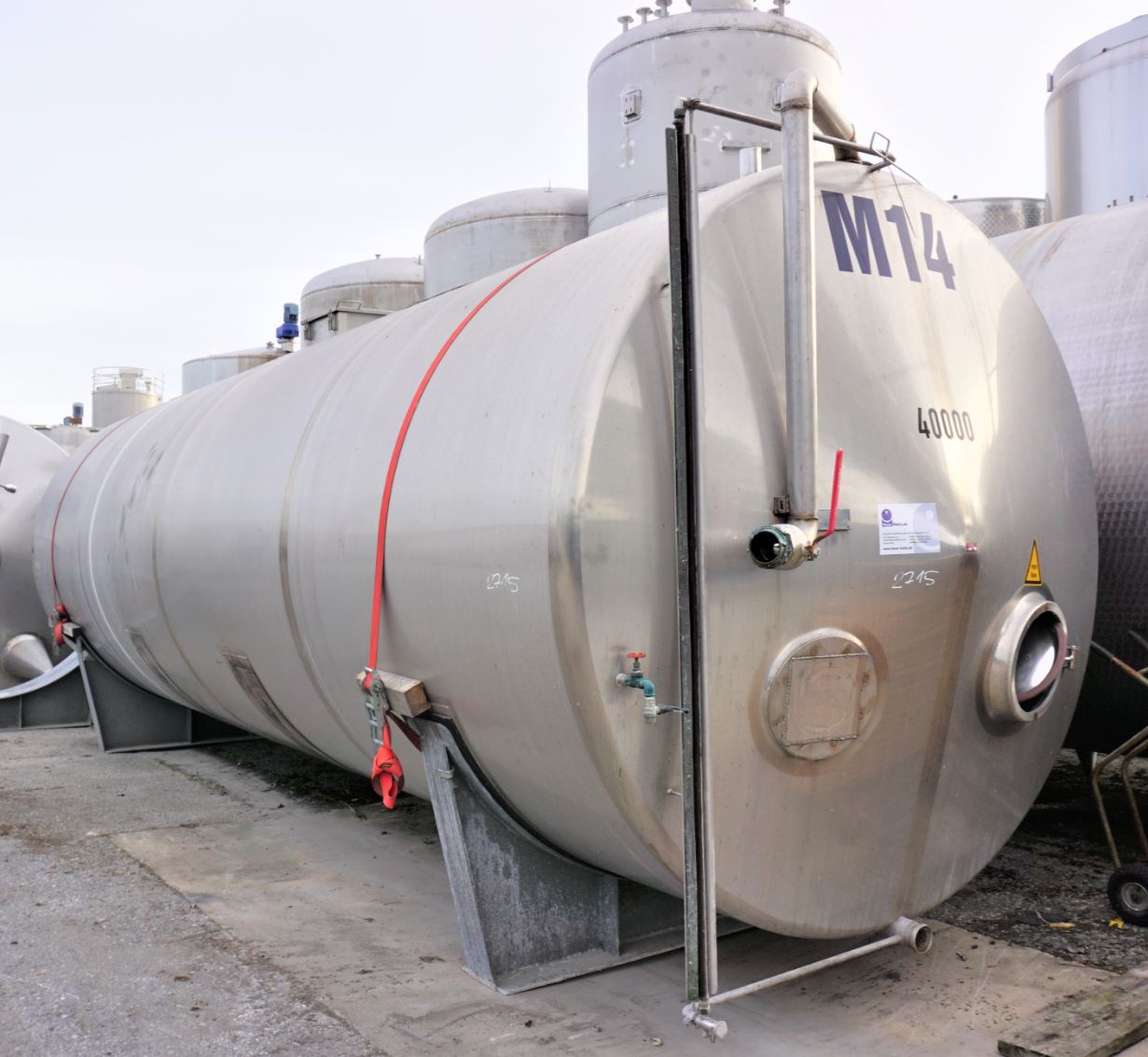

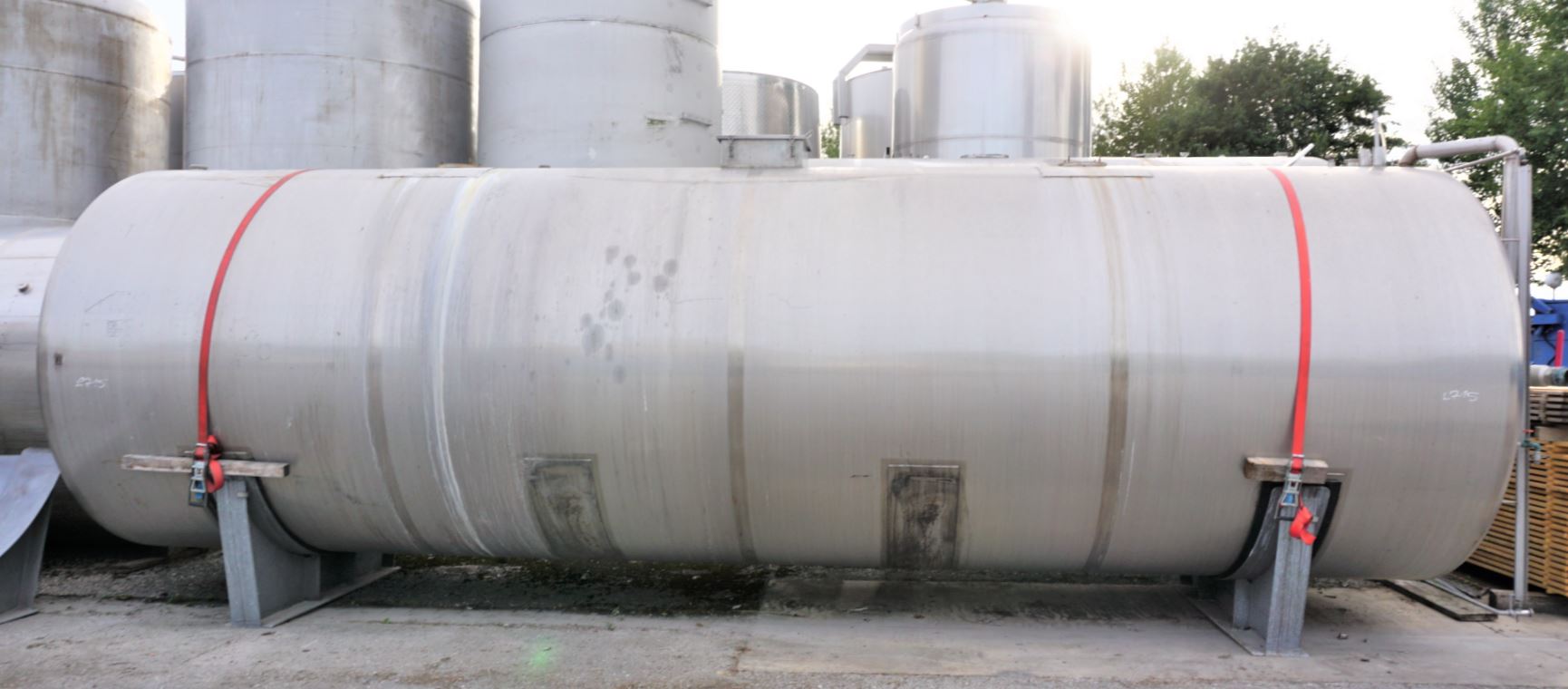

Container 40.000 liters made of V2A single-walled, used Bauform: horizontal consists of the material 1.4301(AISI304) V2A. The volume is approx. 40,000.00 litres.  Container 40.000 liters made of V2A single-walled, used Bauform: horizontal was last used in the following area: Unknown. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 40.000,00 litres

  • Structure

  • Horizontal

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 2.600 mm

  • Cyl. length

  • 7.800 mm

  • Outlet height

  • 350 mm

  • Total height

  • 3.300 mm

  • Total length

  • 8.600 mm

  • Wall thickness of product chamber shell

  • 2,80 mm

  • Wall thickness of product chamber floor

  • 2,80 mm

Design

  • Weight approx.

  • 4.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

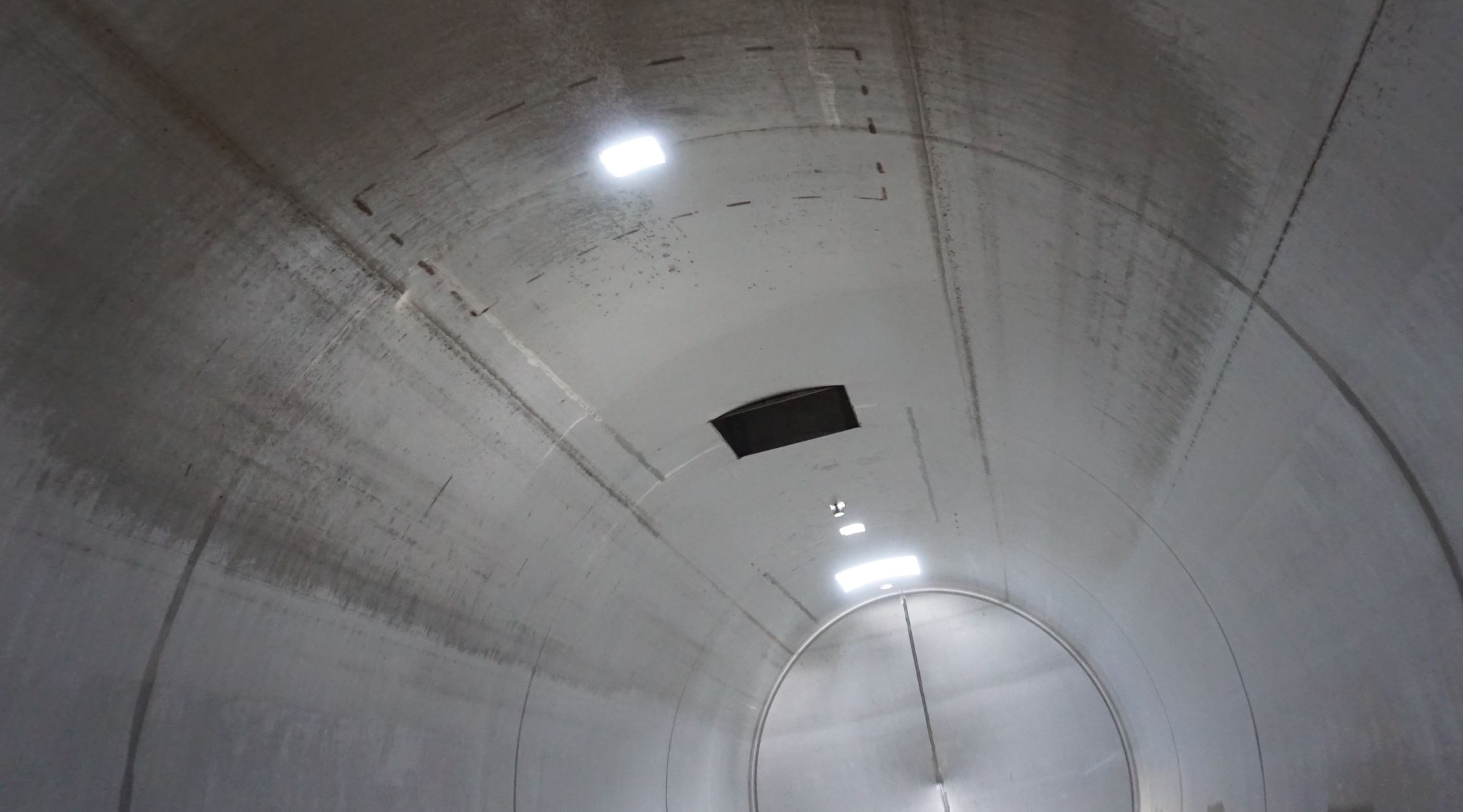

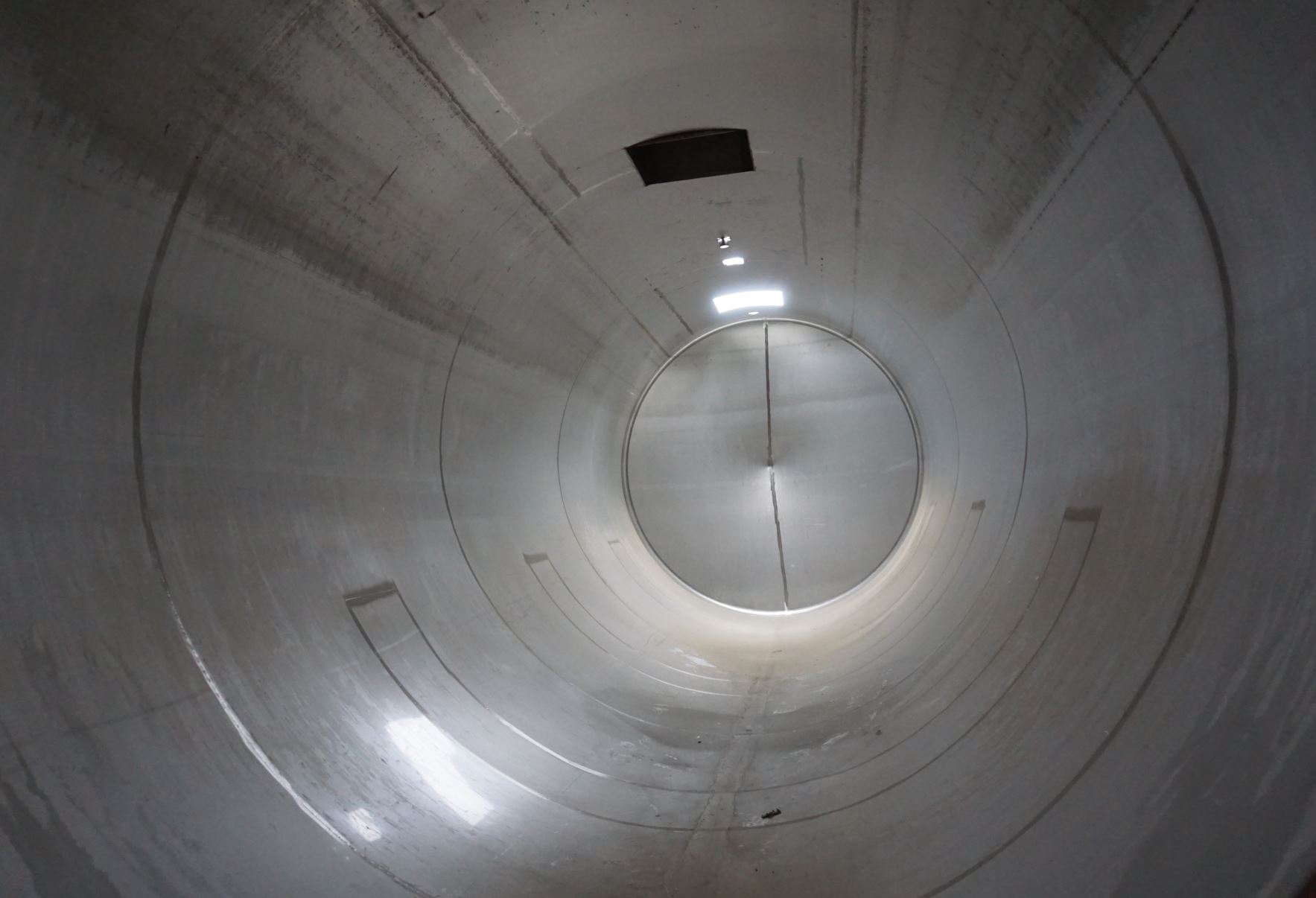

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

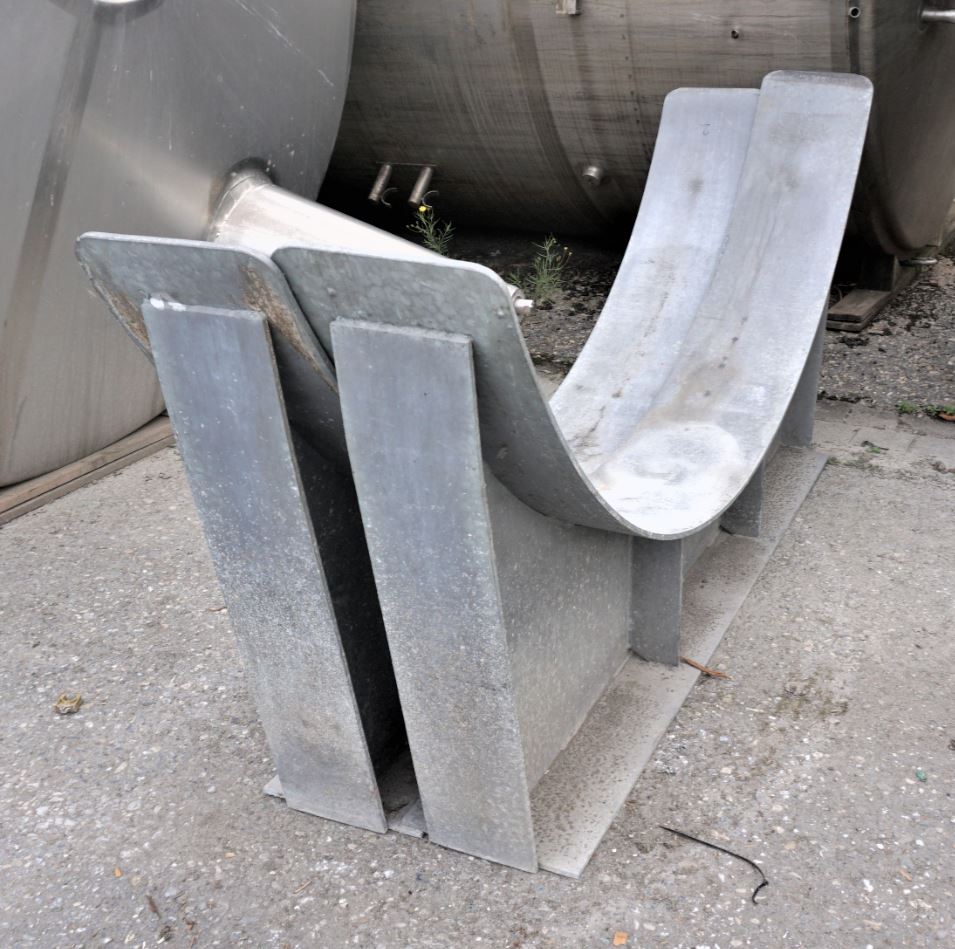

Supports

  • Supports

  • Steel storage consoles

  • Number of feet

  • 4 (piece)

  • Note on supports

  • lose Stahllagerkonsolen

Fixtures and fittings

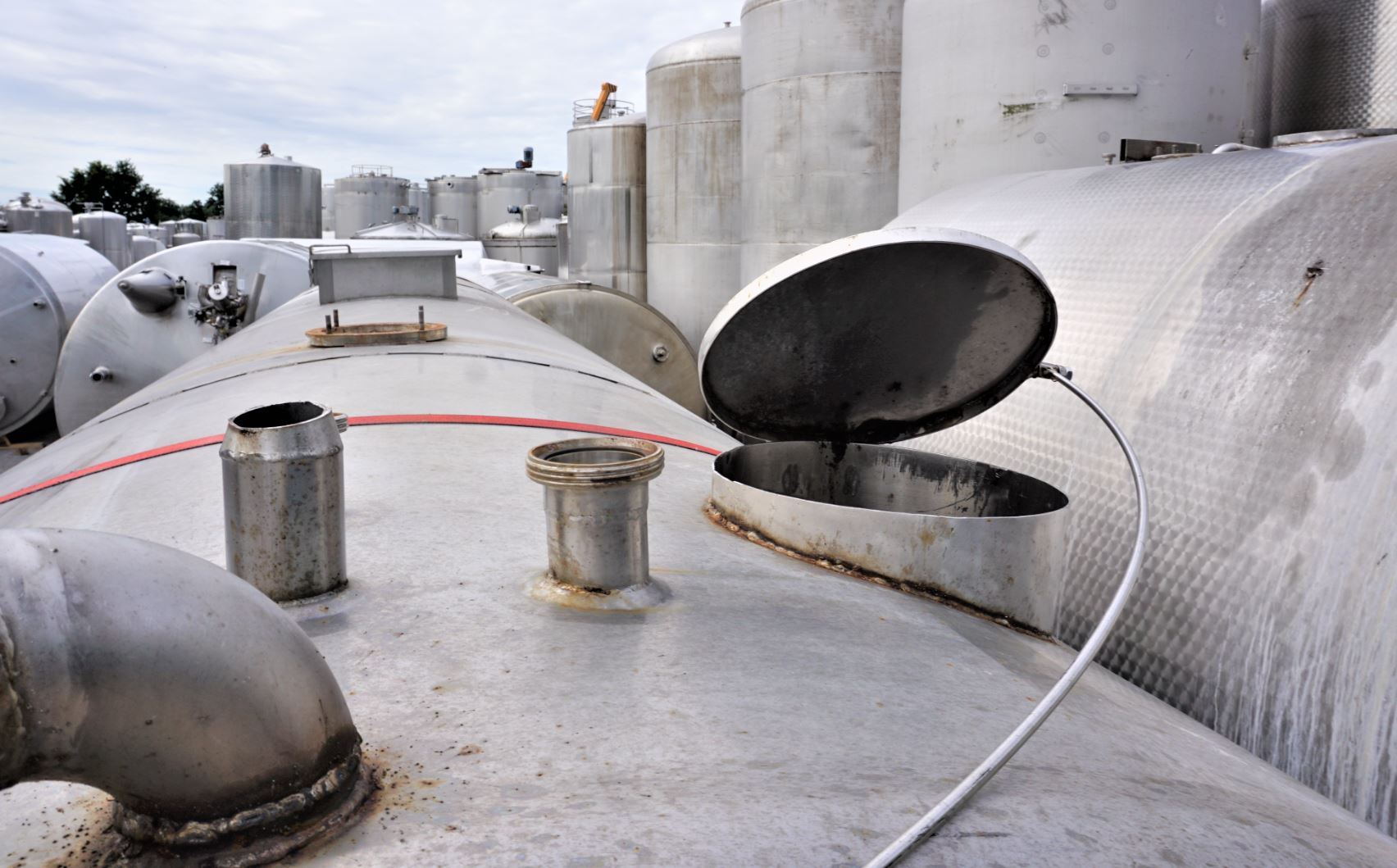

  • Manway position

  • Front face and head

  • Nozzles/connectors in head

  • 2xDN50 2xDN80 (piece)

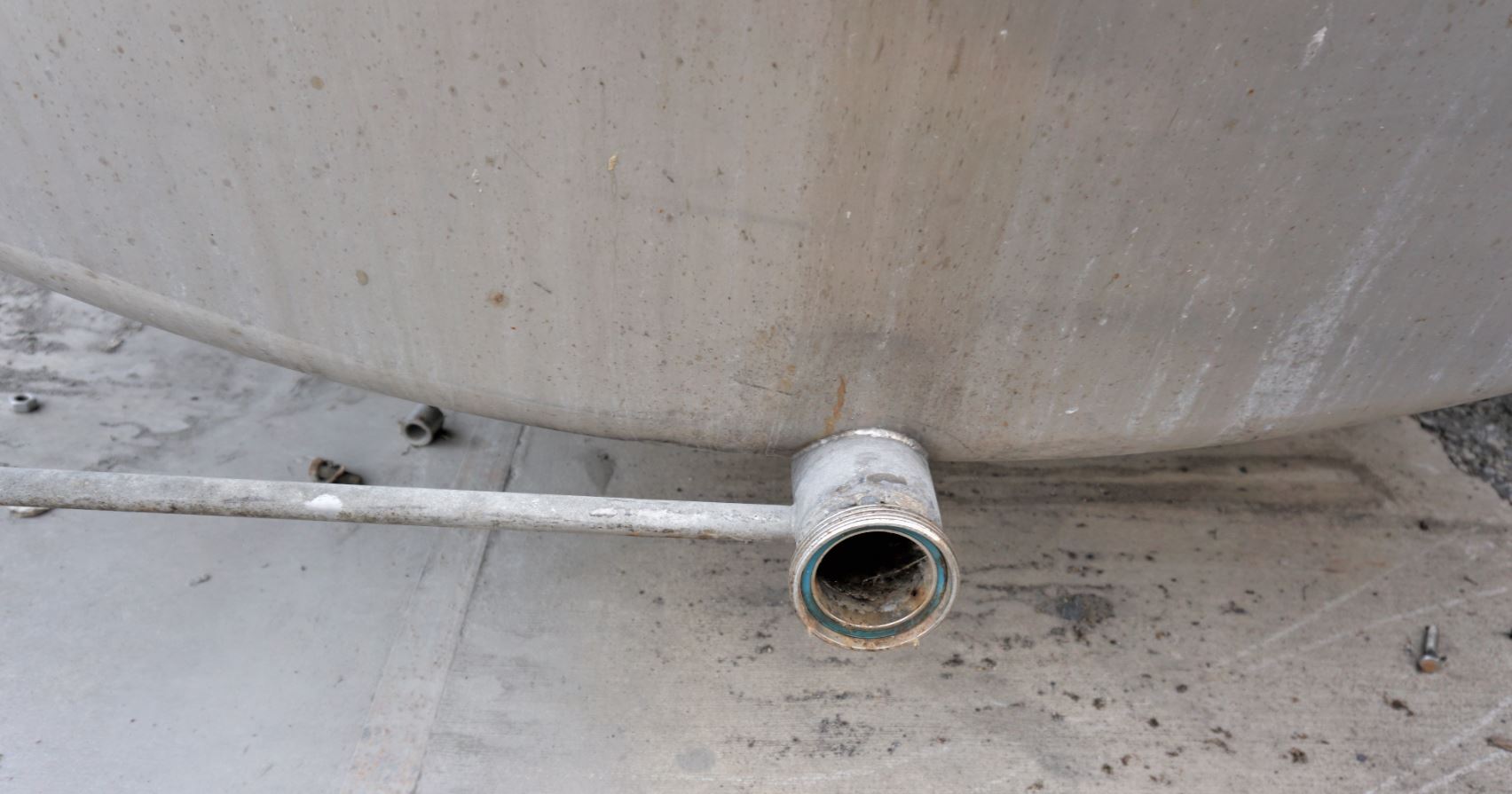

  • Outlet nozzle

  • 65

  • Fixtures and fittings

  • Lifting lugs

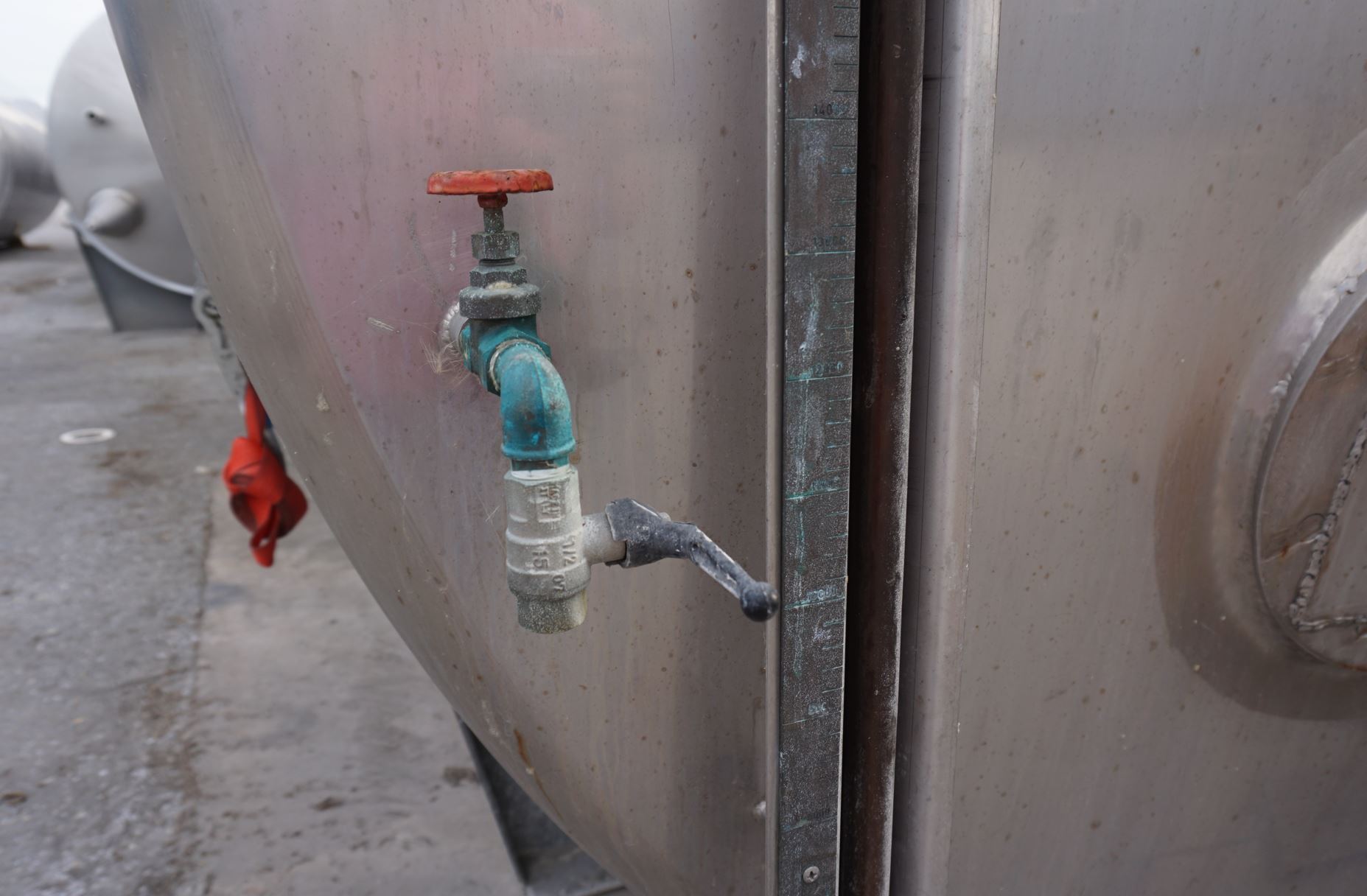

  • Fill level pipes

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Unknown

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Pressure tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Pressure tank,
