Product no. M-2704

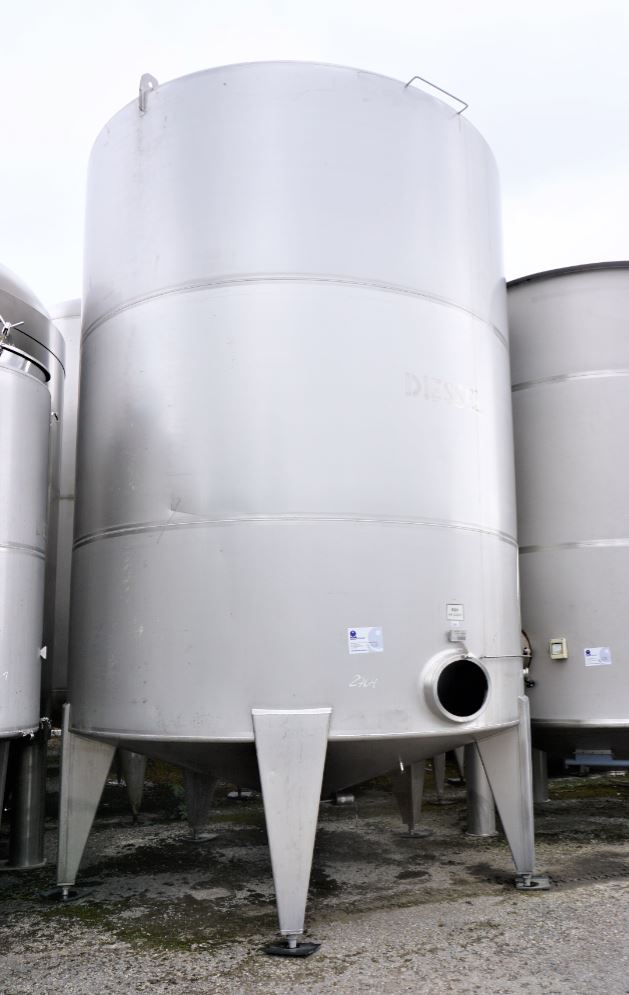

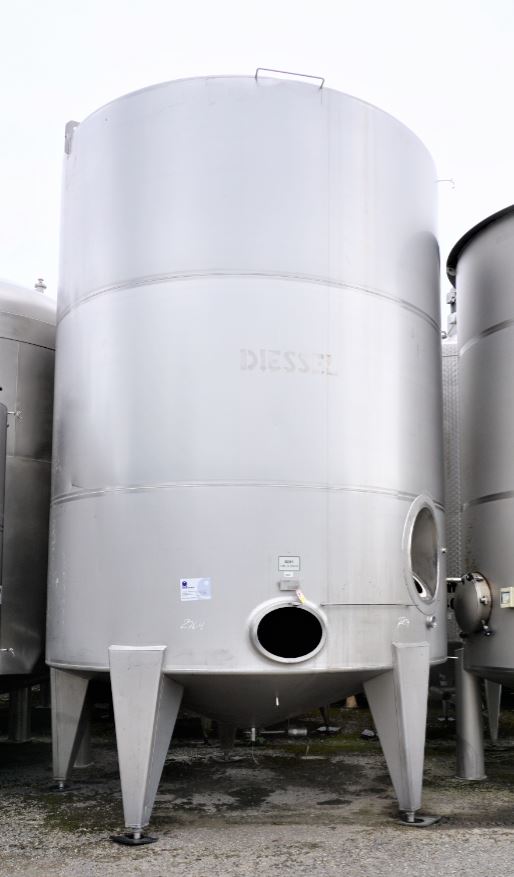

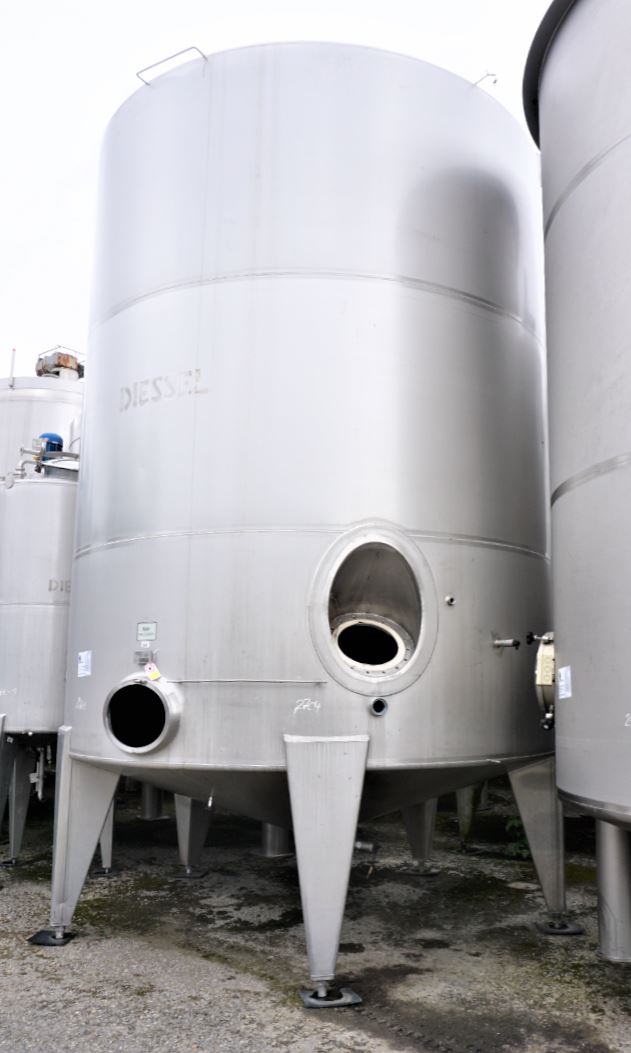

Container 40.000 liters made of V2A, single-walled, used, standing
EUR 18.200,00
add. 19 % VAT excl. shipping costs
Volume approx. 40,000.00 litres
Product description
Container 40.000 liters made of V2A, single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 40,000.00 litres. Container 40.000 liters made of V2A, single-walled, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage,General
Volume approx.
40.000,00 litres
Structure
Standing
Year of manufacture
1996
Manufacturer
Diessel
Condition
Used
Dimensions approx.
External diameter
3.400 mm
Cyl. height
4.300 mm
Foot height
1.100 mm
Total height
6.400 mm
Design
Weight approx.
2.500,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
no
Interior surface
Smoothed
Exterior surface
Smoothed

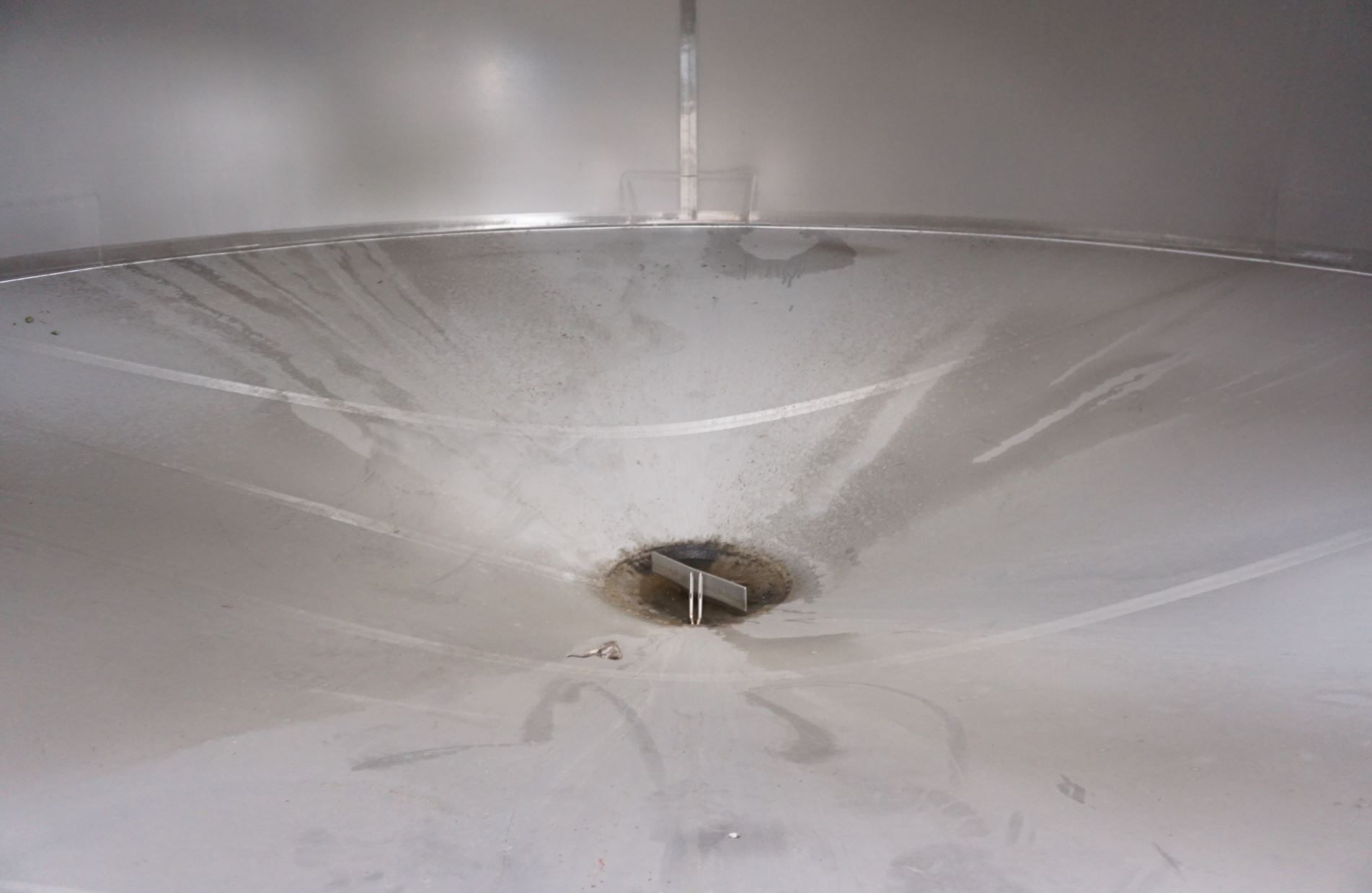

Floor type
Conical bottom

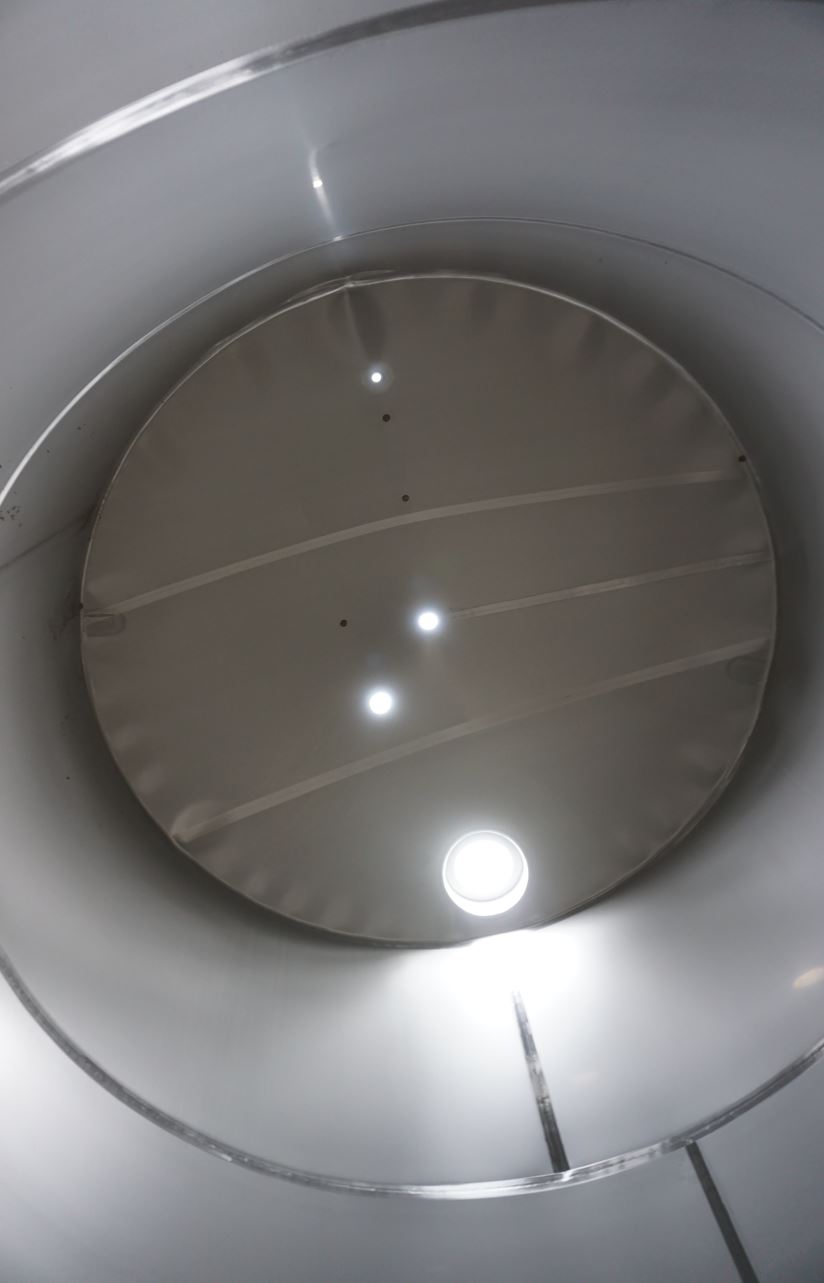

Head design
Conical bottom

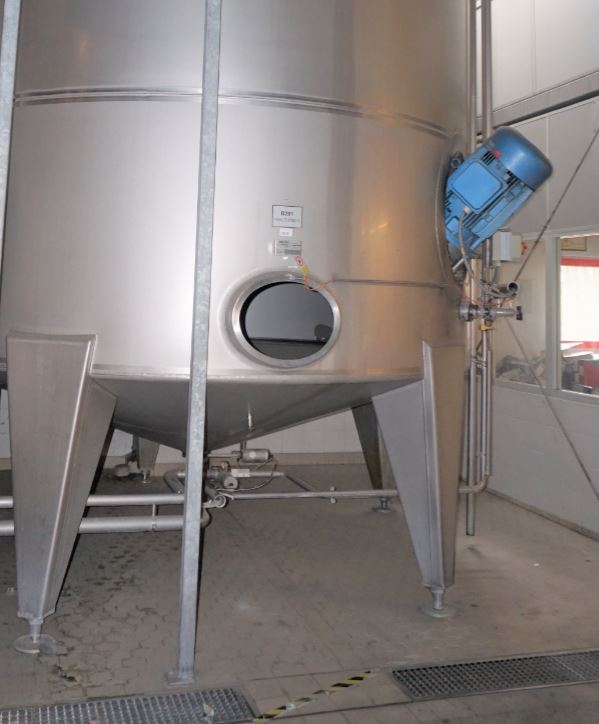

Agitator
Agitator quantity
1 (piece)

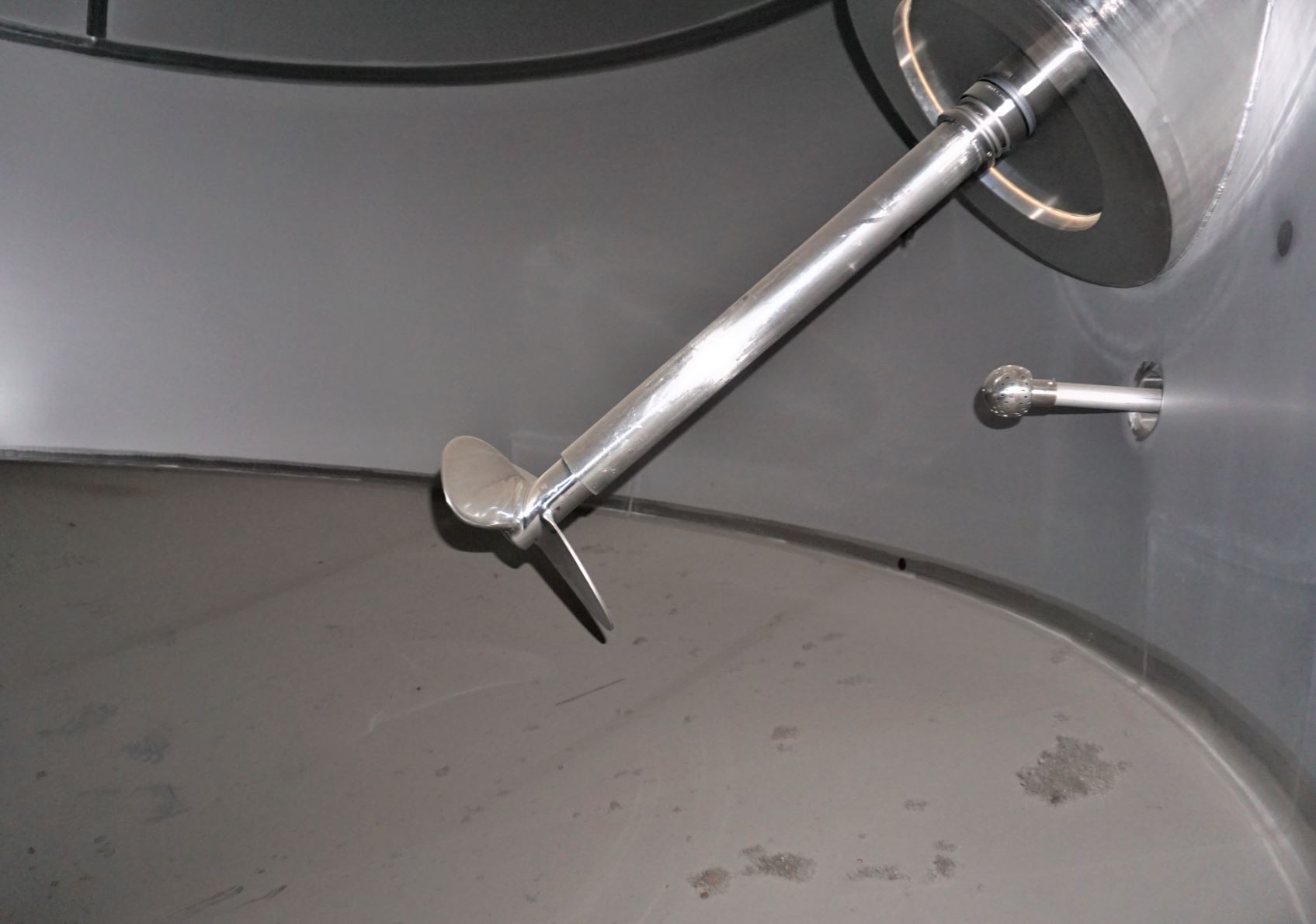

Agitator type
Propeller
Agitator position
At bottom at the side in shell
Supports
Supports
Stainless steel feet
Number of feet
5 (piece)
Note on supports
höhenverstellbar
Fixtures and fittings

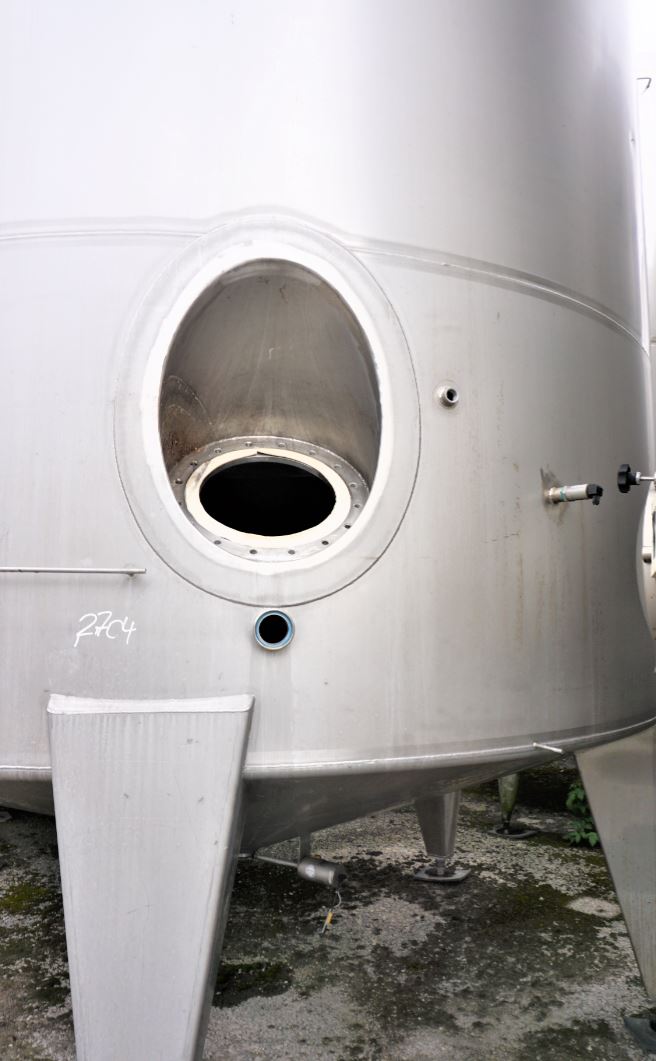

Manway position
In shell
Nozzles/connectors in shell
1xDN80 (piece)
Nozzles/connectors in head
1xDN65 1xDN80 (piece)
Cleaning/CIP nozzle
in shell
Fixtures and fittings
Lifting lugs
Additional fixtures and fittings

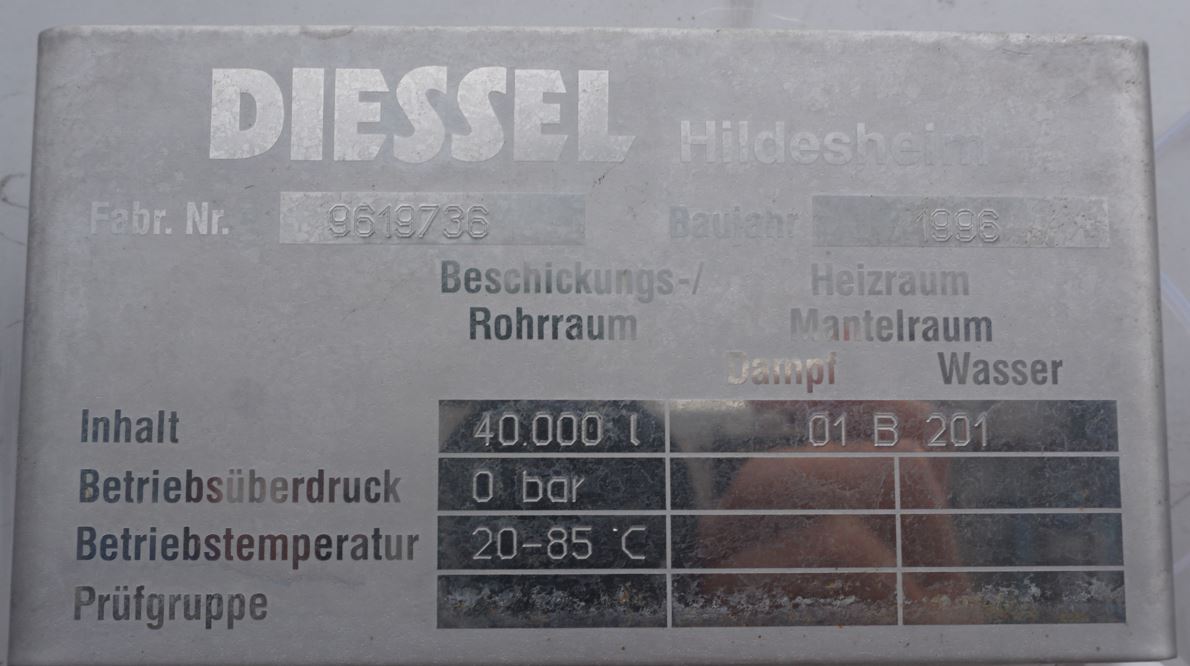

Nameplate
Technical documentation
Technical documentation
None
Other
Note
Kleine Beulen im Oberboden
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, CIP tank, Cold water tank,
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,
Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank, Cold water tank,
