Product no. M-2856

Container 4.200 liters made of V2A single-walled, used, standing

EUR 4.100,00

add. 19 % VAT excl. shipping costs


Volume approx. 4,200.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

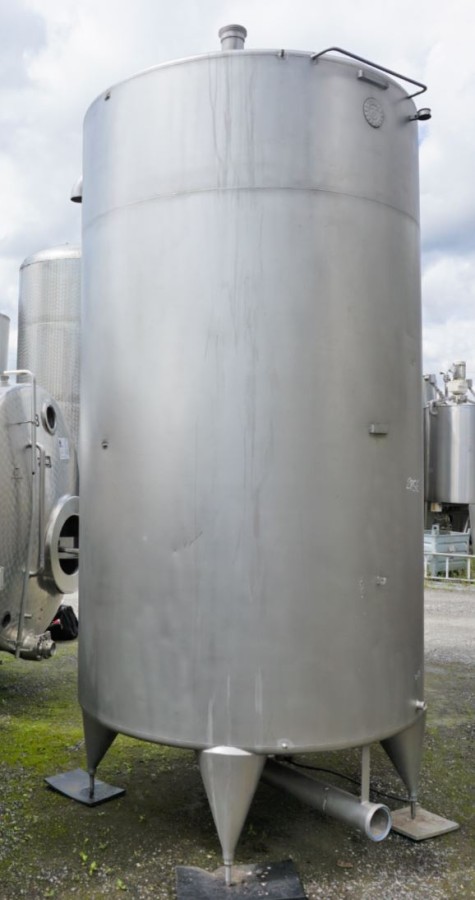

Container 4.200 liters made of V2A single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 4,200.00 litres.  Container 4.200 liters made of V2A single-walled, used was last used in the following area: CIP/water tank. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Cleaning/CIP,

General

  • Volume approx.

  • 4.200,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.500 mm

  • Cyl. height

  • 2.420 mm

  • Foot height

  • 480 mm

  • Total height

  • 3.300 mm

Design

  • Weight approx.

  • 500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

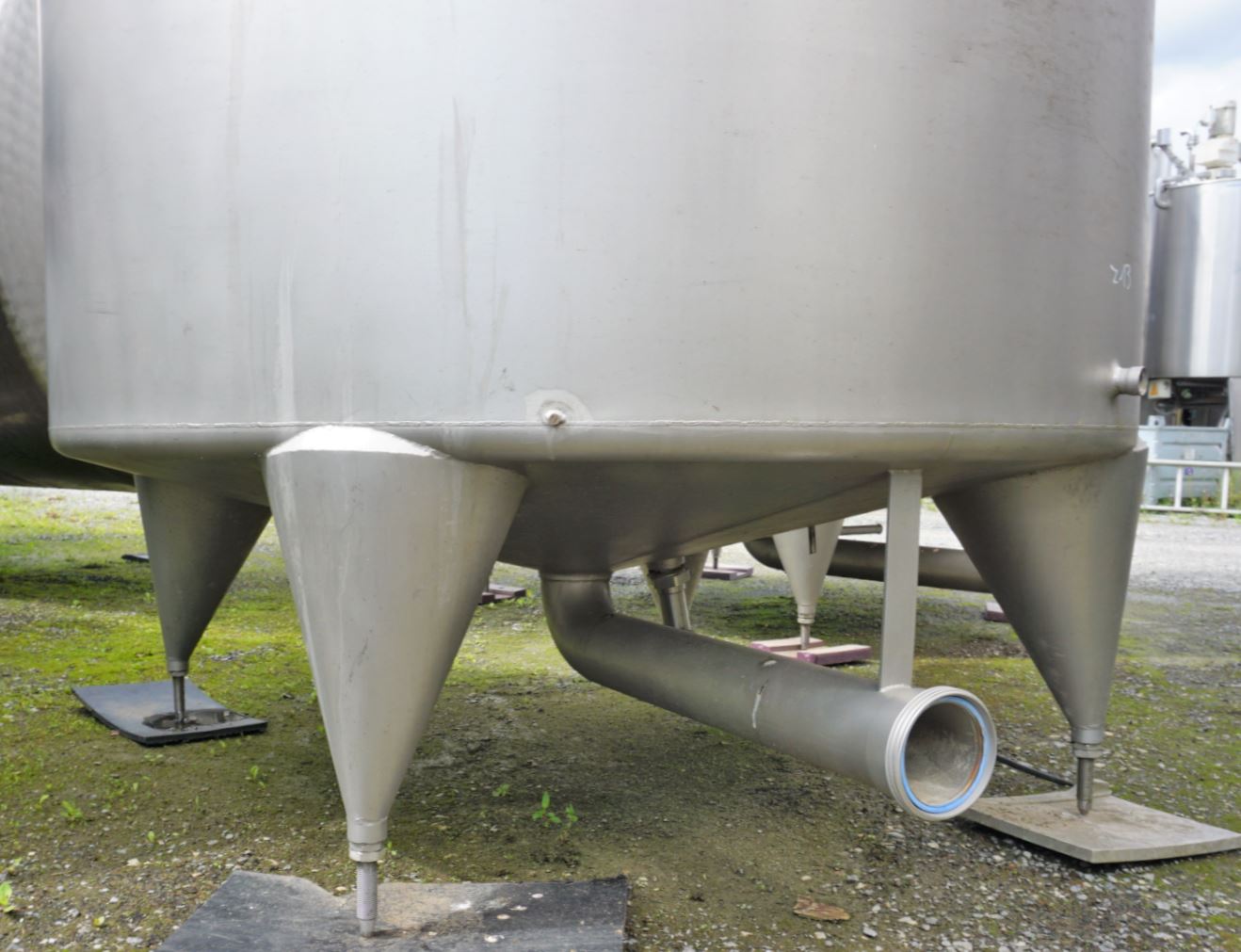

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

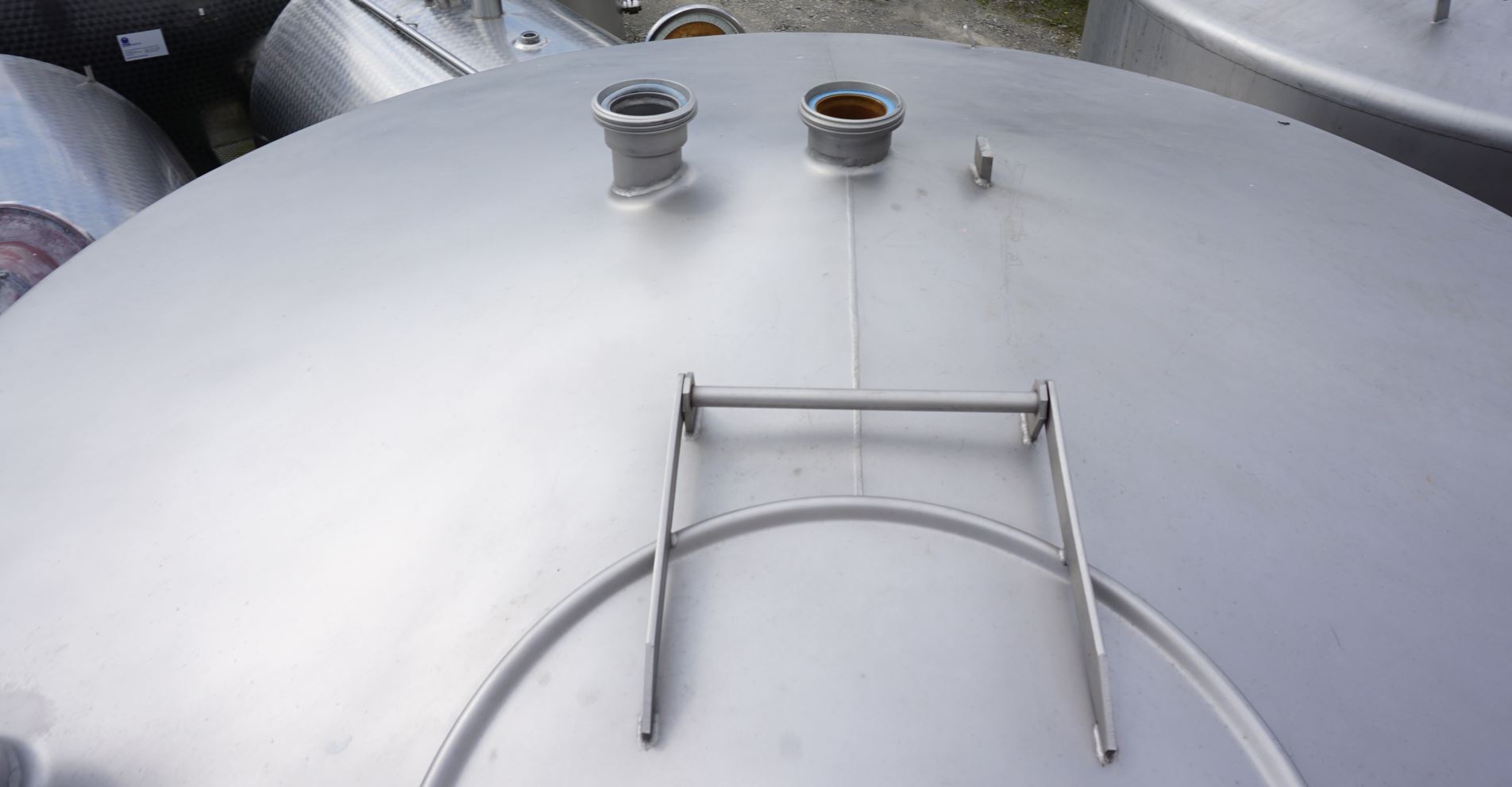

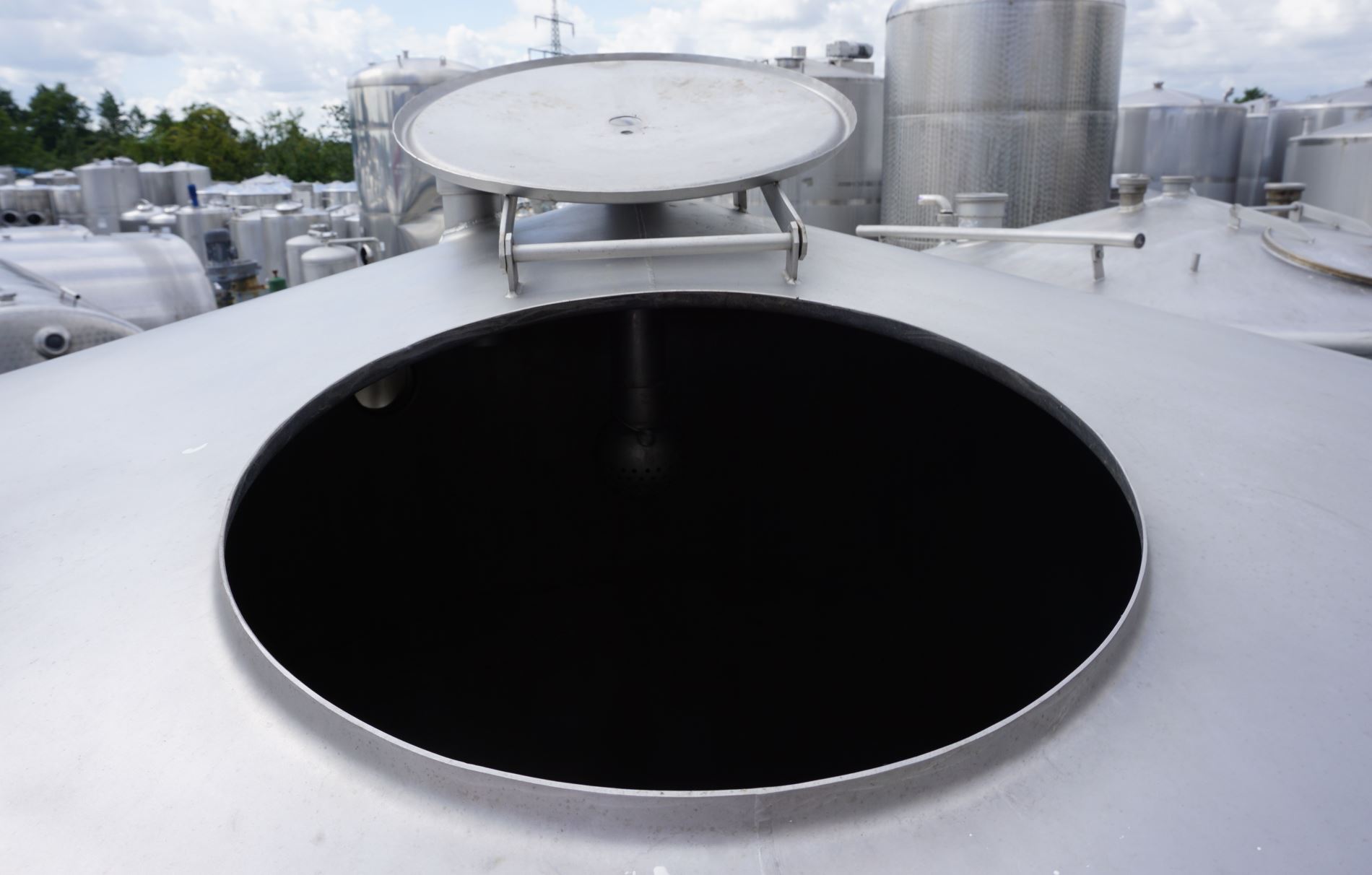

  • Manway position

  • In head

  • Nozzles/connectors in shell

  • 2xDN80 (piece)

  • Outlet nozzle

  • 80

  • Additional fixtures and fittings

  • Ladder stay

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • CIP/water tank

This product is suitable for use as:

Foodstuffs: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,

Chemistry and pharmaceuticals : Storage tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,
