Product no. M-2637

Container 4.000 liters made of V4A isolated, used, standing

EUR 6.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 4,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

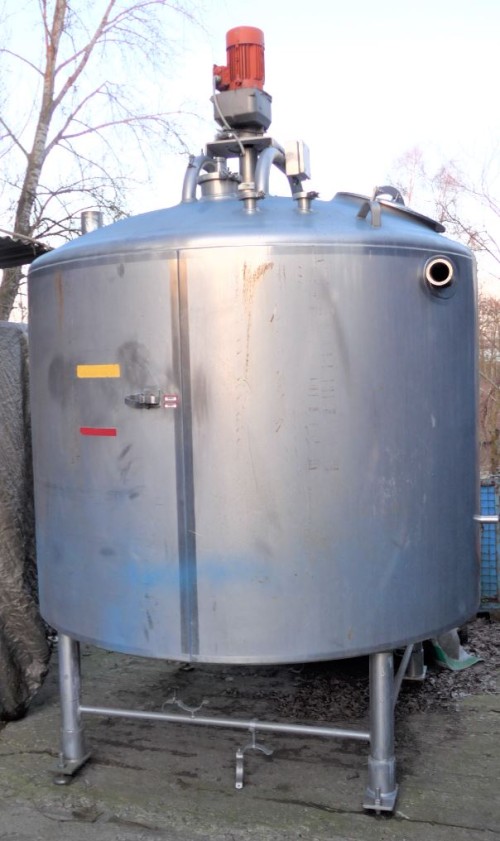

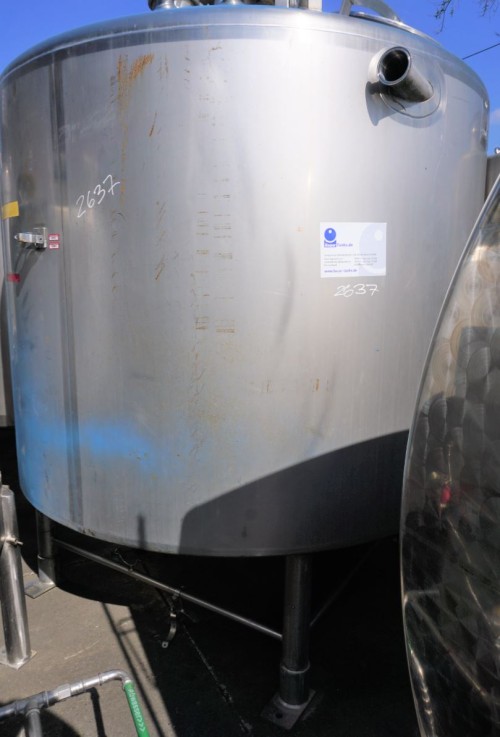

Container 4.000 liters made of V4A isolated, used consists of the material 1.4401(AISI316) V4A. The volume is approx. 4,000.00 litres. The diameter inside includes 1,830 mm.  Container 4.000 liters made of V4A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 4.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2000

  • Manufacturer

  • ABAB

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.830 mm

  • External diameter

  • 2.030 mm

  • Cyl. height

  • 1.450 mm

  • Foot height

  • 600 mm

  • Total height

  • 3.500 mm

Design

  • Weight approx.

  • 1.200,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Dished

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

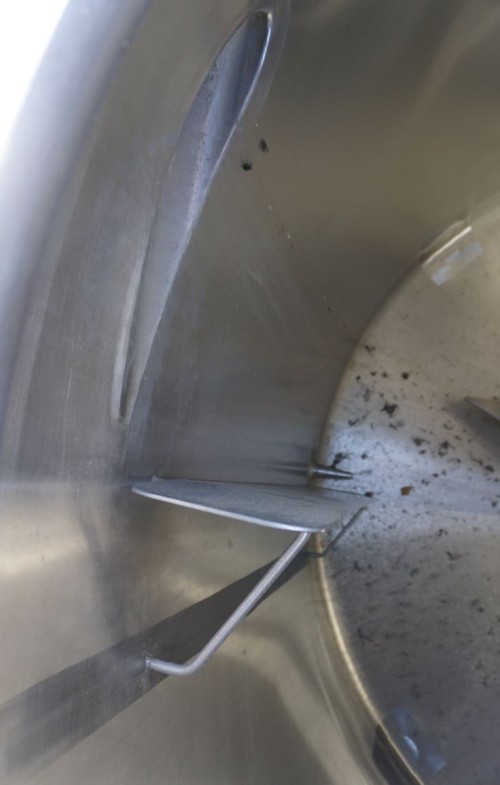

Agitator

  • Agitator quantity

  • 1 (piece)

  • Note on agitator

  • 2-Blattrührwerk

  • Agitator position

  • Head central

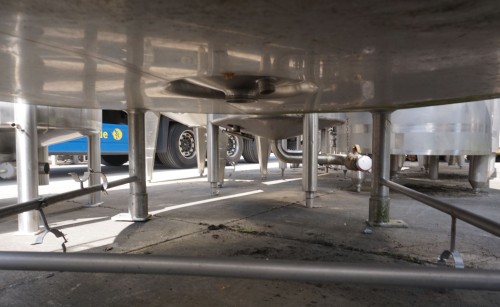

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

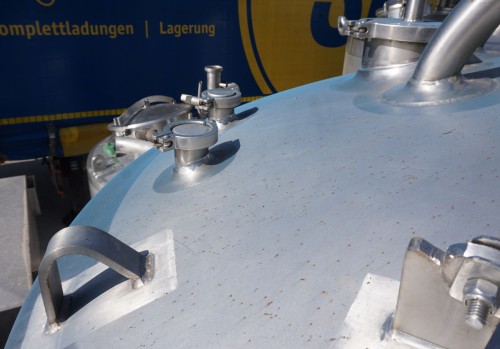

Fixtures and fittings

  • Manway 1 size

  • 450 DN mm

  • Manway position

  • In head

  • Nozzles/connectors in shell

  • 1xDN65 (piece)

  • Nozzles/connectors in head

  • 2xDN65 (piece)

  • Outlet nozzle

  • 80

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Cooling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
