Product no. M-3006

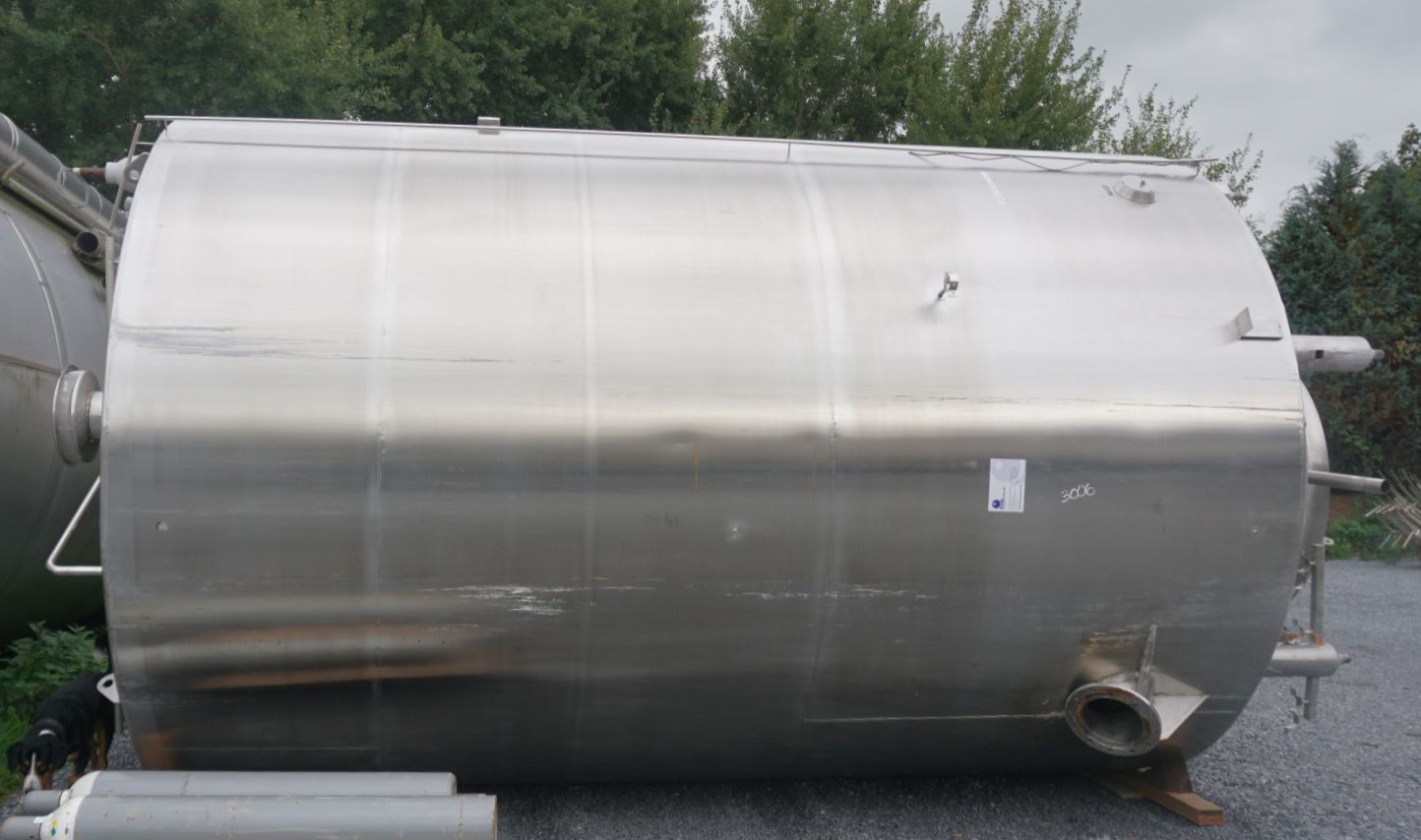

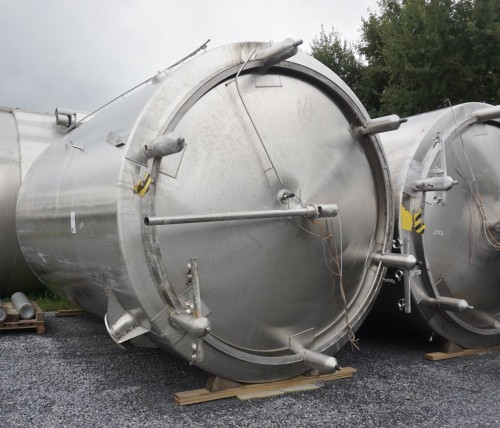

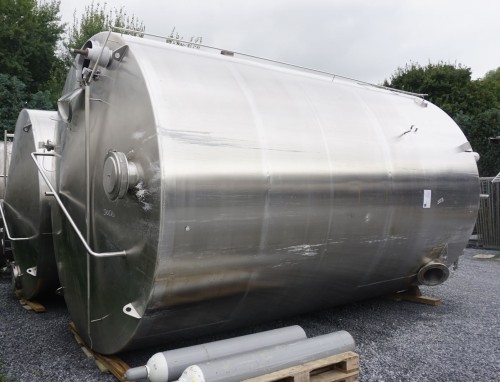

Container 39.000 liters made of V2A single-walled, used, standing
EUR 17.800,00
add. 19 % VAT excl. shipping costs
Volume approx. 39,000.00 litres
Product description
Container 39.000 liters made of V2A single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 39,000.00 litres. Container 39.000 liters made of V2A single-walled, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Mixing,General
Volume approx.
39.000,00 litres
Structure
Standing
Condition
Used
Dimensions approx.
External diameter
3.200 mm
Cyl. height
4.750 mm
Foot height
400 mm
Total height
5.800 mm
Design
Weight approx.
2.500,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
no

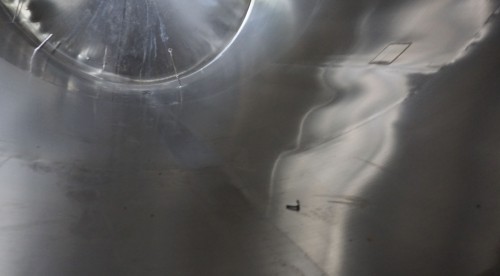

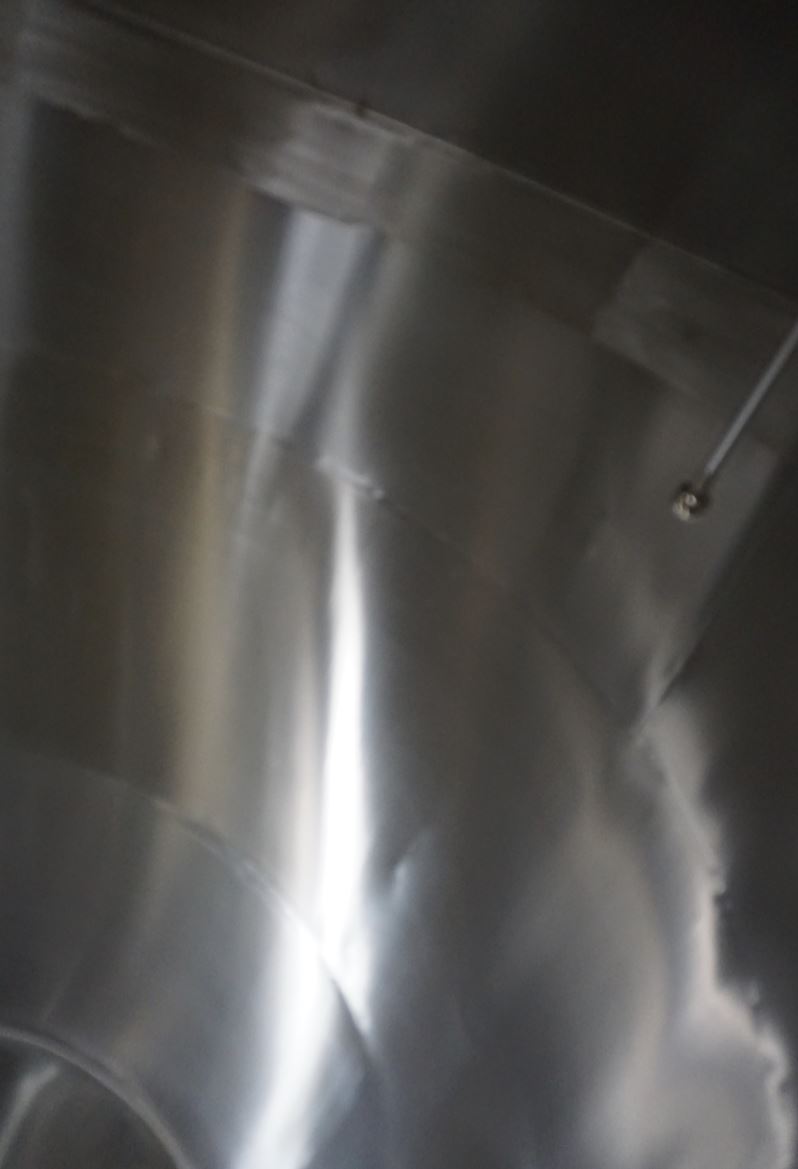

Interior surface
Smoothed
Exterior surface
Smoothed
Floor type
Conical bottom
Head design
Conical bottom

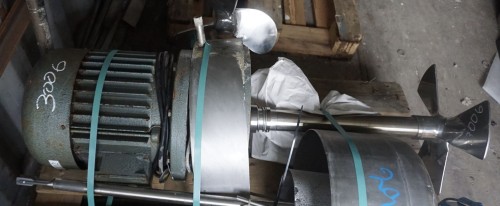

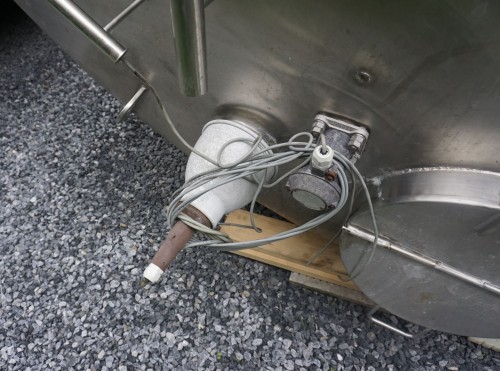

Agitator
Agitator quantity
1 (piece)
Agitator type
Propeller
Agitator position
At bottom at the side in shell

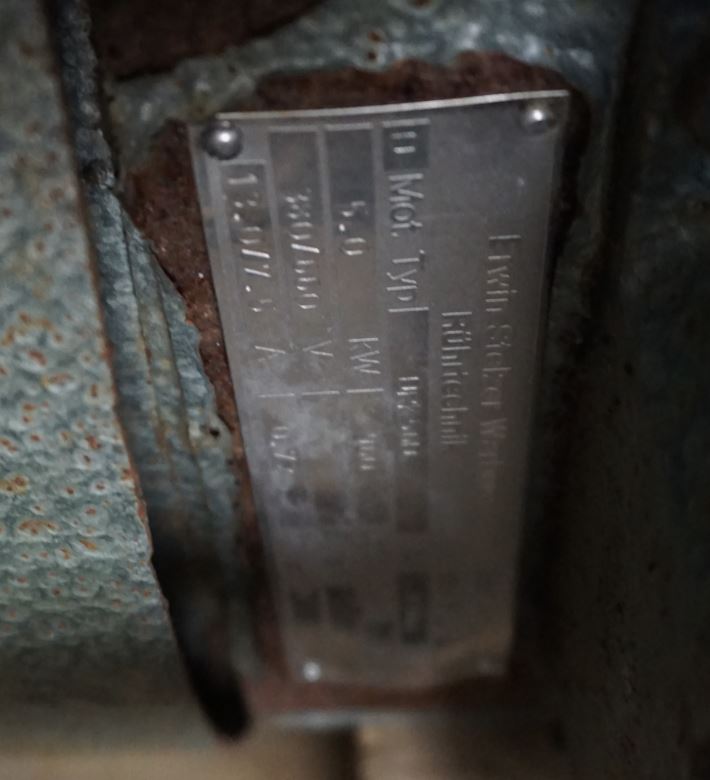

Agitator manufacturer
Stelzer
Agitator 1 - Output
5,0 kW
Agitator 1 - RPM
980 UpM
Agitator 1 - Voltage
380 V
Supports
Supports
Stainless steel feet
Number of feet
6 (piece)
Note on supports
höhenverstellbar
Fixtures and fittings

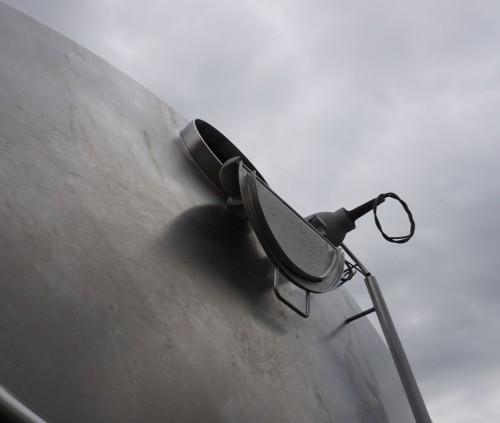

Manway position
In head
Outlet nozzle
50
Cleaning/CIP nozzle
in head
Fixtures and fittings
Lifting lugs
Additional fixtures and fittings
Air vent
Technical documentation
Technical documentation
None
Other
Note
1 Behälter ohne Entlüftungshaube.
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Wine tank, Mash tank, Fruit juice tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank,
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank,
Chemistry and pharmaceuticals : Storage tank, Pre-buffer tank, Settling tank,
