Product no. M-2995

Container 36.600 liters made of V2A single-walled, coolable, used, horizontal

EUR 17.500,00

add. 19 % VAT excl. shipping costs


Volume approx. 36,600.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 36.600 liters made of V2A single-walled, coolable, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 36,600.00 litres.  Container 36.600 liters made of V2A single-walled, coolable, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Cooling, Tempering, Under/over-pressure,

General

  • Volume approx.

  • 36.600,00 litres

  • Structure

  • Horizontal

  • Year of manufacture

  • 1966

  • Manufacturer

  • Ziemann-Hengel

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 3.300 mm

  • Total height

  • 3.600 mm

  • Total length

  • 5.100 mm

  • Wall thickness of product chamber shell

  • 2,80 mm

  • Wall thickness of product chamber floor

  • 4,80 mm

Design

  • Weight approx.

  • 2.500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 2,00 bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell area

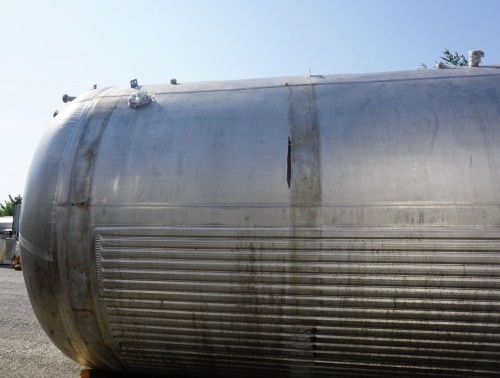

  • Temperature control system

  • Cooling pockets

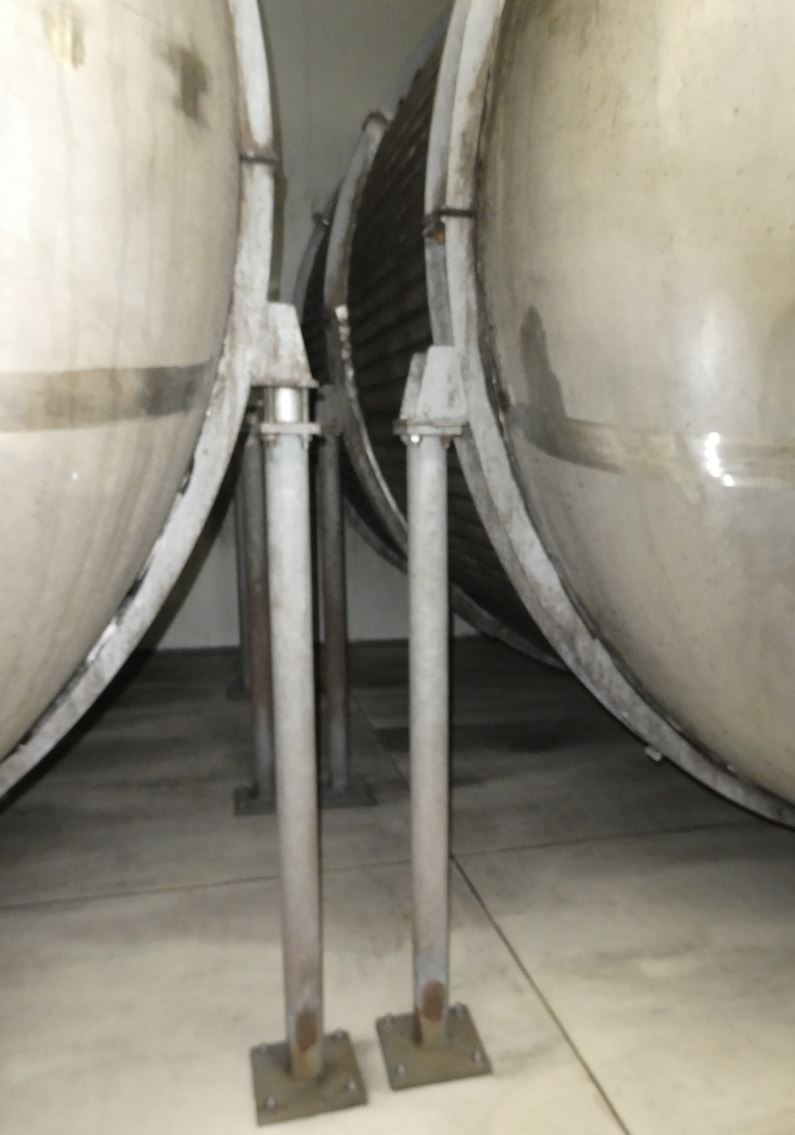

Supports

  • Supports

  • Steel storage consoles

  • Number of feet

  • 3 (piece)

  • Note on supports

  • Stahllagerringe mit Füßen

Fixtures and fittings

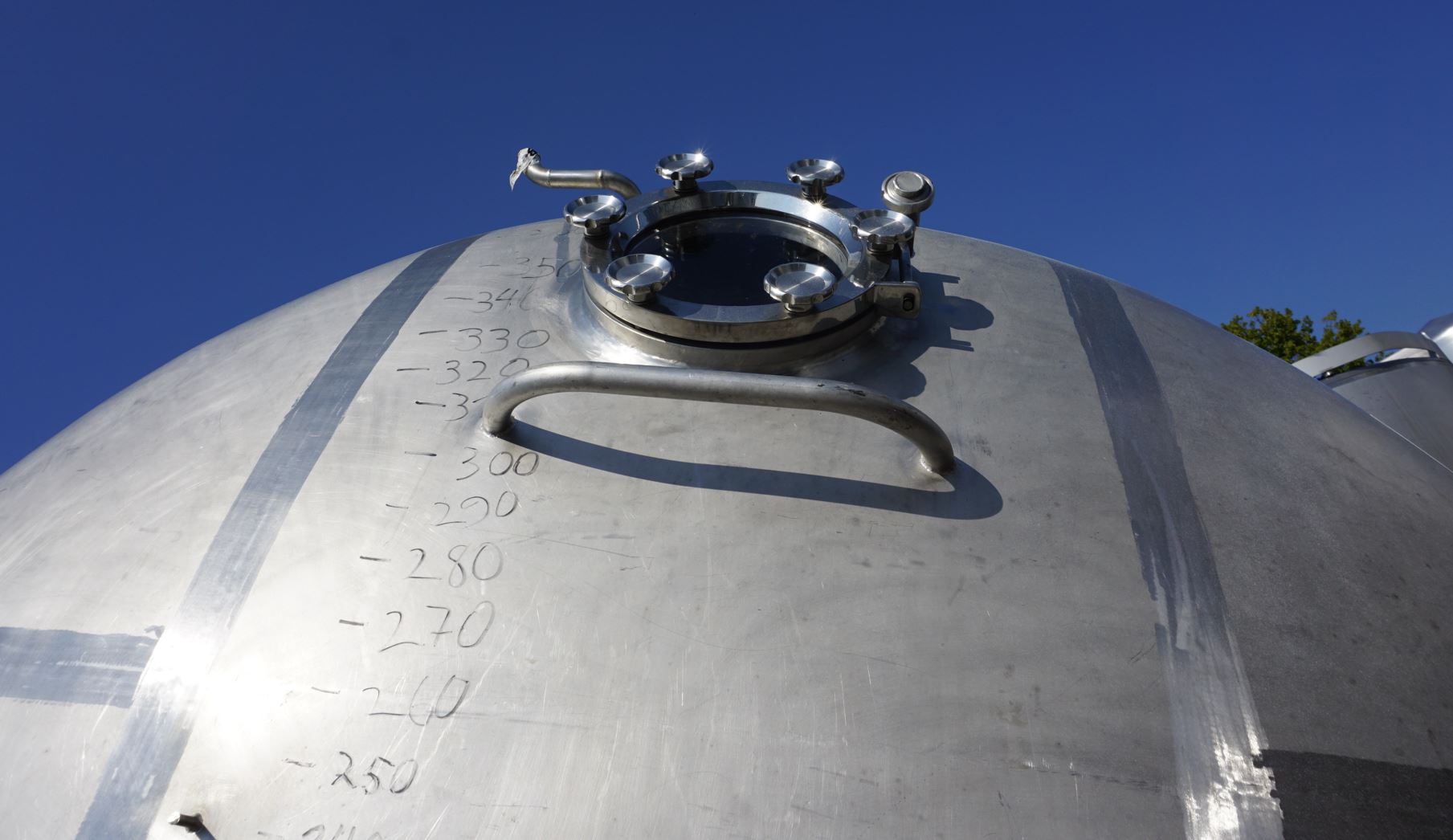

  • Manway 1 size

  • 360x440 DN mm

  • Manway position

  • Front face

  • Cleaning/CIP nozzle

  • in head

  • Additional fixtures and fittings

  • Ladder stay

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank,
