Product no. M-2977
Container 30.000 liters made of V2A isolated, temperature-controllable, used, standing
EUR 27.200,00
add. 19 % VAT excl. shipping costs
Volume approx. 30,000.00 litres
Product description
Container 30.000 liters made of V2A isolated, temperature-controllable, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 30,000.00 litres. Container 30.000 liters made of V2A isolated, temperature-controllable, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Tempering, Mixing, Processes,General
Volume approx.
30.000,00 litres
Structure
Standing
Year of manufacture
1991
Manufacturer
Goavec
Condition
Used
Dimensions approx.
External diameter
3.100 mm
Cyl. height
4.950 mm
Total height
6.300 mm
Design
Weight approx.
4.000,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
yes
Insulated area
Shell and floor
Insulation cladding
Fully welded stainless steel
Interior surface
Smoothed
Exterior surface
Smoothed
Floor type
Conical bottom
Head design
Conical bottom
Equipment
Temperature-controllable
Yes

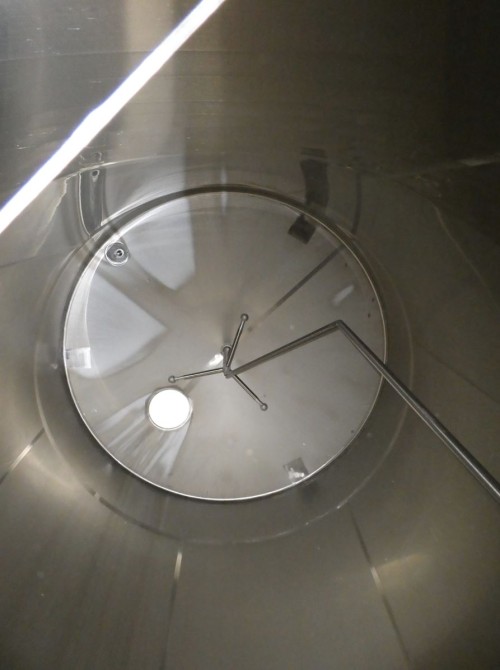

Agitator
Agitator quantity
1 (piece)
Agitator type
Propeller
Agitator position
Floor
Supports

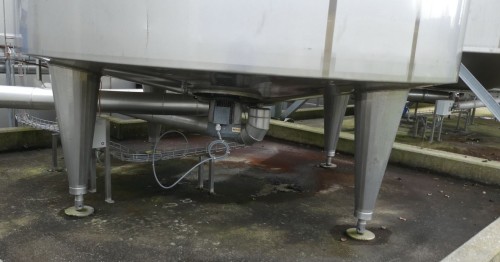

Supports
Stainless steel feet
Number of feet
4 (piece)
Note on supports
höhenverstellbar
Fixtures and fittings
Manway position
In shell
Outlet nozzle
50
Cleaning/CIP nozzle
in head
Additional fixtures and fittings

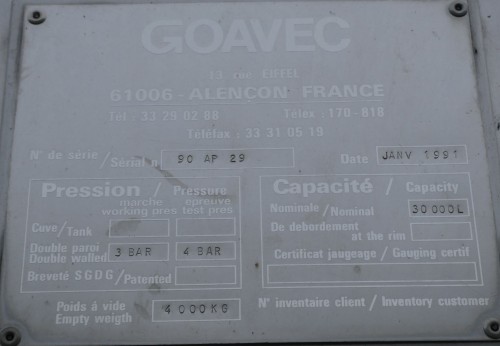

Nameplate
Technical documentation
Technical documentation
None
Other
Note
Auslaufstutzen und Stutzen für Temperiermantel abgeflext!
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, Boiling tank,
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank,
Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank,
