Product no. M-2867

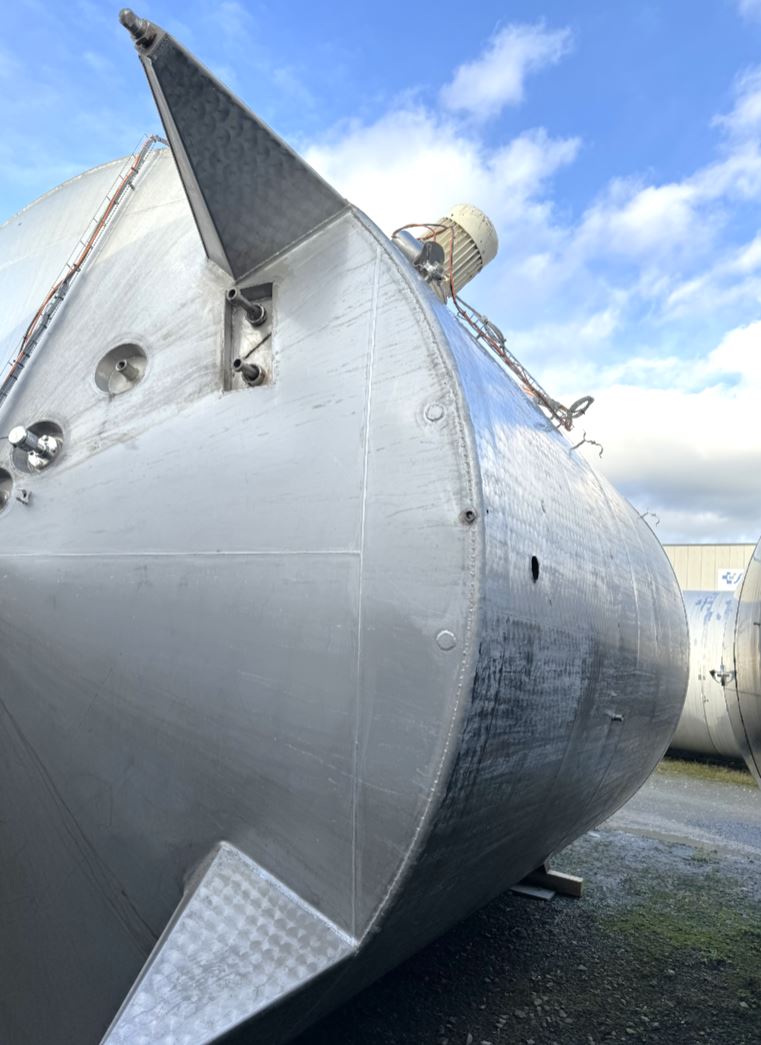

Container 30.000 liters made of V2A isolated, used, standing
EUR 18.700,00
add. 19 % VAT excl. shipping costs
Volume approx. 30,000.00 litres
Product description

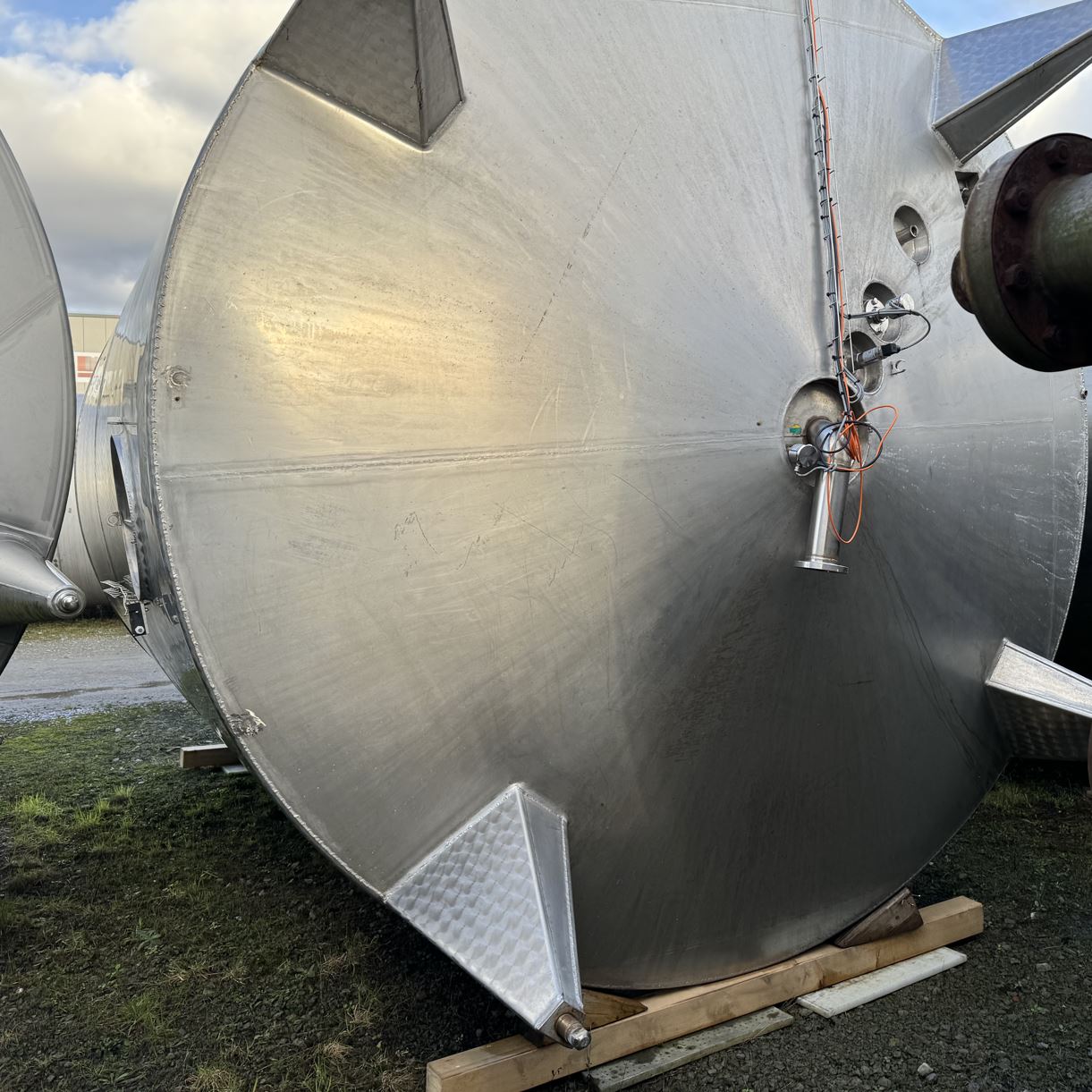

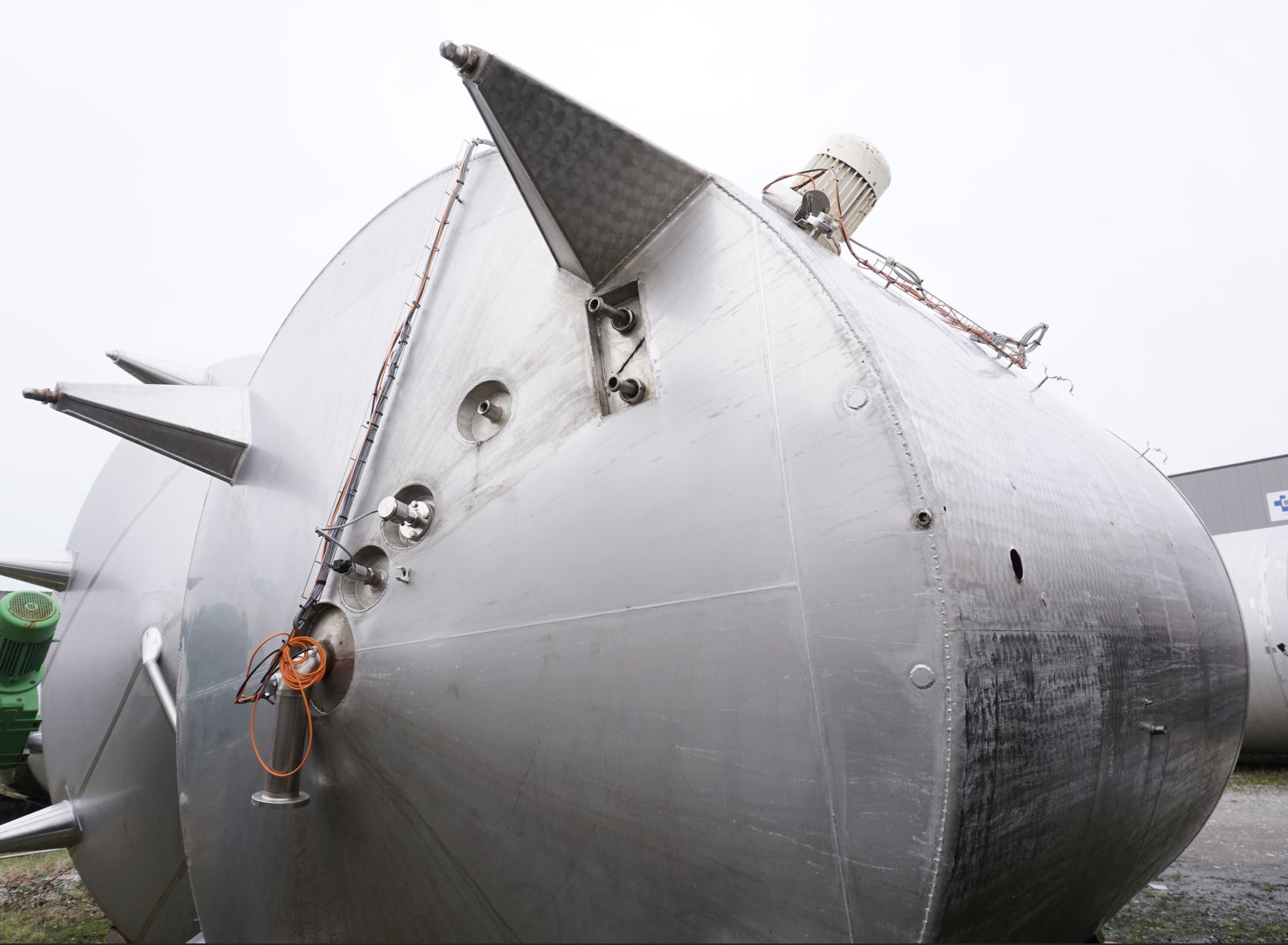

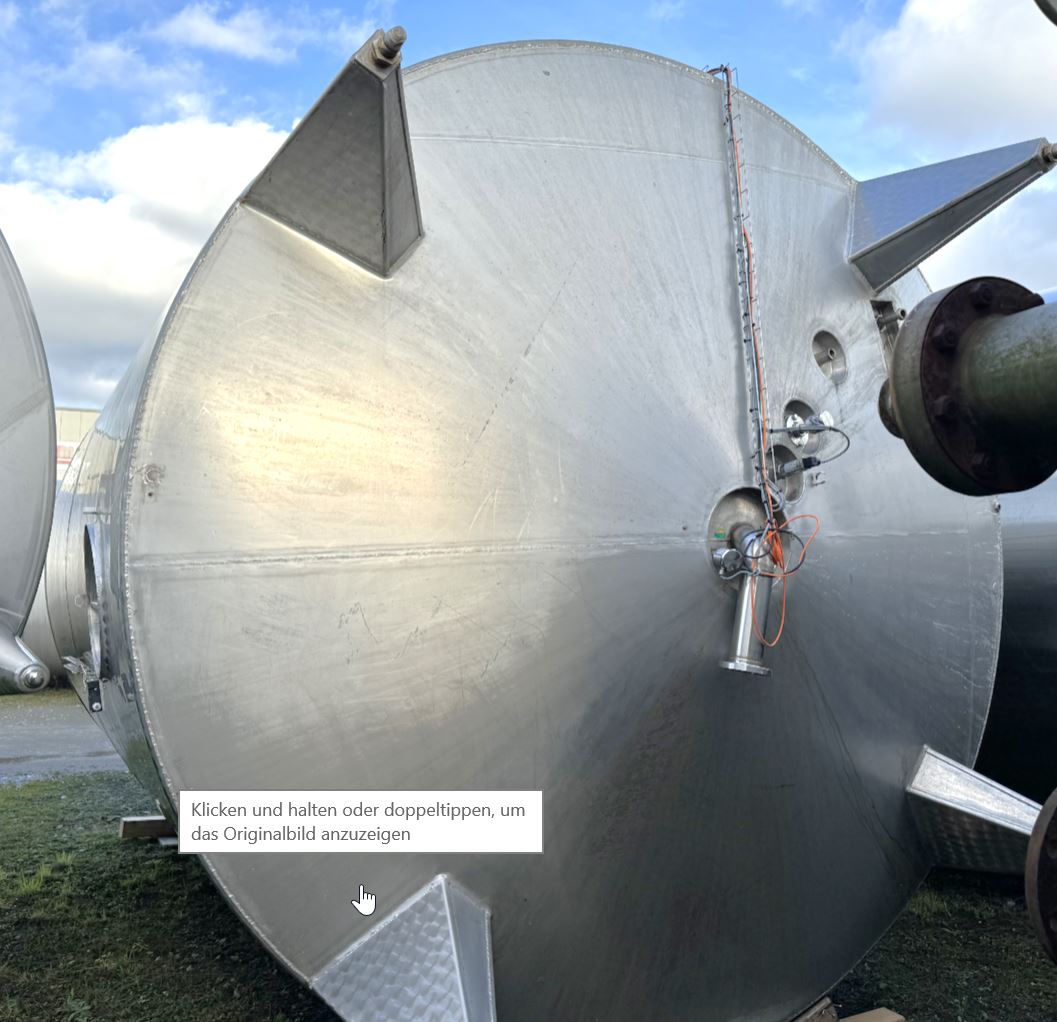

Container 30.000 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 30,000.00 litres. The diameter inside includes 3,100 mm. Container 30.000 liters made of V2A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Mixing,General
Volume approx.
30.000,00 litres
Structure
Standing
Condition
Used
Dimensions approx.
Internal diameter
3.100 mm
External diameter
3.200 mm
Cyl. height
4.000 mm
Foot height
750 mm
Total height
5.300 mm
Design
Weight approx.
4.500,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
yes
Insulated area
Shell and floor
Insulation cladding
Fully welded stainless steel

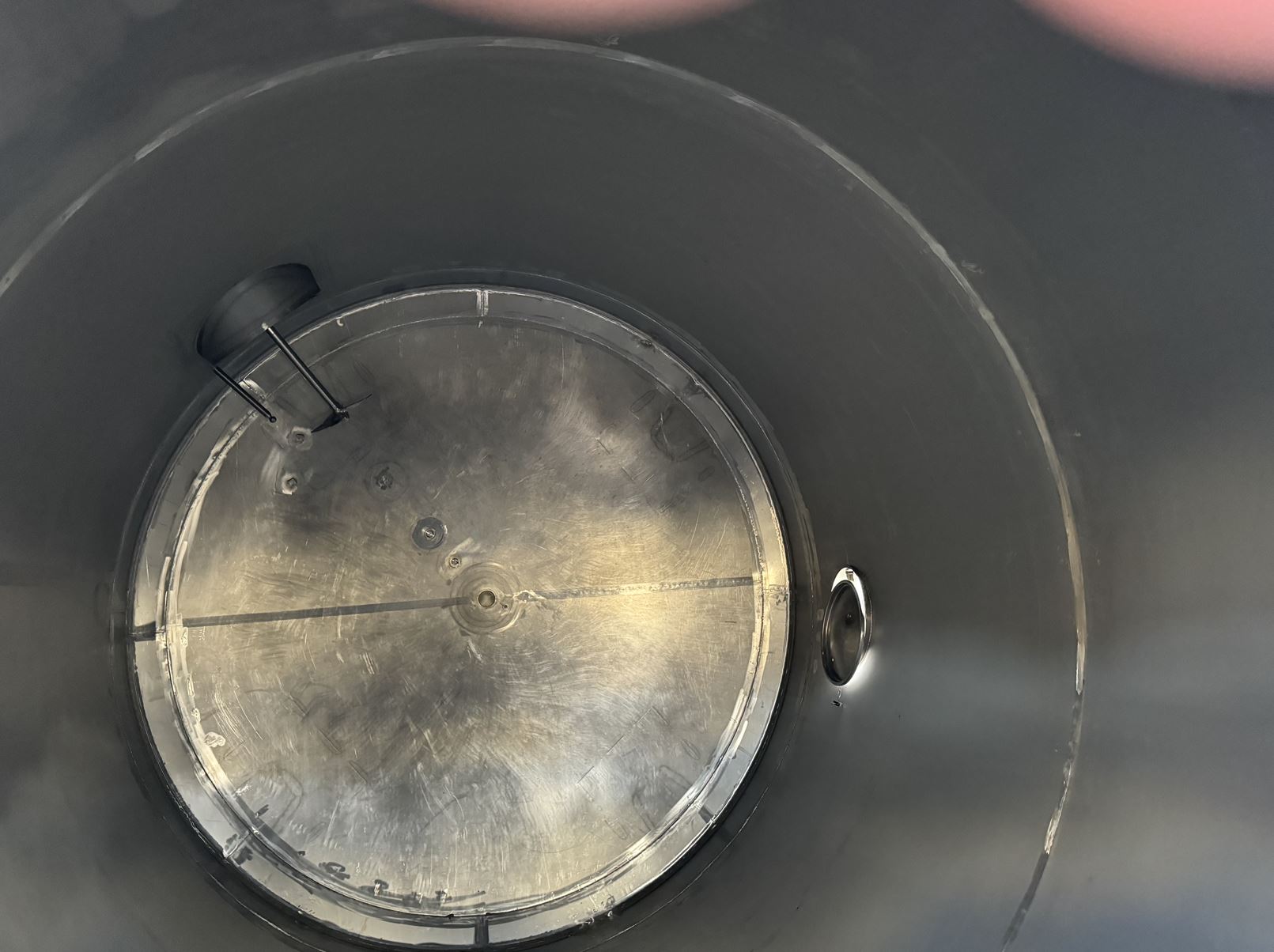

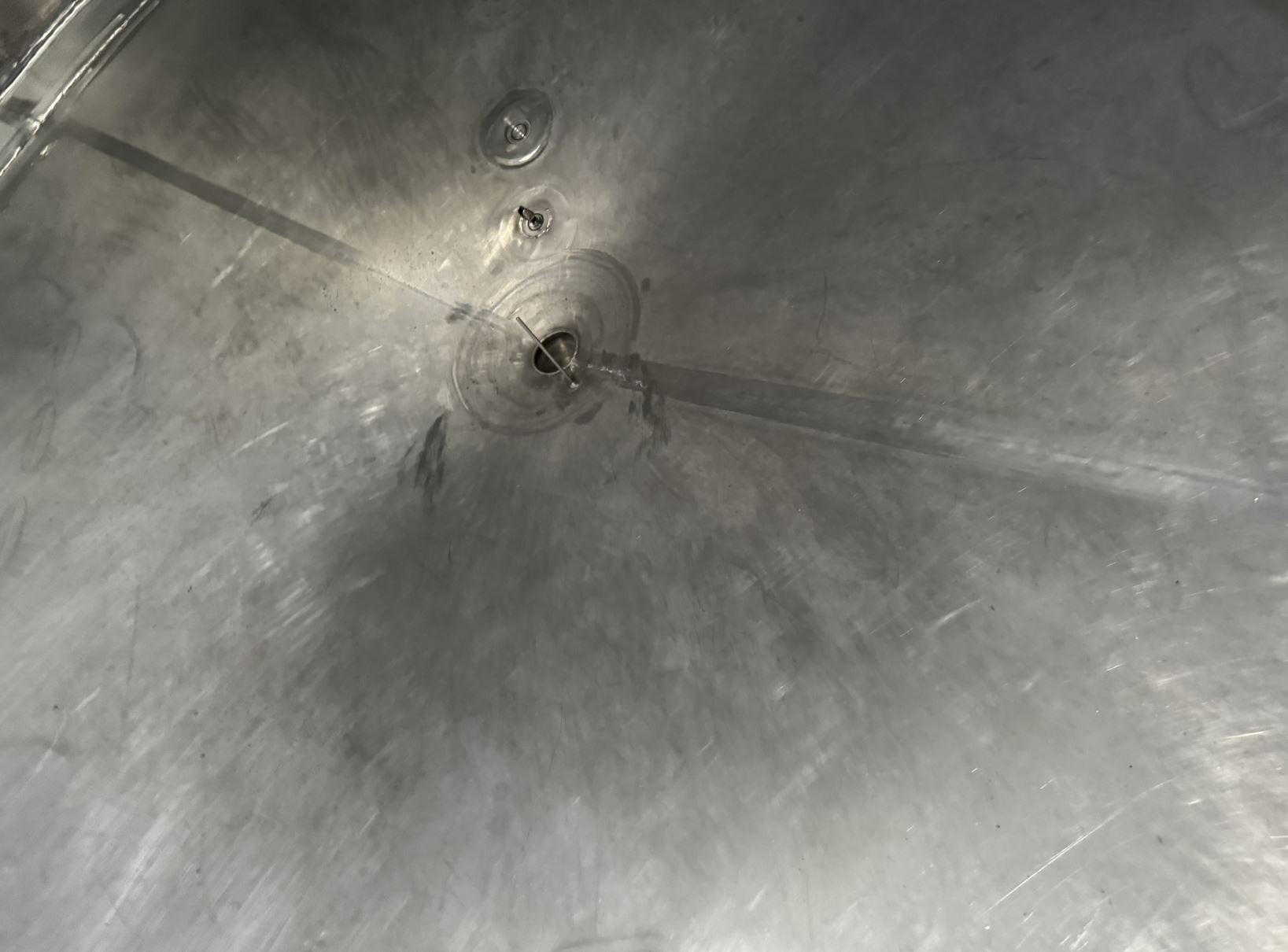

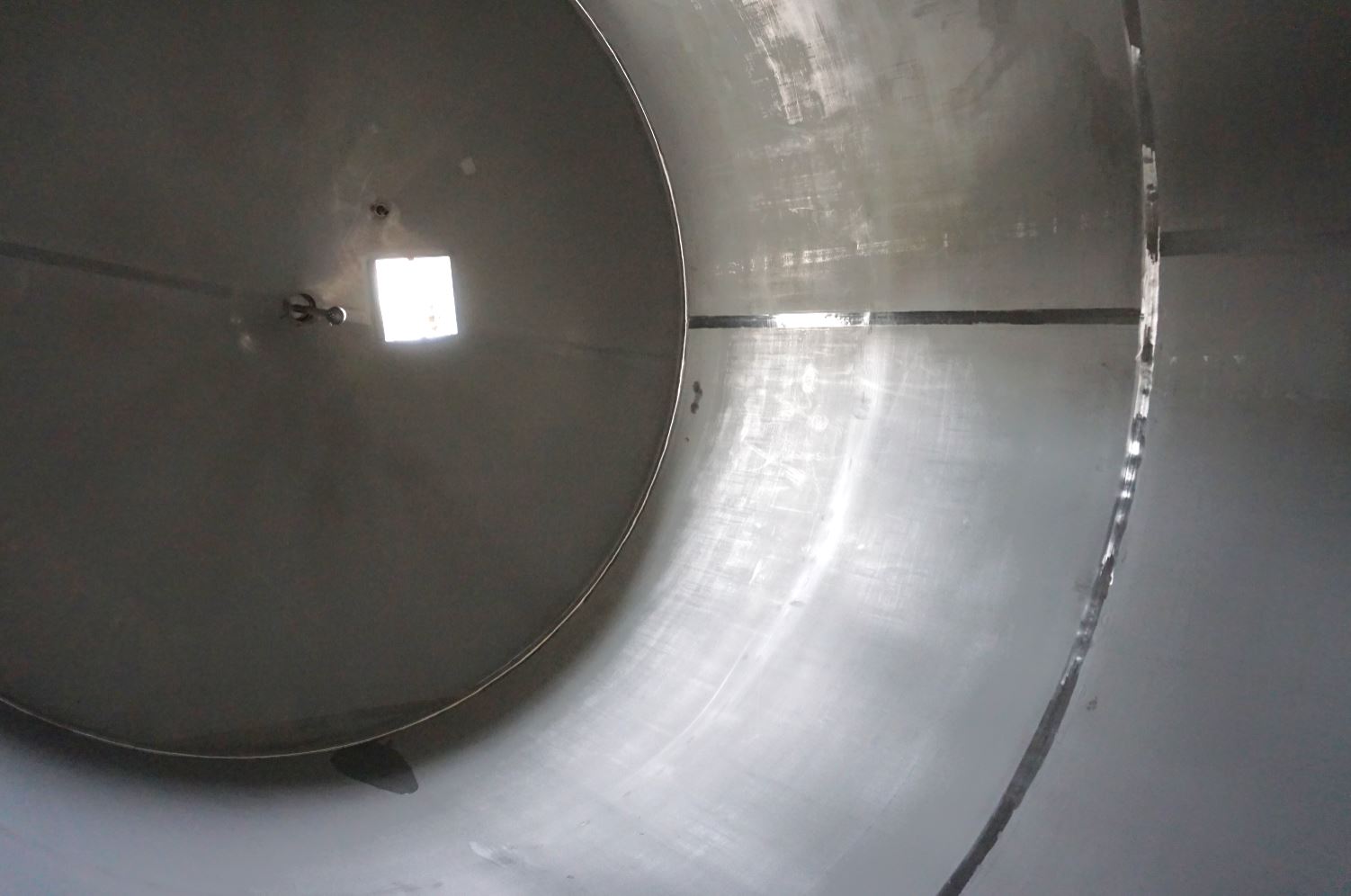

Interior surface
Smoothed
Exterior surface
Marbled
Floor type
Conical bottom
Head design
Conical bottom
Agitator
Agitator quantity
1 (piece)

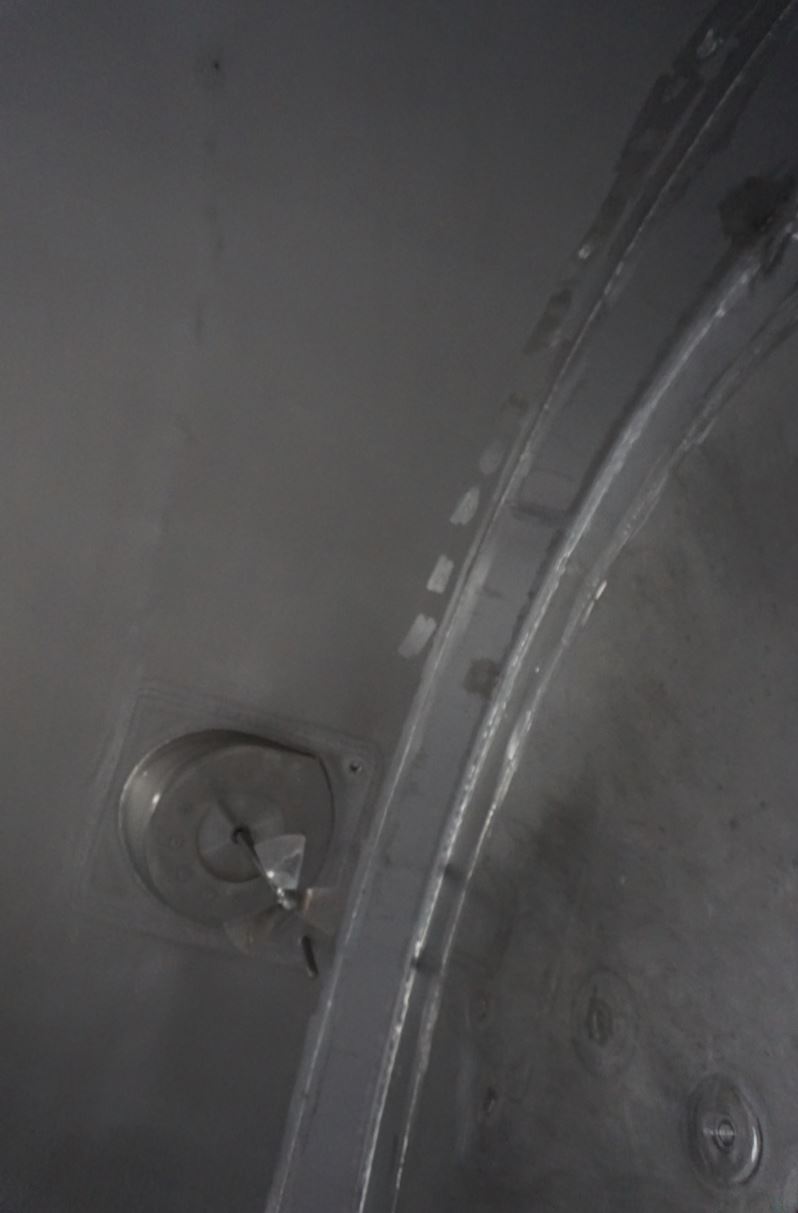

Agitator type
Propeller
Agitator position
At bottom at the side in shell
Supports
Supports
Stainless steel feet
Number of feet
4 (piece)
Note on supports
höhenverstellbar
Fixtures and fittings

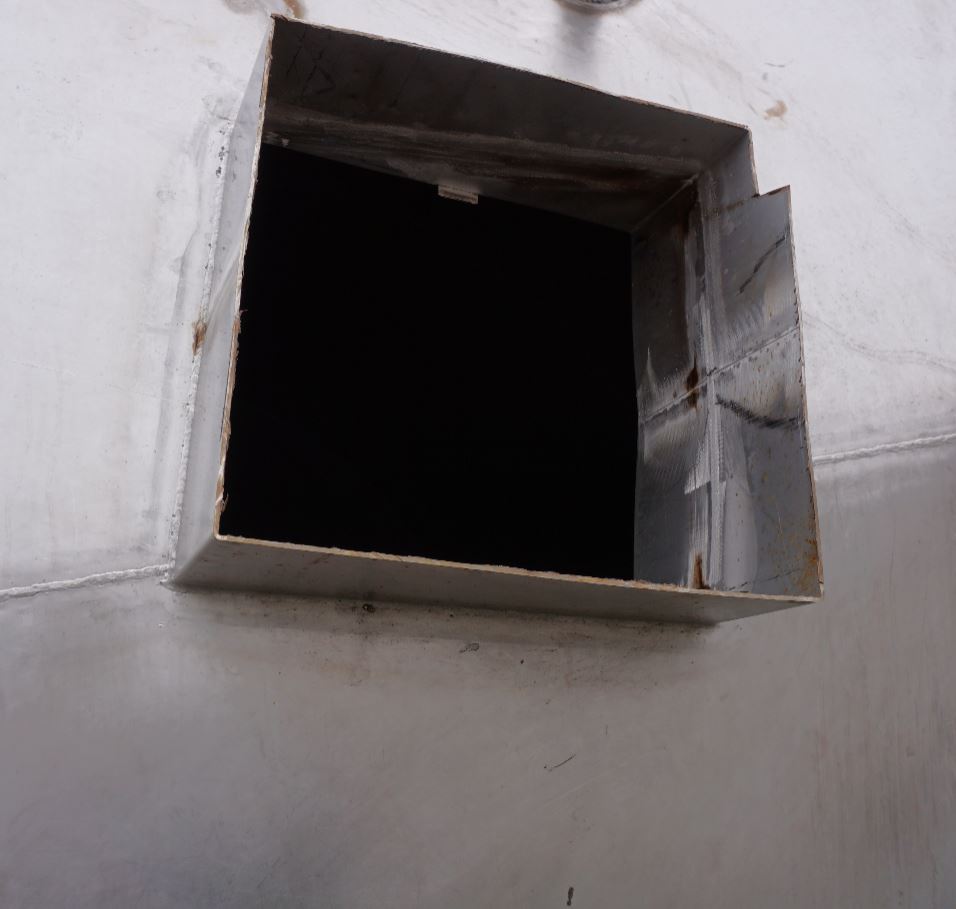

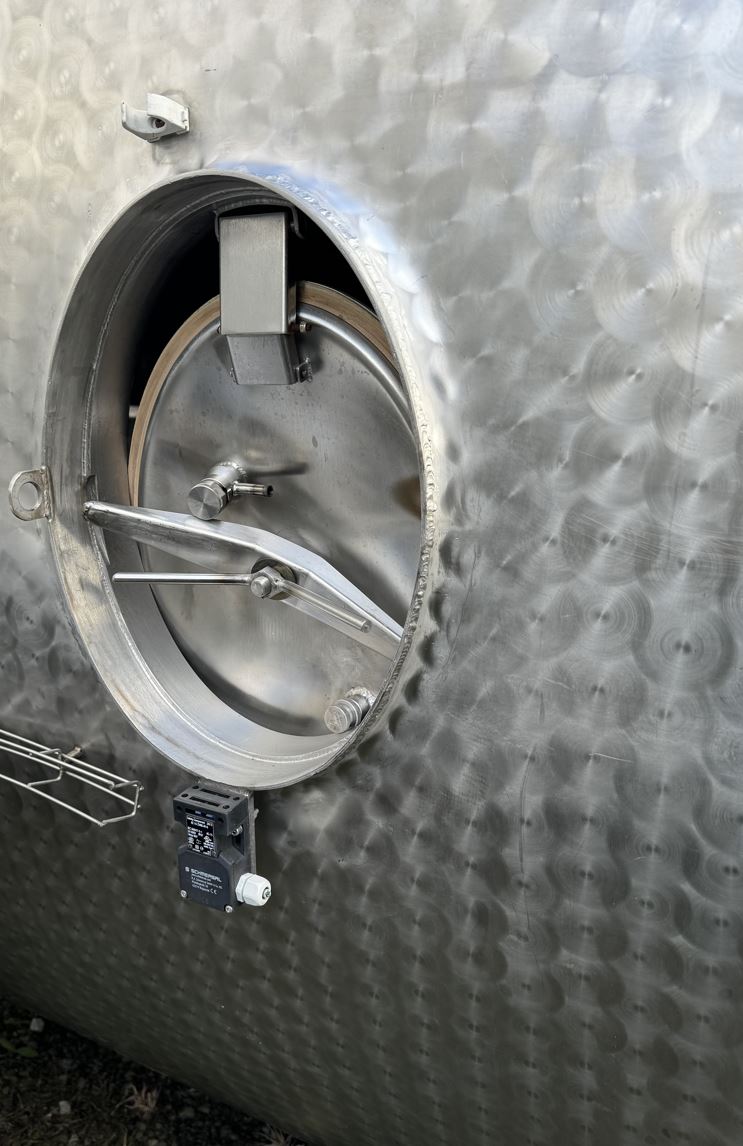

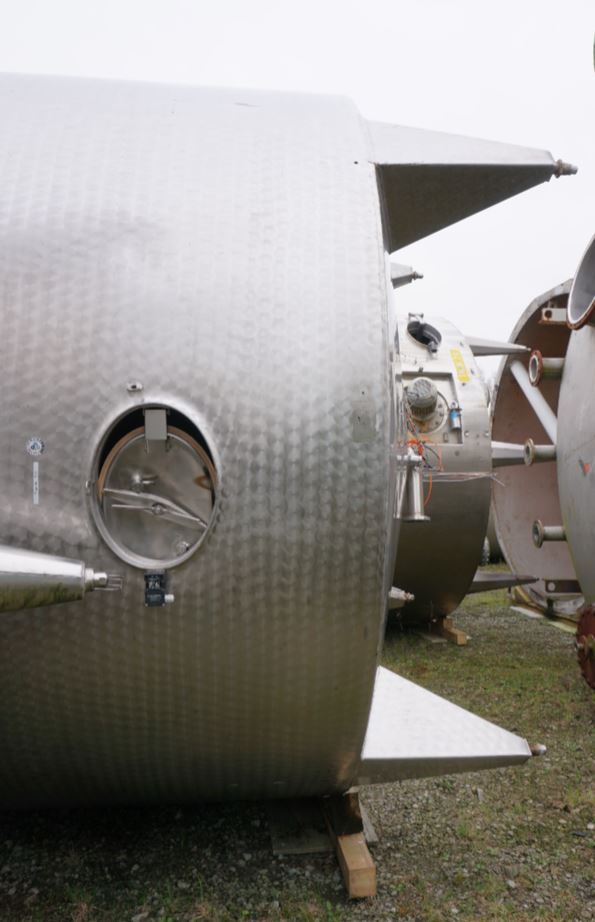

Manway position
In shell and head
Nozzles/connectors in shell
1xDN50 (piece)

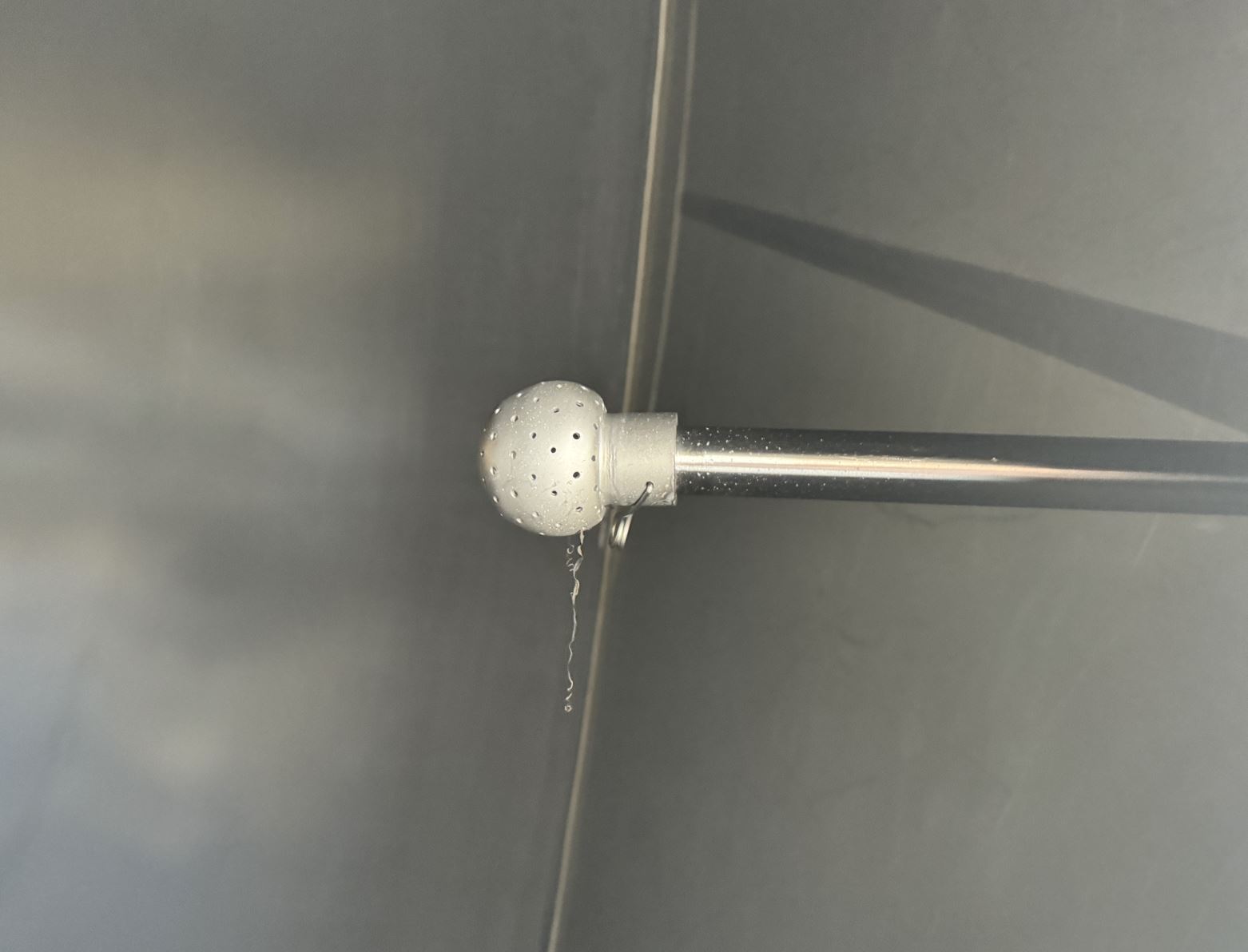

Cleaning/CIP nozzle
in head
Technical documentation
Technical documentation
None
Other
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Mixing tank,
Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
