Product no. M-2978

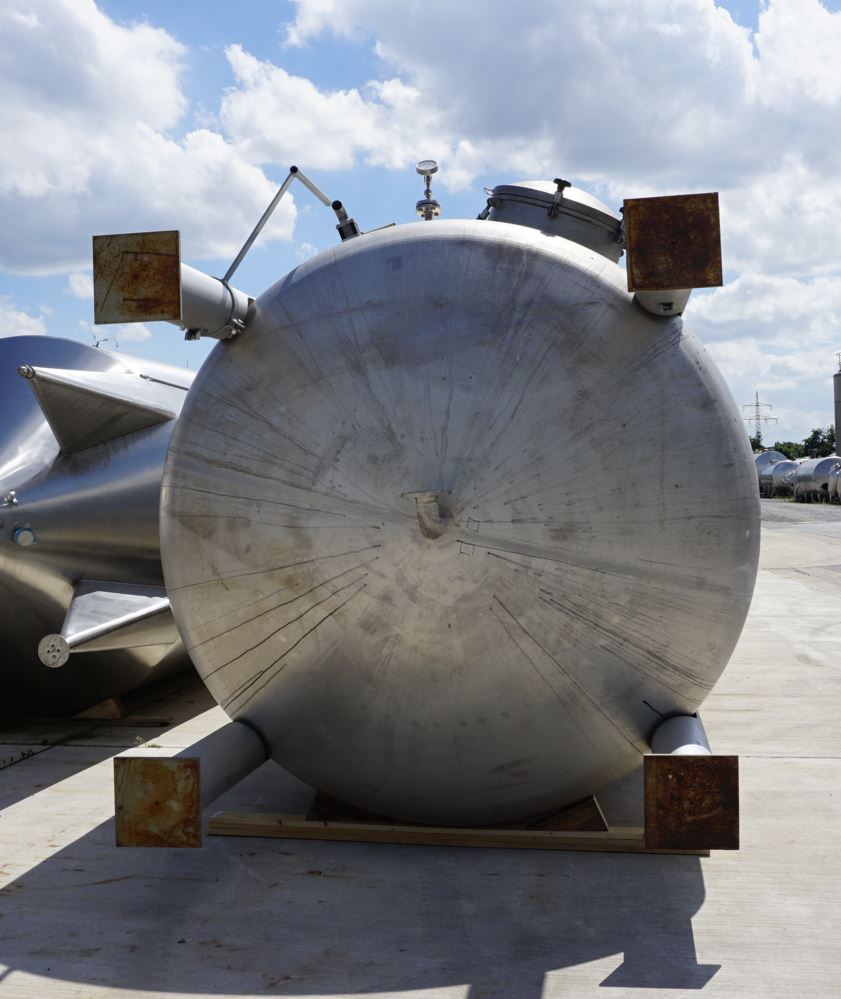

Container 30.000 liters made of V2A, single-walled, spez. Gew. 1,13 kg/l, used, standing

EUR 21.800,00

add. 19 % VAT excl. shipping costs

Volume approx. 30,000.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

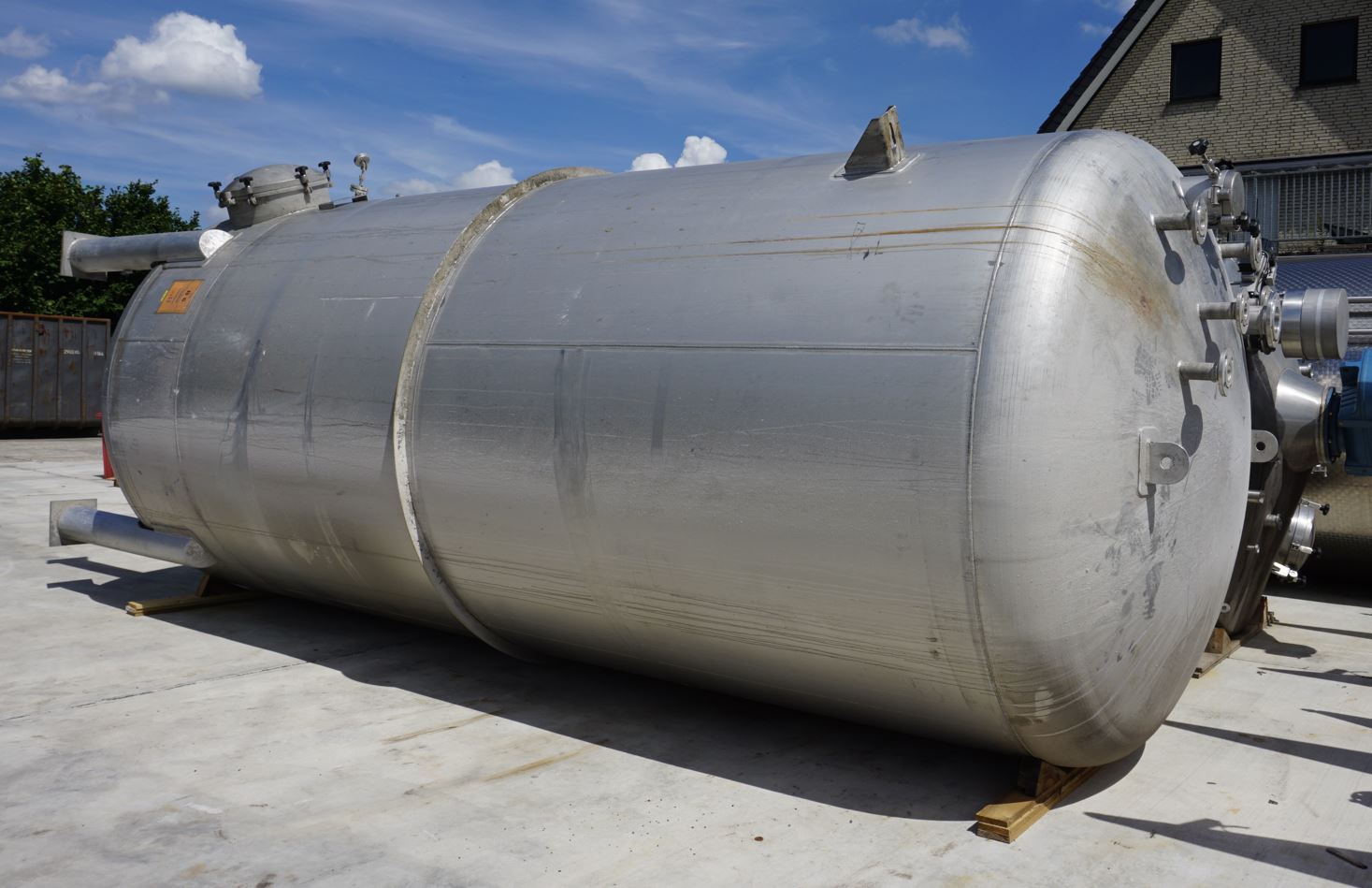

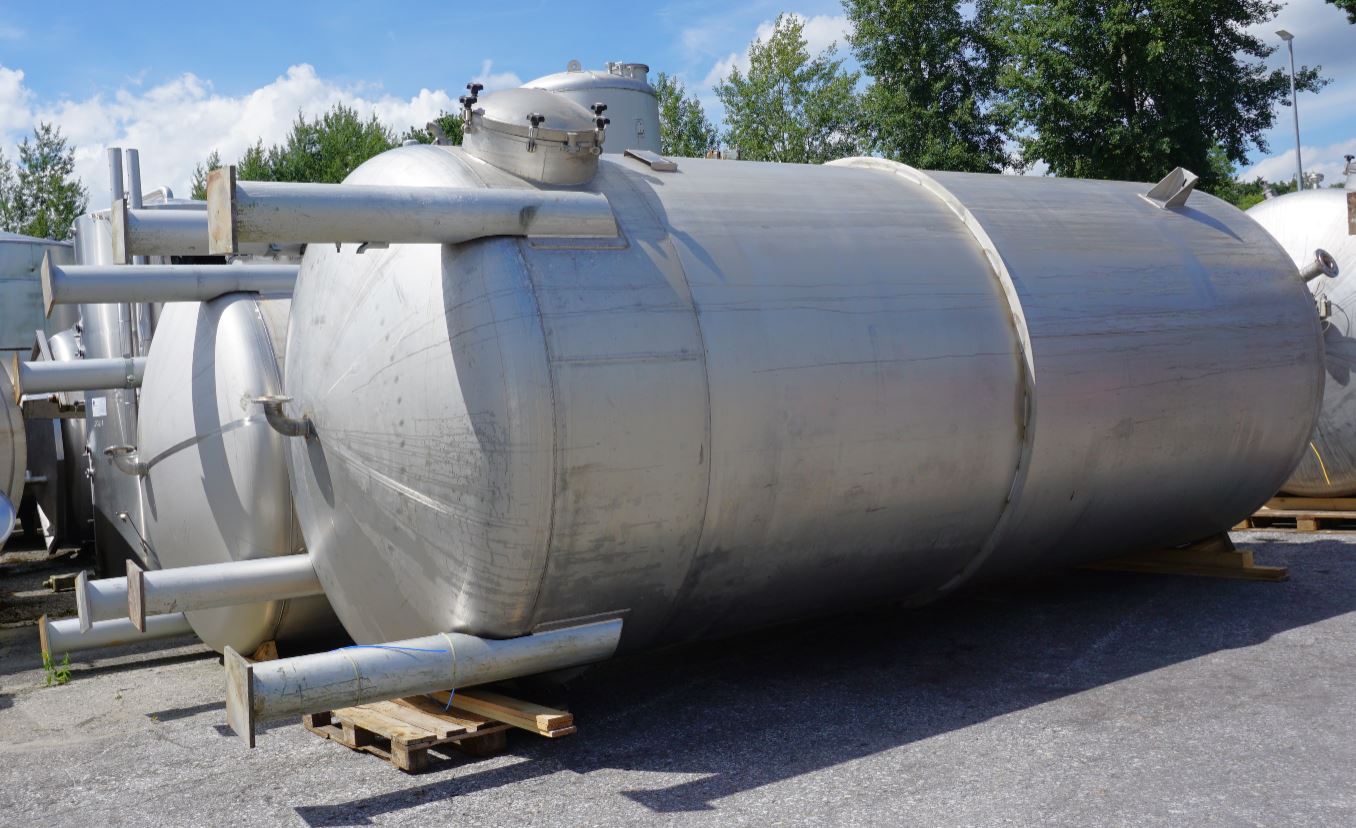

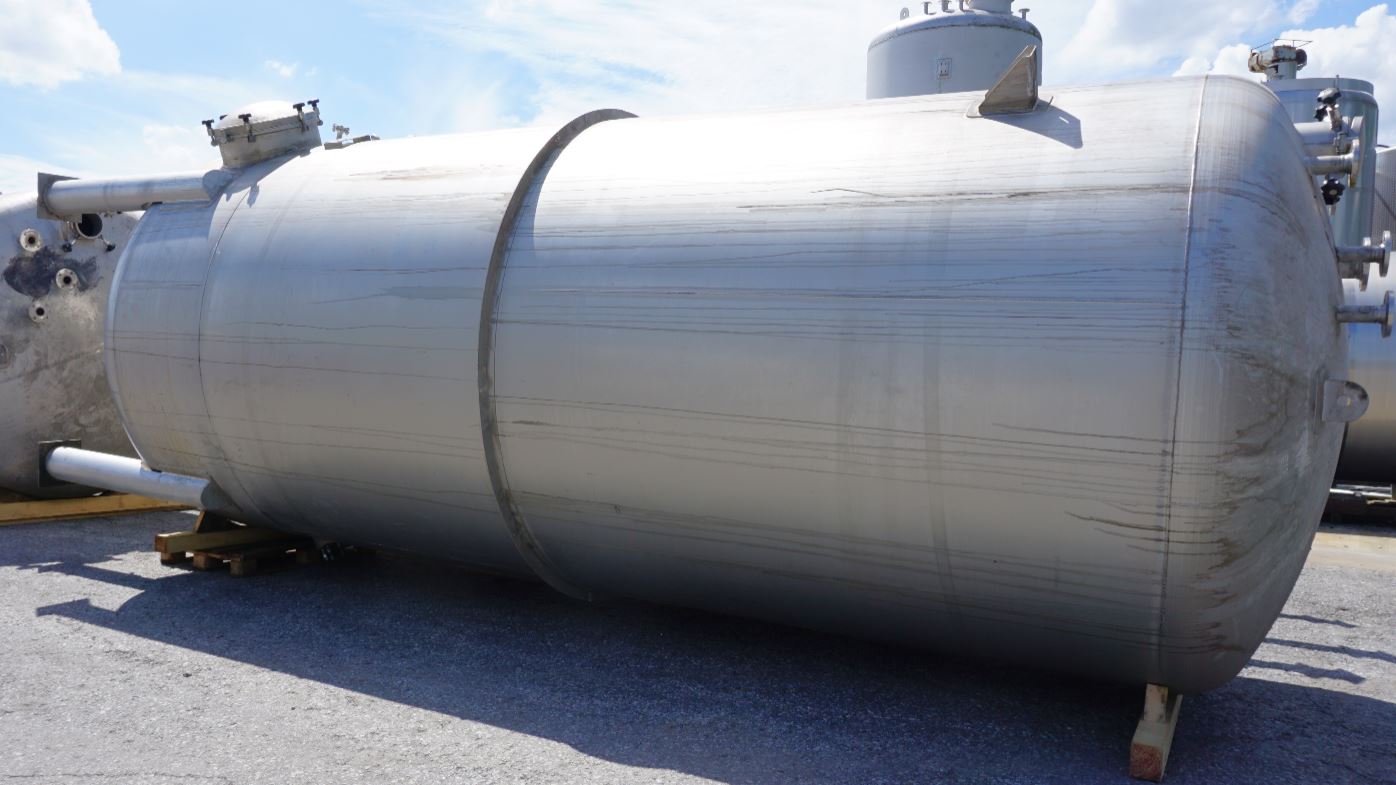

Container 30.000 liters made of V2A, single-walled, spez. Gew. 1,13 kg/l, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 30,000.00 litres.  Container 30.000 liters made of V2A, single-walled, spez. Gew. 1,13 kg/l, used was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing, Under/over-pressure,

General

  • Volume approx.

  • 30.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1995

  • Manufacturer

  • Hagemann

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 2.500 mm

  • Cyl. height

  • 5.350 mm

  • Foot height

  • 1.450 mm

  • Total height

  • 7.100 mm

  • Wall thickness of product chamber head

  • 5,00 mm

  • Wall thickness of product chamber shell

  • 6,00 mm

  • Wall thickness of product chamber floor

  • 5,00 mm

Design

  • Weight approx.

  • 2.650,00 kg

  • Weight per unit volume approx.

  • 1.130,00 kg/m³

  • Insulation

  • no

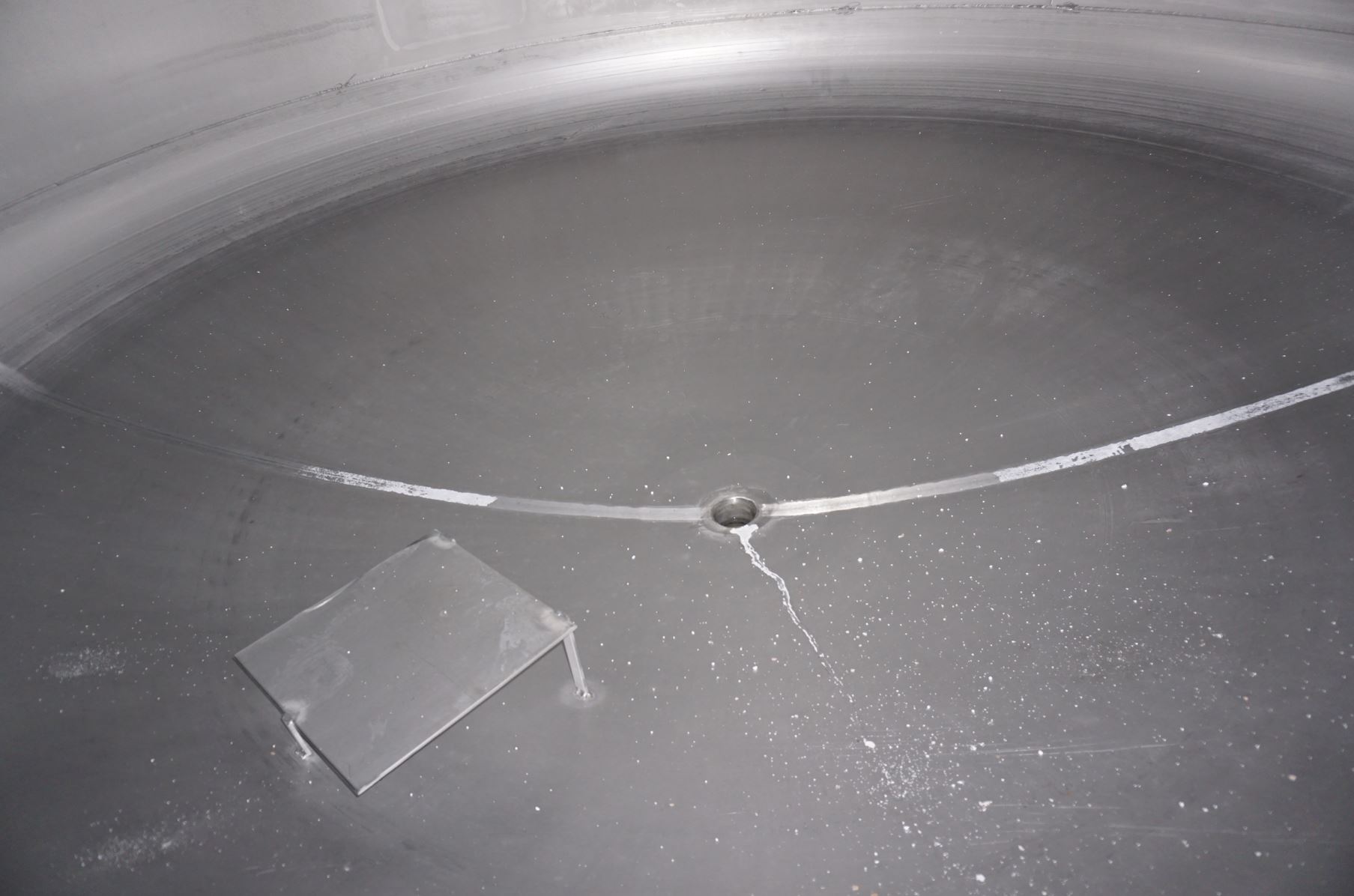

  • Interior surface

  • Matt

  • Exterior surface

  • Matt

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 0,50 bar

  • Product chamber operating under-pressure

  • -0,1 bar

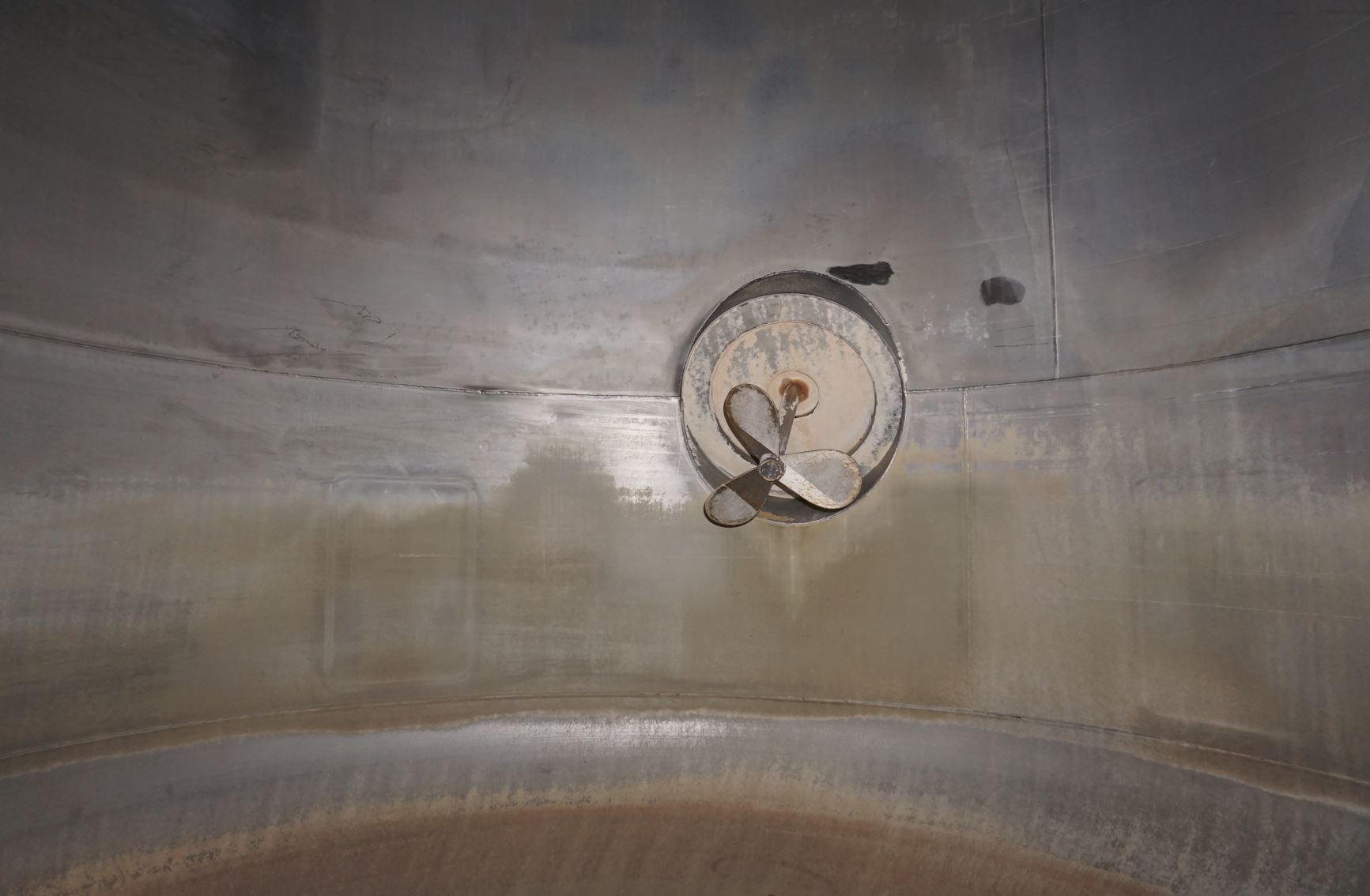

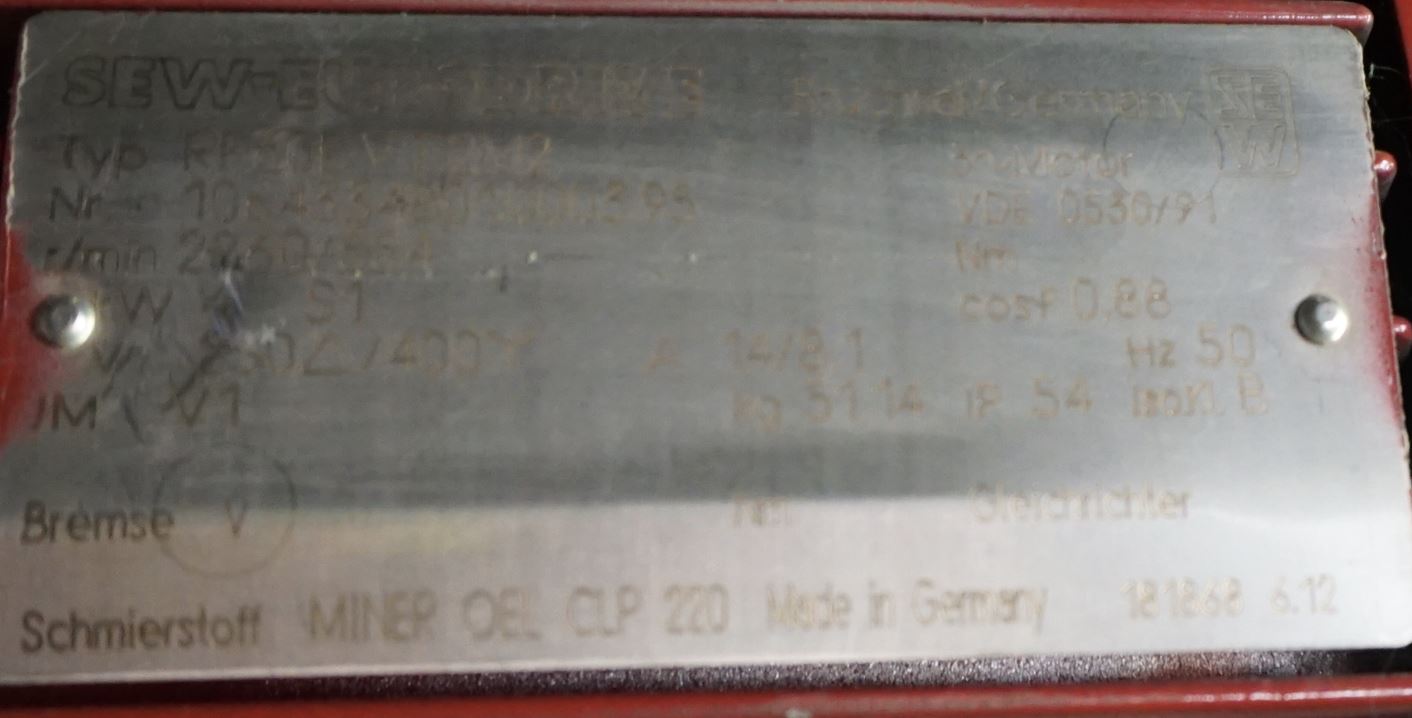

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • At bottom at the side in shell

Supports

  • Supports

  • Steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway 1 size

  • 600 DN mm

  • Manway position

  • In shell

  • Handhole 1 size

  • 200 DN mm

  • Handlochposition Handhole position

  • In head

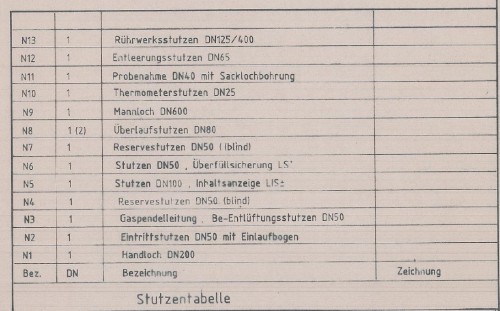

  • Nozzle connector

  • Flange

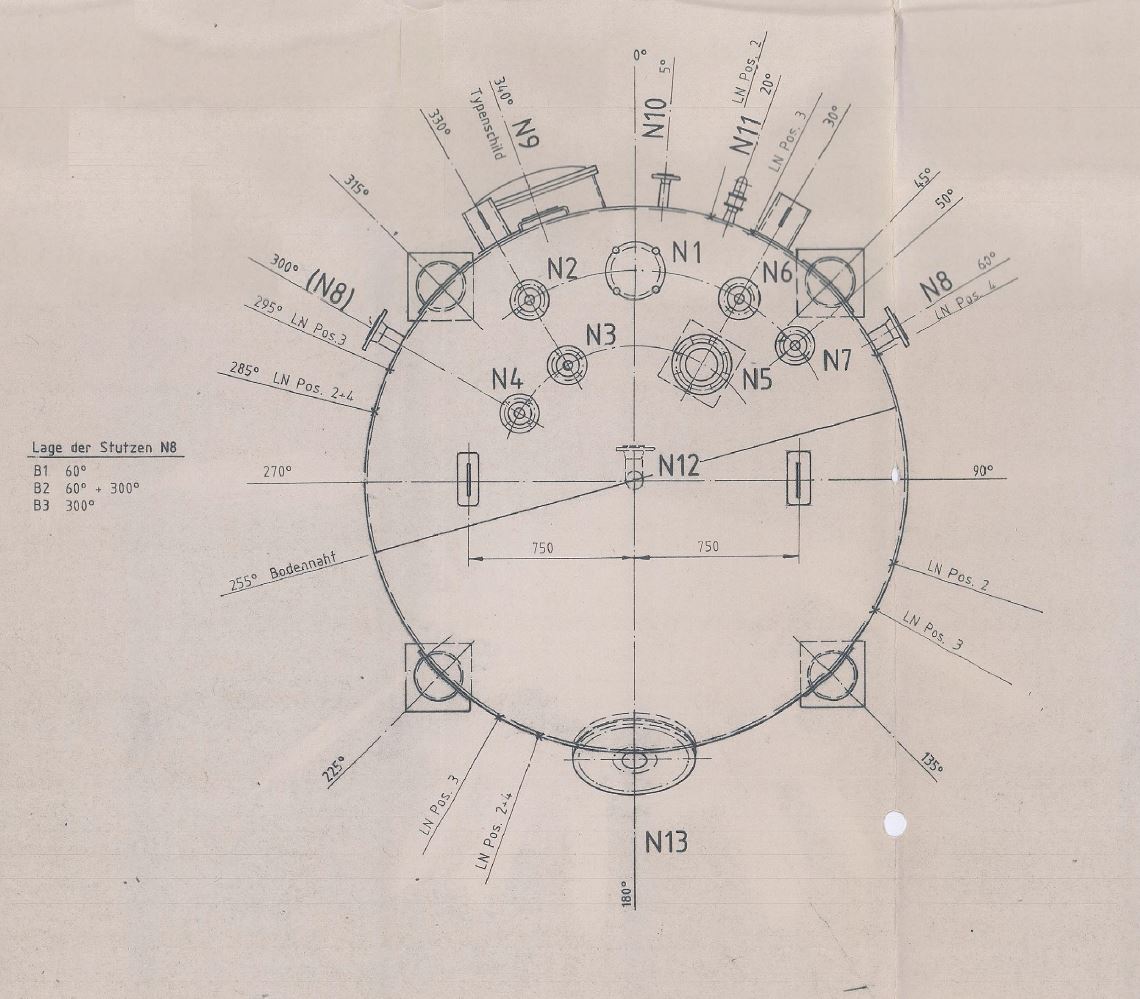

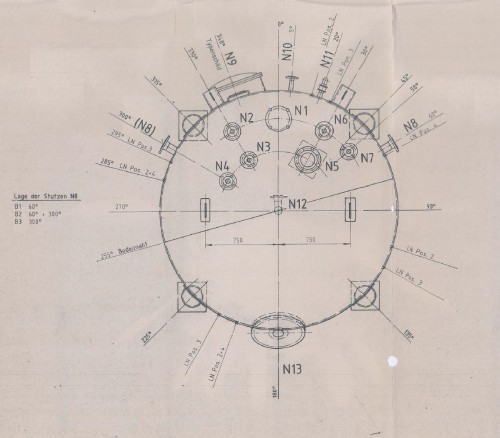

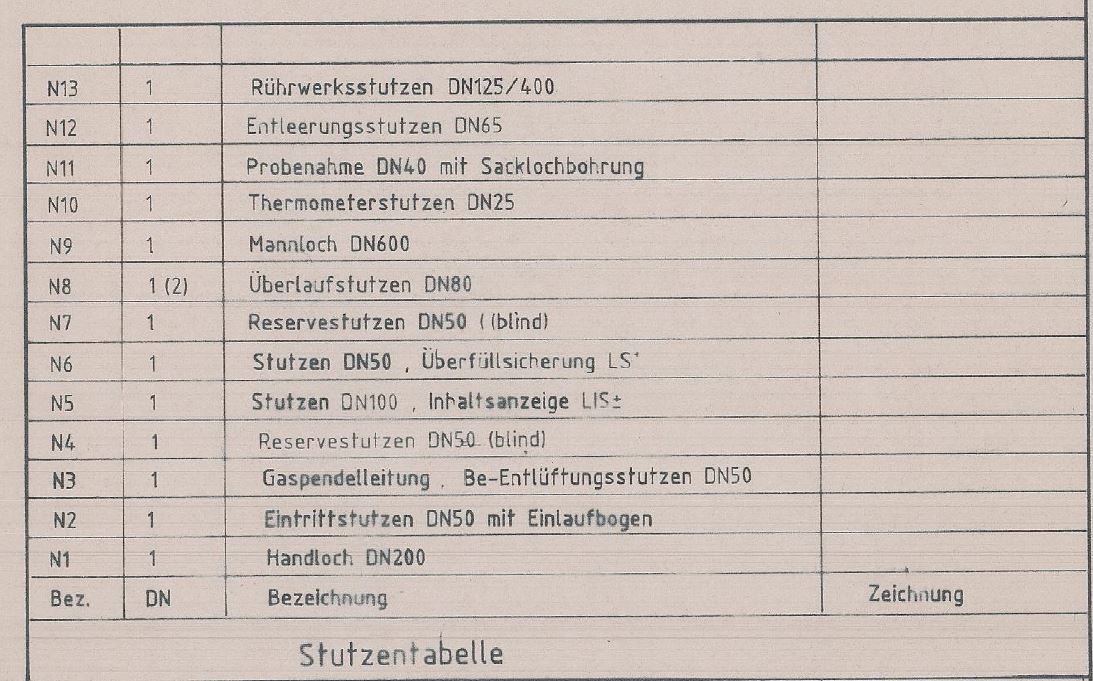

  • Nozzles/connectors in shell

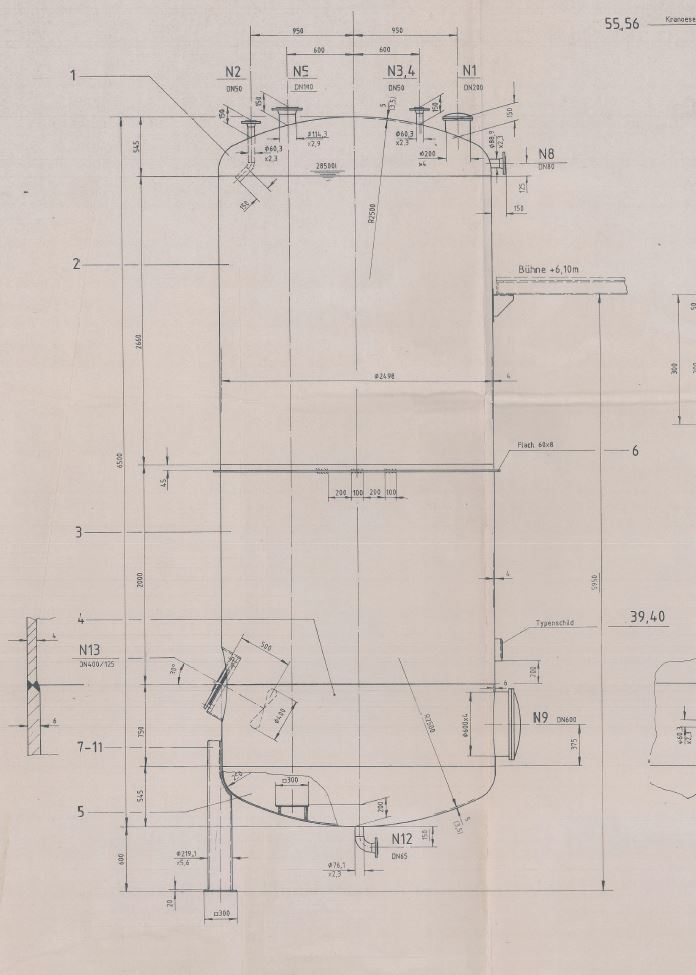

  • lt. Zeichnung (piece)

  • Nozzles/connectors in head

  • lt. Zeichnung (piece)

  • Nozzles/connectors in floor

  • lt. Zeichnung (piece)

  • Outlet nozzle

  • 65

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

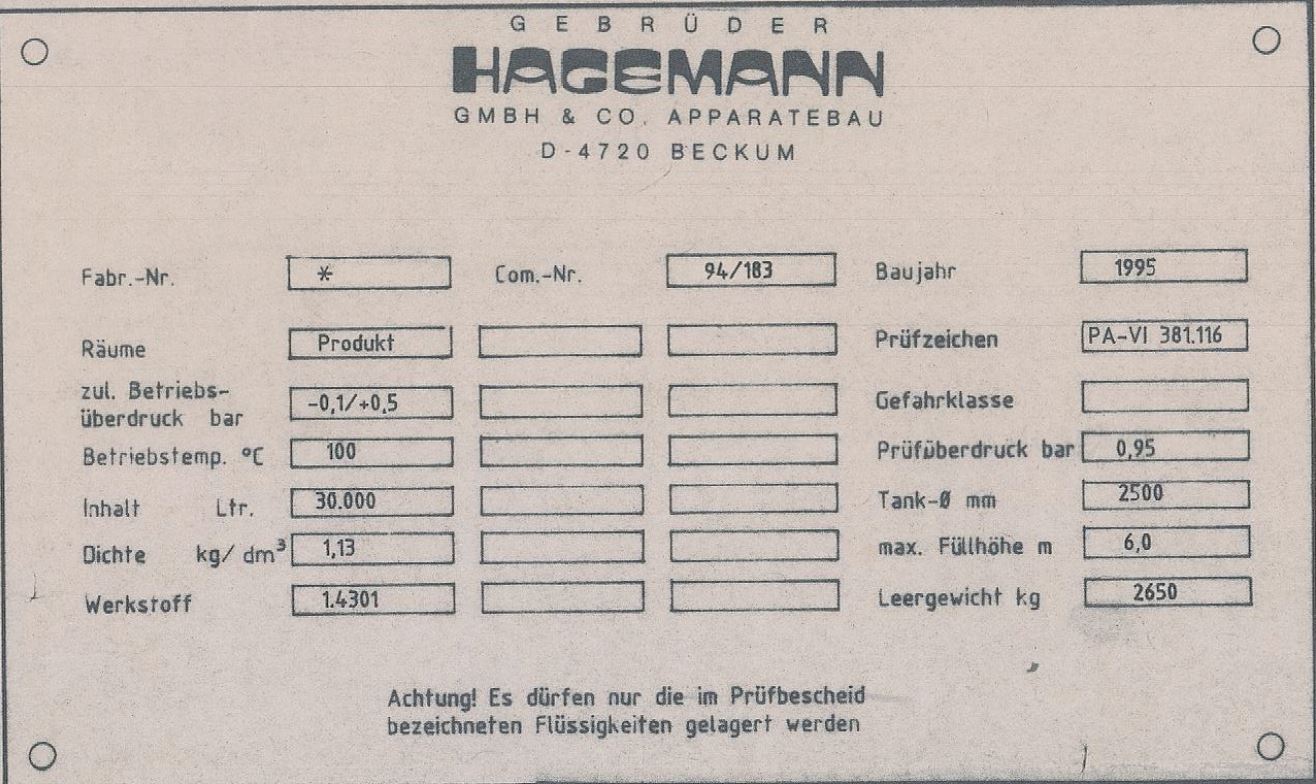

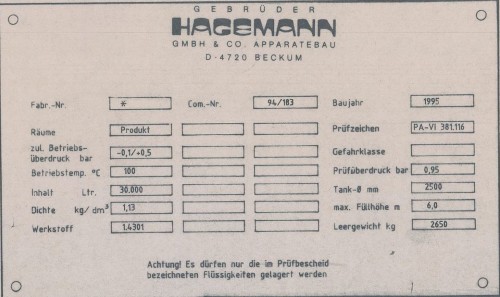

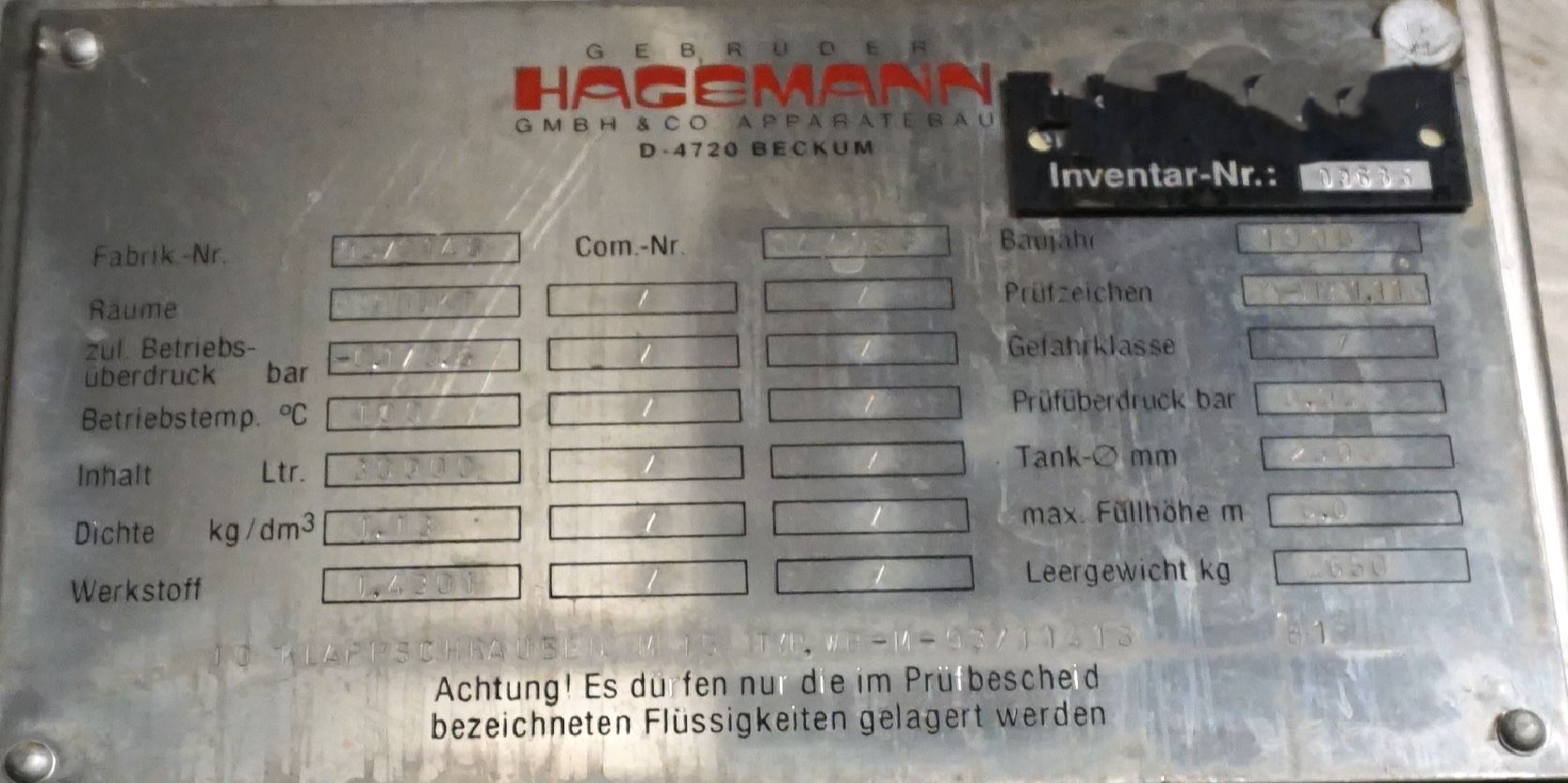

  • Nameplate

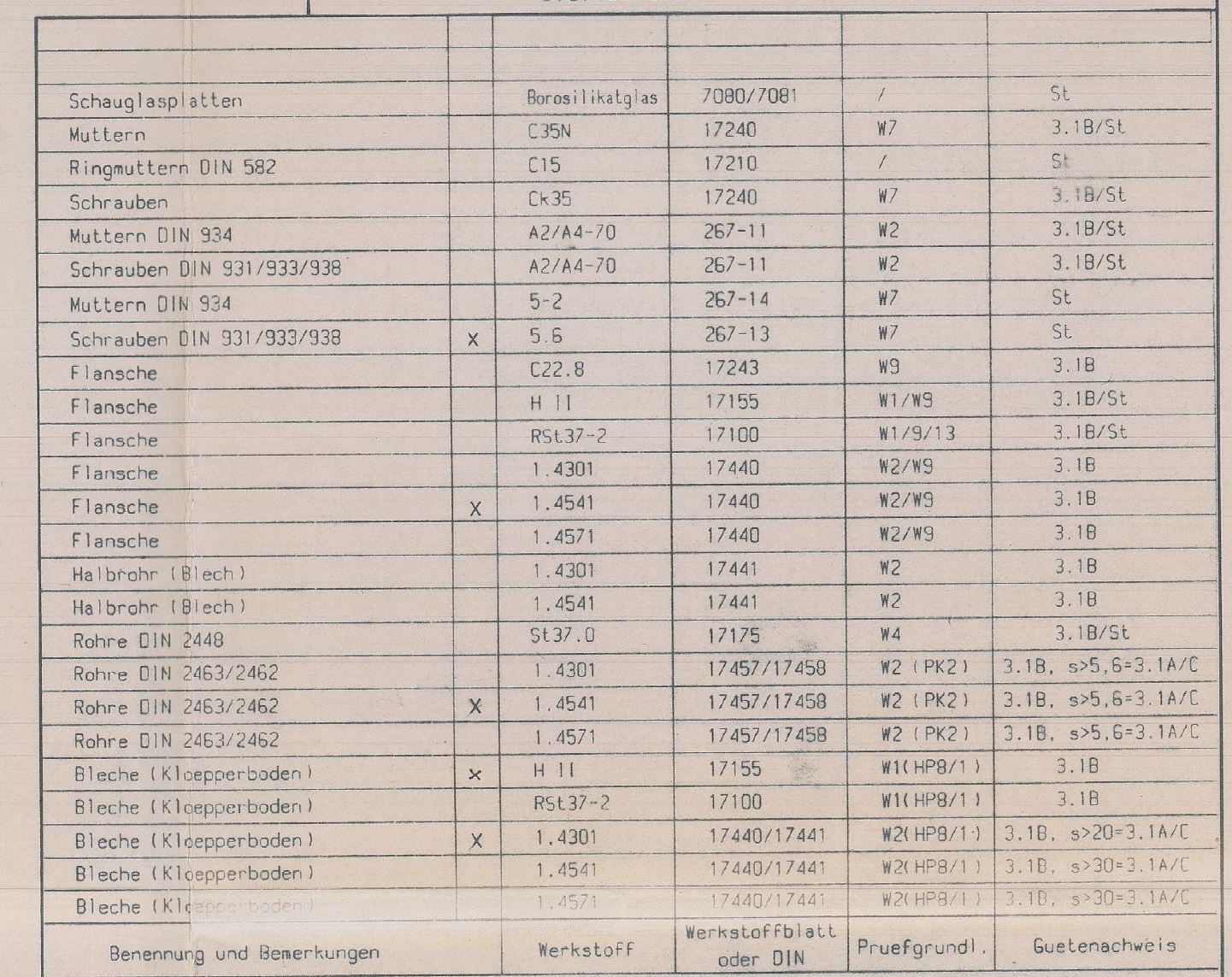

Technical documentation

  • Technical documentation

  • Designation

Other

  • Note

  • 3 baugleiche Tanks ohne Rührwerk siehe Art. 2979

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Pressure tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Pressure tank,
