Behälter 3.790 Liter aus V2A isoliert, temperierbar, gebraucht

Product no. M-2740

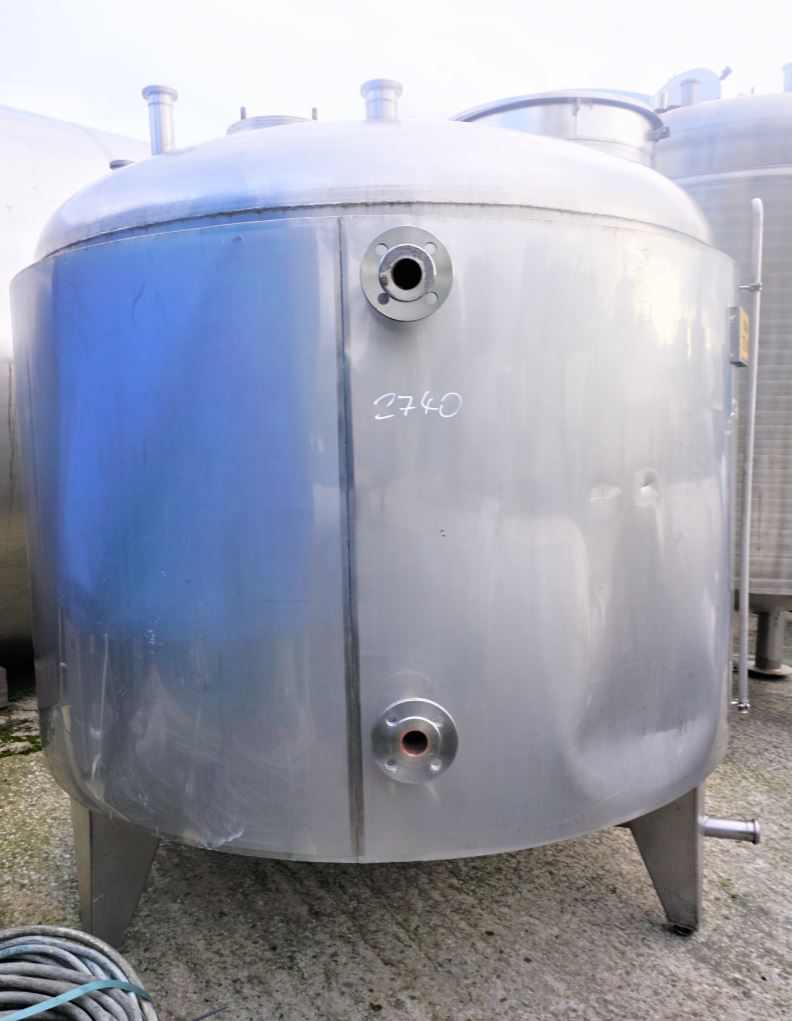

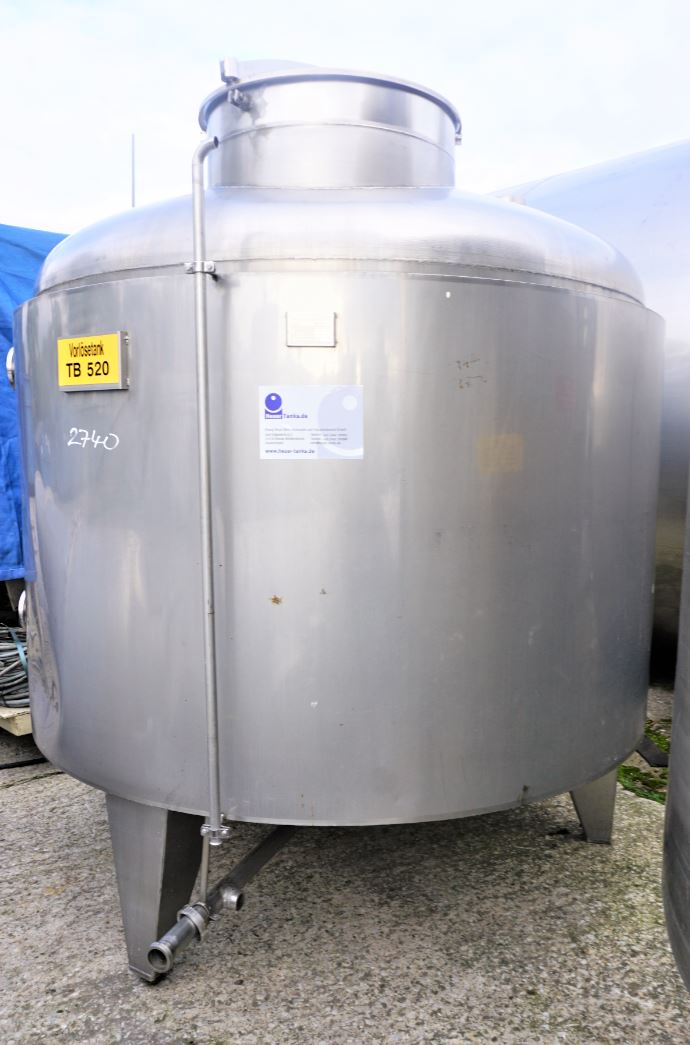

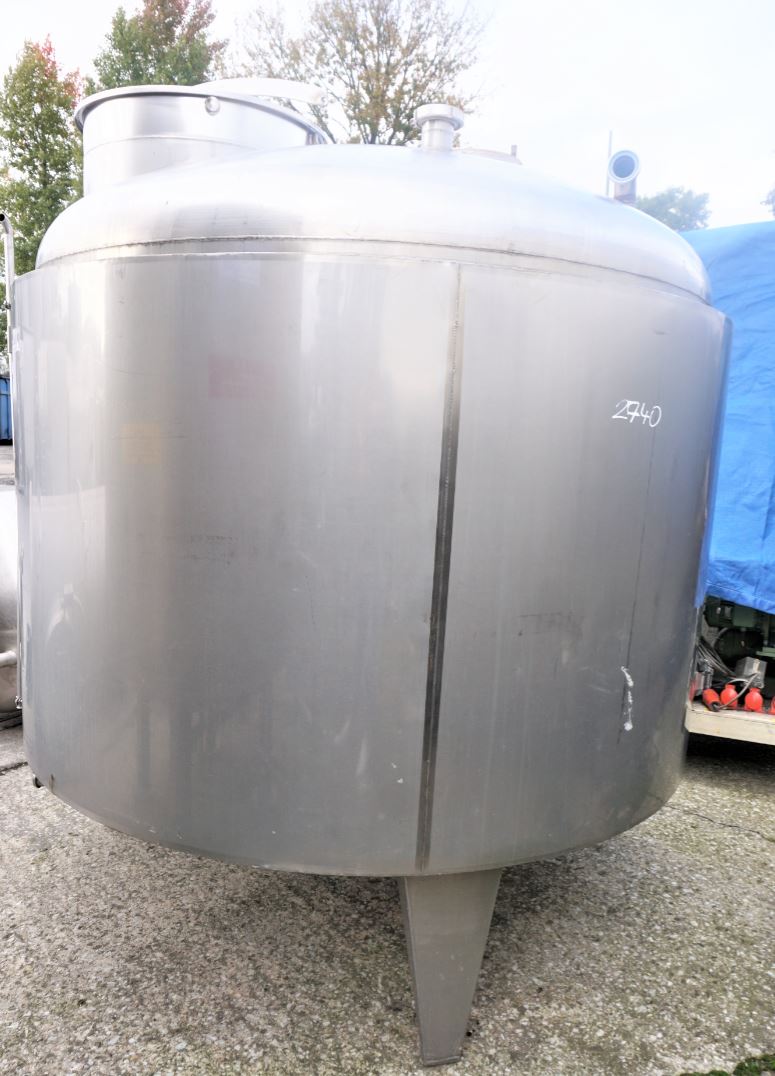

Container 3.790 liters made of V2A isolated, temperature-controllable, used, standing

EUR 7.200,00

add. 19 % VAT excl. shipping costs

Volume approx. 3,790.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 3.790 liters made of V2A isolated, temperature-controllable, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 3,790.00 litres. The diameter inside includes 1,800 mm. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Cooling, Tempering, Processes,

General

  • Volume approx.

  • 3.790,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2001

  • Manufacturer

  • Adrian

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.800 mm

  • External diameter

  • 1.910 mm

  • Cyl. height

  • 1.200 mm

  • Foot height

  • 530 mm

  • Total height

  • 2.600 mm

Design

  • Weight approx.

  • 1.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

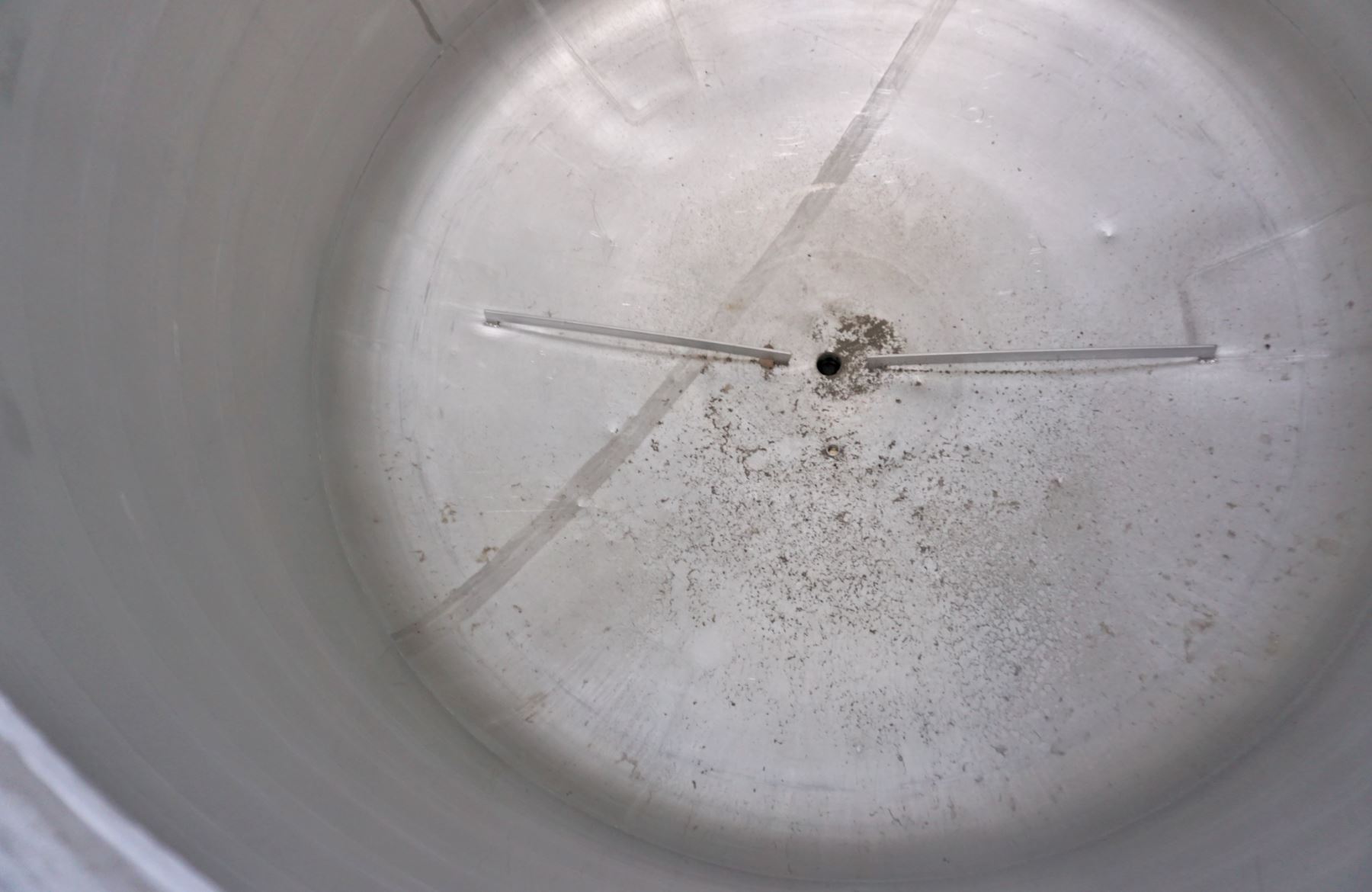

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

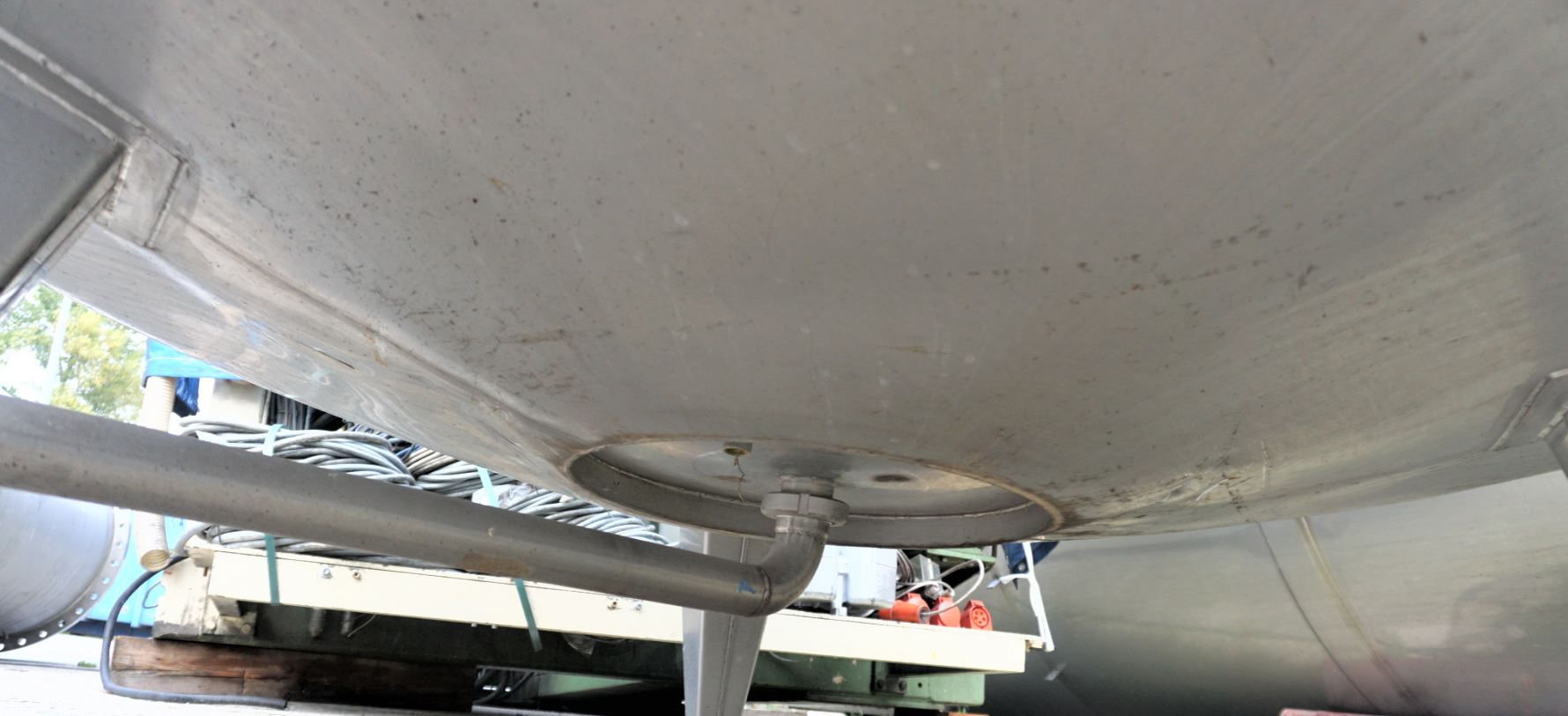

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell area

  • Temperature control system operating pressure/pipe chamber

  • 3,0 bar

  • Temperature control system operating temperature/pipe chamber

  • 145 °C

Agitator

  • Agitator quantity

  • 0 (piece)

  • Note on agitator

  • Rührwerk nich vorhanden

  • Agitator position

  • Head off-centre

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

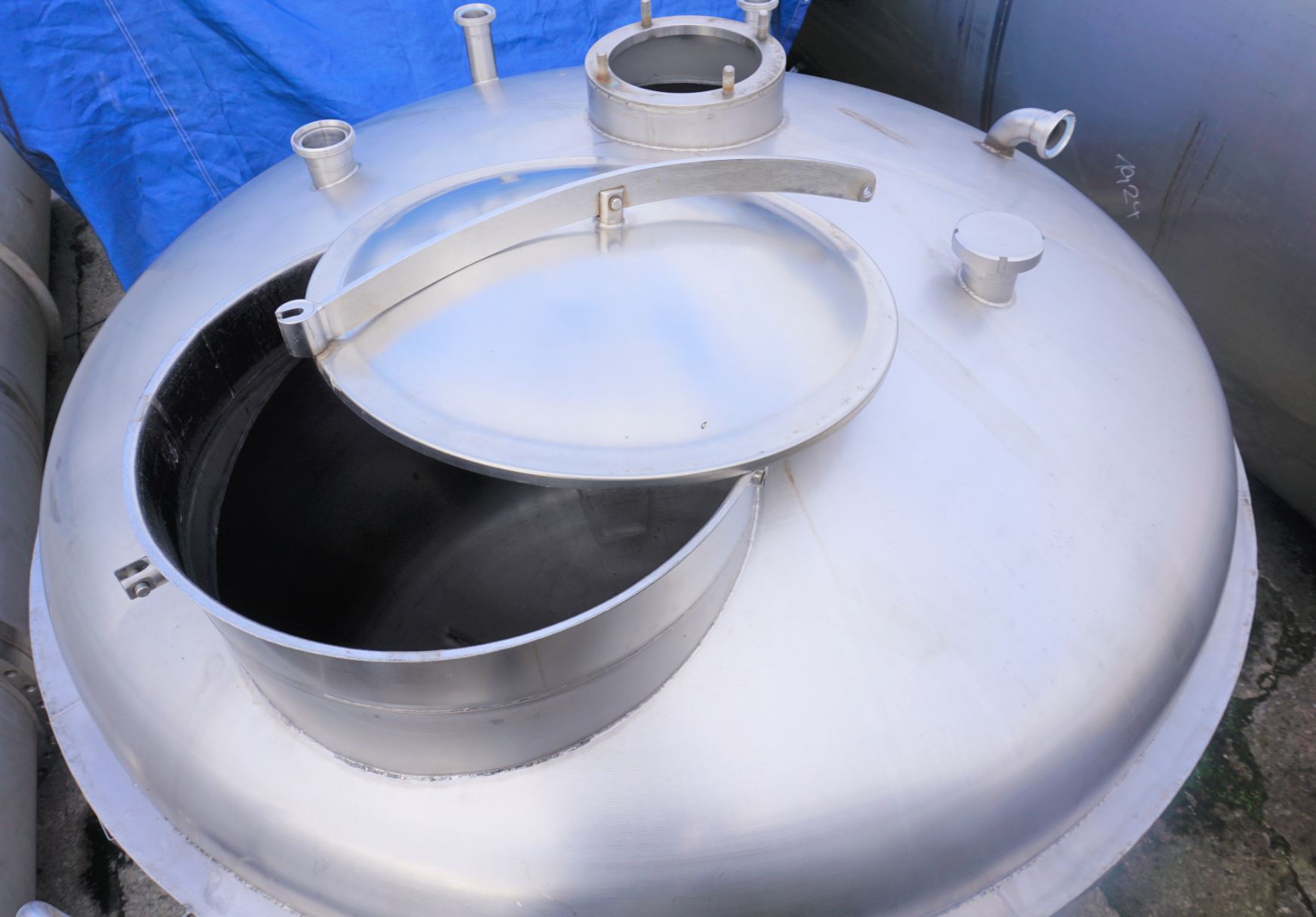

  • Manway 1 size

  • 600 DN mm

  • Manway position

  • In head

  • Nozzles/connectors in head

  • 3xDN50 2xDN65 (piece)

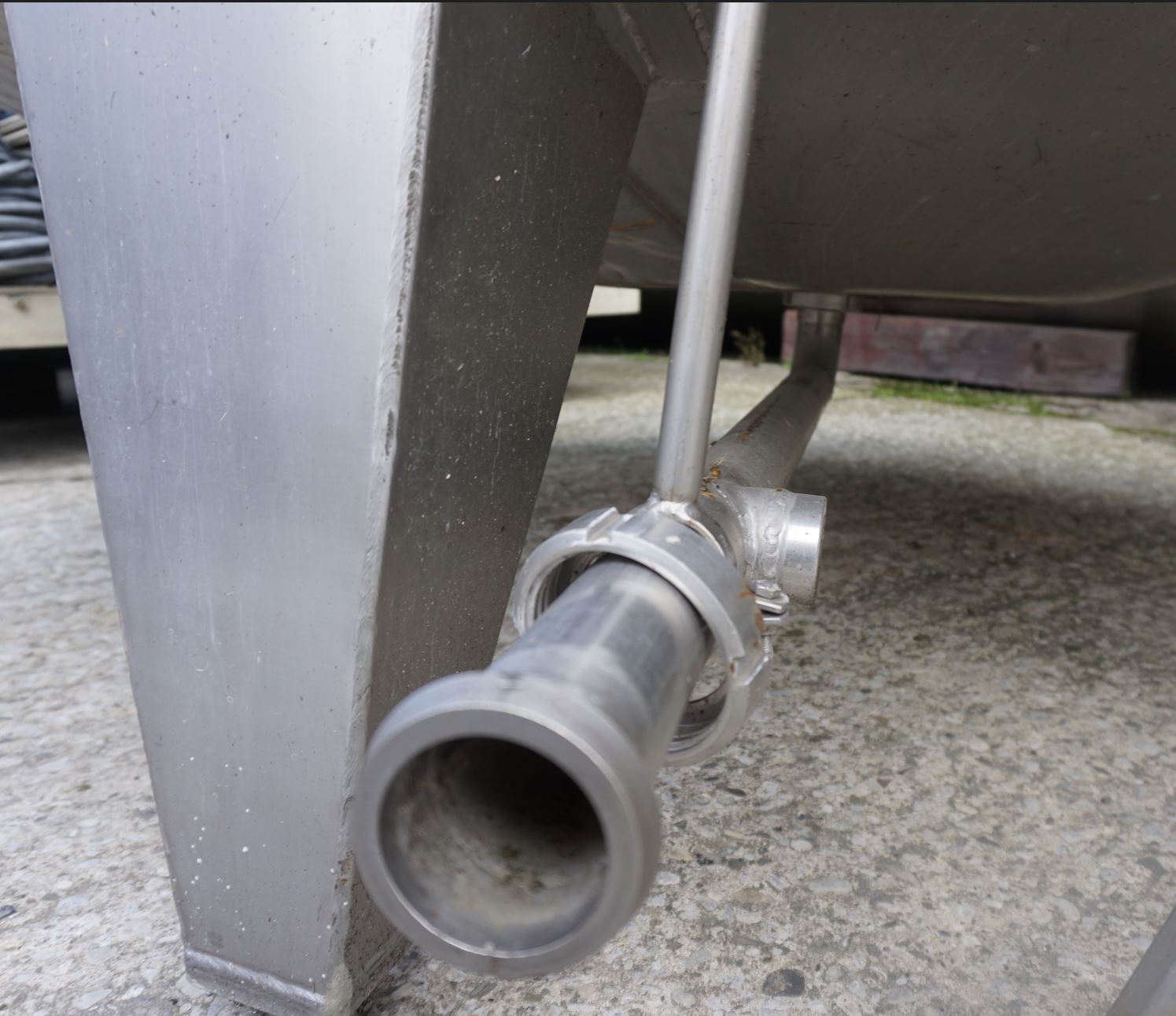

  • Outlet nozzle

  • 50

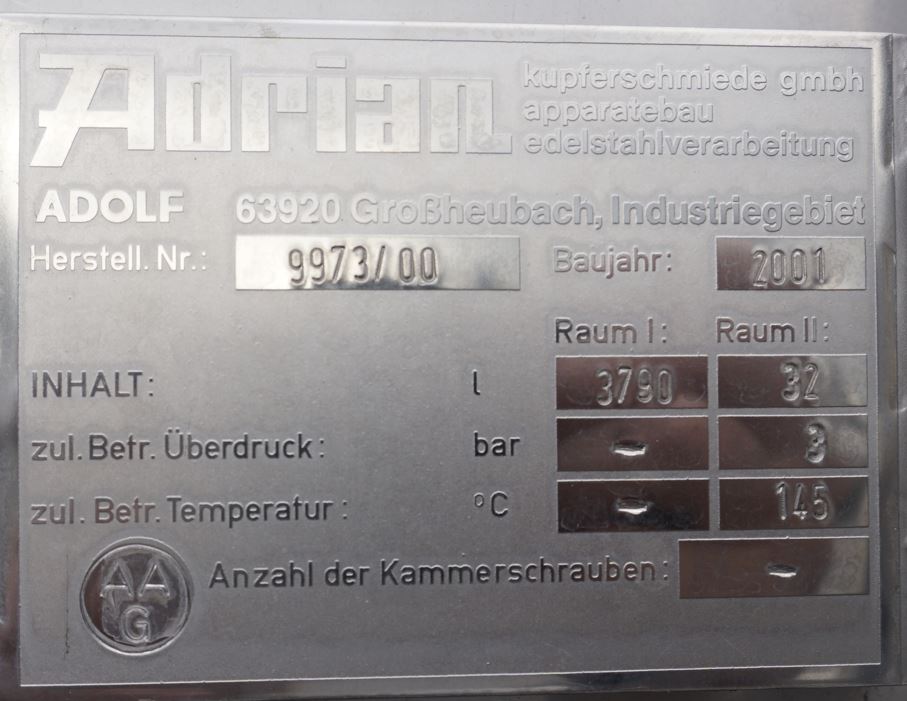

  • Additional fixtures and fittings

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Note

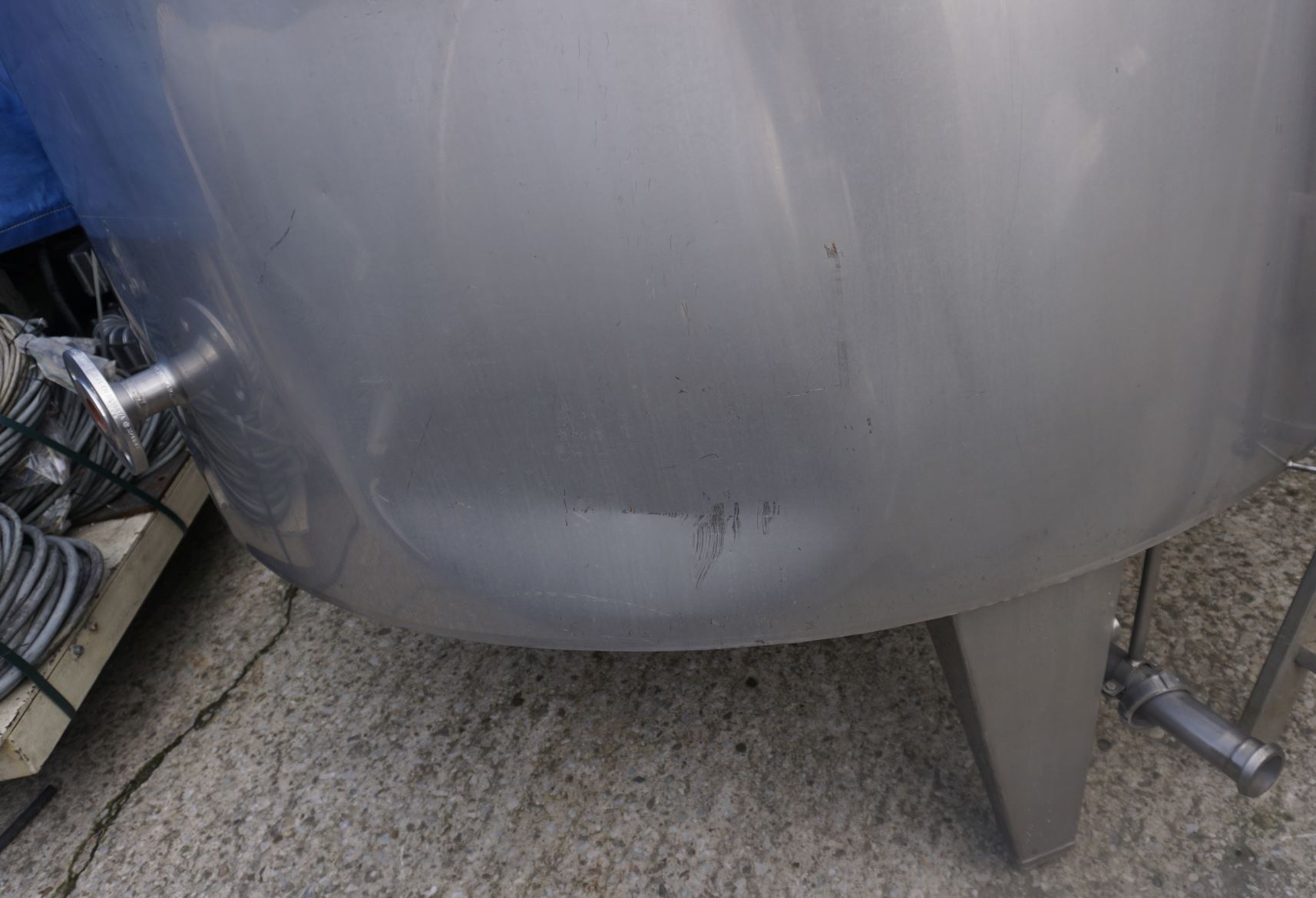

  • Mannloch mit losem Deckel, Beule seitlch im Mantel

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank, Cooling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank,
